8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

Chock the tires.

For vehicles with steel wheels,
remove the wheel ornament
using the wrench.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament, as

shown in the illustration.

Slightly loosen the wheel nuts
(one turn).

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

514

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

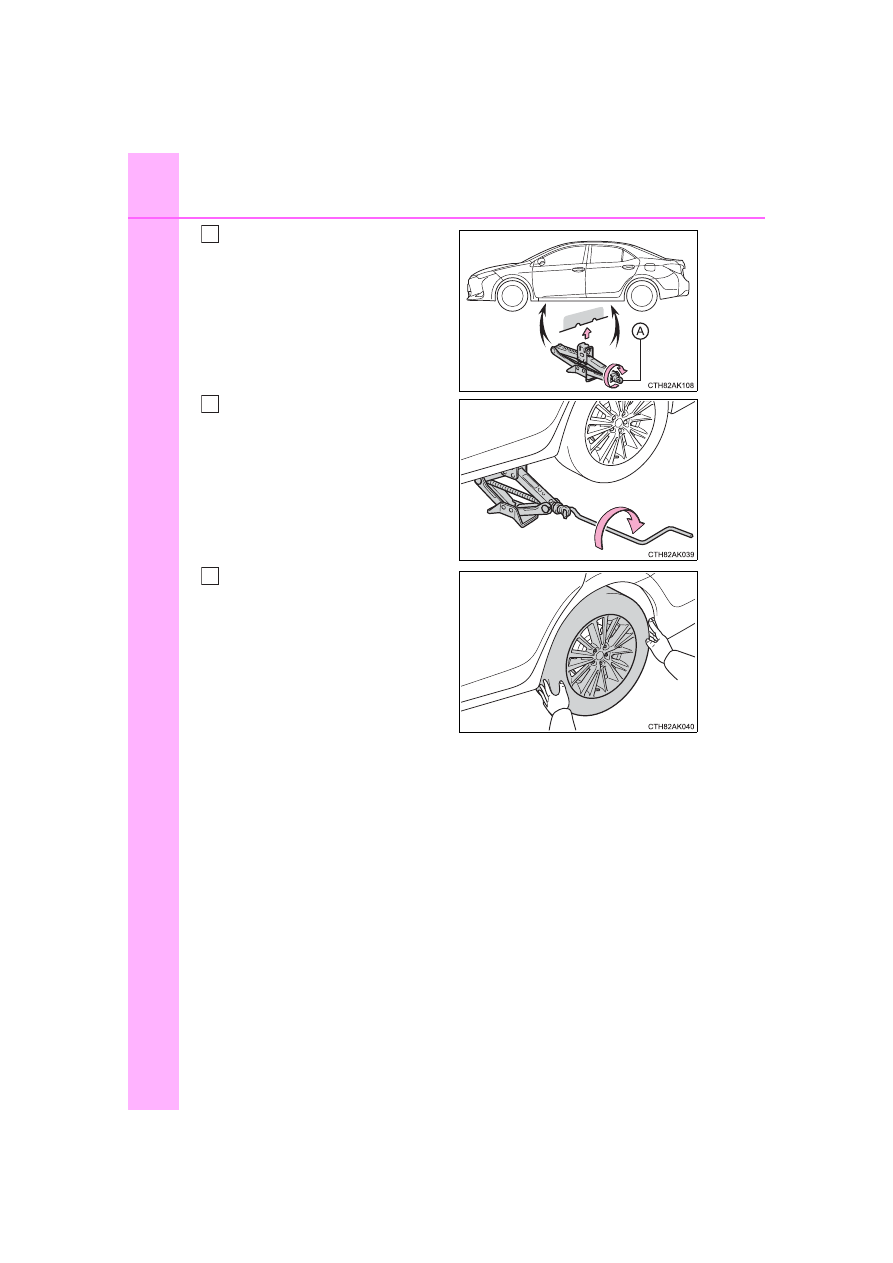

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.

The jack point guides are located

under the rocker panel. They

indicate the jack point positions.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

515

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103

N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward. (

P. 452)

516

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

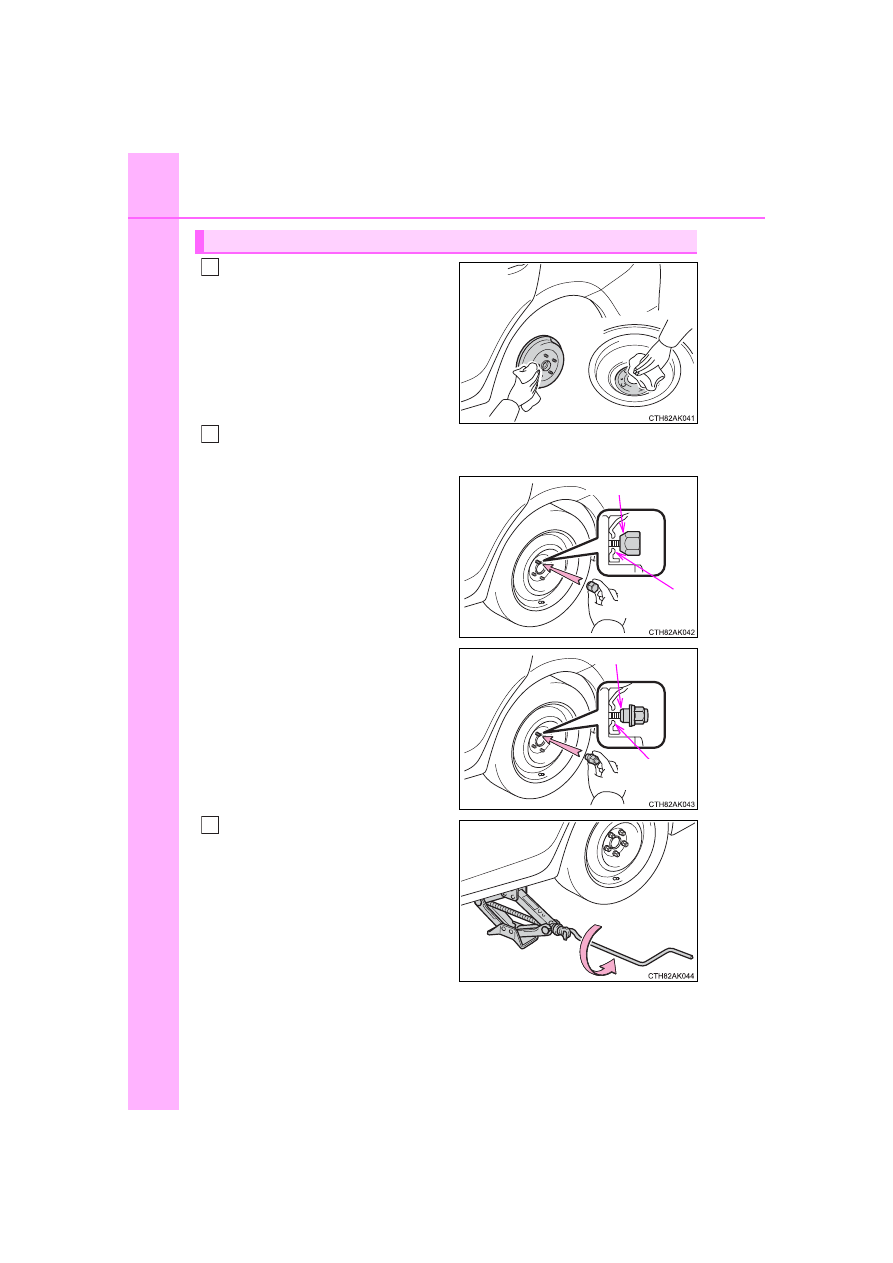

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  compact  spare  tire,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

When  replacing  an  aluminum
wheel  with  a  compact  spare
tire, tighten the wheel nuts until
the  tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

Tapered portion

Disc wheel

seat

Tapered portion

Disc wheel

seat

517

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

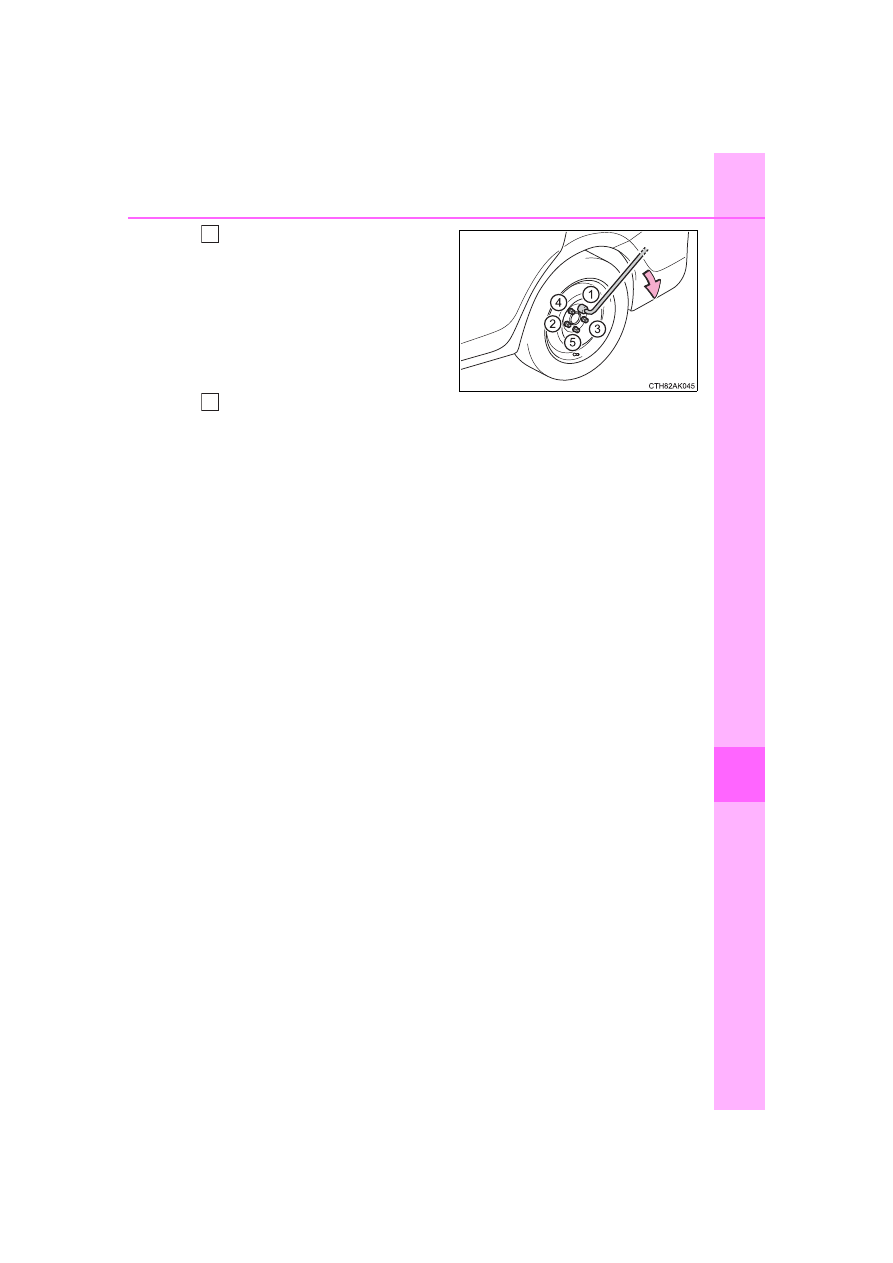

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

518

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

■

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(

P. 546)

■

When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires.

■

After completing the tire change (vehicles with a tire pressure warn-

ing system)
The tire pressure warning system must be reset. (

P. 442)

■

When using the compact spare tire (vehicles with a tire pressure

warning system)
As the compact spare tire is not equipped with a tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

■

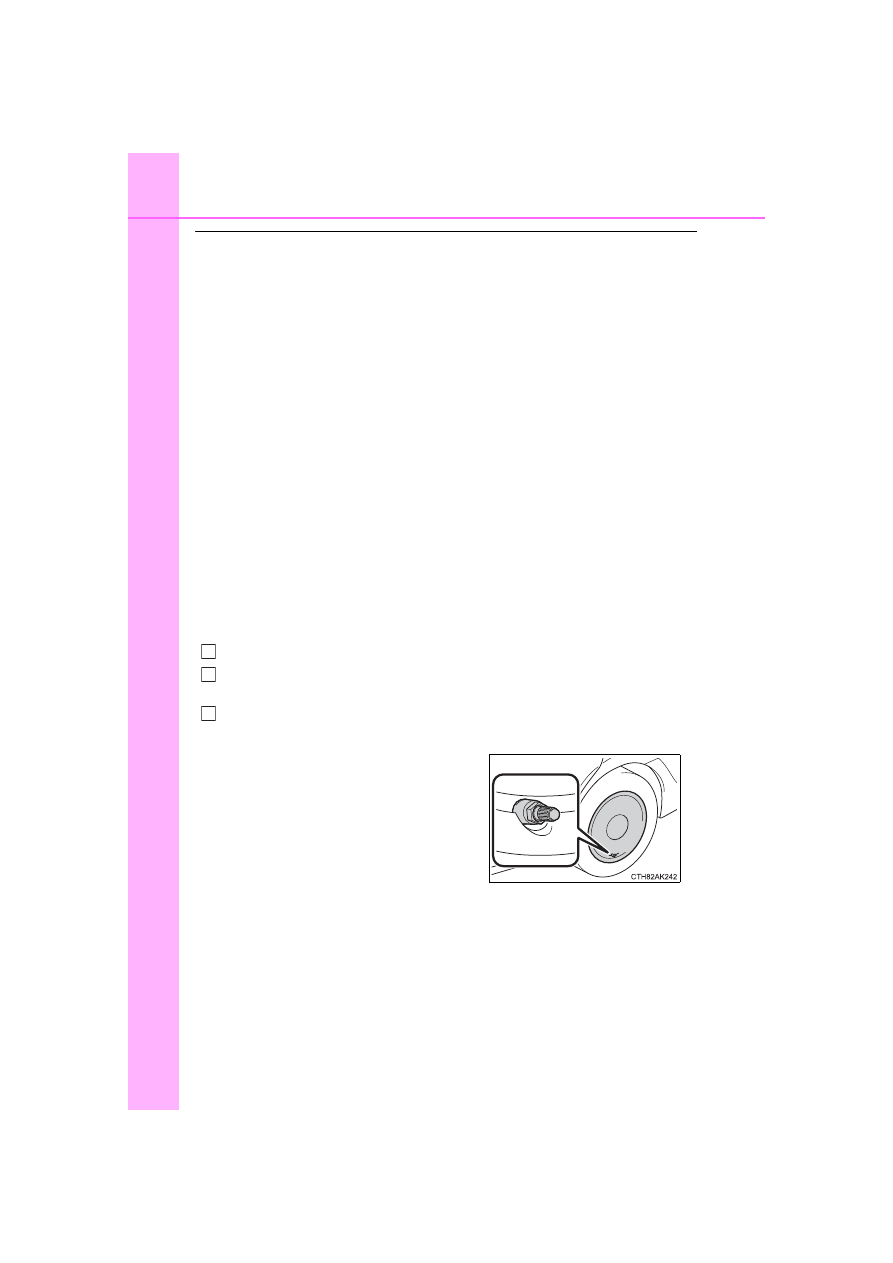

When reinstalling the wheel ornament (vehicles with steel wheels)
Align the cutout of the wheel ornament

with the valve stem as shown the illus-

tration.

519

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

WARNING

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

■

Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• Dynamic radar cruise control

• EPS

• LDA (Lane Departure Alert with

steering control)

• PCS (Pre-Collision System)

• Rear view monitor system

• Navigation system (if equipped)

520

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

NOTICE

■

Be careful when driving over bumps with the compact spare tire

installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■

Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires (vehicles with a tire pressure warning sys-

tem)
When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valves and transmit-

ters (vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 441)

521

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting procedures.
(

P . 171, 174)

● There may be a malfunction in the engine immobilizer system.

(

P. 67)

One of the following may be the cause of the problem:
● The battery may be discharged. (P. 526)
● The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
(

P. 522)

If the engine will not start

If the engine will not start even though correct starting proce-
dures are being followed (

P. 171, 174), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.

The starter motor does not turn over (vehicles with a smart key
system)

522

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 526)
● There may be a malfunction in the steering lock system (vehicles

with a smart key system).

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P (continuously variable transmission) or N
(manual transmission).
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal and clutch pedal (manual transmission)
firmly.

Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart key system)

523

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

Use the mechanical key (

P.

103) in order to perform the fol-
lowing operations:

Locks all the doors
Unlocks the door

Turning  the  key  rearward  unlocks
the  driver’s  door.  Turning  the  key
once  again  within  5  seconds
unlocks the other doors.

If the electronic key does not operate properly

(vehicles with a smart key system)

If communication between the electronic key and vehicle is
interrupted (

P. 125) or the electronic key cannot be used

because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the engine can be started by following the
procedure below.

Locking and unlocking the doors

524

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

Continuously variable transmission: Ensure that the shift lever is in
P and depress the brake pedal.
Manual  transmission:  Shift  the  shift  lever  to  N  and  depress  the
clutch pedal.
Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
engine switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  engine  switch  will  turn  to
ACCESSORY mode.

Firmly depress the brake pedal (continuously variable transmis-

sion) or clutch pedal (manual transmission) and check that

is shown on the multi-information display.
Press the engine switch.

In the event that the engine still cannot be started, contact your Toyota
dealer.

Starting the engine

525

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

■

Stopping the engine
Shift the shift lever to P (continuously variable transmission) or N (manual
transmission) and press the engine switch as you normally do when stopping
the engine.

■

Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(

P. 455)

■

Changing engine switch modes
Release the brake pedal (continuously variable transmission) or clutch pedal
(manual transmission) and press the engine switch in step

above.

The engine does not start and modes will be changed each time the switch is
pressed. (

P. 176)

■

When the electronic key does not work properly

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features

P. 564)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(

P. 124)

526

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Vehicles with an alarm: Confirm
that the electronic key (vehicles
with a smart key system) or key
(vehicles without a smart key
system) is being carried.

When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (

P. 70)

Open the hood. (

P. 425)

Remove the engine cover.
Raise the rear of the engine
cover to remove the two rear
clips, and then raise the front of
the engine cover to remove the
two front clips.

If the vehicle battery is discharged

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

527

8-2. Steps to take in an emergency

Wh
en tro

uble

ris

COROLLA_TMMMS_TMMC_U

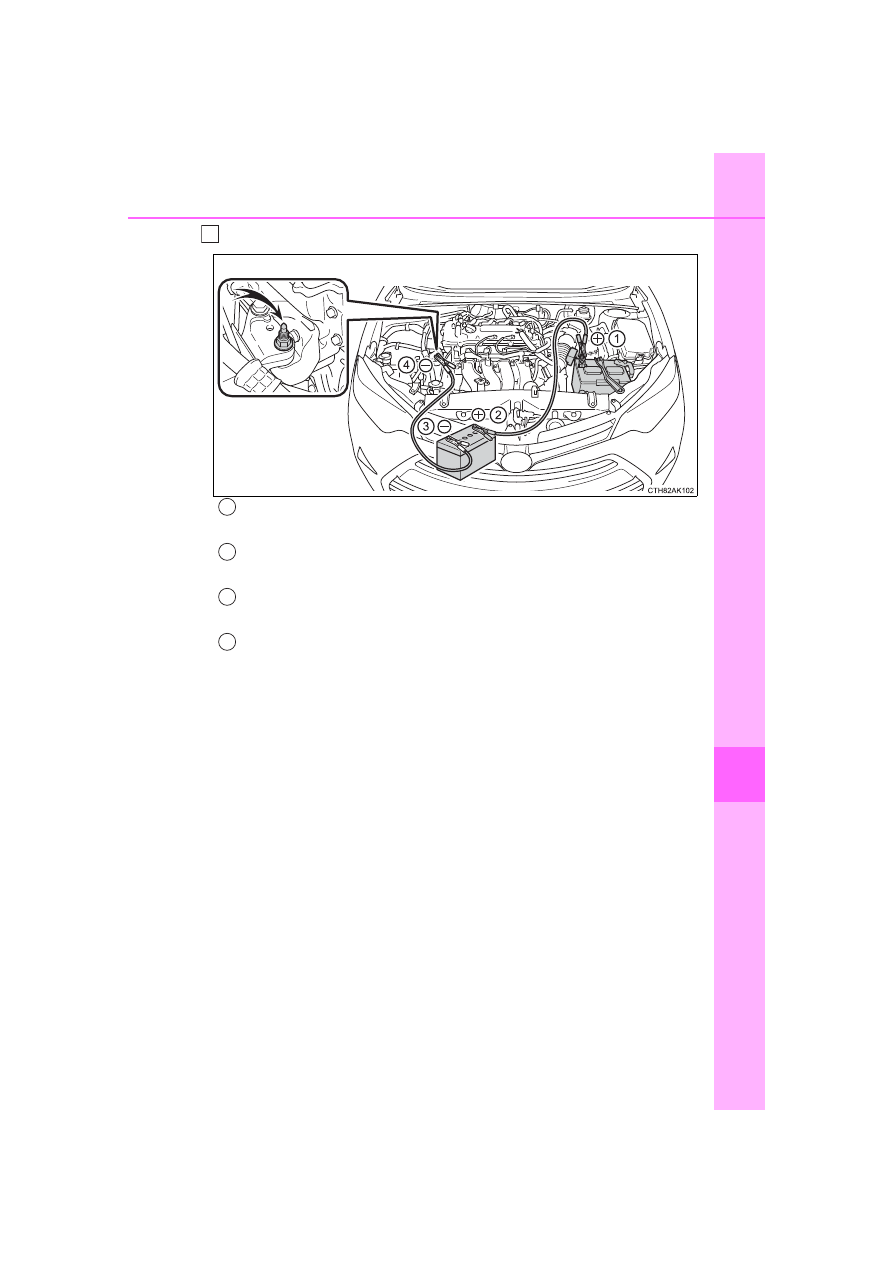

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

528

8-2. Steps to take in an emergency

COROLLA_TMMMS_TMMC_U

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the battery of your vehicle.
Vehicles with a smart key system: Open and close any of the doors
of your vehicle with the engine switch off.
Vehicles without a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine  switch  to  IGNITION  ON  mode,  then  start  the  vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.

Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.

Toyota Corolla (2019 year). Instruction - part 33
