OVERVIEW

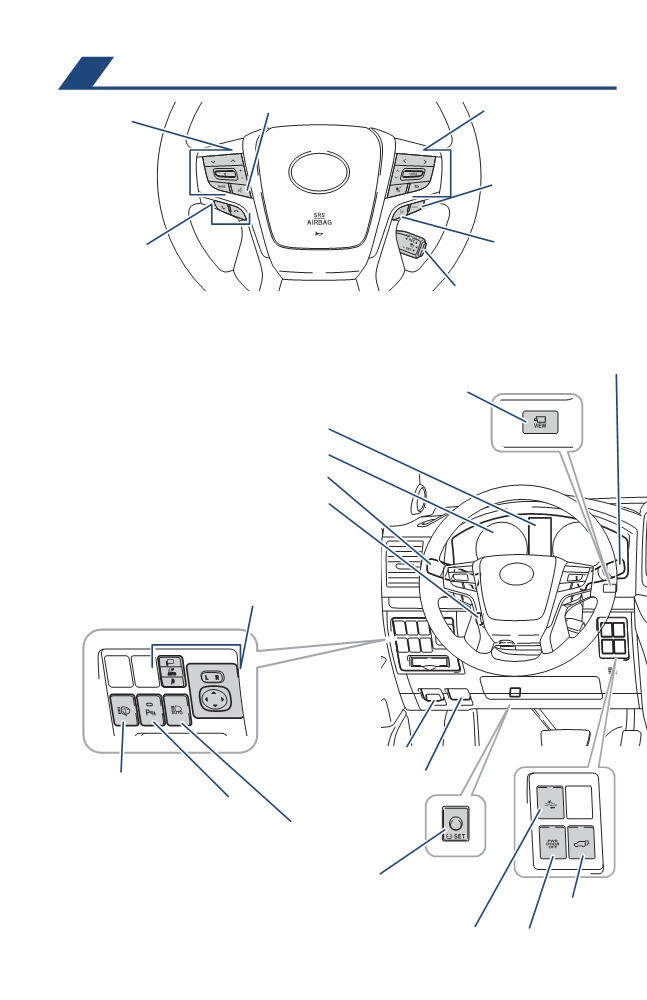

Instrument panel
Voice Command switch2
Meter control switches
Audio control
switches2
Dynamic Radar Cruise
Control (DRCC)
vehicle-to-vehicle
distance button
Lane Departure
Telephone switches2
Alert (LDA) switch
Dynamic Radar Cruise Control
(DRCC)/Cruise control switch
Steering wheel controls
Windshield wiper and washer controls
Multi-terrain monitor switch (VIEW)
Multi-Information Display (MID)
Meters
Headlight, turn signal & front fog light controls
Tilt and telescopic steering control switch
Power outside rear view mirror switches
Fuel tank door release lever
Headlight cleaner switch
Hood lock release lever
Intuitive parking assist switch
Automatic High Beam (AHB) switch
Tire Pressure Monitoring
(warning) System reset switch1
Power back
door switch1
Pre-Collision System
Power back door
(PCS) switch
main switch1
2
1 If equipped
2 For details, refer to the “Navigation System Owner’s Manual” and “2019 Entune™ Audio
Quick Reference Guide.”

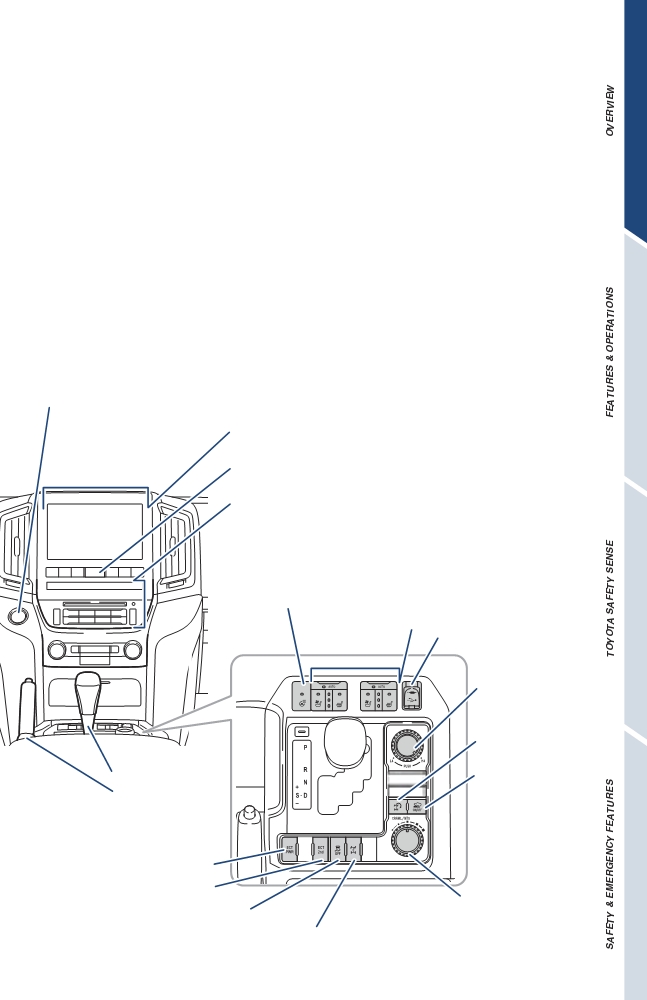

“ENGINE START STOP” button (Smart Key)
Audio/Navigation2 system
Emergency flasher button
Air conditioning controls
Heated steering wheel switch
Front seat heater/ventilator switches
USB media/AUX port
Four-wheel drive
control switch
Turn Assist switch
Shift lever
Crawl control
switch
Parking brake
POWER mode switch
Second start mode switch
Multi-terrain Select mode selector/
VSC OFF switch
Crawl Control speed mode dial
Center differential lock/unlock switch
3
OVERVIEW

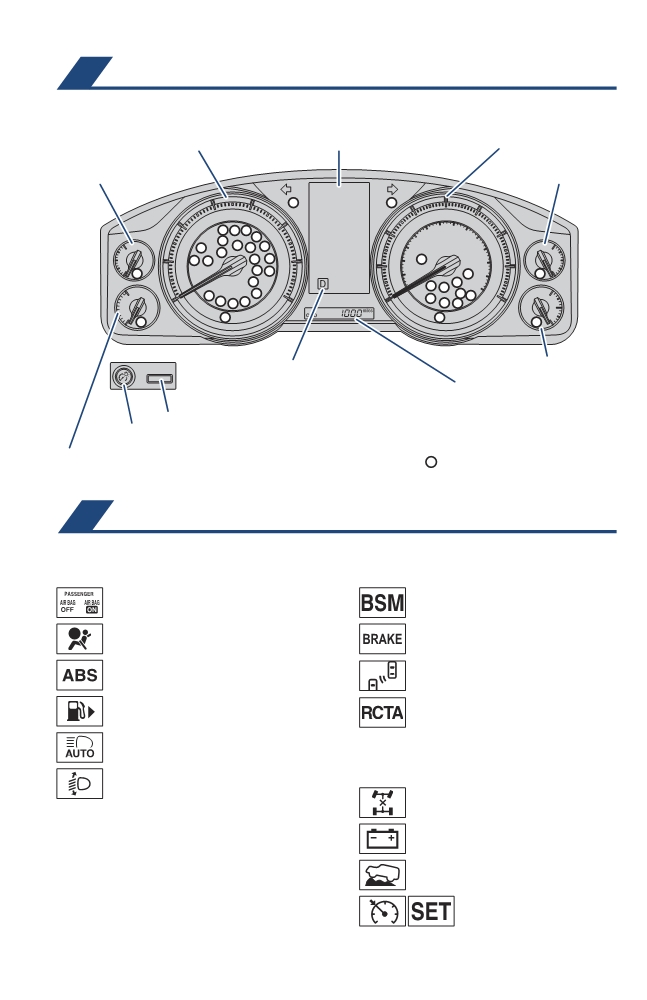

Instrument cluster
Vehicles with a monochrome display
Multi-Information Display (MID)
Tachometer
Speedometer
Engine oil pressure gauge
Voltmeter
Shift position and range display
Fuel gauge
Odometer and trip meter display
Odometer/trip meter display change button
Instrument panel light control dial
Engine coolant temperature gauge
Service indicators and reminders

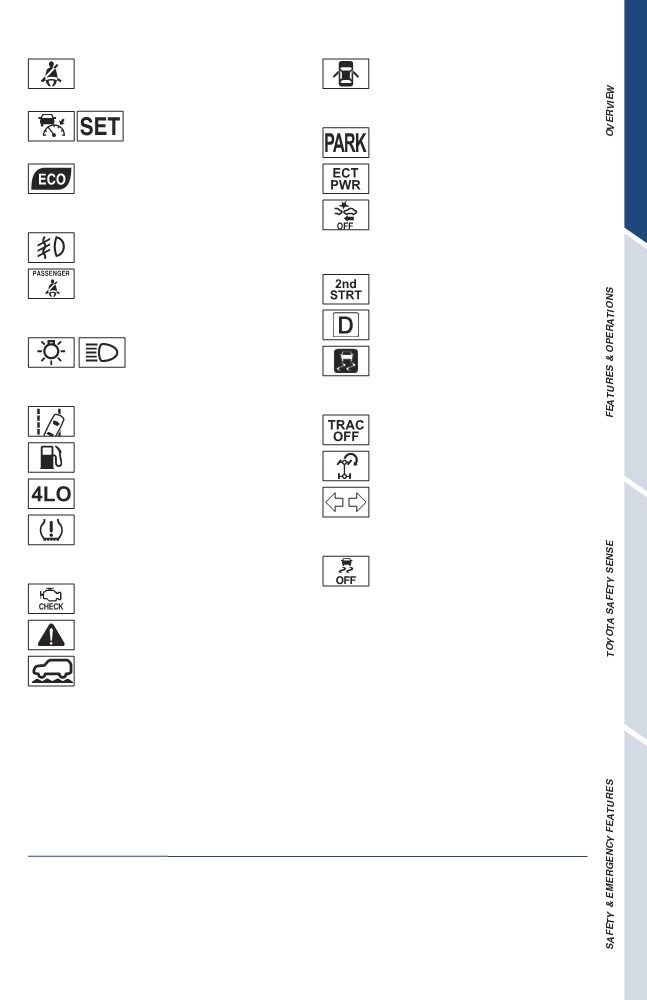

Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Blind Spot Monitor (BSM)
AIR BAG ON-OFF indicator1
indicator4
Airbag SRS warning1
Brake system warning1
Anti-lock Brake System (ABS)
BSM outside rear view mirror
warning1
indicators4
Arrow direction indicates fuel
BSM w/Rear Cross Traffic Alert
tank door position
(RCTA) Indicator4
Auto High Beam (AHB) indicator
Automatic headlight leveling system
warning1
Center differential lock indicator
Charging system warning1
Crawl Control indicator1
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
4
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Open door warning
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
Parking brake indicator
ECO driving indicator1
Power mode indicator
Pre-Collision System (PCS)
warning1,2
Fog light indicator
Front passenger seat belt reminder
Second start indicator (Automatic
(alarm will sound if speed is over 12 mph)
Transmission)
Shift position and range indicators
Headlight low/high beam
indicator
Slip indicator1,3
Lane Departure Alert (LDA) indicator
TRAC OFF indicator1
Low fuel level warning
Turn assist function indicator
Low speed four-wheel drive indicator
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control (VSC) OFF
indicator1
Malfunction/Check Engine indicator1
Master warning1,2
Multi-terrain select indicator
1 If the
indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.
3 If the indicator flashes, it indicates that the system is operating.
4 If equipped.
5
OVERVIEW
Keyless entry

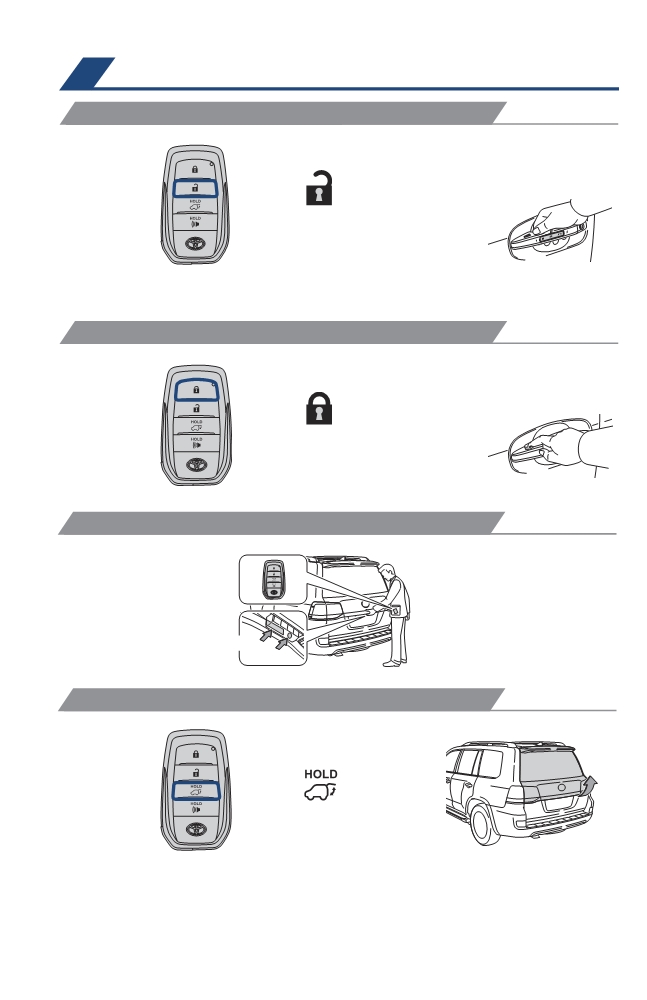

UNLOCKING OPERATION
Carry remote
Smart Key
Front door unlock*
Grasp
Push
ONCE: Driver door
TWICE: All doors
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
LOCKING OPERATION
Carry remote
Smart Key
All-door lock
Touch
Push
BACK DOOR LOCK/UNLOCK
Carry remote
Smart Key
Unlock
Lock
POWER BACK DOOR (IF EQUIPPED)
Push and hold
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors.
Please refer to the Owner’s Manual for more details on how to program the doors.
NOTE: Doors may also be locked/unlocked using remote.
6
PANIC BUTTON
Push and hold

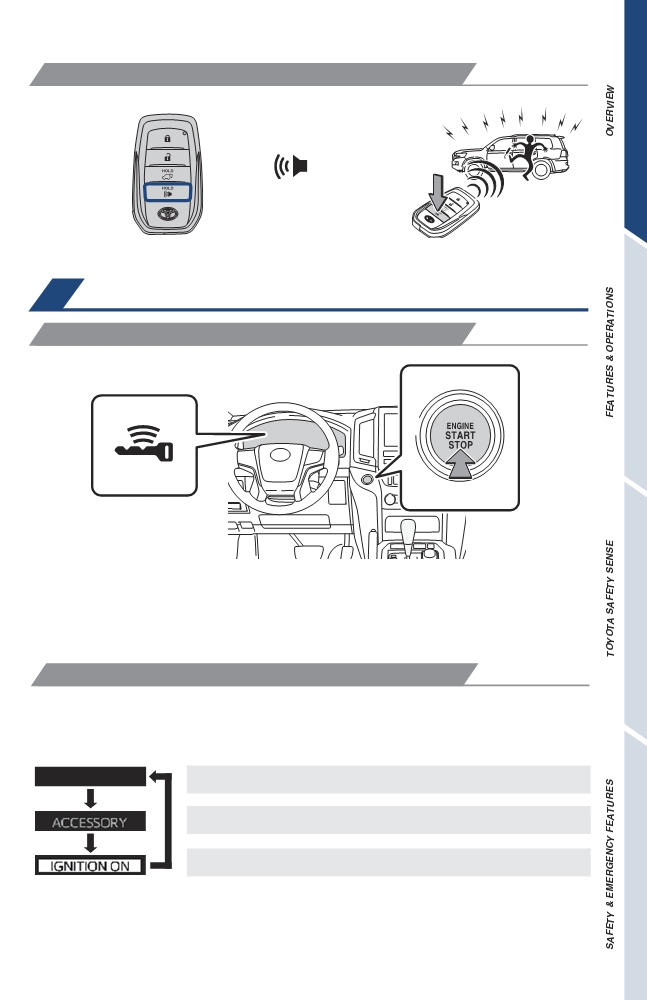

Smart Key system
START FUNCTION
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
POWER (WITHOUT STARTING ENGINE)
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory - Some electrical components can be used.
On - All electrical components can be used.
7
OVERVIEW

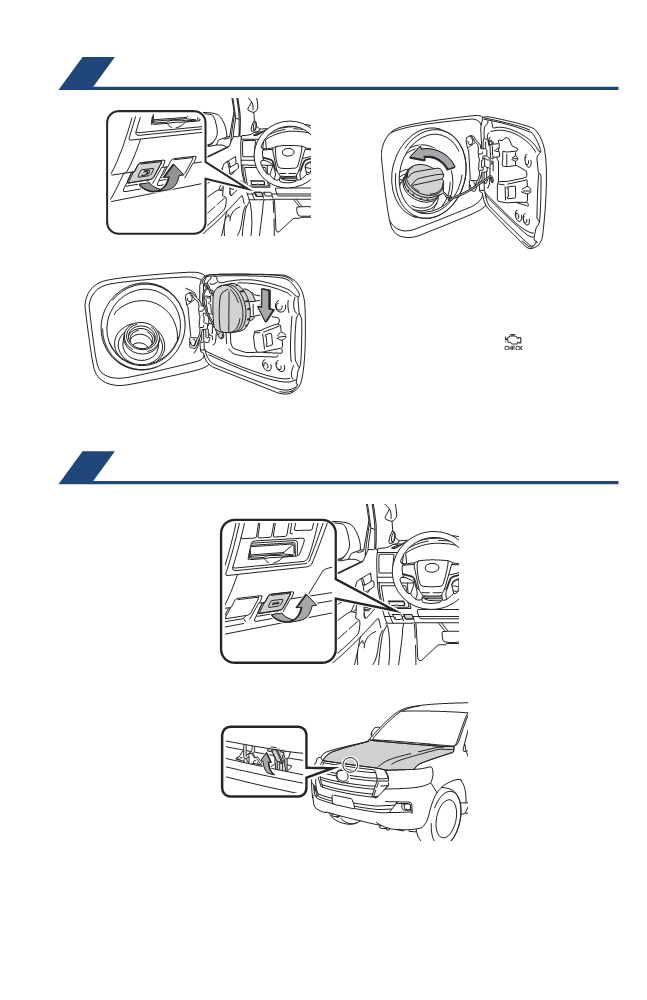

Fuel tank door release and cap
Pull
Turn to open
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may
Store
illuminate.
Hood release
Pull
Pull up latch and
raise hood
8
Instrument panel light control
Brightness
+
control
-

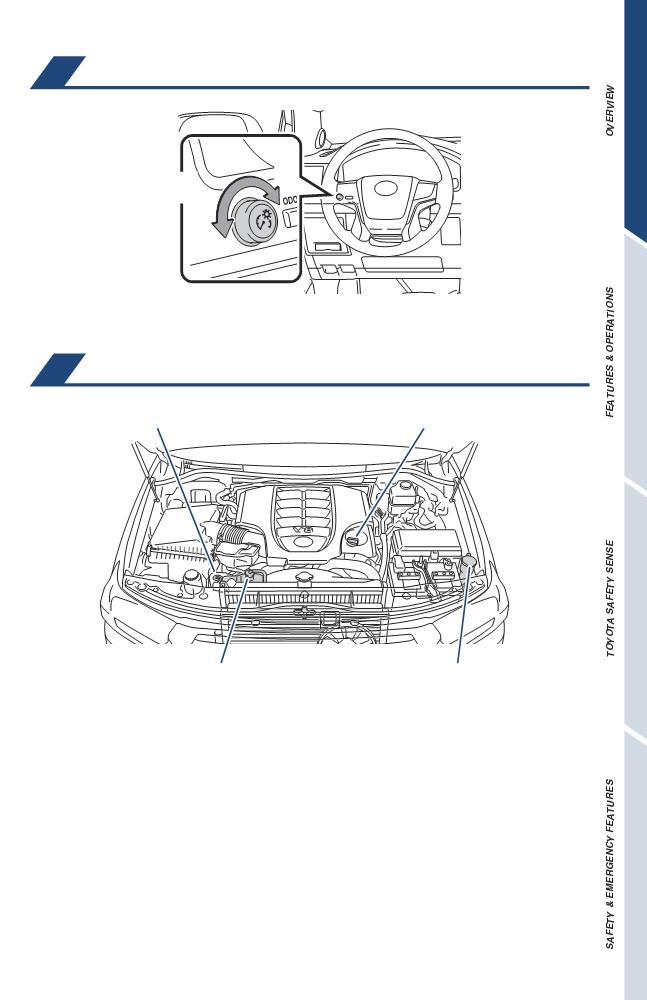

Engine maintenance
Engine oil level dipstick
Engine oil filler cap
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
9
FEATURES & OPERATIONS
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-(Vehicles with a Smart Key system) Doors unlock when the driver’s door is opened
within 45 seconds after turning the “ENGINE START STOP” switch OFF.
-(Vehicles without a Smart Key system) Doors unlock when the driver’s door is
opened within 45 seconds after turning the ignition switch to the “ACC” or “LOCK”
position.
Refer to the Owner’s Manual for more details.

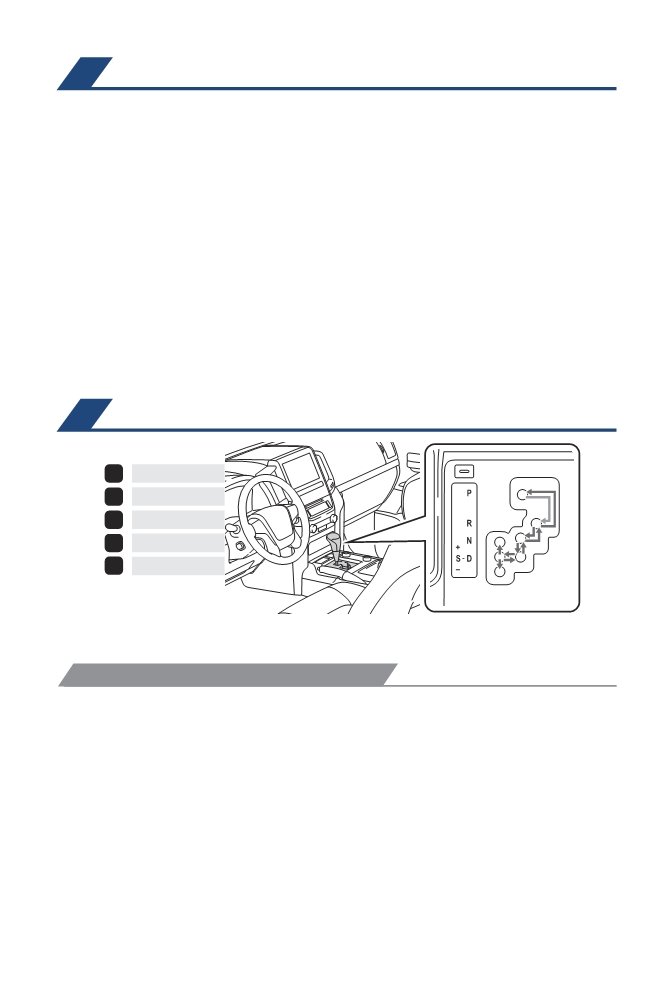

Automatic transmission
P
Park*
R
Reverse
N
Neutral
D
Drive
S
“S” mode
* The “ENGINE START STOP” switch/ignition switch must
be “ON” and the brake
pedal depressed to shift from Park.
“S” (SEQUENTIAL) MODE
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
-
: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
10

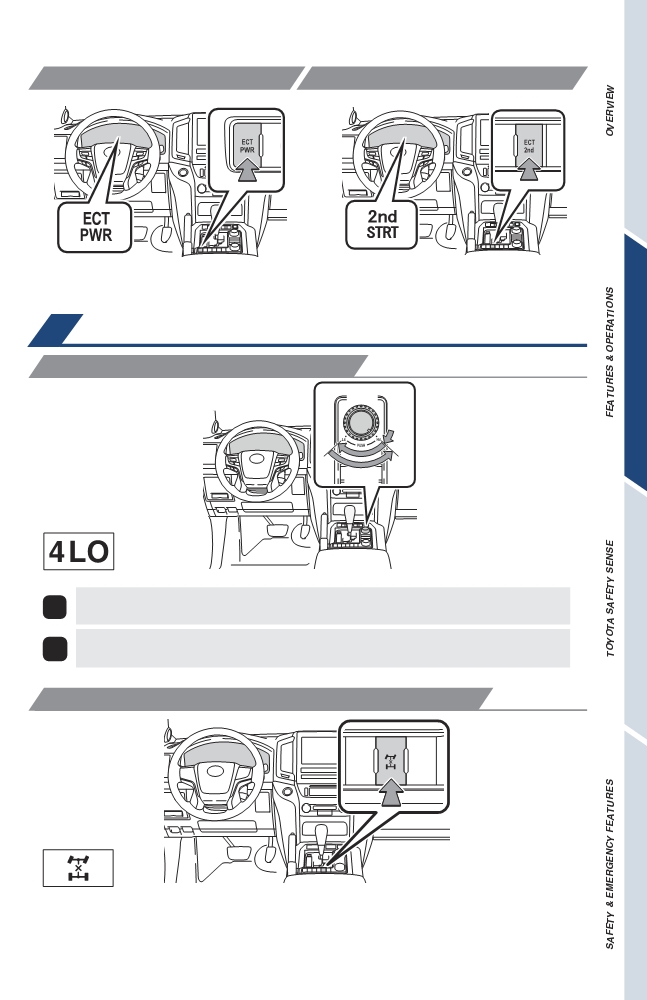

POWER MODE
SECOND GEAR START MODE
For powerful acceleration and driving in
For starting on slippery surfaces, such as snowy
mountainous regions.
roads. Press “2nd” to return to normal mode.
Four-wheel drive
FOUR-WHEEL DRIVE CONTROL SWITCH
Push
Turn
H4
High speed
Low speed
L4
Shift to “N” position
when stopped, then push and turn to
“L4.”
CENTER DIFFERENTIAL LOCK/UNLOCK SWITCH
Lock the center differential when your
vehicle’s wheels get stuck in a ditch or when
driving on a slippery or bumpy surface.
11
FEATURES & OPERATIONS

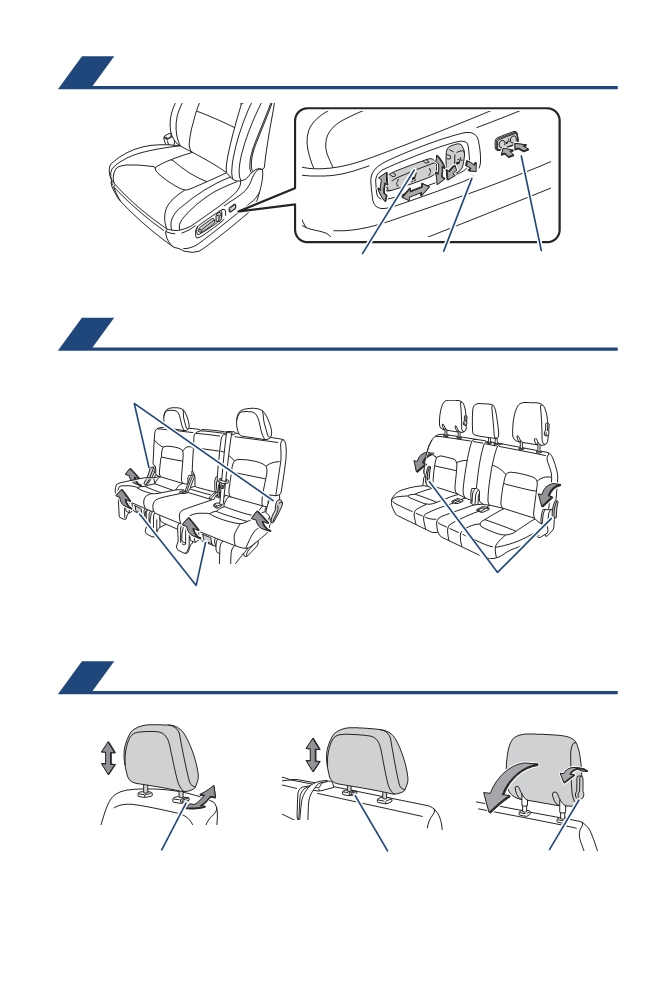

Seat adjustments-Front
Seat position, cushion
Seatback angle
Lumbar support
angle and height
(driver’s side only)
Seat adjustments-Rear
Second row
Third row (fold down)
Seatback angle
Seat position
Seatback angle
Refer to the Owner’s Manual for more details.
Seats-Head restraints
Front
Second row
Third row
Height
Height
Angle
(if equipped)
Fold down
Lock release button
Lock release button
Lock release lever
12

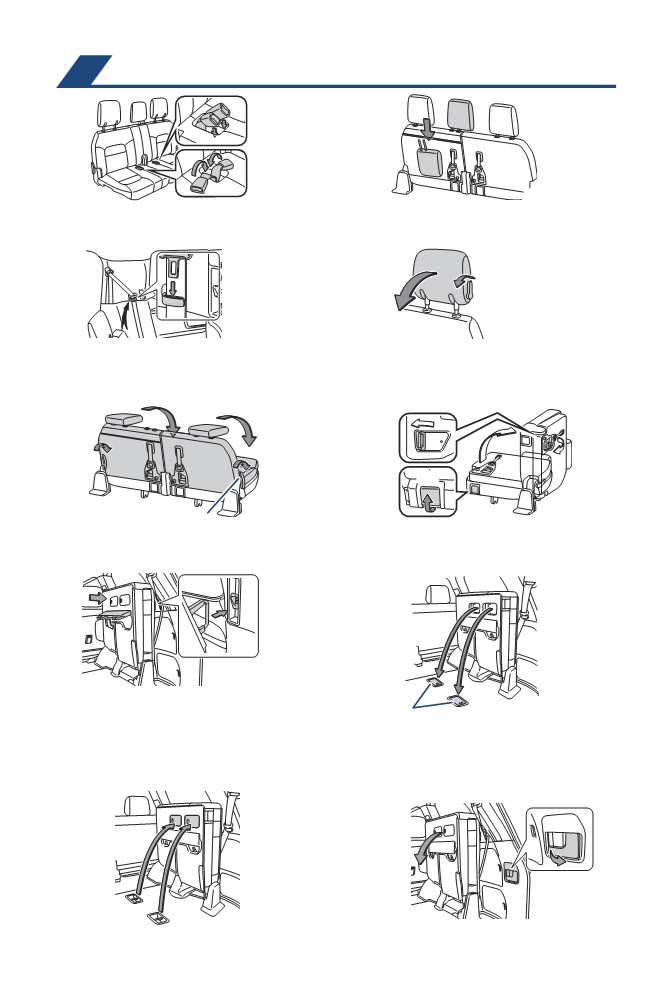

Seats-Tumbling 2nd row seats
(1)
(2)
Stow the seat belt buckles and
Hook the seat belt to the seat
lower the head restraints.
belt hangers.
(3)
Pull
Fold down the seatback and swing the whole seat up and forward.
(4)
(5)
Seat hook cover
Pull
Hook the holding strap to the assist
Install the seat hook covers on the
grip and secure the seat.
seat hooks.
13
FEATURES & OPERATIONS

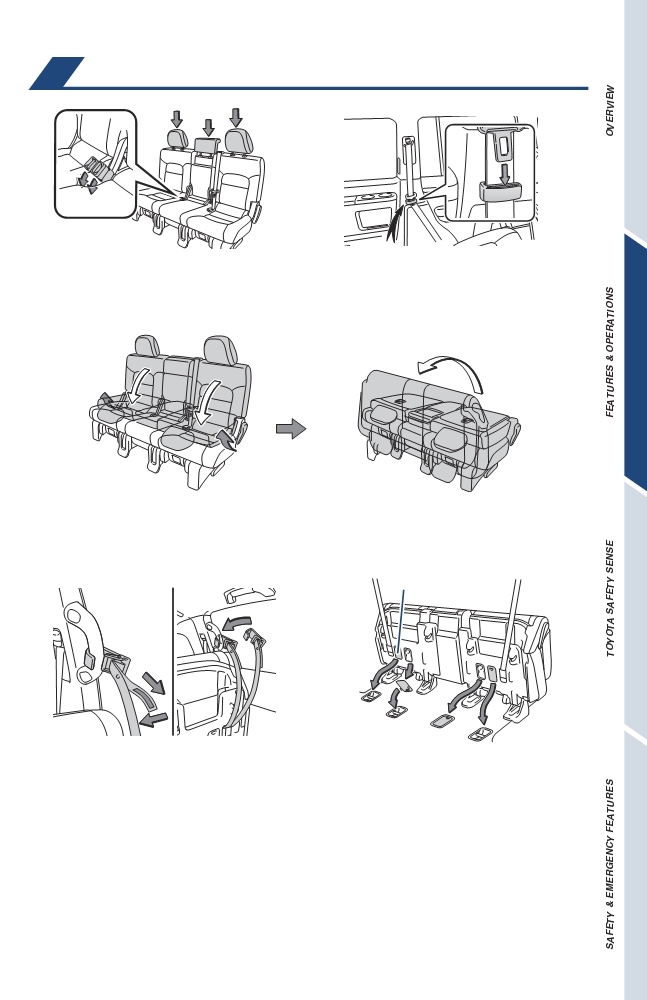

Seats-Tumbling 3rd row seats
(1)
(2)
Stow the seat belt buckles.
Stow the center head restraint.
(3)
(4)
Pull
Hook the seat belt to the seat belt
Fold down the outer head restraints.
hangers.
(5)
(6)
Pull
Push
Fold the seats.
Lift the seats sideward.
(7)
(8)
Seat hook cover
Lock the seats.
Install the seat hook covers on the
seat hooks.
Returning seats
(1)
(2)
Pull
Install the seat hook covers into
Lower the seats to theiroriginal
the back of the seat cushions.
position.
14

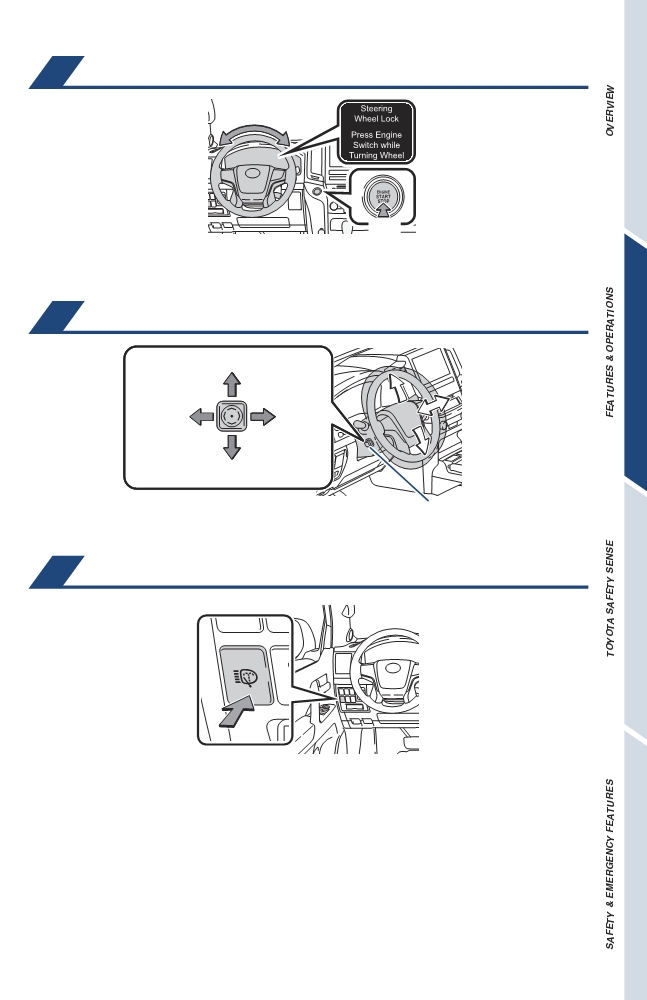

Steering lock release
Turn
Push
A message will be displayed on the multi-information display. Check that the shift
lever is set in P. Press the engine switch while turning the steering wheel left and
right.
Tilt and telescopic steering wheel
Up
Away
Toward
from
driver
driver
Down
Control switch
NOTE: Do not attempt to adjust while the vehicle is in motion.
Headlight cleaner switch
15
FEATURES & OPERATIONS

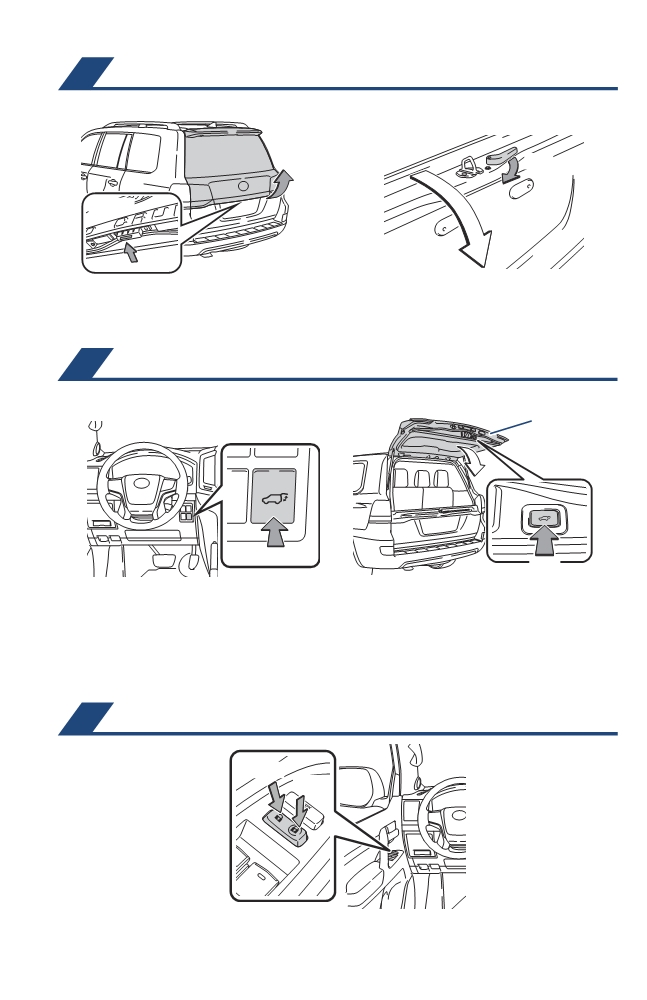

Back door
Upper back door
Lower back door
Raise
Pull
Unlock
The back door can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
Power back door (if equipped)
Instrument panel
Upper back door
Upper back door
Push and hold
Push
Open:
Push and hold
NOTE: Door will stop closing if obstructed, or to
Close: Push and hold again
manually stop door closing, push button again.
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Door locks
Unlock
Lock
16

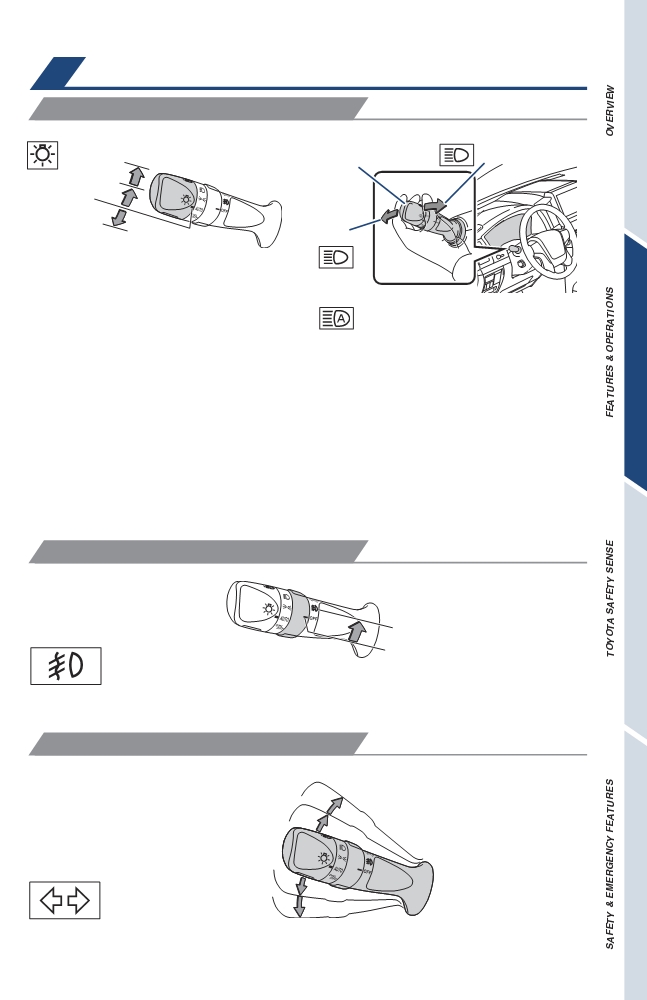

Lights & turn signals
HEADLIGHTS
Headlights
High beam flasher
Low beam
Parking lights
Auto
OFF
High beam
or
Auto High Beam*
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for
use at night.
Automatic light cut off system Automatically turns lights off after 30 second
delay.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for details.
FRONT FOG LIGHTS
ON
OFF
Turn
Front fog lights come on only when the headlights are on low beam.
TURN SIGNALS
Right turn
Lane change
Lane change
Left turn
