9-1. Specifications
629
Cooling system
Vehicles with an automatic transmission
2TR-FE
9.1 qt. (8.6 L, 7.6 Imp.qt.)
engine
Vehicles with a manual transmission
9.2 qt. (8.7 L, 7.7 Imp.qt.)
Vehicles with an automatic transmission
Without towing package:
Capacity
10.5 qt. (9.9 L, 8.7 Imp.qt.)
With towing package:
2GR-FKS
11.1 qt. (10.5 L, 9.2 Imp.qt.)
engine
Vehicles with a manual transmission
Without towing package:
10.1 qt. (9.6 L, 8.4 Imp.qt.)
With towing package:
10.8 qt. (10.2 L, 9.0 Imp.qt.)
Use either of the following.
•
“Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
Coolant type
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
2TR-FE engine
DENSO FK20HR-A8
2GR-FKS engine
DENSO FK20HBR8
Gap
0.031 in. (0.8 mm)
9
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
630
9-1. Specifications
Electrical system
Battery
12.3V or higher
(Voltage is checked 20 minutes after the engine
Open voltage at 68F
and all lights are turned off.
(20C):
After charging the battery, turn on the high beam
headlights for 30 seconds with the engine switch
to the “LOCK” position [vehicles without a smart
key system] or off [vehicles with a smart key sys-
tem], and turn the headlights off.)
Charging rates
5 A max.
Differential
Front (4WD models)
1.6 qt. (1.5 L, 1.3 Imp.qt.)
Vehicles with an automatic trans-
mission
3.1 qt. (2.9 L, 2.6 Imp.qt.)*2
Oil capacity
3.22 qt. (3.05 L, 2.68 Imp.qt.)*3
(Reference)
Rear
4.0 qt. (3.8 L, 3.3 Imp.qt.)*4
4.2 qt. (4.0 L, 3.5 Imp.qt.)*5
Vehicles with a manual transmis-
sion
4.0 qt. (3.8 L, 3.3 Imp.qt.)
Toyota Genuine Differential Gear Oil
Oil type and viscosity*1
LT 75W-85 GL-5 or equivalent
*
1: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at
the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.
*2: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA
and GRN310L-PRTLHA models*6 without rear differential lock system
*3: For GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA and
GRN310L-PRTLHA models*6 without rear differential lock system
*4: Except for GRN330L-PRTSHA, GRN330L-PRTLHA, GRN310L-PRTSHA
and GRN310L-PRTLHA models*6 with rear differential lock system
*5: For GRN330L-PRTSHA and GRN310L-PRTSHA models*6 with rear differ-
ential lock system
*6: The model code is indicated on the Certification Label. (P. 625)
9-1. Specifications
631
Automatic transmission
2TR-FE engine
9.2 qt. (8.7 L, 7.7 Imp.qt.)
Vehicles without towing package:
Fluid
10.6 qt. (10.0 L, 8.8 Imp.qt.)
capacity*
2GR-FKS engine
Vehicles with towing package:
10.8 qt. (10.2 L, 9.0 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact your Toyota dealer.
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.
Manual transmission
Gear oil capacity (Reference)
2.6 qt. (2.5 L, 2.2 Imp.qt.)
Toyota Genuine Manual Transmis-
Gear oil type
sion Gear Oil GL-3 (GL-4) or equiva-
lent
Recommended gear oil viscosity
SAE 75W-90
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
9
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.
Cluch
Clutch free play
0.2 — 0.6 in. (5 — 15 mm)
Fluid type
FMVSS No. 116 DOT 3 or SAE J1703
632
9-1. Specifications
Transfer (4WD models)
Oil capacity
1.1 qt. (1.0 L, 0.9 Imp.qt.)
Toyota Genuine Transfer gear oil LF or
Oil type*
equivalent
Recommended oil viscosity
SAE 75W
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at
the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.
Brakes
Vehicles without off-road package:
4.4 in. (111 mm) Min.
Pedal clearance*1
Vehicles with off-road package:
3.6 in. (91 mm) Min.
Pedal free play
0.04 0.24 in. (1 6 mm)
Brake pad wear limit
0.04 in. (1.0 mm)
Brake lining wear limit
0.04 in. (1.0 mm)
Parking brake lever travel*2
5 — 7 clicks
Fluid type
FMVSS No. 116 DOT 3 or SAE J1703
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2: Parking brake lever travel when pulled up with a force of 44.9 lbf (200 N,
20.4 kgf).
Chassis lubrication
Propeller shaft Spider
Lithium base chassis grease, NLGI No.2
Steering
Free play
Less than 1.2 in. (30 mm)
Power steering fluid type
Automatic transmission fluid DEXRON® II or III
9-1. Specifications
633
Tires and wheels
Type A
Tire size
P245/75R16 109S
Front tires:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Tire inflation pressure
Rear tires:
(Recommended cold
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
tire inflation pressure)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size
16 7 J, 16 7 JJ
Wheel nut torque
83 ft·lbf (113 N·m, 11.5 kgf·m)
Type B
Tire size
265/70R16 112T
Front tires:
30 psi (210 kPa, 2.1 kgf/cm2 or bar)
Tire inflation pressure
Rear tires:
(Recommended cold
30 psi (210 kPa, 2.1 kgf/cm2 or bar)
tire inflation pressure)
Spare tire:
30 psi (210 kPa, 2.1 kgf/cm2 or bar)
Wheel size
16 7 J, 16 7 JJ
Wheel nut torque
83 ft·lbf (113 N·m, 11.5 kgf·m)
Type C
Tire size
P265/65R17 110S, P265/60R18 109H
Front tires:
29 psi (200 kPa, 2.0 kgf/cm2 or bar)
Tire inflation pressure
Rear tires:
(Recommended cold
9
29 psi (200 kPa, 2.0 kgf/cm2 or bar)
tire inflation pressure)
Spare tire:
29 psi (200 kPa, 2.0 kgf/cm2 or bar)
Wheel size
17 7 1/2 J, 17 7 1/2 JJ, 18 7 1/2 J
Wheel nut torque
83 ft·lbf (113 N·m, 11.5 kgf·m)
634
9-1. Specifications
Light bulbs
Light Bulbs
Bulb No.
W
Type
Headlights
Low beam
H11
55
A
High beam
H9
65
B
Front fog lights*1
Normal type
H16
19
C
Wide angle type
H11
55
A
Front side marker lights
W5W
5
E
Front turn signal lights/
parking lights*2/
7442NA
28/8
D
daytime running lights*2
Exterior
Front turn signal lights*3
WY21W
21
D
Stop/tail/rear side marker
7443
21/5
E
lights
Tail/rear turn signal/rear
7443
21/5
E
side marker lights
Back-up lights
W16W
16
E
License plate lights
W5W
5
E
High mounted stoplight*4
168
5
E
Vanity lights*1
7065
5
F
Front personal/interior
Interior
W5W
5
E
lights
Rear interior light
—
8
F
*
1: If equipped
*2: Bulb type only
*3: Parking lights/daytime running lights are LED type
*4: Vehicles without a cargo lamp
A: H11 halogen bulbs
B: H9 halogen bulbs
C: H16 halogen bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
9-1. Specifications
635
Fuel information
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■ Recommendation of the use of gasoline containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
9
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
636
9-1. Specifications
■Non-recommendation of the use of blended gasoline
● Use only gasoline containing up to 15%
ethanol.

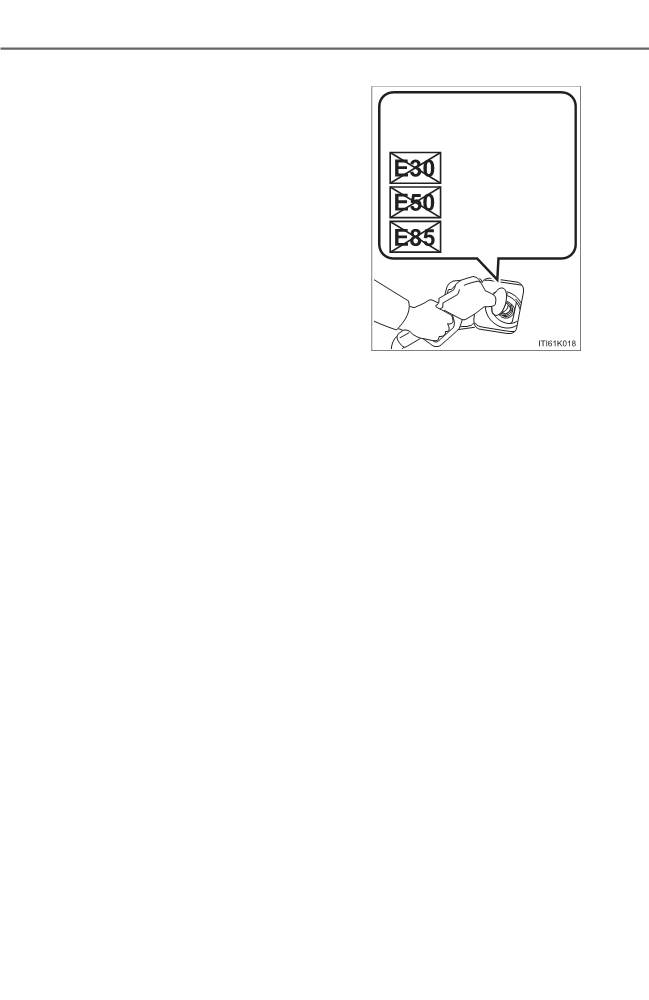

DO NOT use gasoline contain-
DO NOT use any flex-fuel or gasoline
ing more than 15% ethanol.
that could contain more than 15% etha-
nol, including from any pump labeled
(30% ethanol)
E30, E50, E85 (which are only some
examples of fuel containing
more than
(50% ethanol)
15% ethanol).
(85% ethanol)
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
9-1. Specifications
637
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
9
638
9-1. Specifications

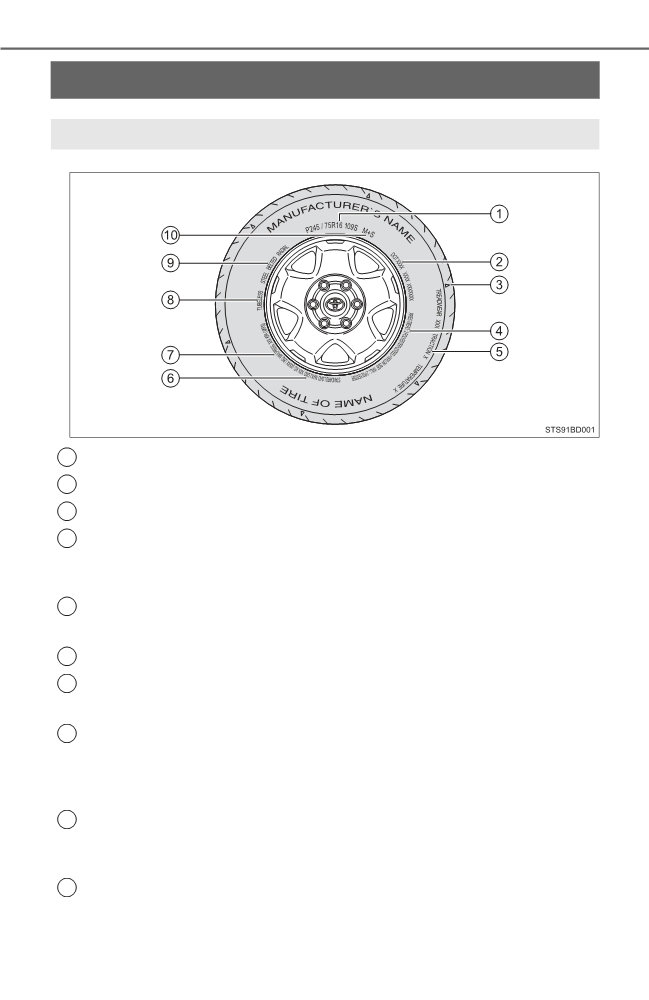

Tire information
Typical tire symbols
1
Tire size
(P. 640)
2
DOT and Tire Identification Number (TIN)
(P. 639)
3
Location of treadwear indicators
(P. 519)
4
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
5
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
6
Load limit at maximum cold tire inflation pressure
(P. 644)
7
Maximum cold tire inflation pressure
(P. 644)
This means the pressure to which a tire may be inflated.
8
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
Radial tires or bias-ply tires
9
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.
10
Summer tire or all season tire
(P. 523)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.
9-1. Specifications
639

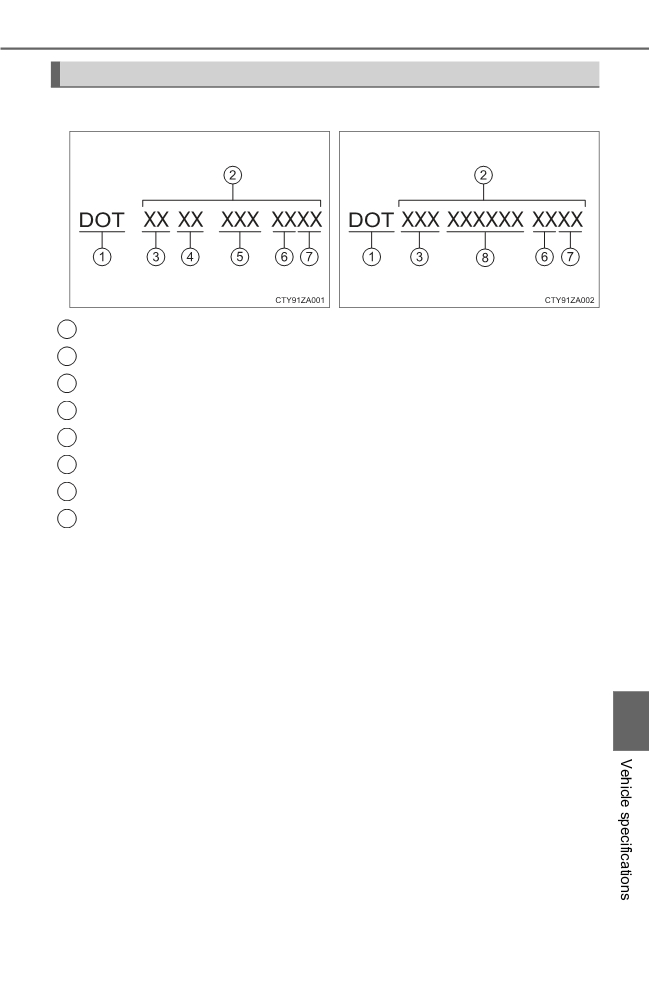

Typical DOT and Tire Identification Number (TIN)
Type A
Type B
1
DOT symbol*
2
Tire Identification Number (TIN)
3
Tire manufacturer’s identification mark
4
Tire size code
5
Manufacturer’s optional tire type code (3 or 4 letters)
6
Manufacturing week
7
Manufacturing year
8
Manufacturer’s code
*: The DOT symbol certifies that the tire conforms to applicable Federal
Motor Vehicle Safety Standards.
9
640
9-1. Specifications

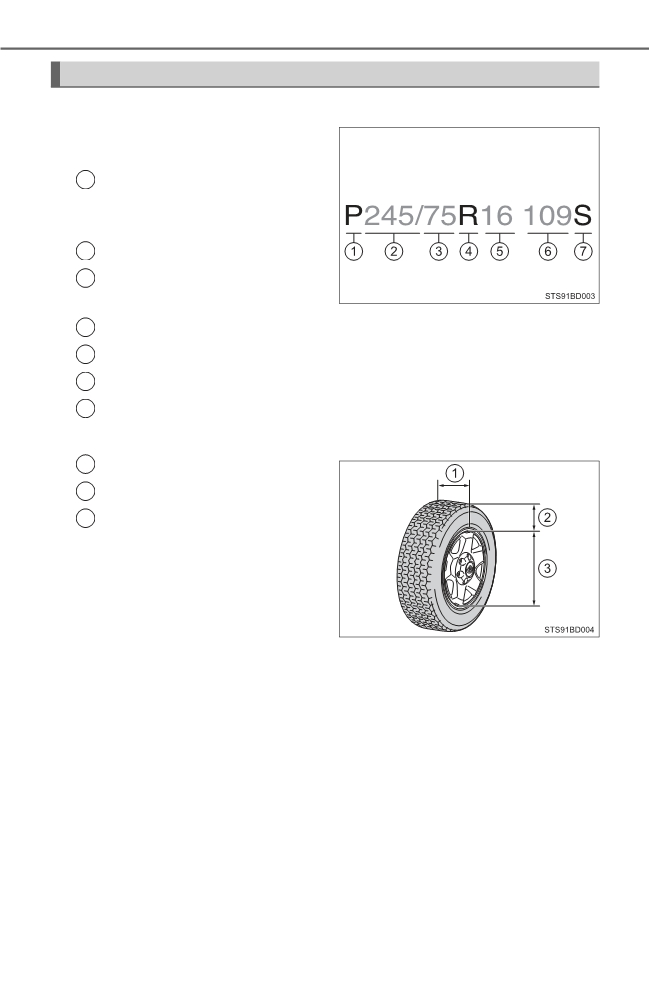

Tire size
■ Typical tire size information
The illustration indicates typical
tire size.
1
Tire use
(P = Passenger car,
T = Temporary use)
2
Section width (millimeters)
3
Aspect ratio
(tire height to section width)
4
Tire construction code (R = Radial, D = Diagonal)
5
Wheel diameter (inches)
6
Load index (2 digits or 3 digits)
7
Speed symbol (alphabet with one letter)
■ Tire dimensions
1
Section width
2
Tire height
3
Wheel diameter
9-1. Specifications
641

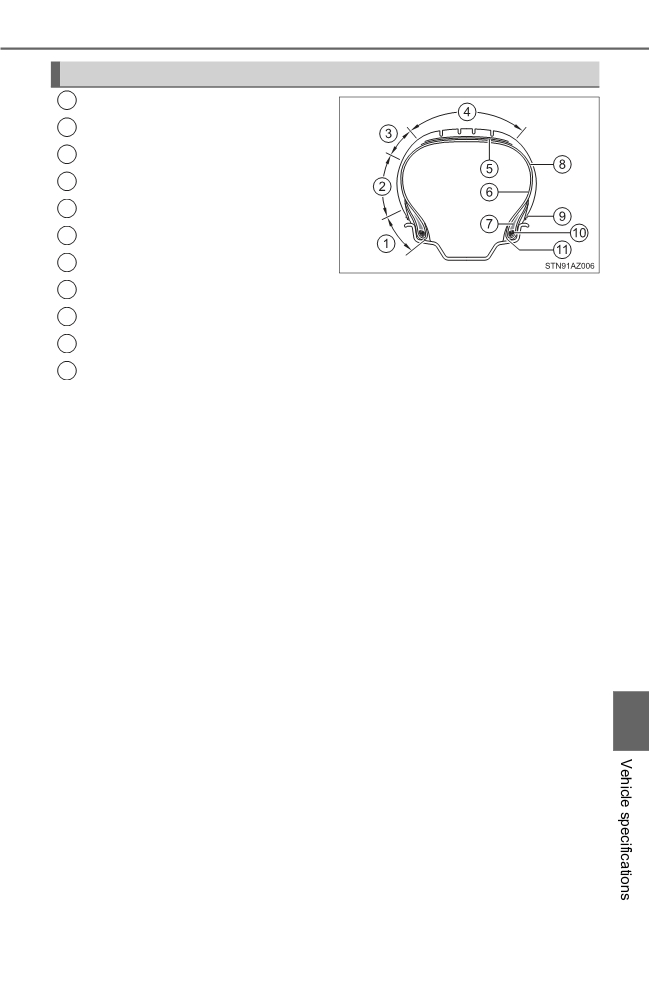

Tire section names
1
Bead
2
Sidewall
3
Shoulder
4
Tread
5
Belt
6
Inner liner
7
Reinforcing rubber
8
Carcass
9
Rim lines
10
Bead wires
11
Chafer
9
642
9-1. Specifications
Uniform Tire Quality Grading
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as
you read this information.
■ DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■ Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
9-1. Specifications
643
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.
9
644
9-1. Specifications
Glossary of tire terminology
Tire related term
Meaning
Tire pressure when the vehicle has been
Cold tire inflation pres-
parked for three hours or more, or has not
sure
been driven more than 1 mile or 1.5 km under
that condition
The maximum cold inflated pressure to which
Maximum
inflation
a tire may be inflated, shown on the sidewall
pressure
of the tire
Recommended infla-
Cold tire inflation pressure recommended by a
tion pressure
manufacturer
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
Accessory weight
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
Curb weight
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
The sum of:
(a) Curb weight
Maximum loaded vehi-
(b) Accessory weight
cle weight
(c) Vehicle capacity weight
(d) Production options weight
150 lb. (68 kg) times the number of occupants
Normal
occupant
specified in the second column of Table 1*
weight
that follows
Distribution of occupants in a vehicle as speci-
Occupant distribution
fied in the third column of Table 1* below
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
Production
options
replace, not previously considered in curb
weight
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
9-1. Specifications
645
Tire related term
Meaning
A metal support for a tire or a tire and tube
Rim
assembly upon which the tire beads are
seated
Rim diameter
Nominal diameter of the bead seat
(Wheel diameter)
Rim size designation
Rim diameter and width
The industry manufacturer’s designation for a
Rim type designation
rim by style or code
Rim width
Nominal distance between rim flanges
Vehicle
capacity
The rated cargo and luggage load plus 150 lb.
weight
(Total
load
(68 kg) times the vehicle’s designated seating
capacity)
capacity
The load on an individual tire that is deter-
Vehicle maximum load
mined by distributing to each axle its share of
on the tire
the maximum loaded vehicle weight, and
dividing by two
The load on an individual tire that is deter-
mined by distributing to each axle its share of
Vehicle normal load on
curb weight, accessory weight, and normal
the tire
occupant weight
(distributed in accordance
with Table 1* below), and dividing by two
The surface area of the rim not covered by the
Weather side
inflated tire
The part of the tire that is made of steel wires,
Bead
wrapped or reinforced by ply cords and that is
shaped to fit the rim
A breakdown of the bond between compo-
Bead separation
nents in the bead
9
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate
Bias ply tire
angles substantially less than 90 degrees to
the centerline of the tread
The tire structure, except tread and sidewall
Carcass
rubber which, when inflated, bears the load
The breaking away of pieces of the tread or
Chunking
sidewall
Cord
The strands forming the plies in the tire
