Toyota RAV4 (2018 year). Instruction - part 18

4-5. Using the driving support systems

289

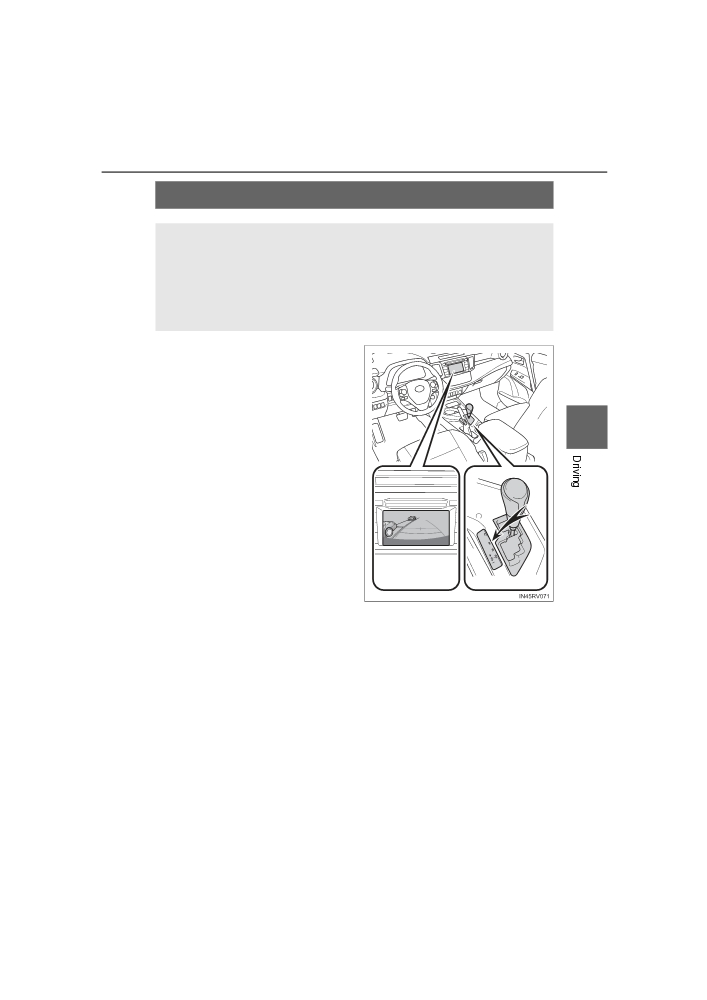

Rear view monitor system∗

The rear view monitor system assists the driver by displaying an

image of the view behind the vehicle and fixation guide lines

while backing up, for example while parking.

The screen illustrations used in this text are intended as examples,

and may differ from the image that is actually displayed on the

screen.

The rear view monitor system will

activate when the shift lever is in

R.

If you move the lever out of R, the

rear view monitor system will be

4

deactivated.

When the shift lever is shifted to

the R position and any mode but-

ton

(such as “MENU”/“APPS”) is

pressed, the rear view monitor sys-

tem is canceled, and the screen is

switched to the mode of the button

that was pressed.

∗: If equipped

RAV4_OM_OM0R012U_(U)

290

4-5. Using the driving support systems

Using the rear view monitor system

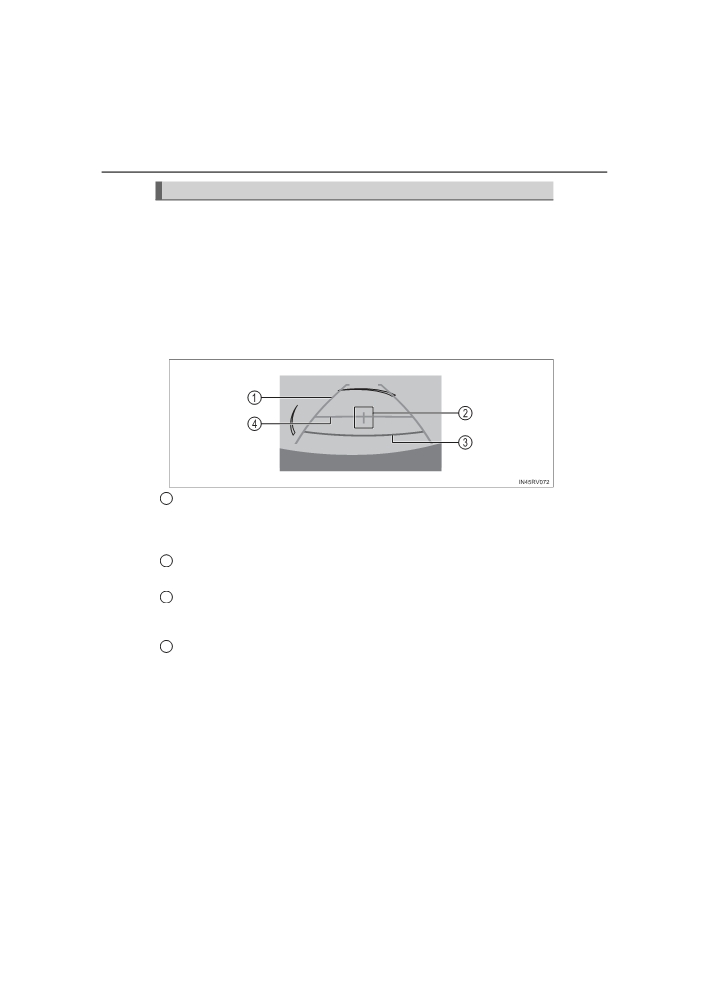

■ Screen description

 Vehicles without smart key system

The rear view monitor system screen will be displayed if the shift

lever is shifted to R while the engine switch is in the “ON” position.

 Vehicles with smart key system

The rear view monitor system screen will be displayed if the shift

lever is shifted to R while the engine switch is in IGNITION ON

mode.

1

Vehicle width guide line

The line indicates a guide path when the vehicle is being backed straight

up.

The displayed width is wider than the actual vehicle width.

2

Vehicle center guide line

The line indicates the estimated vehicle center on the ground.

3

Distance guide line

The line shows distance behind the vehicle, a point approximately 1.5 ft.

(0.5 m) (red) from the edge of the bumper.

Distance guide line

4

The line shows distance behind the vehicle, a point approximately 3 ft.

(1 m) (blue) from the edge of the bumper.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

291

Rear view monitor system precautions

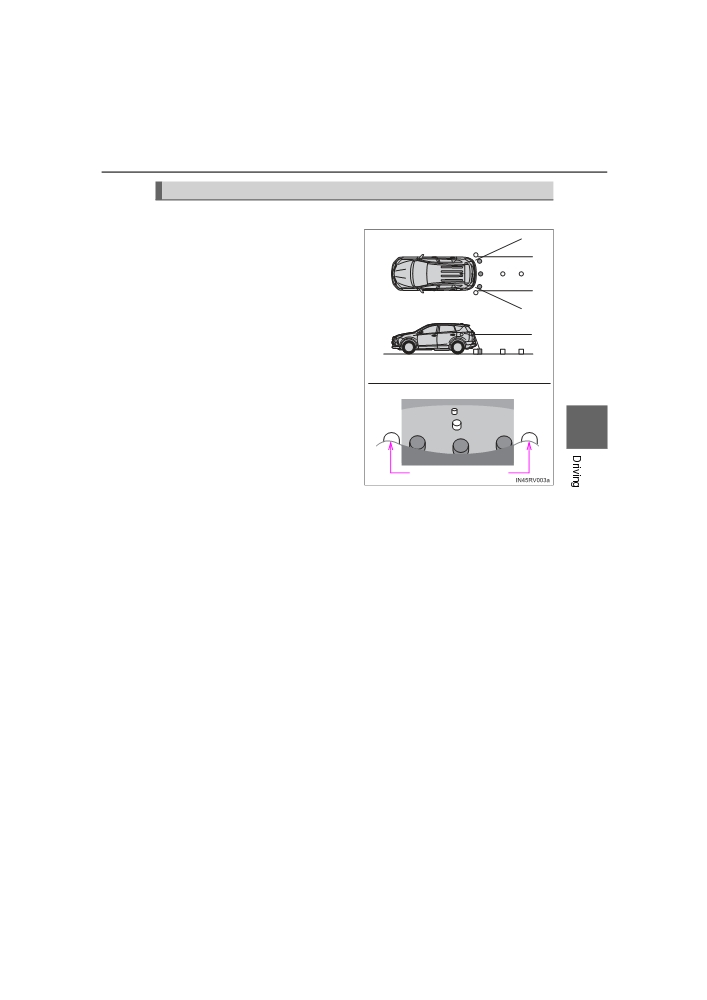

■ Area displayed on screen

The rear view monitor system

displays an image of the view

from the bumper of the rear

area of the vehicle.

The image on the rear view

monitor system can be

adjusted: refer to P. 404.

• The area displayed on the

screen may vary according to

vehicle orientation conditions.

• Objects which are close to either

corner of the bumper or under

the bumper cannot be dis-

4

played.

• The camera uses a special lens.

The distance of the image that

appears on the screen differs

Corners of bumper

from the actual distance.

• Items which are located higher

than the camera may not be dis-

played on the monitor.

• If your vehicle is equipped with a backlit license plate, it may interfere

with the display.

RAV4_OM_OM0R012U_(U)

292

4-5. Using the driving support systems

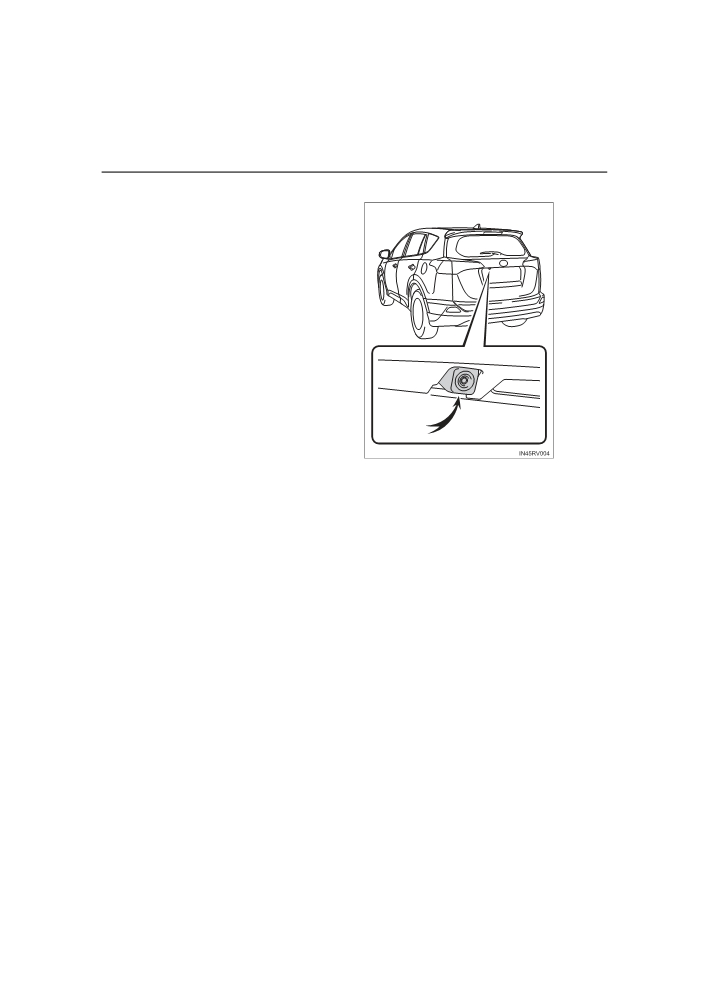

■ Rear view monitor system camera

The camera for the rear view

monitor system is located

above the license plate.

● Using the camera

If dirt or foreign matter (such as water droplets, snow, mud etc.)

is adhering to the camera, it cannot transmit a clear image. In

this case, flush it with a large quantity of water and wipe the cam-

era lens clean with a soft and wet cloth.

■ Differences between the screen and the actual road

The distance guide lines and the vehicle width guide lines may not

actually be parallel with the dividing lines of the parking space, even

when they appear to be so. Be sure to check visually.

The distances between the vehicle width guide lines and the left

and right dividing lines of the parking space may not be equal, even

when they appear to be so. Be sure to check visually.

The distance guide lines give a distance guide for flat road sur-

faces. In any of the following situations, there is a margin of error

between the fixation guide lines on the screen and the actual dis-

tance/course on the road.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

293

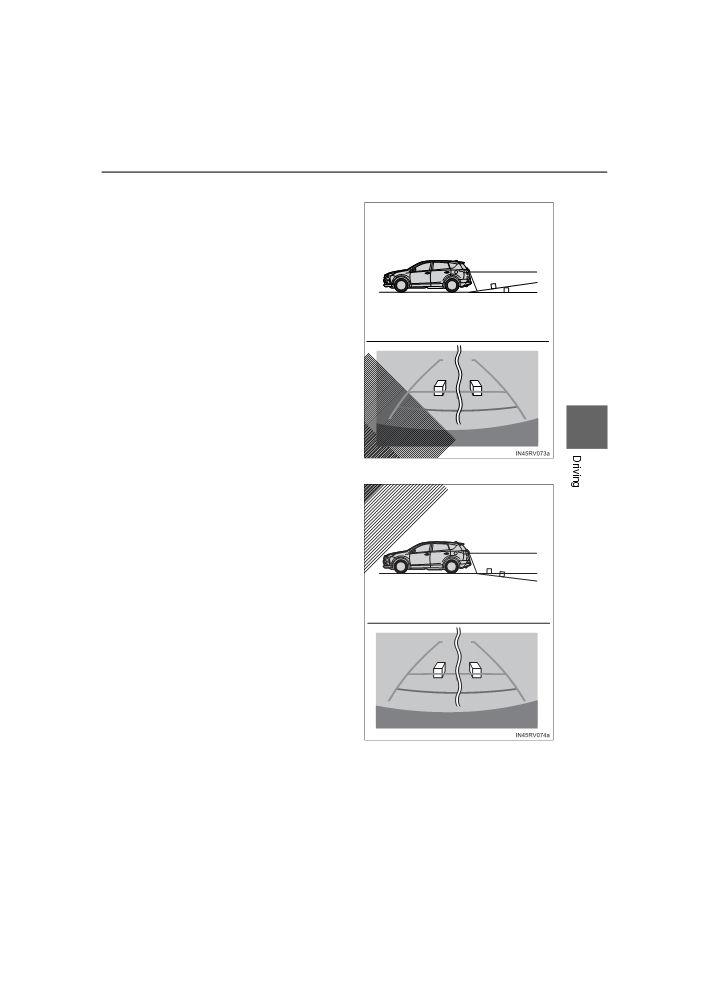

● When the ground behind the vehicle slopes up sharply

The distance guide lines will

appear to be closer to the

vehicle than the actual dis-

tance. Because of this,

objects will appear to be far-

ther away than they actually

are. In the same way, there

will be a margin of error

between the guide lines and

the actual distance/course on

the road.

4

● When the ground behind the vehicle slopes down sharply

The distance guide lines will

appear to be further from the

vehicle than the actual dis-

tance. Because of this,

objects will appear to be

closer than they actually are.

In the same way, there will be

a margin of error between

the guide lines and the actual

distance/course on the road.

RAV4_OM_OM0R012U_(U)

294

4-5. Using the driving support systems

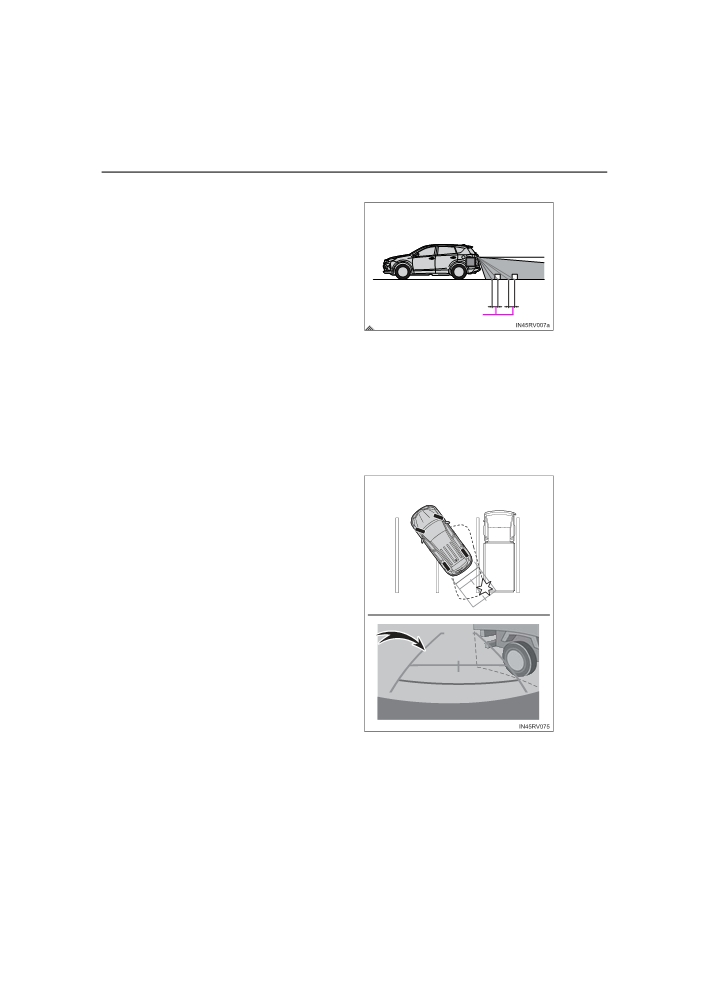

● When any part of the vehicle sags

When any part of the vehicle

sags due to the number of

passengers or the distribu-

tion of the load, there is a

margin of error between the

fixation guide lines on the

screen and the actual dis-

A margin of error

tance/course on the road.

■ When approaching three-dimensional objects

The distance guide lines are displayed according to flat surfaced

objects (such as the road). It is not possible to determine the posi-

tion of three-dimensional objects (such as vehicles) using the dis-

tance guide lines. When approaching a three-dimensional object

that extends outward (such as the flatbed of a truck), be careful of

the following.

● Vehicle width guide lines

Visually check the surround-

ings and the area behind the

vehicle. In the case shown in

the illustration, the truck

appears to be outside of the

vehicle width guide lines and

the vehicle does not look as if

it hits the truck. However, the

rear body of the truck may

actually cross over the vehi-

cle width guide lines. In real-

ity if you back up as guided

by the vehicle width guide

lines, the vehicle may hit the

truck.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

295

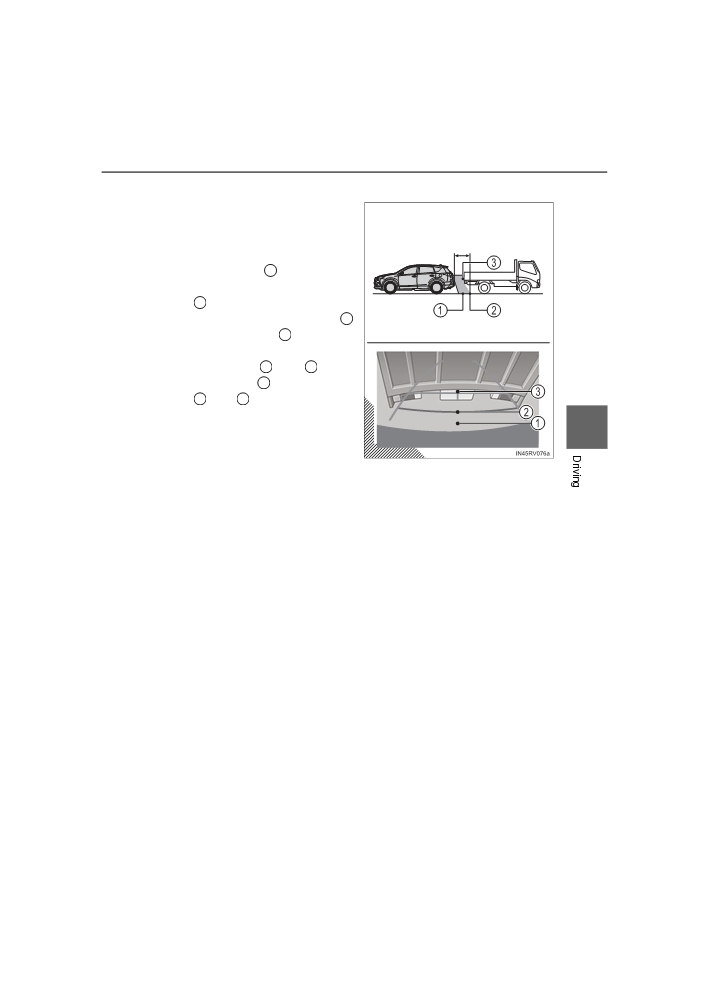

● Distance guide lines

Visually check the surround-

ings and the area behind the

vehicle. On the screen, it

appears that a truck is park-

ing at point 2 . However, in

reality if you back up to point

1

, you will hit the truck. On

the screen, it appears that

1

is closest and

3

is farthest

away. However, in reality, the

distance to

1

and 3 is the

same, and

2

is farther than

1

and

3

4

RAV4_OM_OM0R012U_(U)

296

4-5. Using the driving support systems

Things you should know

■ If you notice any symptoms

If you notice any of the following symptoms, refer to the likely cause

and the solution, and re-check.

If the symptom is not resolved by the solution, have the vehicle

inspected by your Toyota dealer.

Likely cause

Solution

 The image is difficult to see

• The vehicle is in a dark area

• The temperature around the lens

is either high or low

• The outside temperature is low

If this happens due to these causes,

• There are water droplets on the

it does not indicate a malfunction.

camera

Back up while visually checking the

• It is raining or humid

vehicle’s surroundings.

(Use the

• Foreign matter

(mud etc.) is

monitor again once conditions have

adhering to the camera

been improved.)

• There are scratches on the cam-

The image on the rear view monitor

era

system can be adjusted: refer to

• Sunlight or headlights are shining

P. 404.

directly into the camera

• The vehicle is under fluorescent

lights, sodium lights, mercury

lights, etc.

 The image is blurry

Dirt or foreign matter (such as water

Flush the camera with a large quan-

droplets, snow, mud, etc.) is adher-

tity of water and wipe the camera

ing to the camera.

lens clean with a soft and wet cloth.

 The image is out of alignment

The camera or surrounding area has

Have the vehicle inspected by your

received a strong impact.

Toyota dealer.

 The fixed guide lines are very far out of alignment

The camera position is out of align-

Have the vehicle inspected by your

ment.

Toyota dealer.

• The vehicle is tilted

(there is a

If this happens due to these causes,

heavy load on the vehicle, tire

it does not indicate a malfunction.

pressure is low due to a tire punc-

Back up while visually checking the

ture, etc.)

vehicle’s surroundings.

• The vehicle is used on an incline.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

297

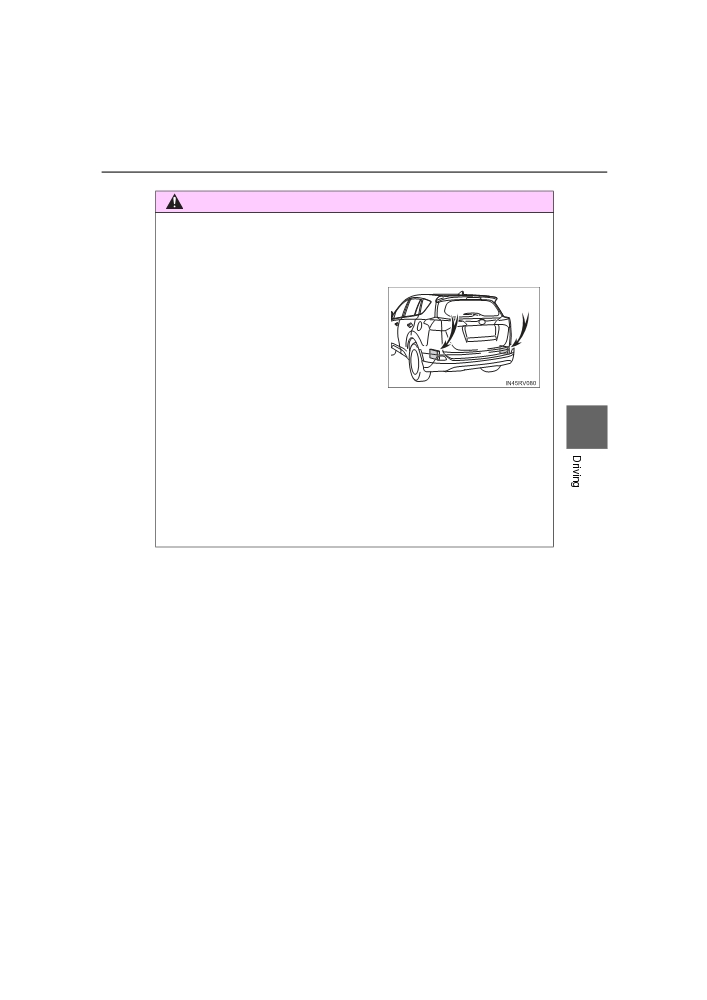

WARNING

■ When using the rear view monitor system

The rear view monitor system is a supplemental device intended to assist

the driver when backing up. When backing up, be sure to check visually

behind and all around the vehicle before proceeding.

Observe the following precautions to avoid an accident that could result in

death or serious injuries.

● Never depend on the rear view monitor system entirely when backing up.

The image and the position of the guide lines displayed on the screen may

differ from the actual state.

Use caution, just as you would when backing up any vehicle.

● Be sure to back up slowly, depressing the brake pedal to control vehicle

speed.

● The instructions given are only guide lines.

When and how much to turn the steering wheel will vary according to traf-

fic conditions, road surface conditions, vehicle condition, etc. when park-

4

ing. It is necessary to be fully aware of this before using the rear view

monitor system.

● When parking, be sure to check that the parking space will accommodate

your vehicle before maneuvering into it.

● Do not use the rear view monitor system in the following cases:

• On icy or slick road surfaces, or in snow

• When using tire chains or the compact spare tire (if equipped)

• When the back door is not closed completely

• On roads that are not flat or straight, such as curves or slopes.

● In low temperatures, the screen may darken or the image may become

faint. The image could distort when the vehicle is moving, or you may

become unable to see the image on the screen. Be sure to check direct

visually and with the mirrors all around the vehicle before proceeding.

● If the tire sizes are changed, the position of the fixation guide lines dis-

played on the screen may change.

● The camera uses a special lens. The distances between objects and

pedestrians that appear in the image displayed on the screen will differ

from the actual distances. (→P. 292)

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

299

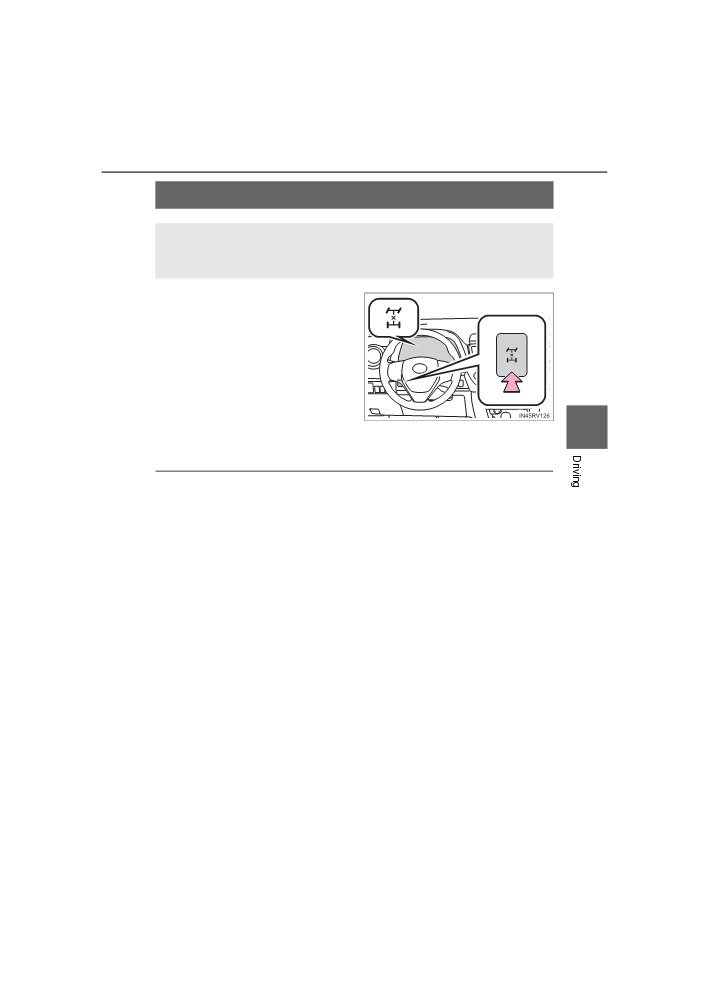

All-wheel drive lock switch (AWD models)

All-wheel drive lock mode can be used when a large amount of

drive power needs to be applied to all the wheels, such as when

the vehicle gets stuck in mud and you need to free it.

Press the switch.

The all-wheel drive lock indicator

will come on.

The torque of the engine is distrib-

uted to the rear wheels to the max-

imum extent

possible

in

accordance with driving conditions.

Pressing the switch again cancels

all-wheel drive lock mode and

4

returns the Dynamic Torque Con-

trol AWD system to normal mode.

(→P. 311)

■ All-wheel drive lock mode can be operated when

 Vehicles without smart key system

The engine switch is in the “ON” position.

 Vehicles with smart key system

The engine switch is in IGNITION ON mode.

■ All-wheel drive lock mode

● All-wheel drive lock mode is canceled when the brakes are applied to

ensure the ABS and VSC systems operate effectively.

● All-wheel drive lock mode is canceled when the vehicle speed exceeds 25

mph (40 km/h).

RAV4_OM_OM0R012U_(U)

300

4-5. Using the driving support systems

BSM (Blind Spot Monitor)∗

Summary of the Blind Spot Monitor

The Blind Spot Monitor is a system that has 2 functions;

● The Blind Spot Monitor function

Assists the driver in making the decision when changing lanes

● The Rear Cross Traffic Alert function

Assists the driver when backing up

These functions use same sensors.

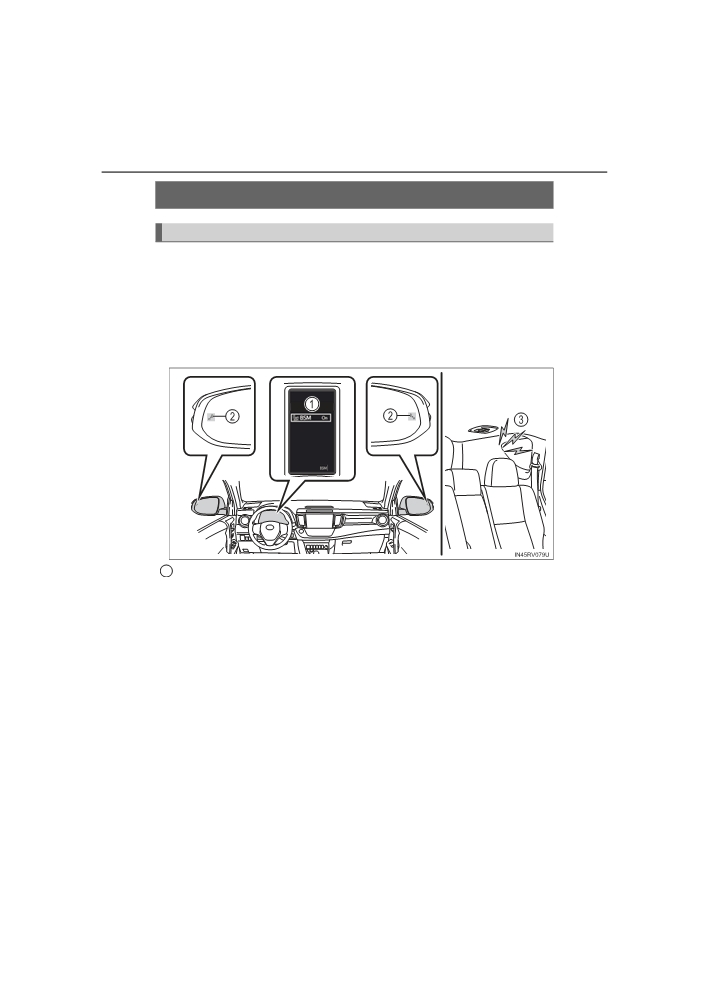

The Blind Spot Monitor on/off screen and indicator

1

The Blind Spot Monitor system can be turned on/off on the multi-informa-

tion display. When the system is set to on, the indicator illuminates on the

multi-information display. The Blind Spot Monitor function and the Rear

Cross Traffic Alert function are turned on/off simultaneously.

∗: If equipped

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

301

2

Outside rear view mirror indicators

Blind Spot Monitor function:

When a vehicle is detected in the blind spot, the outside rear view mirror

indicator comes on while the turn signal lever is not operated. If the turn

signal lever is operated toward the detected side, the outside rear view

mirror indicator flashes.

Rear Cross Traffic Alert function:

When a vehicle approaching from the right or left rear of the vehicle is

detected, the outside rear view mirror indicators flash.

3

Rear Cross Traffic Alert buzzer (Rear Cross Traffic Alert function

only)

When a vehicle approaching from the right or left rear of the vehicle is

detected, a buzzer sounds from behind the left-hand rear seat.

Turning the Blind Spot Monitor system on/off

1

Press

or

of the meter control switches and select

on

4

the multi-information display.

2

Press

or

of the meter control switches and select

,

and then press

■ The outside rear view mirror indicators visibility

When under strong sunlight, the outside rear view mirror indicator may be dif-

ficult to see.

■ Rear Cross Traffic Alert buzzer hearing

Rear Cross Traffic Alert function may be difficult to hear over loud noises

such as high audio volume.

■When there is a malfunction in the Blind Spot Monitor system

If a system malfunction is detected due to any of the following reasons, the

warning messages will be displayed: (→P. 634, 636)

● There is a malfunction with the sensors

● The sensors have become dirty

● The outside temperature is extremely high or low

● The sensor voltage has become abnormal

RAV4_OM_OM0R012U_(U)

302

4-5. Using the driving support systems

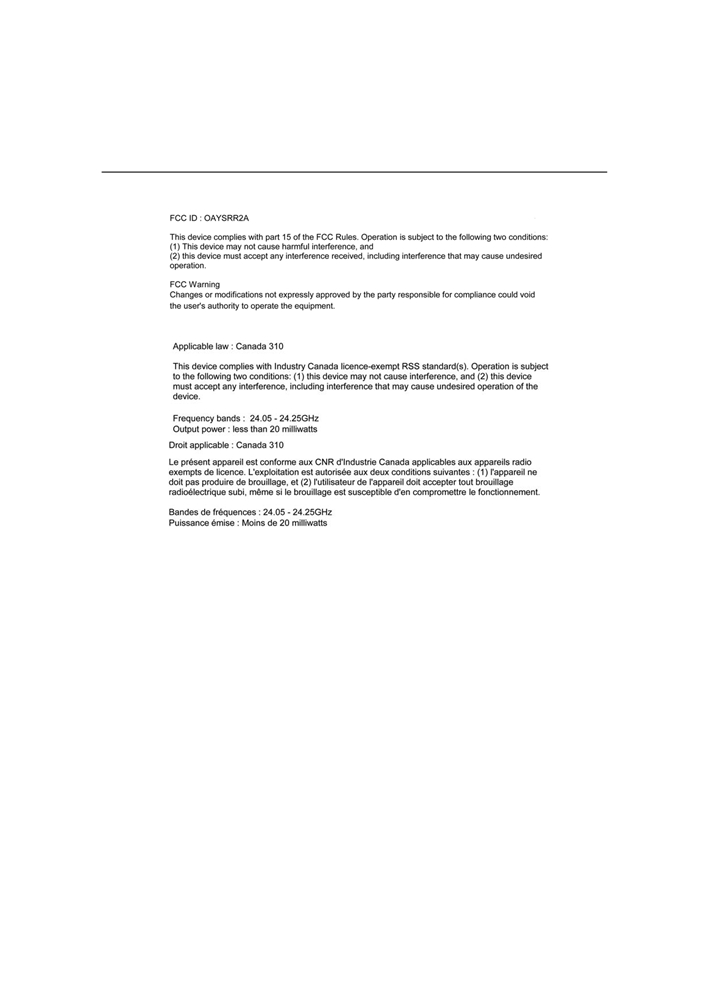

■ Certification

 For vehicles sold in the U.S.A.

 For vehicles sold in Canada

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

303

WARNING

■ Handling the radar sensor

One Blind Spot Monitor sensor is installed inside the left and right side of

the vehicle rear bumper respectively. Observe the following to ensure the

Blind Spot Monitor system can function correctly.

● Keep the sensor and its surrounding

area on the bumper clean at all times.

● Do not subject the sensor or surrounding area on the bumper to a strong

impact. If the sensor moves even slightly off position, the system may mal-

4

function and vehicles that enter the detection area may not be detected. If

the sensor or surrounding area is subject to a strong impact, always have

the area inspected by your Toyota dealer.

● Do not disassemble the sensor.

● Do not attach accessories or stickers to the sensor or surrounding area on

the bumper.

● Do not modify the sensor or surrounding area on the bumper.

● Do not paint the rear bumper any color other than an official Toyota color.

RAV4_OM_OM0R012U_(U)

304

4-5. Using the driving support systems

The Blind Spot Monitor function

The Blind Spot Monitor function uses radar sensors to detect vehicles

that are traveling in an adjacent lane in the area that is not reflected in

the outside rear view mirror (the blind spot), and advises the driver of

the vehicles existence via the outside rear view mirror indicator.

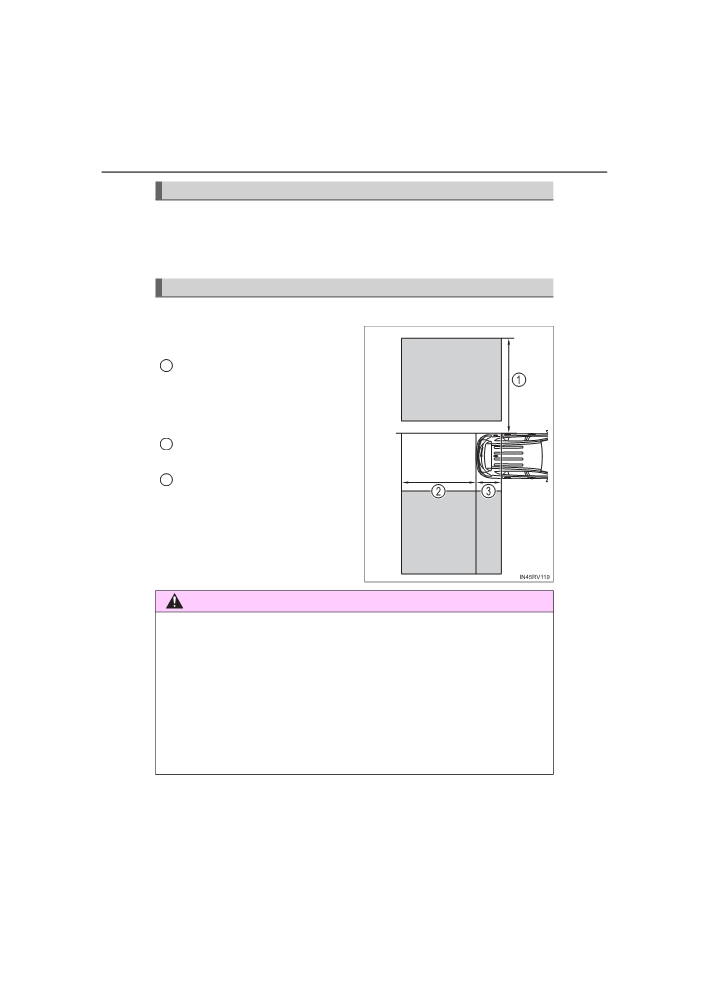

The Blind Spot Monitor function detection areas

The areas that vehicles can be detected in are outlined below.

The range of the detection area

extends to:

Approximately 11.5 ft. (3.5 m)

1

from the side of the vehicle

The first 1.6 ft.

(0.5 m) from the

side of the vehicle is not in the

detection area

2

Approximately 9.8 ft. (3 m) from

the rear bumper

Approximately 3.3 ft. (1 m) for-

3

ward of the rear bumper

WARNING

■ Cautions regarding the use of the system

The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

The Blind Spot Monitor function is a supplementary function which alerts the

driver that a vehicle is present in the blind spot. Do not overly rely on the

Blind Spot Monitor function. The function cannot judge if it is safe to change

lanes, therefore over reliance could cause an accident resulting in death or

serious injury.

According to conditions, the system may not function correctly. Therefore

the driver’s own visual confirmation of safety is necessary.

RAV4_OM_OM0R012U_(U)

Content   ..  16  17  18  19   ..
