136
3-2. Opening, closing and locking the doors

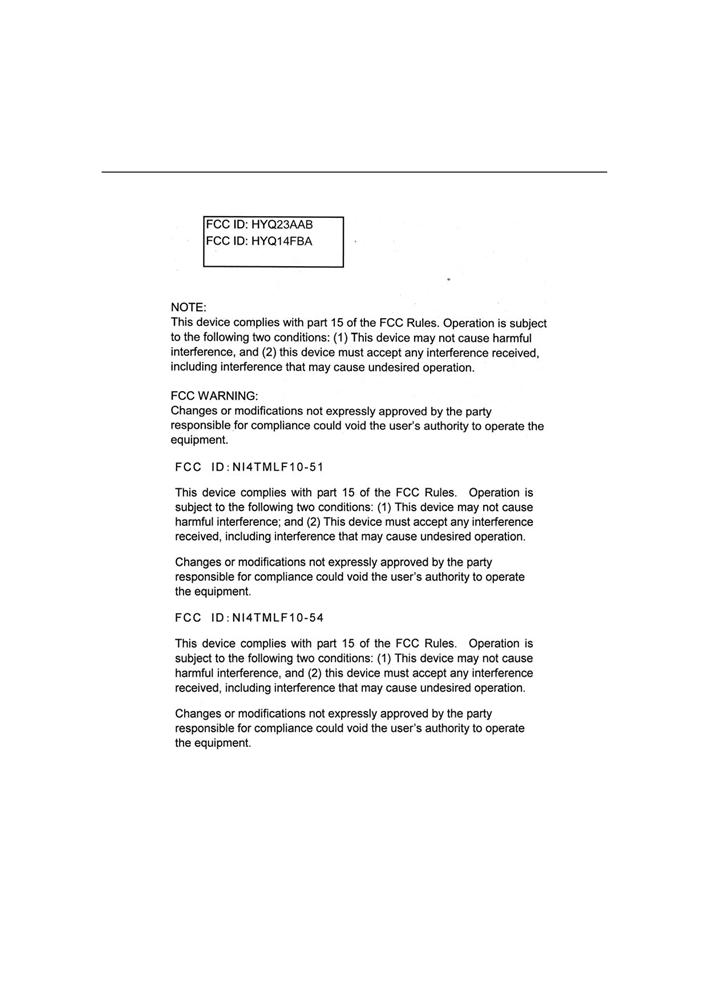

■ Certification for the smart key system
For vehicles sold in the U.S.A.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
137

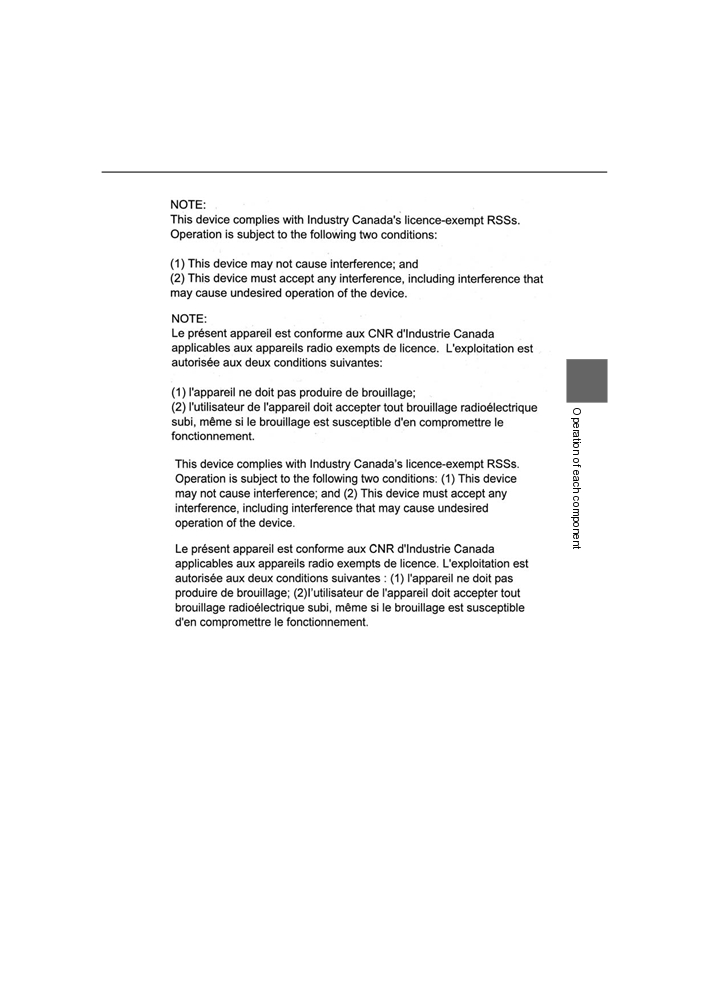

For vehicles sold in Canada
3
RAV4_OM_OM0R012U_(U)
138
3-2. Opening, closing and locking the doors
WARNING
■Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (→P. 130)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.
● Users of any electrical medical device other than implantable cardiac
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask your Toyota dealer for details on disabling the entry function.
RAV4_OM_OM0R012U_(U)
3-3. Adjusting the seats
139
Front seats
Adjustment procedure
Manual seat
3
1
Seat position adjustment lever
2
Seatback angle adjustment lever
3
Vertical height adjustment lever (driver’s side only)
Power seat (driver’s side only)
1
Seat position adjustment switch
2
Seatback angle adjustment switch
3
Seat cushion (front) angle adjustment switch
4
Vertical height adjustment switch
5
Lumbar support adjustment switch
RAV4_OM_OM0R012U_(U)
140
3-3. Adjusting the seats
WARNING
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.
RAV4_OM_OM0R012U_(U)
3-3. Adjusting the seats
141
Rear seats
Adjustment procedure
3
Pull up the lever. Then lean back to the desired angle and release the
lever.
When a person sits in the rear center position, align all seatbacks at the
same angle.
RAV4_OM_OM0R012U_(U)
142
3-3. Adjusting the seats
Folding down the rear seatbacks
■ Before folding down the rear seatbacks
1
Stow the rear center seat belt. (→P. 30)
2
Stow the rear seat belt buck-
les.
3
Lower the head restraint to the lowest position. (→P. 146)
■ Folding down rear seatbacks
Pull the seatback angle adjust-
ment lever and fold down the
seatback.
RAV4_OM_OM0R012U_(U)
3-3. Adjusting the seats
143
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
■Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
3
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● Be careful not to get hands or feet pinched between the rear console box
and the rear seat when folding down the rear seatback.
■After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
RAV4_OM_OM0R012U_(U)
144
3-3. Adjusting the seats
Driving position memory∗
This feature automatically adjusts the driver’s seat to suit your
preferences.
Driving position memory
Your preferred driving position (the position of the driver’s seat) can
be recorded and recalled by pressing a button.
Two different driving positions can be recorded into memory.
■ Recording procedure
1
Check that the shift lever is in P.
2
Turn the engine switch to the “ON” position (vehicles without
smart key system) or IGNITION ON mode (vehicles with smart
key system).
3
Adjust the driver’s seat to the desired positions.
4
While pressing the
“SET”
button, press button “1” or “2”
until the buzzer sounds.
If
the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
∗: If equipped
RAV4_OM_OM0R012U_(U)
3-3. Adjusting the seats
145
■ Recall procedure
Check that the shift lever is in P.
1
Turn the engine switch to the “ON” position (vehicles without
2
smart key system) or IGNITION ON mode (vehicles with smart
key system).
Press one of the buttons for
3
the driving position you want
to recall until the buzzer
sounds.
3
■ To stop the position recall operation part-way through
Perform any of the following:
● Press the “SET” button.
● Press button “1” or “2”.
● Operate any of the seat adjustment switches.
■Operating the driving position memory after turning the engine off
Recorded seat positions can be activated up to 180 seconds after the driver’s
door is opened and another 60 seconds after it is closed again.
■ If the battery is disconnected
The memorized positions are erased.
WARNING
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear
passenger or squeeze your body against the steering wheel.
RAV4_OM_OM0R012U_(U)
146
3-3. Adjusting the seats
Head restraints
Head restraints are provided for all seats.
Front seats
1
Up
Pull the head restraint up.
2
Down
Push the head restraint down while
pressing the lock release button.
Lock release button
Rear seats
1
Up
Pull the head restraints up.
2
Down
Push the head restraint down while
pressing the lock release button.
Lock release button
Folding the head restraints (outboard rear seats only)
1
To use
Lift up the head restraint until it
locks.
2
To fold
Push the head restraint lock
release button to fold the head
restraint.
Lock release button
RAV4_OM_OM0R012U_(U)
3-3. Adjusting the seats
147
■ Removing the head restraints
Front seats
Pull the head restraint up while pressing
the lock release button.
Lock release button
Rear seats
Pull the head restraint up while pressing
the lock release button.
3
Lock release button
■ Installing the head restraints
Front seats
Align the head restraint with the installa-
tion holes and push it down while press-
ing the lock release button.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
Rear seats
Align the head restraint with the installa-
tion holes and push it down while press-
ing the lock release button.
Press and hold the lock release button
when lowering the head restraint.
Lock release button
RAV4_OM_OM0R012U_(U)
148
3-3. Adjusting the seats
■Adjusting the height of the head restraints
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
■ Adjusting the rear center seat head restraint
Always raise the head restraint one level from the stowed position when
using.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
RAV4_OM_OM0R012U_(U)
3-4. Adjusting the steering wheel and mirrors
149
Steering wheel
Adjustment procedure
Hold the steering wheel and
1
press the lever down.
3
Adjust to the ideal position by
2
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
Horn
To sound the horn, press on or
close to the
mark.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
RAV4_OM_OM0R012U_(U)
150
3-4. Adjusting the steering wheel and mirrors
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
RAV4_OM_OM0R012U_(U)
3-4. Adjusting the steering wheel and mirrors
151
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
3
Anti-glare function
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
1
Normal position
2
Anti-glare position
RAV4_OM_OM0R012U_(U)
152
3-4. Adjusting the steering wheel and mirrors
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
Indicator
The function will set to ON mode each time the engine switch is turned to
the “ON” position (vehicles without smart key system) or IGNITION ON
mode (vehicles with smart key system).
Pressing the button turns the function to OFF mode. (The indicator also
turns off.)
■ To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
RAV4_OM_OM0R012U_(U)
