102
3-1. Key information

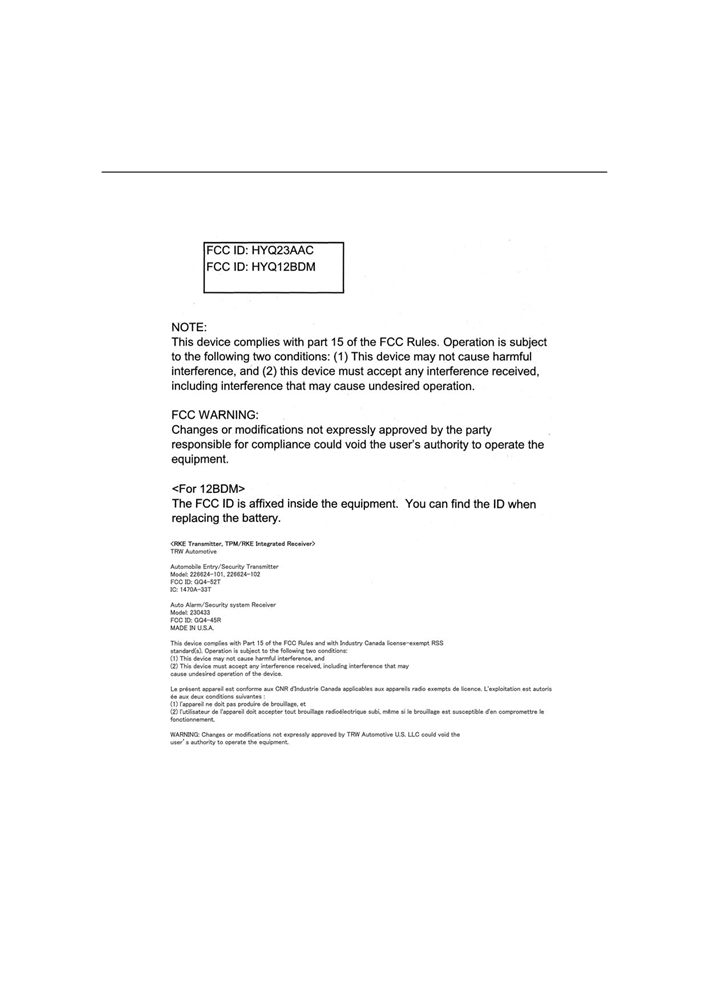

■ Certification for wireless remote control (vehicles without smart key sys-
tem)
For vehicles sold in the U.S.A.
RAV4_OM_OM0R012U_(U)
3-1. Key information
103

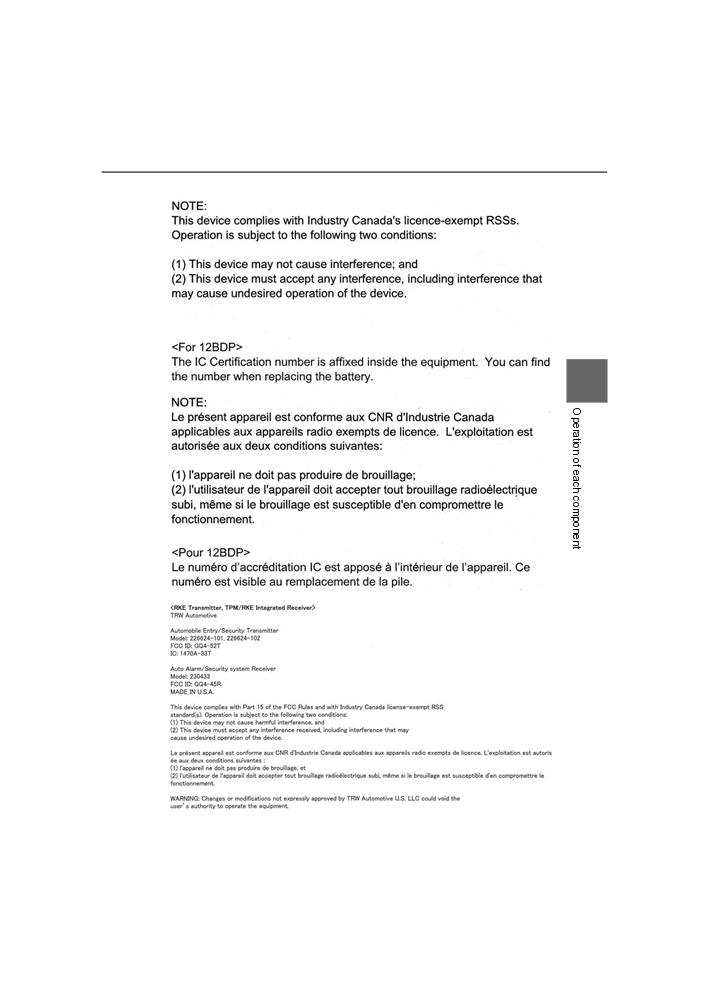

For vehicles sold in Canada
3
RAV4_OM_OM0R012U_(U)
104
3-1. Key information

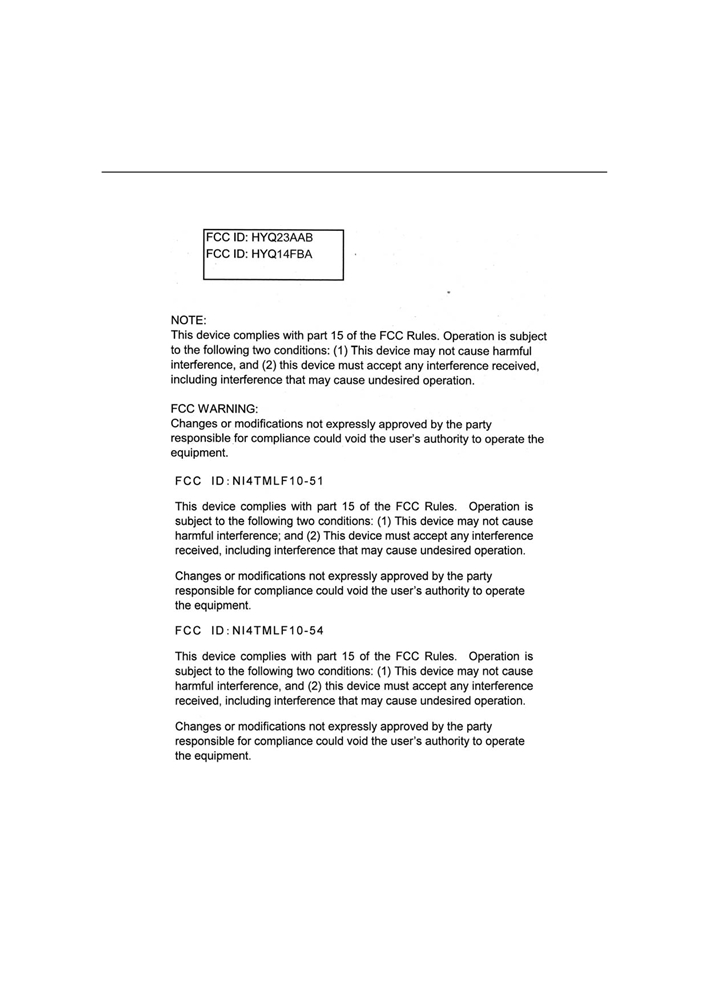

■ Certification for wireless remote control (vehicles with smart key sys-
tem)
For vehicles sold in the U.S.A.
RAV4_OM_OM0R012U_(U)
3-1. Key information
105

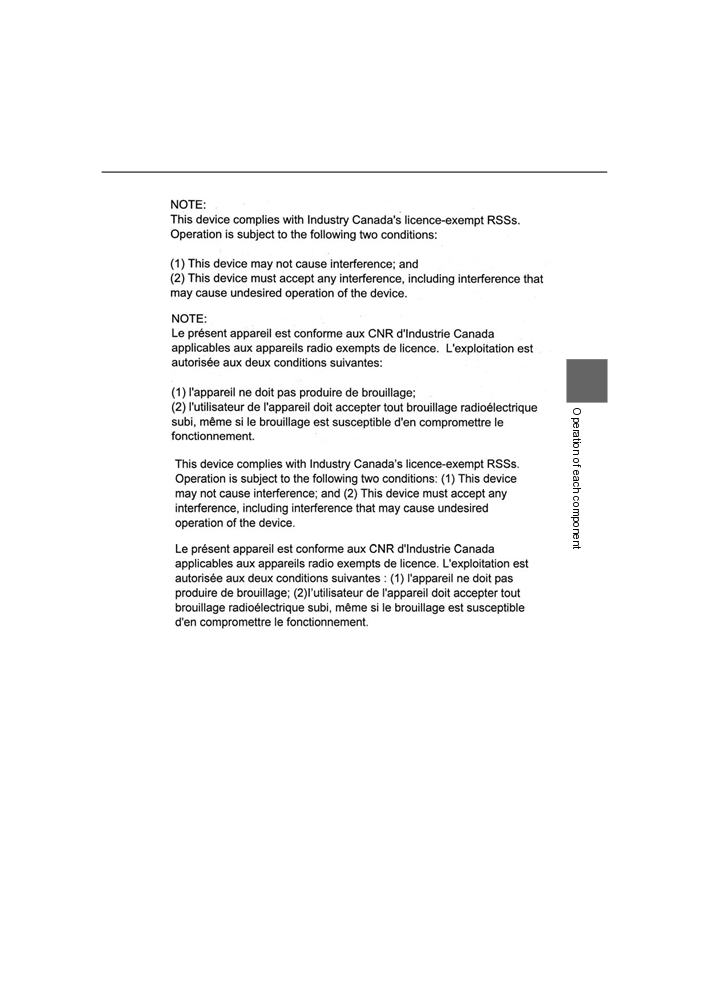

For vehicles sold in Canada
3
RAV4_OM_OM0R012U_(U)
106
3-1. Key information
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers, or medical electrical equip-
ment, such as low-frequency therapy equipment.
■ Carrying the electronic key on your person (vehicles with smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When an electronic key is lost (vehicles with smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
107
Side doors
Unlocking and locking the doors from the outside
◆ Smart key system (if equipped)
Carry the electronic key to enable this function.
Grip the driver’s door handle
1
to unlock the door. Grip the
front passenger’s/rear pas-
senger’s
(if equipped) door
handle to unlock all the
doors.*
3
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (→P. 111)
Touch the lock sensor (the indentation on the upper part of the
2
door handle) to lock all the doors.
Check that the door is securely locked.
◆ Wireless remote control
Vehicles without smart key
Vehicles with smart key
system
system
1
Locks all the doors
Check that the door is securely locked.
2
Unlocks all the doors
Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.
RAV4_OM_OM0R012U_(U)
108
3-2. Opening, closing and locking the doors
◆ Key
Vehicles without smart key system
1
Locks all the doors
2
Unlocks all the doors
Turning the key unlocks the
driver’s door. Turning the key
again within 3 seconds unlocks
the other doors.
Vehicles with smart key system
The doors can also be locked and unlocked with the mechanical
key. (→P. 660)
■ Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door cannot be locked by the lock sensor on the upper part of
the door handle (vehicles with smart key system)
If the door will not lock even when the top-
side sensor area is touched, try touching
both the topside and underside sensor
areas at the same time.
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart key system or the wireless remote control does not operate
properly
● Vehicles with smart key system: Use the mechanical key to lock and unlock
the doors. (→P. 660)
● Replace the key battery with a new one if it is depleted. (→P. 589)
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
109
Unlocking and locking the doors from the inside
◆ Door lock switch
1
Locks all the doors
2
Unlocks all the doors
◆ Inside lock buttons
3
1
Locks the door
2
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Locking the front doors from the outside without a key
1
Move the inside lock button to the lock position.
2
Close the door.
Vehicles without smart key system
The door cannot be locked if the key is in the engine switch.
Vehicles with smart key system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
Depending on the position of the electronic key, the key may not be
detected correctly and the door may be locked.
RAV4_OM_OM0R012U_(U)
110
3-2. Opening, closing and locking the doors
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the lock is
set.
1
Unlock
2
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Automatic door locking and unlocking systems (if equipped)
The following functions can be set or canceled:
For instructions on customizing, refer to P. 697.
Function
Operation
All doors are automatically locked
Speed linked door locking function
when vehicle speed is approxi-
(vehicles with smart key system)
mately 12 mph (20 km/h) or higher.
All doors are automatically locked
Shift position linked door locking
when shifting the shift lever to posi-
function
tion other than P.
Shift position linked door unlocking
All doors are automatically unlocked
function
when shifting the shift lever to P.
Driver’s door linked door unlocking
All doors are automatically unlocked
function
when driver’s door is opened.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
111
■ Switching the door unlock function (vehicles with smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
1
Turn the engine switch off.
2
When the indicator light on the key surface is not on, press and hold
,
or
for approximately 5 seconds while pressing and holding
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step
2
.)
Unlocking function
Beep
3
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding any of the passenger door
handles unlocks all the doors.
Holding a door handle unlocks all
Exterior: Beeps twice
the doors.
Interior: Pings once
■ Impact detection door lock release system (if equipped)
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ When all the doors are locked with the entry function (vehicles with
smart key system), wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wireless
remote control or key.
■ Conditions affecting the operation
Vehicles without smart key system
→P. 101
Vehicles with smart key system
→P. 132
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 700)
RAV4_OM_OM0R012U_(U)
112
3-2. Opening, closing and locking the doors
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
113
Back door
The back door can be locked/unlocked and opened/closed by
the following procedures.
Locking and unlocking the back door
◆ Smart key system (if equipped)
Carry the electronic key to enable this function.
Press the button to unlock all
1
the doors.
3
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and
then closed.
Press the button to lock all the doors.
2
Check that the door is securely locked.
◆ Wireless remote control
→P. 99
◆ Door lock switch
→P. 109
Opening/closing the back door from inside the vehicle (vehicles
with power back door)
Press and hold the switch to open
or close, when the power back
door is unlocked.
(A buzzer
sounds.)
Pressing the switch while the back
door is opening/closing stops the
operation.
RAV4_OM_OM0R012U_(U)
114
3-2. Opening, closing and locking the doors
Opening the back door from outside the vehicle
◆ Back door opener
Vehicles without power back
door
Raise the back door while
pressing up the back door
opener switch.
Vehicles with power back
door
When the back door is
unlocked: Press the back door
opener switch.
When the back door is locked (vehicles with smart key system):
While carrying the electronic key on your person, press the back
door opener switch.
Pressing the switch while the back door is opening/closing stops the
operation.
◆ Wireless remote control (vehicles with power back door)
Press and hold the switch to open/close the power back door.
Vehicles without smart key sys-
Vehicles with smart key sys-
tem
tem
Pressing the button while the back door is opening/closing stops the
operation.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
115
◆ Touchless sensor (vehicles with touchless power back door)
The touchless power back door enables automatic opening and
closing of the power back door by putting your foot near the lower
center part of the rear bumper and moving it away from the rear
bumper.
When operating the touchless power back door, make
sure that the touchless sensor operation is enabled (→P. 701) and
that you are carrying an electronic key.
3
While carrying an electronic key, put your foot within 3.94 in. (100
1
mm) of the lower center part of the rear bumper and move it
away from the rear bumper, the touchless sensor detects the
movement.
When all of the doors are locked: When the movement is detected by
the touchless sensor, all of the doors will be unlocked.
Check to make sure that the power back door begins to operate.
2
To stop the power back door partway or operate it again, use the touch-
less sensor, or the wireless remote control (→P. 114), or power back
door switch (→P. 116).
RAV4_OM_OM0R012U_(U)
116
3-2. Opening, closing and locking the doors
Power back door switch (vehicles with power back door)
Pressing the switch closes the
back door automatically.
(A
buzzer sounds.)
Pressing the switch while the back
door is opening/closing stops the
operation. Pressing the switch
again will reverse the operation.
When closing the back door
Lower the back door using the
back door handle.
Vehicles without power back
door
Make sure to push the back door
down from the outside to close it.
Vehicles with power back door
The back door closing assist will
activate, and the back door will
fully close automatically.
RAV4_OM_OM0R012U_(U)
3-2. Opening, closing and locking the doors
117
Canceling the power back door system (vehicles with power
back door)
The power back door system can be disabled by operating the multi-
information display.
1
Press
or
of the meter control switches and select
on
the multi-information display.
2
Press
or
of the meter control switches and select
,
and then press
3
Select “System Settings” and then press
3
4
Press . (“All Off” will be displayed on the multi-information dis-
play.)
Each time
is pressed, the system will be enabled/disabled.
Canceling the touchless power back door system (vehicles with
touchless power back door)
The touchless power back door system can be disabled by operating
the multi-information display.
1
Press
or
of the meter control switches and select
on
the multi-information display.
2
Press
or
of the meter control switches and select
,
and then press
3
Select “Touchless Sensor” and then press
4
“Push
to Change Power Back Door foot activation mode” will
be displayed on the multi-information display.
Each time
is pressed, the system will be enabled/disabled.
RAV4_OM_OM0R012U_(U)
118
3-2. Opening, closing and locking the doors
Adjusting the open position of the back door (vehicles with
power back door)
The open position of the power back door can be adjusted.
■ Using the multi-information display
1
Press
or
of the meter control switches and select
on the multi-information display.
2
Press
or
of the meter control switches and select
,
and then press
3
Select “Opening Adjustment” and then press
4
Select the desired position and then press . (→P. 701)
■ Using the power back door switch
1
Open the back door, and adjust it to the desired position.
2
Press and hold the power back door switch on the back door until
the buzzer sounds 4 times.
RAV4_OM_OM0R012U_(U)
