Toyota RAV4 (2018 year). Instruction - part 6

2. Instrument cluster

85

1

Tachometer

Displays the engine speed in revolutions per minute

2

Speedometer

Displays the vehicle speed

3

Fuel gauge

Displays the quantity of fuel remaining in the tank

4

Shift position and shift range

Displays the selected shift position or selected shift range (→P. 205)

5

Multi-information display

2

Presents the driver with a variety of driving-related data (→P. 88)

6

Outside temperature display

→P. 87

7

Engine coolant temperature gauge

Displays the engine coolant temperature

8

Odometer and trip meter

Odometer:

Displays the total distance that the vehicle has been driven

Trip meter:

Displays the distance the vehicle has been driven since the meter was last

reset. Trip meters “A” and “B” can be used to record and display different

distances independently.

RAV4_OM_OM0R012U_(U)

86

2. Instrument cluster

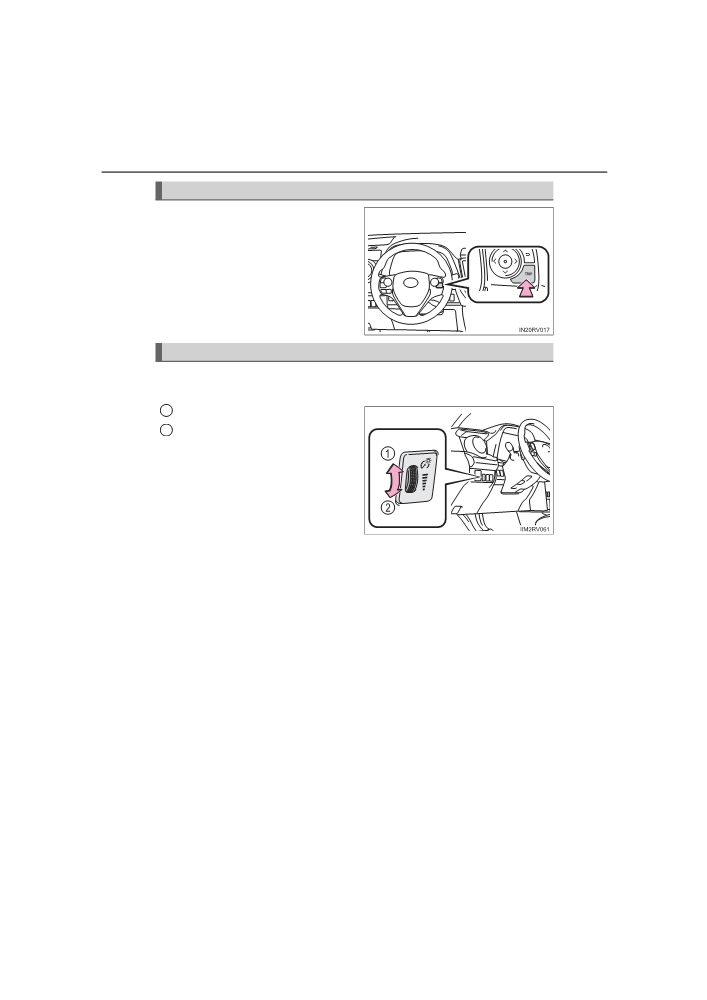

Changing the odometer and trip meter display

Switches the items of the odome-

ter and trip meter display by

pressing the “TRIP” switch.

When the trip

meter is displayed,

pressing and holding the

“TRIP”

switch will reset the trip meter.

Instrument panel light control

The brightness of the instrument panel lights can be adjusted by turn-

ing the dial.

1

Brighter

2

Darker

RAV4_OM_OM0R012U_(U)

2. Instrument cluster

87

■ The meters and display illuminate when

 Vehicles without smart key system

The engine switch is in the “ON” position.

 Vehicles with smart key system

The engine switch is in IGNITION ON mode.

■ Outside temperature display

● In the following situations, the correct outside temperature may not be dis-

played, or the display may take longer than normal to change.

• When stopped, or driving at low speeds (less than 12 mph [20 km/h])

2

• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

● When “--” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

● The temperature range that can be displayed is from -40°F (-40°C) to 122°F

(50°C).

WARNING

■The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal

information display. At extremely low temperatures, the display monitor may

respond slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear

number appearing on the display. This lag could cause the driver to down-

shift again, causing rapid and excessive engine braking and possibly an

accident resulting in death or injury.

NOTICE

■ To prevent damage to the engine and its components

● Do not let the indicator needle of the tachometer enter the red zone, which

indicates the maximum engine speed.

● The engine may be overheating if the engine coolant temperature gauge is

in the red zone (“H”). In this case, immediately stop the vehicle in a safe

place, and check the engine after it has cooled completely. (→P. 666)

RAV4_OM_OM0R012U_(U)

88

2. Instrument cluster

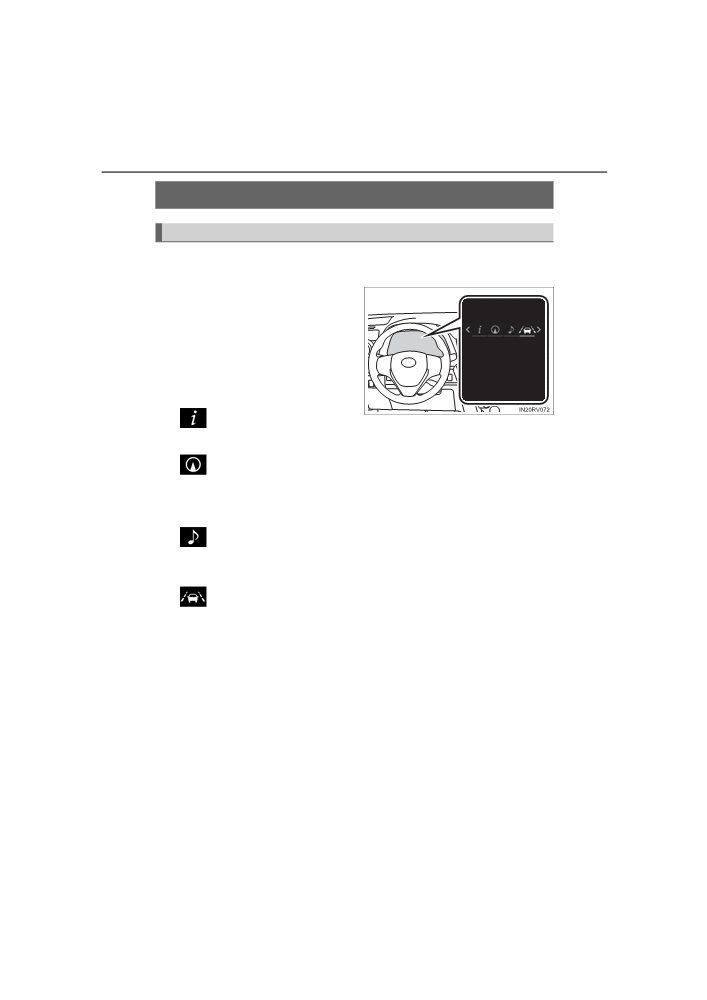

Multi-information display

Display contents

The multi-information display presents the driver with a variety of vehi-

cle data.

● Menu icons

Displays the following informa-

tion when an icon is selected.

(→P. 89)

Some of the information may be

displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (→P. 89)

Navigation system-linked display*

Select to display the following navigation system-linked information.

• Route guidance

• Compass display (north-up display/heading-up display)

Audio system-linked display*

Select to enable selection of an audio source or track on the display

using the meter control switches.

Driving assist information*

Select to display the dynamic radar cruise control* or LDA (Lane

Departure Alert with steering control)* information, when the system

is used. (→P. 256, 264)

The displayed icon changes depending on the system used.

RAV4_OM_OM0R012U_(U)

2. Instrument cluster

89

Warning message display

Select to display warning messages and measures to be taken if a

malfunction is detected. (→P. 629)

Settings display

Select to change the system settings and meter display settings.

(→P. 91)

*: If equipped

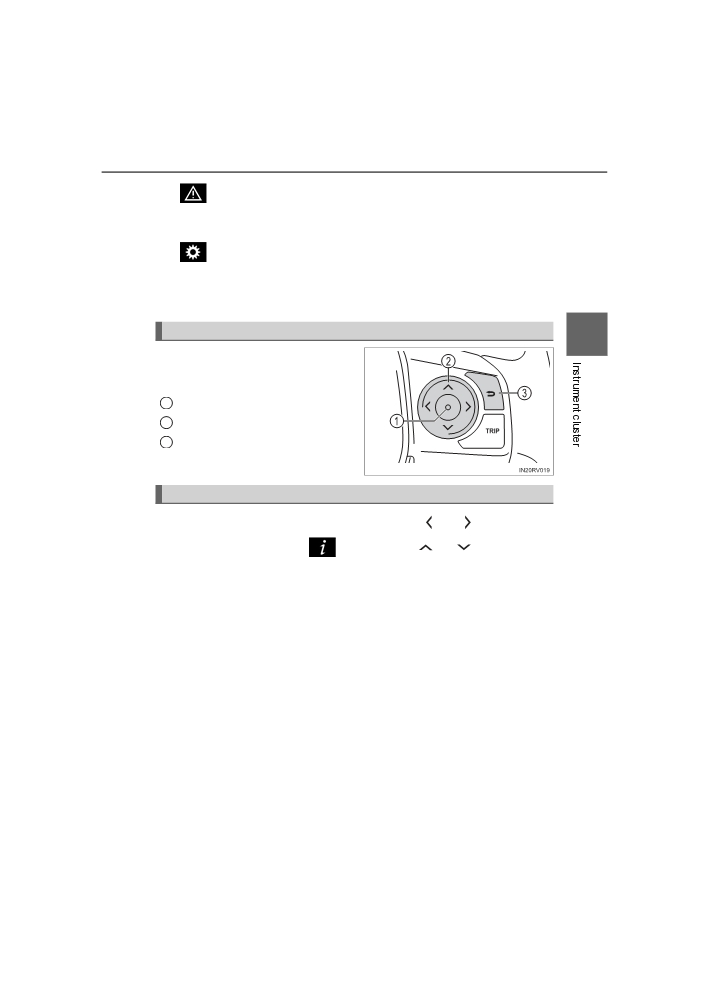

Operating the meter control switches

2

The multi-information display is

operated using the meter control

switches.

1

Enter/Set

2

Select an item/change pages

3

Return to the previous screen

Drive information

Items displayed can be switched by pressing

or

of the meter

control switches to select

and pressing

or

■ Average fuel economy (after start/after reset*1/after refuel)

Displays the average fuel consumption since the engine was

started, the function was reset and the vehicle was refueled,

respectively

Use the displayed average fuel consumption as a reference.

RAV4_OM_OM0R012U_(U)

2. Instrument cluster

91

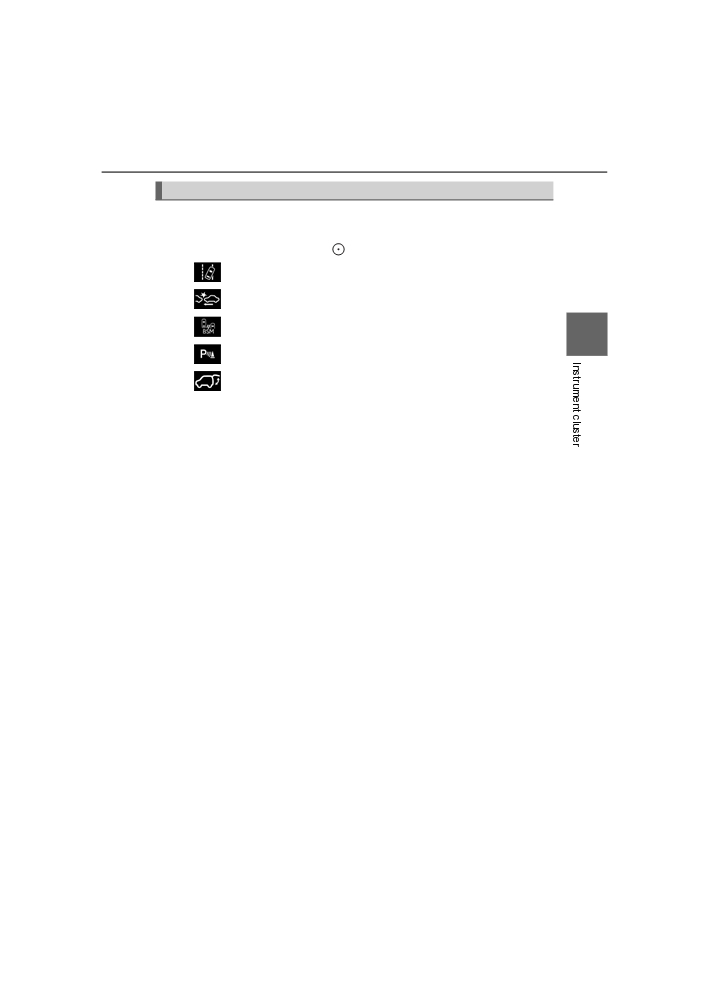

Settings display

The settings of the following items can be changed, refer to P. 697

For functions that can be enabled or disabled, the function switches

between on and off each time

is pressed.

●

(Lane Departure Alert with steering control)* (→P. 256)

●

(Pre-Collision System)* (→P. 242)

●

(Blind Spot Monitor)* (→P. 300)

2

●

(Intuitive parking assist)* (→P. 280)

●

(Power back door)* (→P. 117)

● Meter Settings

• Language

Select to change the language on the display.

• Units

Select to change the unit of measure for fuel consumption.

• Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light

• Pop-up display

Select to set the pop-up displays, which may appear in some situa-

tions, on/off.

• Accent color

Select to change the accent colors on the screen, such as the cursor

color.

• Default settings

Registered or changed meter settings will be deleted or returned to

their default setting.

*: If equipped

RAV4_OM_OM0R012U_(U)

92

2. Instrument cluster

■ System check display

After turning the engine switch to IGNITION ON mode, opening image is dis-

played while system operation is checked. When the system check is com-

plete, the normal screen will return.

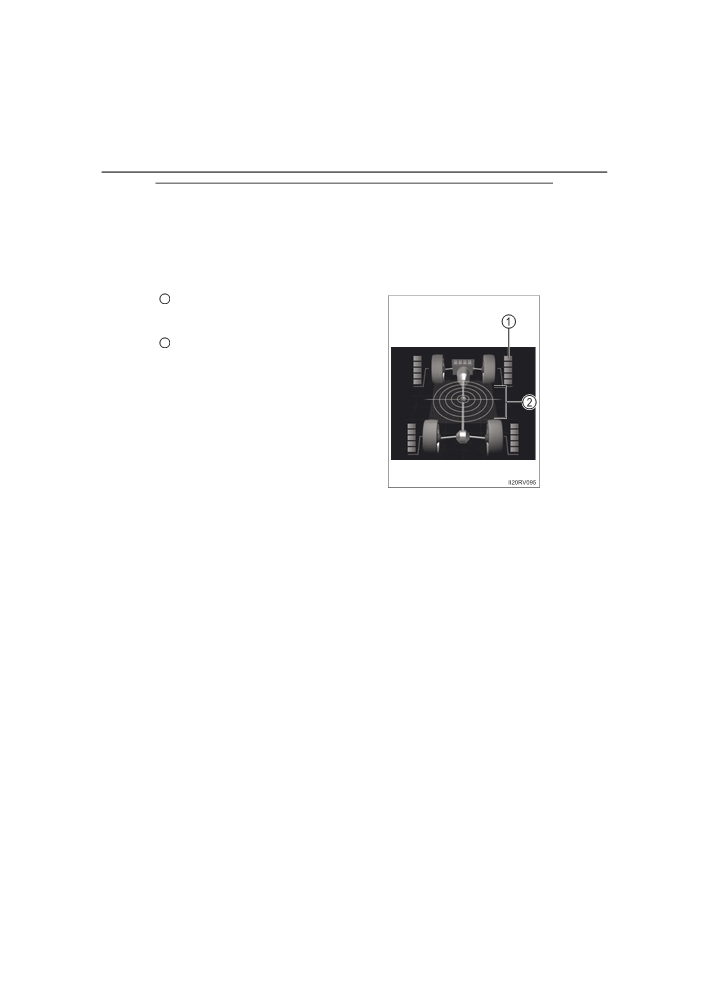

■ Dynamic Torque Control AWD system display

Displays the Dynamic Torque Control AWD system operation state and the G-

force state.

Torque distribution display

1

Displays the amount of drive torque

applied.

2

G-force display

Displays the current G-force state.

■ Suspension of the settings display

In the following situations, the settings display using the meter control

switches will be suspended.

● When a warning message appears on the multi-information display

● When the vehicle begins to move

■ When disconnecting and reconnecting battery terminals

The drive information will be reset.

■ Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is

characteristic of liquid crystal displays, and there is no problem continuing to

use the display.

RAV4_OM_OM0R012U_(U)

2. Instrument cluster

93

WARNING

■ Caution for use while driving

For safety, avoid operating the meter control switches while driving as much

as possible, and do not look continuously at the multi-information display

while driving. Stop the vehicle and operate the meter control switches. Fail-

ure to do so may cause a steering wheel operation error, resulting in an

unexpected accident.

■Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that

2

the vehicle is parked in a place with adequate ventilation. In a closed area

such as a garage, exhaust gases including harmful carbon monoxide (CO)

may collect and enter the vehicle. This may lead to death or a serious

health hazard.

NOTICE

■ During setting up the display

To prevent battery discharge, ensure that the engine is running while setting

up the display features.

RAV4_OM_OM0R012U_(U)

94

2. Instrument cluster

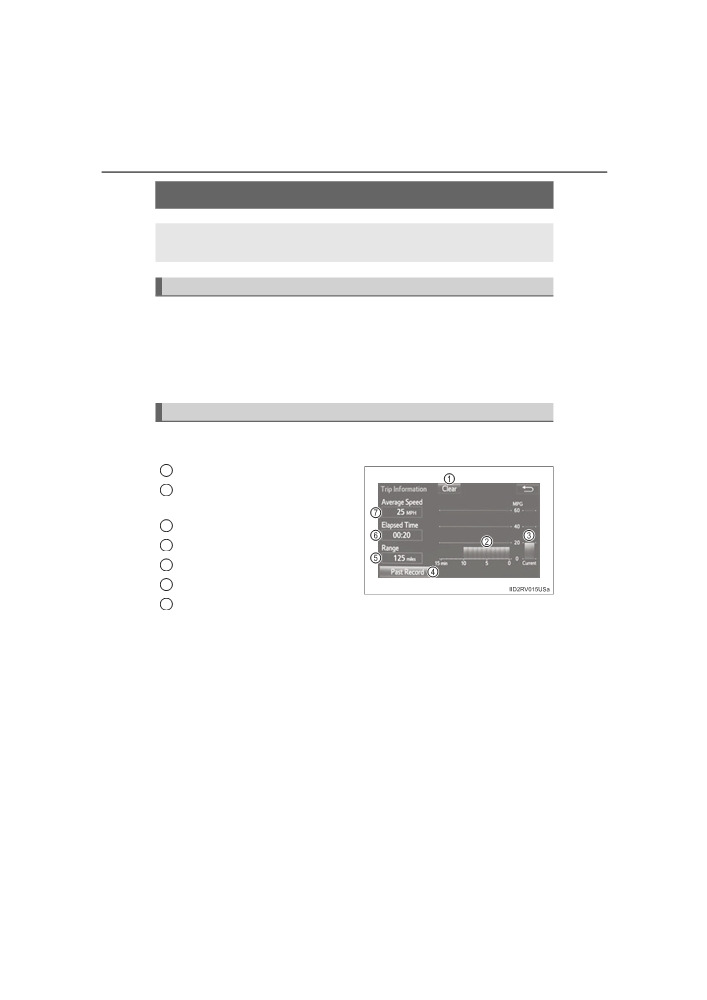

Fuel consumption information

The fuel consumption information can be displayed on Entune

Premium Audio with Navigation and Entune Audio screen.

Display the trip information or past record screen

 Vehicles with Entune Audio

Press the “CAR” button.

 Vehicles with Entune Premium Audio with Navigation and Entune

Audio Plus

Press the “APPS” button, and then select “Eco” on the screen.

Trip information

If the “Trip Information” screen does not appear, select “Trip Informa-

tion”.

1

Reset the trip information data

2

Previous fuel consumption per

minute

3

Current fuel consumption

4

“Past Record” screen appears

5

Cruising range

6

Elapsed time

7

Average vehicle speed

Average fuel consumption for the past 15 minutes is divided by color

into past averages and averages attained since the engine switch was

last turned to the “ON” position (vehicles without smart key system) or

IGNITION ON mode (vehicles with smart key system). Use the dis-

played average fuel consumption as a reference.

These images are examples only, and may vary slightly from actual

conditions.

RAV4_OM_OM0R012U_(U)

2. Instrument cluster

95

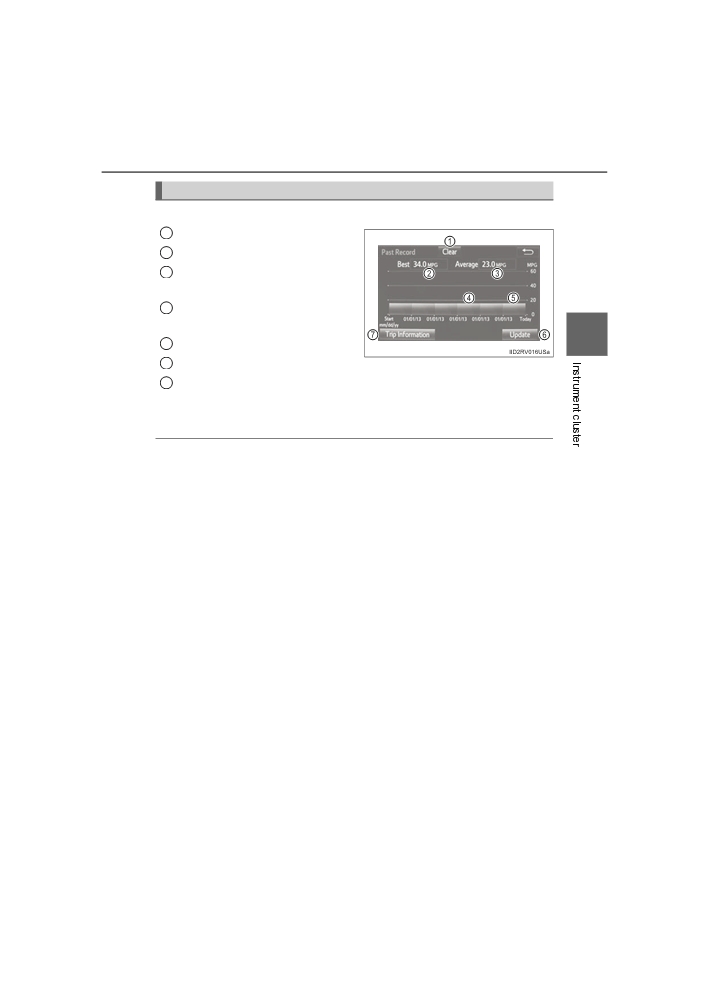

Past record

If the “Past Record” screen does not appear, select “Past Record”.

1

Reset the past record data

2

Best recorded fuel consumption

3

Average fuel consumption

(if

equipped)

4

Previous fuel consumption

record

2

5

Current fuel consumption

6

Update the past record data

7

“Trip Information” screen appears

These images are examples only, and may vary slightly from actual

conditions.

■Resetting the data

● Selecting “Clear” on the “Trip Information” screen will reset the trip informa-

tion data.

● Selecting “Clear” on the “Past Record” screen will reset the past record

data.

■Updating the past record data

Selecting “Update” on the “Past Record” screen will update the past record

data.

Also, the average fuel consumption displayed in the multi-information display

will be reset at the same time.

■Cruising range

Displays the estimated maximum distance that can be driven with the quan-

tity of fuel remaining.

This distance is computed based on your average fuel consumption. As a

result, the actual distance that can be driven may differ from that displayed.

RAV4_OM_OM0R012U_(U)

98

3-1. Key information

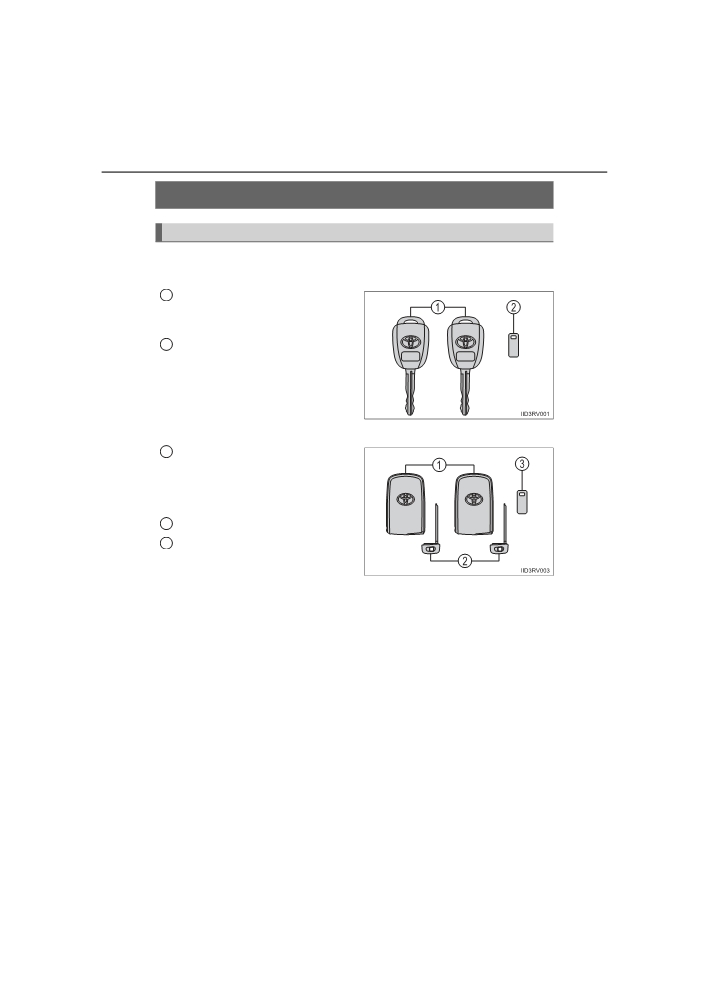

Keys

The keys

The following keys are provided with the vehicle.

 Vehicles without smart key system

1

Master keys

Operating the wireless remote con-

trol function

Key number plate

2

 Vehicles with smart key system

1

Electronic keys

• Operating the smart key system

(→P. 130)

• Operating the wireless remote

control function

2

Mechanical keys

3

Key number plate

RAV4_OM_OM0R012U_(U)

3-1. Key information

99

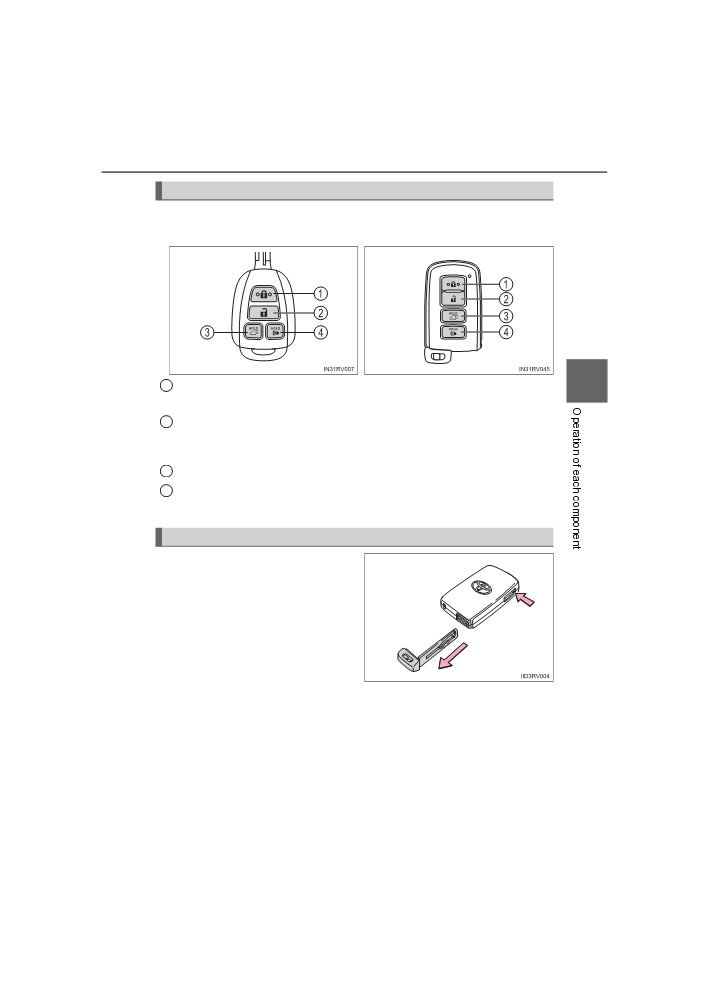

Wireless remote control

 Vehicles without smart key sys-

 Vehicles with smart key sys-

tem

tem

3

Locks all the doors (→P. 107)

1

Check that the door is securely locked.

2

Unlocks all the doors (→P. 107)

Pressing the button unlocks the driver’s door. Pressing the button again

within 3 seconds unlocks the other doors.

3

Opens and closes the power back door* (→P. 114)

4

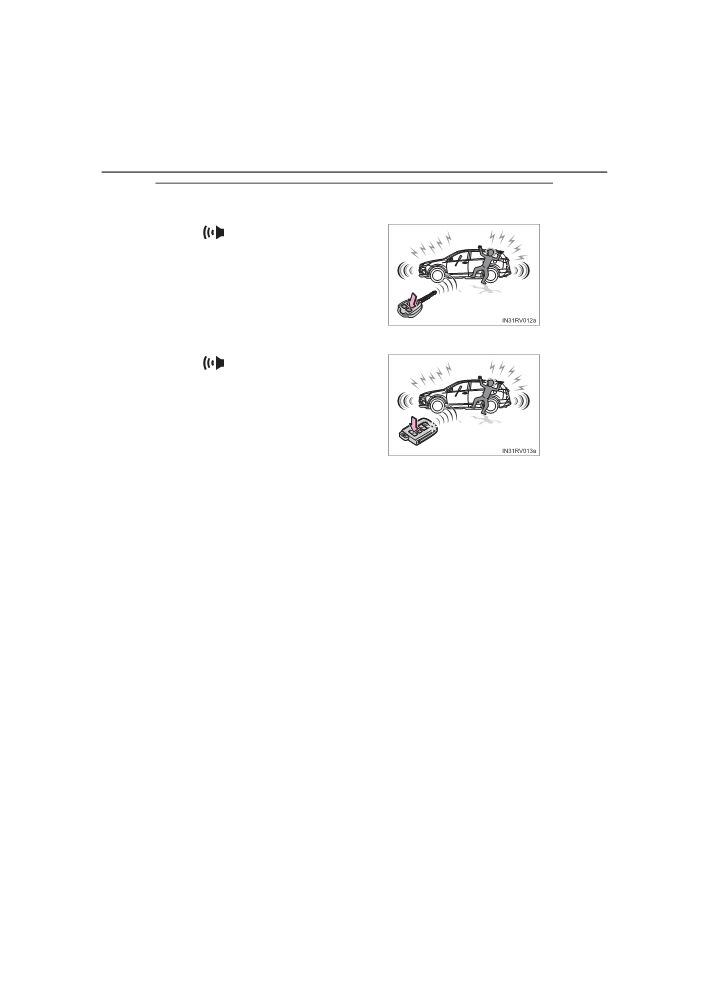

Sounds the alarm (→P. 100)

*: If equipped

Using the mechanical key (vehicles with smart key system)

To take out the mechanical key,

push the release button and take

the key out.

The mechanical key can only be

inserted in one direction, as the

key only has grooves on one side.

If the key cannot be inserted in a

lock cylinder, turn it over and re-

attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the

mechanical key together with the electronic key. If the electronic key bat-

tery is depleted or the entry function does not operate properly, you will

need the mechanical key. (→P. 660)

RAV4_OM_OM0R012U_(U)

100

3-1. Key information

■Panic mode

 Vehicles without smart key system

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will

flash to deter any person from trying to

break into or damage your vehicle.

To stop the alarm, press any button on the

wireless remote control.

 Vehicles with smart key system

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will

flash to deter any person from trying to

break into or damage your vehicle.

To stop the alarm, press any button on the

electronic key.

■ If you lose your keys

New genuine keys can be made by your Toyota dealer using a master key

(vehicles without smart key system) or the other mechanical key (vehicles

with smart key system) and the key number stamped on your key number

plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■ When riding in an aircraft

When bringing a key with wireless remote control function onto an aircraft,

make sure you do not press any buttons on the key while inside the aircraft

cabin. If you are carrying the key in your bag etc., ensure that the buttons are

not likely to be pressed accidentally. Pressing a button may cause the key to

emit radio waves that could interfere with the operation of the aircraft.

RAV4_OM_OM0R012U_(U)

3-1. Key information

101

■ Conditions affecting the operation

 Vehicles without smart key system

The wireless remote control function may not operate normally in the follow-

ing situations.

● Near a TV tower, radio station, electric power plant, airport or other facility

that generates strong radio waves

● When carrying a portable radio, cellular phone or other wireless communi-

cation device

● When multiple wireless keys are in the vicinity

● When the wireless key has come into contact with, or is covered by a metal-

lic object

● When a wireless key (that emits radio waves) is being used nearby

● When the wireless key has been left near an electrical appliance such as a

3

personal computer

● If window tint with a metallic content or metallic objects are attached to the

rear window

 Vehicles with smart key system

→P. 132

■ Key battery depletion

 Vehicles without smart key system

If the wireless remote control function does not operate, the battery may be

depleted. Replace the battery when necessary. (→P. 589)

 Vehicles with smart key system

→P. 135

■ Replacing the battery

→P. 589

■Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask

your Toyota dealer for details.

■ If a wrong key is used (vehicles with smart key system)

The key cylinder rotates freely to isolate inside mechanism.

■ Customization

Settings (e.g. wireless remote control system) can be changed.

(Customizable features: →P. 702)

RAV4_OM_OM0R012U_(U)

Content   ..  4  5  6  7   ..
