257

4-5. Using the driving support systems

4

Drivin

g

WARNING

■

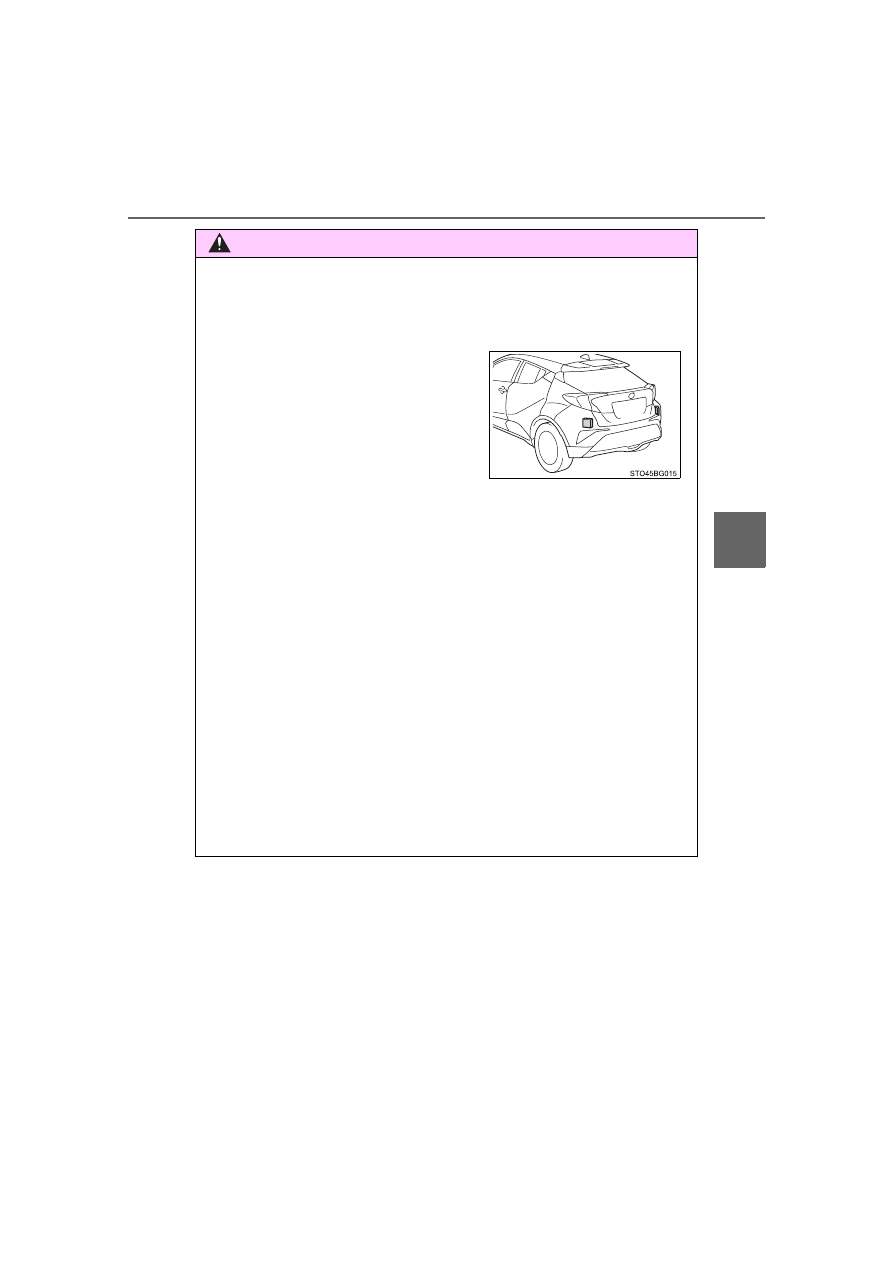

Handling the radar sensor
One Blind Spot Monitor sensor is installed inside the left and right side of
the vehicle rear bumper respectively. Observe the following to ensure the
Blind Spot Monitor can function correctly.

If the warning message does not disappear, have the vehicle inspected
by your Toyota dealer.

●

Do not subject a sensor or its surrounding area on the rear bumper to a
strong impact.
If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected correctly.
In the following situations, have your vehicle inspected by your Toyota
dealer.
• A sensor or its surrounding area is subject to a strong impact.
• If the surrounding area of a sensor is scratched or dented, or part of

them has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach accessories or stickers to the sensor or surrounding area on
the bumper.

●

Do not modify the sensor or surrounding area on the bumper.

●

Do not paint the rear bumper any color other than an official Toyota color.

●

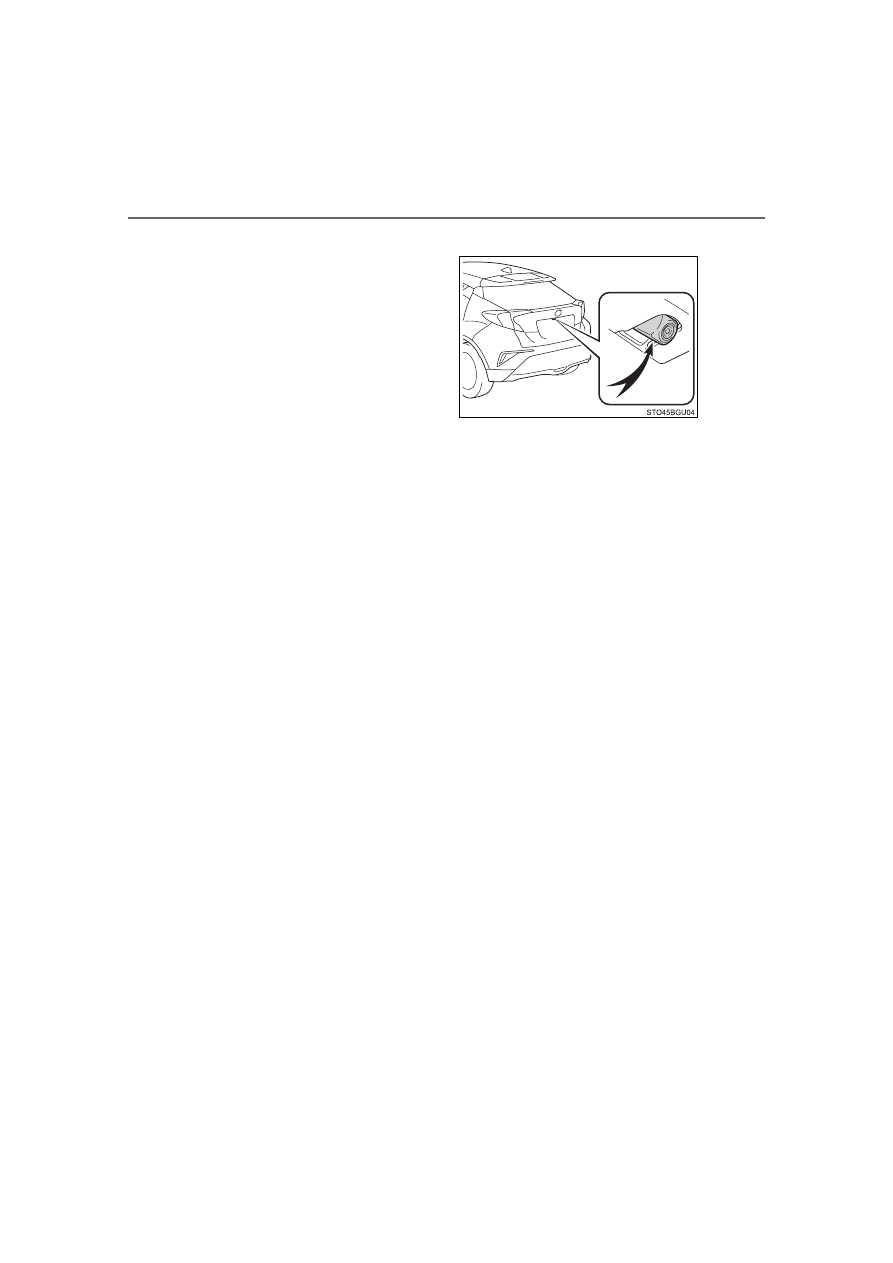

Keep the sensor and its surrounding
area on the bumper clean at all times.
If a sensor or its surrounding area on
the rear bumper is dirty or covered
with snow, the Blind Spot Monitor may
not operate and a warning message
(

→P. 255) will be displayed.

In this situation, clear off the dirt or
snow and drive the vehicle with the
operation conditions of the BSM func-
tion (

→P. 260) satisfied for approxi-

mately 10 minutes.

258

4-5. Using the driving support systems

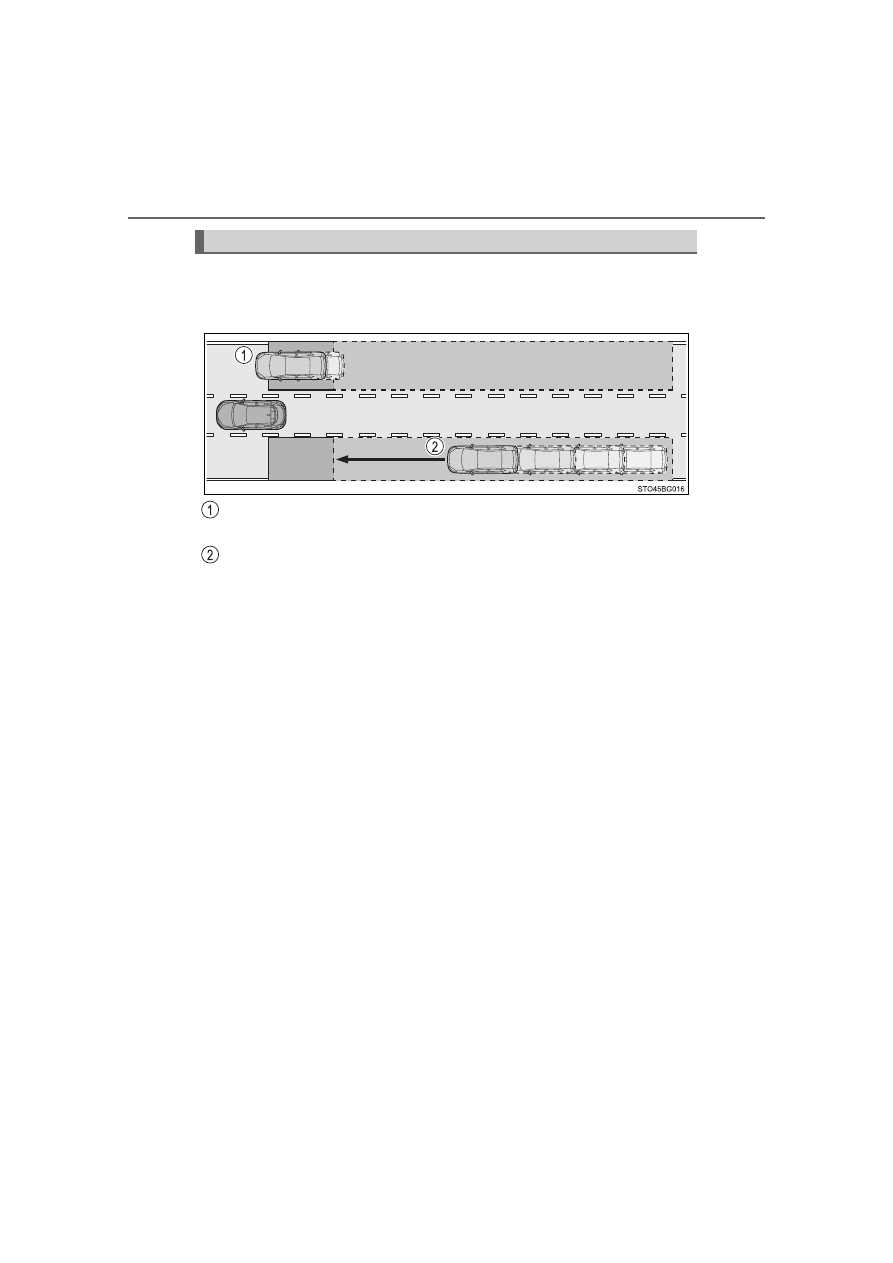

The BSM function uses radar sensors to detect the following vehicles
traveling in adjacent lanes and advises the driver of the presence of
such vehicles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the out-
side rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are
not visible using the outside rear view mirrors (the blind spots)

BSM function

259

4-5. Using the driving support systems

4

Drivin

g

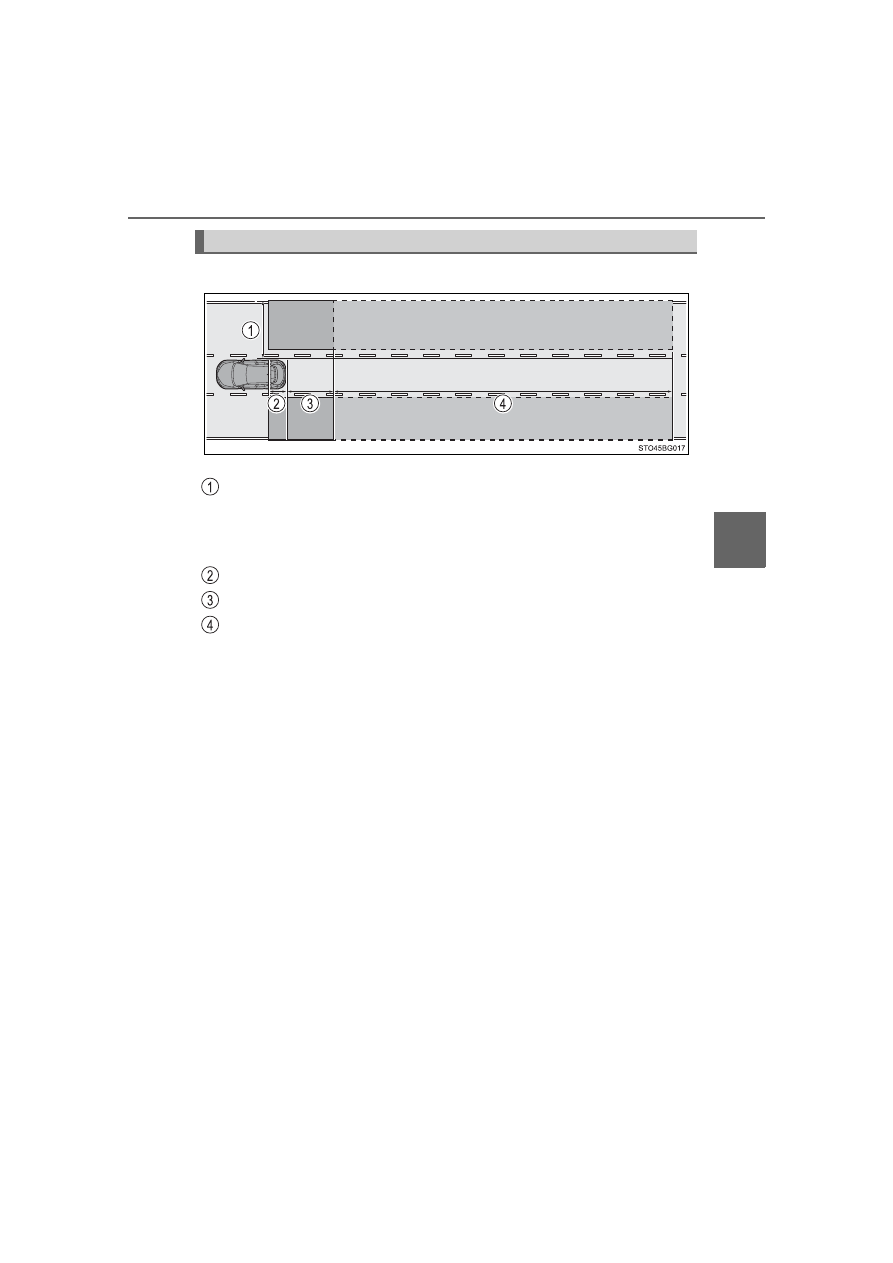

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*

*

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*

*

: The greater the difference in speed between your vehicle and the detected

vehicle is, the farther away the vehicle will be detected, causing the out-
side rear view mirror indicator to illuminate or flash.

BSM function detection areas

260

4-5. Using the driving support systems

■

The BSM function is operational when
The BSM function is operational when all of the following conditions are met:

●

The BSM system is set to on (

→P. 255)

●

The shift lever is in a position other than R.

●

Vehicle speed is greater than approximately 10 mph (16 km/h)

■

The BSM function will detect a vehicle when
The BSM function will detect a vehicle present in the detection area in the
following situations:

●

A vehicle in an adjacent lane overtakes your vehicle.

●

Another vehicle enters the detection area when it changes lanes.

■

Conditions under which the BSM function will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles
and/or objects:

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles traveling in the opposite direction

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Following vehicles that are in the same lane

*

●

Vehicles traveling 2 lanes away from your vehicle

*

*

: Depending on conditions, detection of a vehicle and/or object may occur.

WARNING

■

Cautions regarding the use of the system
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The Blind Spot Monitor function is a supplementary function which alerts the
driver that a vehicle is present in the blind spot. Do not overly rely on the
Blind Spot Monitor function. The function cannot judge if it is safe to change
lanes, therefore over reliance could cause an accident resulting in death or
serious injury.
According to conditions, the system may not function correctly. Therefore
the driver’s own visual confirmation of safety is necessary.

261

4-5. Using the driving support systems

4

Drivin

g

■

Conditions under which the BSM function may not function correctly

●

The BSM function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When mud, snow, ice, a sticker, etc., is covering the sensor or surround-

ing area on the rear bumper

• When driving on a road surface that is wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and

the vehicle that enters the detection area

• When the difference in speed between your vehicle and another vehicle

is changing

• When a vehicle enters a detection area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop, a vehicle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When vehicle lanes are wide, or when driving on the edge of a lane, and

the vehicle in an adjacent lane is far away from your vehicle

• When a bicycle carrier or other accessory is installed to the rear of the

vehicle

• When there is a significant difference in height between your vehicle and

the vehicle that enters the detection area

• Immediately after BSM system is set to on

262

4-5. Using the driving support systems

●

Instances of the BSM function unnecessarily detecting a vehicle and/or
object may increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When the distance between your vehicle and a guardrail, wall, etc., that

enters the detection area is short

• When driving up and down consecutive steep inclines, such as hills, dips

in the road, etc.

• When vehicle lanes are narrow, or when driving on the edge of a lane,

and a vehicle traveling in a lane other than the adjacent lanes enters the
detection area

• When driving on roads with sharp bends, consecutive curves, or uneven

surfaces

• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other accessory is installed to the rear of the

vehicle

263

4-5. Using the driving support systems

4

Drivin

g

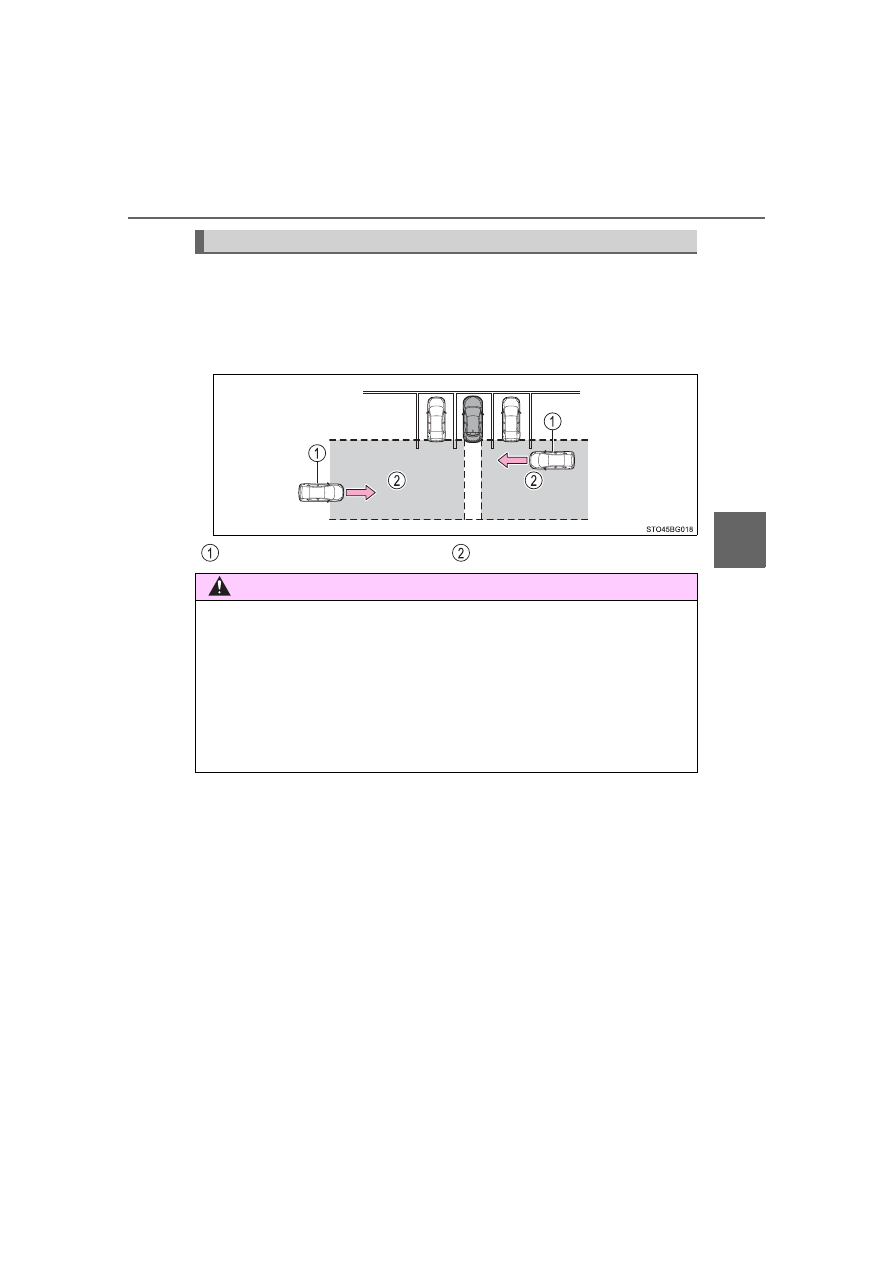

The RCTA functions when your vehicle is in reverse. It can detect
other vehicles approaching from the right or left rear of the vehicle. It
uses radar sensors to alert the driver of the other vehicle’s existence
through flashing the outside rear view mirror indicators and sounding
a buzzer.

RCTA function

Approaching vehicles

Detection areas

WARNING

■

Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
The RCTA function is only a supplementary function which alerts the driver
that a vehicle is approaching from the right or left at the rear of the vehicle.
As the RCTA function may not function correctly under certain conditions,
the driver’s own visual confirmation of safety is necessary. Over reliance on
this function may lead to an accident resulting death or serious injury.

264

4-5. Using the driving support systems

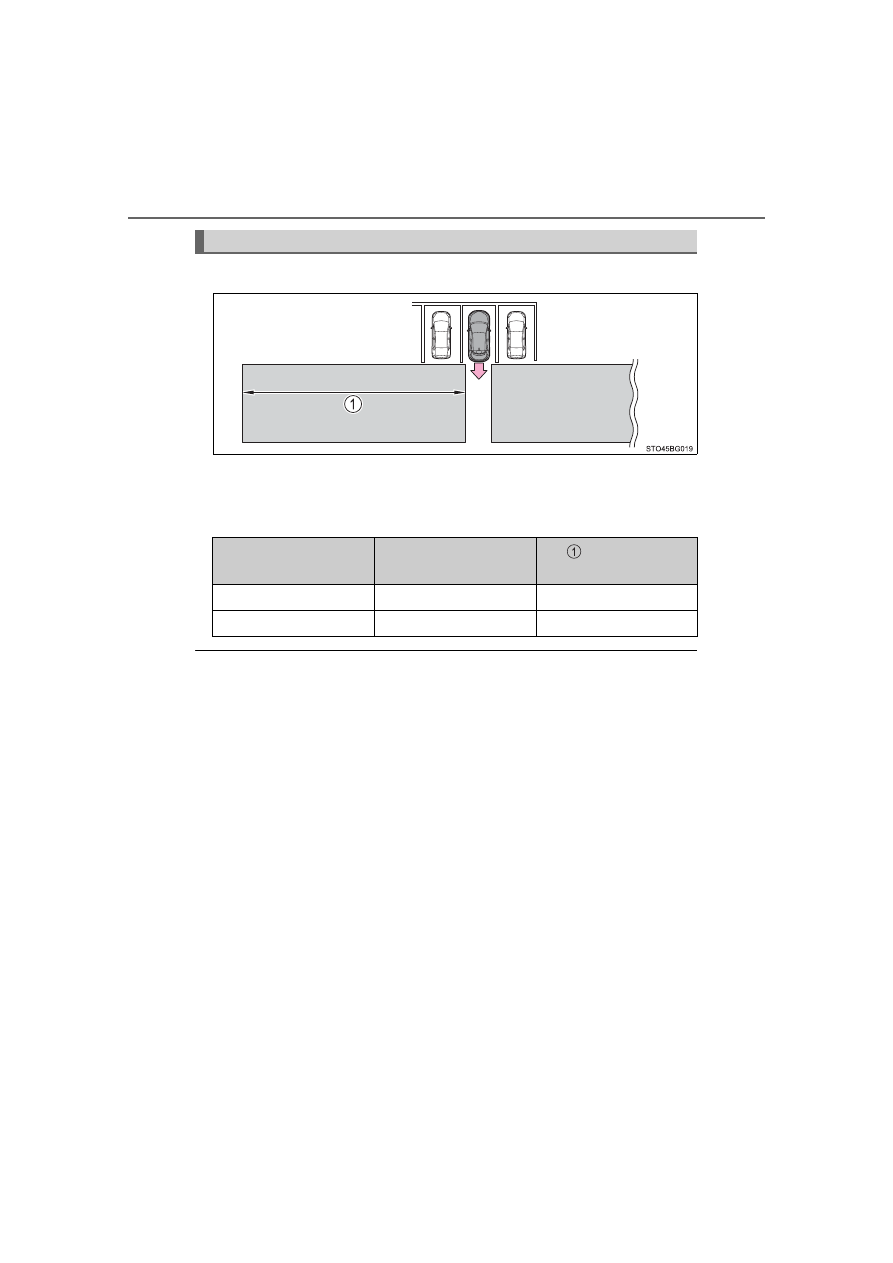

The areas that vehicles can be detected in are outlined below.

To give the driver a more consistent time to react, the buzzer can alert
for faster vehicles from farther away.
Example:

■

The RCTA function is operational when
The RCTA function operates when all of the following conditions are met:

●

The BSM system is set to on. (

→P. 255)

●

The shift position is in R.

●

Vehicle speed is less than approximately 5 mph (8 km/h).

●

Approaching vehicle speed is between approximately 5 mph (8 km/h) and
18 mph (28 km/h).

RCTA function detection areas

Approaching vehicle

Speed

Approximate
alert distance

Fast

18 mph (28 km/h)

65 ft. (20 m)

Slow

5 mph (8 km/h)

18 ft. (5.5 m)

265

4-5. Using the driving support systems

4

Drivin

g

■

Conditions under which the RCTA function will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles
and/or objects:

●

Vehicles approaching from directly behind

●

Vehicles backing up in a parking space next to your vehicle

●

Guardrails, walls, signs, parked vehicles and similar stationary objects

*

●

Small motorcycles, bicycles, pedestrians, etc.

*

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking spaces next to your vehicle

*

*

: Depending on the conditions, detection of a vehicle and/or object may

occur.

■

Conditions under which the RCTA function may not function correctly

●

The RCTA function may not detect vehicles correctly in the following situa-
tions:
• When the sensor is misaligned due to a strong impact to the sensor or its

surrounding area

• When mud, snow, ice, a sticker, etc., is covering the sensor or surround-

ing area on the rear bumper

• When driving on a road surface that is wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching with only a small gap between

each vehicle

• When a vehicle is approaching at high speed

●

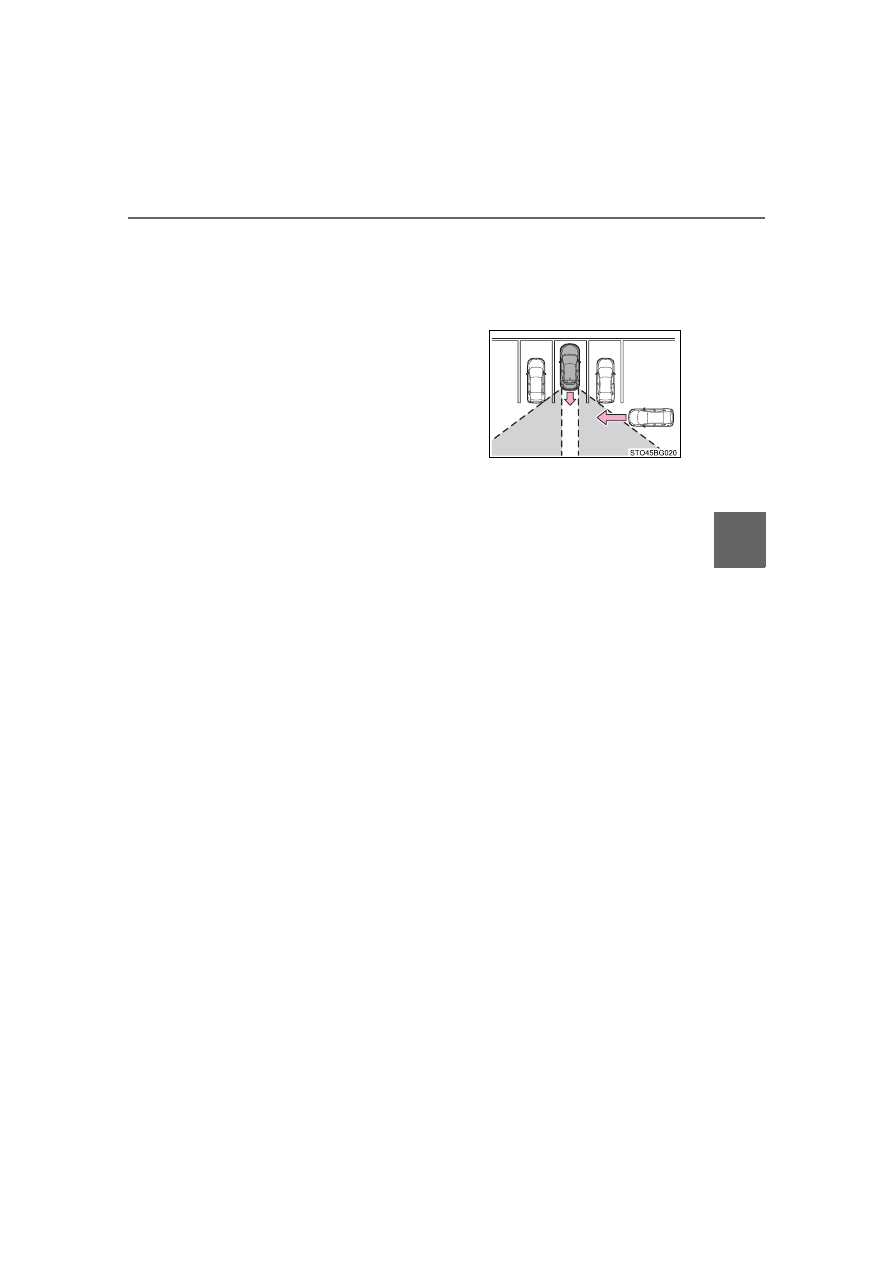

Vehicles that the sensors cannot detect
due to obstructions

266

4-5. Using the driving support systems

• Immediately after the RCTA function is set to on
• Immediately after the engine is started with the RCTA function is set to on

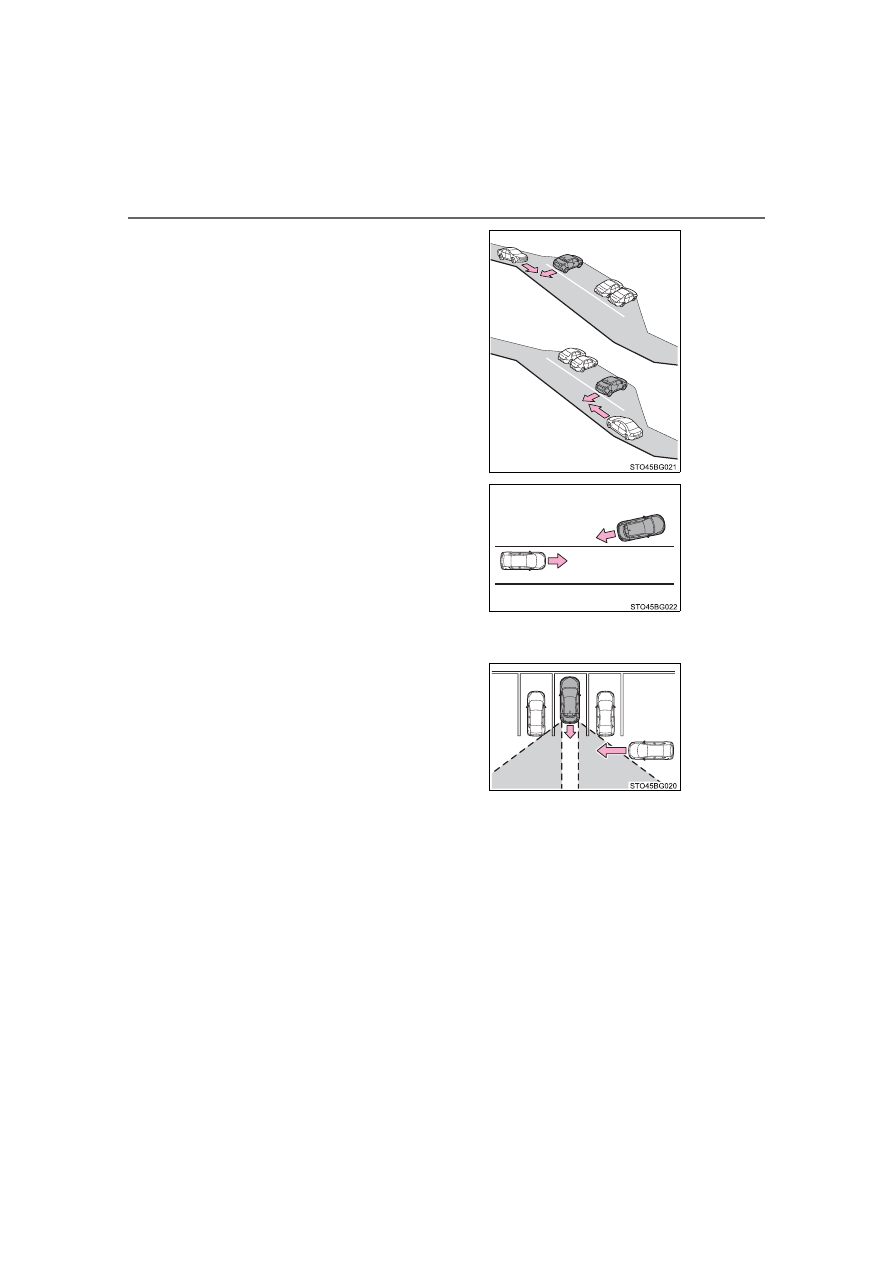

• When backing up on a slope with a

sharp change in grade

• When backing out of a shallow angle

parking spot

• When the sensors cannot detect a

vehicle due to obstructions

267

4-5. Using the driving support systems

4

Drivin

g

●

Instances of the RCTA function unnecessarily detecting a vehicle and/or
object may increase in the following situations:
• When a vehicle passes by the side of your vehicle

• When the distance between your vehicle and metal objects, such as a

guardrail, wall, sign, or parked vehicle, which may reflect electrical waves
toward the rear of the vehicle, is short

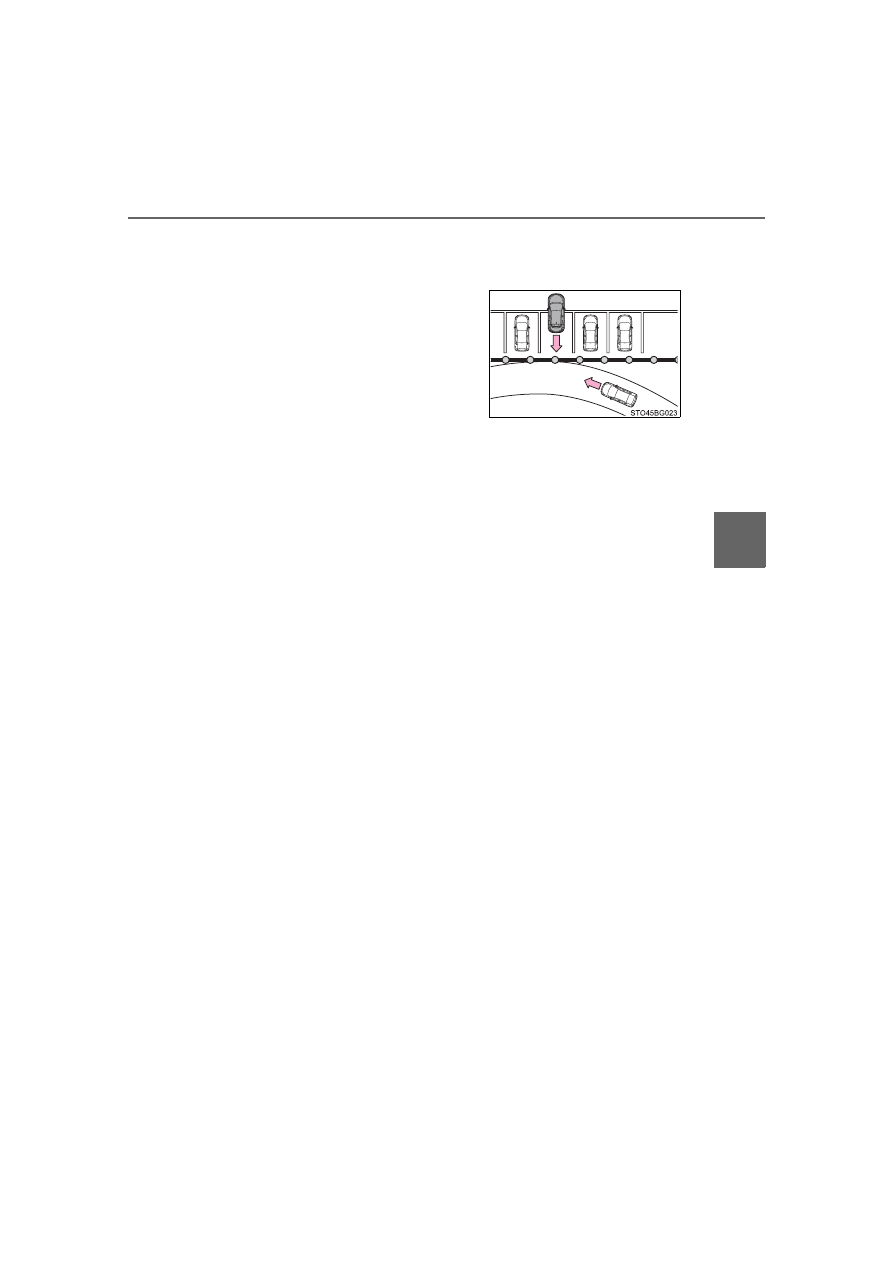

• When the parking space faces a

street and vehicles are being driven
on the street

268

4-5. Using the driving support systems

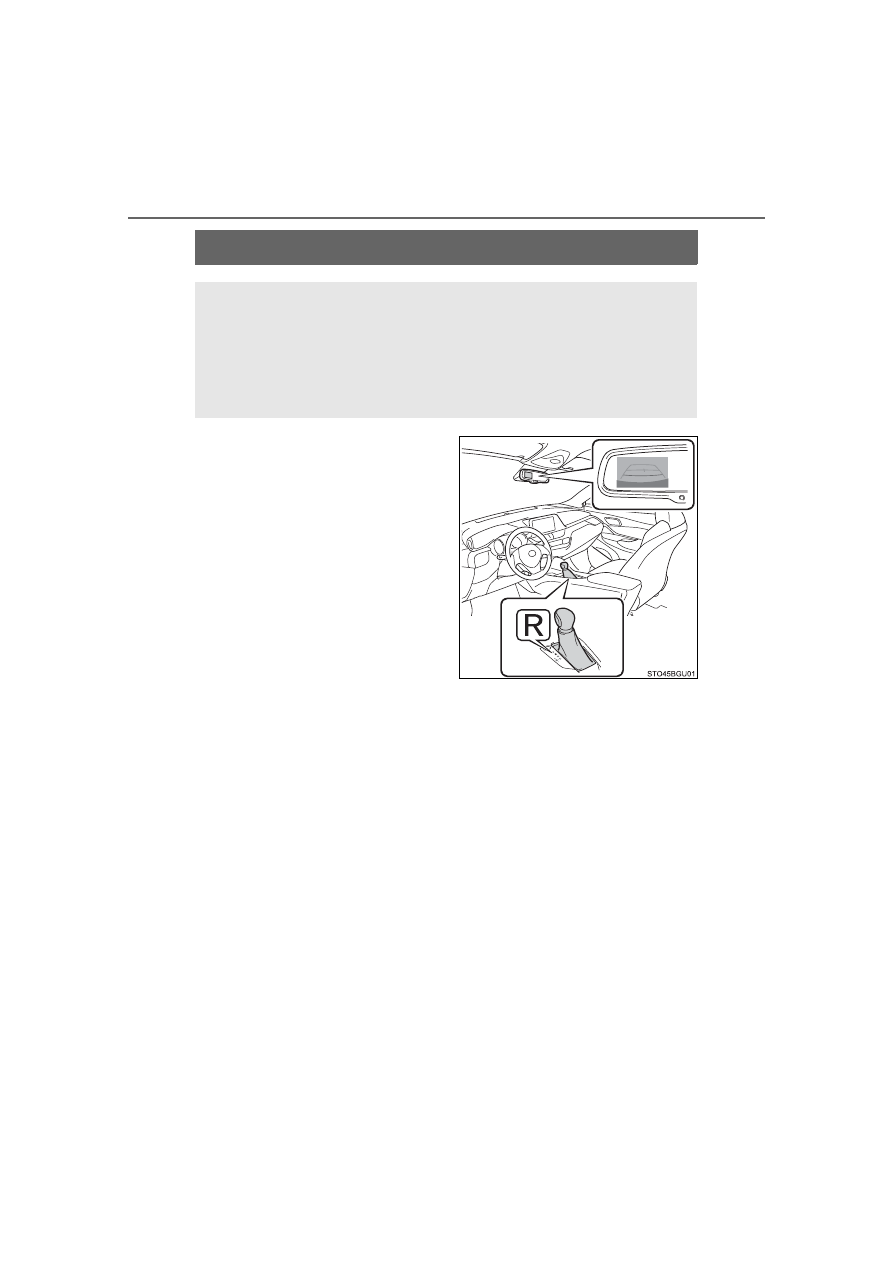

Rear view monitor system

The rear view image is displayed
when the shift lever is in R and the
engine switch is in the “ON” posi-
tion (vehicles without a smart key
system) or IGNITION ON mode
(vehicles with a smart key sys-
tem).

This reversed image is a similar
image to the one on the inside rear
view mirror.
If you shift the shift lever to any
positions other than R, the screen
is turned off.

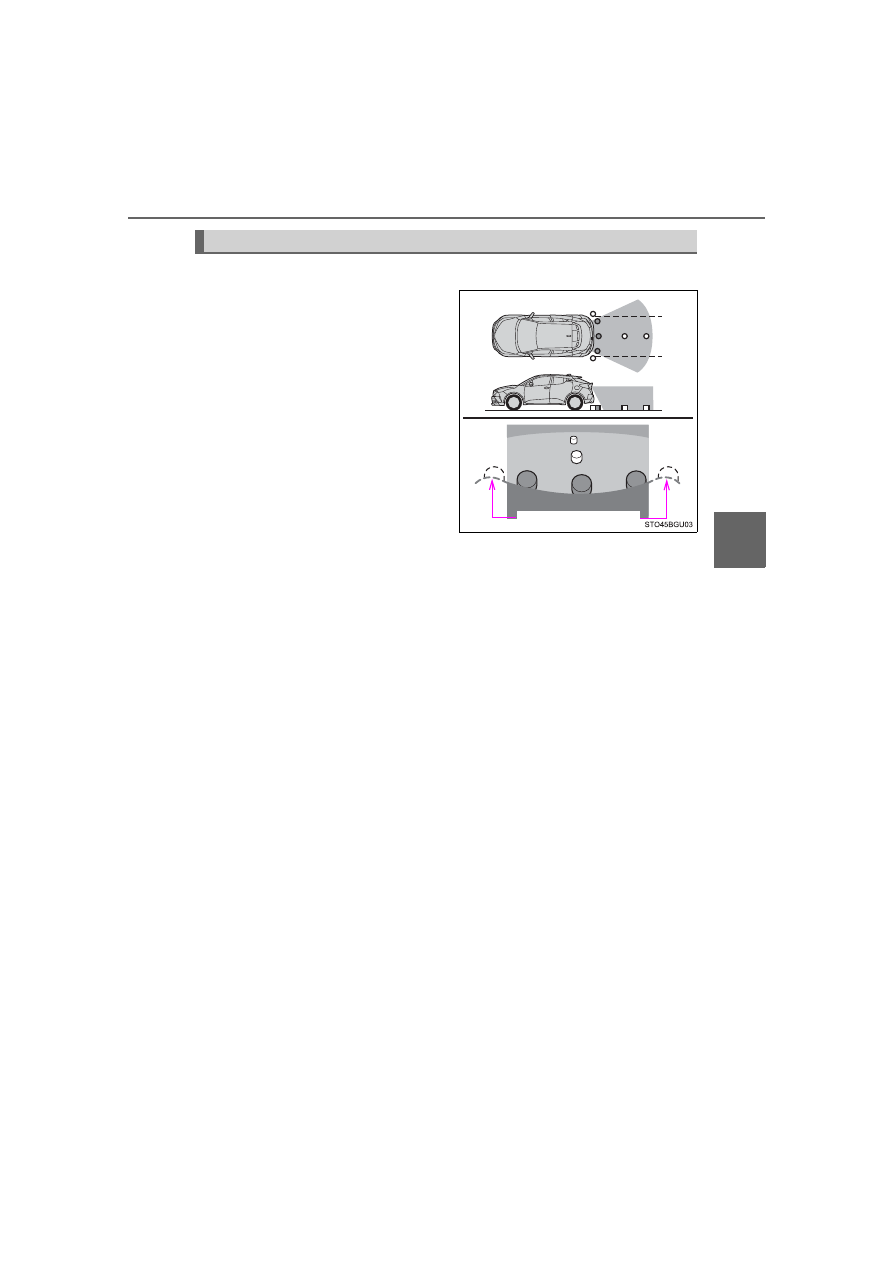

The rear view monitor system assists the driver by displaying an
image of the view behind the vehicle with fixed guide lines on
the screen while backing up, for example while parking.

The screen illustrations used in this text are intended as examples,
and may differ from the image that is actually displayed on the
screen.

269

4-5. Using the driving support systems

4

Drivin

g

■

When using the rear view monitor system
The anti-glare function of the inside rear view mirror will be can-
celed.

■

Display mode
The rear view monitor display mode can be adjusted when the
engine switch is in the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system)
and the shift lever is in R.
To select a display language (English, French or Spanish).

Push and hold the “AUTO” button for 6 seconds, then release.
Push the “AUTO” button.
Each time the “AUTO” button is pushed and released, the lan-
guage will change.
The warning message should flash 5 seconds after the button is
released, indicating that the change has been completed.

1
2
3

270

4-5. Using the driving support systems

■

Screen description



Vehicles without a smart key system

The rear view monitor system screen will be displayed if the shift
lever is shifted to R while the engine switch is in the “ON” position.



Vehicles with a smart key system

The rear view monitor system screen will be displayed if the shift
lever is shifted to R while the engine switch is in IGNITION ON
mode.

Vehicle width extension guide line

Displays a guide path when the vehicle is being backed straight up.
The displayed width is wider than the actual vehicle width.

Vehicle center guide line

This line indicates the estimated vehicle center on the ground.

Distance guide line

Displays a point approximately 1.5 ft. (0.5 m) (red) from the edge of the
bumper.

Distance guide line

Displays a point approximately 3 ft. (1 m) (blue) from the edge of the
bumper.

Using the rear view monitor system

271

4-5. Using the driving support systems

4

Drivin

g

■

Area displayed on screen

The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.

• The area displayed on the

screen may vary according to
vehicle orientation conditions.

• Objects which are close to either

corner of the bumper or under
the bumper cannot be dis-
played.

• The camera uses a special lens.

The distance of the image that
appears on the screen differs
from the actual distance.

• Items which are located higher than the camera may not be displayed

on the monitor.

Rear view monitor system precautions

Corners of bumper

272

4-5. Using the driving support systems

■

Rear view monitor system camera

The camera for the rear view
monitor system is located as
shown in the illustration.

● Using the camera

If dirt or foreign matter (such as water droplets, snow, mud, etc.)
is adhering to the camera, it cannot transmit a clear image. In
this case, flush it with a large quantity of water and wipe the cam-
era lens clean with a soft and wet cloth.

■

Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not
actually be parallel with the dividing lines of the parking space, even
when they appear to be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left
and right dividing lines of the parking space may not be equal, even
when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road sur-
faces. In any of the following situations, there is a margin of error
between the fixed guide lines on the screen and the actual dis-
tance/course on the road.
