Toyota C-HR (2018 year). Instruction

241

Drivin

Press the “ON-OFF” button to
activate the cruise control.

Radar cruise control indicator will
come on and a message will be
displayed on the multi-information
display.
Press the button again to deacti-
vate the cruise control.
If the “ON-OFF” button is pressed
and held for 1.5 seconds or more,
the system turns on in constant
speed control mode. (

→P. 246)

Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 30 mph
[50 km/h]) and push the lever
down to set the speed.

Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
If the lever is operated while the
vehicle speed is below approxi-
mately 30 mph (50 km/h) and a
preceding vehicle is present, the
set speed will be adjusted to
approximately 30 mph (50 km/h).

Setting the vehicle speed (vehicle-to-vehicle distance control
mode)

242

4-5. Using the driving support systems

To change the set speed, operate the lever until the desired set speed
is displayed.

Increases the speed

(Except when the vehicle has been
stopped by system control in vehi-
cle-to-vehicle distance control
mode)

Decreases the speed

Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever up or down to change the speed,
and release when the desired speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

each time

the lever is operated



For the U.S. mainland, Hawaii

Large adjustment: Increases or decreases in 1 mph (1.6 km/h)

or 1 km/h

(0.6 mph)

increments for as long as the lever is held



For Canada, Guam and Puerto Rico

Large adjustment: Increases or decreases in 5 mph (8 km/h)

or 5 km/h

(3.1 mph)

increments for as long as the lever is held

In the constant speed control mode (

→P. 246), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

or 1 km/h (0.6 mph)

each time

the lever is operated
Large adjustment: The speed will continue to change while the lever is
held.

: When the set speed is shown in “MPH”

: When the set speed is shown in “km/h”

Adjusting the set speed

243

4-5. Using the driving support systems

Drivin

Pressing the button changes the
vehicle-to-vehicle distance as fol-
lows:

Long
Medium
Short

The vehicle-to-vehicle distance is
set automatically to long mode
when the engine switch is turned to
the “ON” position (vehicles without
a smart key system) or IGNITION
ON mode (vehicles with a smart
key system).
If a vehicle is running ahead of you, the preceding vehicle mark will also be
displayed.

Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle
distance increases/decreases in accordance with vehicle speed.
When the vehicle is stopped by system control, the vehicle-to-vehicle
distance will be about 10 ft. (3 m) to 16 ft. (5 m) regardless of the vehi-
cle-to-vehicle distance setting.

Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis-
tance control mode)

Preceding vehicle mark

Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance
control mode)

Distance options

Vehicle-to-vehicle distance

Long

Approximately 160 ft. (50 m)

Medium

Approximately 130 ft. (40 m)

Short

Approximately 100 ft. (30 m)

244

4-5. Using the driving support systems

After the vehicle ahead of you
starts off, push the lever up.
Your vehicle will also resume
follow-up cruising if the accelera-
tor pedal is depressed after the
vehicle ahead of you starts off.

Pulling the lever toward you
cancels the speed control.

The speed control is also canceled
when the brake pedal is
depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

Pushing the lever up resumes the cruise control and returns vehicle
speed to the set speed.

However, when a vehicle ahead is not detected, cruise control does not
resume when the vehicle speed is approximately 25 mph (40 km/h) or less.

Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)

Canceling and resuming the speed control

245

4-5. Using the driving support systems

Drivin

When your vehicle is too close to
a vehicle ahead, and sufficient
automatic deceleration via the
cruise control is not possible, the
display will flash and the buzzer
will sound to alert the driver. An
example of this would be if
another driver cuts in front of you
while you are following a vehicle.
Depress the brake pedal to
ensure an appropriate vehicle-to-
vehicle distance.

■

Warnings may not occur when
In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.
● When the speed of the preceding vehicle matches or exceeds

your vehicle speed

● When the preceding vehicle is traveling at an extremely slow

speed

● Immediately after the cruise control speed was set
● When depressing the accelerator pedal

Approach warning (vehicle-to-vehicle distance control mode)

246

4-5. Using the driving support systems

When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar sensor, etc.

With the cruise control off,
press and hold the “ON-OFF”
button for 1.5 seconds or more.

Immediately after the “ON-OFF”
button is pressed, the radar cruise
control indicator will come on.
Afterwards, it switches to the cruise
control indicator.
Switching to constant speed con-
trol mode is only possible when
operating the lever with the cruise
control off.

Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 30 mph
[50 km/h]) and push the lever
down to set the speed.

Cruise control “SET” indicator will
come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Adjusting the speed setting:

→P. 242

Canceling and resuming the speed setting:

→P. 244

Selecting constant speed control mode

247

4-5. Using the driving support systems

Drivin

■

Dynamic radar cruise control with full-speed range can be set when

●

The shift lever is in D.

●

Vehicle speed is above approximately 30 mph (50 km/h).
However, when a preceding vehicle is detected, the dynamic radar cruise
control with full-speed range can be set even if the vehicle speed is at or
below approximately 30 mph (50 km/h).

■

Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicle distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.

■

Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations.

●

Actual vehicle speed falls below approximately 25 mph (40 km/h) when
there are no vehicles ahead.

●

The preceding vehicle leaves the lane when your vehicle is following at a
vehicle speed below approximately 25 mph (40 km/h). Otherwise, the sen-
sor cannot properly detect the vehicle.

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off by pressing the VSC off switch.

●

The sensor cannot detect correctly because it is covered in some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system control on a steep incline.

●

The following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.

If vehicle-to-vehicle distance control mode is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.

248

4-5. Using the driving support systems

■

Automatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the following situa-
tions:

●

Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.

●

Actual vehicle speed falls below approximately 25 mph (40 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off by pressing the VSC off switch.

●

Pre-collision braking is activated.

If constant speed control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.

■

Warning messages and buzzers for dynamic radar cruise control with
full-speed range
Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.

■

When the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, operate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (

→P. 245) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same lane

249

4-5. Using the driving support systems

Drivin

●

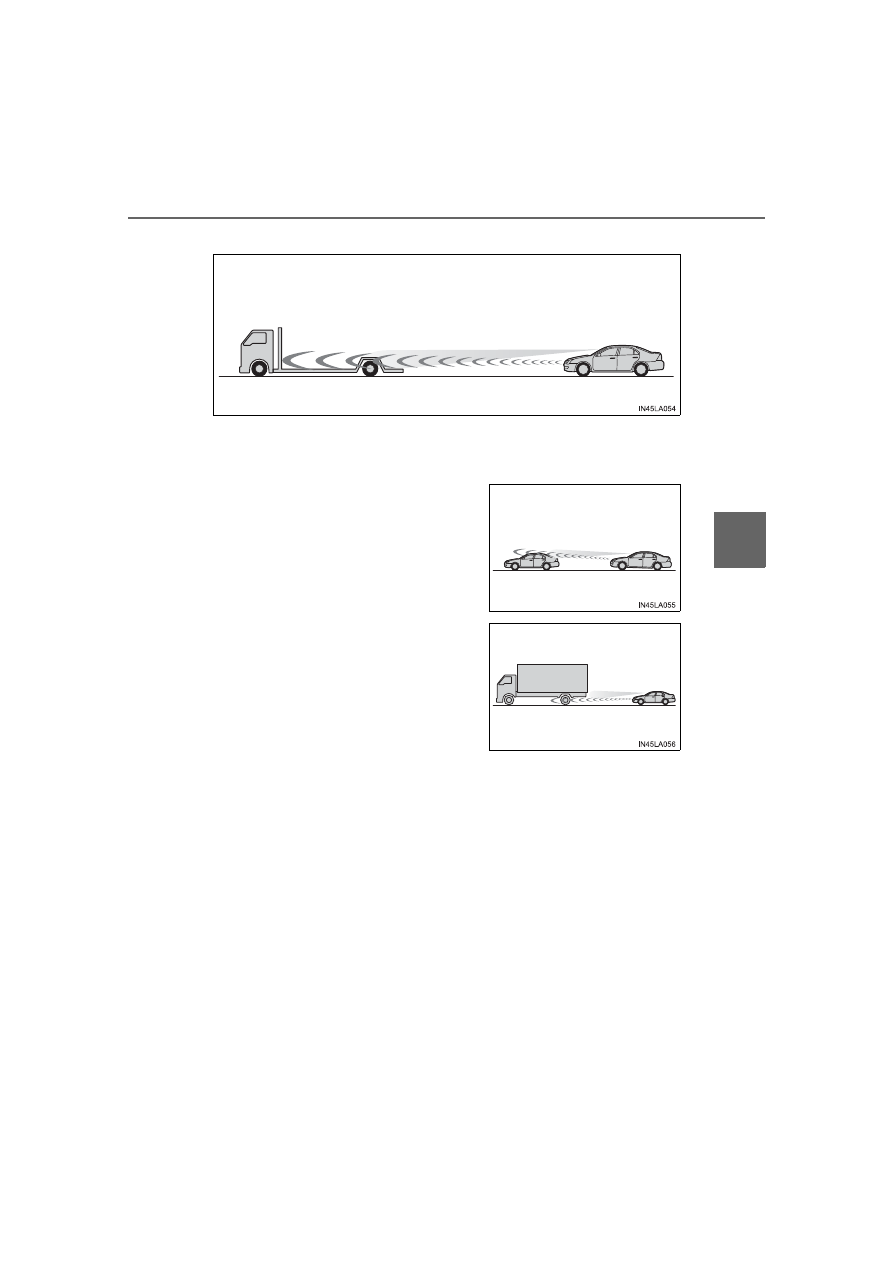

Vehicles with small rear ends (trailers with no load on board, etc.)

●

Motorcycles traveling in the same lane

●

When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor

●

When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)

●

Preceding vehicle has an extremely high
ground clearance

250

4-5. Using the driving support systems

■

Conditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.

●

When the vehicle ahead of you decelerates suddenly

●

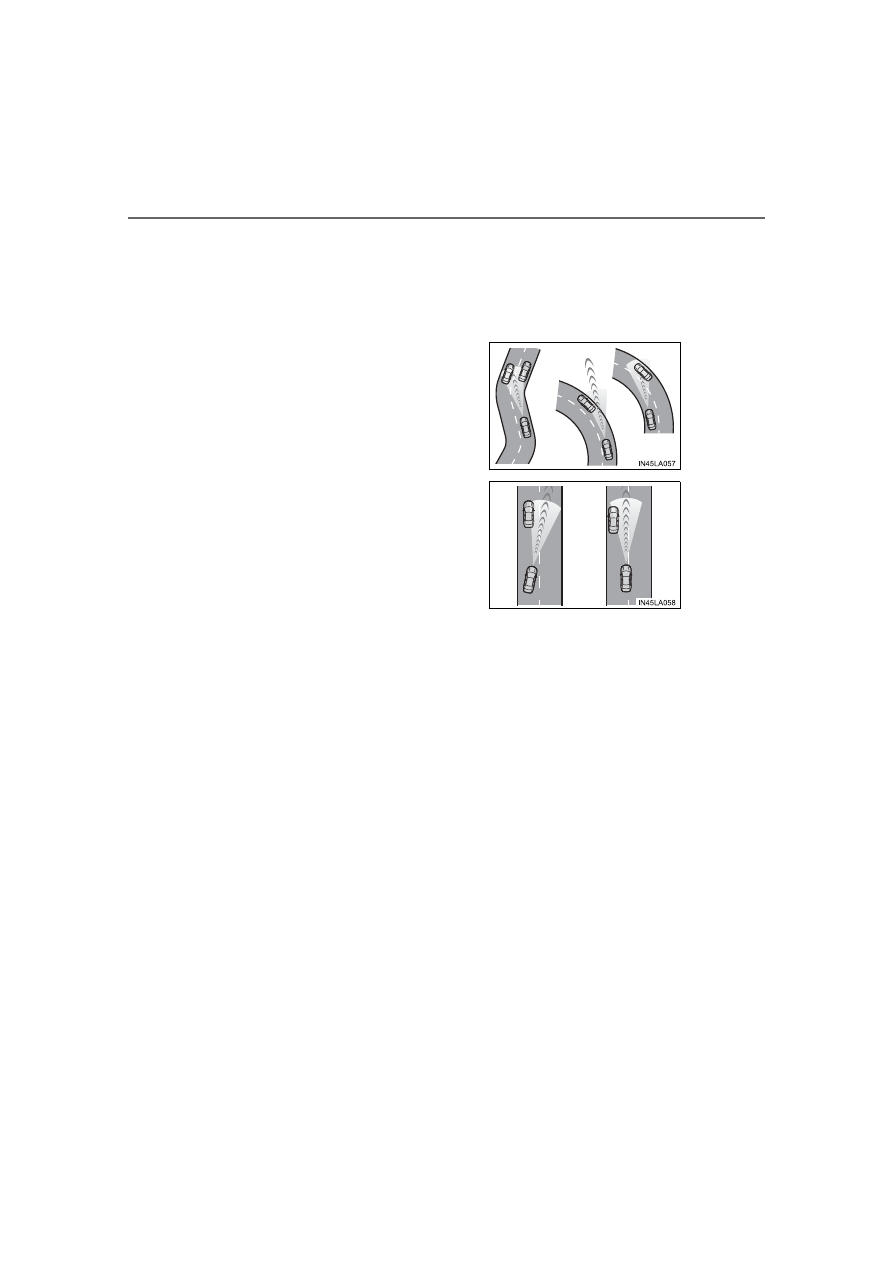

When the road curves or when the lanes
are narrow

●

When steering wheel operation or your
position in the lane is unstable

251

4-5. Using the driving support systems

Drivin

Driving mode select

■

Changing the driving mode

To select the drive mode, perform operations on the multi-information
display.

Press “

<” or “>” of meter control switches and select

Press “

∧” or “∨” of the meter control switches, and select “Drive

Mode”.
Press “

∧” or “∨” of the meter control switches, and select drive

mode.

In response to driving conditions, one of 3 drive modes can be
selected.

Select the drive mode

1
2

252

4-5. Using the driving support systems

■

Driving modes
● “NORMAL” mode

Provides an optimal balance of fuel economy, quietness, and
dynamic performance. Suitable for city driving.

● “SPORT” mode

Controls the transmission and engine to provide quick, powerful
acceleration. This mode also changes the steering feel, making it
suitable for when agile driving response is desired, such as when
driving on roads with many curves.

When sport mode is selected, the “SPORT” indicator will illuminate
on the multi-information display.

● “ECO” mode

Helps the driver accelerate in an eco-friendly manner and
improve fuel economy through moderate throttle characteristics
and by controlling the operation of the air conditioning system
(heating/cooling).

When Eco mode is selected, the “ECO MODE” indicator will illumi-
nate on the multi-information display.
While the air conditioning is being used, the system automatically
switches to air conditioning eco mode (

→P. 295), allowing for driving

that leads to even better fuel economy.

■

Canceling driving modes

●

Select another drive mode. Also, “SPORT” mode will be canceled automati-
cally when the engine switch is turned off.

●

“NORMAL” mode and “ECO” mode will not be canceled automatically until
another drive mode is selected, even if the engine switch is turned off.

253

4-5. Using the driving support systems

Drivin

BSM (Blind Spot Monitor)

∗

The Blind Spot Monitor is a system that has 2 functions;
● The BSM (Blind Spot Monitor) function

Assists the driver in making the decision when changing lanes

● The RCTA (Rear Cross Traffic Alert) function

Assists the driver when backing up

These functions use same sensors.

∗

: If equipped

Summary of the Blind Spot Monitor

254

4-5. Using the driving support systems

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in a blind spot of the outside rear view mirrors
or approaching rapidly from behind into a blind spot, the outside rear view
mirror indicator on the detected side will illuminate. If the turn signal lever
is operated toward the detected side, the outside rear view mirror indicator
will flash.
RCTA function:
When a vehicle approaching from the right or left at the rear of the vehicle
is detected, both outside rear view mirror indicators will flash.

Multi-information display

Turning the BSM function/RCTA function on/off. (

→P. 255)

The RCTA function is available when the BSM function is on.

RCTA buzzer (RCTA function only)

If a vehicle approaching from the right or left at the rear of the vehicle is
detected, a buzzer will sound. The buzzer also sounds for approximately
1 second immediately after the BSM function is operated to turn the sys-
tem on.

“BSM” indicator/“RCTA” indicator

When the BSM function/RCTA function is turned on, the indicator illumi-
nates.

255

4-5. Using the driving support systems

Drivin

Press “

<” or “>” of the meter control switches, select

Press “

∧” or “∨” of the meter control switches, select

Press “

∧” or “∨” of the meter control switches, select

■

The outside rear view mirror indicators visibility
When under strong sunlight, the outside rear view mirror indicator may be dif-
ficult to see.

■

Hearing the RCTA buzzer
The RCTA buzzer may be difficult to hear over loud noises, such as if the
audio system volume is high.

■

When “Blind Spot Monitor Unavailable.” is shown on the multi-informa-
tion display
Water, snow mud, etc., may be built up in the vicinity of the sensor area of
bumper (

→P. 257).

Removing the water, snow, mud, etc., from the vicinity of the sensor area
bumper should return it to normal.
Also, the sensor may not function normally when used in extremely hot or
cold weather.

■

When “Blind Spot Monitor System Malfunction Visit Your Dealer.” is
shown on the multi-information display
There may be a sensor malfunction or misaligned. Have the vehicle
inspected by your Toyota dealer.

Turning the BSM function/RCTA function on/off

256

4-5. Using the driving support systems

■

Certification for the Blind Spot Monitor



For vehicles sold in U.S.A.

FCC ID : OAYSRR3A
This devise complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For vehicles sold in Canada

Applicable law : Canada 310
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Frequency bands : 24.05 - 24.25GHz
Output power : less than 20 milliwatts

Toyota C-HR (2018 year). Instruction - part 16
