1-7. Safety information
WARNING
■ Front passenger occupant classification system precautions
● Never install a rearward facing child seat in the front passenger’s seat
even if the front passenger’s SRS frontal airbag is deactivated. Be sure to
install it in the rear seat in a correct manner. Also, it is strongly recom-
mended that any forward facing child seat or booster seat be installed in
the rear seat, and that even children who have outgrown a child restraint
system be also seated in the rear seat. This is because children sitting in
the front passenger’s seat may be killed or severely injured should the
front passenger’s SRS frontal airbag deploy. Toyota believes that the rear
seats are the safest place for children
● If luggage or electronic devices are placed on the front passenger seat,
the OFF indicator may turn off and the ON indicator may illuminate. If this
occurs, the front passenger’s airbag may deploy during a collision. If this is
not desirable, remove the luggage or electronic devices from the front pas-
senger seat.
● Modifications for persons with disabilities that may affect the front passen-
ger occupant classification system. (U.S. only) Removing, replacing or
modifying any parts of the front seats, seat belts, front bumper, front side
frame, instrument panel, combination meter, steering wheel, steering col-
umn, tires, suspension or floor panel can affect the operation of the Toyota
front passenger occupant classification system.
136
1-7. Safety information
Child restraint systems
A child restraint system for a small child or baby must itself be prop-
erly restrained on the seat with the LATCH anchors or the lap portion
of the lap/shoulder belt.
1
The laws of all 50 states of the U.S.A. and Canada now require the
use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(P. 141)
Types of child restraints
Child restraint systems are classified into the following
3 types
according to the age and size of the child.
Rear facing Infant seat/convertible seat
137
1-7. Safety information
Forward facing Convertible seat
Booster seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
● If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle's seat belt. (P. 60)
138
1-7. Safety information
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
1
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle's interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
139
1-7. Safety information
WARNING
■ Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or accident.
140
1-7. Safety information
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the rear seats using the LATCH anchors or
a seat belt. Attach the top tether strap when installing a child
restraint.
1
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Lower Anchors and Tethers for Chil-
dren) system.

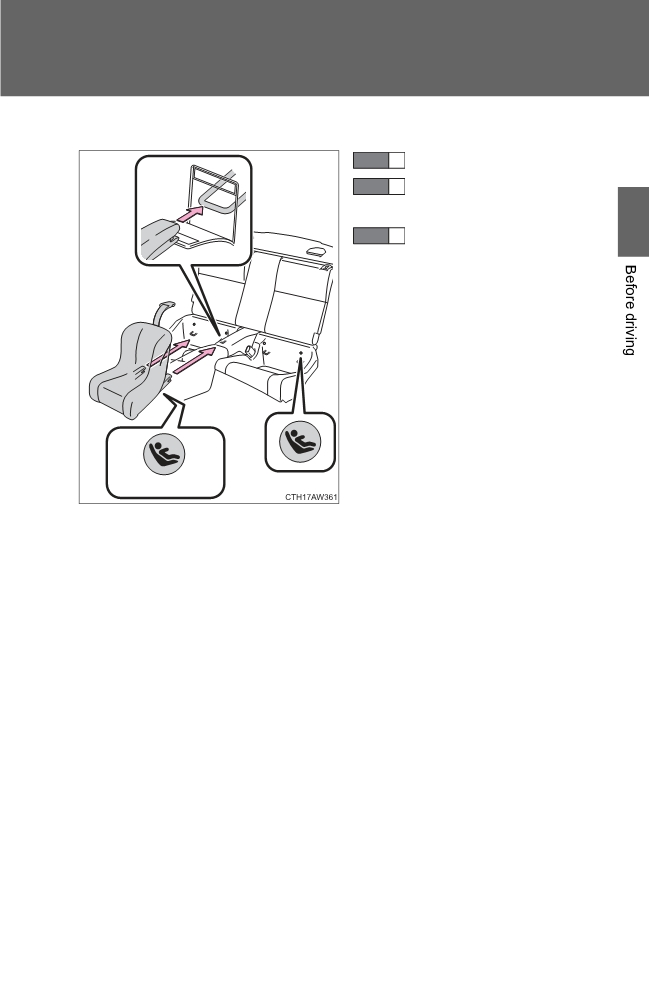

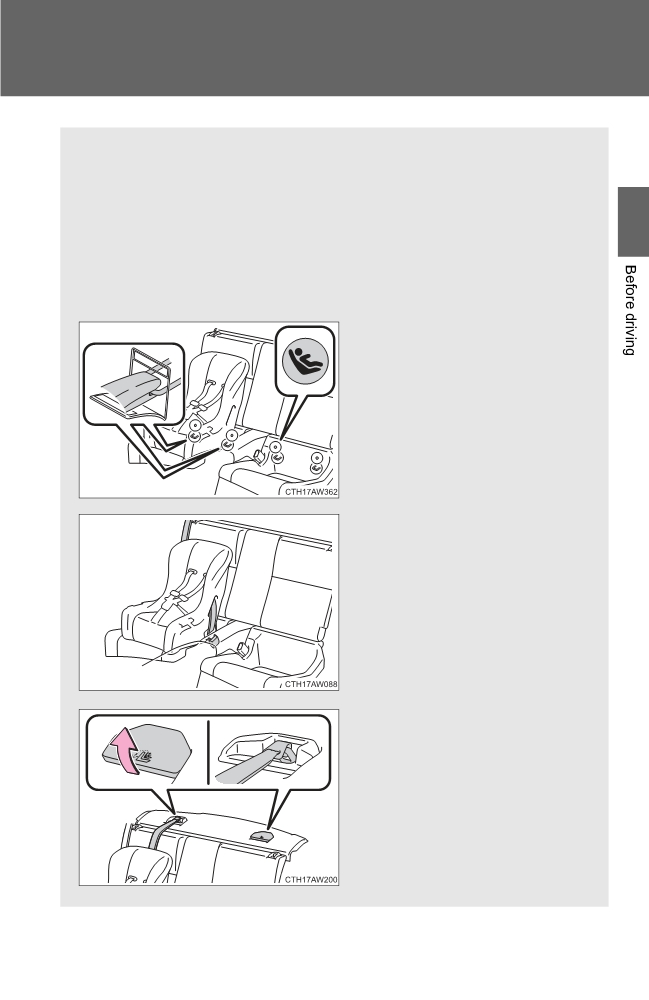

Child restraint LATCH anchors
LATCH anchors are provided
for both rear seats.
(Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (P. 60)
Anchor bracket (for top tether
strap)
Anchor brackets are provided
for both rear seats.
141
1-7. Safety information
Installation with LATCH system
Type A

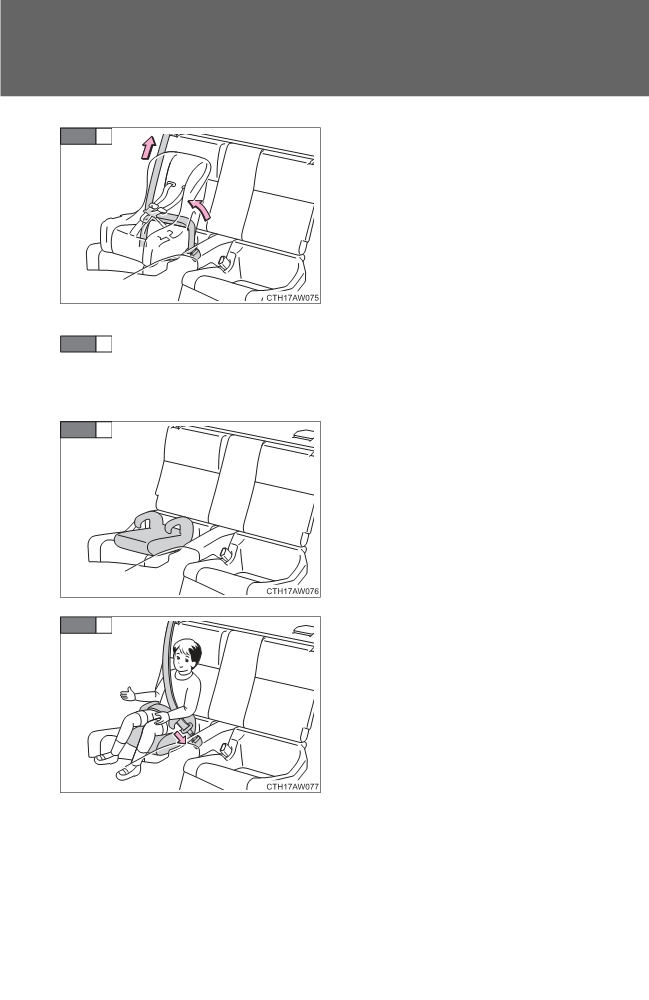

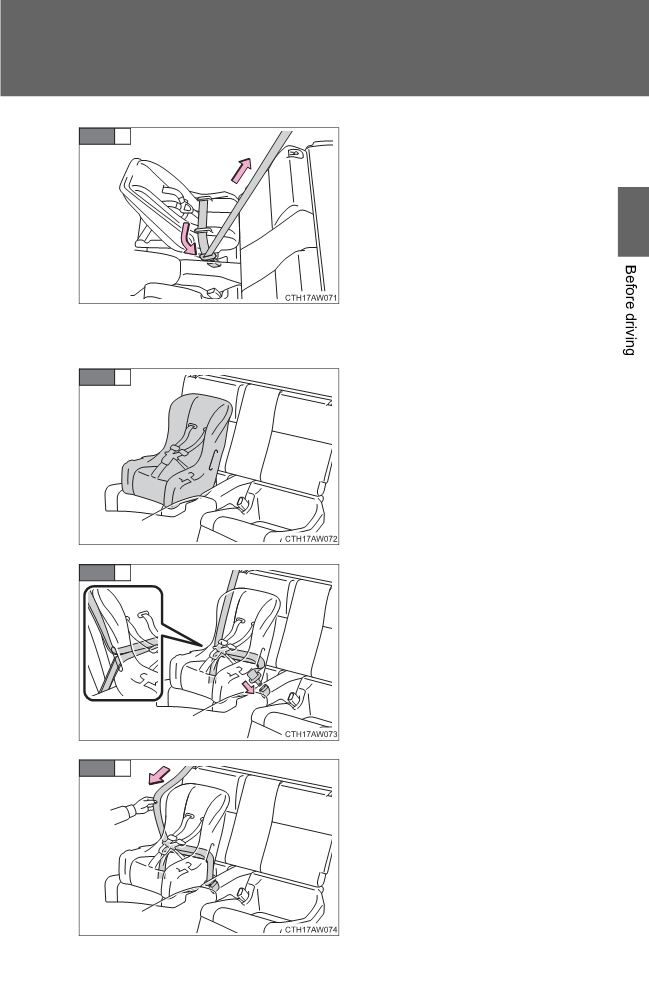

STEP
1
Pull the cover.
STEP
2
Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
STEP
3
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
142
1-7. Safety information

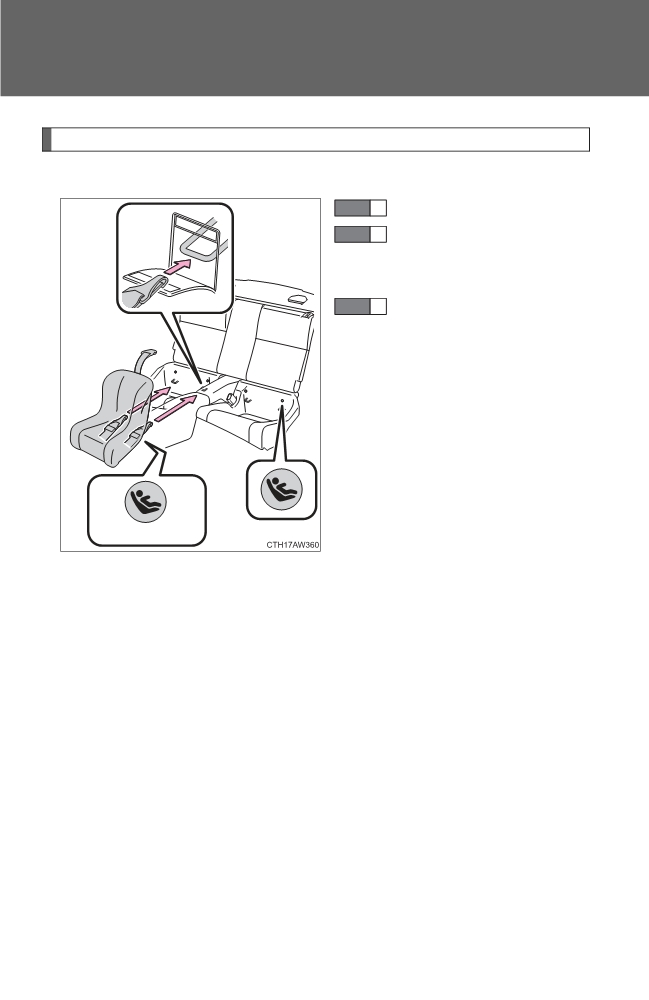

Type B
STEP
1
Pull the cover.
STEP
2
Latch the buckles onto
the LATCH anchors.
1
If the child restraint has a
STEP
3
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only
143
1-7. Safety information
Installing child restraints using a seat belt (child restraint lock
function belt)

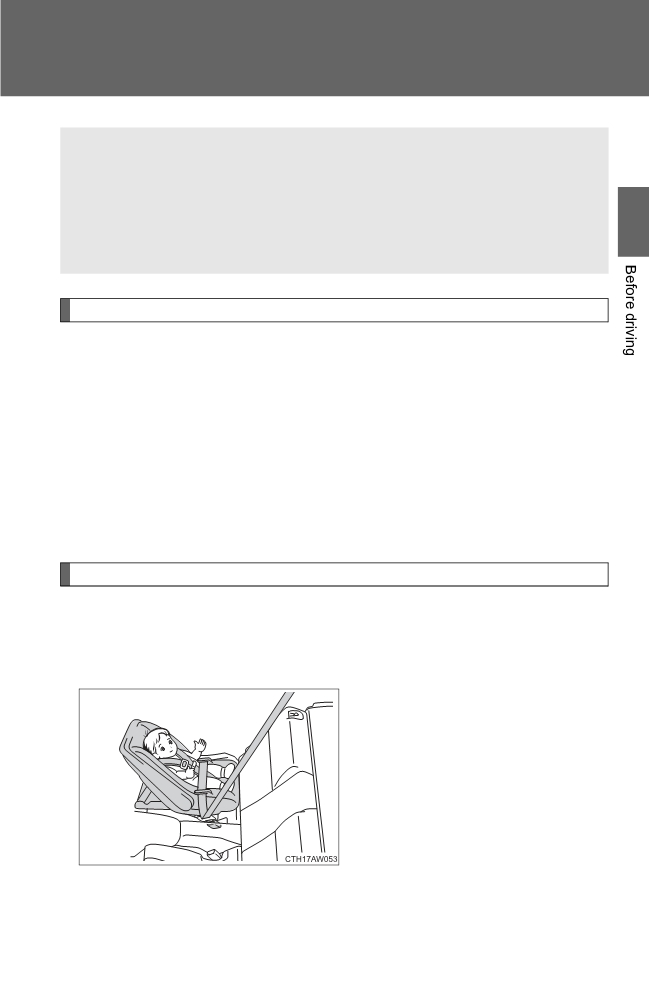

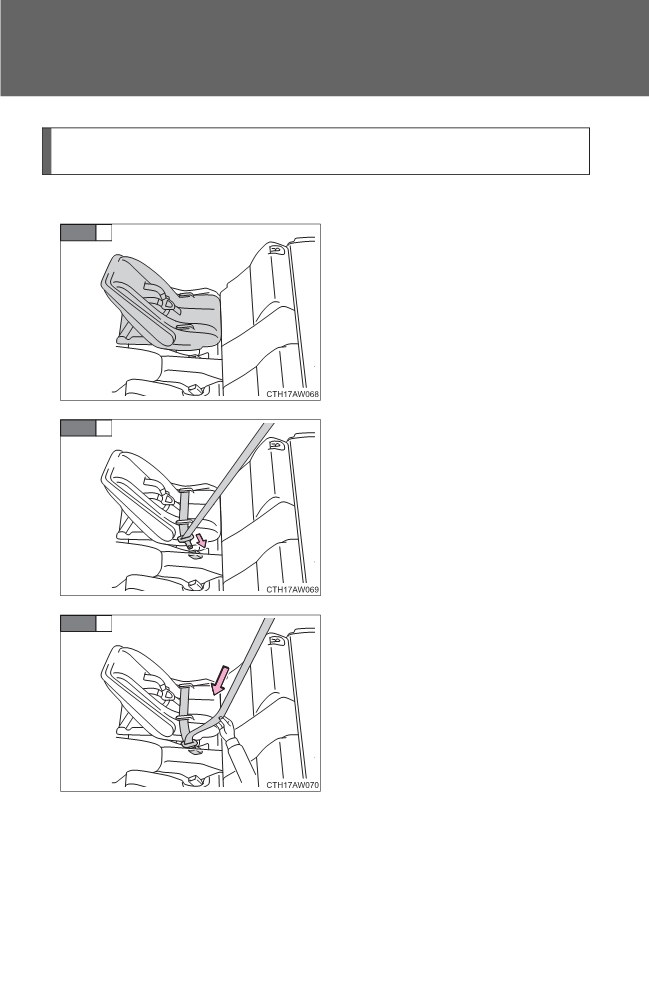

■ Rear facing Infant seat/convertible seat
STEP
1
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
STEP
2
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP
3
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
144
1-7. Safety information
STEP
4
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
1
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.

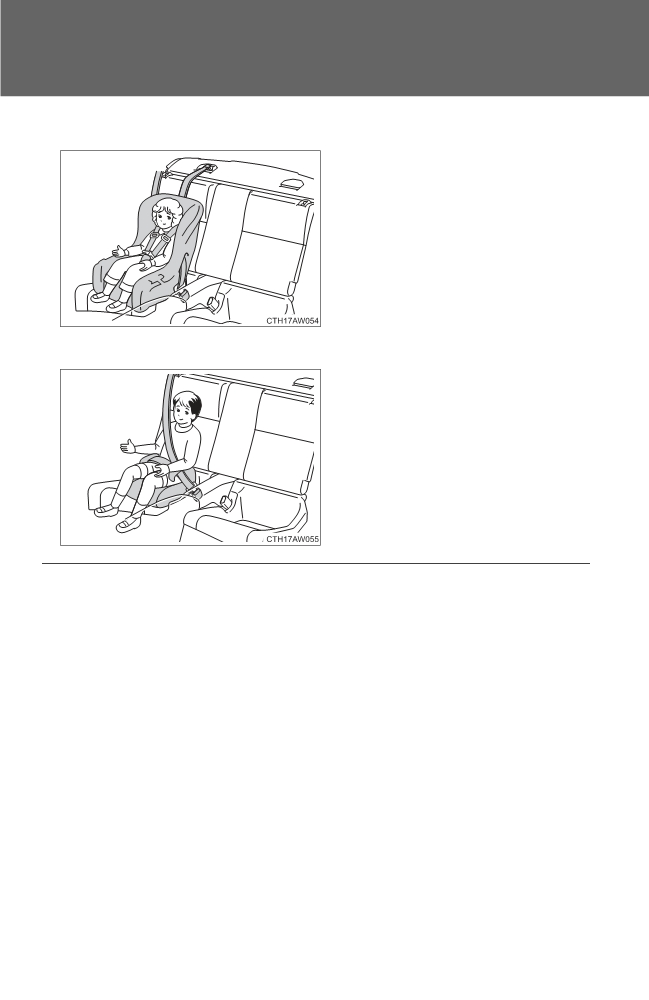

■ Forward facing Convertible seat
STEP
1
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP
2
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP
3
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
145
1-7. Safety information
STEP
4
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP
5
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 147)
■ Booster seat
STEP
1
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP
2
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder and that the lap
belt is as low as possible.
(P. 60)
146
1-7. Safety information
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
1

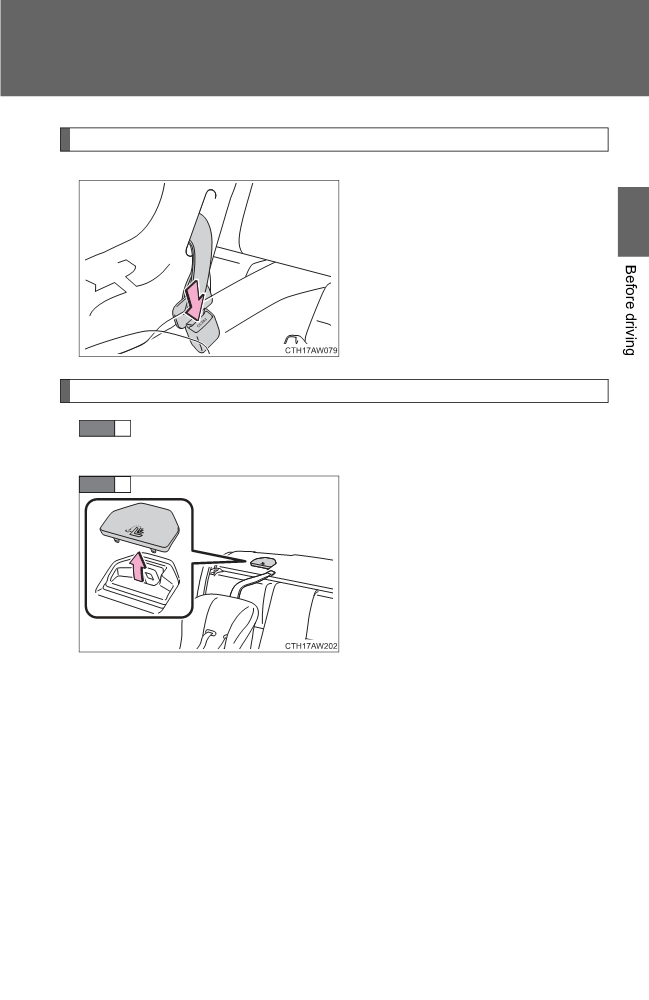

Child restraint systems with a top tether strap
STEP
1
Secure the child restraint using a seat belt or the LATCH
anchors.
STEP
2
Remove the anchor bracket
cover.
Store the removed cover in a safe
place.
147
1-7. Safety information
STEP
3

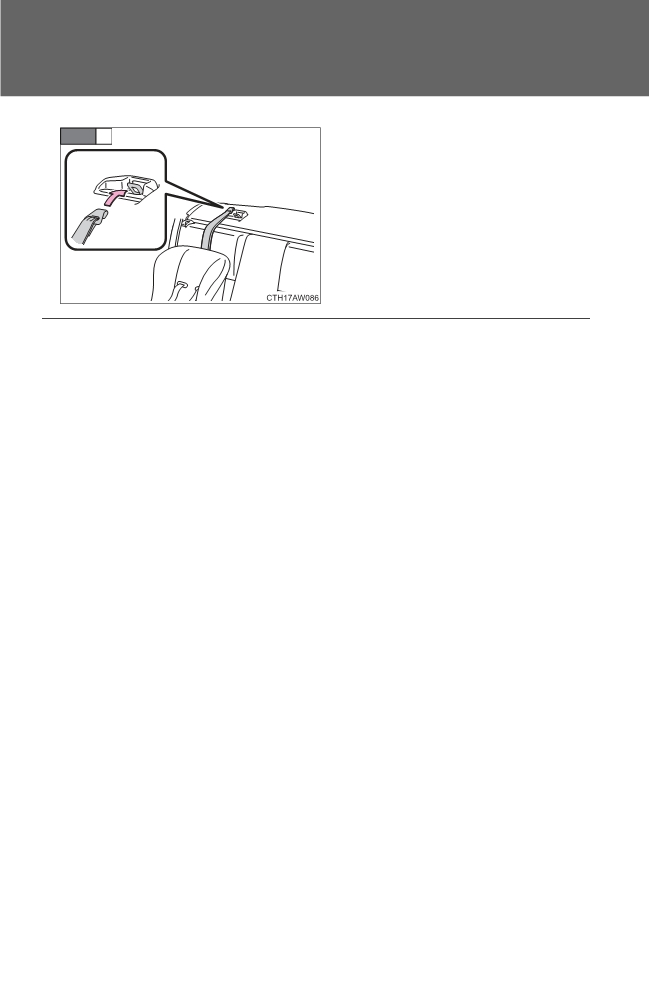

Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■ When installing a child restraint system with LATCH anchors and a top
tether strap
Depending on the child restraint system's size and shape, if the child
restraint system is installed to the LATCH anchors first, it may not be possi-
ble to attach the top tether strap to the anchor bracket.
In that case, first temporarily attach the top tether strap to the anchor
bracket, install the child restraint system using the lower anchors and then
tighten the top tether strap.
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
148
1-7. Safety information
WARNING

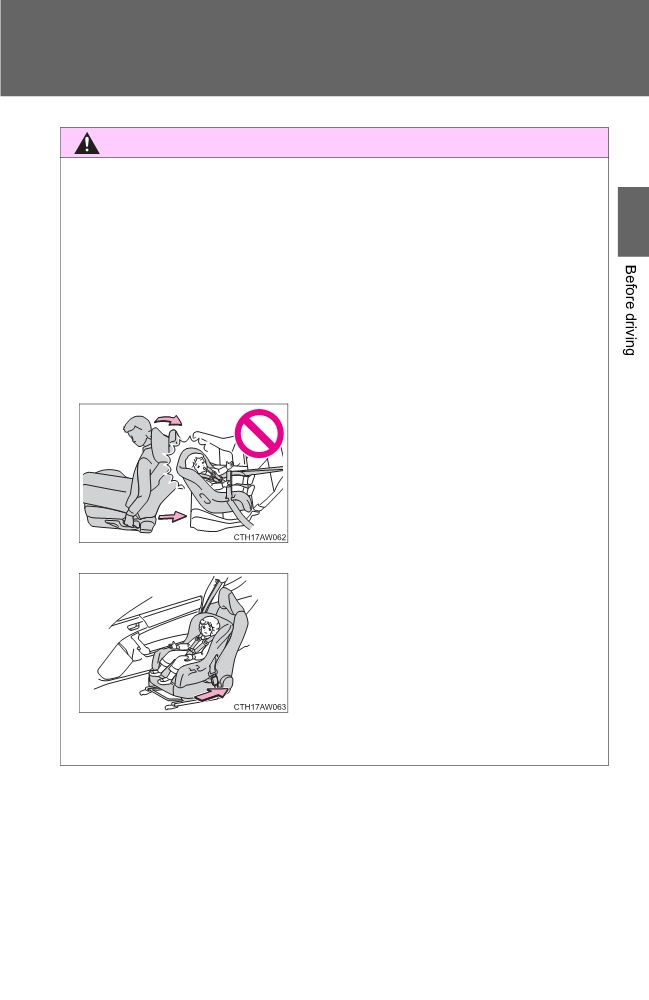

■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
1
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 62)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking,
sudden swerving or an accident.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward facing child restraint
system on the front seat when unavoid-
able. When installing a forward facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
149
1-7. Safety information
WARNING
■ When installing a child restraint system
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child's shoulder. The belt should be
kept away from the child's neck, but not so that it could fall off the child's
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child or other passengers in the event of
sudden braking, sudden swerve or an accident.
150
When driving
2
2-1.
Driving procedures
2-3.
Operating the lights and
Driving the vehicle
152
windshield wipers
Engine (ignition) switch
Headlight switch
222
(vehicles with a smart
Fog light switch
228
key system)
166
Windshield wipers and
Engine (ignition) switch
washer
229
(vehicles without a
smart key system)
175
2-4.
Using other driving
Automatic transmission
178
systems
Manual Transmission
185
Cruise control
232
Turn signal lever
188
Rear view monitor
Parking brake
189
system
237
Horn
190
Driving assist systems
245
Hill-start assist control
252
2-2.
Instrument cluster
Gauges and meters
191
2-5.
Driving information
Indicators and warning
Cargo and luggage
256
lights
194
Vehicle load limits
260
Multi-information display
Winter driving tips
261
(monochrome display) ... 200
Trailer towing
265
Multi-information display
Dinghy towing
266
(color display)
207
151
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■ Starting the engine
P. 166, 175
■ Driving
Vehicles with an automatic transmission
STEP
1
With the brake pedal depressed, shift the shift lever to D.
(P. 178)
STEP
2
Release the parking brake. (P. 189)
STEP
3
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission
STEP
1
While depressing the clutch pedal, shift the shift lever to 1.
(P. 185)
STEP
2
Release the parking brake. (P. 189)
STEP
3
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Vehicles with an automatic transmission
STEP
1
With the shift lever in D, depress the brake pedal.
STEP
2
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P or N. (P. 178)
Vehicles with a manual transmission
STEP
1
While depressing the clutch pedal, depress the brake
pedal.
STEP
2
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (P. 185)
152
