Toyota 86 (2018 year). Instruction - part 8

1-7. Safety information

■ When to contact your Toyota dealer

In the following cases, the vehicle will require inspection and/or repair. Con-

tact your Toyota dealer as soon as possible.

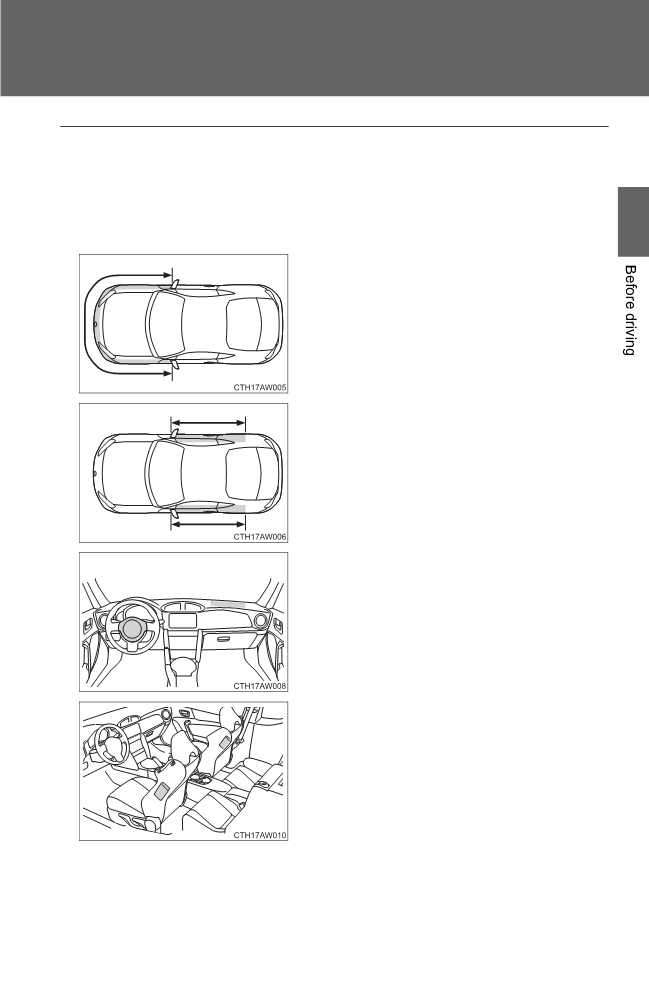

● Any of the SRS airbags have been inflated.

● The front of the vehicle is damaged or

deformed, or was involved in an acci-

dent that was not severe enough to

cause the SRS airbags to inflate.

● A portion of a door is damaged or

deformed, or the vehicle was involved

in an accident that was not severe

enough to cause the SRS side airbags

and curtain shield airbags to inflate.

● The pad section of the steering wheel

or dashboard is scratched, cracked, or

otherwise damaged.

● The surface of the seats with the side

airbag is scratched, cracked, or other-

wise damaged.

119

1-7. Safety information

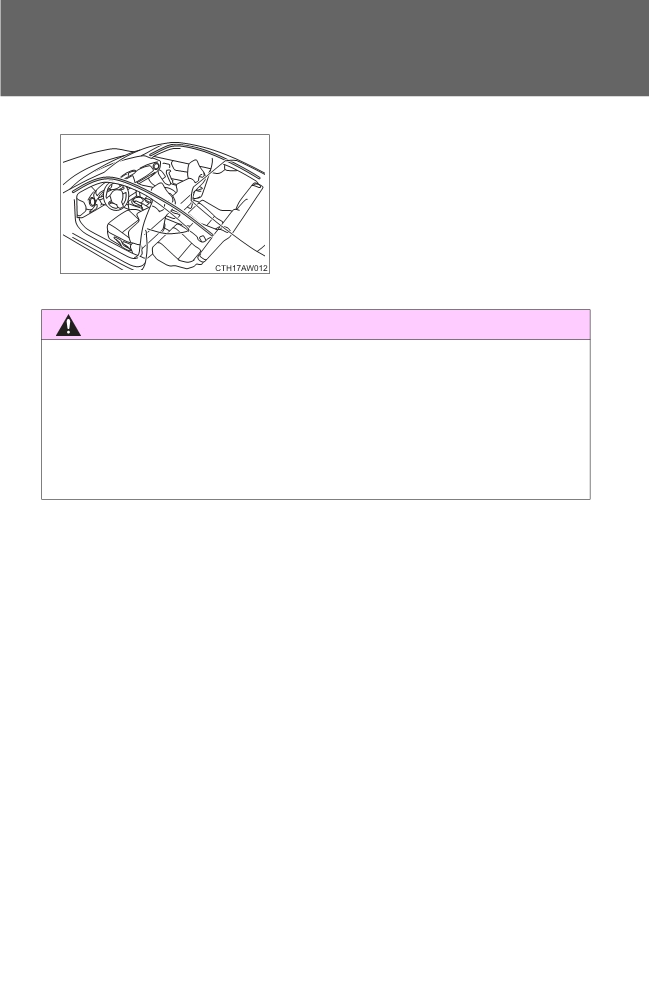

● The portion of the front pillars, rear pil-

lars or roof side rail garnishes (padding)

containing the curtain shield airbags

inside is scratched, cracked or other-

wise damaged.

WARNING

■ SRS airbag precautions

Observe the following precautions regarding the SRS airbags.

Failure to do so may cause death or serious injury.

● The driver and all passengers in the vehicle must wear their seat belts

properly.

The SRS airbags are supplemental devices to be used with the seat belts.

120

1-7. Safety information

WARNING

■ SRS airbag precautions

● The SRS driver airbag deploys with considerable force, and can cause

death or serious injury especially if the driver is very close to the airbag.

The National Highway Traffic Safety Administration (“NHTSA”) advises:

Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)

of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-

vides you with a clear margin of safety. This distance is measured from the

center of the steering wheel to your breastbone. If you sit less than 10 in.

(250 mm) away now, you can change your driving position in several

ways:

• Move your seat to the rear as far as you can while still reaching the

pedals comfortably.

• Slightly recline the back of the seat. Although vehicle designs vary,

many drivers can achieve the 10 in. (250 mm) distance, even with the

driver seat all the way forward, simply by reclining the back of the seat

somewhat. If reclining the back of your seat makes it hard to see the

road, raise yourself by using a firm, non-slippery cushion, or raise the

seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the air-

bag toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while

still maintaining control of the foot pedals, steering wheel, and your view of

the instrument panel controls.

● The SRS front passenger airbag also deploys with considerable force, and

can cause death or serious injury especially if the front passenger is very

close to the airbag. The front passenger seat should be as far from the air-

bag as possible with the seatback adjusted, so the front passenger sits

upright.

● Improperly seated and/or restrained infants and children can be killed or

seriously injured by a deploying airbag. An infant or child who is too small

to use a seat belt should be properly secured using a child restraint sys-

tem. Toyota strongly recommends that all infants and children be placed in

the rear seats of the vehicle and properly restrained. The rear seats are

safer for infants and children than the front passenger seat. (P. 137)

121

1-7. Safety information

WARNING

■ SRS airbag precautions

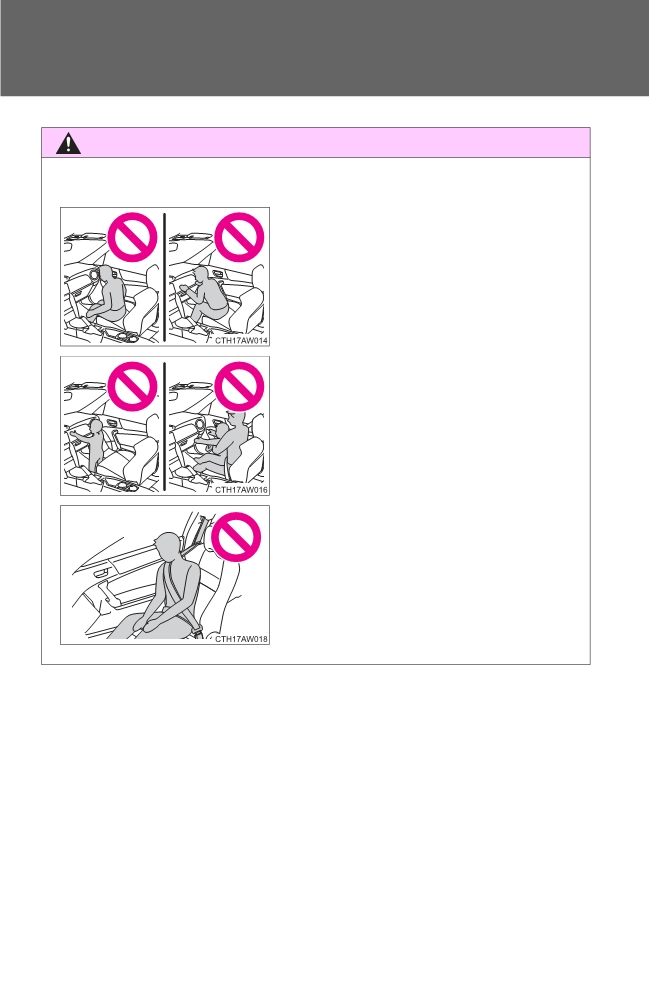

● Do not sit on the edge of the seat or

lean against the dashboard.

● Do not allow a child to stand in front of

the SRS front passenger airbag unit or

sit on the knees of a front passenger.

● Do not allow the front seat occupants to

hold items on their knees.

● Do not lean against the door, the roof

side rail or the front, side and rear pil-

lars.

122

1-7. Safety information

WARNING

■ SRS airbag precautions

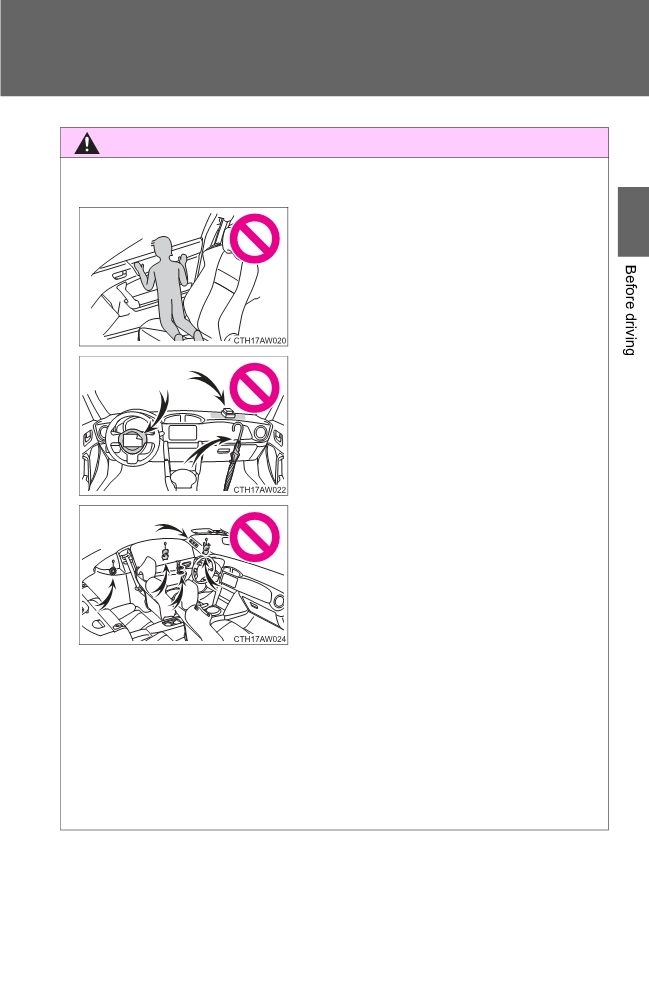

● Do not allow anyone to kneel on the

passenger seat toward the door or put

their head or hands outside the vehicle.

● Do not attach anything to or lean any-

thing against areas such as the dash-

board or steering wheel pad.

These items can become projectiles

when SRS driver and front passenger

airbags deploy.

● Do not attach anything to areas such as

a door, windshield glass, side door

glass, rear quarter glass, front and rear

pillar or roof side rail.

● Do not use seat accessories which cover the parts where the SRS side

airbags inflate as they may interfere with inflation of the airbags. Such

accessories may prevent the side airbags from activating correctly, disable

the system or cause the side airbags to inflate accidentally, resulting in

death or serious injury.

● Do not strike or apply significant levels of force to the area of the SRS air-

bag components (P. 94).

Doing so can cause the SRS airbags to malfunction.

123

1-7. Safety information

WARNING

■ SRS airbag precautions

● Do not touch any of the component parts immediately after the SRS air-

bags have deployed (inflated) as they may be hot.

● If breathing becomes difficult after the SRS airbag has deployed, open a

door or window to allow fresh air in, or leave the vehicle if it is safe to do

so. Wash off any residue as soon as possible to prevent skin irritation.

● If the areas where the SRS airbags are stored, such as the steering wheel

pad and front and rear pillar garnishes, are damaged or cracked, have

them replaced by your Toyota dealer.

■Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications

without consulting your Toyota dealer.

The SRS airbags may malfunction or deploy (inflate) accidentally, causing

death or serious injury.

● Installation, removal, disassembly and repair of the SRS airbags.

● Repairs, modifications, removal or replacement of the steering wheel,

instrument panel, dashboard, seats or seat upholstery, front, side and rear

pillars or roof side rails.

● Repairs or modifications of the front fender, front bumper, or side of the

occupant compartment.

● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,

winches.

● Modifications to the vehicle's suspension system.

● Installation of electronic devices such as mobile two-way radios and CD

players.

● Modifications to your vehicle for a person with a physical disability.

124

1-7. Safety information

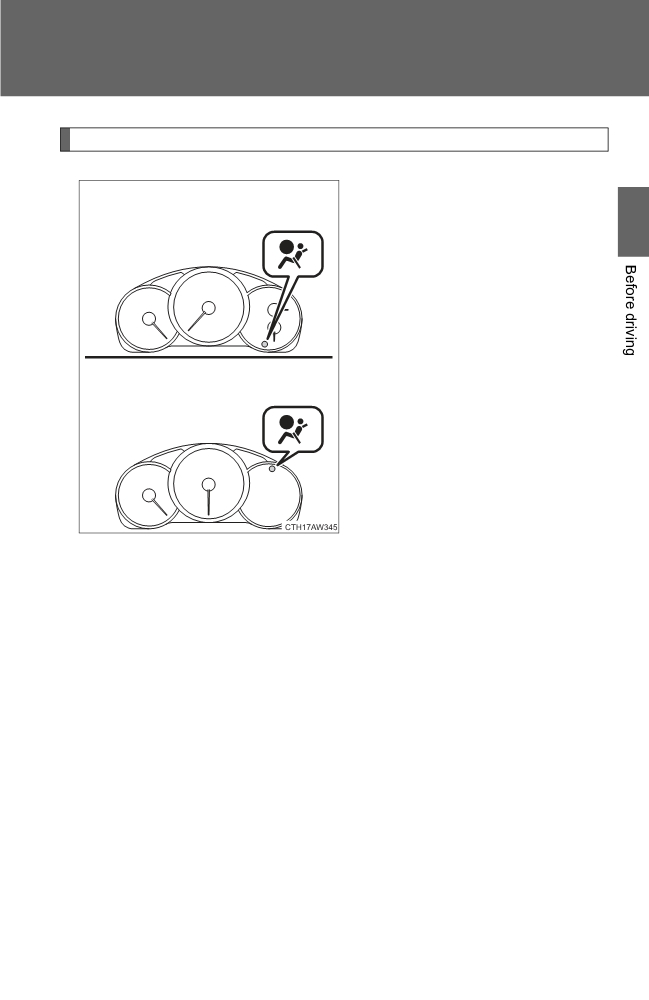

SRS airbag system monitors

A diagnostic system continually

Vehicles with a monochrome multi-

information display

monitors the readiness of the

SRS airbag system

(including

front seat belt pretensioners)

while the vehicle is being driven.

The SRS warning light will show

normal system operation by illu-

minating for approximately

Vehicles with a color multi-information

seconds when the engine switch

display

is turned to the

“ON” position

(vehicles without a smart key

system), or the “ENGINE START

STOP” switch is turned to IGNI-

TION ON mode (vehicles with a

smart key system).

The following components are monitored by the indicator:

● Front sub sensor (right-hand side)

● Front sub sensor (left-hand side)

● Airbag control module (including impact sensors and rollover sen-

sors)

● Frontal airbag module (driver’s side)

● Frontal airbag module (front passenger’s side)

● Side airbag sensor (center pillar right-hand side)

● Side airbag sensor (center pillar left-hand side)

● Door impact sensor (right-hand side)

● Door impact sensor (left-hand side)

● Side airbag module (driver’s side)

125

1-7. Safety information

● Side airbag module (front passenger’s side)

● Curtain shield airbag sensor (rear wheel house right-hand side)

● Curtain shield airbag sensor (rear wheel house left-hand side)

● Curtain shield airbag module (right-hand side)

● Curtain shield airbag module (left-hand side)

● Satellite safing sensor (under the center of the rear seats)

● Seat belt pretensioner (driver’s side)

● Seat belt pretensioner (front passenger’s side)

● Seat belt buckle switch (front passenger’s side)

● Front passenger’s occupant classification system sensor

● Front passenger’s occupant detection control module

● Front passenger’s frontal airbag ON and OFF indicator

● All related wiring

126

1-7. Safety information

WARNING

■ SRS warning light

If the warning light exhibits any of the following conditions, there may be a

malfunction in the seat belt pretensioners, SRS airbag system and/or front

passenger occupant classification system. Immediately take your vehicle to

your nearest Toyota dealer to have the system checked. Unless checked

and properly repaired, the seat belt pretensioners, SRS airbag and/or front

passenger occupant classification system will not operate properly in the

event of a collision, which may increase the risk of death or serious injury.

● Flashing or flickering of the warning light

● No illumination of the warning light when the engine switch is first turned to

the “ON” position (vehicles without a smart key system), or the “ENGINE

START STOP” switch is turned to IGNITION ON mode (vehicles with a

smart key system).

● Continuous illumination of the warning light

● Illumination of the warning light while driving

127

1-7. Safety information

Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classifica-

tion system. Using the sensors installed under the seat cover, the

system detects the conditions of the front passenger seat and acti-

vates or deactivates the frontal airbag for front passenger seat. The

occupant classification system may not inflate the front passenger’s

SRS frontal airbag even when the driver’s SRS frontal airbag

deploys. This is not a malfunction. If the seat belt buckle switch and/

or front passenger’s occupant classification system have failed, the

SRS warning light will illuminate. Have the system inspected by your

Toyota dealer immediately if the SRS warning light illuminates.

If your vehicle has sustained impact, this may affect the proper func-

tion of the Toyota advanced frontal airbag system. Immediately con-

tact your Toyota dealer and have your vehicle inspected. Do not use

the front passenger seat while driving to your Toyota dealer.

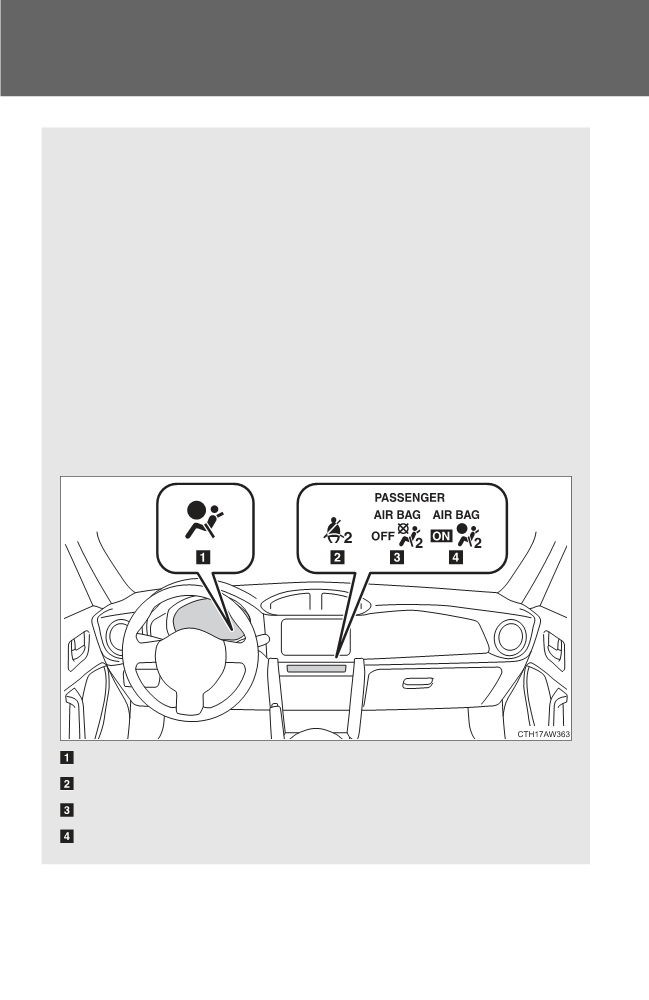

SRS warning light

Front passenger’s seat belt reminder light

“AIR BAG OFF” indicator light

“AIR BAG ON” indicator light

128

1-7. Safety information

The front passenger’s frontal airbag ON and OFF indicators show

you the status of the front passenger’s SRS frontal airbag. When

the engine switch is turned to “ON” position (vehicles without a

smart key system), or the “ENGINE START STOP” switch to IGNI-

TION ON mode (vehicles with a smart key system), both the ON

and OFF indicators illuminate while the system is checked, after

which both indicators turn off.

After that, one of the indicators illuminates depending on the status

of the front passenger’s SRS frontal airbag determined by the

Toyota advanced frontal airbag monitoring system.

Condition and operation in the front passenger occupant

classification system*1

■ Adult*2

“AIR BAG ON” and “AIR BAG OFF”

“AIR BAG

Indicator/

indicator lights

ON”

warning light

SRS warning light

Off

Front passenger’s seat belt reminder light

Flashing*3

Front passenger airbag

Front side airbag*4

Devices

Front curtain shield airbag*4

Front passenger’s seat belt pretensioner*4

■ Child restraint system with infant*6, *7, *8

“AIR BAG ON” and “AIR BAG OFF”

“AIR BAG

Indicator/

indicator lights

OFF”*9

warning light

SRS warning light

Off

Front passenger’s seat belt reminder light

Front passenger airbag

Off

Front side airbag*4

Devices

Front curtain shield airbag*4

Front passenger’s seat belt pretensioner*4

129

1-7. Safety information

■ Child*5, *7

“AIR BAG

“AIR BAG ON” and “AIR BAG OFF”

OFF” or “AIR

indicator lights

Indicator/

BAG ON”*5

warning light

SRS warning light

Off

Off or

Front passenger’s seat belt reminder light

flashing*3, *5

Front passenger airbag

Off or on*5

Front side airbag*4

Devices

Front curtain shield airbag*4

Front passenger’s seat belt pretensioner*4

■ Unoccupied

“AIR BAG ON” and “AIR BAG OFF”

“AIR BAG

Indicator/

indicator lights

OFF”

warning light

SRS warning light

Off

Front passenger’s seat belt reminder light

Front passenger airbag

Off

Front side airbag*4

Devices

Front curtain shield airbag*4

Front passenger’s seat belt pretensioner*4

■ There is a malfunction in the system

“AIR BAG ON” and “AIR BAG OFF”

“AIR BAG

Indicator/

indicator lights

OFF”

warning light

SRS warning light

Front passenger’s seat belt reminder light

Off

Front passenger airbag

Off

Front side airbag*4

Devices

Front curtain shield airbag*4

Front passenger’s seat belt pretensioner*4

130

1-7. Safety information

*1:

The occupant classification system does not operate during self-

checking.

*2:

The system judges a person of adult size as an adult. When a

smaller adult sits in the front passenger seat, the system may not

recognize him/her as an adult depending on his/her physique and

posture.

*3:

In the event the front passenger does not wear a seat belt.

*4:

The front passenger’s SRS side airbag, SRS curtain shield airbag

and seat belt pretensioner are not controlled by the occupant

classification system.

*5:

For some children, child in seat, child in booster seat or child in

convertible seat, the system may not recognize him/her as a

child. Factors which may affect this can be the physique or pos-

ture.

Children who have outgrown a child restraint system should

always wear the seat belt when sitting in the seat irrespective of

whether the airbag is deactivated or activated.

*6:

When a child restraint system is installed on the front passenger

seat, do not place any article on the seat other than the child

occupant and a child restraint system.

Failure to do so may prevent the front passenger occupant classi-

fication system from functioning correctly or cause the system to

fail.

*7:

Do not place more than one child on the front passenger seat.

Failure to do so may prevent the front passenger occupant classi-

fication system from functioning correctly.

*8:

Never install a rear-facing child restraint system on the front pas-

senger seat. See the caution that follows regarding installation of

a child restraint system. (P. 141)

*9:

In case the indicator is not illuminated, consult this manual on

how to installing the child restraint system properly. (P. 141)

131

1-7. Safety information

If the passenger’s frontal airbag OFF indicator illuminates and the ON indicator

turns off even when the front passenger’s seat is occupied by an adult

This can be caused by an adult incorrectly sitting in the front passen-

ger’s seat. Perform the following.

STEP

Vehicles without a smart key system:

The engine switch is turned to the “LOCK” position.

Vehicles with a smart key system:

Turn the “ENGINE START STOP” switch off.

Ask the front passenger to set the seatback to the upright

STEP

position, sit up straight in the center of the seat cushion, cor-

rectly wear the seat belt, position his/her legs out forward, and

adjust the seat to the rearmost position.

STEP

Vehicles without a smart key system:

The engine switch is turned to the “ON” position.

Vehicles with a smart key system:

Turn the “ENGINE START STOP” switch to IGNITION ON

mode.

STEP

If the OFF indicator remains illuminated while the ON indicator

remains off, perform the following.

• Vehicles without a smart key system:

The engine switch is turned to the “LOCK” position.

Vehicles with a smart key system:

Turn the “ENGINE START STOP” switch off.

• Make sure that the front passenger is not using a blanket,

seat cushion, seat cover or seat heater, etc.

• If wearing excessive layers of clothing, the front passenger

should remove any unnecessary items before sitting in the

front passenger seat, or should sit in a rear seat.

132

1-7. Safety information

The engine switch is turned to the “ON” position (vehicles

STEP

without a smart key system), or the “ENGINE START STOP”

switch to IGNITION ON mode (vehicles with a smart key sys-

tem). After the self-check is performed, the ON indicator

should illuminate while the OFF indicator remains off. If the

OFF indicator still remains illuminated while the ON indicator

remains off, ask the occupant to move to the rear seat and

immediately contact your Toyota dealer for an inspection.

133

1-7. Safety information

If the front passenger’s frontal airbag ON indicator illuminates and the OFF indicator turns off

even when an infant or a small child is in a child restraint system (including booster seat)

This can be caused by the child restraint system being installed incor-

rectly. Perform the following.

STEP

Vehicles without a smart key system:

The engine switch is turned to the “LOCK” position.

Vehicles with a smart key system:

Turn the “ENGINE START STOP” switch off.

STEP

Remove the child restraint system from the seat. By referring

to the child restraint manufacturer’s recommendations as well

as the child restraint system installation procedure in “child

restraint system”, correctly reinstall the child restraint system.

STEP

Vehicles without a smart key system:

The engine switch is turned to the “ON” position and make

sure that the front passenger’s frontal airbag ON indicator

turns off and the OFF indicator illuminates.

Vehicles with a smart key system:

Turn the “ENGINE START STOP” switch to IGNITION ON

mode and make sure that the front passenger’s frontal airbag

ON indicator turns off and the OFF indicator illuminates.

If the ON indicator still remains illuminated while the OFF indi-

STEP

cator turns off, perform the following.

• Ensure that no article is placed on the seat other than the

child restraint system and the child occupant.

• Ensure that the backward-forward position and seatback of

front passenger seat are locked into place securely by mov-

ing the seat back and forth.

If the ON indicator still remains illuminated while the OFF indi-

STEP

cator turns off after taking the relevant corrective actions

described above, relocate the child restraint system to the

rear seat and immediately contact your Toyota dealer for an

inspection.

134

1-7. Safety information

WARNING

■ Front passenger occupant classification system precautions

Observe the following precautions regarding front passenger occupant clas-

sification system.

Failure to do so may cause the occupant classification system to not function

correctly, resulting in death or serious injury.

● Wear the seat belt properly.

● Do not apply excessive force to the seat.

● Do not put sharp object(s) on the seat or pierce the seat upholstery.

● Do not put objects under the front passenger seat.

● Do not use a seat accessory, such as a cushion or seat cover, that covers

the seat cushion surface.

● Do not spill liquid on the front passenger seat. If liquid is spilled, wipe it off

immediately and dry the seat. If the airbag warning light illuminates, dry

the seat until the warning light turns off. If the airbag warning light stays on

even when the seat has dried, do not allow anyone to sit on the front pas-

senger seat and have the system checked by your Toyota dealer. If the air-

bag warning light does not illuminate, check that the airbag ON/OFF

indicator light works properly. If the indicator light does not work properly,

do not allow anyone to sit in the front passenger’s seat and have the sys-

tem inspected by your Toyota dealer.

● Do not remove or disassemble the front passenger seat. Also, do not

replace or modify the seat upholstery or foam inside the seat.

● Do not install any accessory (such as an audio amplifier) other than a gen-

uine Toyota accessory under the front passenger’s seat.

● Do not place a magnetized items near the seat belt buckle.

135

Content .. 6 7 8 9 ..
