Toyota Verso (2017 year). Instruction

5-2. Steps to take in an emergency

WARNING

■ Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while

related parts contain lead and lead compounds. Observe the following pre-

cautions when handling the battery.

● When working with the battery, always wear safety glasses and take care

not to allow any battery fluids (acid) to come into contact with skin, clothing

or the vehicle body.

●Do not lean over the battery.

● In the event that battery fluid comes into contact with the skin or eyes,

immediately wash the affected area with water and seek medical attention.

Place a wet sponge or cloth over the affected area until medical attention

can be received.

● Always wash your hands after handling the battery support, terminals, and

other battery-related parts.

●Do not allow children near the battery.

NOTICE

■ To prevent damaging the vehicle (vehicles with a manual transmission)

Do not pull- or push-start the vehicle, because the catalytic converter may

overheat and become a fire hazard.

■ When handling jumper cables

Be careful that the jumper cables do not become tangled in the cooling fan

or any of the belts when connecting or disconnecting them.

612

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

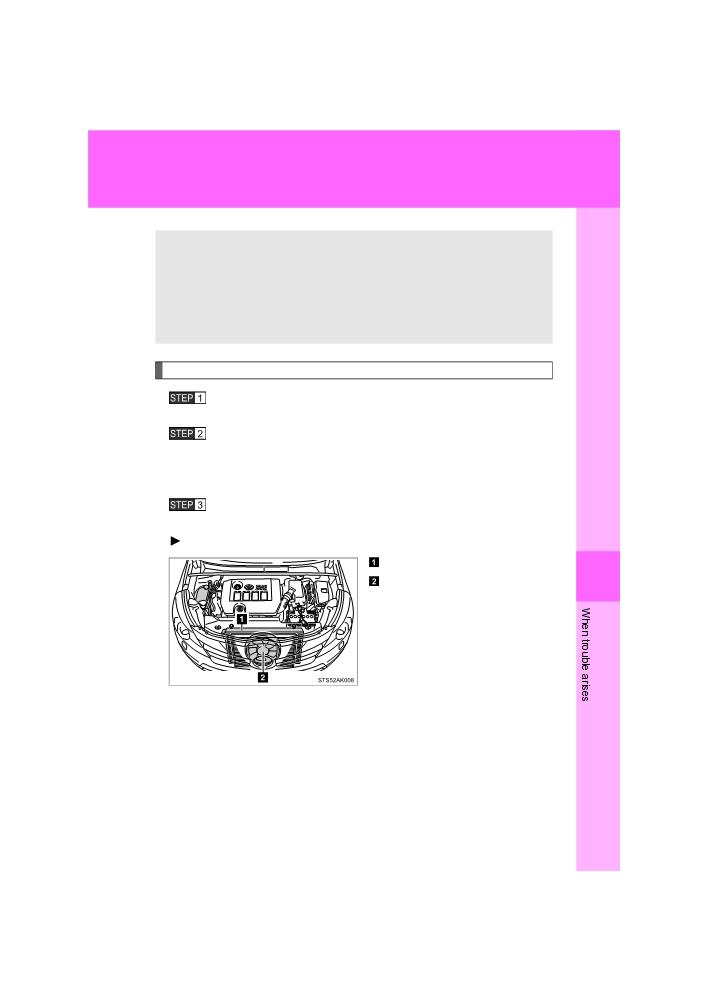

If your vehicle overheats

The following may indicate that your vehicle is overheating.

● The high engine coolant temperature warning light (P. 542)

comes on or flashes, or a loss of engine power is experienced.

(For example, the vehicle speed does not increase.)

● Steam comes out from under the hood.

Correction procedures

Stop the vehicle in a safe place and turn off the air condition-

ing system, and then stop the engine.

If you see steam:

Carefully lift the hood after the steam subsides.

If you do not see steam:

Carefully lift the hood.

After the engine has cooled down sufficiently, inspect the

hoses and radiator core (radiator) for any leaks.

Gasoline engine

Radiator

Cooling fan

If a large amount of coolant leaks,

immediately contact any autho-

rized Toyota dealer or repairer, or

another duly qualified and

equipped professional.

613

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

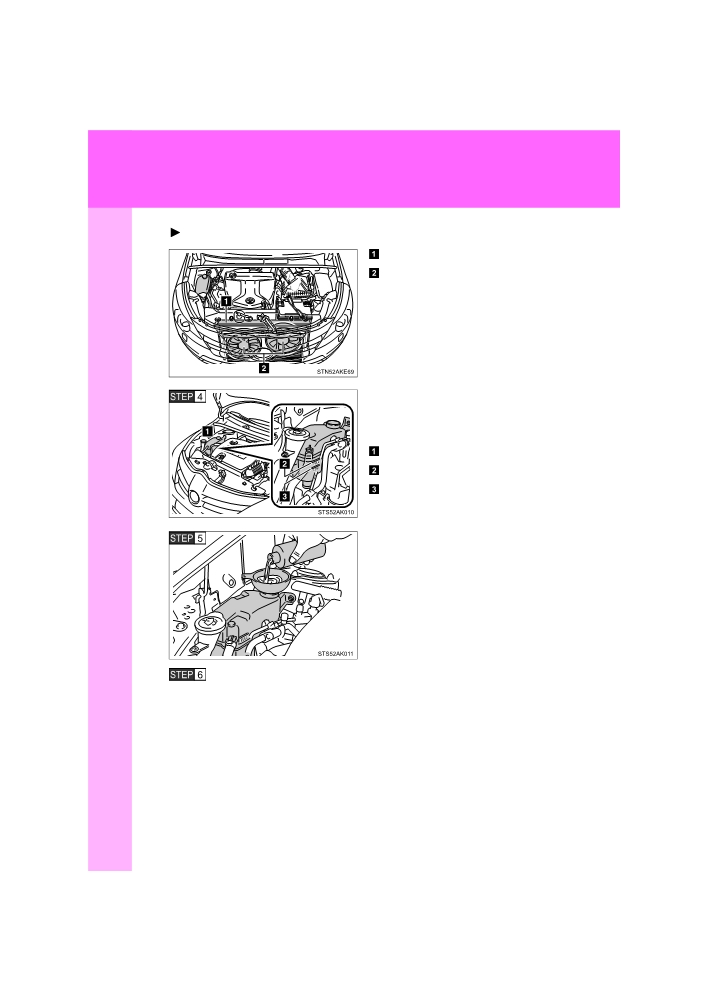

Diesel engine

Radiator

Cooling fans

If a large amount of coolant leaks,

immediately contact any autho-

rized Toyota dealer or repairer, or

another duly qualified and

equipped professional.

The coolant level is satisfactory if

it is between the

“FULL” and

“LOW” lines on the reservoir.

Reservoir

“FULL”

“LOW”

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Start the engine and turn the air conditioning system on to

check that the radiator cooling fan operates and to check for

coolant leaks from the radiator or hoses.

The fan operates when the air conditioning system is turned on

immediately after a cold start. Confirm that the fan is operating by

checking the fan sound and air flow. If it is difficult to check these,

turn the air conditioning system on and off repeatedly.

(The fan may not operate in freezing temperatures.)

614

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

If the fan is not operating:

Stop the engine immediately and contact any authorized

Toyota dealer or repairer, or another duly qualified and

equipped professional.

If the fan is operating:

Have the vehicle inspected at the nearest any authorized

Toyota dealer or repairer, or another duly qualified and

equipped professional.

WARNING

■ To prevent an accident or injury when inspecting under the hood of

your vehicle

●If steam is seen coming from under the hood, do not open the hood until

the steam has subsided. The engine compartment may be very hot, caus-

ing serious injuries such as burns.

● Keep hands and clothing (especially a tie, a scarf or a muffler) away from

the fans and belts. Failure to do so may cause the hands or clothing to be

caught, resulting in serious injury.

● When the electric cooling fan may operate even after the engine has been

stopped (diesel engine only).

P. 445

●Do not loosen the coolant reservoir cap while the engine and radiator are

hot.

Serious injury, such as burns, may result from hot coolant and steam

released under pressure.

615

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

NOTICE

■ When adding engine coolant

Wait until the engine has cooled down before adding engine coolant.

When adding coolant, do so slowly. Adding cool coolant to a hot engine too

quickly can cause damage to the engine.

■ To prevent damage to the cooling system

Observe the following precautions:

● Avoid contaminating the coolant with foreign matter (such as sand or dust

etc.).

●Do not use any coolant additive.

616

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

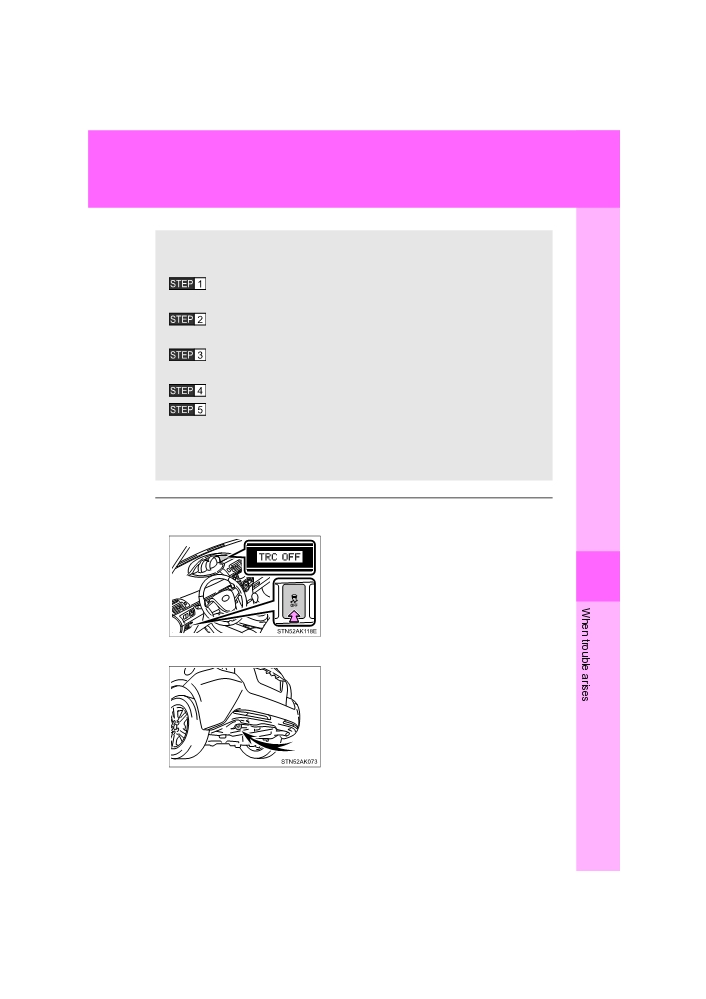

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

Stop the engine. Set the parking brake and shift the shift

lever in “P” (Multidrive) or “N” (manual transmission).

Remove the mud, snow or sand from around the front

wheels.

Place wood, stones or some other material under the front

wheels to help provide traction.

Restart the engine.

Shift the shift lever to the “D” or “R” position (Multidrive) or

“1” or “R” position (manual transmission) and release the

parking brake. Then, while exercising caution, depress the

accelerator pedal.

■ When it is difficult to free the vehicle

Press the button to turn off TRC.

■

Emergency hook

When your vehicle becomes stuck and

cannot move, the emergency hook is

used for another vehicle to pull your vehi-

cle out in an emergency.

Your vehicle is not designed to tow

another vehicle.

Do not use the right rear hook. It is not

designed for towing.

617

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

WARNING

■ When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the sur-

rounding area is clear to avoid striking other vehicles, objects or people. The

vehicle may also lunge forward or lunge back suddenly as it becomes free.

Use extreme caution.

■ When shifting the shift lever

On vehicles with a Multidrive, be careful not to shift the shift lever with the

accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may

cause an accident resulting in death or serious injury.

NOTICE

■ To avoid damage to the transmission and other components

● Avoid spinning the front wheels and depressing the accelerator pedal

more than necessary.

● If the vehicle remains stuck even after these procedures are performed,

the vehicle may require towing to be freed.

618

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

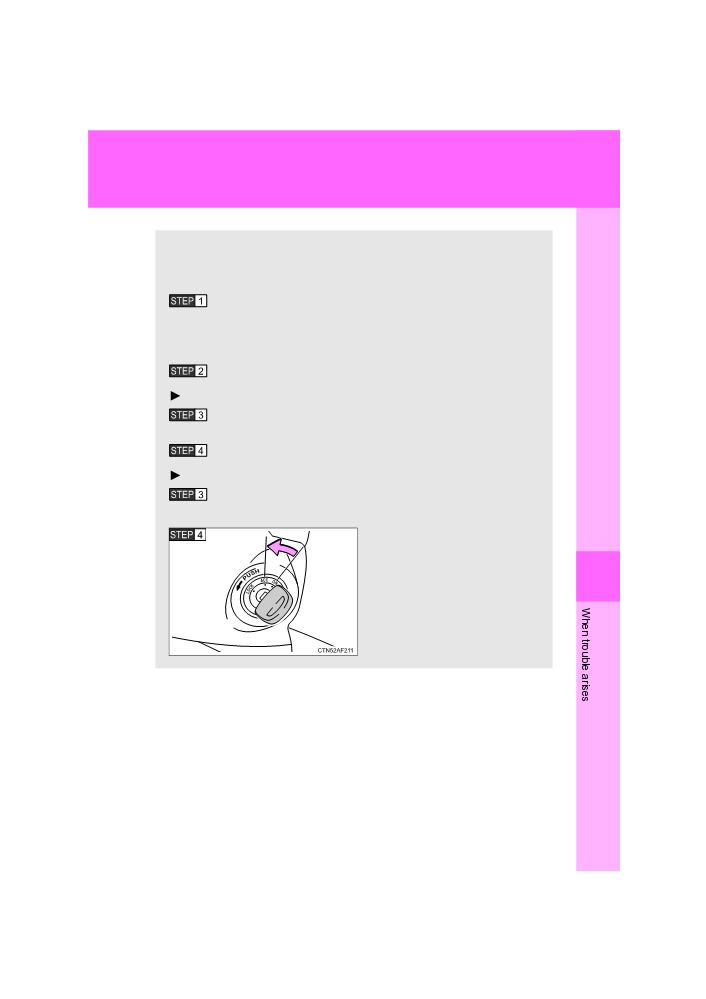

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the

vehicle in the normal way, stop the vehicle using the following pro-

cedure:

Steadily step on the brake pedal with both feet and firmly

depress it.

Do not pump the brake pedal repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to “N”.

If the shift lever is shifted to “N”

After slowing down, stop the vehicle in a safe place by the

road.

Stop the engine.

If the shift lever cannot be shifted to “N”

Keep depressing the brake pedal with both feet to reduce

vehicle speed as much as possible.

Vehicles without smart entry &

start system: Stop the engine

by turning the engine switch to

the “ACC” position.

619

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

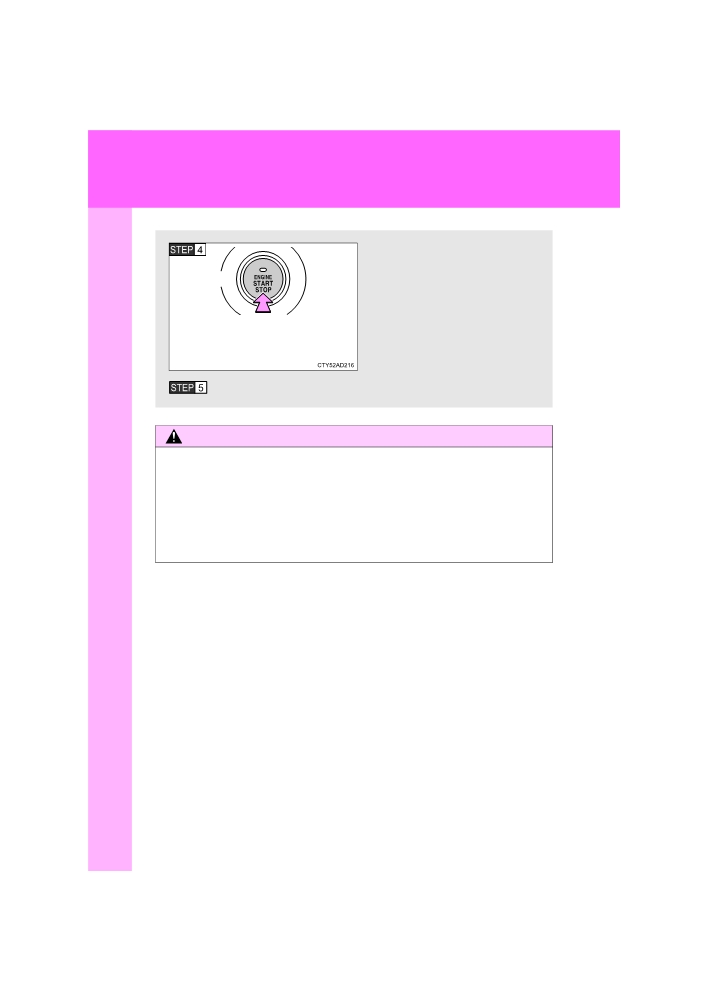

Vehicles with smart entry &

start system: To stop the

engine, press and hold the

“ENGINE START STOP”

switch for 2 consecutive sec-

Press and hold for 2 seconds or more,

onds or more, or press it

or press briefly 3 times or more

briefly 3 times or more in suc-

cession.

Stop the vehicle in a safe place by the road.

WARNING

■ If the engine has to be turned off while driving

● Power assist for the brakes and steering wheel will be lost, making the

brake pedal harder to depress and the steering wheel heavier to turn.

Decelerate as much as possible before turning off the engine.

● Vehicles without smart entry & start system: Never attempt to remove the

key, as doing so will lock the steering wheel.

620

VERSO_EE_OM64517E

6-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4440 mm (174.8 in.)

Overall width

1790 mm (70.5 in.)

Without roof rail

1620 mm (63.8 in.)

1630 mm (64.2 in.) *2

205/60R16 tires

With roof rail

1660 mm (65.4 in.)

Overall height *1

1670 mm (65.7 in.) *2

Without roof rail

1630 mm (64.2 in.)

215/55R17 tires

With roof rail

1670 mm (65.7 in.)

Wheelbase

2780 mm (109.4 in.)

Front

1535 mm (60.4 in.)

Tread

Rear

1545 mm (60.8 in.)

1935 kg (4266 lb.) *2, 3, 4

2125 kg (4685 lb.) *3, 4

Gross vehicle mass

2060 kg (4542 lb.) *2, 5

2260 kg (4983 lb.) *5

1220 kg (2690 lb.) *3, 4

Maximum

Front

1260 kg (2778 lb.) *5

permissible axle

capacity

Rear

1180 kg (2601 lb.)

Drawbar load

55 kg (121 lb.)

With brake

1300 kg (2866 lb.)

Towing capacity

Without brake

450 kg (992 lb.)

Maximum permissible mass for towing

20 kg (44 lb.)

hitch/bracket

622

VERSO_EE_OM64517E

6-1. Specifications

*1: Unladen vehicles

*2: Vehicle category N1 models

*3: 1ZR-FAE engine

*4: 2ZR-FAE engine

*5: 1WW engine

To distinguish the vehicle category, ask any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

623

VERSO_EE_OM64517E

6-1. Specifications

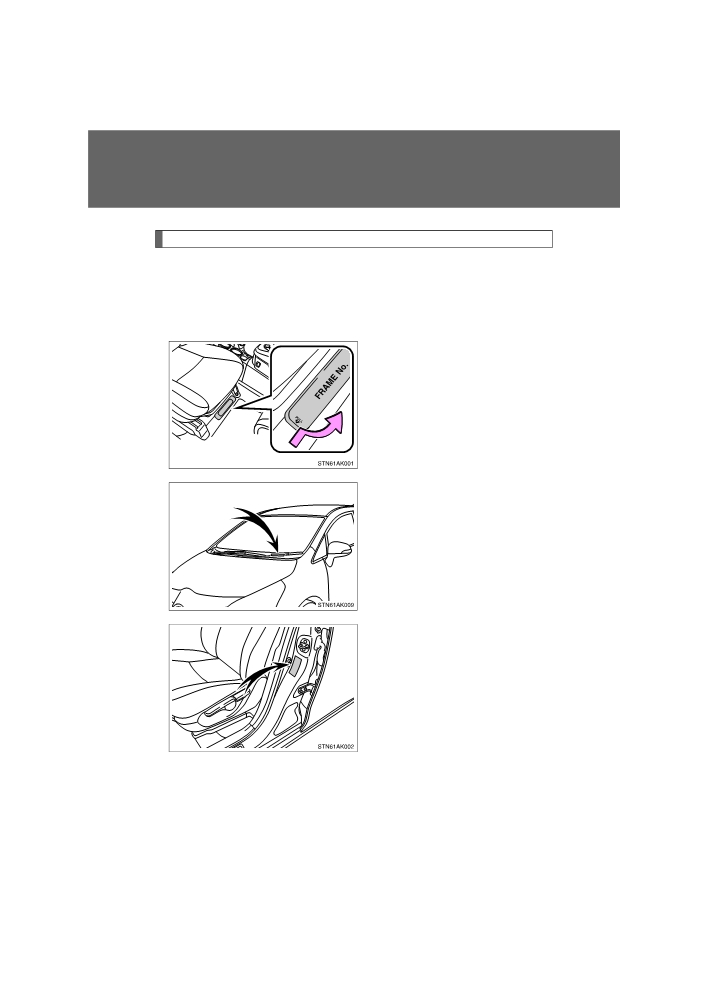

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your

vehicle. This is the primary identification number for your Toyota. It is

used

in registering the ownership of your vehicle.

This number is stamped under

the front right seat.

Right-hand drive vehicles: This

number is stamped on the top

left of the instrument panel.

This number is also on the man-

ufacturer’s label on the left-hand

side center pillar.

624

VERSO_EE_OM64517E

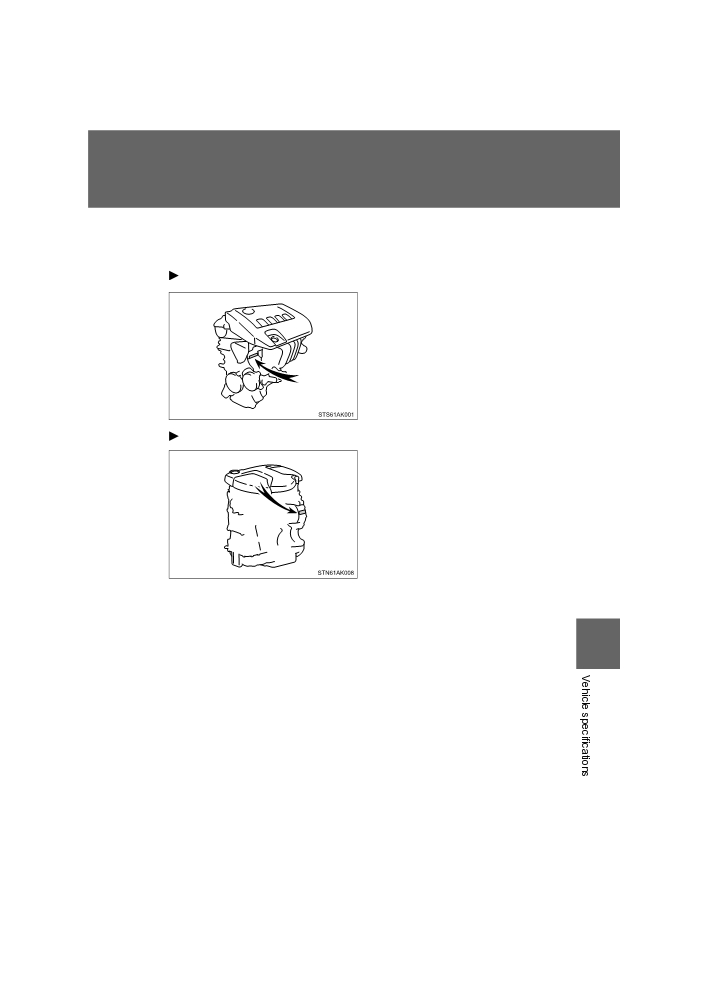

6-1. Specifications

Engine

Gasoline engine

Model

1ZR-FAE, 2ZR-FAE

Type

4-cylinder in line, 4-cycle, gasoline

1ZR-FAE engine

80.5  78.5 mm (3.17  3.09 in.)

Bore and stroke

2ZR-FAE engine

80.5  88.3 mm (3.17  3.48 in.)

1ZR-FAE engine

1598 cm3 (97.5 cu. in.)

Displacement

2ZR-FAE engine

1798 cm3 (109.7 cu. in.)

Valve clearance

Automatic adjustment

(Engine cold)

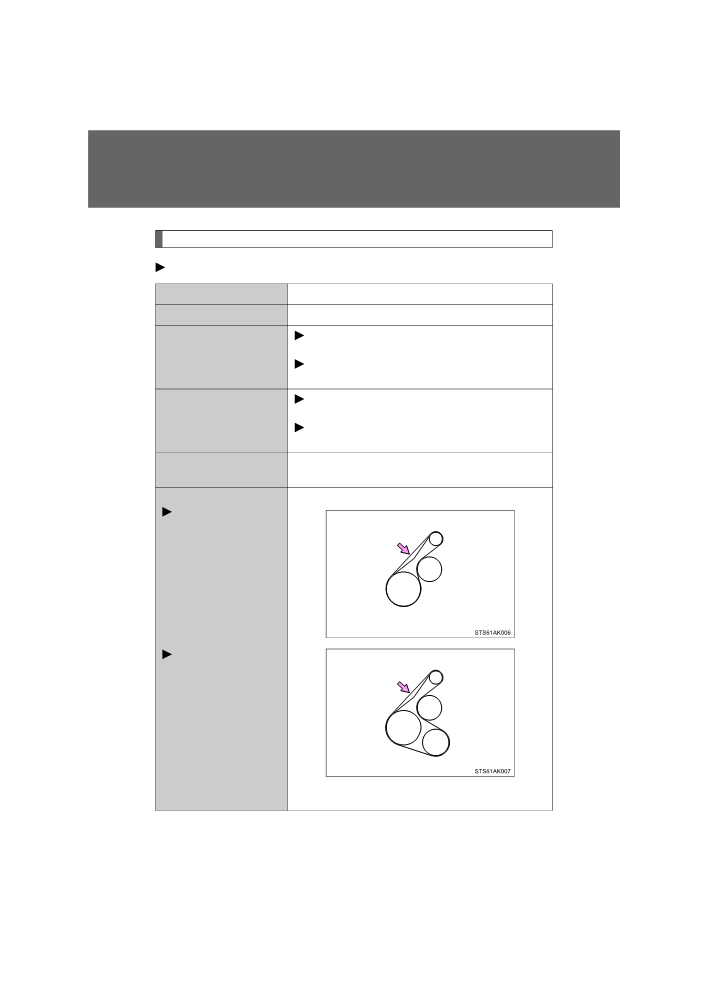

Drive belt tension

7.6  10.0 mm (0.30  0.39 in.)*

Vehicles without air

conditioning system

Generator

Water pump

Crankshaft

Vehicles with air

conditioning system

Generator

Water pump

Crankshaft

Air

conditioning

compressor

*: Drive belt deflection with 98 N (10 kgf, 22 lbf)

thumb force (used belt)

626

VERSO_EE_OM64517E

6-1. Specifications

Diesel engine

Model

1WW

4-cylinder in line, 4-cycle, diesel

Type

(with turbo charger)

Bore and stroke

78.0  83.6 mm (3.07  3.29 in.)

Displacement

1598 cm3 (97.52 cu. in.)

Valve clearance

Automatic adjustment

(Engine cold)

Drive belt tension

Automatic adjustment

Fuel

Gasoline engine

EU area:

Unleaded gasoline conforming to European stan-

Fuel type

dard EN228 only

Except EU area:

Unleaded gasoline only

Research octane number

95 or higher

Fuel tank capacity

60 L (15.9 gal., 13.2 lmp.gal.)

(Reference)

627

VERSO_EE_OM64517E

6-1. Specifications

Diesel engine

EU area:

You must only use diesel fuel conforming to Euro-

pean standard EN590.

Except EU area (except Russia):

You must only use diesel fuel that contains 10

ppm or less of sulfur and has a cetane number of

Fuel type

48 or higher.

Except EU area (Russia):

You must only use diesel fuel with a cetane num-

ber of 48 or higher.

Your vehicle must use only diesel fuel confirming

to GOST R52368-2005 (Sulfur max 50ppm).

Cetane number

48 or higher

Fuel tank capacity

55 L (14.5 gal., 12.1 lmp.gal.)

(Reference)

Lubrication system

Gasoline engine

Oil capacity

(Drain and refill - reference*)

With filter

4.2 L (4.4 qt., 3.7 Imp.qt.)

Without filter

3.9 L (4.1 qt., 3.4 Imp.qt.)

*: The engine oil capacity is a reference quantity to be used when changing the

engine oil. Warm up and turn off the engine, wait more than 5 minutes, and

check the oil level on the dipstick.

628

VERSO_EE_OM64517E

Toyota Verso (2017 year). Instruction - part 37
