3-1. Using the air conditioning system and defogger

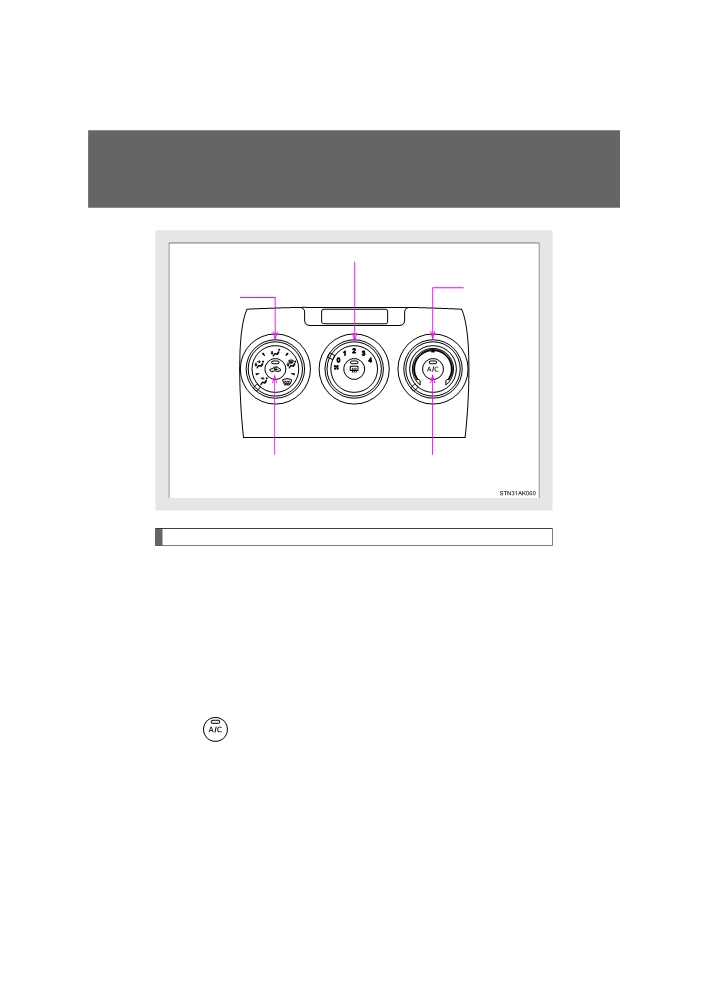

Manual air conditioning system

Fan speed control dial

Air outlet

Temperature

selection dial

control dial

Outside air or recirculated air mode

Air conditioning on/off button

button

(if equipped)

Adjusting the settings

■ Adjusting the temperature setting (vehicles without air condi-

tioning system)

Turn the temperature control dial clockwise to increase the tem-

perature.

■ Adjusting the temperature setting (vehicles with air condition-

ing system)

Turn the temperature control dial clockwise (warm) or counter-

clockwise (cool).

If

is not pressed, the system will blow ambient temperature air or

heated air.

: If equipped

340

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

■ Adjusting the fan speed

Turn the fan speed control dial clockwise (increase) or counter

clockwise (decrease).

Set the dial to “0” to turn the fan off.

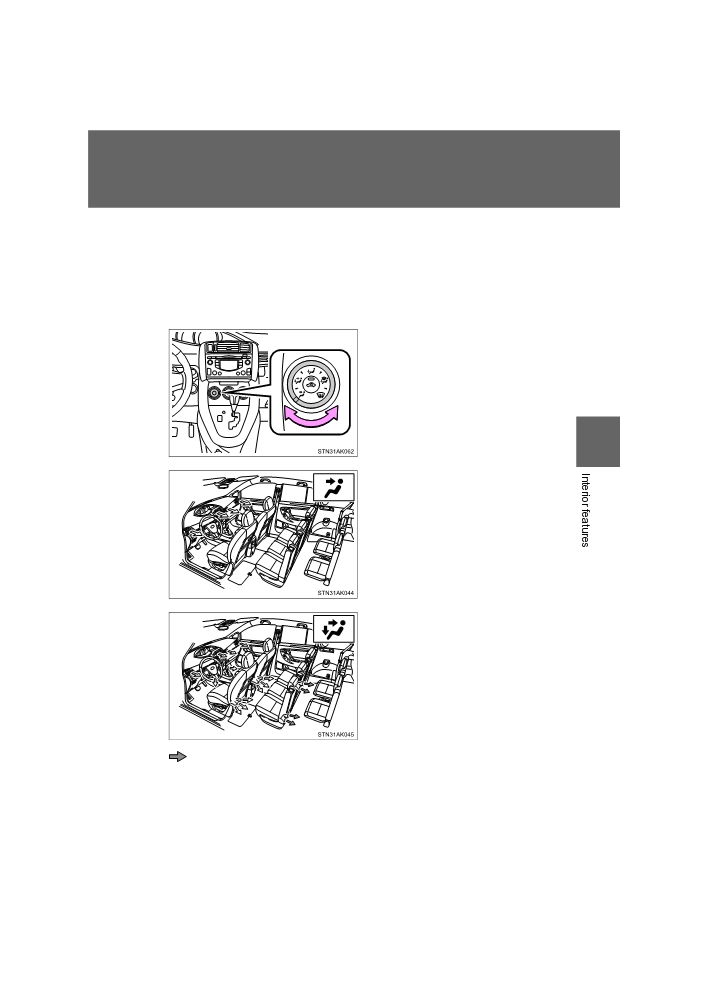

■ Changing the air outlets

Turn the air outlet selection dial.

The air outlets switch each time

either side of air outlet selection

dial is turned.

3

Air flows to the upper body.

Air flows to the upper body and

feet.

: Some models

341

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

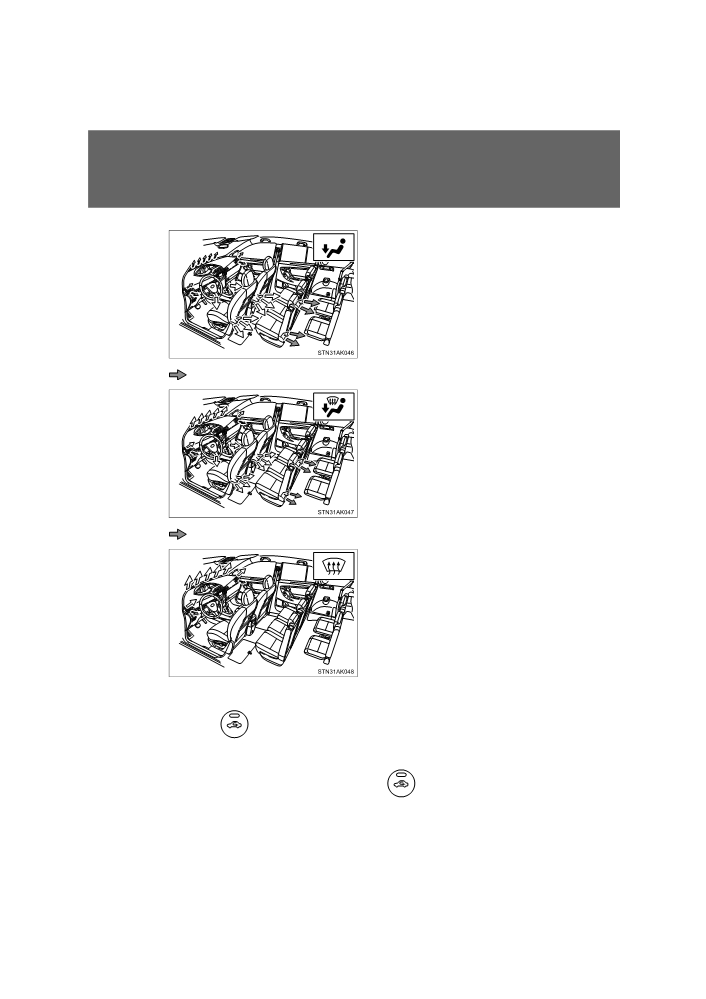

Air flows mainly to the feet.

: Some models

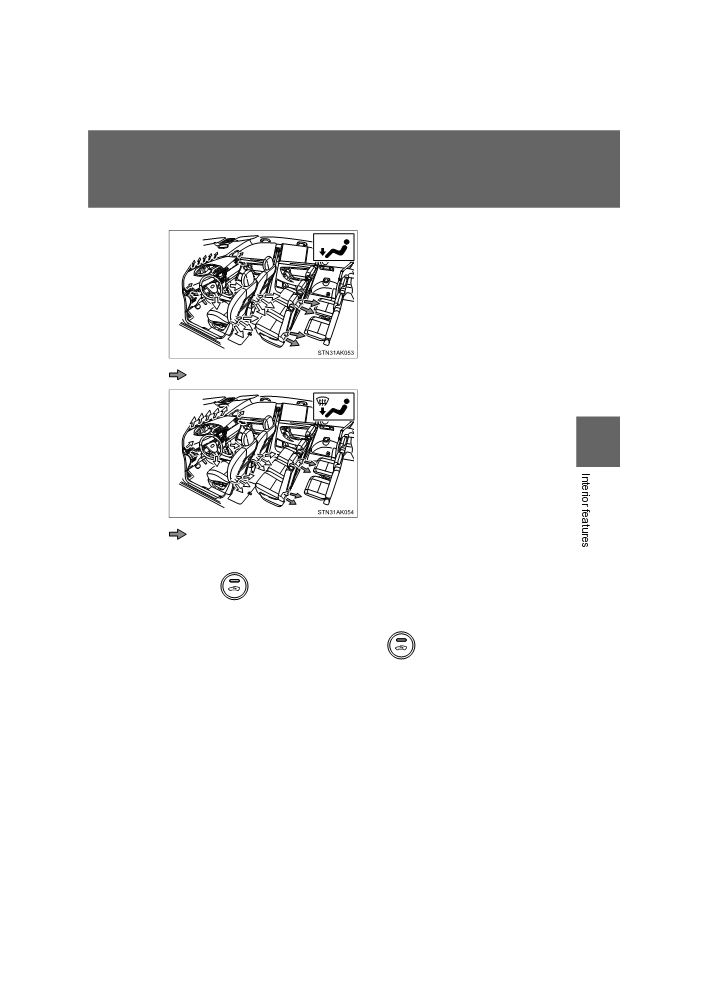

Air flows to the feet and the

windshield defogger operates.

: Some models

Air flows to the windshield and

side windows.

The air intake is automatically

switched to outside air mode.

■ Switching between outside air and recirculated air modes

Press

The mode switches between outside air mode (indicator off) and recircu-

lated air mode (indicator on) each time

is pressed.

342

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

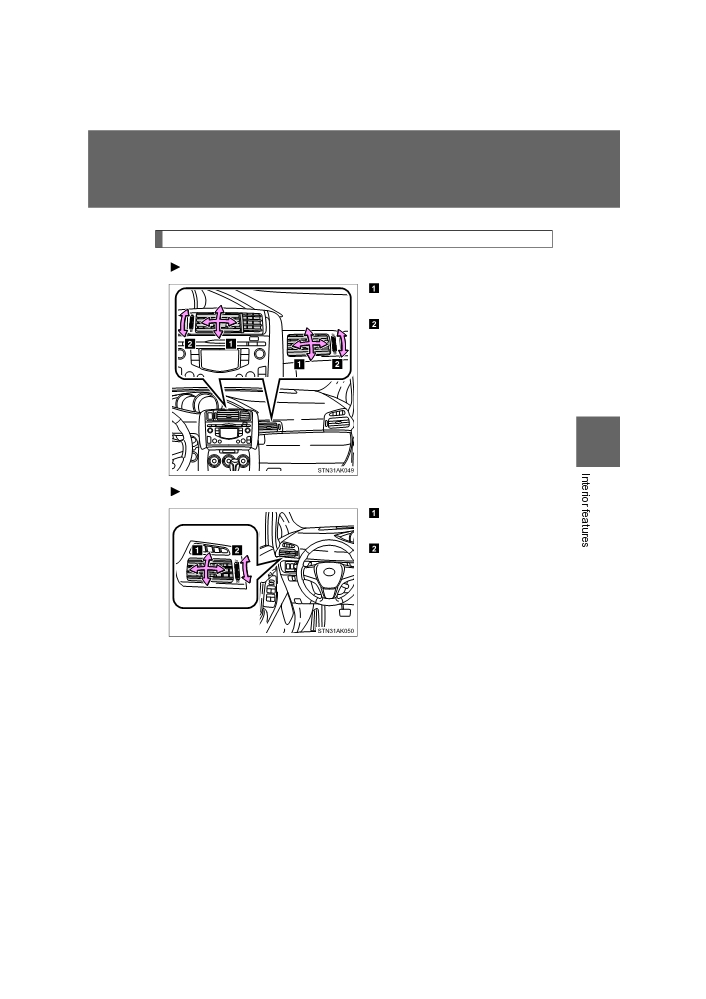

Adjusting the position of and opening and closing the air outlets

Center outlets

Direct air flow to the left or

right, up or down.

Turn the knob to open or close

the vent.

3

Right and left side outlets

Direct air flow to the left or

right, up or down.

Turn the knob to open or close

the vent.

343

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

■ Using the system in recirculated air mode

The windows will fog up more easily if the recirculated air mode is used for

an extended period.

■ Switching between outside air and recirculated air modes

Recirculated air mode or outside air mode may be automatically switched in

accordance with the temperature setting and the inside temperature.

■ When outside air temperature approaches 0°C (32°F) (vehicles with air

conditioning system)

The air conditioning system may not operate even when

is pressed.

■ When is selected for the air outlets used

For your driving comfort, air flowing to the feet may be warmer than air flow-

ing to the upper body depending on the position of the temperature adjust-

ment dial.

■ Ventilation and air conditioning odors

● To let fresh air in, set the air conditioning system to the outside air mode.

●During use, various odors from inside and outside the vehicle may enter

into and accumulate in the air conditioning system. This may then cause

odor to be emitted from the vents.

● To reduce potential odors from occurring:

It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

344

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

WARNING

■ To prevent the windshield from fogging up

Do not set the air outlet selection dial to

during cool air operation in

extremely humid weather. The difference between the temperature of the

outside air and that of the windshield can cause the outer surface of the

windshield to fog up, blocking your vision.

NOTICE

■ To prevent battery discharge

Do not leave the air conditioning system on longer than necessary when the

engine is stopped.

3

345

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

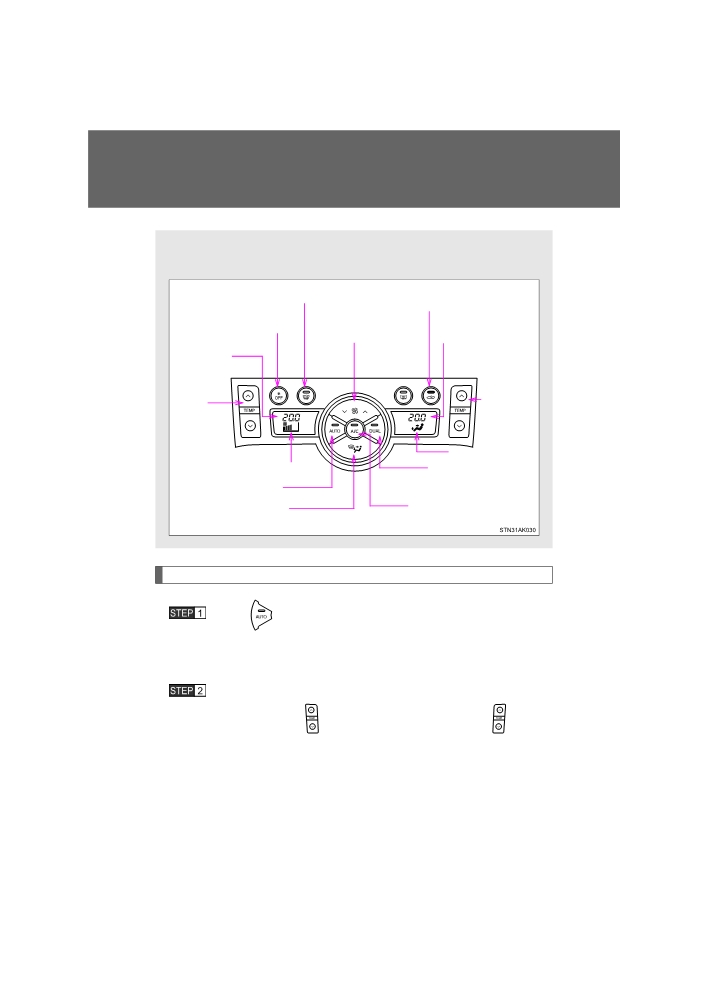

Automatic air conditioning system

Airflow and outlets are automatically adjusted according to the tem-

perature setting.

Outside recirculated

Windshield defogger button

air mode button

“OFF” button

Fan speed control button

Temperature display

Temperature

display

Temperature

Temperature

control

control

button

button

Air outlet display

Fan speed display

Dual mode button

Automatic mode button

Air outlet selection button

Air conditioning

on/off button

Using the automatic mode

Press

The air conditioning system will begin to operate. Air outlets and fan

speed are automatically adjusted according to the temperature set-

ting.

Press “” to increase the temperature and “” to decrease the

temperature on

(left-hand drive vehicles) or

(right-

hand drive vehicles) on the driver side.

The temperature for the driver and front passenger seats can be set

separately. (P. 347)

: If equipped

346

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

■ Automatic mode indicator

If the fan speed setting or air flow modes are operated, the auto-

matic mode indicator goes off. However, automatic mode for func-

tions other than that operated are maintained.

Adjusting the settings

■ Adjusting the temperature setting

Press “” to increase the temperature and “” to decrease the tem-

perature on

(left-hand drive vehicles) or

(right-hand

drive vehicles) on the driver side.

3

Press “” (increase) or “” (decrease) on

(left-hand drive vehicles)

or

(right-hand drive vehicles) on the passenger side to separately

adjust the temperature for the passenger and driver sides (individual

mode). Press

to return the driver and passenger side tempera-

tures to the same setting (simultaneous mode).

The air conditioning system switches between individual and simultane-

ous modes each time

is pressed.

■ Adjusting the fan speed

Press “” (decrease) or “” (increase) on

The fan speed is shown on the display. (7 levels)

Press

to turn the fan off.

347

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

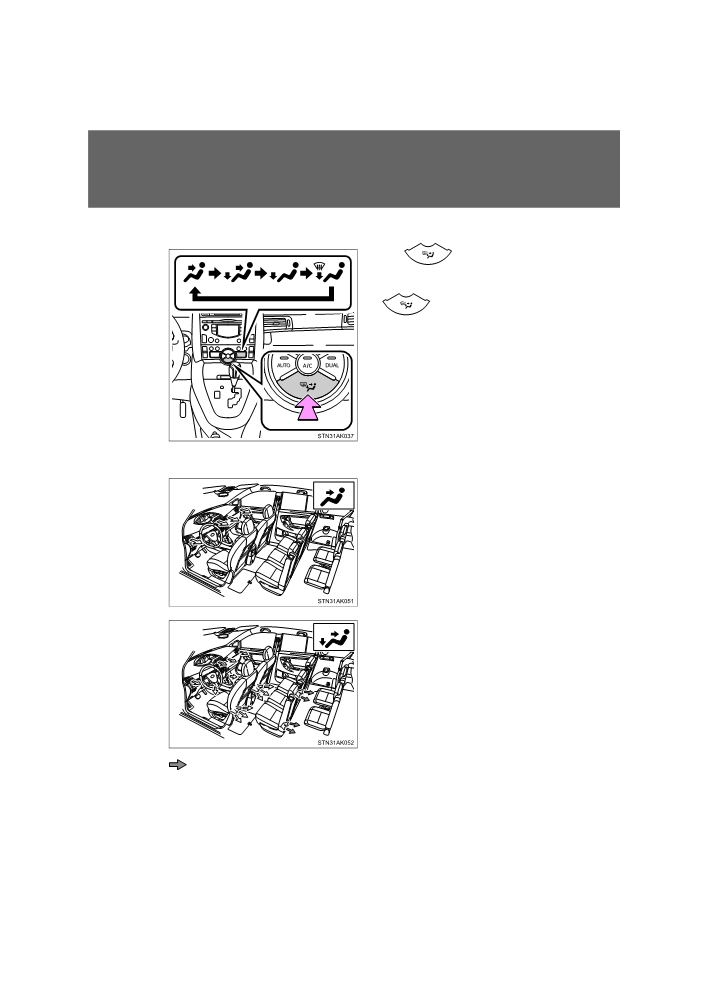

■ Changing the air outlets

Press

The air outlets switch each time

is pressed.

Air flow as shown according to the mode selected.

Air flows to the upper body.

Air flows to the upper body and

feet.

: Some models

348

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

Air flows mainly to the feet.

: Some models

Air flows to the feet and the

windshield defogger operates.

3

: Some models

■ Switching between outside air and recirculated air modes

Press

The mode switches between outside air mode (indicator off) and recircu-

lated air mode (indicator on) each time

is pressed.

349

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

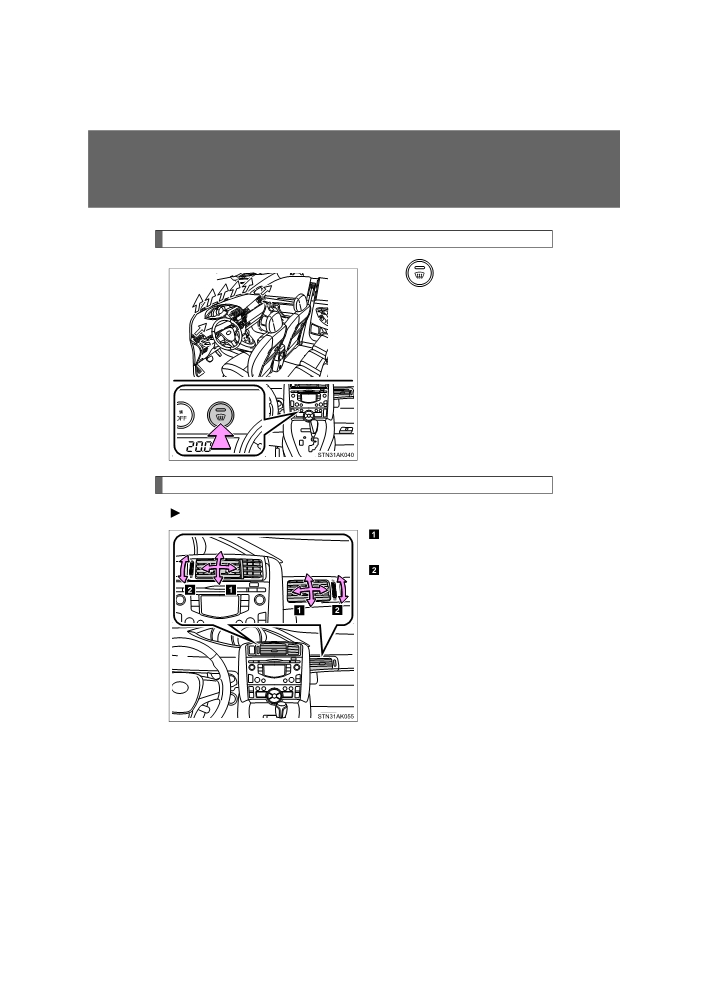

Defogging the windshield

Press

The indicator comes on.

The air conditioning system

con-

trol operates automatically.

If the outside temperature is

5°C

(41°F) or below, recirculated air

mode will automatically switch to

outside air mode.

Adjusting the

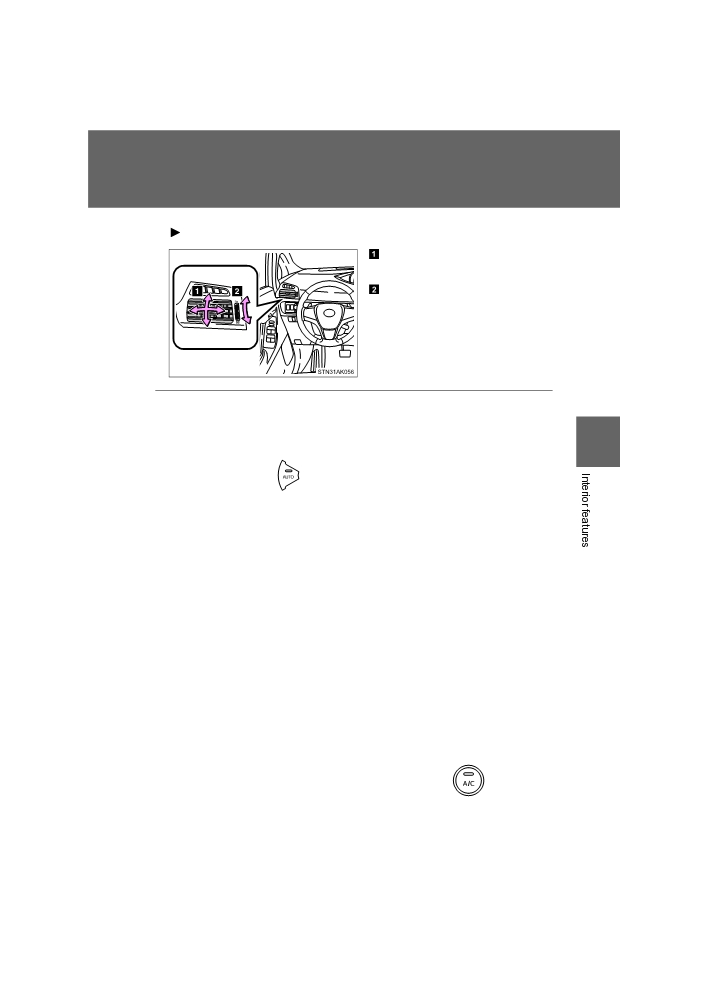

position of and opening and closing the air outlets

Center outlets

Direct air flow to the left or

right, up or down.

Turn the knob to open or close

the vent.

350

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

Right and left side outlets

Direct air flow to the left or

right, up or down.

Turn the knob to open or close

the vent.

■ Using the automatic mode

Fan speed is adjusted automatically in accordance with the temperature set-

3

ting and ambient conditions. As a result, the following may occur.

●Immediately after

is pressed, the fan may stop for a while until

warm or cool air is ready to flow.

●Cool air may flow to the area around the upper body when the heater is

on.

■ Blower customization (if equipped)

Fan speed setting during the automatic mode operation can be customized.

(P. 646)

■ Using the system in recirculated air mode

The windows will fog up more easily if the recirculated air mode is used for

an extended period.

■ Switching between outside air and recirculated air modes

Recirculated air mode or outside air mode may be automatically switched in

accordance with the temperature setting and the inside temperature.

■ Window defogger feature

Recirculated air mode may automatically switch to outside air mode in situa-

tions where the windows need to be defogged.

■ When outside temperature approaches 0°C (32°F)

The air conditioning system may not operate even when

is pressed.

351

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

■ When is selected for the air outlets used

For your driving comfort, air flowing to the feet may be warmer than air flow-

ing to the upper body depending on the position of the temperature adjust-

ment dial.

■ Ventilation and air conditioning odors

● To let fresh air in, set the air conditioning system to the outside air mode.

●During use, various odors from inside and outside the vehicle may enter

into and accumulate in the air conditioning system. This may then cause

odor to be emitted from the vents.

● To reduce potential odors from occurring:

• It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

• The start timing of the blower may be delayed for a short period of time

immediately after the air conditioning system is started in AUTO mode.

WARNING

■ To prevent the windshield from fogging up

Do not use

during cool air operation in extremely humid weather. The

difference between the temperature of the outside air and that of the wind-

shield can cause the outer surface of the windshield to fog up, blocking your

vision.

NOTICE

■ To prevent battery discharge

Do not leave the air conditioning system on longer than necessary when the

engine is stopped.

352

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

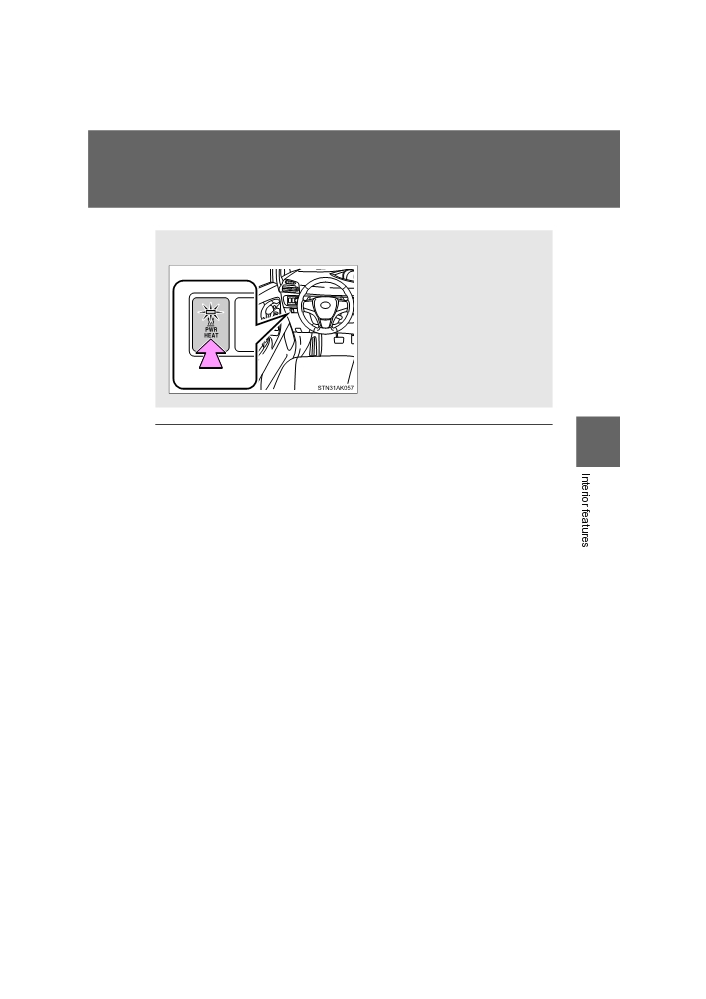

Power heater

This feature is used to keep the cabin warm in cold conditions.

Turns the power heater on/off

The power heater turns on

about

30 seconds after the

switch is pressed.

3

■ Power heater can be operated when

●The engine is running.

●The engine coolant temperature is low.

■ Normal characteristics of power heater operation

The following cases do not indicate a malfunction.

● When the power heater is turned on or off, some white smoke and a

slight odor may be emitted from the power heater exhaust that is located

under the floor.

● When the power heater is used under extremely cold conditions, vapor

may be visible from its exhaust.

● When the power heater is turned off, you may hear a sound in the engine

compartment for about 2 minutes until the power heater turns off com-

pletely.

■ After the heater is turned off

We recommend not restarting the heater for 10 minutes after you turn it off.

Otherwise, a noise may be heard as the heater ignites.

■ When refueling your vehicle

The engine must be turned off. Turning the engine off turns the power heater

off.

: If equipped

353

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

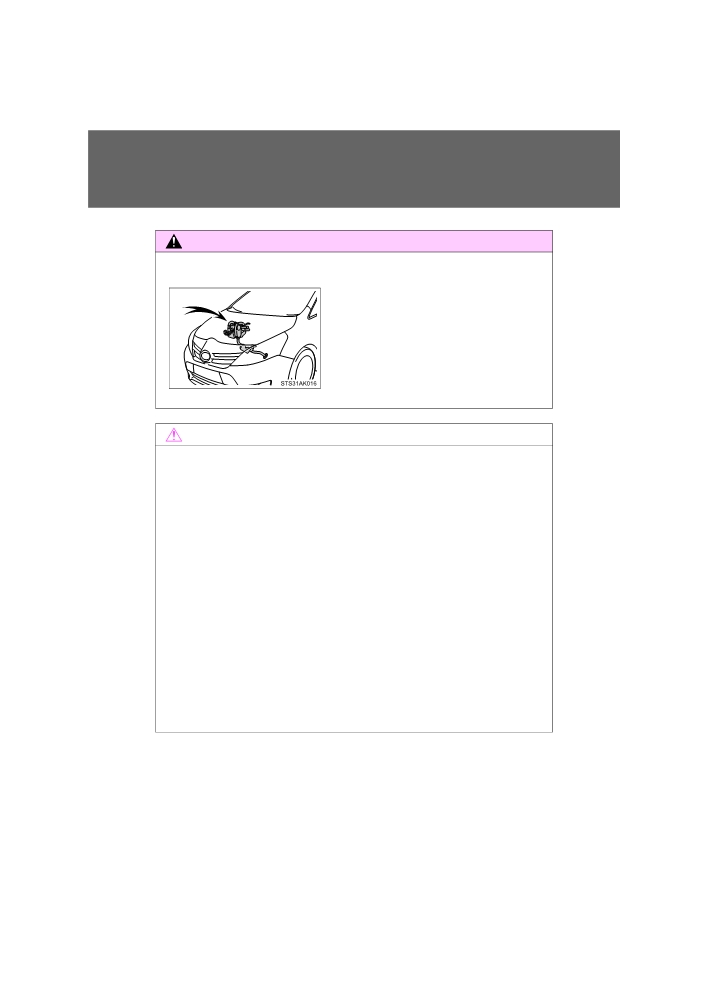

WARNING

■ To prevent burns or damage to your vehicle

● Do not touch the heater or its exhaust

pipe as they are hot. You may burn

yourself.

●Keep flammable items such as fuel

away from the heater and its exhaust

pipe, as this may cause a fire.

NOTICE

■ To prevent damage to your vehicle

●Do not turn the heater on and off repeatedly in 5 minute intervals as this

can shorten the life of the heater components. If the engine must be turned

on and off repeatedly within short intervals (such as when the vehicle is

being used for delivery purposes), turn the heater off.

●Do not modify or open the heater without consulting any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional, as

this may cause a heater malfunction or a fire.

●Be careful not to splash water or spill liquid directly on the heater or on the

heater fuel pump, as this may cause the heater to malfunction.

● Keep the intake and exhaust pipes of the heater free from water, snow,

ice, mud, etc. If the pipes become clogged, this can cause the heater to

malfunction.

● If you notice anything unusual, such as a fluid leak, smoke or poor opera-

tion, turn off the heater and have your vehicle checked by any authorized

Toyota dealer or repairer, or another duly qualified and equipped profes-

sional.

354

VERSO_EE_OM64517E

3-1. Using the air conditioning system and defogger

Rear window and outside rear view mirror defoggers

Defoggers are used to defog the rear window, and to remove rain-

drops, dew and frost from the outside rear view mirrors.

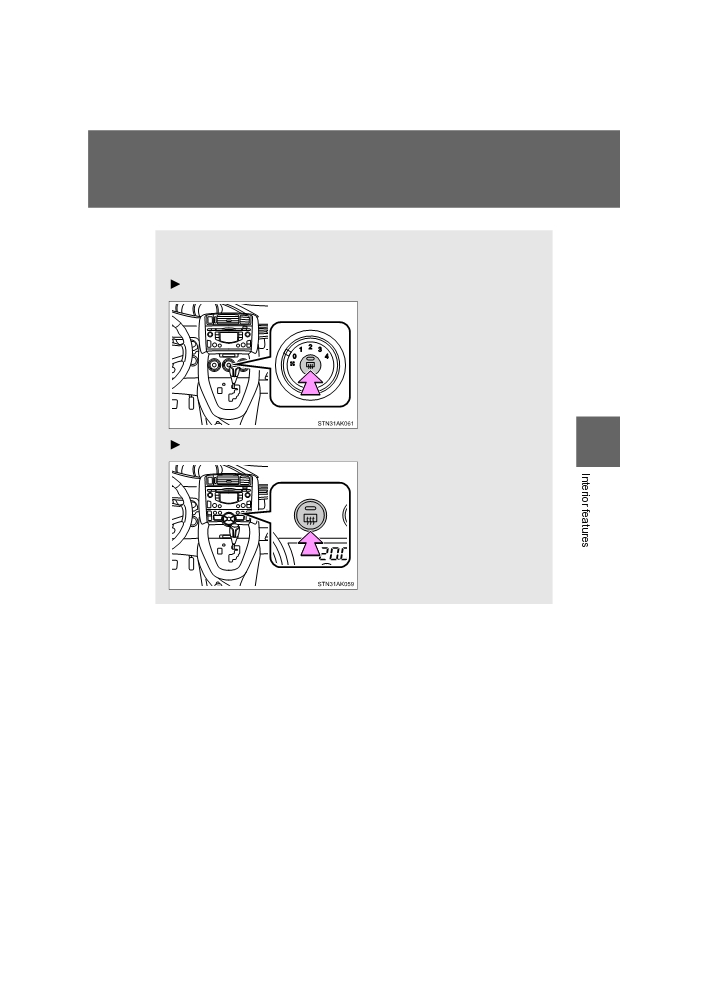

Vehicles with manual air conditioning system

Turns the defoggers on/off

The defoggers will automati-

cally turn off after approxi-

mately 15 minutes.

3

Vehicles with automatic air conditioning system

Turns the defoggers on/off

The defoggers will automati-

cally turn

off the operation

time. The

operation time is

between

15 minutes and

1

hour depending on the ambient

temperature

and vehicle

speed.

355

VERSO_EE_OM64517E

Content   ..  19  20  21  22   ..
