1-7. Safety information

Third seats (vehicles with third seats)

Adjust the second seat forward

so that it does not interfere with

the child restraint system.

Fold the seatback while pulling

the seatback angle adjustment

strap. Return the seatback and

secure it at the 1st lock position

(most upright position). (P. 87)

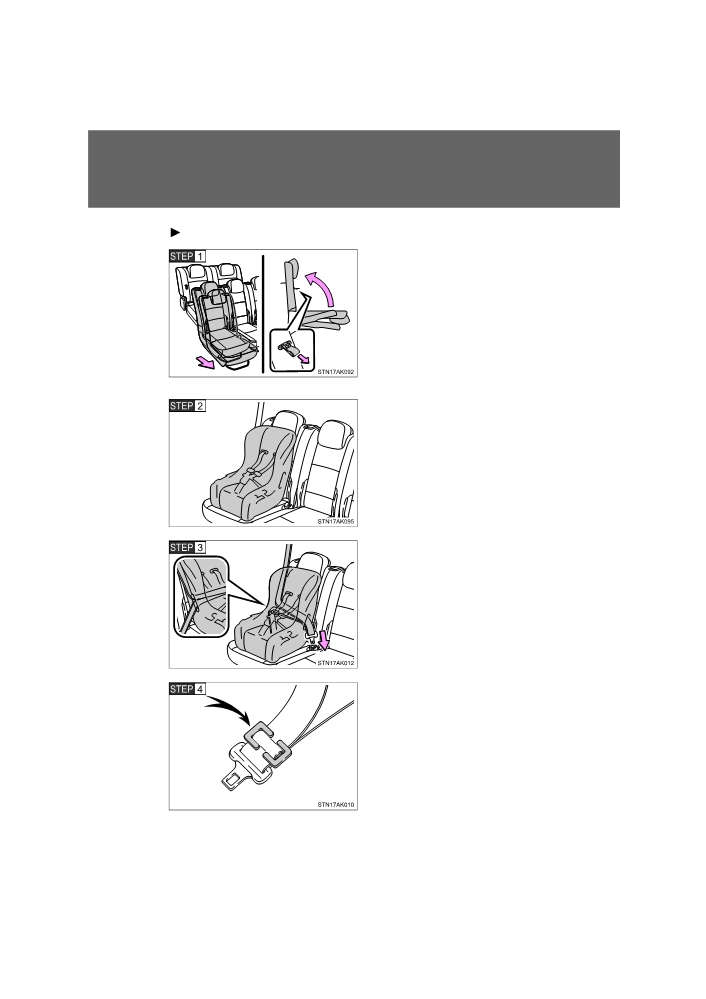

Place the child seat on the seat

facing the front of the vehicle.

Run the seat belt through the

child seat and insert the plate

into the buckle. Make sure that

the belt is not twisted.

Install a locking clip near the tab

of the lap and shoulder belt by

inserting the lap and shoulder

webbing through the recesses of

the locking clip. Buckle the belt

again. If the belt has any slack,

release the buckle and reinstall

the locking clip.

170

VERSO_EE_OM64517E

1-7. Safety information

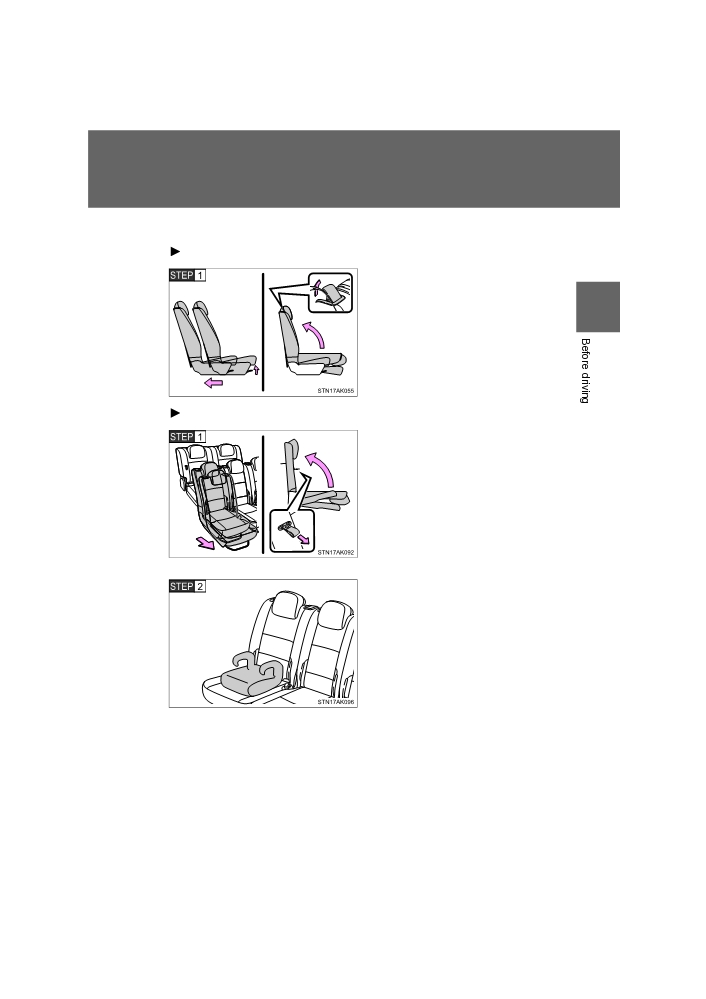

■ Junior seat

Second seats

Adjust the seat as far back as

possible.

Fold the seatback while pulling

1

up the seatback angle adjust-

ment lever. Return the seatback

and secure it at the 1st lock posi-

tion (most upright position).

(P. 86)

Third seats (vehicles with third seats)

Adjust the second seat forward

so that there is adequate space

for the child.

Fold the seatback while pulling

the seatback angle adjustment

strap. Return the seatback and

secure it at the 1st lock position

(most upright position). (P. 87)

Place the junior seat on the seat

facing the front of the vehicle.

171

VERSO_EE_OM64517E

1-7. Safety information

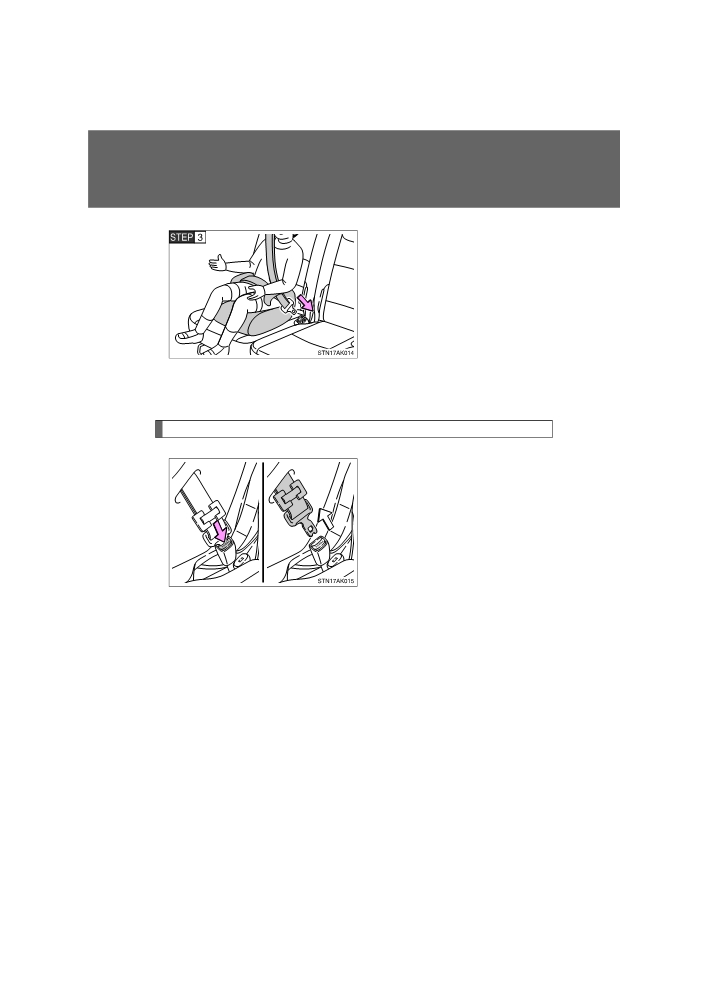

Sit the child in the junior seat. Fit

the seat belt to the junior seat

according to the manufacturer’s

instructions and insert the plate

into the buckle. Make sure that

the belt is not twisted.

Check that the shoulder belt is

correctly positioned over the

child’s shoulder, and that the lap

belt is as low as possible.

(P. 96)

Removing a child restraint system installed with a seat belt

Push the release button and fully

retract the seat belt.

172

VERSO_EE_OM64517E

1-7. Safety information

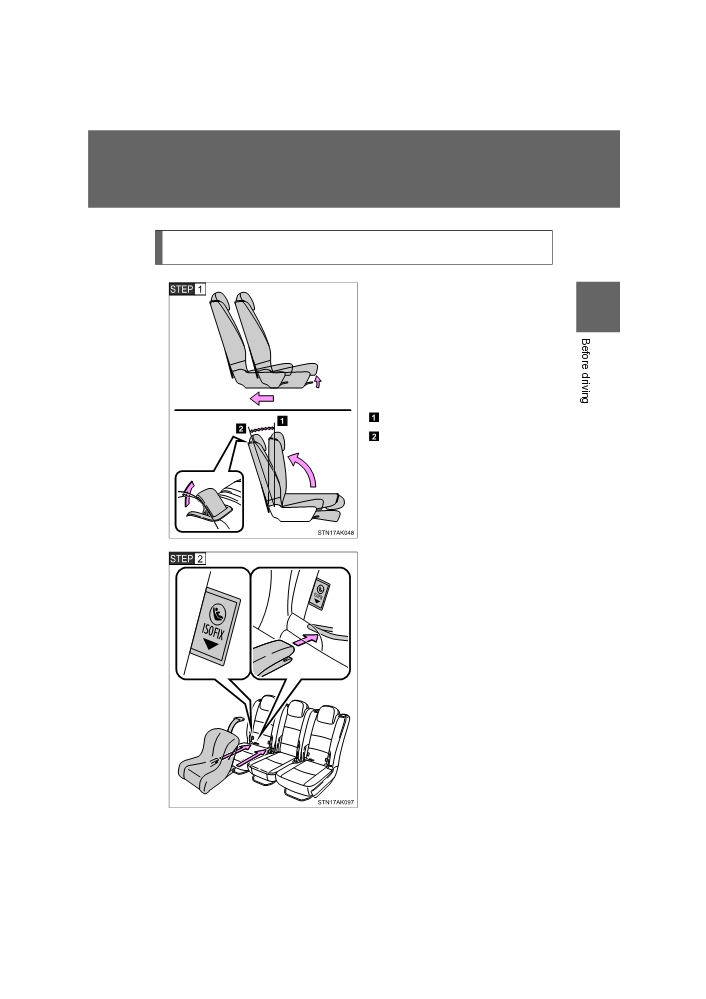

Installation with ISOFIX rigid anchor

(ISOFIX child restraint

system) (vehicles with second seats)

Adjust the seat as far back as

possible.

1

Fold the seatback forward and

then back to the 1st lock position

(most upright position). Adjust

the seatback to the 7th lock posi-

tion. (P. 86)

1st lock position

7th lock position

Check the positions of the lower

anchors, and install the child

restraint system to the seat.

If the child restraint has a top

strap, the top strap should be

latched onto the anchors.

173

VERSO_EE_OM64517E

1-7. Safety information

Child restraint systems with a top strap (vehicles with second seats)

Secure the child restraint using a seat belt or ISOFIX rigid

anchors, and do the following.

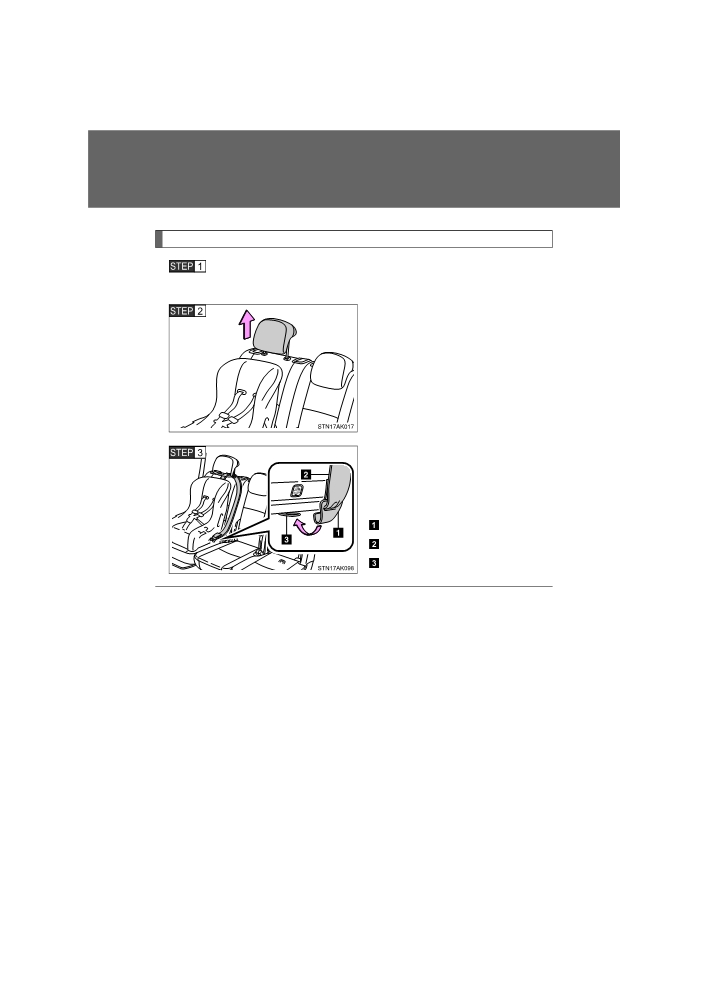

Adjust the head restraint to the

upmost position. (P. 94)

Latch the hook onto the anchor

bracket and tighten the top strap.

Make sure the top strap is

securely latched.

Hook

Top strap

Anchor bracket

■ When installing a child restraint system using a seat belt

You need a locking clip to install the child restraint system using a seat belt.

Follow the instructions provided by the manufacturer of the system. If your

child restraint system does not provide a locking clip, you can purchase the

following item from any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

Locking clip for child restraint system

(Part No. 73119-22010)

174

VERSO_EE_OM64517E

1-7. Safety information

WARNING

■ When installing a child restraint system

Follow the directions given in the child restraint system installation manual

and fix the child restraint system securely in place.

1

If the child restraint system is not correctly fixed in place, the child or other

passengers may be seriously injured or even killed in the event of sudden

braking, sudden swerving or an accident.

● If the driver’s seat interferes with the

child restraint system and prevents it

from being attached correctly, attach

the child restraint system to the right-

hand rear seat (left-hand drive vehicles)

or the left-hand rear seat (right-hand

drive vehicles).

● Adjust the front passenger seat so that

it does not interfere with the child

restraint system.

● Child restraint system installed on the

third seat should not contact the second

seatbacks.

● When installing a forward-facing child

or junior seat on the front passenger

seat, move the seat as far back as pos-

sible.

Failing to do so may result in death or

serious injury if the airbags deploy

(inflate).

175

VERSO_EE_OM64517E

1-7. Safety information

WARNING

■ When installing a child restraint system

● When installing a child restraint system

in the rear seat, adjust the adjacent

seat cushions to the same position

(second seats) and align seatbacks at

the same angle. Otherwise, the child

restraint system cannot be securely

restrained and this may cause death or

serious injuries in the event of sudden

braking, sudden swerving or an acci-

dent.

Same angle

Same position (second seats)

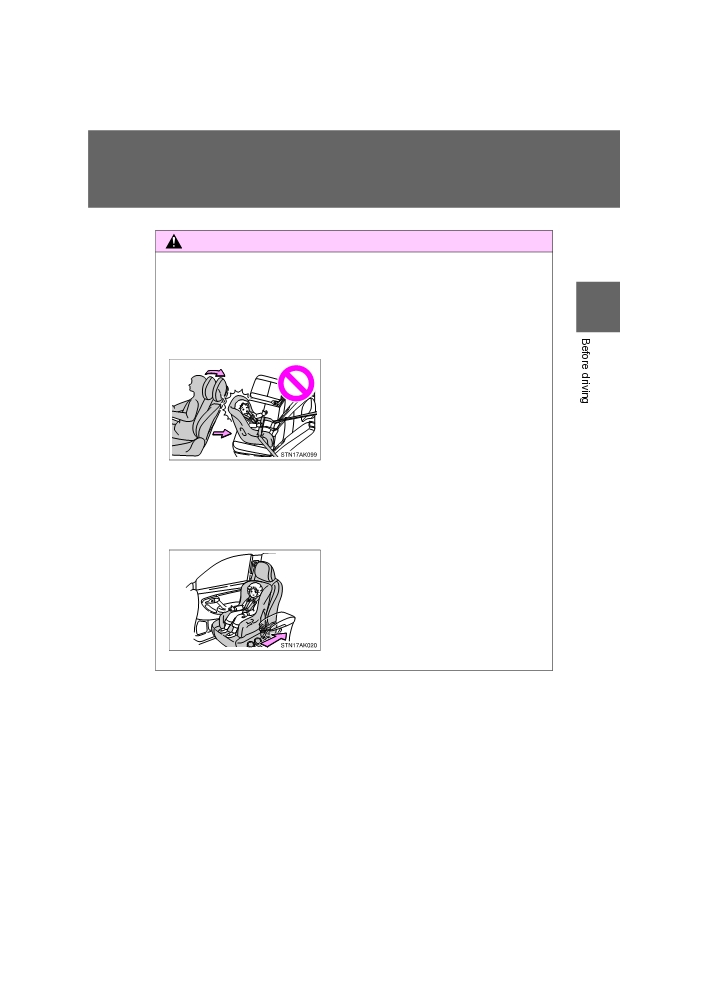

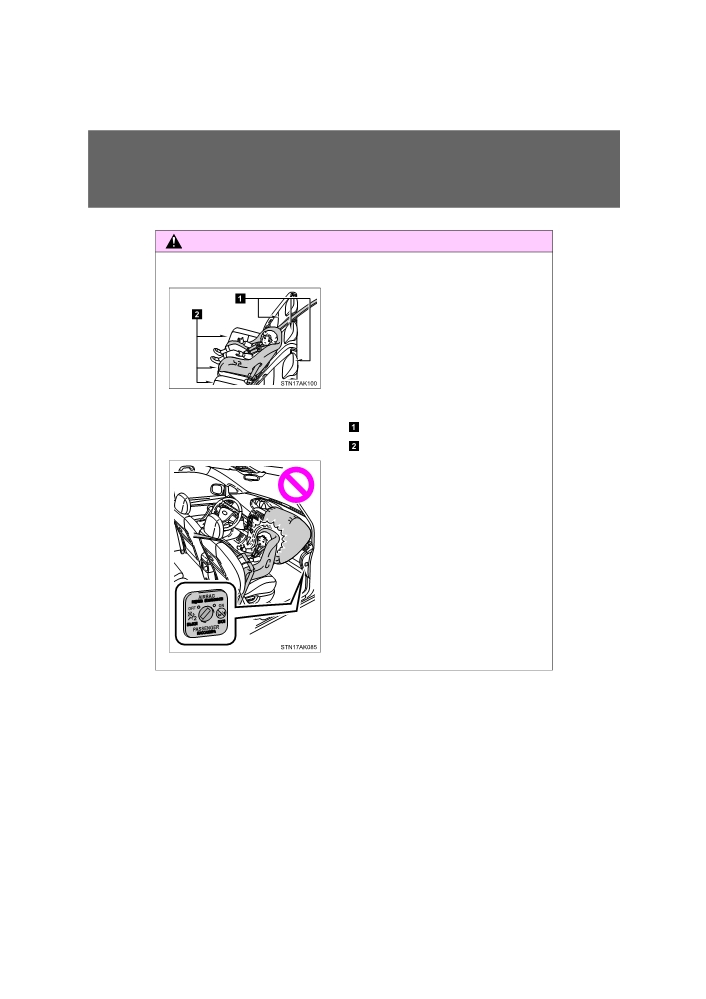

● Never use a rear-facing child restraint

system on the front passenger seat

when the airbag manual on-off switch is

“ON”. (P. 179)

The force of the rapid inflation of the

front passenger airbag can cause death

or serious injury to children in the event

of an accident.

176

VERSO_EE_OM64517E

1-7. Safety information

WARNING

■ When installing a child restraint system

● There is a label(s) on the passenger

side sun visor, indicating it is forbidden

1

to attach a rear-facing child restraint

system to the front passenger seat.

Details of the label(s) are shown in the

illustration below.

● If child restraint system regulations exist in the country where you reside,

please contact any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional for the child restraint system installa-

tion.

●When a junior seat is installed, always ensure that the shoulder belt is

positioned across the center of the child’s shoulder. The belt should be

kept away from the child’s neck, but not so that it could fall off the child’s

shoulder. Failing to do so may result in death or serious injury in the event

of sudden braking, sudden swerving or an accident.

●Ensure that the belt and tab are securely locked and the seat belt is not

twisted.

177

VERSO_EE_OM64517E

1-7. Safety information

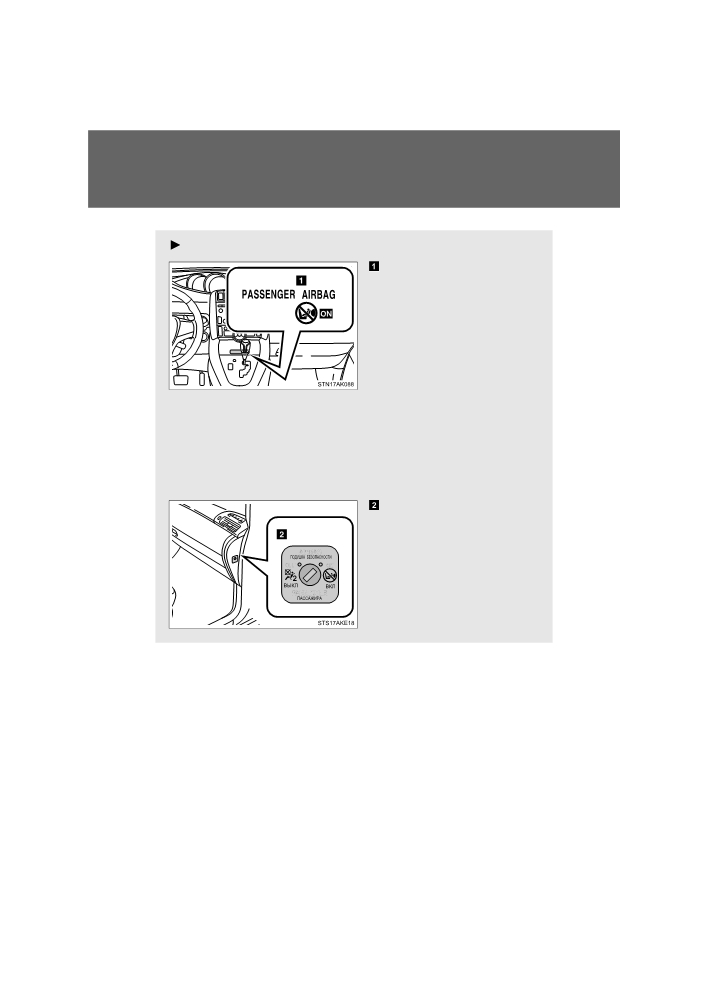

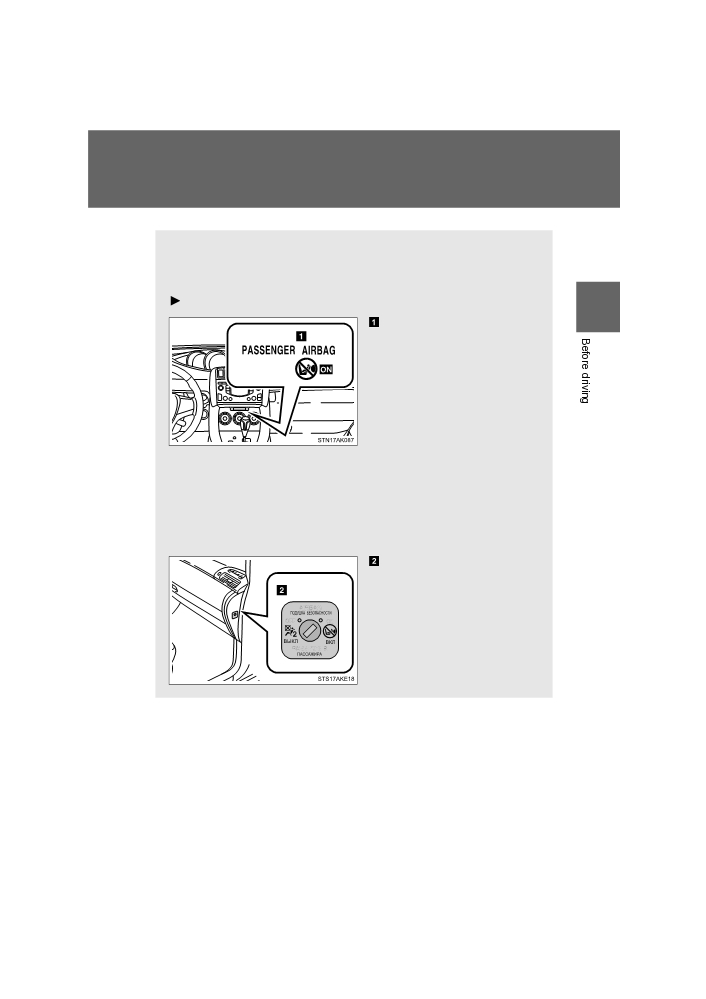

Airbag manual on-off system

This system deactivates the front passenger airbag.

Only deactivate the airbags when using a child restraint system on

the front passenger seat.

Vehicles with manual air conditioning system

1

“PASSENGER AIRBAG”

indicator

Vehicles without smart entry &

start system: This indicator

light turns on when the airbag

system is on (only when the

engine switch is in the

“ON”

position).

Vehicles with smart entry &

start system: This indicator

light turns on when the airbag

system is on (only when the

“ENGINE START STOP”

switch is in IGNITION ON

mode).

Airbag manual on-off switch

179

VERSO_EE_OM64517E

1-7. Safety information

Vehicles with automatic air conditioning system

“PASSENGER AIRBAG”

indicator

Vehicles without smart entry &

start system: This indicator

light turns on when the airbag

system is on (only when the

engine switch is in the

“ON”

position).

Vehicles with smart entry &

start system: This indicator

light turns on when the airbag

system is on (only when the

“ENGINE START STOP”

switch is in IGNITION ON

mode).

Airbag manual on-off switch

180

VERSO_EE_OM64517E

1-7. Safety information

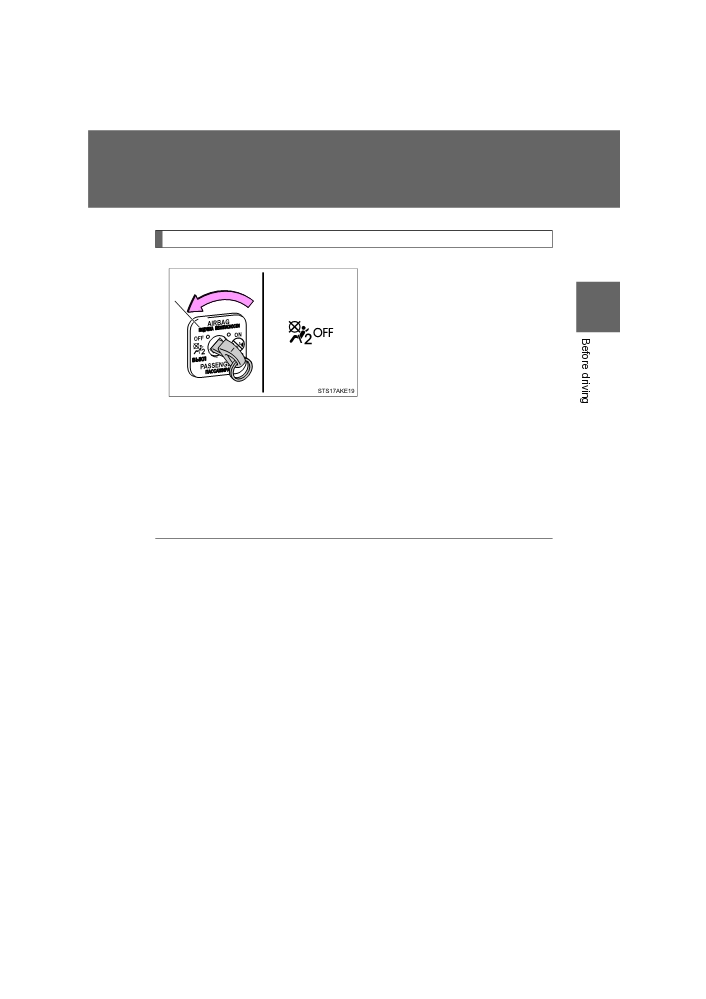

Deactivating the front passenger airbag

Vehicles without smart entry &

start system: Insert the key into

the cylinder and turn to the

1

“OFF” position.

The “OFF” indicator light turns on

(only when the engine switch is in

the “ON” position).

Vehicles with smart entry & start

system: Insert the mechanical

key into the cylinder and rotate to

the “OFF” position.

The “OFF” indicator light turns on

(only when the “ENGINE START

STOP” switch is in IGNITION ON

mode).

■ “PASSENGER AIRBAG” indicator information

If any of the following problems occurs, it is possible that there is a malfunc-

tion in the system. Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

●Neither “ON” nor “OFF” comes on.

●The indicator does not change when the airbag manual on-off switch is

switched to the “ON” or “OFF” position.

181

VERSO_EE_OM64517E

1-7. Safety information

WARNING

■ When installing a child restraint system

For safety reasons, always install the child restraint system in a rear seat. In

the event that the rear seat cannot be used, the front seat can be used as

long as the airbag manual on-off system is set to “OFF”.

If the airbag manual on-off system is left “ON”, the strong impact of the air-

bag deployment (inflation) may cause serious injury or even death.

■ When a child restraint system is not installed on the front passenger

seat

Ensure that the airbag manual on-off system is set to “ON”.

If it is left “OFF”, the airbag may not deploy in the event of an accident, which

may result in serious injury or even death.

182

VERSO_EE_OM64517E

2-1. Driving procedures

Driving the vehicle

The following procedures should be observed to ensure safe driv-

ing.

■ Starting the engine (P. 198, 202)

■ Driving

Multidrive

With the brake pedal depressed, shift the shift lever to “D”

or “M”.

(P. 208)

Release the parking brake.

(P. 219)

Gradually release the brake pedal and gently depress the

accelerator pedal to accelerate the vehicle.

Manual transmission

With the clutch pedal fully depressed, shift the shift lever to

“1”.

(P. 214)

Release the parking brake.

(P. 219)

Gradually release the clutch pedal. At the same time, gently

depress the accelerator pedal to accelerate the vehicle.

■ Stopping

Multidrive

With the shift lever in “D” or “M”, depress the brake pedal.

If necessary, set the parking brake.

When the vehicle is stopped for an extended period of time, shift

the shift lever to “P” or “N”.

(P. 208)

Manual transmission

With the clutch pedal fully depressed, depress the brake

pedal.

If necessary, set the parking brake.

When the vehicle is stopped for an extended period of time, shift

the shift lever to “N”.

(P. 214)

184

VERSO_EE_OM64517E

2-1. Driving procedures

■ Parking the vehicle

Multidrive

With the shift lever in “D” or “M”, depress the brake pedal.

Set the parking brake.

(P. 219)

Shift the shift lever to “P”.

(P. 208)

When parking on a hill, if necessary, block the wheels.

Vehicles without smart entry & start system: Turn the

2

engine switch to the “LOCK” position and stop the engine.

Vehicles with smart entry & start system: Turn the “ENGINE

START STOP” switch off and stop the engine.

Lock the door, making sure that you have the key on your

person.

Manual transmission

With the clutch pedal fully depressed, depress the brake

pedal.

Set the parking brake.

(P. 219)

Shift the shift lever to “N”.

(P. 214)

When parking on a hill, shift the shift lever to “1” or “R”. If neces-

sary, block the wheels.

Vehicles without smart entry & start system: Turn the

engine switch to the “LOCK” position and stop the engine.

Vehicles with smart entry & start system: Turn the “ENGINE

START STOP” switch off and stop the engine.

Lock the door, making sure that you have the key on your

person.

185

VERSO_EE_OM64517E

2-1. Driving procedures

Starting on a steep uphill

Multidrive

Firmly set the parking brake and shift the shift lever to “D” or

“M”.

Gently depress the accelerator pedal.

Release the parking brake.

Manual transmission

With the parking brake set and the clutch pedal fully

depressed, shift the shift lever to “1”.

Lightly depress the accelerator pedal at the same time as

gradually releasing the clutch pedal.

Release the parking brake.

■ Hill-start assist control

The hill-start assist control allows you to smoothly start off the vehicle on a

steep or slippery uphill incline. (P. 316)

■ Driving in the rain

●Drive carefully when it is raining, because visibility will be reduced, the

windows may become fogged-up, and the road will be slippery.

●Drive carefully when it starts to rain, because the road surface will be

especially slippery.

●Refrain from high speeds when driving on an expressway in the rain,

because there may be a layer of water between the tires and the road

surface, preventing the steering and brakes from operating properly.

186

VERSO_EE_OM64517E

Content   ..  9  10  11  12   ..
