Toyota ProAce Verso (2017 year). Instruction - part 6

Access

Failure of the remote control

Operating fault

To deactivate the monitoring functions:

When the ignition is switched on,

F Unlock the vehicle using the key (integral

fixed illumination of the indicator

with the remote control with Smart Entry &

lamp in the button indicates a fault in

Start System) in the driver's door lock.

the system.

F Open the door; the alarm is triggered.

Have it checked by an authorized

F Switch on the ignition; the alarm stops. The

Toyota dealer or repairer, or

indicator lamp in the button goes off.

another duly qualified and equipped

professional.

Automatic activation

This function is either not available, an option

Locking the vehicle without

or is standard.

activating the alarm

2 minutes after the last opening (door or boot)

F Lock or deadlock the vehicle using the key

is closed, the system is activated automatically.

(integral with the remote control with Smart

Entry & Start System) in the driver's door

F To avoid triggering the alarm on entering

lock.

the vehicle, first press the unlocking button

on the remote control or unlock the vehicle

using the "Smart Entry & Start System".

Access

Reinitialisation

Electric windows

Following reconnection of the battery, the

safety anti-pinch function must be reinitialised.

Automatic mode

Lower the window fully, then raise it, it will

Press or pull the control, beyond the point

rise in steps of a few centimetres each time

of resistance. The window opens or closes

the control is pressed.

fully when the control is released. Pressing

Repeat the operation until the window is

the control again stops the movement of the

fully closed.

window.

Continue to press the control for at least

The electrical functions of the electric windows

one second after the window closed

are deactivated:

position has been reached.

approximately 45 seconds after the ignition

The safety anti-pinch does not operate

is switched off,

whilke doing this.

after one of the front doors is opened, if the

Driver's electric window control

ignition is off.

Passenger electric window control

Always remove the key when leaving

the vehicle, even for a short period.

If an electric windows meets an

Safety anti-pinch

There are two operating modes:

obstacle during operation, you must

If your vehicle is fitted with the safety anti-pinch

reverse the movement of the window.

function, when the window rises and meets an

To do this, press the control concerned.

Manual mode

obstacle, it stops and partially lowers.

When the driver operates the

In the event of unwanted opening of the window

Press or pull the control, without passing the

passenger electric window controls,

on closing, press the control until the window is

point of resistance. The window stops when

they must ensure that no one is

fully open. Within the next 4 seconds, pull the

you release the control.

preventing the correct closing of the

control until the window is fully closed.

windows.

The safety anti-pinch does not operate while

The driver must ensure that passengers

doing this.

use the electric windows correctly.

Be aware of children when operating

the windows.

Ease of use and comfort

Steering wheel adjustment

Front seats with manual adjustments

As a safety measure, seat adjustments should only be carried out when stationary.

Forwards-backwards

Height

F When stationary, lower the control lever

to release the steering wheel adjustment

mechanism.

F Adjust the height and reach to suit your

driving position.

F Pull the control lever to lock the steering

wheel adjustment mechanism.

As a safety precaution, these

F Raise the control and slide the seat

F If fitted to your vehicle, pull the control

operations should only be carried out

forwards or backwards.

upwards to raise or push it downwards to

while the vehicle is stationary.

lower, as many times as required to obtain

the position required.

Before moving the seat backwards, ensure that there is nothing that might prevent the full

travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of

objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement

immediately.

Ease of use and comfort

Backrest angle

Lumbar

F Turn the knob to adjust the backrest.

F Pull the control fully up and move the

F Turn the knob manually to obtain the

backrest forward or backward.

desired level of lumbar support.

For more information on the Seat belts,

refer to the corresponding section.

Ease of use and comfort

Table position for the driver's

and/or the front passenger's seat

backrest

On the front passenger's side, this position

allows long objects to be carried.

On the driver's side, this position allows rear

passengers to be helped out of the vehicle

(by the emergency services).

Check that there is no object that could

interfere with the movement of a seat,

both above and below.

F Place the head restraint in the low position,

F Pull the control fully up and tip the backrest

and if fitted to your vehicle, raise the

forward.

armrest and fold the table on the back of

To return to the normal position, pull the

the seat.

control up to release the backrest, then pull the

backrest up to its raised position.

Ease of use and comfort

Height

Electric front seat

Forwards-backwards

Backrest angle

F Tilt the control upwards or downwards to

obtain the desired height.

F Push the control forwards or rearwards to

F Tilt the control forwards or rearwards to

slide the seat.

adjust the angle of the seat backrest.

For more information on the Seat belts,

refer to the corresponding section.

Before moving the seat backwards, ensure that there is nothing that might prevent the full

travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of

objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement

To avoid discharging the battery, carry out

immediately.

these adjustments with the engine running.

Ease of use and comfort

Additional adjustments

Head restraint height

The head restraint rods have notches

Heated seats control

adjustment

which prevent the head restraint

lowering; this is a safety device in case

With the engine running, the front seats can be

of impact.

heated separately.

The adjustment is correct when the

upper edge of the head restraint is

level with the top of the head.

Never drive with the head restraints

removed; they must be in place and

adjusted correctly.

Armrest

F Use the adjustment wheel to switch on and

select the level of heating required:

If fitted to your vehicle.

0: Off.

F To raise the head restraint, pull it upwards.

1: Low.

F To remove the head restraint, press the

2: Medium.

lug A and pull the head restraint upwards.

3: High.

F To put the head restraint back in place,

engage the head restraint rods in the

apertures keeping them in line with the

The armrest has notched positions.

seat backrest.

F Raise the armrest fully up.

F To lower the head restraint, press the lug A

F Lower it fully down.

and the head restraint at the same time.

F Raise the armrest to the desired position.

Ease of use and comfort

Electric lumbar adjustment

Massage function

Deactivation

You can deactivate the massage

function at any time by pressing this

button, its indicator lamp goes off.

Adjustment of intensity

F Press the control to obtain the desired

This system provides the occupants of the

lumbar support.

front seats with a lumbar massage. It only

operates when the engine is running or in

STOP mode of the Stop & Start system.

Activation

F Press this button.

Press this button to adjust the

Its indicator lamp comes on and the massage

intensity of the massage.

function is activated for a period of 1 hour.

Two levels of massage are available.

During this time, massage is performed in

6 cycles of 10 minutes (6 minutes of massage

followed by 4 minutes break).

After one hour, the function is deactivated, the

indicator lamp goes off.

Ease of use and comfort

2-seat front bench seat

If fitted to your vehicle, this is fixed and has a seat belt on the backrest for the seat alongside the

The head restraint rods have notches

driver.

which prevent the head restraint

lowering; this is a safety device in case

Head restraint height

of impact.

adjustment

The adjustment is correct when the

upper edge of the head restraint is

level with the top of the head.

Never drive with the head restraints

removed; they must be in place and

adjusted correctly.

F To raise the head restraint, pull it upwards.

F To remove the head restraint, press the

lug A and pull the head restraint upwards.

F To put the head restraint back in place,

engage the head restraint stems in the

openings keeping them in line with the seat

back.

F To lower the head restraint, press the lug A

and the head restraint at the same time.

For more information on the Seat belts,

refer to the corresponding section.

Ease of use and comfort

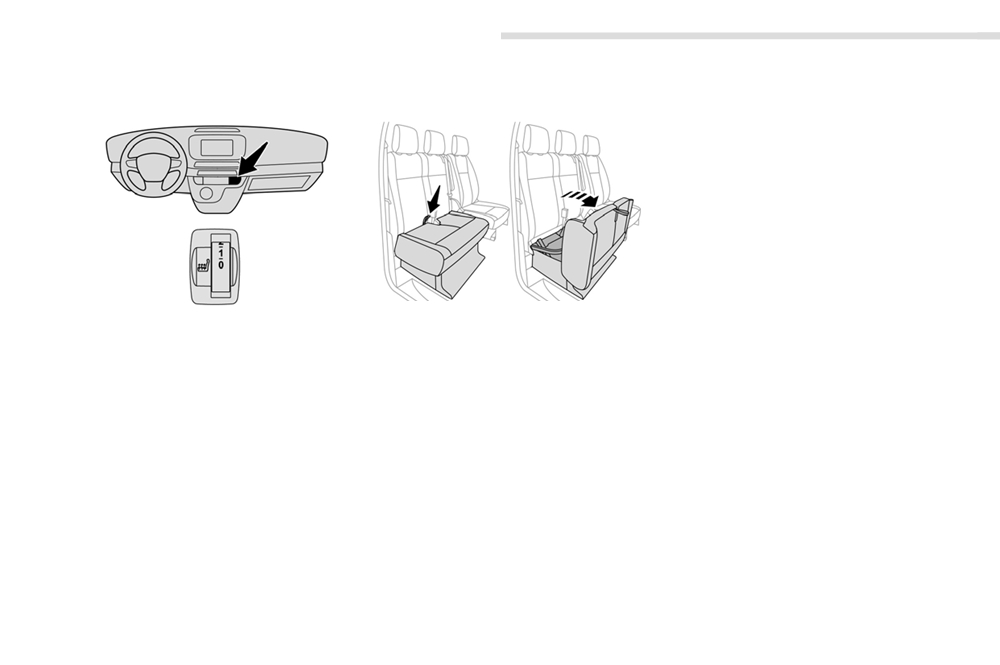

Heated bench seat

Under-seat storage

With the engine running, the bench seat

If your vehicle is so equipped, a storage space

cushions can be heated.

is provided under the seat.

F Pull the strap to tip the seat.

F Use the adjustment twheel to switch on and

select the level of heating required:

0: Off.

1: Low.

2: Medium.

3: High.

Ease of use and comfort

Fixed one-piece bench seat

The different items of equipment and adjustments

Angled head restraints

Folding the seat backrest to

described hereafter vary according to the version

the table position

and the configuration of your vehicle.

F Place the head restraints in the low position

F To raise a head restraint, pull it up until it

engages in its notches.

F To remove the head restraint, press the

lug A and pull the head restraint upward.

F To put it back in place, engage the head

restraint rods in the apertures keeping

them in line with the seat backrest.

F To lower it, press on the lug A and on the

The bench seat includes a one-piece backrest

head restraint at the same time.

which may be fixed or folding (table position).

F From the front, raise the handle to release

the seat backrest.

F From the rear, lower the handle to release

the seat backrest.

For more information on the Seat belts,

F Fold the backrest onto the seat cushion.

refer to the corresponding section.

F To return the backrest to its normal position,

raise the handle and pull the backrest up.

Ease of use and comfort

Tipping, access to row 3

Removing a seat

If removing and storing a bench seat

out of the vehicle, ensure that it is

F If your vehicle has the facility, place the

placed in a clean area, so as to avoid

seat backrest in the table position.

backrest in the table position.

introducing any foreign bodies into the

F Tip the seat forward.

mechanisms.

The bench seats are not designed for

any use other than in the vehicle. They

have mechanisms and functions that

could be damaged if used incorrectly or

are dropped.

F Using the handle, release the rear feet then

tip the seat forward.

F Release the front feet using these handles.

F To return the seat, tip the bench towards

F Disengage the seat from its anchorages.

the rear until the feet lock into place.

F Remove the seat.

It is not necessary to fold the backrest

(table position) to tip the bench seat for

access to row 3.

Ease of use and comfort

Refitting a seat

F Check that there is nothing obstructing the

anchorages or which would prevent the

correct engagement of the feet.

Ensure that no object, or the feet of a

passenger seated at the rear, could

F Engage the front feet in the anchorages in

obstruct the anchorage points or prevent

F If your vehicle has the facility, pull the

the floor (as shown above).

the correct latching of the assembly.

control and raise the backrest (from the

rear, lower the lever).

Check that the seat has correctly

engaged in its anchorages on the floor

when returned to the seating position.

F Lock the front feet using the handles.

F Tip the seat toward the rear until the rear

feet lock into place.

Be aware of the feet of any passengers

while tipping the seat.

Ease of use and comfort

Folding the backrest to the

Fixed rear seat and bench seat

table position

The different levels of equipment and adjustments described hereafter vary according to the

version and the configuration of your vehicle.

Angled head restraints

F Put the head restraints into the low

position.

F To raise a head restraint, pull it up until it

engages in its notches.

F To remove the head restraint, press the

lug A and pull the head restraint upward.

F To put it back in place, engage the head

The seat has a backrest that may be fixed or

restraint rods in the apertures keeping

folding (table position).

them in line with the seat backrest.

The bench seat has a one-piece backrest that

F From the front, raise the handle to release

F To lower it, press on the lug A and on the

may be fixed or foldable (table position).

the backrest.

head restraint at the same time.

F From the rear, lower the lever to release

the backrest.

For more information on the Seat belts,

refer to the corresponding section.

Ease of use and comfort

Fully folding a seat, access to row 3

Removing a seat

(example of an individual seat)

F If your vehicle has the facility, place the

backrest in the table position.

F Tip the seat forward.

F Using the handle, release the rear feet then

F Release the front feet using the handles.

tip the seat forward.

F Disengage the seat from its anchorages.

F Fold the backrest onto the cushion.

F To return the seat to the normal position,

F Remove the seat by the sliding door in

F To return the backrest to the normal

unfold the seat backwards until the rear

row 2 or from the rear in row 3.

position, raise the lever and pull the

feet engage in their anchorages.

backrest up (from the rear, lower the lever).

It is not necessary to fold the backrest

(table position) to tip the bench seat for

access to row 3.

Ease of use and comfort

If removing and storing a seat (or bench

Refitting a seat

seat) out of the vehicle, ensure that it is

(example of an individual seat)

placed in a clean area, so as to avoid

F Check that there is no object obstructing

introducing any foreign bodies into the

the anchorages and preventing the feet

mechanisms.

locking into place.

The seats (or bench seats) are not

designed for any use other than in the

vehicle. They have mechanisms and

functions that could be damaged if used

F If fitted to your vehicle, pull the control to

incorrectly or are if the seat is dropped.

raise the backrest (from the rear, lower the

F Engage the front feet in the anchorages on

lever).

the floor (as shown above).

Check that the seat has locked into

place on the floor when returning it to

the seating position.

F Lock the front feet using the handles.

F Unfold the seat toward the rear until the

Ensure that no object, or the feet of a

rear feet lock into place.

passenger seated at the rear, could

Be aware of the feet of passengers when

obstruct the anchorage points or prevent

refitting a seat.

the correct latching of the assembly.

100

Ease of use and comfort

Reclining the backrest

Rear seat and bench seat on rails

The different equipment and adjustments

The reclining backrest can be adjusted to

described hereafter vary according to the

Head restraints

several positions.

version and configuration of your vehicle.

F To raise a head restraint, pull it up until it

F To recline the backrest, raise the control

The individual seat is always on the right and

engages in its notch.

(from the rear, lower the lever).

the bench seat on the left (facing forward).

F To remove it, press the lug A and pull the

F Release the control when the desired

The bench seat has two independent

head restraint up.

position is obtained.

backrests.

F To refit it, engage the head restraint rods in

the apertures keeping them in line with the

For more information on the Seat belts,

seat backrest.

refer to the corresponding section.

F To lower it, press on the lug A and on the

head restraint at the same time.

101

Content .. 4 5 6 7 ..
