Toyota ProAce (2017 year). Instruction - part 3

Instruments

Engine oil level indicator

Oil level incorrect

Dipstick

To locate the dipstick and the oil filler

On versions fitted with an electric oil gauge,

cap for the Diesel engine, refer to the

information on the oil level is displayed in the

corresponding section.

instrument panel for a few seconds when the

ignition is switched on, at the same time as the

service information.

This is indicated by a message in the

instrument panel.

If the low oil level is confirmed by a check using

There are 2 marks on the

the dipstick, the level must be topped-up to

The level read will only be correct if

dipstick:

avoid damage to the engine.

the vehicle is on level ground and the

A = max; never exceed this

engine has been off for more than

level,

30 minutes.

B = min; top-up the level via

the oil filler, using the grade

of oil suited to your engine.

Oil level correct

Oil level indicator fault

This is indicated by a message in the

instrument panel.

instrument panel. Contact an authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

Instruments

AdBlue® fluid range

In the event of the risk of non-starting related to a lack of AdBlue®

indicators

Remaining range greater than 1 500 miles (2 400 km)

Remaining range between 350 and 1500 miles (600 and 2 400 km)

Once the AdBlue® tank is on reserve or after

When switching on the ignition, there is no

detection of a fault with the SCR emissions

automatic display of range in the instrument

control system, when the ignition is switched

panel.

on, an indicator displays an estimate of the

When switching on the ignition, this warning

distance that can be covered, the range, before

lamp comes on, accompanied by an audible

engine starting is prevented.

signal and the display of a message (e.g.: "Top

In the event of simultaneous system fault and

up emissions additive: Starting prevented in

low AdBlue® level, the shortest range figure is

900 miles") indicating the remaining range

the one displayed.

expressed in miles or kilometres.

Pressing this button will display the remaining

range.

You can access this information in the touch

screen, if your vehicle has one.

If your vehicle has an LCD instrument panel,

"NO START IN" is displayed.

F Select the "Driving" menu.

When driving, the message is displayed every

F Select "OPTIONS".

200 miles (300 km) until the fluid has been

topped-up.

F Then select "Diagnostic".

Go to an authorized Toyota dealer or repairer,

or another duly qualified and equipped

professional to have the AdBlue® topped-up.

The engine start prevention system

You can also top-up the tank yourself.

required by regulations is activated

automatically once the AdBlue® tank is

empty.

The range is then displayed temporarily.

For more information on AdBlue® and

the SCR system, and in particular on

topping-up the AdBlue®, refer to the

Above 3 000 miles (5 000 km), the value is not

corresponding section.

specified.

Instruments

Remaining range between 0 and 350 miles (0 and 600 km)

Breakdown related to a lack of AdBlue®

When switching on the ignition, this

warning lamp flashes, accompanied

by an audible signal and the display

of the message "Top up emissions

When switching on the ignition, this warning

additive: Starting prevented".

lamp flashes, accompanied by an audible

signal and the display of a message (e.g. "Top

up emissions additive: Starting prevented in

350 miles") indicating the remaining range

expressed in miles or kilometres.

If your vehicle has an LCD instrument panel,

"NO START IN" is displayed.

The AdBlue® tank is empty: the system required

If your vehicle has an LCD instrument panel,

by regulations prevents engine starting.

"NO START IN" is displayed.

When driving, the message is displayed every

30 seconds until the fluid has been topped-up.

Go to an authorized Toyota dealer or repairer,

or another duly qualified and equipped

professional to have the AdBlue® topped-up.

You can also top-up the tank yourself.

To be able to start the engine, we

Otherwise you will not be able to restart your

recommend that you call on an

engine.

authorized Toyota dealer or repairer,

or another duly qualified and equipped

professional for the top-up required.

For more information on AdBlue® and

If you carry out the top-up yourself, it

the SCR system, and in particular on

is essential to add at least 3.8 litres of

topping-up the AdBlue®, refer to the

AdBlue® to the tank.

corresponding section.

Instruments

In the event of a fault with the SCR emissions control system

A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions control

system. Have the system checked by an authorized Toyota dealer or repairer, or another duly qualified and equipped professional as soon as possible.

In the event of the detection

During an authorised driving phase (between

Starting prevented

of a fault

650 miles and 0 miles) (1 100 km and 0 km)

If a fault with the SCR system is confirmed (after

Every time the ignition is switched on, these

These warning lamps come on, accompanied

30 miles (50 km) covered with the permanent

warning lamps come on, accompanied by an

by an audible signal and the display of the

display of the message signalling a fault), these

audible signal and the display of the message

message "Emissions fault".

warning lamps come on, accompanied by an

"Emissions fault: Starting prevented".

The alert is triggered when driving when the

audible signal and the display of a message

fault is detected for the first time, then when

(e.g.: "Emissions fault: Starting prevented in

switching on the ignition for subsequent

150 miles") indicating the remaining range

journeys, while the fault persists.

expressed in miles or kilometres.

If your vehicle has an LCD instrument panel,

"NO START IN" is displayed.

If it is a temporary fault, the alert

If your vehicle has an LCD instrument panel,

disappears during the next journey,

You have exceeded the authorised

"NO START IN" is displayed.

after self-diagnosis of the SCR system.

driving limit: the starting prevention

While driving, the message is displayed every

system inhibits engine starting.

30 seconds while the fault with the SCR system

persists.

The alert is repeated when switching on the ignition.

To be able to start the engine, you must call

You should go to an authorized Toyota dealer or

on an authorized Toyota dealer or repairer,

repairer, or another duly qualified and equipped

or another duly qualified and equipped

professional as soon as possible.

professional.

Otherwise, you will not be able to restart your

engine.

Instruments

Distance recorders

The total and trip distances are displayed for

thirty seconds when the ignition is switched off,

when the driver's door is opened and when the

vehicle is locked or unlocked.

When travelling abroad, you may

have to change the units of distance:

the display of road speed must be in

the official units (miles or km) for the

Total distance recorder

Trip distance recorder

country. The change of units is done via

It measures the total distance travelled by the

It measures the distance travelled since it was

the screen configuration menu, with the

vehicle since its first registration.

reset to zero by the driver.

vehicle stationary.

F With the ignition on, press this

button until zeros appear.

Instruments

Lighting dimmer

This system allows the brightness of the instruments and controls to be adjusted to suit the ambient

You can also switch off the screen. To do this:

light level.

F Press on the Settings button.

At the instrument panel

With the touch screen

F Press on the Settings button.

F Select Switch off screen.

F Select "OPTIONS".

The screen goes off completely.

Press on the screen again (anywhere on its

F Select "Screen configuration".

surface) to activate it.

F Select the "Brightness" tab.

F With the exterior lighting on, press this

button to raise the level of brightness.

F With the exterior lighting on, press this

F Adjust the brightness by moving

button to lower the level of brightness.

the cursor.

As soon as the lighting reaches the required

level of brightness, release the button.

F Press on "Confirm" to save and

quit.

Instruments

Trip computer

System that gives you information on the current journey (range, fuel consumption…).

The current information with:

● the range,

● the current fuel consumption,

● the Stop & Start time counter.

- Trip

"1" with:

● the average speed,

● the average fuel consumption,

● the distance travelled,

for the first trip.

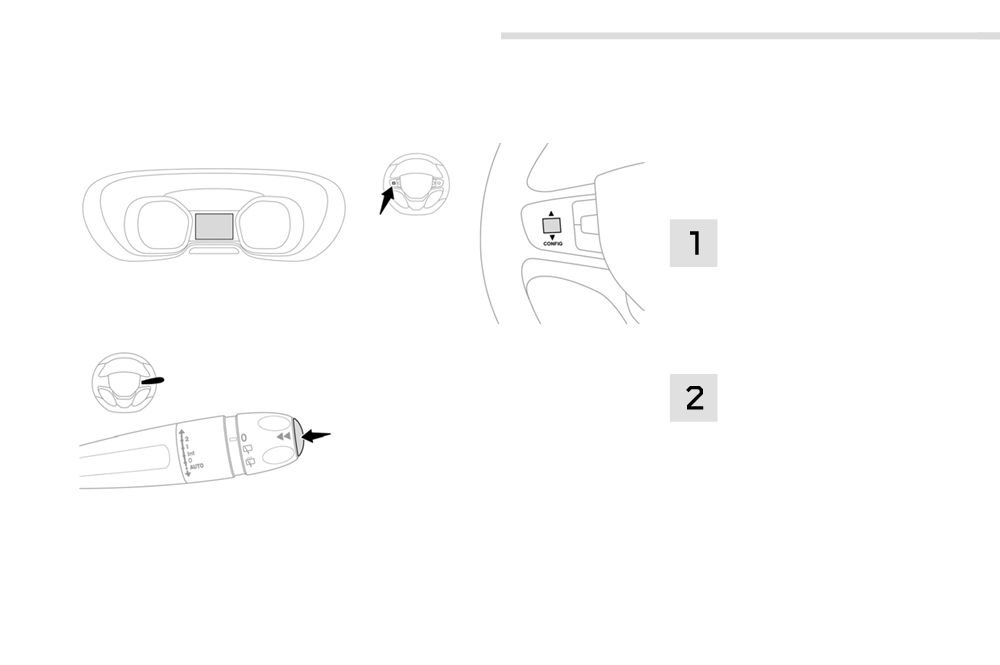

Display of information

Depending on equipment, a 2nd trip is available.

F Or, depending on equipment, press the

thumbwheel on the steering wheel.

- Trip

"2" with:

● the average speed,

● the average fuel consumption,

● the distance travelled,

for the second trip.

Trips "1" and "2" are independent but their use

F Press the button on the end of the wiper

is identical.

control stalk to display the different trip

For example, trip "1" can be used for daily

computer tabs in turn.

figures, and trip "2" for monthly figures.

Instruments

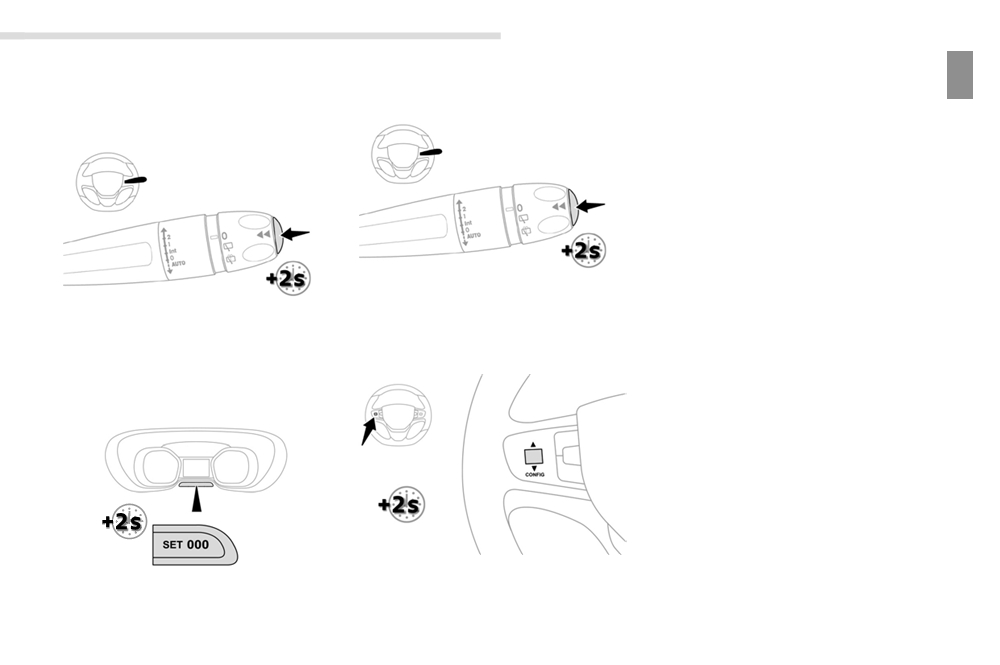

Trip reset

With LCD text or matrix

instrument panel

With LCD instrument panel

F When the trip is displayed, press the button

on the end of the wiper control stalk.

F When the trip is displayed, press the button

on the end of the wiper control stalk for

two seconds.

With LCD text instrument panel

F Or, depending on equipment, press the

F When the desired trip is displayed, press

thumbwheel on the steering wheel for

the reset button in the instrument panel for

more than two seconds.

Instruments

A few definitions

Range

Current fuel consumption

Distance travelled

(miles or km)

(mpg or l/100 km or km/l)

(miles or km)

The distance which can still be

Calculated over the last few seconds.

Calculated since the last trip reset.

travelled with the fuel remaining in

the tank (related to the average fuel

consumption over the last few miles

(kilometres) travelled).

This function is only displayed from

Stop & Start time counter

20 mph (30 km/h).

(minutes / seconds or hours /

minutes)

This value may vary following a change

in the style of driving or the relief,

Average fuel consumption

If your vehicle is fitted with Stop & Start, a time

resulting in a significant change in the

counter calculates the time spent in STOP

(mpg or l/100 km or km/l)

current fuel consumption.

mode during a journey.

Calculated since the last trip reset.

It resets to zero every time the ignition is

switched on.

When the range falls below 20 miles (30 km),

dashes are displayed. After filling with at least

Average speed

8 litres of fuel, the range is recalculated and is

(mph or km/h)

displayed when it exceeds 60 miles (100 km).

Calculated since the last trip reset.

If dashes are displayed continuously

while driving in place of the digits,

contact an authorized Toyota dealer or

repairer, or another duly qualified and

equipped professional.

Instruments

Menus

Touch screen

Use the buttons on either side of the touch

screen for access to the menus, then press the

virtual buttons in the touch screen.

Use this button to confirm.

Use this button to quit.

As a safety measure, the driver must

only carry out operations requiring

Driving.

Settings.

sustained attention with the vehicle

Allows certain functions to be switched

Allows configuration of the display

stationary.

on and off and their settings adjusted.

and the system.

Radio Media.

Connectivity.

Connected navigation.

Telephone.

Adjust volume/Mute.

On/Off.

For more information on the touch

screen, refer to the Audio and

telematics section.

Instruments

Driving menu

The systems with settings that can be adjusted are detailed in the table below.

For more information on a driving assistance system refer to the corresponding section.

Button

Corresponding function

Comments

Tyre Pressure Warning

Reinitialisation of the Tyre Pressure Warning System (TPWS).

System (TPWS) initialisation

Blind spot monitoring

Activation/Deactivation of the function.

system

Stop & Start system

Activation/Deactivation of the function.

Lane Departure Alert

Activation/Deactivation of the function.

Automatic headlamp dip

Activation/Deactivation of the function.

Instruments

Button

Corresponding function

Comments

Vehicle settings

Access to other functions with settings that can be adjusted.

To deactivate/activate a

Select or deselect the tabs at the bottom of the touch screen to sort the display of the desired

function, press OFF/ON.

functions.

To modify a setting (lighting

Lighting:

duration, ...) or find additional

- "Directional headlamps": activation/deactivation of the directional headlamps.

information, press the symbol

- "Guide-me-home lighting": activation/deactivation of the automatic guide-me-home lighting.

for the function.

- "Welcome lighting": activation/deactivation of the exterior welcome lighting.

- "Mood lighting": activation/deactivation of the interior mood lighting.

Access:

- "Hands-Free Access": activation/deactivation of the motorized opening and closing of a side

door by the Kick-activated side doors opening system,

- "Locks your vehicle after the motorized closing of a side door, using hands-free access.":

activation/deactivation of the locking of your vehicle after the motorized closing of a side door

by the Kick-activated side doors opening system.

Assistance (driving aids):

- "Rear wiper in reverse": activation/deactivation of the operation of the rear wiper in reverse.

- "Recommended speed display": activation/deactivation of the Road Sign Assist system,

allowing a speed setting to be given to the cruise control or speed limiter.

- "Collision risk alert and automatic braking": activation/deactivation of Forward collision warning

system.

- "Fatigue Detection System": activation/deactivation of the driver attention alert.

Diagnostic

List of current alerts.

Parking sensors

Activation/Deactivation of the function.

Adjust speed settings

Memorisation of speed settings for the speed limiter or active cruise control.

Instruments

With the touch screen

Setting the time and date

F Press on Settings for acces to

Without audio system

With the audio system

the different menus.

F Select "OPTIONS".

Press the MENU button for access to the

F Press this button to display the following

main menu.

F Select "Setting the time-date".

settings in turn:

- hours,

- minutes,

Select the "Date" or "Time" tab.

12 or 24 hour format.

Modify the settings in the associated

Press the "7" or "8" button to select the

"Date" or "Time" fields then press on

Personalisation-configuration menu,

"Confirm".

then confirm by pressing the "OK" button.

F Press on "Confirm" to save and

Press the "5" or "6" button to select the

quit.

Display configuration menu then confirm

by pressing the "OK" button.

You can choose to synchronise the

Press the "5" or "6" and "7" or "8" buttons

time and date with the GPS navigation

to set the date and time, then confirm by

system (if fitted to your vehicle) so

pressing the "OK" button.

that these settings are adjusted

automatically.

Access

What is the point

Key

Key, remote control

of total or selective

It allows the central locking or unlocking of the

unlocking?

vehicle using the door lock or from a distance.

It also allows the vehicle to be located, the fuel

filler cap to be removed and refitted and the

engine to be started or switched off, as well as

providing protection against theft.

Total unlocking allows all of the vehicle's doors

(front, side and rear) to be unlocked.

The key allows the central locking or unlocking

The remote control buttons are not

of the vehicle using the door lock.

active when the ignition is switched on.

It also allows the fuel filler cap to be removed

and refitted and the engine started or

Unfolding / Folding the key

switched off.

Selective unlocking allows either the cab

doors, or the loading area doors (side and

rear) to be unlocked.

F Press this button to unfold or fold the key.

This separation of cab and loading

area locking provides security in use.

It allows you to prevent access to the

part of the vehicle where you are not

If you do not press the button, you risk

present.

damaging the remote control.

Access

Programming

Total unlocking

If fitted to your vehicle, pressing

and holding this button allows the

windows to be opened. The window

stops when you release the button.

Cab and loading area selectivity

deactivated.

Using the key

Using the remote control with

electric sliding side door(s)

F To activate this selectivity

between cab and loading

F To totally unlock the vehicle

area, switch the ignition on and

without opening the side door,

press this button for more than

press this button.

2 seconds.

Its indicator lamp comes on.

F To totally unlock the vehicle, turn the key

towards the front of the vehicle.

F To totally unlock the

F To deactivate this selectivity and

F Then to open the door, pull the handle.

vehicle and open the

return to total unlocking, switch

If your vehicle has an alarm, this is not

side door, press and

the ignition on and press this

deactivated. Opening a door will trigger the

hold this button until the

button for more than 2 seconds.

alarm, which can then be stopped by switching

door has opened.

Its indicator lamp goes off.

the ignition on.

The modification is confirmed by an audible

Using the remote control

Unlocking is signalled by the rapid

signal and, depending on equipment, the

flashing of the direction indicators for

display of a message.

about two seconds.

F Press one of these buttons

Depending on version, the door mirrors

(depending on equipment) to

unfold at the same time.

By default, selectivity between cab and

unlock the vehicle.

loading area is activated.

Access

Selective unlocking

Using the remote control with

Unlocking

electric sliding side door(s)

Cab and loading area selectivity

F Press this button to unlock

activated.

the loading area only, without

Using the key

opening the side door.

Using the remote control

F To unlock the cab doors only,

make an initial press on this

F Press this button to

button.

unlock the loading area

F To unlock the loading area

only and open the side

doors (side and rear), press this

door, press and hold

button again

this button until the door

has opened.

If fitted to your vehicle, pressing

F To unlock the vehicle, turn the key to the

and holding this button opens the

front of the vehicle.

Unlocking is confirmed by rapid flashing

F Then pull the handle to open the door.

windows. The window stops when

of the direction indicators for about

If your vehicle has an alarm, this is not

you release the button.

two seconds.

deactivated. Opening a door will trigger the

Depending on version, the electric door

alarm, which can then be stopped by switching

mirrors unfold at the same time.

the ignition on.

If fitted to your vehicle:

F To unlock the loading area only,

press this button.

Access

Using the remote control

Locking

Ensure that no person or object might

F To unlock the vehicle, press this

prevent the correct closing of the

Using the key

button.

windows.

Be particularly aware of children when

operating the windows.

Using the remote control with

electric sliding side door(s)

If a door is not fully closed (except

the right-hand door with rear wing

F To unlock the vehicle

doors with glass windows):

and open the side door,

vehicle stationary and the engine

press and hold this

running, this warning lamp

button until the door has

comes on, accompanied by an

opened.

F To unlock the vehicle totally, turn the key to

alert message for a few seconds,

the rear of the vehicle.

vehicle moving (speed above

If your vehicle has an alarm, this will not be

6 mph (10 km/h)), this warning

activated.

lamp comes on, accompanied

by an audible signal and an alert

message for a few seconds.

Unlocking is signalled by the rapid

Using the remote control

flashing of the direction indicators for

about two seconds.

F To lock the vehicle totally, press

Depending on version, the door mirrors

this button.

unfold at the same time.

Driving with the doors locked may

render access for the emergency

If fitted to your vehicle, pressing

services difficult in an emergency.

and holding this button closes the

As a safety measure (children on

windows. The window stops when

board), never leave the vehicle without

you release the button.

taking your remote control, even for a

short period.

Content .. 1 2 3 4 ..
