5-3. Using the radio
425
■ When the 12-volt battery is disconnected
Station presets are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear roof.
5
C-HR_HV_OM_Europe_OM10538E
426
5-4. Playing an audio CD and MP3/WMA discs

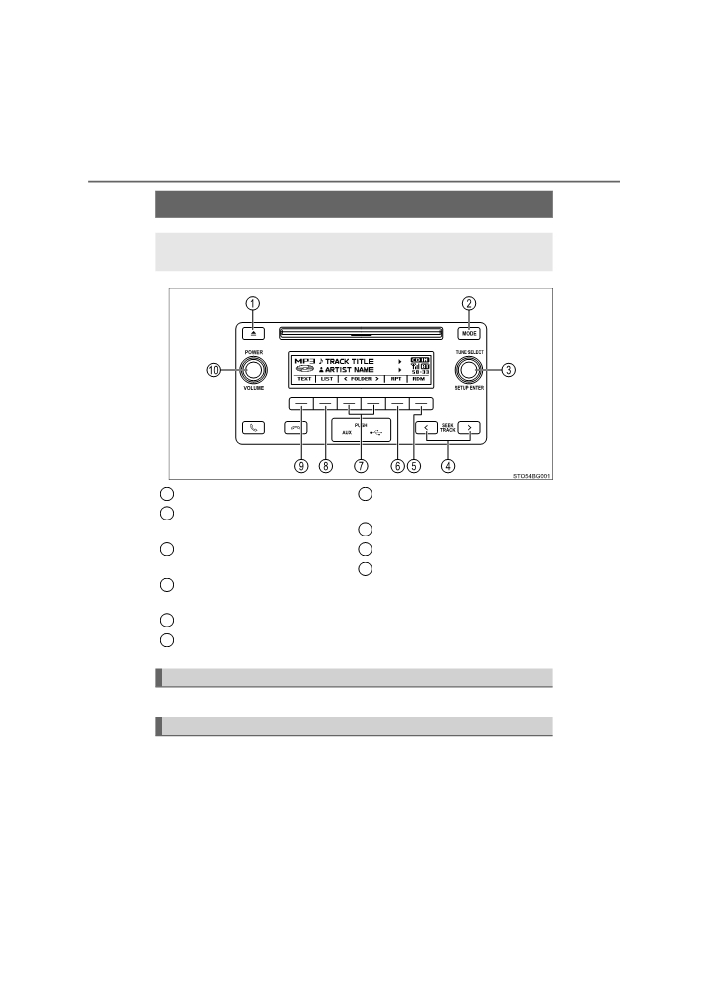

CD player operation
Insert a disc, press the “MODE” button to begin listening to a
CD.
1
Disc eject
7
Selecting a folder (MP3/WMA
2
Changing the audio source/
discs only)
playback
8
Displaying track/folder list
3
Tune/scroll knob
9
Displaying text message
Selecting a track/file
10
Power/volume knob
4
Selecting a track/file, fast-for-
Press: Turning the audio sys-
warding or rewinding
tem on or off
5
Random play or back button
Turn: Adjusting the volume
6
Repeat play
Loading CDs or MP3 and WMA discs
Insert a disc.
Ejecting CDs or MP3 and WMA discs
Press the disc eject button and remove the disc.
C-HR_HV_OM_Europe_OM10538E
5-4. Playing an audio CD and MP3/WMA discs
427
Using the CD player
■ Selecting a track
Turn the tune/scroll knob or press the “<” or “>” button of “SEEK
TRACK” to move up or down until the desired track number is dis-
played.
■ Selecting a track from a track list
1
Press
(“LIST”).
The track list will be displayed.
2
Turn and press the tune/scroll knob to select a track.
To return to the previous display, press
(“BACK”).
■ Fast-forwarding and rewinding tracks
Press and hold the “<” or “>” button of “SEEK TRACK”.
■ Random play
Press
(“RDM”).
5
To cancel, press the button again.
■ Repeat play
Press
(“RPT”).
To cancel, press the button again.
■ Switching the display
Press
(“TEXT”) to display or hide the CD title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
C-HR_HV_OM_Europe_OM10538E
428
5-4. Playing an audio CD and MP3/WMA discs
Playing back MP3 and WMA discs
■ Selecting folders one at a time
Press
(“<FOLDER”) or
(“FOLDER>”) to select the
desired folder.
■ Selecting a folder and file from folder list
1
Press
(“LIST”).
The folder list will be displayed.
2
Turn and press the tune/scroll knob to select a folder and a file.
To return to the previous display, press
(“BACK”).
To exit, press
(“BACK”).
■ Returning to the first folder
Press and hold
(“<FOLDER”) until you hear a beep.
■ Selecting a file
Turn the tune/scroll knob or press the “<” or “>” button of “SEEK
TRACK” to select the desired file.
■ Fast-forwarding and rewinding files
Press and hold the “<” or “>” button of “SEEK TRACK”.
■ Random play
Pressing
(“RDM”) changes modes in the following order:
Folder randomDisc randomOff
■ Repeat play
Pressing
(“RPT”) changes modes in the following order:
File repeatFolder repeat*Off
*: Available except when RDM (random play) is selected
■ Switching the display
Press
(“TEXT”) to display or hide the album title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
C-HR_HV_OM_Europe_OM10538E
5-4. Playing an audio CD and MP3/WMA discs
429
■ Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Message
Cause
Correction procedures
• The disc is dirty or
• Clean the disc.
damaged.
“CD CHECK”
• Insert the disc cor-
• The disc is inserted
rectly.
upside down.
There is a malfunction
“ERROR”
Eject the disc.
within the system.
Wait for a while and
then press the “MODE”
button.
Operation has stopped
5
Contact any autho-
“WAIT”
due to a high tempera-
rized Toyota retailer or
ture inside the player.
Toyota
authorized
repairer, or any reliable
repairer.
MP3/WMA files are not
“NO SUPPORT”
Eject the disc.
included in the CD.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
C-HR_HV_OM_Europe_OM10538E
430
5-4. Playing an audio CD and MP3/WMA discs
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■ If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
●MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32—320 (kbps)
MPEG2 LSF LAYER3: 8—160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48—192 (kbps)
Ver. 9: CBR 48—320 (kbps)
C-HR_HV_OM_Europe_OM10538E
5-4. Playing an audio CD and MP3/WMA discs
431
●Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
●Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
●File names
5
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
●Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3
tags. (The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title, artist name in the same way as with ID3 tags.
C-HR_HV_OM_Europe_OM10538E
432
5-4. Playing an audio CD and MP3/WMA discs
●MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you do
not write in any files other than MP3 or WMA files or create any unneces-
sary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage to
the speakers.
●Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
ing and the file format, poor sound quality or noise at the start of playback
may result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S. and other countries.
C-HR_HV_OM_Europe_OM10538E
5-4. Playing an audio CD and MP3/WMA discs
433
NOTICE

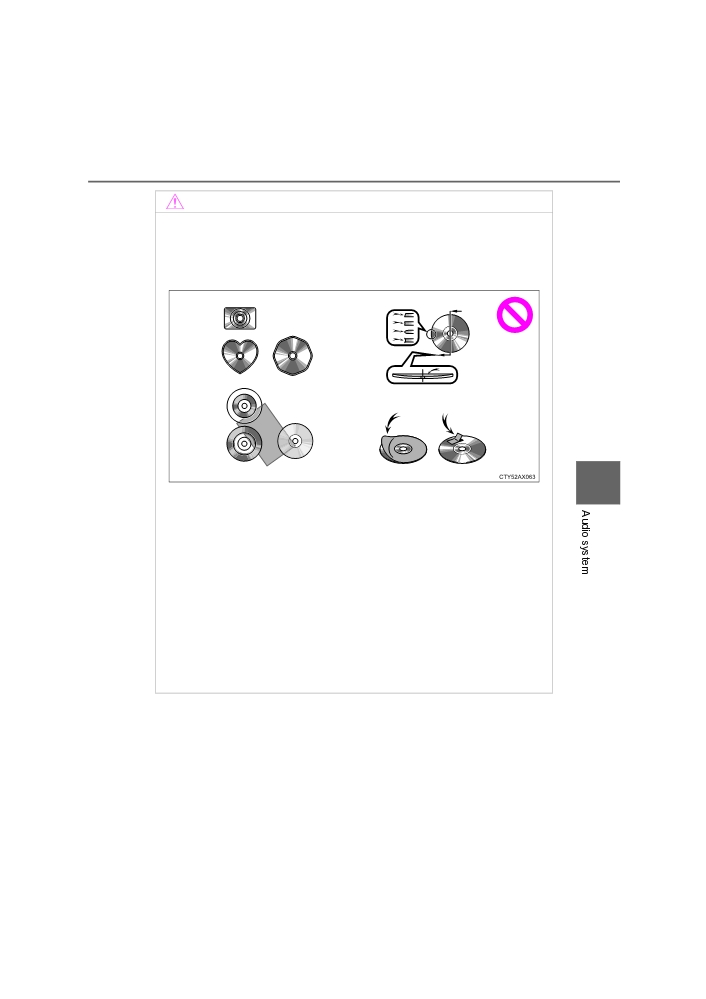

■ Discs and adapters that cannot be used
Do not use the following types of discs.
Also, do not use 8 cm (3 in.) disc adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the disc insert/eject function.
5
●Discs that have a diameter that is not 12 cm (4.7 in.).
● Low-quality or deformed discs.
●Discs with a transparent or translucent recording area.
●Discs that have tape, stickers or CD-R labels attached to them, or that
have had the label peeled off.
■ Player precautions
Failure to follow the precautions below may result in serious damage to the
disc or the player itself.
●Do not insert anything other than discs into the disc slot.
●Do not apply oil to the player.
●Store discs away from direct sunlight.
●Never try to disassemble any part of the player.
C-HR_HV_OM_Europe_OM10538E
434
5-5. Using an external device
Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers. Press the “MODE” button until “iPod” is displayed.
Connecting an iPod
P. 420

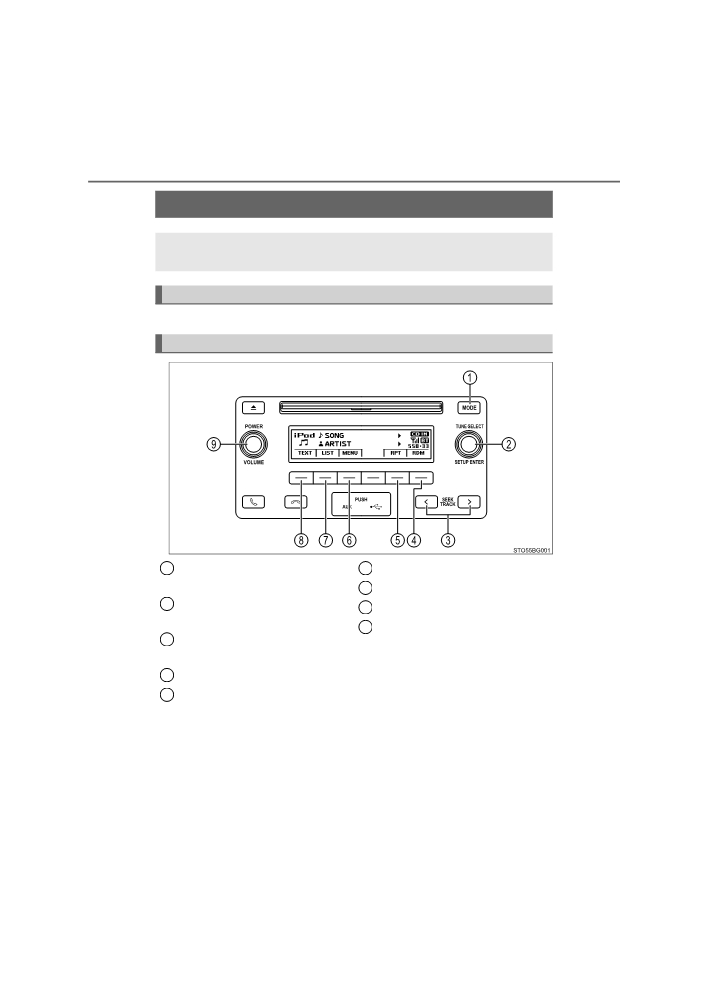

Control panel
1
Changing the audio source/
6
iPod menu mode, playback
playback
7
Displaying song list
2
Tune/scroll knob
8
Displaying text message
Selecting an iPod menu/song
9
Power/volume knob
3
Selecting a song, fast-forward-
Press: Turning the audio sys-
ing or rewinding
tem on or off
4
Random play or back button
Turn: Adjusting the volume
5
Repeat play
C-HR_HV_OM_Europe_OM10538E
5-5. Using an external device
435
Selecting a play mode
1
Press
(“MENU”) to select iPod menu mode.
2
Turning the tune/scroll knob clockwise changes the play mode in
the following order:
“Playlists” “Artists” “Albums” “Songs” “Podcasts”
“Genres” “Composers” “Audiobooks”
Press the knob to select the desired play mode.
3
5
C-HR_HV_OM_Europe_OM10538E
436
5-5. Using an external device
■ Play mode list
First
Second
Third
Fourth
Play mode
selection
selection
selection
selection
Playlists
“Playlists”
Songs select
-
-
select
Albums
“Artists”
Artists select
Songs select
-
select
Albums
“Albums”
Songs select
-
-
select
“Songs”
Songs select
-
-
-
Podcasts
Episodes
“Podcasts”
-
-
select
select
Albums
“Genres”
Genre select
Artists select
Songs select
select
Composers
Albums
“Composers”
Songs select
-
select
select
Audiobooks
Chapter
“Audiobooks”
-
-
select
select
■ Selecting a list
1
Turn the tune/scroll knob to display the first selection list.
2
Press the knob to select the desired item and display the second
selection list.
3
Repeat the same procedure to select the desired item.
To return to the previous selection list, press
(“BACK”).
Press
(“PLAY”) to play the desired selection.
C-HR_HV_OM_Europe_OM10538E
5-5. Using an external device
437
Selecting songs
Turn the tune/scroll knob or press the “<” or “>” button of “SEEK
TRACK” to select the desired song.
Selecting a song from the song list
1
Press
(“LIST”).
The song list will be displayed.
2
Turn the tune/scroll knob to select a song.
3
Press the knob to play the song.
To return to the previous display, press
(“BACK”).
Fast-forwarding and rewinding songs
Press and hold the “<” or “>” button of “SEEK TRACK”.
Repeat play
Press
(“RPT”).
5
To cancel, press the button again.
Random play
Pressing
(“RDM”) changes modes in the following order:
Track randomAlbum randomOff
Switching the display
Press
(“TEXT”) display or hide the album title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
C-HR_HV_OM_Europe_OM10538E
438
5-5. Using an external device
■ About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
●Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■ iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
■ Display
P. 429
C-HR_HV_OM_Europe_OM10538E
5-5. Using an external device
439
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Message
Cause/Correction procedures
This indicates a problem in the iPod or its con-
“ERROR”
nection.
This indicates that there is no music data in
“NO SONGS”
the iPod.
This indicates that some available songs are
“NO PLAYLIST”
not found in a selected playlist.
This indicates that the version of the iPod is
“UPDATE YOUR iPod”
not compatible. Upgrade your iPod software
to the latest version.
5
C-HR_HV_OM_Europe_OM10538E
440
5-5. Using an external device
■ Compatible models
The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
● Made for
• iPod touch (5th generation)*
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)*
• iPod nano (6th generation)*
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPhone 5*
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
*: iPod video is not supported.
Depending on differences between models or software versions, etc., some
models might be incompatible with this system.
Items related to standards and limitations are as follows:
●Maximum number of lists in device: 9999
● Maximum number of songs in device: 65535
● Maximum number of songs per list: 65535
C-HR_HV_OM_Europe_OM10538E
5-5. Using an external device
441
WARNING
■ Caution while driving
Do not connect iPod or operate the controls. Doing so may cause an acci-
dent, resulting in death or serious injury.
NOTICE
■ To prevent damage to iPod or its terminal
●Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high.
●Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
●Do not insert foreign objects into the port.
5
C-HR_HV_OM_Europe_OM10538E
