Toyota C-HR Hybrid (2017 year). Instruction - part 24

4-5. Using the driving support systems

391

Message

Cause

What to do

“IPA Cancelled, Take

The VSC off switch was

Turn the VSC off switch

Over. TRC/VSC is Off.”

turned off.

on.

• If the operation was

canceled

during

detection of a parking

space, turn the S-IPA

switch on again.

“IPA Cancelled, Take

The TRC, VSC or ABS

• If the operation was

Over. TRC/ABS/VSC

operated.

canceled

during

Activated.”

automatic steering,

park the vehicle man-

ually

or

detect

another

parking

space.

4

C-HR_HV_OM_Europe_OM10538E

392

4-5. Using the driving support systems

Message

Cause

What to do

More than

6 minutes

have elapsed since the

Park the vehicle manu-

S-IPA switch was

ally or detect another

turned on before auto-

parking space.

matic steering could

begin.

More than

6 minutes

have elapsed since the

“IPA Cancelled, Take

shift lever was shifted

Park the vehicle manu-

Over. Timeout.”

to R and automatic

ally or detect another

steering began, before

parking space.

the parking assist oper-

ation could complete.

More than

3 minutes

Park the vehicle manu-

have passed with “Wait

ally or detect another

For

Room

To

parking space.

Maneuver” displayed.

Turn the power switch

The power steering is

off, wait for a little

temporarily overheat-

while, and then start

ing.

the hybrid system

“IPA Unavailable.”

again.

The hybrid system is

Start the hybrid system.

not operating.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

393

Message

Cause

What to do

The exit parallel park-

ing assist is operated

Use the exit parallel

with obstacles on the

parking assist with no

left and right sides or

obstacles on the park-

an obstacle on the side

ing side.

where the turn signal

lamp is on.

Drive

the

vehicle

straight

ahead for

The 12-volt battery has

5 seconds or more at a

been removed and

speed of approxi-

reinstalled.

mately

35 km/h

“IPA Unavailable.”

(22 mph) or higher.

Have the vehicle

inspected

by any

Possible system mal-

authorized

Toyota

4

function.

retailer or Toyota autho-

rized repairer, or any

reliable repairer.

In such cases, clearing

A sensor may be dirty

the sensor should

or covered with snow or

return the system to

ice.

normal.

Reduce vehicle speed

and turn the S-IPA

switch on.

• Perpendicular park-

Excessive

vehicle

“IPA

Unavailable,

ing assist mode:

speed

(over

50 km/h

Speed Too High.”

20 km/h (12 mph) or

[31 mph])

less

• Parallel

parking

assist mode: 30 km/h

(18 mph) or less

C-HR_HV_OM_Europe_OM10538E

394

4-5. Using the driving support systems

Message

Cause

What to do

After turn the VSC off

“IPA Unavailable, TRC/

The VSC off switch is

switch on, turn the

VSC is Off.”

off.

S-IPA switch on.

The vehicle cannot

depart using assist

There is not enough

control as there is not

“IPA

Unavailable,

space to the front and

enough space to the

Parking Space Too

rear of the vehicle

front and rear of the

Short.”

when departing from a

vehicle. Confirm the

parallel parking spot.

safety of your sur-

roundings

before

departing.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

395

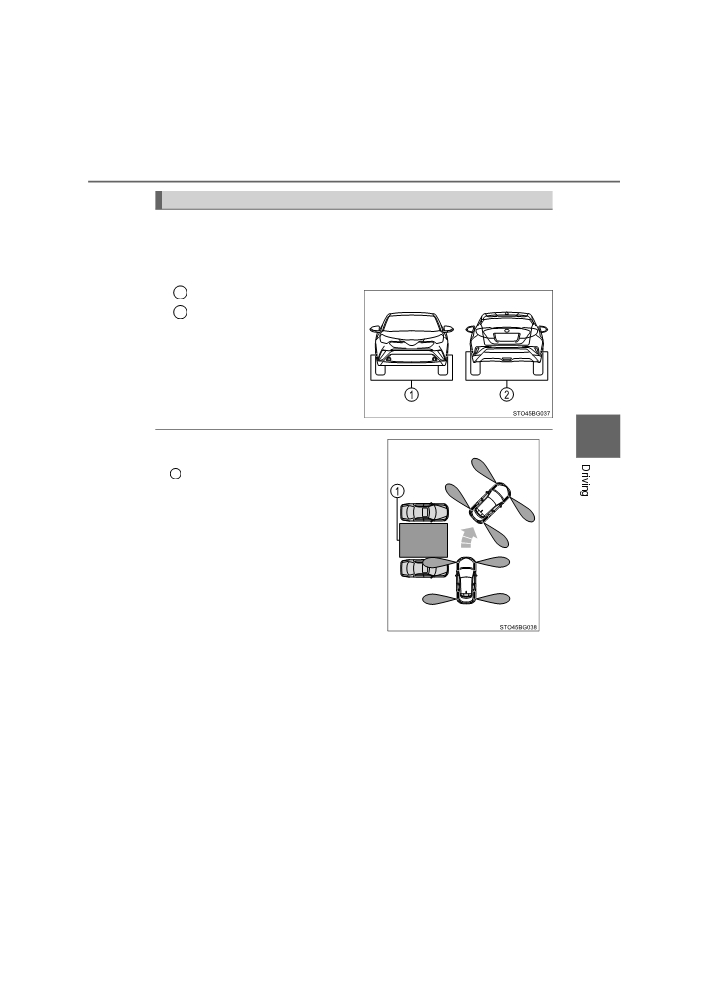

Precautions during use

■ Sensors

Detect a parking space according the vehicles parked in front and

behind a parking space (parallel parking) or left and right of a park-

ing space (perpendicular parking).

1

Front side sensors

2

Rear side sensors

4

● The sensor detection range when using

perpendicular parking assist mode

1

Intended parking spot

C-HR_HV_OM_Europe_OM10538E

396

4-5. Using the driving support systems

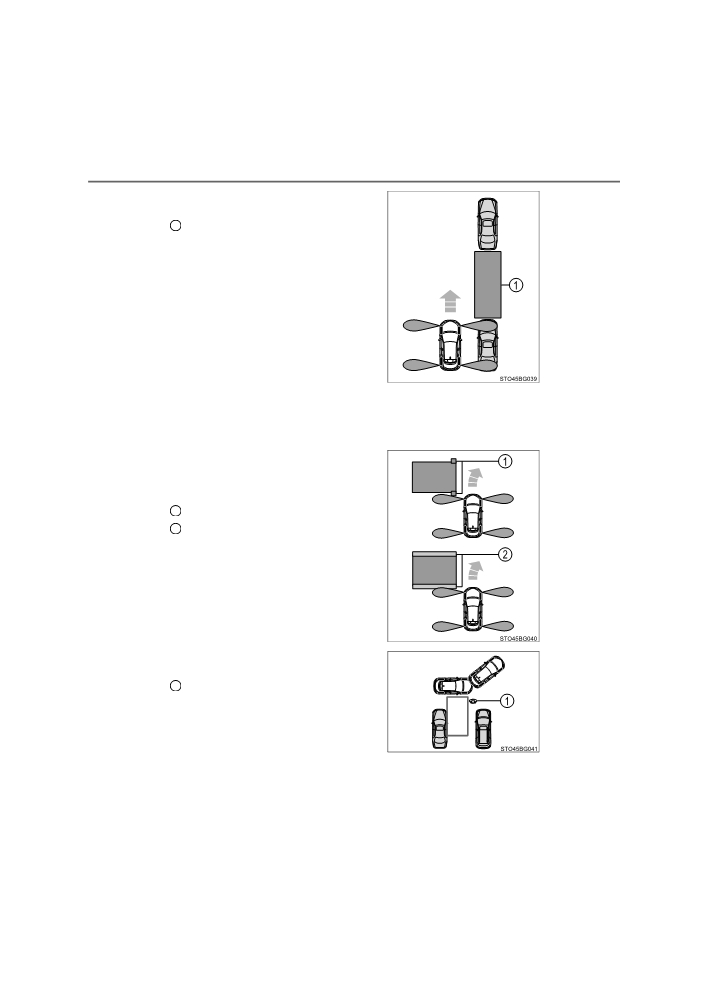

● The sensor detection range when using

parallel parking assist mode

Intended parking spot

1

● When there is a parked vehicle behind the target parking spot, it may not be

detected due to the distance. Also, depending on the shape of the vehicle

and other conditions, the detectable range may shorten or detection may

not be possible.

●The system will not operate as it cannot

detect the parking space if there are

objects other than parked vehicles pres-

ent, such as poles and walls.

1

Poles

2

Wall

● Also, the target parking spot may devi-

ate when a pedestrian, etc., is detected.

1

Pedestrian

●The Simple Intelligent Parking Assist System may not operate if grating, dia-

mond plates or similar materials are detected on the surface of the parking

space.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

397

WARNING

●Do not rely solely upon the Simple Intelligent Parking Assist System. As

with unequipped vehicles, move forward and back up carefully while

directly confirming the safety of your surroundings and the area to the rear

of the vehicle.

●The sensor detection areas and reaction times are limited. When moving

forward or reversing, check the areas surrounding the vehicle (especially

the sides of the vehicle) for safety, and drive slowly, using the brake to

control the vehicle’s speed.

●Drive slowly while adjusting your speed by depressing the brake pedal

when backing up or moving forward.

● If it seems the vehicle may make contact with a pedestrian, another vehi-

cle or any other obstacles, stop the vehicle by depressing the brake pedal,

and then press the S-IPA switch to turn off the system.

●Use the system in a parking lot with a flat surface.

●Observe the following precautions, as the steering wheel automatically

4

turns during use.

• There is risk of a necktie, scarf, your arm, etc., being caught up in the

steering wheel. Please do not allow your upper body to be close to the

steering wheel. Also, do not allow children close to the steering wheel.

• There is a possibility of injury when the steering wheel turns if you have

long fingernails.

• In case of an emergency, stop the vehicle by depressing the brake

pedal, and then press the S-IPA switch to turn off the system.

● Always confirm that there is appropriate space before attempting to park

the vehicle and operate the system.

C-HR_HV_OM_Europe_OM10538E

398

4-5. Using the driving support systems

WARNING

●Do not use the system in the following situations, as the system may be

unable to correctly assist you in reaching the target parking spot and may

lead to an unexpected accident.

• On sharp bends

• During bad weather such as heavy rain, fog, snow, or a sandstorm

• When the tires slid while attempting to park

• When fallen leaves or snow has accumulated in a parking space

• When items such as a towing bracket, trailer, bicycle carrier, etc., are

installed on the rear of the vehicle

• When a vehicle, where the front/rear end is above the detection area

such as a truck or bus, or vehicle with a towing bracket, trailer, bicycle

carrier, etc., is parked at the front or rear of the parking space

• If the sensor is covered by the front bumper cover, etc.

• If a vehicle or obstacle is not in a suitable position at the front or rear of

the parking space

• In an area that is not a parking lot

• A parking lot that is not paved, such as a sand or gravel parking lot

• A parking lot that has a slope or undulations in the road

• A frozen, snow-covered or slippery road

• The asphalt is melting due to hot weather

• There is an obstacle between the vehicle and the target parking spot

• Using tire chains or compact spare tire (if equipped)

●Do not use tire other than that provided by the manufacturer. The system

may not operate properly. When replacing tires, contact any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer.

●The system may not be able position the vehicle in the set location in the

following situations.

• The tires are extremely worn or the tire pressure is low

• The vehicle is carrying very heavy load

• The vehicle is tilted due to having luggage, etc., located on one side of

the vehicle

• There are road heaters installed in the parking lot to prevent the road

surface from freezing.

In any other situations when the set position and vehicle position greatly

differ, have the vehicle inspected by any authorized Toyota retailer or Toy-

ota authorized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

399

WARNING

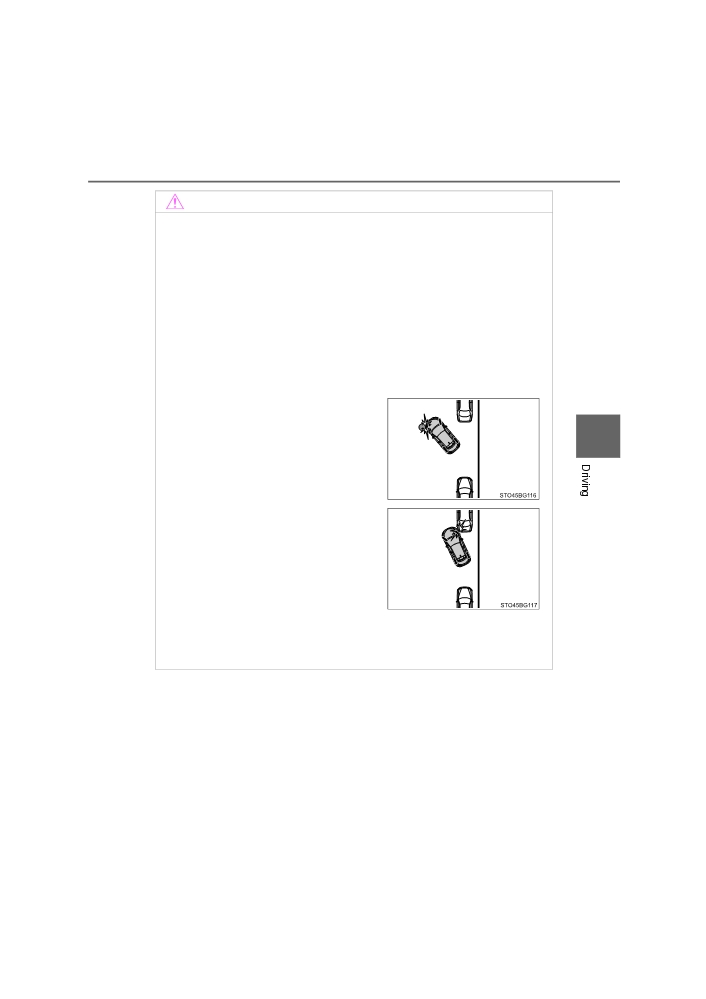

● Make sure to observe the following precautions regarding the exit parallel

parking assist mode.

Exit parallel parking assist mode is a function used when departing from a

parallel parking spot. However, this function may not be usable if obsta-

cles or people are detected in front of the vehicle. Only use this function

when departing from a parallel parking spot. In the event that the steering

control operates, either turn the system off using the S-IPA switch or oper-

ate the steering wheel to stop the control.

●If exit parallel parking assist mode is mistakenly used in the following situ-

ations, the vehicle may make contact with an obstacle.

The departure function is operated in a direction where an obstacle is

present, but the obstacle is not detected by the side sensors (situations

such as when the vehicle is directly beside a pole).

●Observe the following precautions, as the sensors may stop functioning

properly which may lead to an accident.

4

• Do not subject the sensor to strong shocks by hitting it, etc. The sen-

sors may not function properly.

• When using a high-pressure washer to wash the vehicle, do not spray

water directly on the sensors. Equipment may not function properly if

subjected to an impact from strong water pressure. If the vehicle

bumper strikes something, equipment may not operate properly due to

a sensor malfunction. Have the vehicle inspected at any authorized

Toyota retailer or Toyota authorized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

400

4-5. Using the driving support systems

WARNING

● In the following situations, the sensors may not operate normally and may

lead to an accident. Drive carefully.

• Obstacles cannot be detected in the side areas until a scan of the side

areas is completed. (P. 358)

• Even after the scan of the side areas is completed, obstacles such as

other vehicles, people or animals that approach from the sides cannot

be detected.

• The sensor is frozen (if it thaws, the system returns to normal).

A warning message may display at particularly low temperatures due to

the sensor freezing and it may not detect parked vehicles.

• The sensor is blocked by someone’s hand.

• The vehicle is tilted a large amount.

• The temperature is extremely hot or cold.

• The vehicle is driven on undulating roads, slopes, gravel roads, in areas

with tall grass, etc.

• An ultrasonic wave source is nearby, such as the horn or sensors of

another vehicle, a motorcycle engine or the air brake of a large vehicle.

• Heavy rain or a water strikes the vehicle.

• Do not install any accessories within the sensor detection range.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

401

NOTICE

■ When using the S-IPA

●Check that the parking space is suitable. (Width of the space, if there are

any obstacles, road surface condition, etc.)

●S-IPA will not operate properly if the vehicle at the front or back of the

parking space moves, or if an obstacle enters the parking space after the

sensors have detected the parking space. Always check the surrounding

area during parking assist operation.

●The sensors may not be able to detect curbs. The vehicle may drive onto

the curb depending on the situation, such as if a vehicle at the front or

back of the parking space has driven on the curb.

Check the surrounding area to prevent the tires and wheels from being

damaged.

● When reversing, reverse the vehicle

slowly to prevent the front end of the

vehicle from hitting an obstacle in the

4

front of the vehicle.

● When reversing, reverse the vehicle

slowly to prevent the front end of the

vehicle from hitting the vehicle parked in

front of the parking space.

●The vehicle may not be able to be parked at a target parking space if the

vehicle moves forward when the shift lever is in R or reverses when the

shift lever is in a position other than R, such as when parking on a slope.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

403

◆ VSC + (Vehicle Stability Control +)

Provides cooperative control of the ABS, TRC, VSC and EPS.

Helps to maintain directional stability when swerving on slippery

road surfaces by controlling steering performance.

◆ TRC (Traction Control)

Helps to maintain drive power and prevent the drive wheels from

spinning when starting the vehicle or accelerating on slippery roads

◆ Hill-start assist control

Helps to reduce the backward movement of the vehicle when start-

ing on an uphill

◆ EPS (Electric Power Steering)

Employs an electric motor to reduce the amount of effort needed to

4

turn the steering wheel

C-HR_HV_OM_Europe_OM10538E

404

4-5. Using the driving support systems

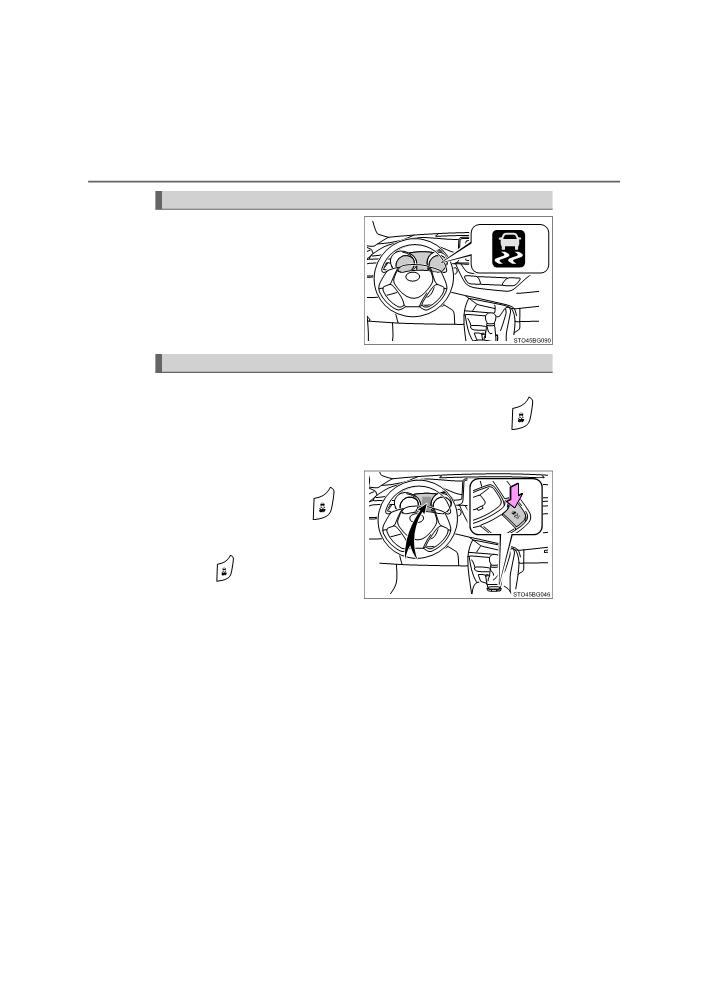

When the TRC/VSC/ABS systems are operating

The slip indicator light will flash

while the TRC/VSC/ABS systems

are operating.

Disabling the TRC system

If the vehicle gets stuck in mud, dirt or snow, the TRC system may

reduce power from the hybrid system to the wheels. Pressing

to

turn the system off may make it easier for you to rock the vehicle in

order to free it.

To turn the TRC system off,

quickly press and release

The message will be shown on the

multi-information display.

Press

again to turn the sys-

tem back on.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

405

■ Turning off both TRC and VSC systems

To turn the TRC and VSC systems off, press and hold

for more than 3

seconds while the vehicle is stopped.

The VSC off indicator will come on and the message will be shown on the

multi-information display.*

Press

again to turn the system back on.

*: On vehicles with pre-collision safety system, pre-collision brake assist and

pre-collision braking will also be disabled. The PCS warning light will come

on and the message will be shown on the multi-information display.

(P. 288)

■ When the message is displayed on the multi-information display show-

ing that TRC has been disabled even if

has not been pressed

4

TRC cannot be operated. Contact any authorized Toyota retailer or Toyota

authorized repairer, or any reliable repairer.

■ Sounds and vibrations caused by the ABS, brake assist, VSC, TRC and

hill-start assist control systems

● A sound may be heard from the engine compartment when the brake pedal

is depressed repeatedly, when the hybrid system is started or just after the

vehicle begins to move. This sound does not indicate that a malfunction has

occurred in any of these systems.

● Any of the following conditions may occur when the above systems are

operating. None of these indicates that a malfunction has occurred.

• Vibrations may be felt through the vehicle body and steering.

• A motor sound may be heard also after the vehicle comes to a stop.

■ECB operating sound

ECB operating sound may be heard in the following cases, but it does not

indicate that a malfunction has occurred.

● Operating sound heard from the engine compartment when the brake pedal

is operated.

● Motor sound of the brake system heard from the front part of the vehicle

when the driver’s door is opened.

● Operating sound heard from the engine compartment when one or two min-

utes passed after the stop of the hybrid system.

C-HR_HV_OM_Europe_OM10538E

4-5. Using the driving support systems

407

WARNING

■ The ABS does not operate effectively when

●The limits of tire gripping performance have been exceeded (such as

excessively worn tires on a snow covered road).

●The vehicle hydroplanes while driving at high speed on wet or slick road.

■ Stopping distance when the ABS is operating may exceed that of nor-

mal conditions

The ABS is not designed to shorten the vehicle’s stopping distance. Always

maintain a safe distance from the vehicle in front of you, especially in the

following situations:

● When driving on dirt, gravel or snow-covered roads

●When driving with tire chains

●When driving over bumps in the road

● When driving over roads with potholes or uneven surfaces

■ TRC/VSC may not operate effectively when

4

Directional control and power may not be achievable while driving on slip-

pery road surfaces, even if the TRC/VSC systems is operating.

Drive the vehicle carefully in conditions where stability and power may be

lost.

■ Hill-start assist control does not operate effectively when

●Do not overly rely on hill-start assist control. Hill-start assist control may

not operate effectively on steep inclines and roads covered with ice.

●Unlike the parking brake, hill-start assist control is not intended to hold the

vehicle stationary for an extended period of time. Do not attempt to use

hill-start assist control to hold the vehicle on an incline, as doing so may

lead to an accident.

■ When the VSC is activated

The slip indicator light flashes. Always drive carefully. Reckless driving may

cause an accident. Exercise particular care when the indicator light flashes.

C-HR_HV_OM_Europe_OM10538E

Content   ..  22  23  24  25   ..
