Toyota C-HR Hybrid (2017 year). Instruction - part 9

136

2. Instrument cluster

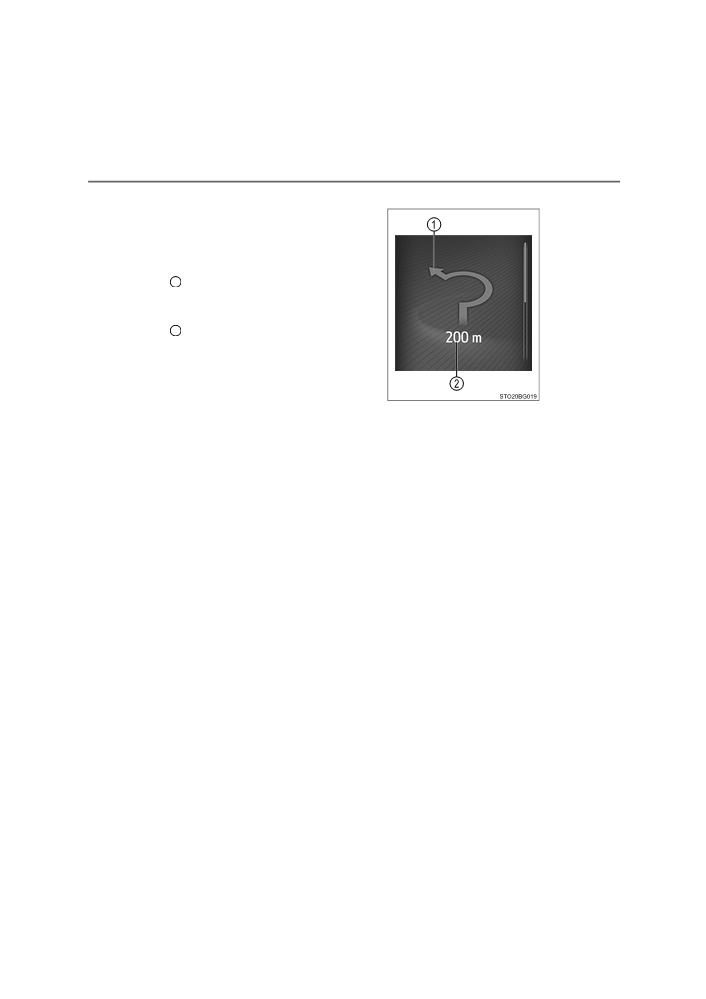

■ Arrow guide navigation (vehicles with a navigation system)

The arrow guide navigation appears only

while route guidance of the navigation

system is being performed. When a turn

approaches, the distance to the turn and

the turn direction are displayed.

1

Turn direction

The image shown may differ from the

actual intersection.

Distance to the next turn

2

■Ending display

When the power switch is turned off, each of the following will be displayed

on the multi-information display, and will extinguish after approximately 30

seconds.

●Elapsed time

● Distance

● Average fuel consumption

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

137

WARNING

■ Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that

the vehicle is parked in a place with adequate ventilation. In a closed area

such as a garage, exhaust gases including harmful carbon monoxide (CO)

may collect and enter the vehicle. This may lead to death or a serious

health hazard.

NOTICE

2

■ During setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-

ating while setting up the display features.

C-HR_HV_OM_Europe_OM10538E

138

2. Instrument cluster

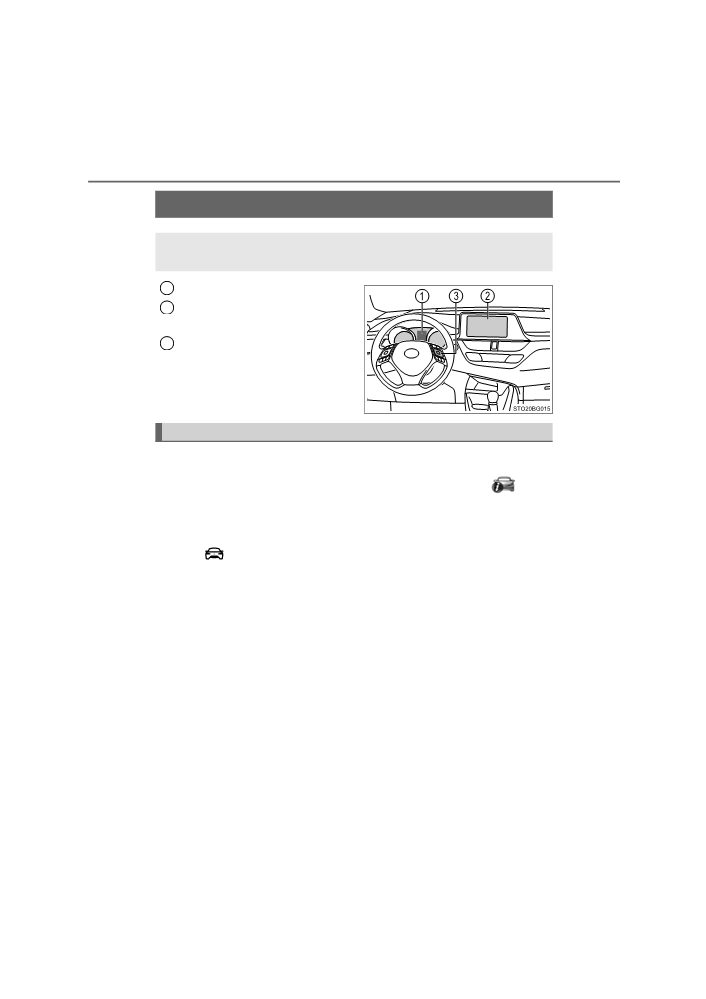

Energy monitor/consumption screen

You can view the status of your vehicle on the multi-information

display and the audio system screen (if equipped).

1

Multi-information display

2

Audio system screen

(if

equipped)

Meter control switches

3

Energy monitor

 Multi-information display

Press “<” or “>” of the meter control switches and select

, and

then press “” or “” to select the energy monitor display.

 Audio system screen (if equipped)

Press

, and then select “Energy monitor” on the screen.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

139

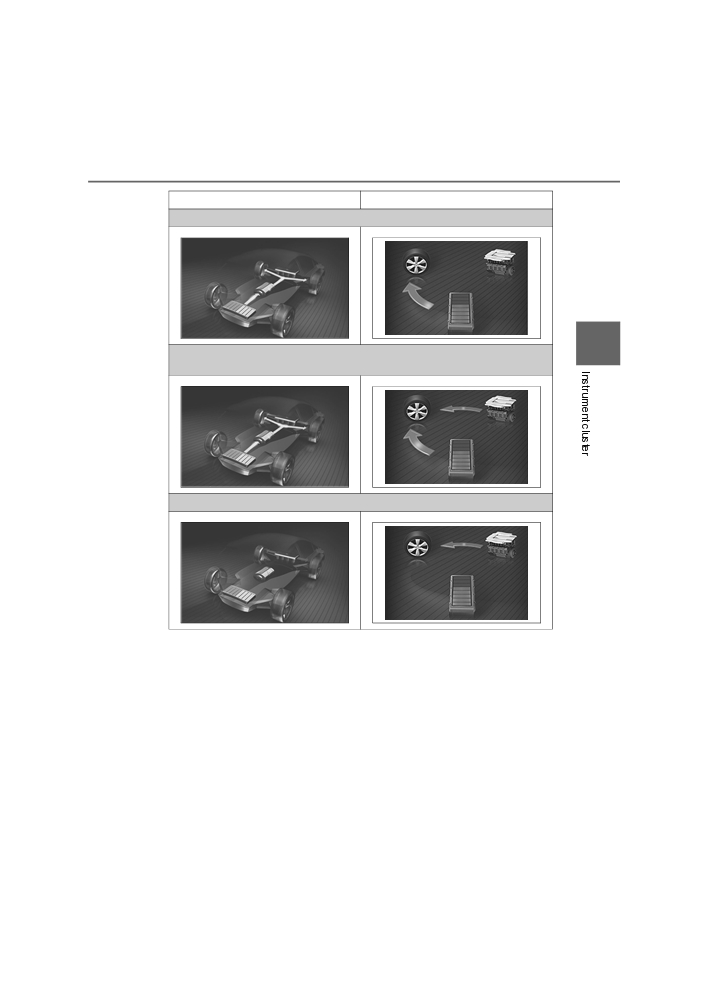

Audio system screen

Multi-information display

When the vehicle is powered by the electric motor (traction motor)

2

When the vehicle is powered by both the gasoline engine and the electric

motor (traction motor)

When the vehicle is powered by the gasoline engine

C-HR_HV_OM_Europe_OM10538E

140

2. Instrument cluster

Audio system screen

Multi-information display

When the vehicle is charging the hybrid battery (traction battery)

When there is no energy flow

Hybrid battery (traction battery) status

Low

Full

Low

Full

These images are examples only, and may vary slightly from actual condi-

tions.

C-HR_HV_OM_Europe_OM10538E

2. Instrument cluster

141

Fuel consumption

Press

, and then select “Trip information” or “Past record” on the

screen.

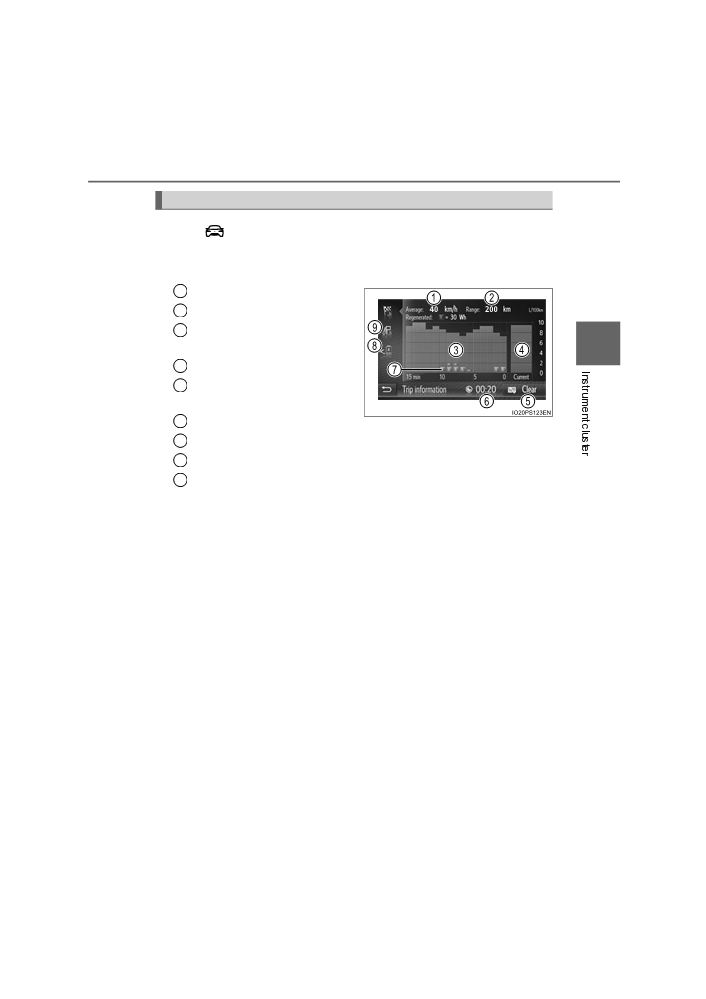

■ Trip information

1

Average vehicle speed

2

Cruising range

3

Previous fuel consumption

2

per minute

4

Current fuel consumption

5

Reset the trip information

data

6

Elapsed time

7

Regenerated energy in the past 15 minutes

8

“Energy monitor” screen appears

9

“Past record” screen appears

Average fuel consumption for the past 15 minutes is divided by

color into past averages and averages attained since the power

switch was last turned to ON mode. Use the displayed average

fuel consumption as a reference.

These images are examples only, and may vary slightly from actual con-

ditions.

C-HR_HV_OM_Europe_OM10538E

142

2. Instrument cluster

■ Past record

1

Best recorded fuel consump-

tion

2

Previous fuel consumption

record

3

Current fuel consumption

4

Reset the past record data

5

Update the past record data

6

“Energy monitor” screen

appears

“Trip information” screen appears

7

These images are examples only, and may vary slightly from actual con-

ditions.

■ Resetting the data

● Selecting “Clear” on the “Trip information” screen will reset the trip informa-

tion data.

● Selecting “Clear” on the “Past record” screen will reset the past record data.

■ Updating the past record data

Selecting “Update” on the “Past record” screen will update the past record

data.

Also, the average fuel consumption displayed in the multi-information display

will be reset at the same time.

■ Cruising range

Displays the estimated maximum distance that can be driven with the quan-

tity of fuel remaining.

This distance is computed based on your average fuel consumption. As a

result, the actual distance that can be driven may differ from that displayed.

C-HR_HV_OM_Europe_OM10538E

144

3-1. Key information

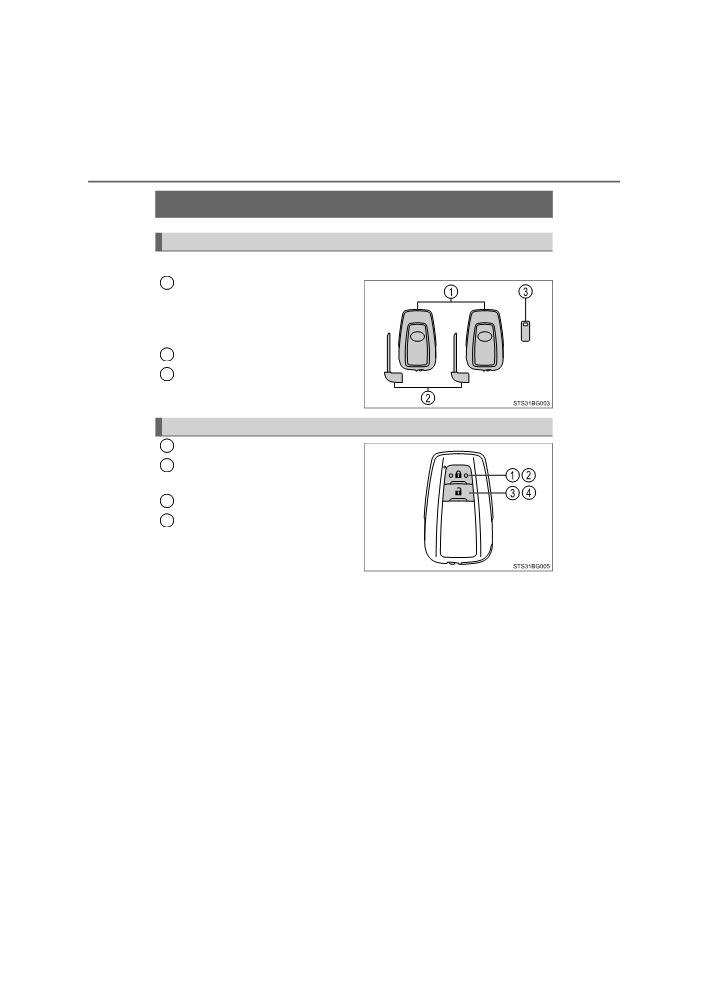

Keys

The keys

The following keys are provided with the vehicle.

1

Electronic keys

• Operating the smart entry &

start system (P. 163)

• Operating the wireless remote

control function

2

Mechanical keys

3

Key number plate

Wireless remote control

1

Locks all the doors (P. 150)

2

Closes the side windows*

(P. 150)

3

Unlocks all the doors (P. 150)

4

Opens the side windows*

(P. 150)

*: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

C-HR_HV_OM_Europe_OM10538E

3-1. Key information

145

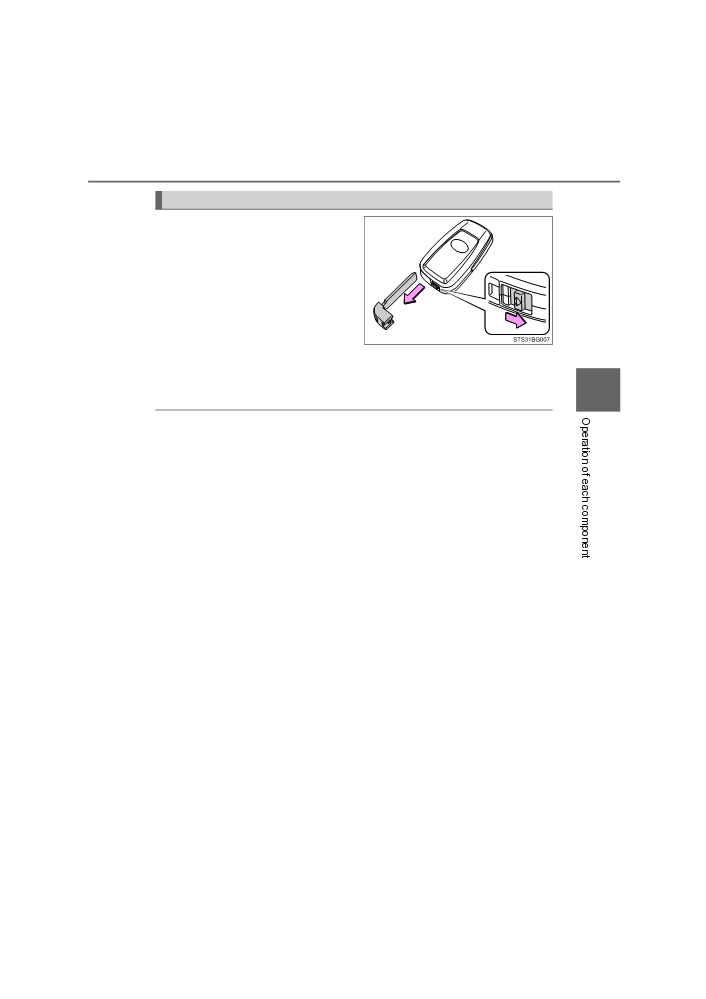

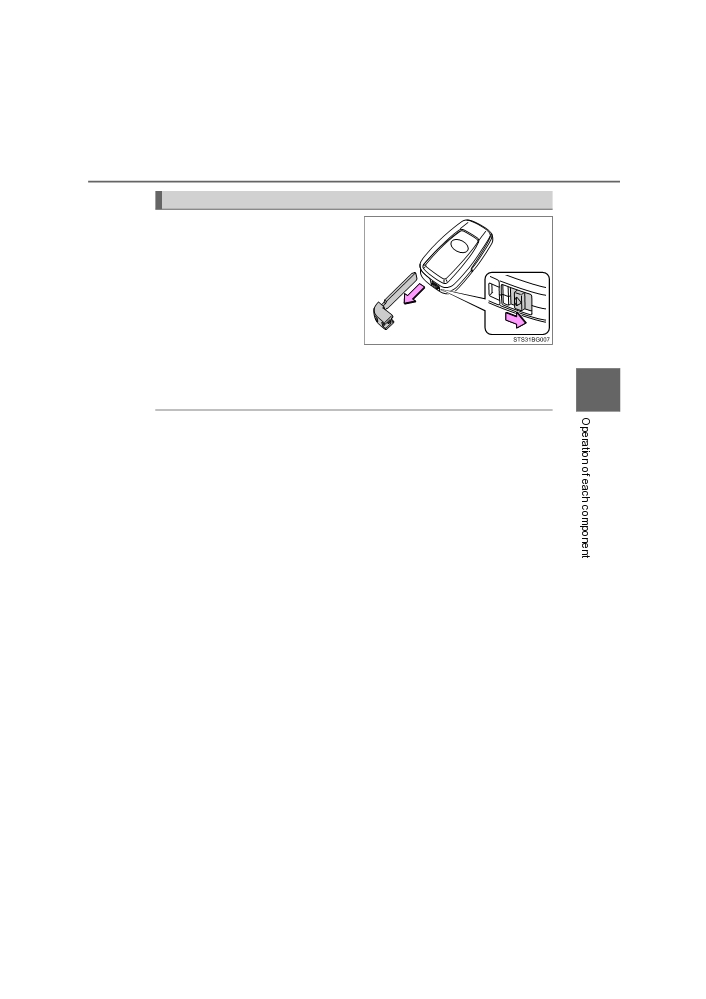

Using the mechanical key

To take out the mechanical key,

slide the release lever and take

the key out.

The mechanical key can only be

inserted in one direction, as the

key only has grooves on one side.

If the key cannot be inserted in a

lock cylinder, turn it over and re-

attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the

mechanical key together with the electronic key. If the electronic key bat-

tery is depleted or the entry function does not operate properly, you will

3

need the mechanical key. (P. 648)

■ If you lose your mechanical keys

New genuine mechanical keys can be made by any authorized Toyota retailer

or Toyota authorized repairer, or any reliable repairer using another mechani-

cal key and the key number stamped on your key number plate. Keep the

plate in a safe place such as your wallet, not in the vehicle.

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press

any buttons on the electronic key while inside the aircraft cabin. If you are

carrying an electronic key in your bag, etc., ensure that the buttons are not

likely to be pressed accidentally. Pressing a button may cause the electronic

key to emit radio waves that could interfere with the operation of the aircraft.

■ Conditions affecting the operation of the smart entry & start system

P. 166

C-HR_HV_OM_Europe_OM10538E

3-1. Key information

147

■ When the key battery is fully depleted

P. 561

■ Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask

any authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer for details.

■ If a wrong key is used

On some models, the key cylinder rotates freely to isolate inside mechanism.

■ Customization

Settings (e.g. wireless remote control system) can be changed.

(Customizable features: P. 679)

■ Certification for the wireless remote control

P. 170

3

C-HR_HV_OM_Europe_OM10538E

148

3-1. Key information

NOTICE

■ To prevent key damage

●Do not drop the keys, subject them to strong shocks, or bend them.

●Do not expose the keys to high temperatures for long periods of time.

●Do not get the keys wet or wash them in an ultrasonic washer, etc.

●Do not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

●Do not disassemble the keys.

●Do not attach a sticker or anything else to the surface of the electronic key.

●Do not place the keys near objects that produce magnetic fields, such as

TVs, audio systems and induction cookers, or medical electrical equip-

ment, such as low-frequency therapy equipment.

●Do not place the keys near medical electrical equipment such as low-fre-

quency therapy equipment or microwave therapy equipment, and do not

receive medical attention with the keys on your person.

■ Carrying the electronic key on your person

Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-

ances that are turned on. Radio waves emitted from electric appliances

within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-

ing the key to not function properly.

■ In case of a smart entry & start system malfunction or other key-related

problems

Take your vehicle with all the electronic keys provided with your vehicle to

any authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

■ When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-

cantly. Visit any authorized Toyota retailer or Toyota authorized repairer, or

any reliable repairer immediately with all remaining electronic keys that

were provided with your vehicle.

C-HR_HV_OM_Europe_OM10538E

3-2. Opening, closing and locking the doors

149

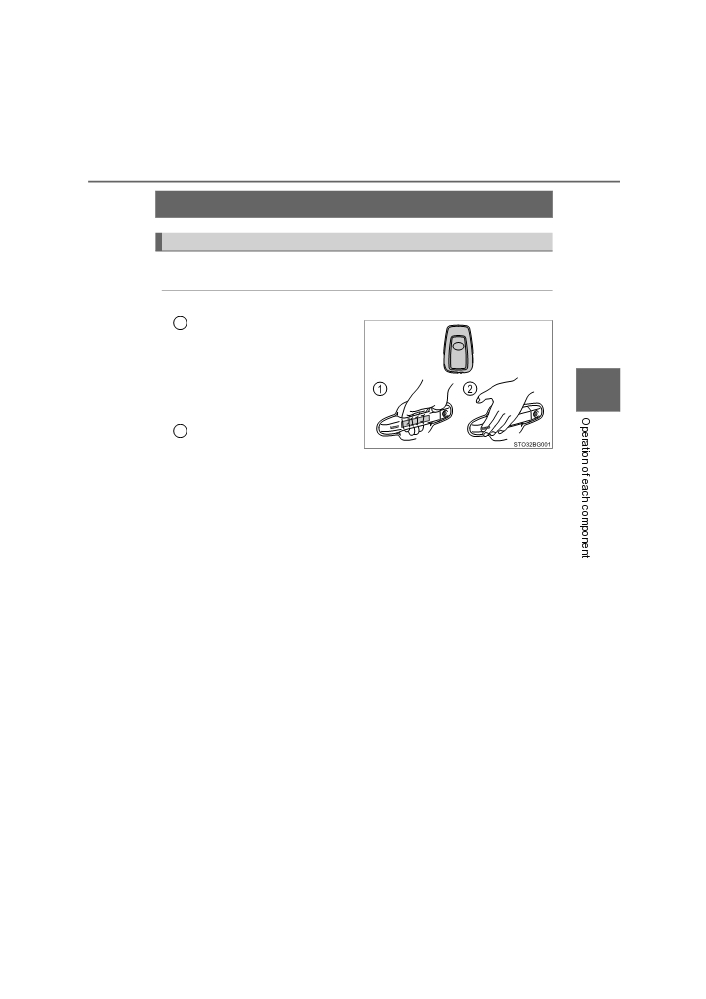

Side doors

Unlocking and locking the doors from the outside

◆ Entry function (vehicles with a smart entry & start system

equipped with entry function)

Carry the electronic key to enable this function.

Grip the front door handle to

1

unlock all the doors.*

Make sure to touch the sensor

on the back of the handle.

3

The doors cannot be unlocked

for 3 seconds after the doors are

locked.

Touch the lock sensor (the

2

indentation on the surface of

the front door handle) to lock

all the doors.

Check that the door is securely locked.

*: The door unlock settings can be changed. (P. 154)

C-HR_HV_OM_Europe_OM10538E

150

3-2. Opening, closing and locking the doors

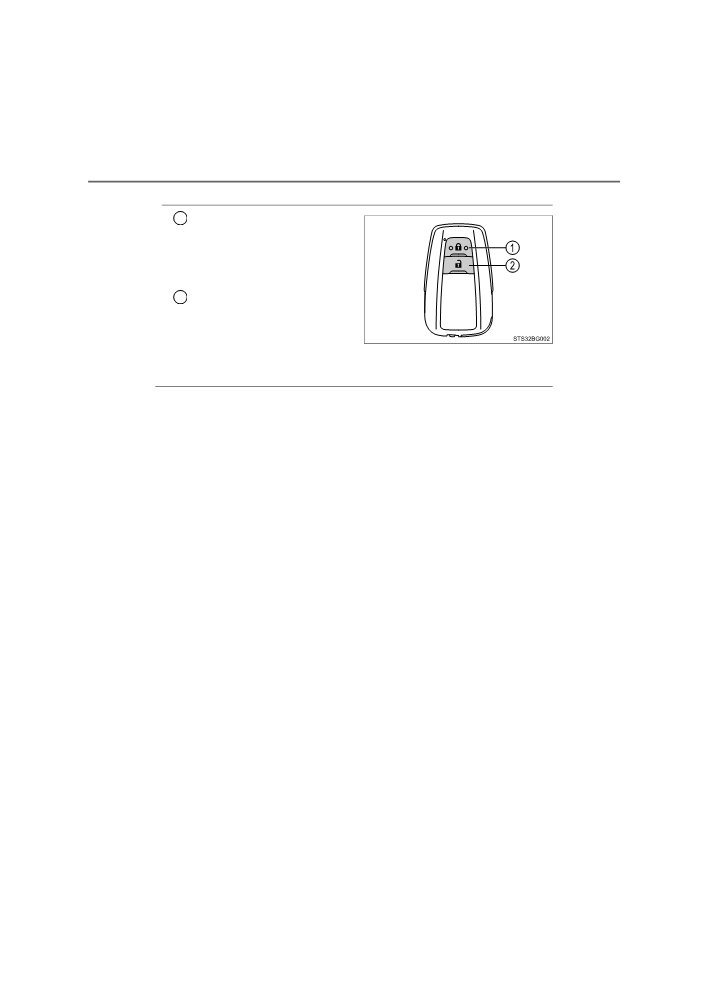

◆ Wireless remote control

Locks all the doors

1

Check that the door is securely

locked.

Press and hold to close the side

windows.*

Unlocks all the doors

2

Press and hold to open the side

windows.*

*: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

■ Operation signals

Doors:

The emergency flashers flash to indicate that the doors have been locked/

unlocked using the entry function or wireless remote control. (Locked: Once;

Unlocked: Twice)

Windows (vehicles with a smart entry & start system):

A buzzer sounds to indicate that the windows are operating.

C-HR_HV_OM_Europe_OM10538E

3-2. Opening, closing and locking the doors

151

■ Security feature

If a door is not opened within approximately 30 seconds after the vehicle is

unlocked, the security feature automatically locks the vehicle again.

■ When the door cannot be locked by the lock sensor on the surface of the

front door handle (vehicles with a smart entry & start system equipped

with entry function)

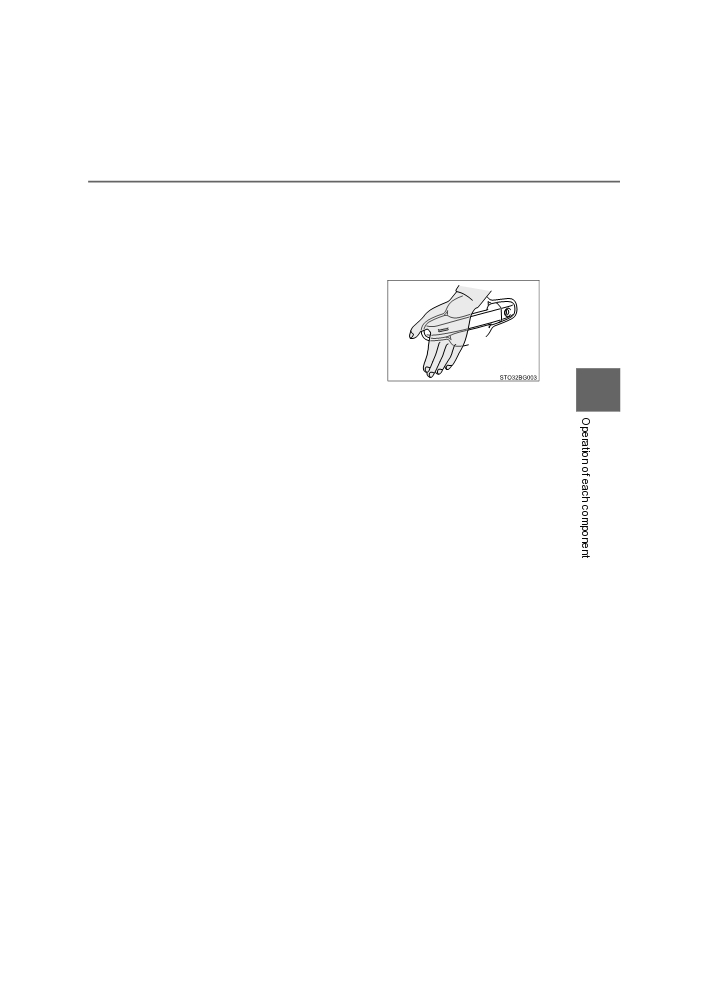

Use your palm to touch the lock sensor.

3

■ Door lock buzzer

If an attempt to lock the doors using the entry function or wireless remote

control is made when a door is not fully closed, a buzzer will sound continu-

ously for 5 seconds. Fully close the door to stop the buzzer, and lock the

doors again.

■ Setting the alarm (if equipped)

Lock the doors will set the alarm system. (P. 106)

■ If the smart entry & start system or the wireless remote control does not

operate properly

● Use the mechanical key to lock and unlock the doors. (P. 648)

● Replace the key battery with a new one if it is depleted. (P. 561)

C-HR_HV_OM_Europe_OM10538E

152

3-2. Opening, closing and locking the doors

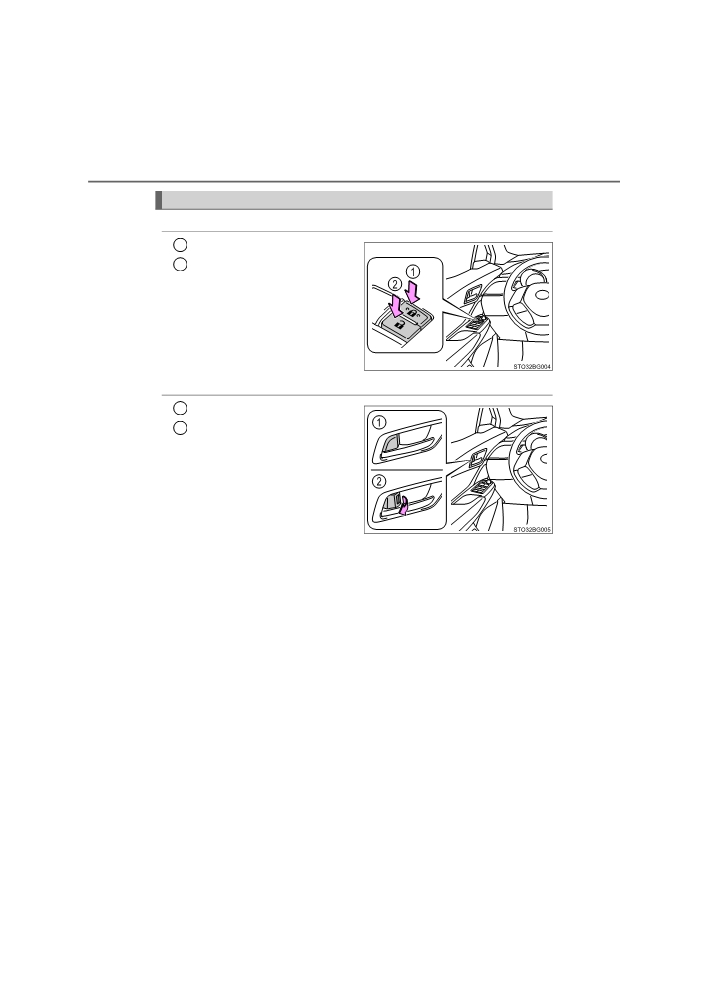

Locking and unlocking the doors from the inside

◆ Door lock switches

1

Locks all the doors

2

Unlocks all the doors

◆ Inside lock buttons

1

Locks the door

2

Unlocks the door

The front doors can be opened

by pulling the inside handle

even if the lock buttons are in

the lock position.

C-HR_HV_OM_Europe_OM10538E

Content   ..  7  8  9  10   ..
