1-4. Theft deterrent system
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
103
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
1
C-HR_HV_OM_Europe_OM10538E
104
1-4. Theft deterrent system
Double locking system
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.

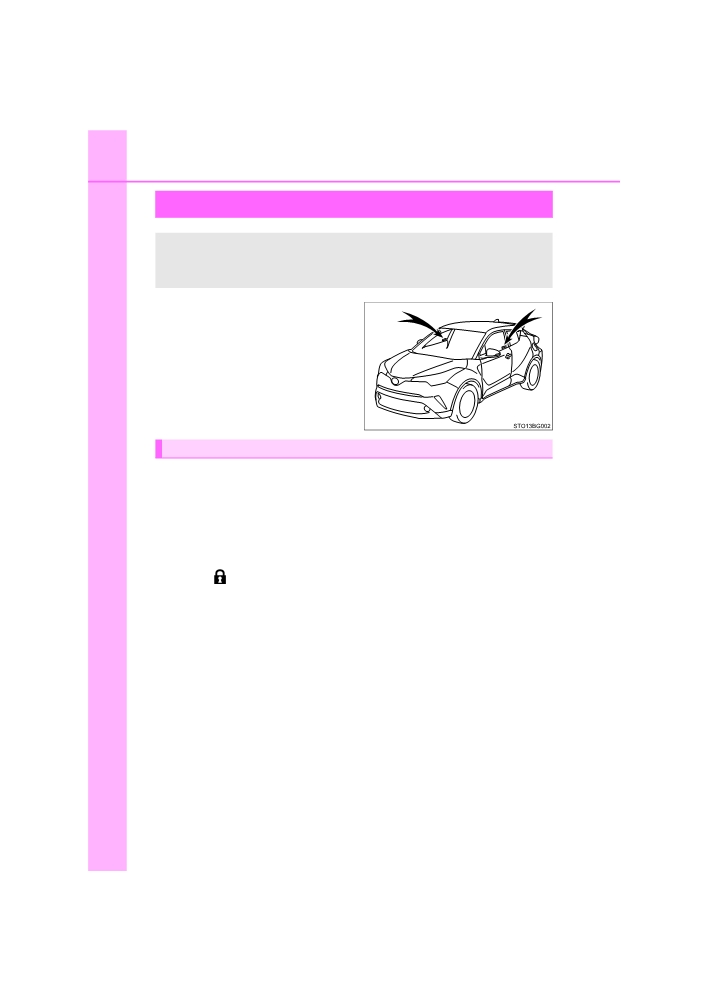

Vehicles employing this system
have labels on the window glass
of both front doors.
Setting the double locking system
Turn the power switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice within 5
seconds.
Using the wireless remote control:
Press
twice within 5 seconds.
: If equipped
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
105
Canceling the double locking system
Using the entry function (if equipped): Hold the front outside door han-
dle or press the back door opener button.
Using the wireless remote control: Press
WARNING
1
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.
C-HR_HV_OM_Europe_OM10538E
106
1-4. Theft deterrent system

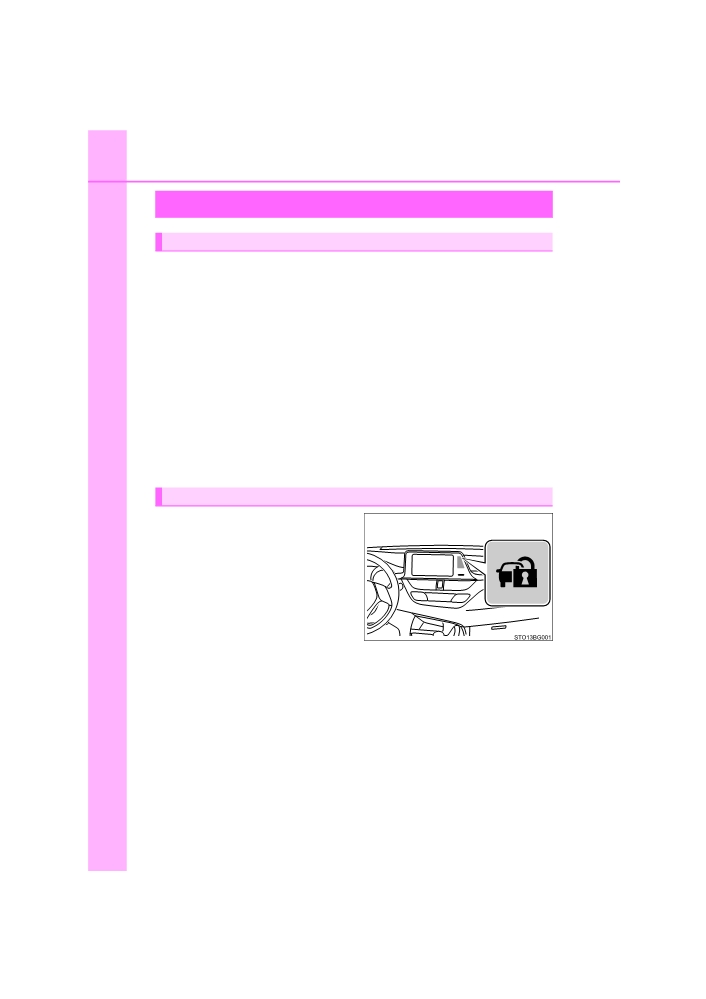

Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function (if equipped) or wireless remote con-
trol. (The doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the vehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Setting the alarm system
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after
30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
107
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function (if equipped) or wireless
remote control.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
1
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following.
●Nobody is in the vehicle.
● The side windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
C-HR_HV_OM_Europe_OM10538E
108
1-4. Theft deterrent system
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

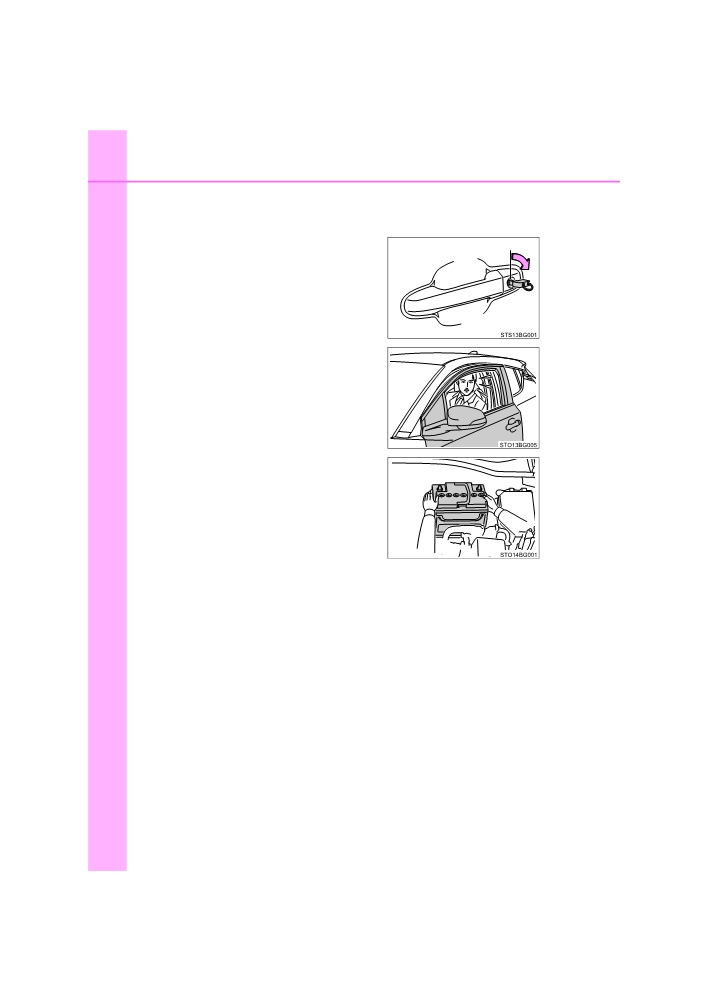

● The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.
● The
12-volt battery is recharged or
replaced when the vehicle is locked.
(P. 651)
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
109
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
1
● When recharging or replacing the 12-volt battery
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
C-HR_HV_OM_Europe_OM10538E
110
1-4. Theft deterrent system
Intrusion sensor (if equipped)
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■ Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set.
(P. 106)
■ Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.
1
Turn the power switch off.
2

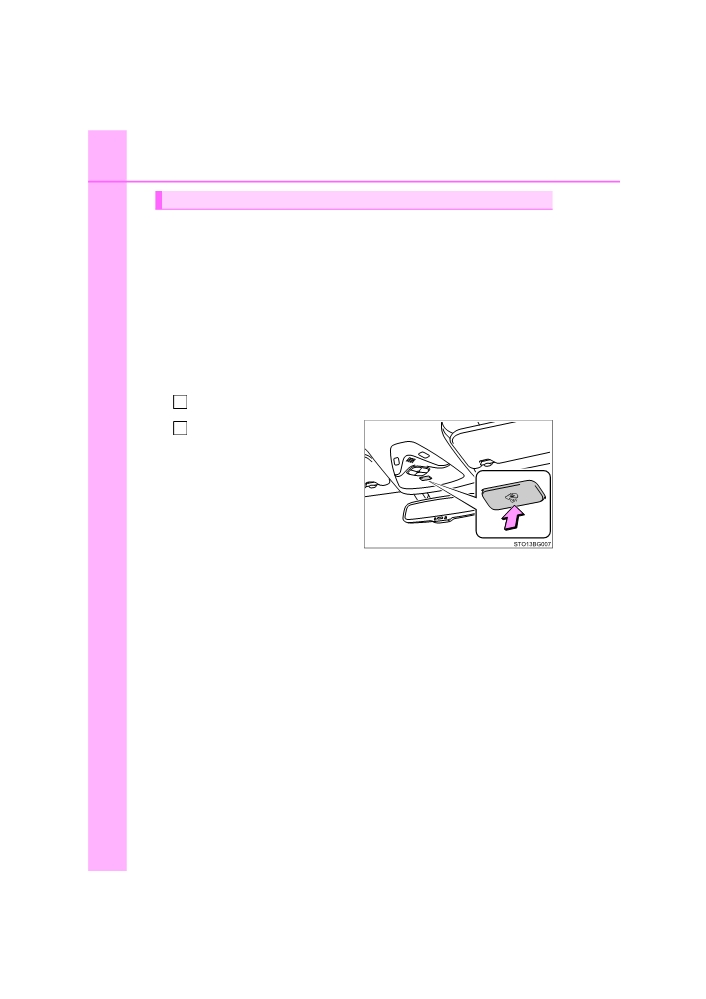

Press the theft sensor off
switch.
A message will be shown on
the multi-information display.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
111
■ Canceling and automatic re-enabling of the intrusion sensor
●The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function (if equipped) or wireless remote con-
trol will re-enable the intrusion sensor.
● The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.
1

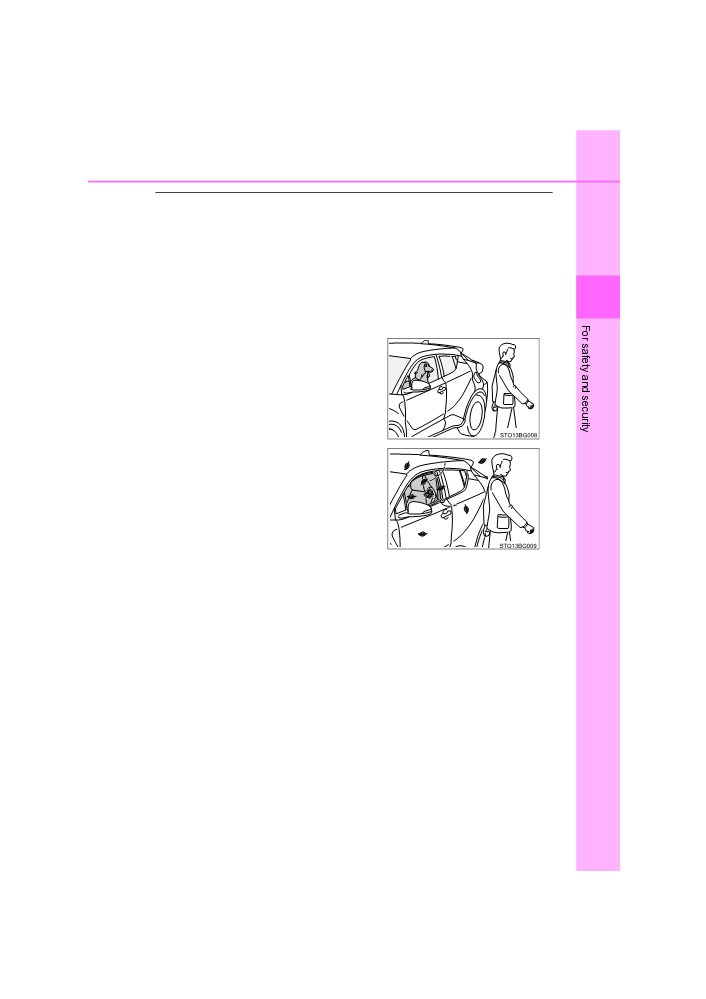

■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
● People or pets are in the vehicle.
● A side window is open.

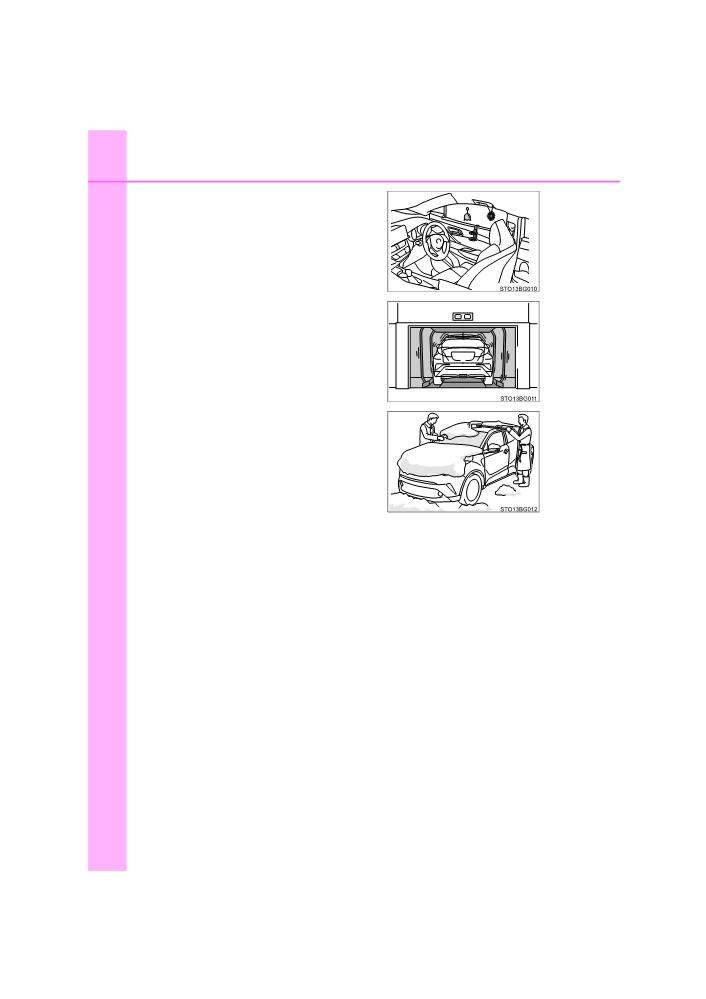

In this case, the sensor may detect the
following:
• Wind or the movement of objects
such as leaves and insects inside the
vehicle
• Ultrasonic waves emitted from
devices such as the intrusion sensors
of other vehicles
• The movement of people outside the vehicle
C-HR_HV_OM_Europe_OM10538E
112
1-4. Theft deterrent system
●Unstable items, such as dangling acces-
sories hanging on the assist grips, are in
the vehicle.
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
● The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.
C-HR_HV_OM_Europe_OM10538E
1-4. Theft deterrent system
113
NOTICE

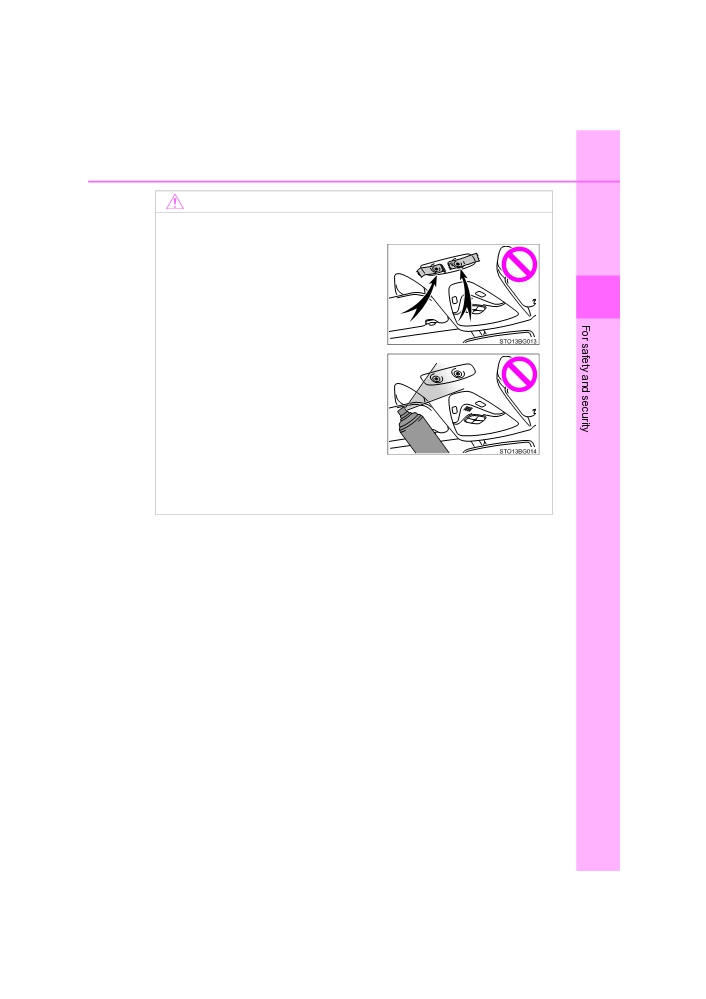

■ To ensure the intrusion sensor functions correctly
● To ensure that the sensors operate
properly, do not touch or cover them.
1
●Do not spray air fresheners or other
products directly into the sensor holes.
● Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.
C-HR_HV_OM_Europe_OM10538E
114
1-4. Theft deterrent system

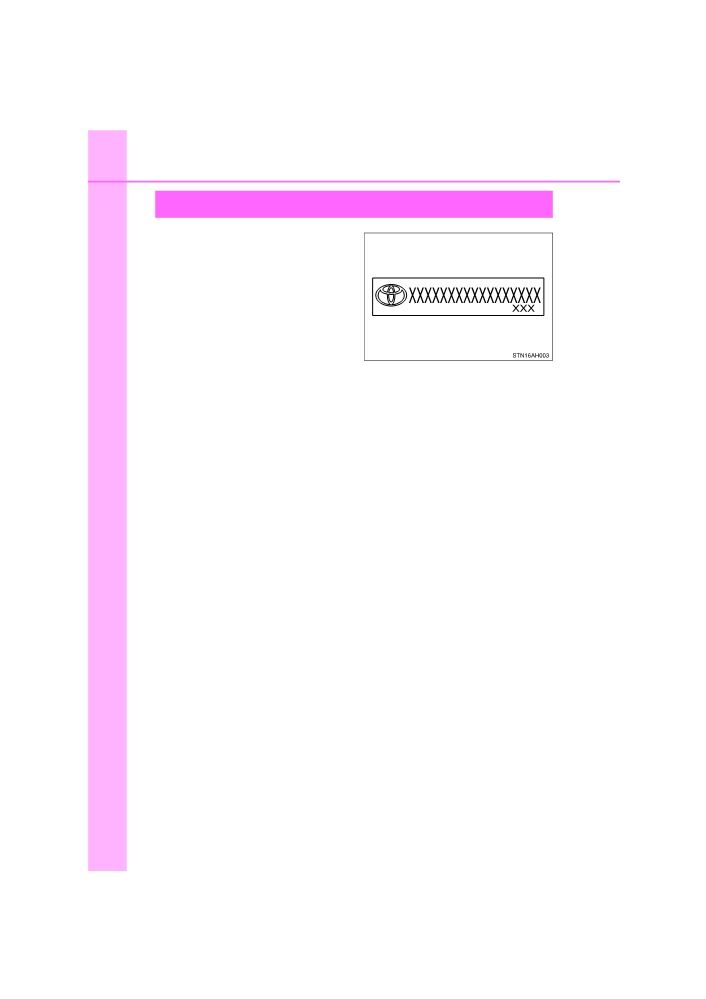

Theft prevention labels
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.
: If equipped
C-HR_HV_OM_Europe_OM10538E
115
Instrument cluster
2
2.
Instrument cluster
Warning lights and
indicators
116
Gauges and meters
125
Multi-information
display
129
Energy monitor/
consumption screen
138
C-HR_HV_OM_Europe_OM10538E
116
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.

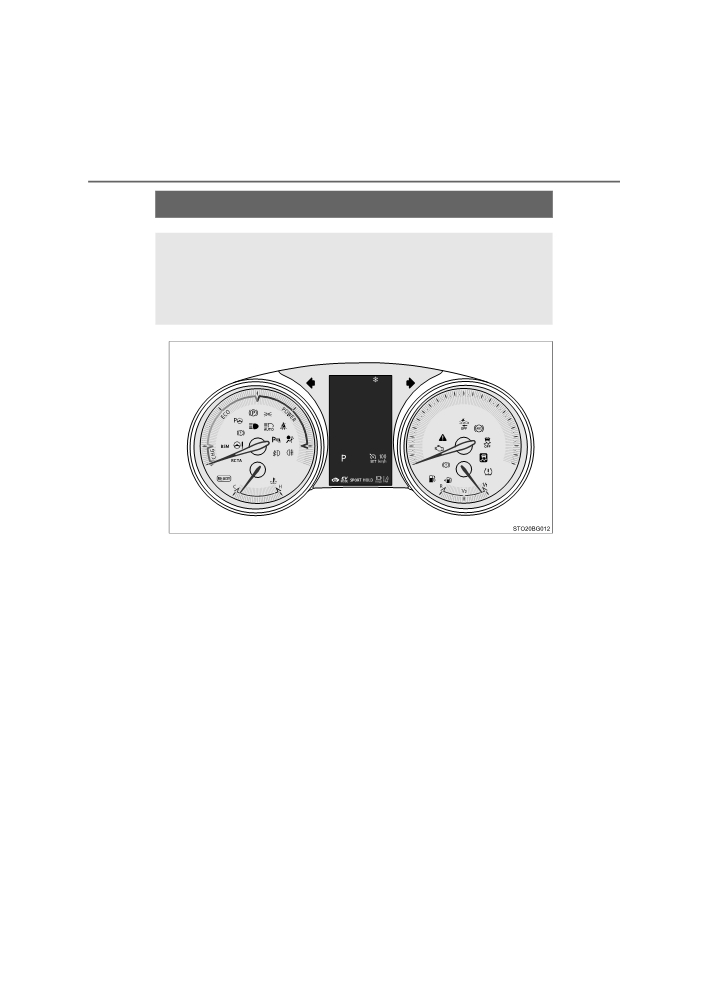

For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
The units used on the speedometer and some indicators may differ
depending on the target region.
C-HR_HV_OM_Europe_OM10538E
2. Instrument cluster
117

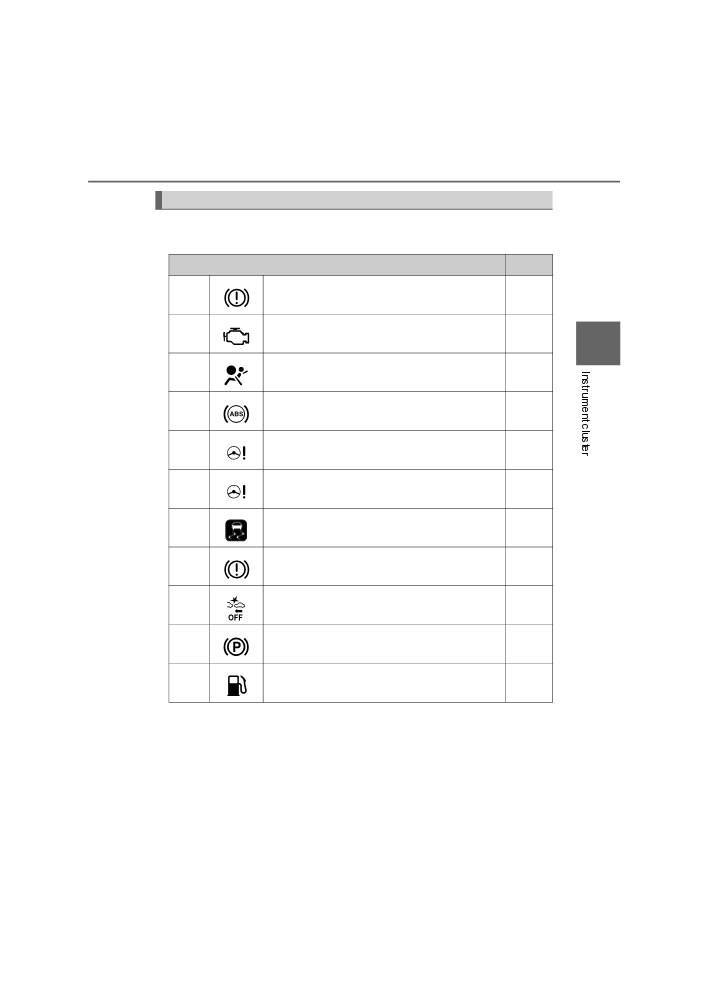

Warning lights
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
Pages
*1
Brake system warning light (red)
P. 595
*1
Malfunction indicator lamp
P. 596
2
*1
SRS warning light
P. 596
*1
ABS warning light
P. 596
Electric power steering system warning light
*1
P. 596
(red)
Electric power steering system warning light
*1
P. 596
(yellow)
*1, 2
Slip indicator light
P. 597
*1
Brake system warning light (yellow)
P. 597
*1, 3
PCS warning light (if equipped)
P. 598
*3
Parking brake indicator
P. 598
Low fuel level warning light
P. 598
C-HR_HV_OM_Europe_OM10538E
118
2. Instrument cluster

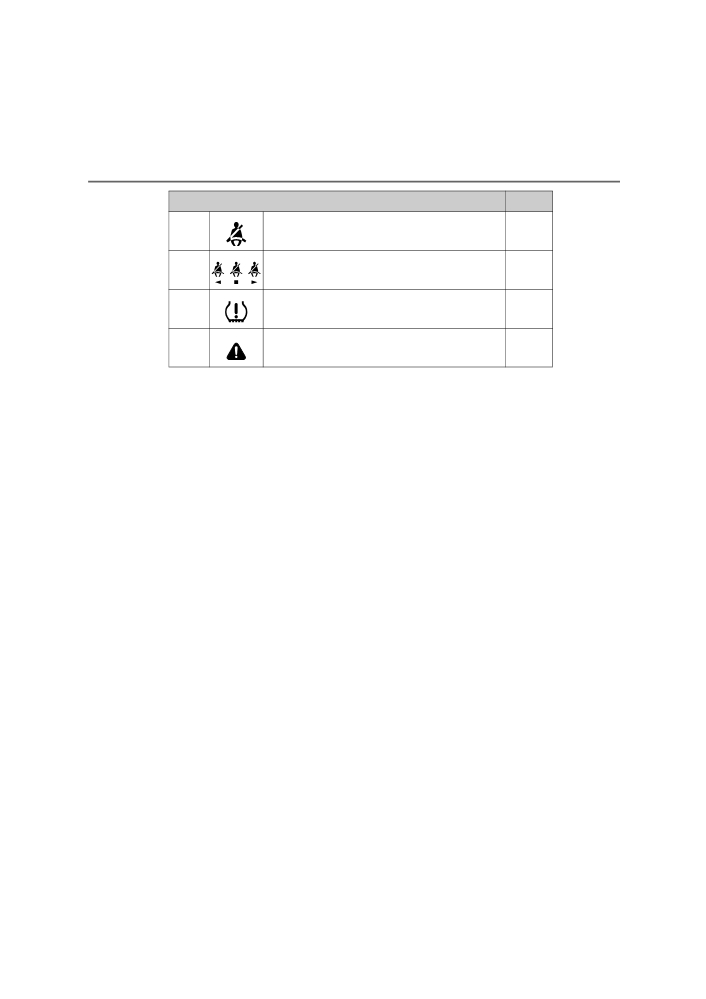

Warning lights
Pages
Driver’s and front passenger’s seat belt
P. 599
reminder light
Rear passengers’ seat belt reminder lights (on
P. 599
the center panel)
*1
Tire pressure warning light
P. 599
*1
Master warning light
P. 600
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
*2: The light comes on to indicate a malfunction.
*3: The light flashes to indicate a malfunction.
C-HR_HV_OM_Europe_OM10538E
