2. Instrument cluster
119
Trip information
Press the “CAR” button on the
1
navigation/multimedia system.
2
Select “Trip information”.
2
■ Trip information screen
1
Average vehicle speed since
the engine was started.
2
Cruising range (P. 120)
3
Fuel consumption in the past
15 minutes
4
Elapsed time since the
engine was started.
5
Resetting the consumption
data
Vehicles without a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to the “ON” position. Use the displayed aver-
age fuel consumption as a reference.
Vehicles with a smart entry & start system:
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the engine
switch was last turned to IGNITION ON mode. Use the displayed
average fuel consumption as a reference.
The image is an example only.
120
2. Instrument cluster
Past record
1
Press the “CAR” button on the
navigation/multimedia system.
2
Select “Past record”.
■ Past record screen
1
Best recorded fuel consump-
tion
2
Previous fuel consumption
record
3
Average fuel consumption
4
Updating the average fuel
consumption data
5
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
121
Operation of
3
each component
3-1. Key information
Keys
122
3-2.
Opening, closing and
locking the doors
Side doors
134
Back door
140
Smart entry &
start system
145
3-3.
Adjusting the seats
Front seats
167
Rear seats
169
Head restraints
172
3-4.
Adjusting the steering
wheel and mirrors
Steering wheel
174
Inside rear view mirror
176
Outside rear view
mirrors
178
3-5.
Opening and closing the
windows
Power windows
181
122
3-1. Key information
Keys
The keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
1
Keys
Operating the wireless remote con-
trol function (P. 123)
Key number plate
2
Vehicles without a smart entry & start system (type B)
1
Key
(with a wireless remote
control function)
Operating the wireless remote con-
trol function (P. 123)
2
Key (without a wireless remote
control function)
3
Key number plate
Vehicles with a smart entry & start system
1
Electronic keys
• Operating the smart entry &
start system (P. 145)
• Operating the wireless remote
control function (P. 123)
2
Mechanical keys
3
Key number plate
3-1. Key information
123
Wireless remote control
Vehicles without a smart entry & start system
1
Locks all the doors (P. 134)
2
Unlocks the back door
(P. 140)
Unlocks all the doors (P. 134)
3
Vehicles with a smart entry & start system
3
1
Locks all the doors (P. 134)
2
Unlocks all the doors (P. 134)
Using the key (vehicles without a smart entry & start system)
1
Releasing
To release the key, press the but-
ton.
2
Folding
To stow the key, press the button
then fold the key.
124
3-1. Key information
Using the mechanical key (vehicles with a smart entry & start
system)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (P. 594)
■ If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the other key (vehi-
cles without a smart entry & start system) or mechanical key (vehicles with a
smart entry & start system) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag, etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
3-1. Key information
125
■ Conditions affecting the operation of the smart entry & start system or
wireless remote control
Vehicles without a smart entry & start system
The wireless remote control function may not operate normally in the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a metallic object
● When a wireless key (that emits radio waves) is being used nearby
3
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart entry & start system
P. 148
126
3-1. Key information
■ Key battery depletion
Vehicles without a smart entry & start system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 511)
Vehicles with a smart entry & start system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 551)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 511)
• The smart entry & start system or the wireless remote control does not
operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■ When the key battery is fully depleted
P. 511
■Confirmation of the registered key number (vehicles with a smart entry &
start system)
The number of keys already registered to the vehicle can be confirmed. Ask
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
■ If a wrong key is used (except left-hand drive vehicles without a smart
entry & start system)
The key cylinder rotates freely, isolated from the internal mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 635)
3-1. Key information
127

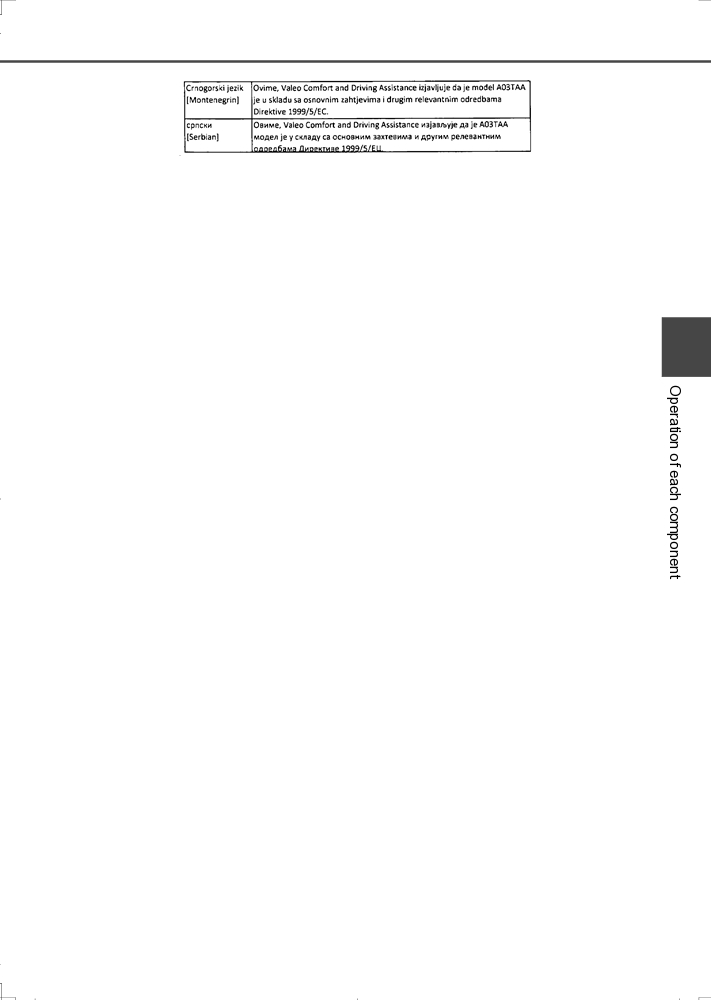

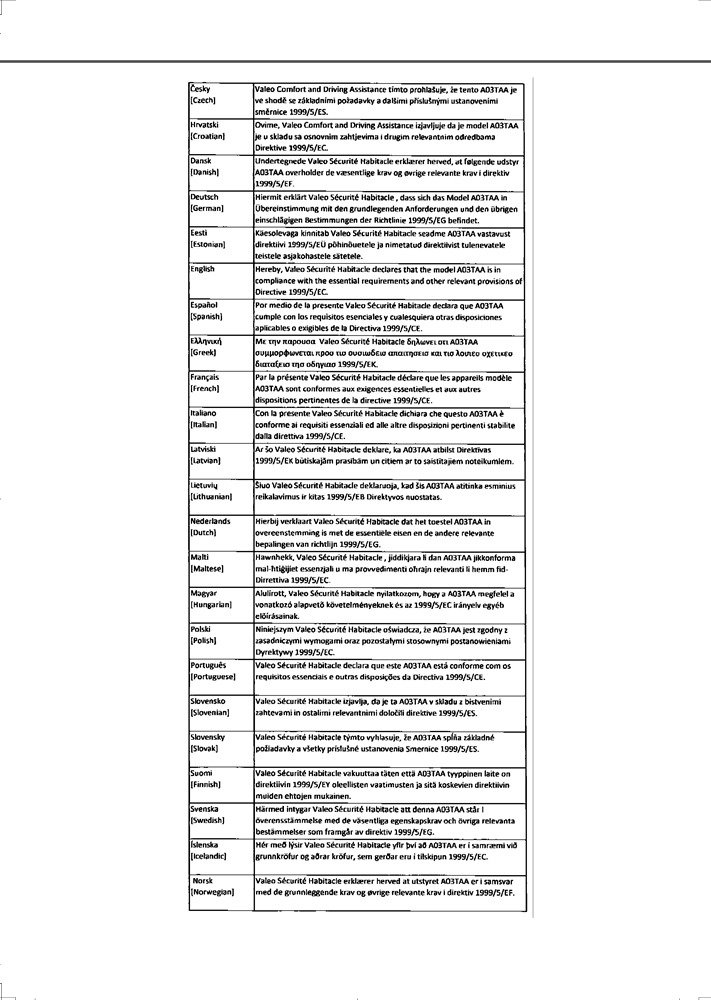

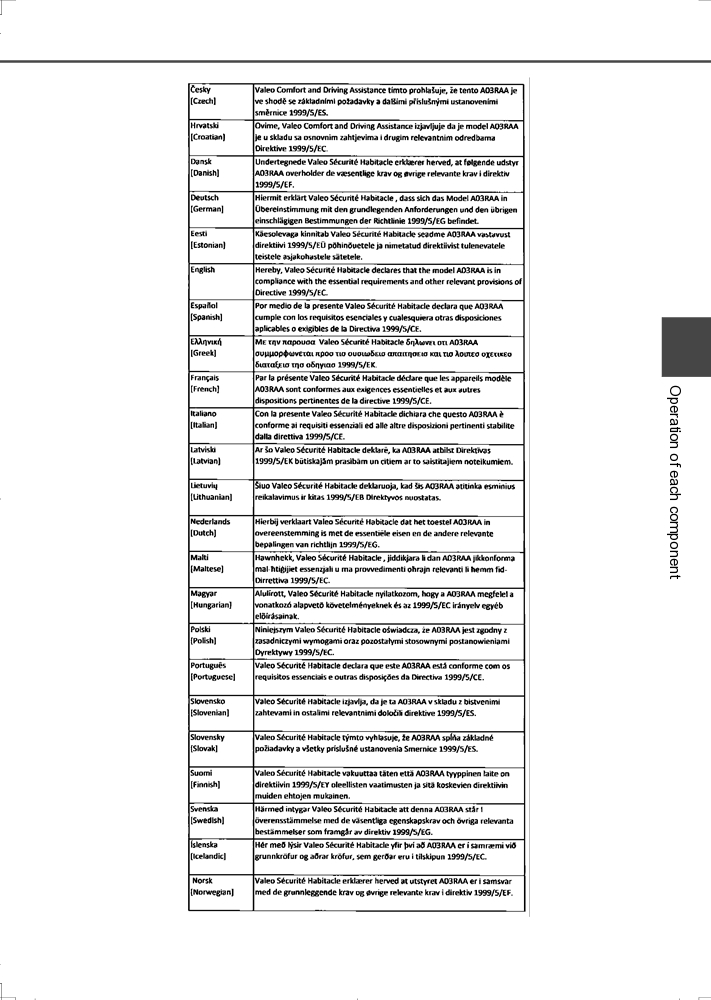

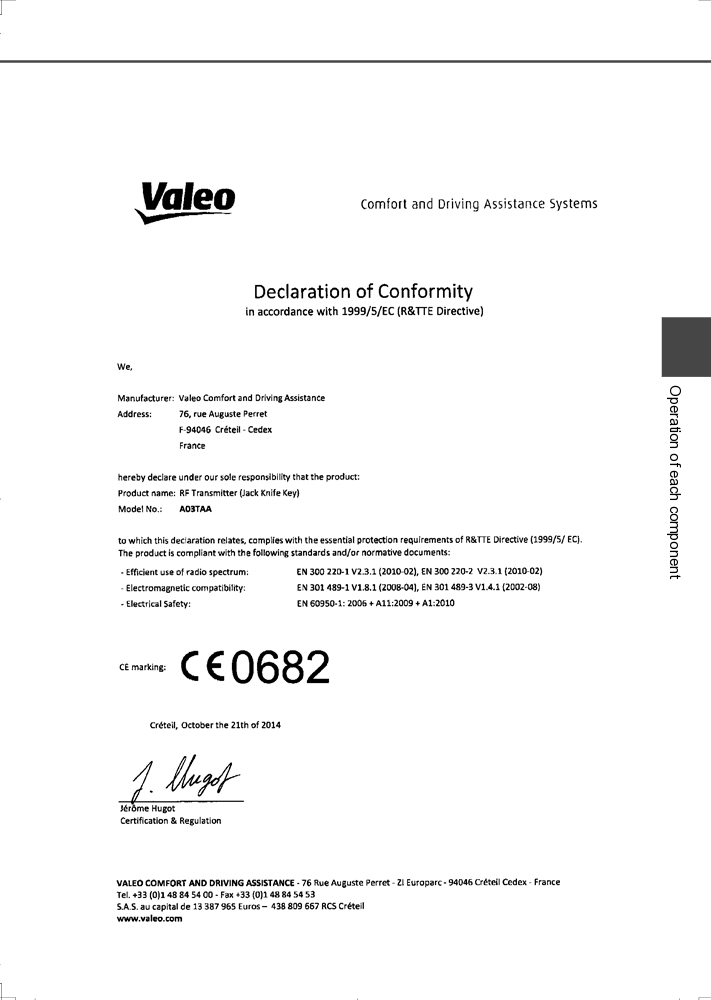

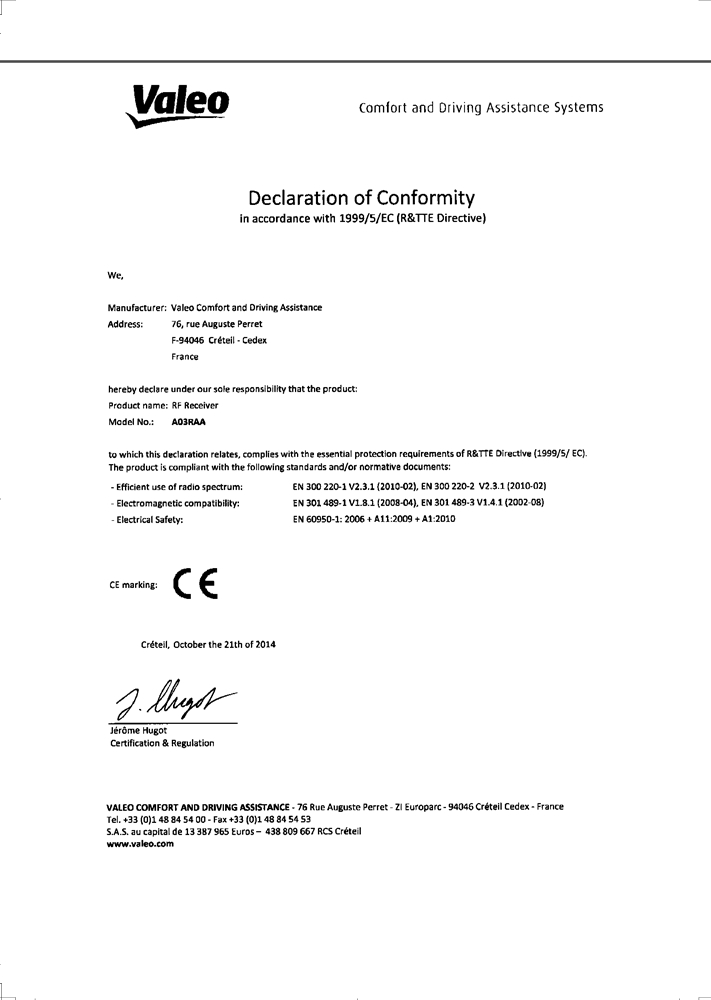

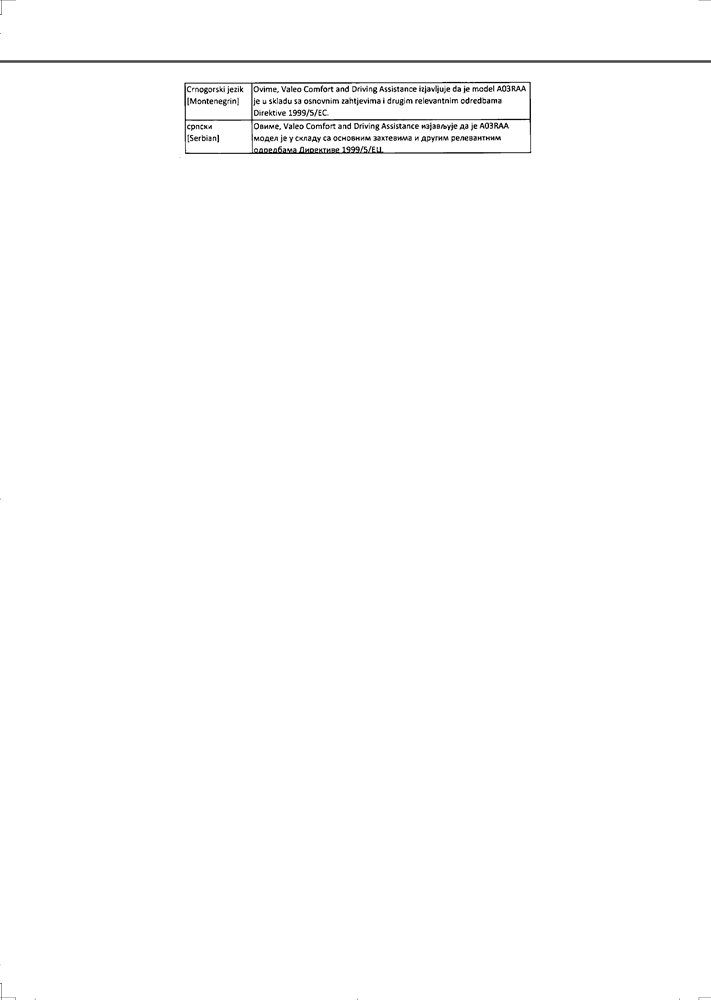

■ Certification for the wireless remote control
Vehicles with a smart entry & start system
P. 151
Vehicles without a smart entry & start system
3
128
3-1. Key information
3-1. Key information
129
3
130
3-1. Key information
3-1. Key information
131
3
132
3-1. Key information
3-1. Key information
133
NOTICE
■ To prevent key damage
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
● Vehicles with a smart entry & start system: Do not place the keys near
objects that produce magnetic fields, such as TVs, audio systems and
3
induction cookers, or medical electrical equipment, such as low-frequency
therapy equipment.
■ Carrying the electronic key on your person (vehicles with a smart entry
& start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart entry & start system malfunction or other key-related
problems (vehicles with a smart entry & start system)
Take your vehicle with all the electronic keys provided with your vehicle to
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When an electronic key is lost (vehicles with a smart entry & start sys-
tem)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional immediately with all remaining electronic
keys that was provided with your vehicle.
134
3-2. Opening, closing and locking the doors
Side doors
Unlocking and locking the doors from the outside
◆ Entry function (vehicles with a smart entry & start system)
Carry the electronic key to enable this function.
Grip the front door handle to
1
unlock all the doors.
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Touch the lock sensor (the
2
indentation on the side of the
front door handle) to lock all
the doors.
Check that the door is securely locked.
◆ Wireless remote control
Vehicles without a smart entry & start system
1
Locks all the doors
Check that the door is securely
locked.
2
Unlocks all the doors
3-2. Opening, closing and locking the doors
135
Vehicles with a smart entry & start system
1
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
2
◆ Key
Turning the key operates the doors as follows:
3
Vehicles without a smart entry & start system
1
Locks all the doors
2
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. (P. 594)
