Toyota Auris Touring Sports (2017 year). Instruction - part 7

102

2. Instrument cluster

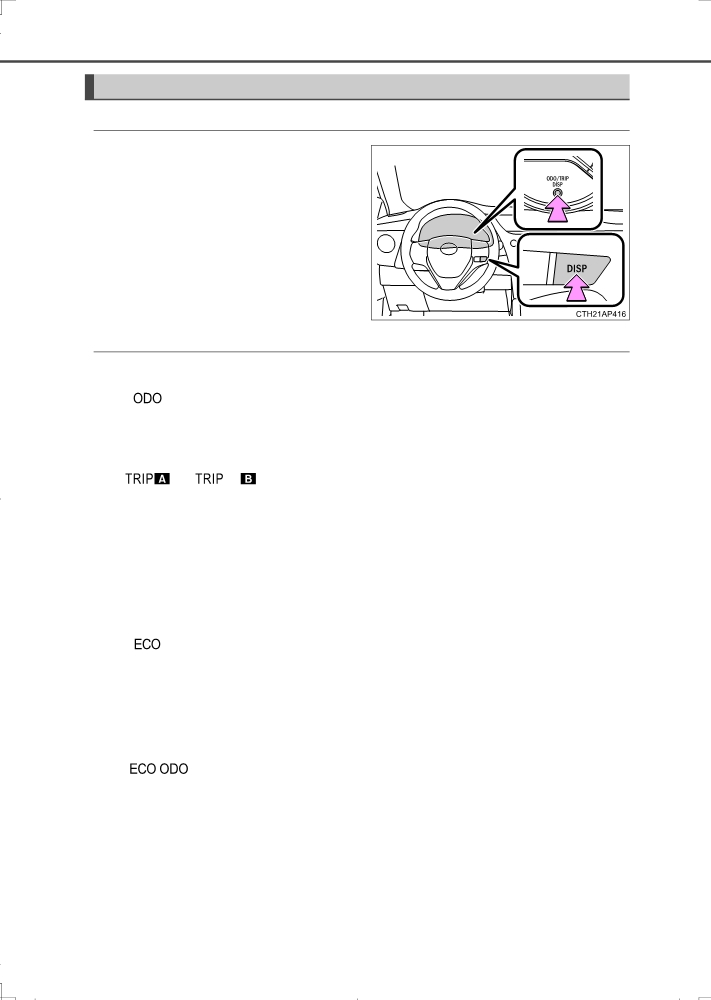

Trip information/Drive information/Meter light control

◆ Changing the display

To change the displayed item,

press the display change switch

or the “DISP” switch.

Each time the switch is pressed,

the displayed item will be

changed.

◆ Display items

■ Odometer

“

” will be displayed.

Displays the total distance the vehicle has been driven.

■ Trip meter A/trip meter B

“

”/“

” will be displayed.

Displays the distance the vehicle has been driven since the meter

was last reset. Trip meters A and B can be used to record and dis-

play different distances independently.

To reset, display the desired trip meter and press and hold the display

change switch or the “DISP” switch.

■ Stop & Start system operation time (if equipped)

“

” will be displayed.

Displays the amount of time the engine was stopped due to the

operation of the Stop & Start system during the current trip (from

when the engine was started until it is turned off).

■ Stop & Start system total operation time (if equipped)

“

” will be displayed.

Displays the total amount of time that the engine has been stopped

due to the operation of the Stop & Start system since the meter was

last reset.

To reset, display the Stop & Start system total operation time and press

and hold the display change switch or the “DISP” switch.

2. Instrument cluster

103

■ Average fuel consumption

“

” will be displayed.

Displays the average fuel consumption since the function was

reset.

• To reset, display the average fuel consumption and press and hold the

display change switch or the “DISP” switch.

• Vehicles with a Multidrive: When the display is changed to the average

fuel economy display, the Eco Driving Indicator zone display (P. 105)

will be displayed instead of the engine coolant temperature gauge.

• Use the displayed average fuel consumption as a reference.

2

■ Driving range

“

” will be displayed.

Displays the estimated maximum distance that can be driven with

the quantity of fuel remaining.

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-

played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.

• When refueling, turn the engine switch off. If the vehicle is refueled with-

out turning the engine switch off, the display may not be updated.

■ Meter light control display

Displays the meter light control display.

• The meter light control display can only be displayed when the tail lights

are on.

• The brightness of the meters can only be adjusted when the tail lights

are on.

• To adjust the brightness, display the meter light control display and

press and hold the display change switch or the “DISP” switch.

104

2. Instrument cluster

Display customization

The following display items can be customized:

◆ Customizable items

■ Eco Driving Indicator Light (if equipped)

Can be enabled or disabled

■ Stop & Start system operation time pop-up display

(if

equipped)

Current Stop & Start system operation time can be enabled or dis-

abled.

◆ Customizing the display

To change to the customizing mode screen, display the odometer

1

and then press and hold the display change switch or the “DISP”

switch for 5 seconds or more.

2

To change the setting, press the display change switch or the

“DISP” switch.

Each time the switch is pressed, the setting will be changed.

After customization, press the display change switch or “DISP”

switch for 2 seconds or more to return to the odometer.

2. Instrument cluster

105

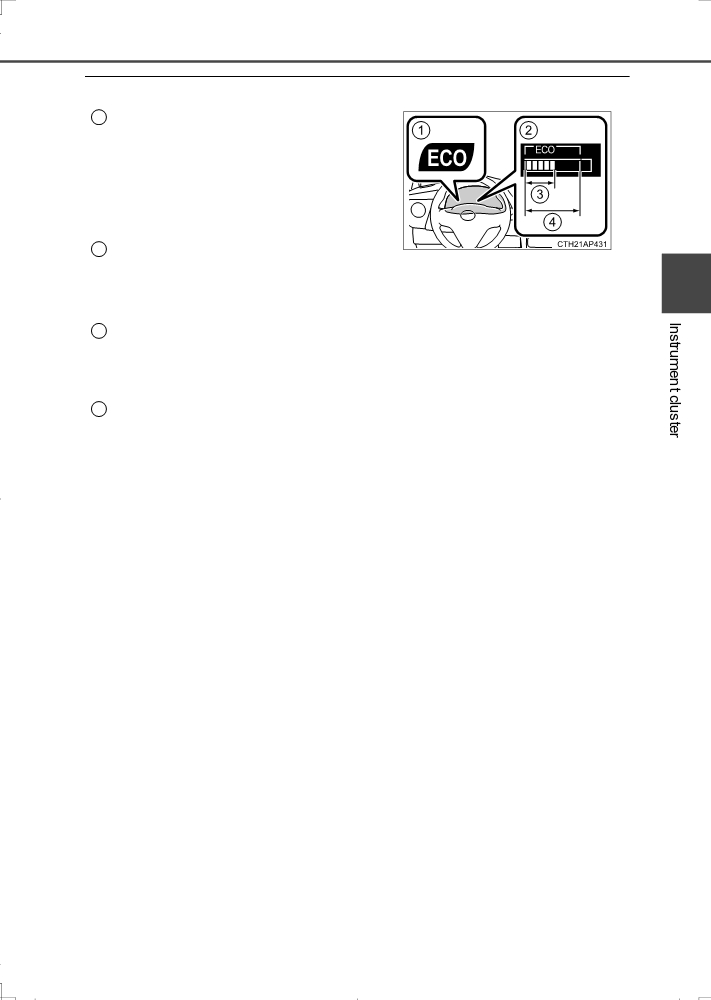

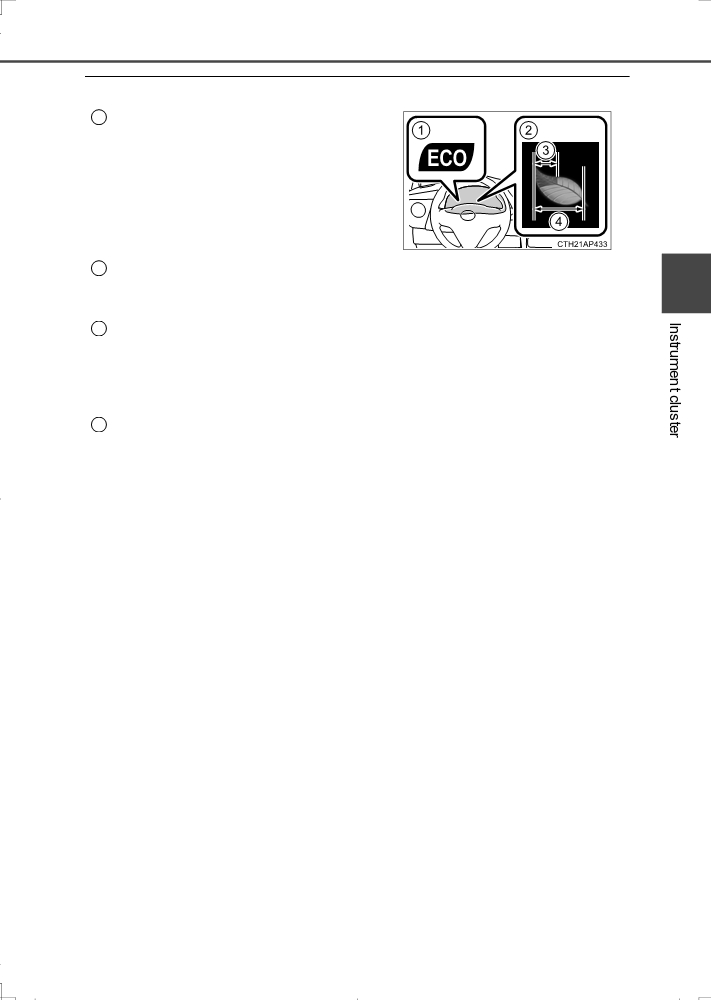

■ Eco Driving Indicator (if equipped)

1

Eco Driving Indicator Light

During Eco-friendly acceleration

(Eco

driving), the Eco Driving Indicator Light

will turn on. When the acceleration

exceeds the Zone of Eco driving, or

when the vehicle is stopped, the light

turns off.

Eco Driving Indicator Zone Display

2

Suggests the Zone of Eco driving with

2

current Eco driving ratio based on

acceleration.

Eco driving ratio based on acceleration

3

If the acceleration exceeds the Zone of Eco driving, the right side of the

Eco Driving Indicator Zone Display blinks and the Eco Driving Indicator

light will turn off.

Zone of Eco driving

4

Eco Driving Indicator will not operate under the following conditions:

● The shift lever is in any position other than D.

● A paddle shift switch (if equipped) is operated.

● Sport mode is selected.

● The vehicle speed is approximately 130 km/h (80 mph) or higher.

■ Stop & Start system operation time pop-up display (if equipped)

When enabled (P. 104), the current Stop & Start system operation time will

be displayed on the multi-information display.

■Brightness of the meters

When the tail lights are turned on, the brightness will be reduced slightly

unless the meters are set to the maximum brightness level.

■ When disconnecting and reconnecting battery terminals

The following information data will be reset:

● Average fuel consumption

● Driving range

■ Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is

characteristic of liquid crystal displays, and there is no problem continuing to

use the display.

2. Instrument cluster

107

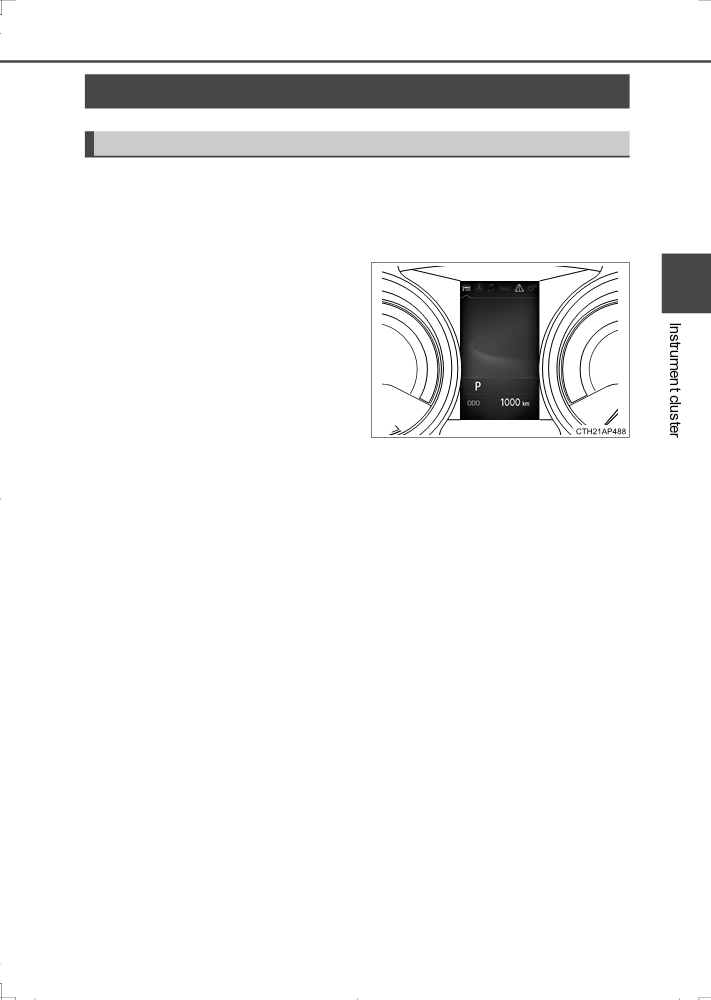

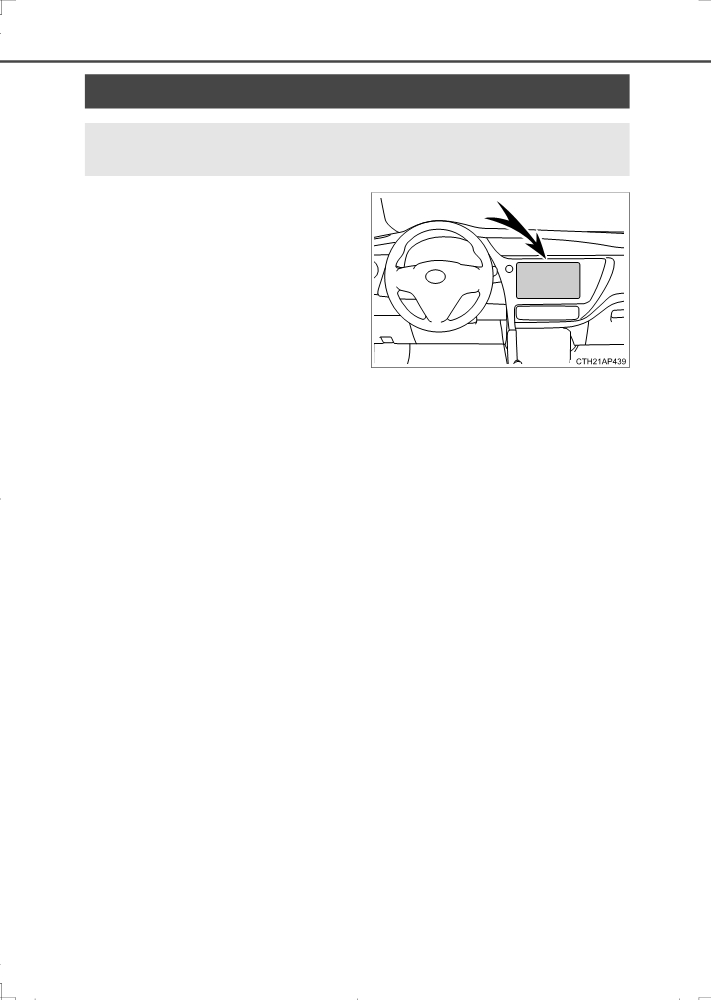

Multi-information display (2-ring meter)

Display content

The multi-information display presents the driver with a variety of driv-

ing-related data, such as the current outside temperature. The multi-

information display can also be used to change the display settings

and other settings.

● Outside temperature (P. 98)

2

● Shift position and gear position

indicator (if equipped)

(P. 223)

● Pop-up display

In some situations a warning

message or the operation sta-

tus of a system will be tempo-

rarily displayed on the multi-

information display.

On some models: Some pop-up displays can be set on/off. (P. 113)

● Trip information/Distance until next engine oil change (P. 109)

Displays the following items:

• Odometer

• Trip meter

• Distance until next engine oil change (if equipped)

108

2. Instrument cluster

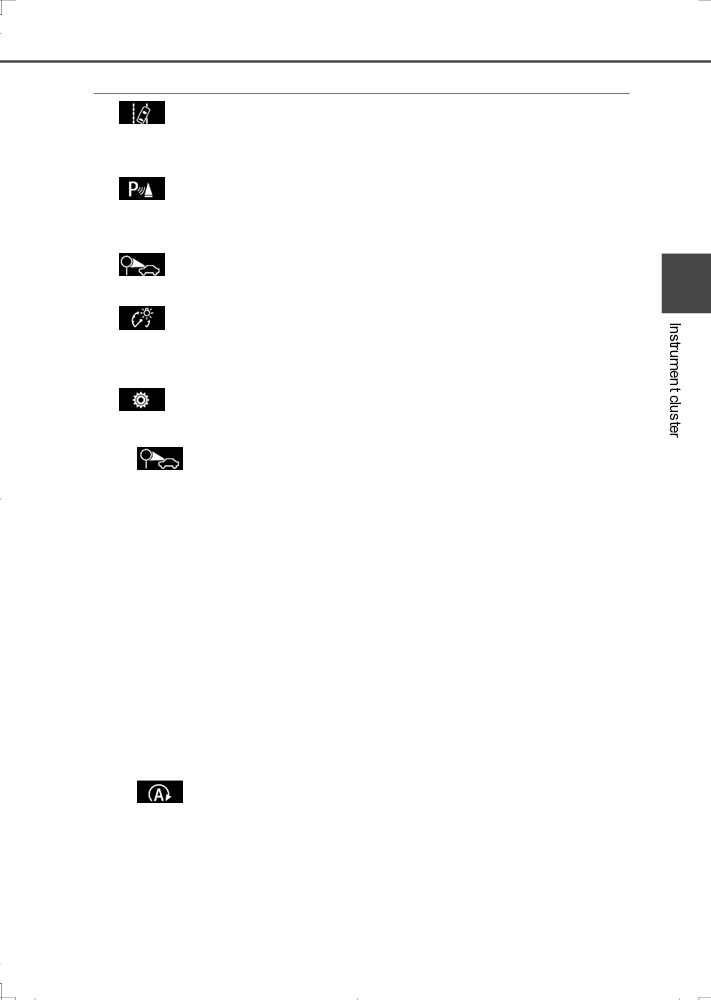

● Menu icons (P. 110)

Select a menu icon to display its content.

To display the menu icons, press the

or

switch on the

steering wheel.

Drive information (P. 111)

Select to display various drive data.

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance

• Compass display (north-up display/heading-up display)

Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the meter

using the meter control switches.

Driving assist system information (if equipped)

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert) (P. 271)

• RSA (Road Sign Assist) (P. 280)

Warning message display (P. 557)

Select to display warning messages and measures to be taken if a

malfunction is detected.

Settings display (P. 113)

Select to change the meter display settings and other settings.

2. Instrument cluster

109

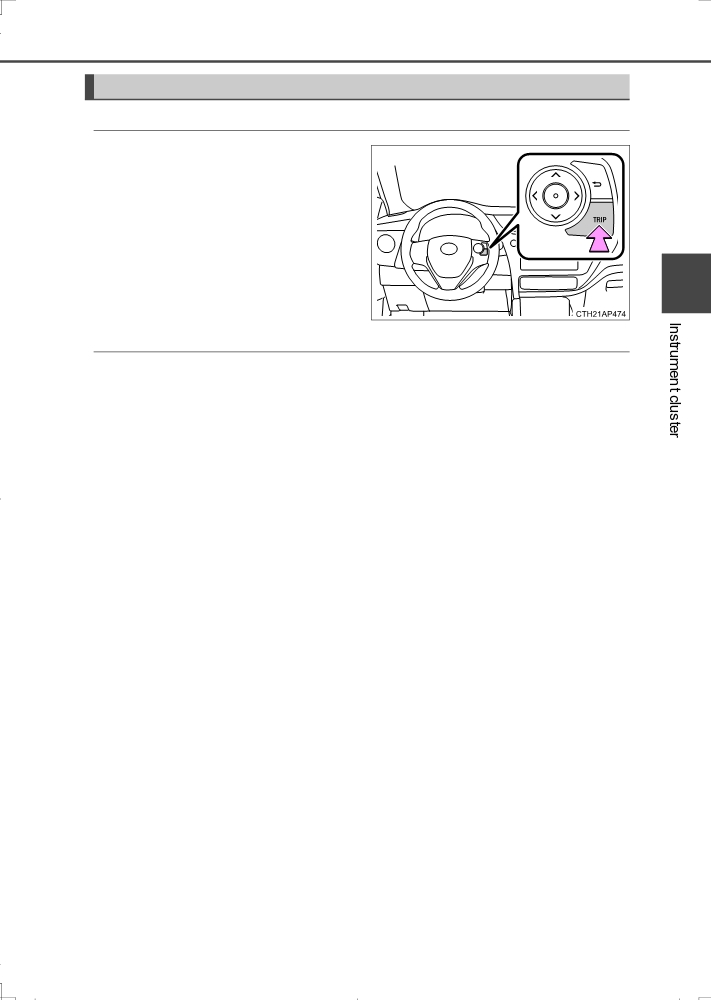

Trip information/Distance until next engine oil change

◆ Changing the display

To change the displayed item,

press the “TRIP” switch.

Each time the switch is pressed,

the displayed item will be

changed.

2

◆ Display items

■ Odometer

Displays the total distance the vehicle has been driven.

■ Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter

was last reset. Trip meters A and B can be used to record and dis-

play different distances independently.

To reset, display the desired trip meter and press and hold the “TRIP”

switch.

■ Distance until next engine oil change (if equipped)

Displays the distance the vehicle can be driven until an oil change

is necessary.

The distance until the next engine oil change will also be displayed in

the following situations:

• When the engine switch is turned to the “ON” position (vehicles with-

out a smart entry & start system) or IGNITION ON mode (vehicles

with a smart entry & start system).

• When a warning message indicating that oil maintenance should be

performed soon or is required is displayed.

• Resetting: P. 478

110

2. Instrument cluster

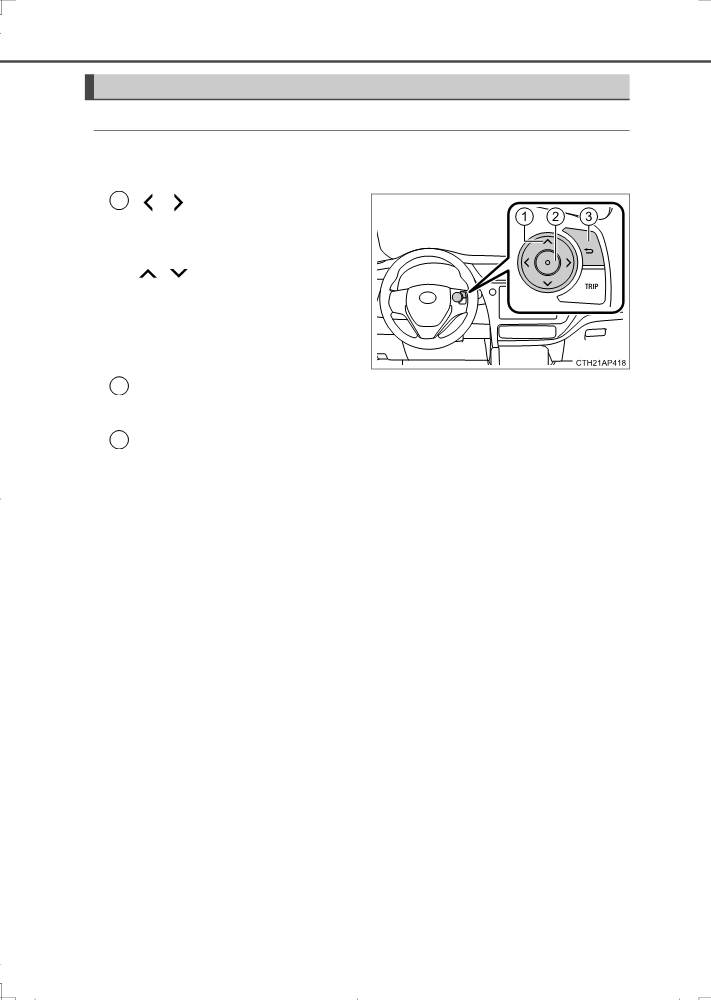

Menu icons

◆ Operating the meter control switches

The multi-information display is operated using the meter control

switches.

1

: Display the menu

icons/select menu

icons

: Change displayed

item, scroll up/down

the screen and

move the cursor up/

down

2

Press: Enter/Set

Press and hold: Reset

3

Return to the previous screen

2. Instrument cluster

111

◆ Drive information

■ Drive information 1/Drive information 2/Drive information 3

Displays drive information such as the following:

● Drive information 1

• Current fuel consumption (gauge display)

• Average fuel economy (after reset)

● Drive information 2

• Distance (driving range)

• Average vehicle speed (after reset)

2

● Drive information 3 (if equipped)

• Stop & Start system operation time (after start)

• Stop & Start system operation time (after reset)

Displayed items (listed below) can be changed on the settings dis-

play. (P. 113)

Item

Content

Current fuel con-

Displays the current rate of fuel consump-

sumption

tion on a gauge display

(gauge display)

Current fuel con-

Displays the current rate of fuel consump-

sumption

tion as a number

(numeric display)

Average

fuel

Displays average fuel consumption since

economy

display reset*2, 3

(after reset)

Average

fuel

Displays average fuel consumption since

economy

engine start*3

(after start)

Average

fuel

Displays average fuel consumption since

economy

refuel*3, 4

(after refuel)

Displays the total amount of time the engine

Stop & Start sys-

has been stopped due to the operation of

tem operation time

the Stop & Start system since the system

(after reset) *1

was last reset*2

Displays the amount of time the engine has

Stop & Start sys-

been stopped due to the operation of the

tem operation time

Stop & Start system since the engine was

(after start)*1

started

112

2. Instrument cluster

Item

Content

Average vehicle

Displays average vehicle speed since dis-

speed (after reset)

play reset*2

Average vehicle

Displays average vehicle speed since

speed (after start)

engine start

Elapsed

time

Displays elapsed time since display reset*2

(after reset)

Elapsed

time

Displays elapsed time since engine start

(after start)

Distance

Displays driving range with remaining

(driving range)

fuel*4, 5

Distance

Displays drive distance since vehicle start

(after start)

Blank

No item

*

1: If equipped

*2: Values that can be reset will be displayed with a circle (

) in the upper

right corner.

To reset, display the desired item and press and hold

switch. If both

displayed items are resettable, a reset selection screen will appear.

*3: Use the displayed fuel consumption as a reference.

*4: When only a small amount of fuel is added to the tank, the display may not

be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without

turning the engine switch off, the display may not be updated.

*5: This distance is computed based on your average fuel consumption. As a

result, the actual distance that can be driven may differ from that dis-

played.

■ Eco Driving Indicator (if equipped)

P. 115

■ Digital speedometer

Displays vehicle speed as a number.

2. Instrument cluster

113

◆ Settings display

■

LDA (Lane Departure Alert) warning sensitivity

(if

equipped)

LDA warning sensitivity can be set to 2 different levels.

■

Toyota parking assist-sensor (if equipped)

Select to activate/deactivate the Toyota parking assist-sensor sys-

tem.

■

RSA (Road Sign Assist) (if equipped)

2

Select to activate/deactivate the RSA system.

■

Meter light control

Select to adjust the brightness of the meters when in night mode*.

*: Night mode: P. 116

■

Other settings

Select to change the following settings:

●

RSA (Road Sign Assist) setting (if equipped)

• Notification method (excess speed/other warnings)

Select to change the notification method of the following warn-

ings to no notification/display only/display and buzzer.

Excess speed warning:

Warns the driver if the vehicle exceeds the speed displayed on

the speed limit sign on the multi-information display.

Other warnings:

Warns the driver if the system determines that the vehicle is

overtaking when a no overtaking sign is displayed on the multi-

information display.

• Excess speed notification level

Select to set the speed threshold over which the excess speed

warning starts to operate when a speed limit sign is displayed

on the multi-information display.

●

Stop & Start system setting (if equipped)

The length of time the Stop & Start system will operate when the

“A/C” switch of the air conditioning system is on can be set to 2

different levels.

114

2. Instrument cluster

● Units

Select to change the units of measure displayed on the multi-

information display.

●

Eco Driving Indicator Light (if equipped)

Select to activate/deactivate the Eco Driving Indicator Light.

● Drive information 1/Drive information 2/Drive information 3

Select to select up to 2 items that will be displayed on the Drive

information 1 screen, Drive information 2 screen and Drive infor-

mation 3 screen (if equipped) respectively. (P. 111)

● Pop-up display

Select to set the following pop-up displays on/off.

• Incoming call display of the hands-free phone system

(if

equipped)

• Route guidance display of the navigation system-linked sys-

tem (if equipped)

• Stop & Start system (if equipped)

● Initialization

Select to reset the meter display settings. (P. 636)

■

Language

Select to change the language on the display.

2. Instrument cluster

115

■ Eco Driving Indicator (if equipped)

1

Eco Driving Indicator Light

During Eco-friendly acceleration

(Eco

driving), the Eco Driving Indicator Light

will turn on. When the acceleration

exceeds the Zone of Eco driving, or

when the vehicle is stopped, the light

turns off.

2

Eco Driving Indicator Zone Display

2

Suggests the Zone of Eco driving with current Eco driving ratio based on

acceleration.

Eco driving ratio based on acceleration

3

The number of green segments displayed on the Eco Driving Indicator

Zone Display decreases/increases depending on the acceleration.

If the acceleration exceeds the Zone of Eco driving, all of the green seg-

ments will disappear and the Eco Driving Indicator light will turn off.

Zone of Eco driving

4

Eco Driving Indicator will not operate under the following conditions:

● The shift lever is in any position other than D.

● A paddle shift switch (if equipped) is operated.

● Sport mode is selected.

● The vehicle speed is approximately 130 km/h (80 mph) or higher.

■ Stop & Start system information pop-up display (if equipped)

In some situations the following Stop & Start system information will be tem-

porarily displayed on the multi-information display:

● Current Stop & Start system operation time

● Stop & Start operational status messages (P. 294)

2. Instrument cluster

117

WARNING

■ Caution for use while driving

● When operating the multi-information display while driving, pay extra

attention to the safety of the area around the vehicle.

● Do not look continuously at the multi-information display while driving as

you may fail to see pedestrians, objects on the road, etc. ahead of the

vehicle.

■ The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal

2

information display. At extremely low temperatures, the information display

monitor may respond slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear

number appearing on the display. This lag could cause the driver to down-

shift again, causing rapid and excessive engine braking and possibly an

accident resulting in death or injury.

■ Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that

the vehicle is parked in a place with adequate ventilation. In a closed area

such as a garage, exhaust gases including harmful carbon monoxide (CO)

may collect and enter the vehicle. This may lead to death or a serious

health hazard.

NOTICE

■ While setting up the display

To prevent battery discharge, ensure that the engine is running while setting

up the display features.

118

2. Instrument cluster

Fuel consumption information

Fuel consumption information can be displayed on the naviga-

tion/multimedia system.

Navigation/multimedia system

: If equipped

Content   ..  5  6  7  8   ..
