6-3. Do-it-yourself maintenance
323
Hood

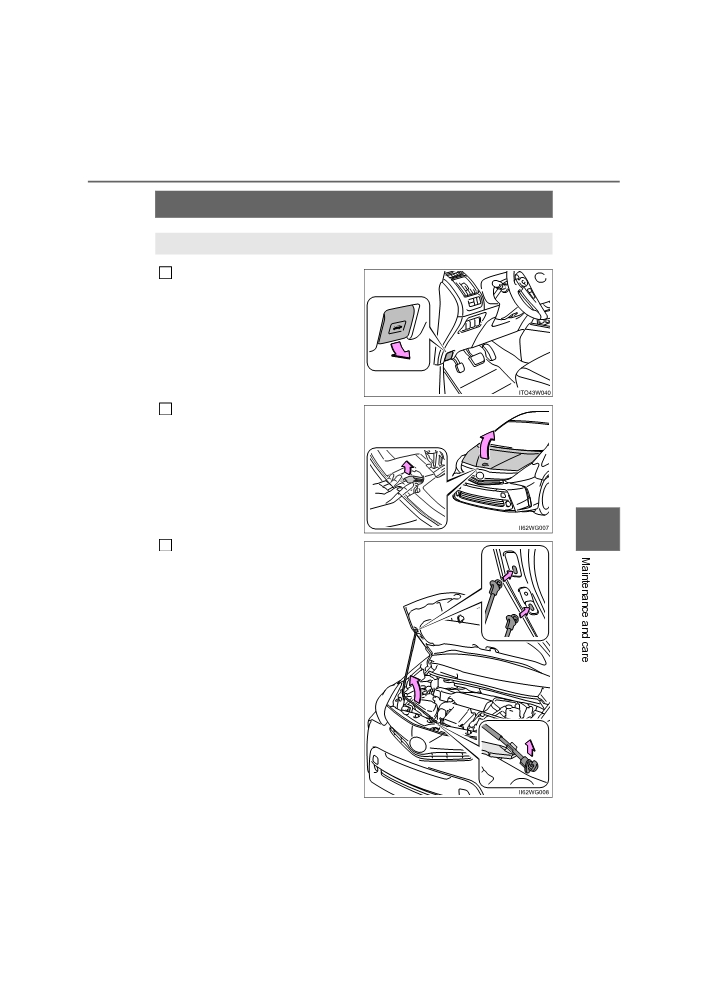

Release the lock from the inside of the vehicle to open the hood.
1
Pull the hood lock release lever.
The hood will pop up slightly.
2
Pull up the auxiliary catch lever
and lift the hood.
6
Hold the hood open by inserting
3
the supporting rod into the slot.
Use the upper slots to open the
hood normally, or use the lower
slots when the hood needs to be
opened wide.
PRIUS +_OM_OM47B24E_(EE)
324
6-3. Do-it-yourself maintenance
WARNING
■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
325

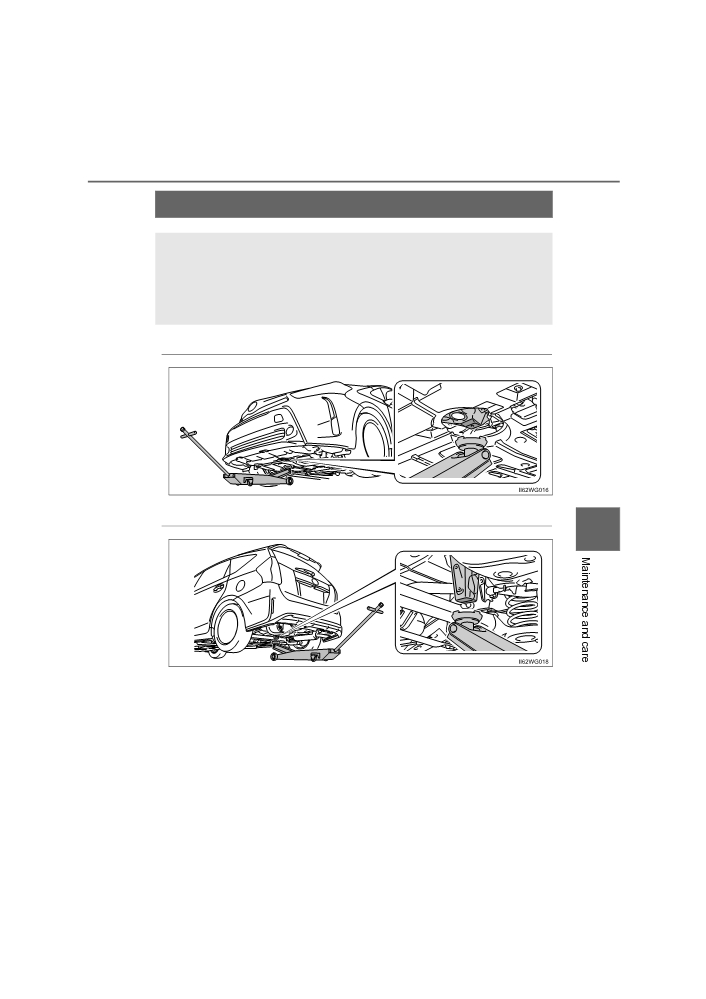

Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
◆ Front
◆ Rear
6
PRIUS +_OM_OM47B24E_(EE)
326
6-3. Do-it-yourself maintenance
WARNING

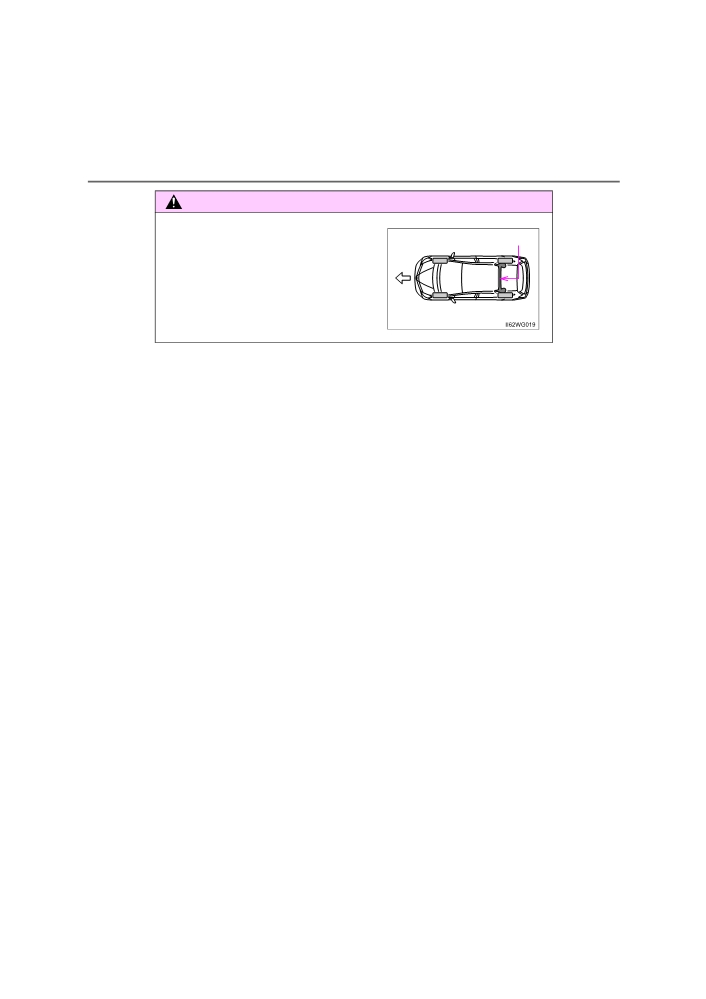

When raising the vehicle, do not set the
Rear suspension
floor jack under the rear suspension.
Front
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
327

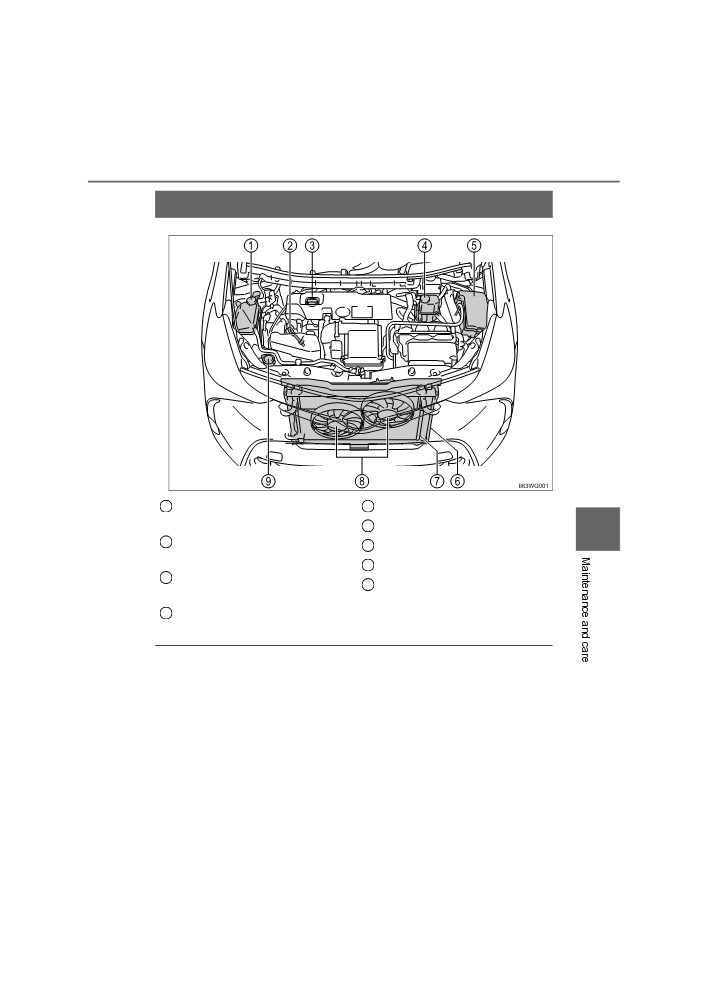

Engine compartment
1
Engine coolant reservoir
5
Fuse box
(→P. 363)
(→P. 333)
6
Radiator
(→P. 334)
6
2
Engine oil level dipstick
7
Condenser
(→P. 334)
(→P. 329)
8
Electric cooling fans
3
Engine oil filler cap
9
Washer fluid tank
(→P. 335)
(→P. 331)
4
Power control unit coolant
reservoir
(→P. 333)
■ 12-volt battery
→P. 337
PRIUS +_OM_OM47B24E_(EE)
328
6-3. Do-it-yourself maintenance

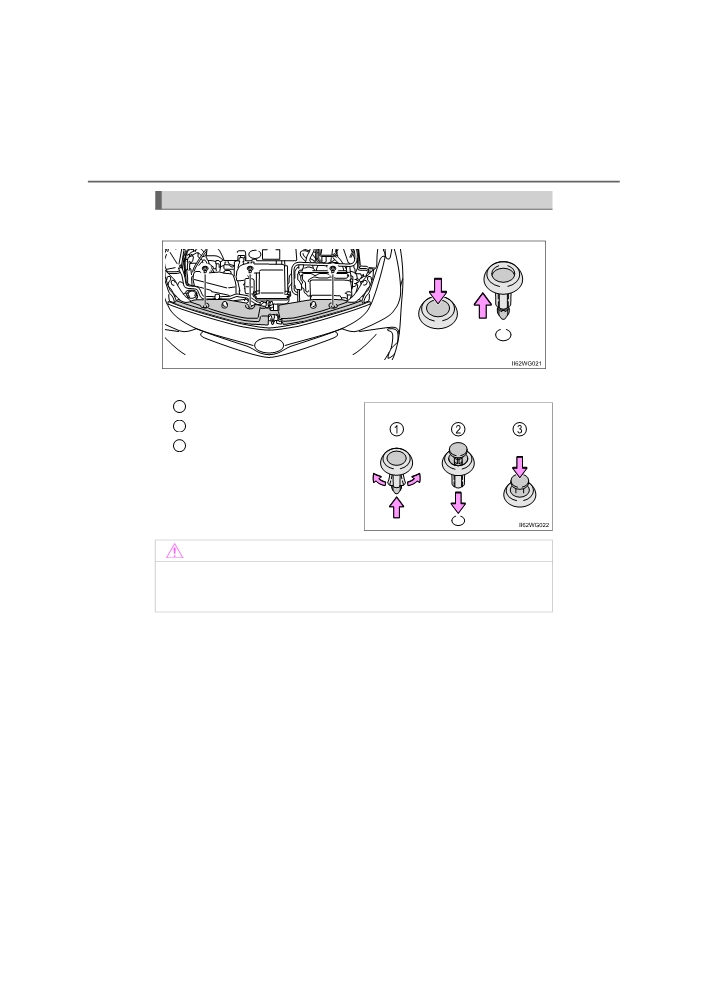

Engine compartment cover
■ Removing the engine compartment cover
■ Installing the clips
1
Push up center portion
2
Insert
3
Press
NOTICE
■ After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
329
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil

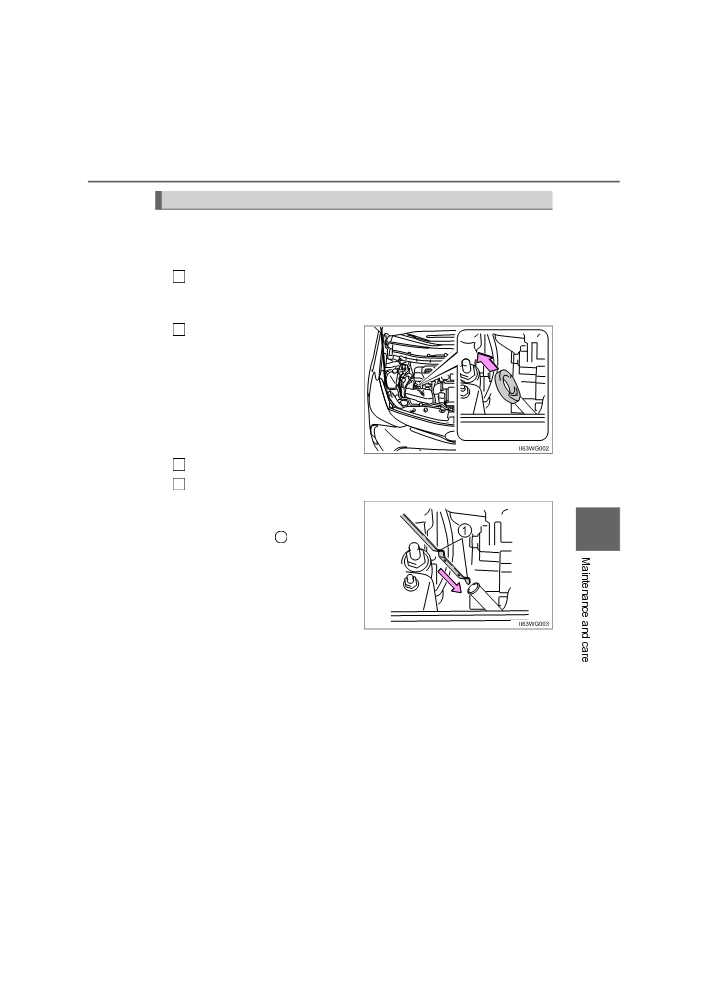

Park the vehicle on level ground. After warming up the engine
1
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
2
Holding a rag under the end,
pull the dipstick out.
3
Wipe the dipstick clean.
4
Flat dipstick: Reinsert the dipstick fully.
Non-flat dipstick: Reinsert
the dipstick fully with its pro-
6
truding areas ( 1 in the illus-
tration)
pointing towards
engine.
PRIUS +_OM_OM47B24E_(EE)
330
6-3. Do-it-yourself maintenance
5

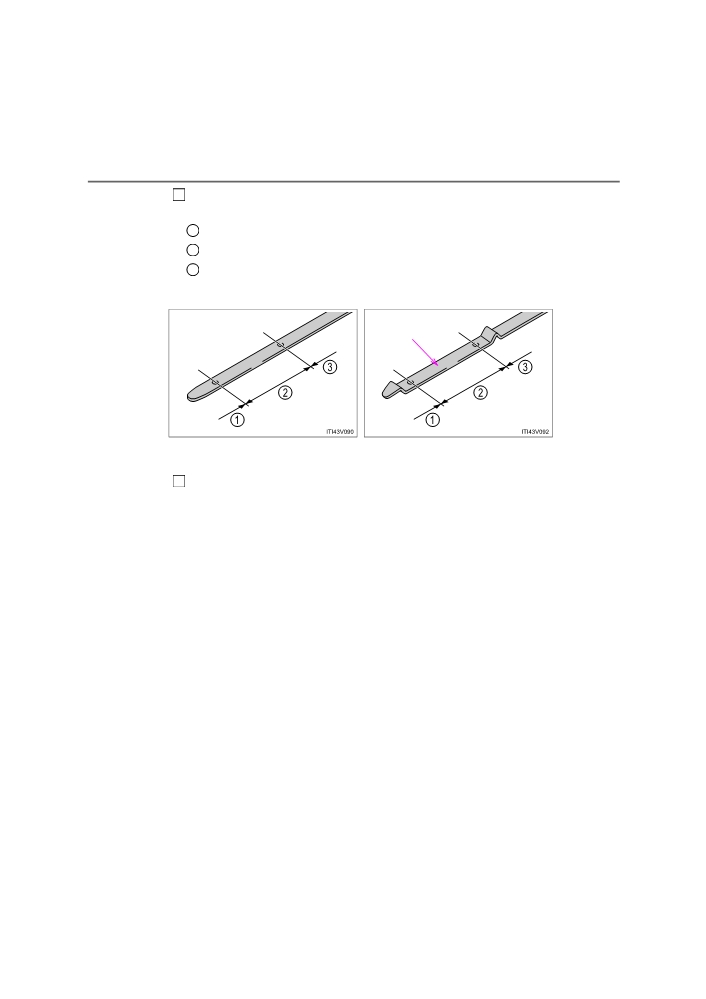

Holding a rag under the end, pull the dipstick out and check the
oil level.
1
Low
2
Normal
3
Excessive
X Flat dipstick
X Non-flat dipstick
Measuring side
The shape of the dipstick may differ depending on the type of vehicle or
engine.
Wipe the dipstick and reinsert it fully.
6
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
331
■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Engine oil selection
→P. 467
Oil quantity (Low → Full)
1.5 L (1.6 qt., 1.3 lmp. qt.)
Items
Clean funnel
1

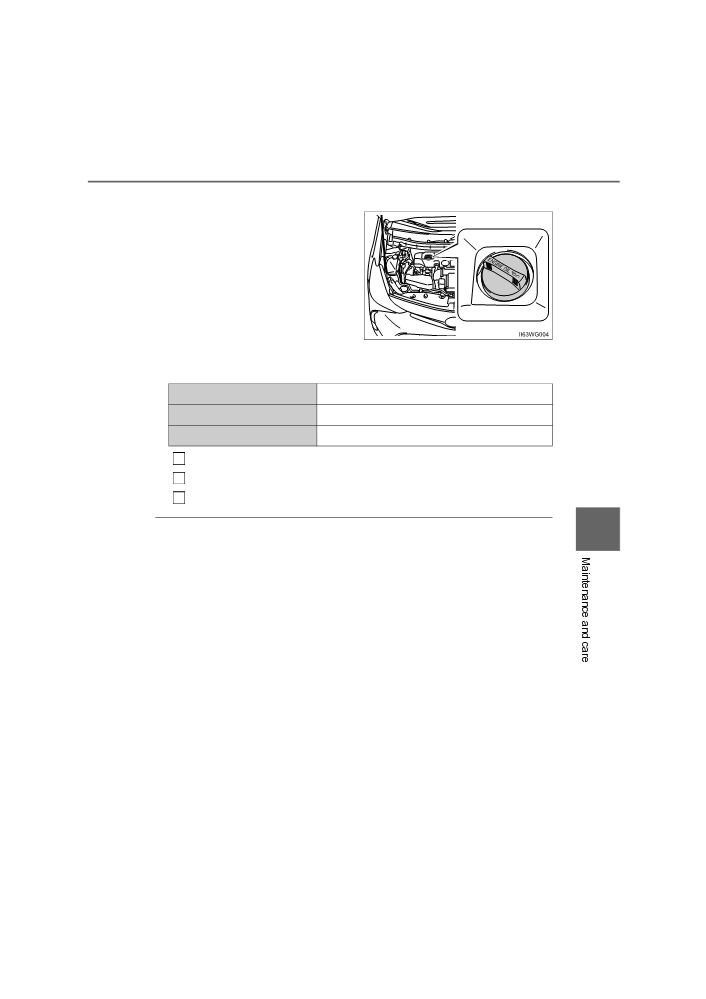

Remove the oil filler cap by turning it counterclockwise.
2
Add engine oil slowly, checking the dipstick.
3
Install the oil filler cap by turning it clockwise.
6
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
PRIUS +_OM_OM47B24E_(EE)
332
6-3. Do-it-yourself maintenance
WARNING
■ Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, service station or auto parts store for
information concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
333
Coolant
The coolant level is satisfactory if it is between the full (“FULL” or “F”)
and low (“LOW” or “L”) lines on the reservoir when the hybrid system
is cold.

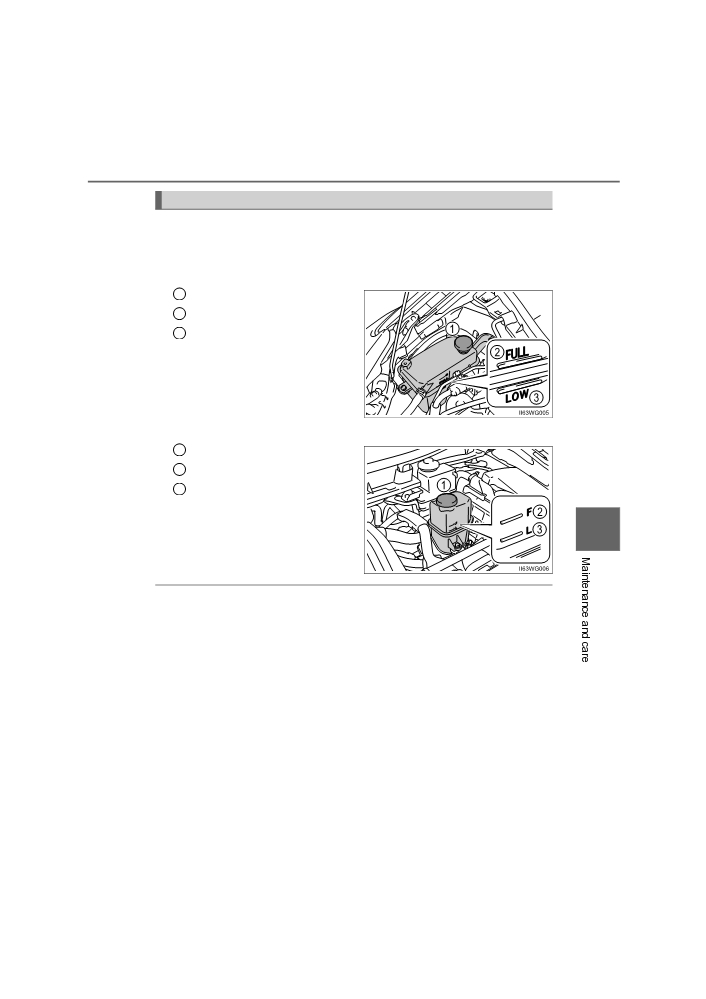

■ Engine coolant reservoir
1
Reservoir cap
2
“FULL” line
3
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. (→P. 457)
■ Power control unit coolant reservoir
1
Reservoir cap
2
“F” line
3
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
6
line. (→P. 457)
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35°C [-31°F])
For more details about coolant, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
PRIUS +_OM_OM47B24E_(EE)
334
6-3. Do-it-yourself maintenance
WARNING
■ When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the hybrid system is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.
■ When the electric cooling fans are operating
Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fans or radiator grille.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
335

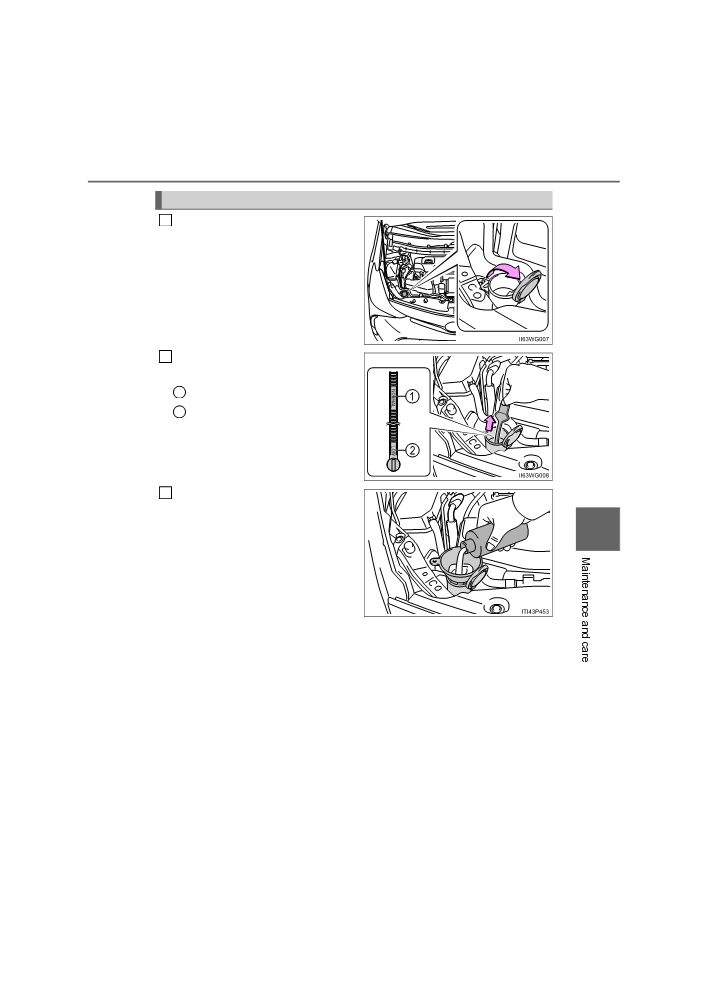

Washer fluid
1
Open the lid.
2
Check the washer fluid level on
the level gauge.
1
“NORMAL”
2
“LOW”
If the washer fluid level is at
3
“LOW”, add washer fluid.
6
PRIUS +_OM_OM47B24E_(EE)
336
6-3. Do-it-yourself maintenance
WARNING
■ When adding washer fluid
Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
337

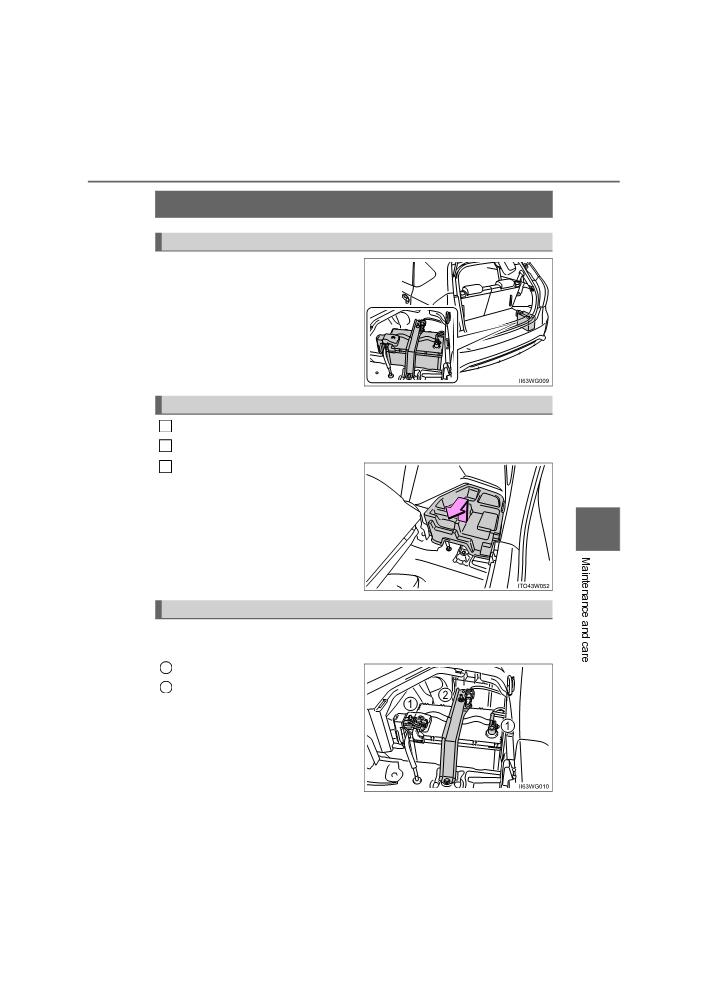

12-volt battery
Location
The 12-volt battery is located in
the right-hand side of luggage
compartment.
Removing the 12-volt battery maintenance cover
1
Open the center and right side deck boards. (→P. 299)
2
Remove the center auxiliary box. (→P. 420)
3
Remove the right side auxiliary
box.
6
Exterior
Make sure that the 12-volt battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
1
Terminals
2
Hold-down clamp
PRIUS +_OM_OM47B24E_(EE)
338
6-3. Do-it-yourself maintenance
Caution symbols
The meanings of each caution symbol on the top of the 12-volt battery
are as follows:
No smoking, no naked
Battery acid
flames, no sparks
Note operating
Shield eyes
instructions
Keep away from
Explosive gas
children
■ Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
■ After recharging/reconnecting the 12-volt battery
● Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.
● Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.
● The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn off
the power before disconnect the 12-volt battery. Take extra care when con-
necting the 12-volt battery if the power switch mode prior to discharge is
unknown.
● Restart the hybrid system, depress the brake pedal, and confirm that it is
possible to shift into each shift position.
If the system will not start even after multiple attempts at all methods above,
contact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
PRIUS +_OM_OM47B24E_(EE)
6-3. Do-it-yourself maintenance
339
WARNING
■ Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
● Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the 12-volt battery.
● Keep children away from the 12-volt battery.
■ Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-
volt battery in a garage or closed room where there is insufficient ventila-
tion.
■ How to recharge the 12-volt battery
Only perform a slow charge (4.2 A or less). The 12-volt battery may explode
if charged at a quicker rate.
■ Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
6
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
●If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
PRIUS +_OM_OM47B24E_(EE)
