Toyota GT86 (2016 year). Instruction - part 11
1-7. Safety information
Child restraint systems with a top strap

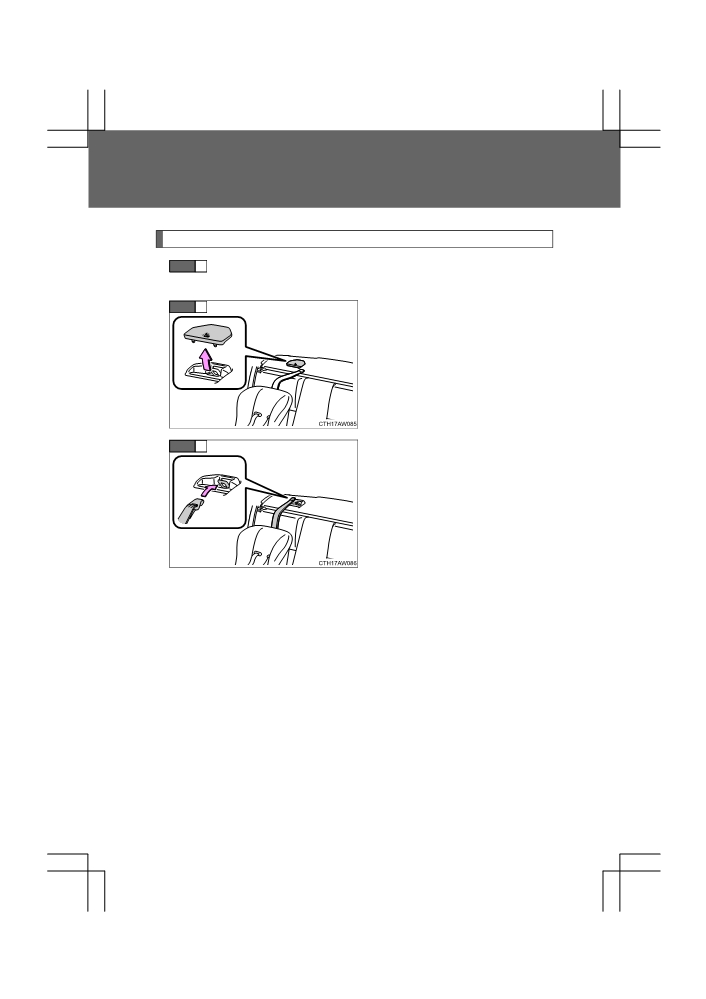

STEP
1
Secure the child restraint using a seat belt or ISOFIX rigid
anchor.
STEP
2
Remove the anchor bracket
cover.
Store the removed cover in a safe
place.
STEP
3
Latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
150
86_EE (OM18071E)
1-7. Safety information
■ When installing a child restraint system (without a lock-off) using a
seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
1
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)
■ When installing a child restraint system with ISOFIX rigid anchors and
a top strap
Depending on the child restraint system's size and shape, if the child
restraint system is installed to the fixing bars first, it may not be possible to
attach the top strap to the anchor bracket.
In that case, first temporarily attach the top strap to the anchor bracket,
install the child restraint system using the ISOFIX rigid anchors and then
tighten the top strap.
151
86_EE (OM18071E)
1-7. Safety information
WARNING

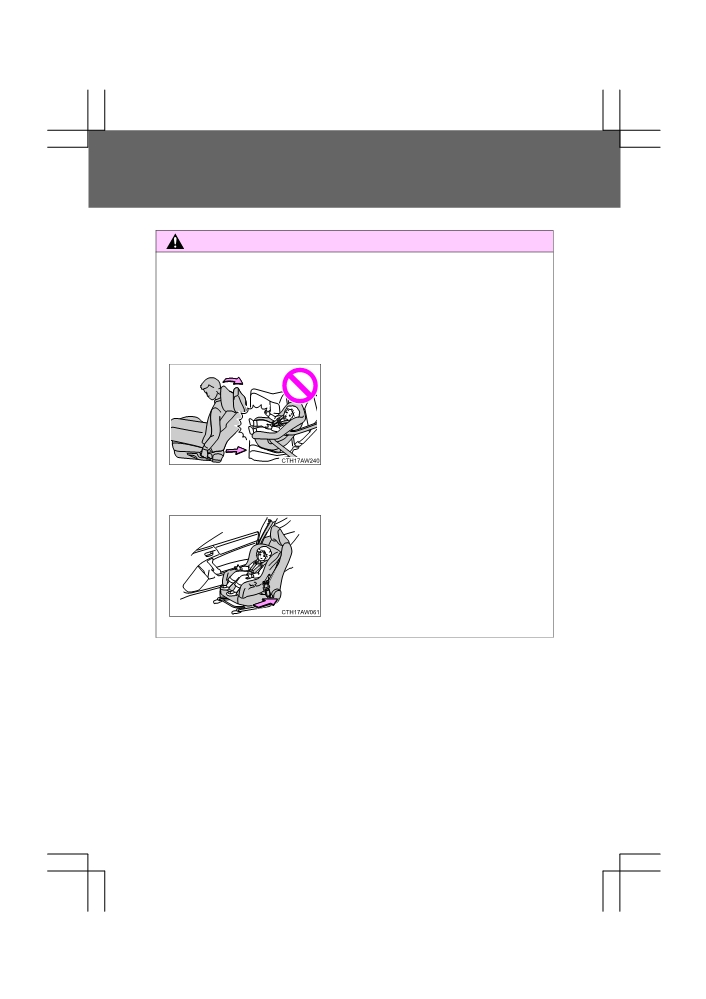

■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be injured or even killed in the event of sudden braking,
sudden swerving or an accident.
● If the driver's seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat
(right-hand
drive vehicles).
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).
152
86_EE (OM18071E)
1-7. Safety information
WARNING
■ When installing a child restraint system
● Never use a rear-facing child restraint
system on the front passenger seat
1
when the airbag manual on-off switch is
on. (→P. 155)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

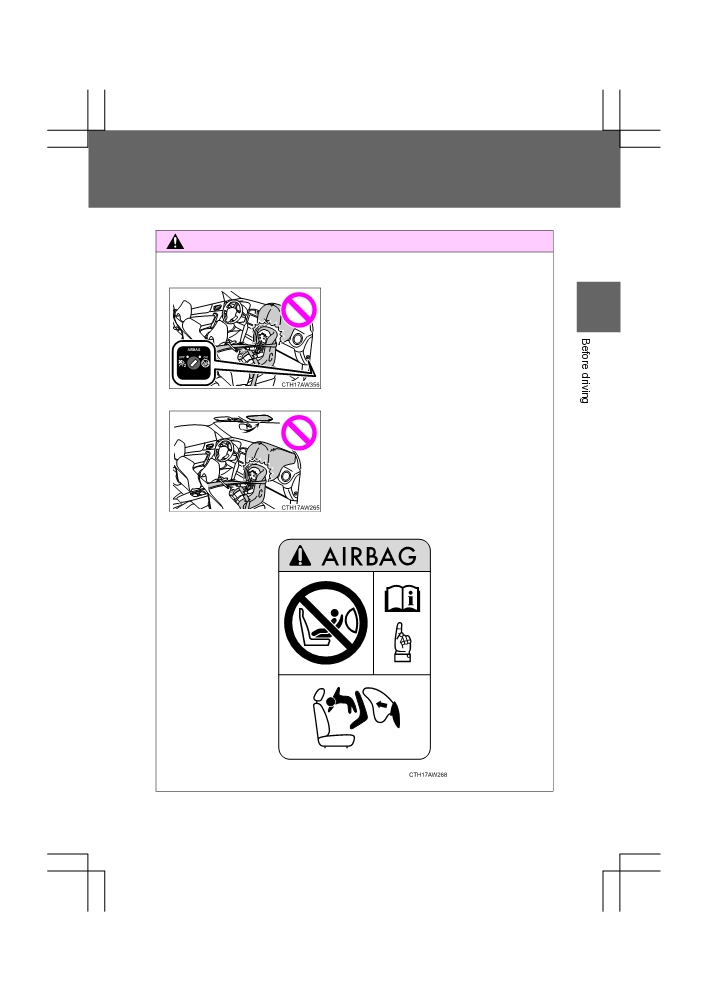

● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.
153
86_EE (OM18071E)
1-7. Safety information
WARNING
■ When installing a child restraint system
● If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
●When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child's shoulder. The belt should be
kept away from the child's neck, but not so that it could fall off the child's
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
●Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, choking or other serious injuries may result
in death.
If this occurs and the buckle cannot be unfastened, scissors should be
used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerve or an accident.
154
86_EE (OM18071E)
1-7. Safety information

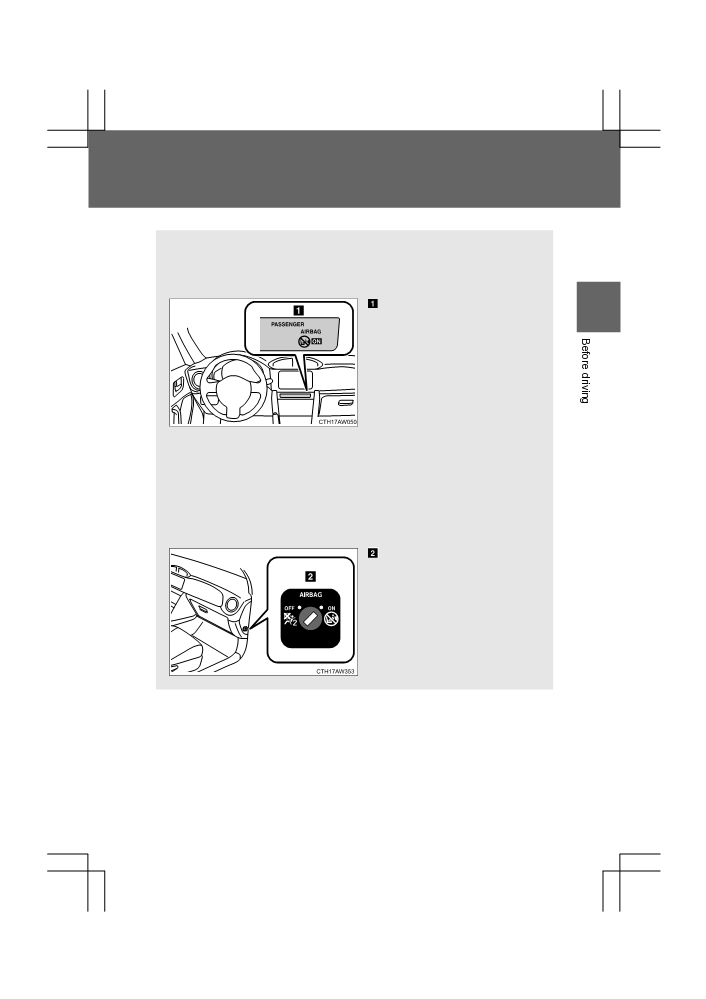

Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system on
the front passenger seat.
Airbag manual on-off indica-
1
tor
Vehicles without a smart
entry & start system
This indicator light turns on
when the airbag system is on
(only when the engine switch is
in the “ON” position).
Vehicles with a smart entry &
start system
This indicator light turns on
when the airbag system is on
(only when the
“ENGINE
START STOP” switch is in
IGNITION ON mode).
Airbag manual on-off switch
155
86_EE (OM18071E)
1-7. Safety information
Deactivating the front passenger airbag

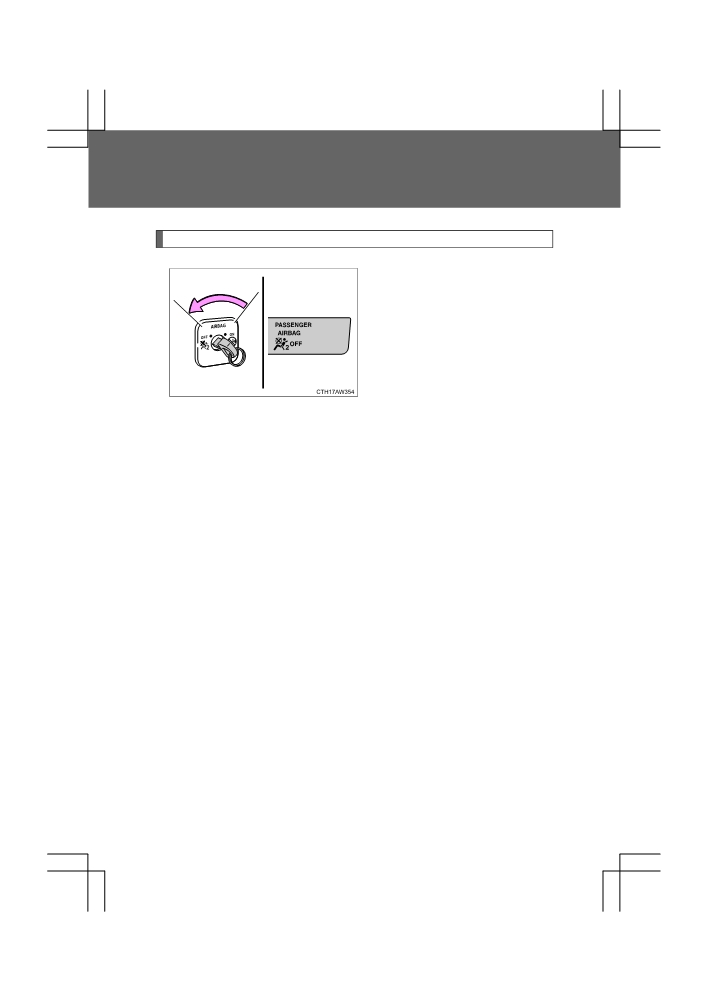

Vehicles without a smart entry
& start system
Insert the key into the cylinder
and turn to the “OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry &
start system
Insert the mechanical key into
the cylinder and rotate to the
“OFF” position.
The “OFF” indicator light turns on
(only when the “ENGINE START
STOP” switch is in IGNITION ON
mode).
156
86_EE (OM18071E)
1-7. Safety information
■ Airbag manual on-off indicator information
●The front passenger’s front airbag ON and OFF indicators shows you the
status of the front passenger’s SRS front airbag. When the engine switch
is turned to the “ON” position (vehicles without a smart entry & start sys-
1
tem) or the “ENGINE START STOP” switch is turned to IGNITION ON
mode (vehicles with a smart entry & start system), both the ON and OFF
indicators illuminate while the system is checked, after which both indica-
tors turn off. After that, “ON” or “OFF” on the ON-OFF indicator will be
illuminated according to the position of the airbag manual on-off switch.
●If any of the following problems occur, it is possible that there is a mal-
function in the system. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• Neither “ON” nor “OFF” comes on.
• The indicator light does not change when the airbag manual on-off
switch is switched to “ON” or “OFF”.
WARNING
■ When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.
157
86_EE (OM18071E)
1-7. Safety information
158
86_EE (OM18071E)
When driving
2
2-1. Driving procedures
2-3. Operating the lights and
Driving the vehicle
160
windshield wipers
Engine (ignition) switch
Headlight switch
231
(vehicles with a
Fog light switch
237
smart entry &
Windshield wipers and
start system)
174
washer
238
Engine (ignition) switch
(vehicles without a
2-4. Using other driving
smart entry &
systems
start system)
183
Cruise control
241
Automatic transmission
186
Driving assist systems
246
Manual Transmission
193
Hill-start assist control
253
Turn signal lever
197
Parking brake
198
2-5. Driving information
Horn
199
Cargo and luggage
257
Winter driving tips
259
2-2. Instrument cluster
Trailer towing
263
Gauges and meters
200
Indicators and warning
lights
204
Multi-information display
(monochrome display)
210
Multi-information display
(color display)
215
159
86_EE (OM18071E)
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■ Starting the engine
→P. 174, 183
■ Driving
Vehicles with an automatic transmission
STEP
1
With the brake pedal depressed, shift the shift lever to D.
(→P. 186)
STEP
2
Release the parking brake. (→P. 198)
STEP
3
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission
STEP
1
While depressing the clutch pedal, shift the shift lever to 1.
(→P. 193)
STEP
2
Release the parking brake. (→P. 198)
STEP
3
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Vehicles with an automatic transmission
STEP
1
With the shift lever in D, depress the brake pedal.
STEP
2
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P or N. (→P. 186)
Vehicles with a manual transmission
STEP
1
While depressing the clutch pedal, depress the brake
pedal.
STEP
2
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (→P. 193)
160
86_EE (OM18071E)
2-1. Driving procedures
■ Parking the vehicle
Vehicles with an automatic transmission
STEP
1
With the shift lever in D, depress the brake pedal.
STEP
2
Shift the shift lever to P. (→P. 186)
STEP
3
Set the parking brake. (→P. 198)
STEP
4
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the
2
engine.
Vehicles with a smart entry & start system:
Press the
“ENGINE START STOP” switch to stop the
engine.
STEP
5
Lock the door, making sure that you have the key on your
person.
If parking on a hill, block the wheels as needed.
Vehicles with a manual transmission
STEP
1
While depressing the clutch pedal, depress the brake
pedal.
STEP
2
Shift the shift lever to N. (→P. 193)
STEP
3
Set the parking brake. (→P. 198)
STEP
4
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the
engine.
Vehicles with a smart entry & start system:
Press the
“ENGINE START STOP” switch to stop the
engine.
STEP
5
Lock the door, making sure that you have the key on your
person.
If parking on a hill, shift the shift lever to 1 or R and block the
wheels as needed.
161
86_EE (OM18071E)
2-1. Driving procedures
Starting off on a steep uphill
Vehicles with an automatic transmission
STEP
1
Make sure that the parking brake is set and shift the shift lever
to D.
STEP
2
Gently depress the accelerator pedal.
STEP
3
Release the parking brake.
Vehicles with a manual transmission
STEP
1
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
STEP
2
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
STEP
3
Release the parking brake.
■ When starting off on an uphill
When enabled, the hill-start assist control can operate. (→P. 253)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be
especially slippery.
●Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
162
86_EE (OM18071E)
2-1. Driving procedures
■ Engine speed while driving (vehicles with an automatic transmission)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting control or down-shifting implementation
to meet driving conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
● When the accelerator pedal is released
●When driving on curves
●When the brake pedal is firmly depressed
2
■ New vehicle break-in driving (the first 1600 km [1000 miles])
The performance and long life of your vehicle are dependent on how you
handle and care for your vehicle while it is new. Follow these instructions
during the first 1600 km (1000 miles):
●Do not allow the engine speed to exceed 4000 rpm except in an emer-
gency.
●Do not drive at one constant engine or vehicle speed for a long time,
either fast or slow.
● Avoid starting suddenly and rapid acceleration, except in an emergency.
● Avoid hard braking, except in an emergency.
The same break-in procedures should be applied to an overhauled
engine, newly mounted engine or when brake pads or brake linings are
replaced with new ones.
■ High friction brake pads (if equipped)
The brake pads and discs are designed for use under high load conditions.
Therefore, brake noise may be generated depending on the vehicle speed,
braking force and vehicle environment (temperature, humidity, etc.).
■ Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of
brake system needs bedding-down of the brake shoes periodically or when-
ever the parking brake shoes and/or drum are replaced. Have any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional perform the bedding down.
163
86_EE (OM18071E)
2-1. Driving procedures
■ After the engine starts
In order to secure a rich exhaust sound when starting the vehicle and envi-
ronmental performance, air intake and exhaust sounds become loud and
vibrations may increase for a little while after the engine starts. This is not a
malfunction.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (→P. 475)

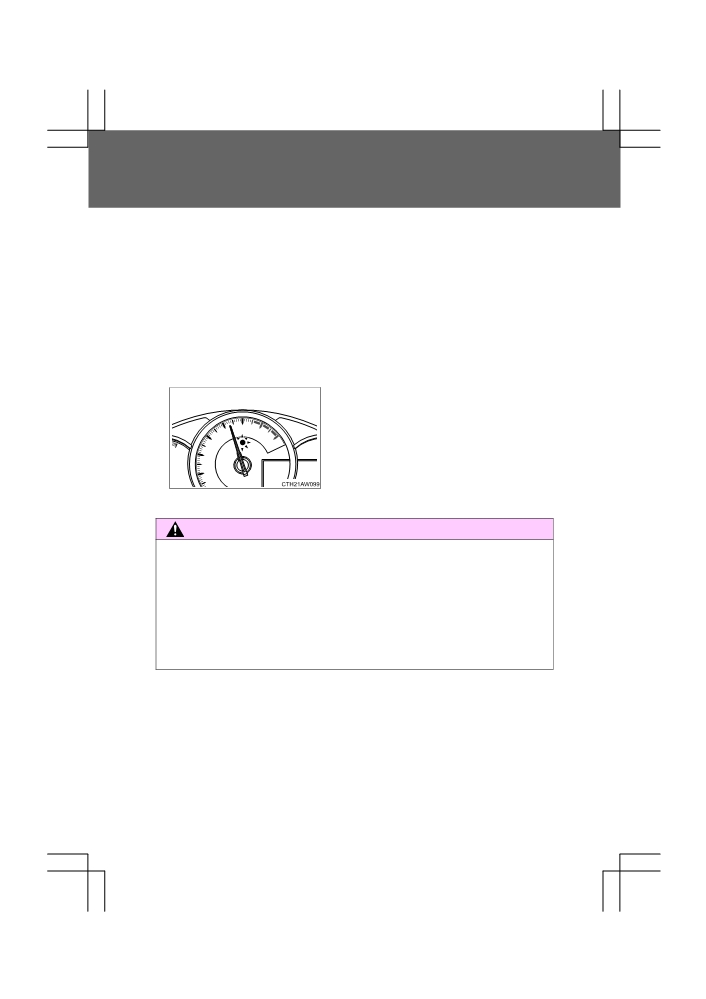

■ REV indicator (if equipped)
When the set engine speed is reached
the REV indicator comes on and a buzzer
sounds to inform the driver. (→P. 225)
(When the engine speed enters the red
zone, the REV indicator flashes regard-
less of settings.)
WARNING
■ When starting the vehicle (vehicles with an automatic transmission)
● Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.
●Firmly depress the brake pedal because engine speed may increase
immediately after starting the engine, when the air conditioning system is
operating, when turning the steering wheel, etc., thereby causing creeping
to become stronger. Apply the parking brake as necessary.
164
86_EE (OM18071E)
