1-7. Safety information
WARNING
■ SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seat belt pretensioners and/or SRS airbag system. We
1
recommend that you have the system checked immediately by your nearest
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. Unless checked and properly repaired, the seat belt
pretensioners and/or SRS airbags will operate improperly (e.g. SRS airbags
may inflate in a very minor collision or not inflate in a severe collision), which
may increase the risk of injury.
●Flashing or flickering of the warning light
●No illumination of the warning light when the engine switch is first turned to
the “ON” position (vehicles without a smart entry & start system), or the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart entry & start system).
●Continuous illumination of the warning light
●Illumination of the warning light while driving
135
86_EE (OM18071E)
1-7. Safety information
Child restraint systems
Toyota strongly urges the use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
safer than installing one to the front passenger seat.
● Choose a child restraint system appropriate to the age and size of
the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(→P. 145)
● If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
● Toyota recommends that you use a child restraint system which
conforms to the regulation “ECE No.44”.
Types of child restraints
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I:
9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II:
15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III:
22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner's manual, the following popular 3 types of child restraint
systems that can be secured with the seat belts are explained.
136
86_EE (OM18071E)

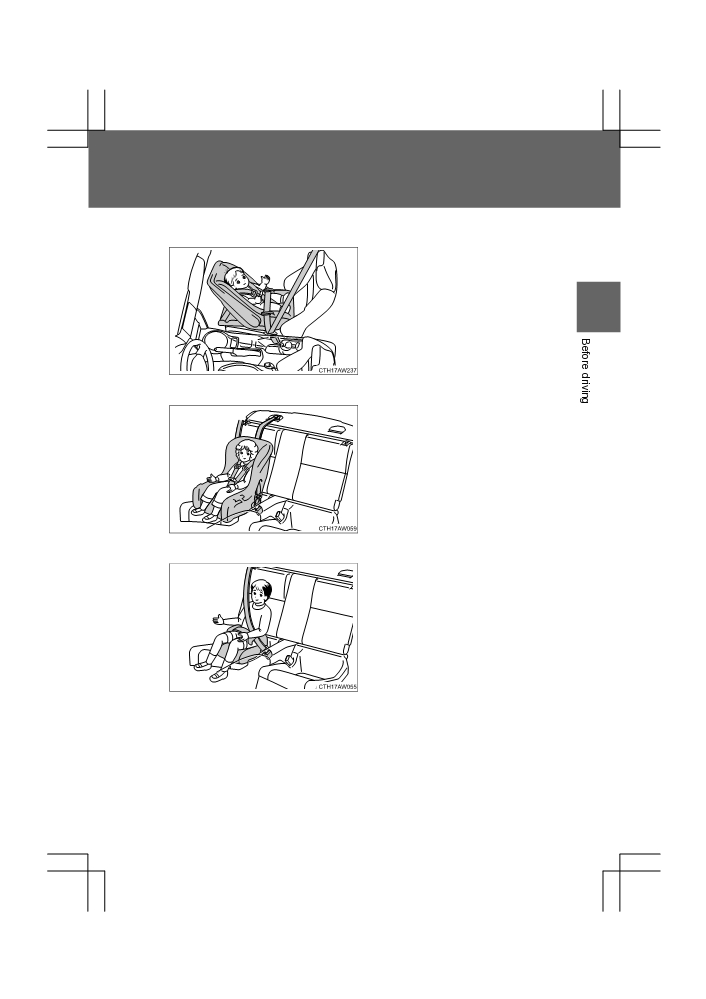

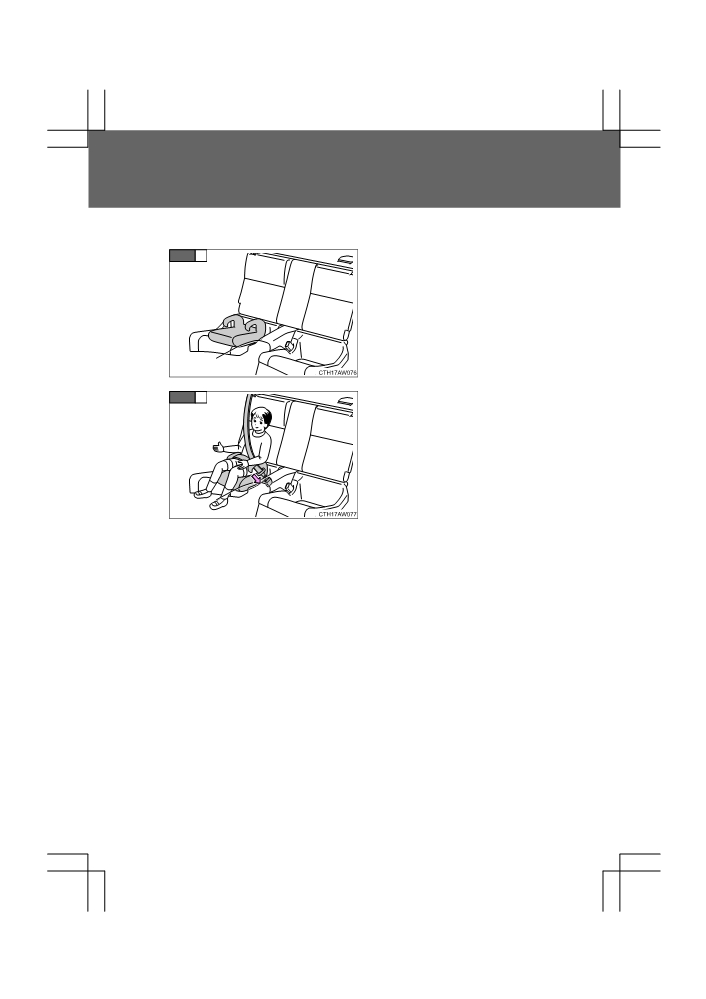

1-7. Safety information
Baby seat
Equal to Group 0 and 0+ of ECE
No.44
1
Child seat
Equal to Group 0+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44
137
86_EE (OM18071E)
1-7. Safety information
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Seating position
Front passenger seat
Airbag manual on-off
Rear seat
switch
Mass groups
ON
OFF
X
0 (up to 10 kg [22 lb.])
L3, L4
X
Never put
X
0+ (up to 13 kg [28 lb.])
L3, L4
X
Never put
Rear-facing
X
Never put
I (9 to 18 kg [20 to 39 lb.])
L1
U
Forward-
facing
L1
II, III (15 to 36 kg [34 to 79 lb.])
L2, L5
L2, L5
U, L2
138
86_EE (OM18071E)
1-7. Safety information
Note
When you use child restraint system on the front passenger seat, you
must turn off the airbag manual on-off switch.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
1
for the use in this mass group.
L1: Suitable for “TOYOTA DUO+” (9 to 18 kg [20 to 39 lb.]) approved
for the use in this mass group.
L2: Suitable for “TOYOTA KID FIX” (15 to 36 kg [34 to 79 lb.])
approved for the use in this mass group.
L3: Suitable for “TOYOTA G 0+,BABY SAFE PLUS” (up to 13 kg [28
lb.]) approved for the use in this mass group.
L4: Suitable for “TOYOTA G 0+,BABY SAFE PLUS with SEAT BELT
FIXATION, BASE PLATFORM” (up to 13 kg [28 lb.]) approved for
the use in this mass group.
L5: Suitable for “TOYOTA KID” (15 to 36 kg [34 to 79 lb.]) approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.
139
86_EE (OM18071E)
1-7. Safety information
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Vehicle ISOFIX positions
Size
Mass groups
Fixture
class
Rear seat
F
ISO/L1
X
Carrycot
G
ISO/L2
X
(1)
X
E
ISO/R1
X
0 (up to 10 kg
[22 lb.])
(1)
X
E
ISO/R1
X
D
ISO/R2
X
0+ (up to 13 kg
[28 lb.])
C
ISO/R3
X
(1)
X
D
ISO/R2
X
C
ISO/R3
X
B
ISO/F2
IUF
I (9 to 18 kg
[20 to 39 lb.])
B1
ISO/F2X
IUF
A
ISO/F3
X
(1)
X
II (15 to 25 kg
(1)
X
[34 to 55 lb.])
III (22 to 36 kg
(1)
X
[49 to 79 lb.])
140
86_EE (OM18071E)
1-7. Safety information
(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key of letters inserted in the above table:
1
IUF: Suitable for ISOFIX forward child restraint systems of universal
category approved for use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.
141
86_EE (OM18071E)
1-7. Safety information

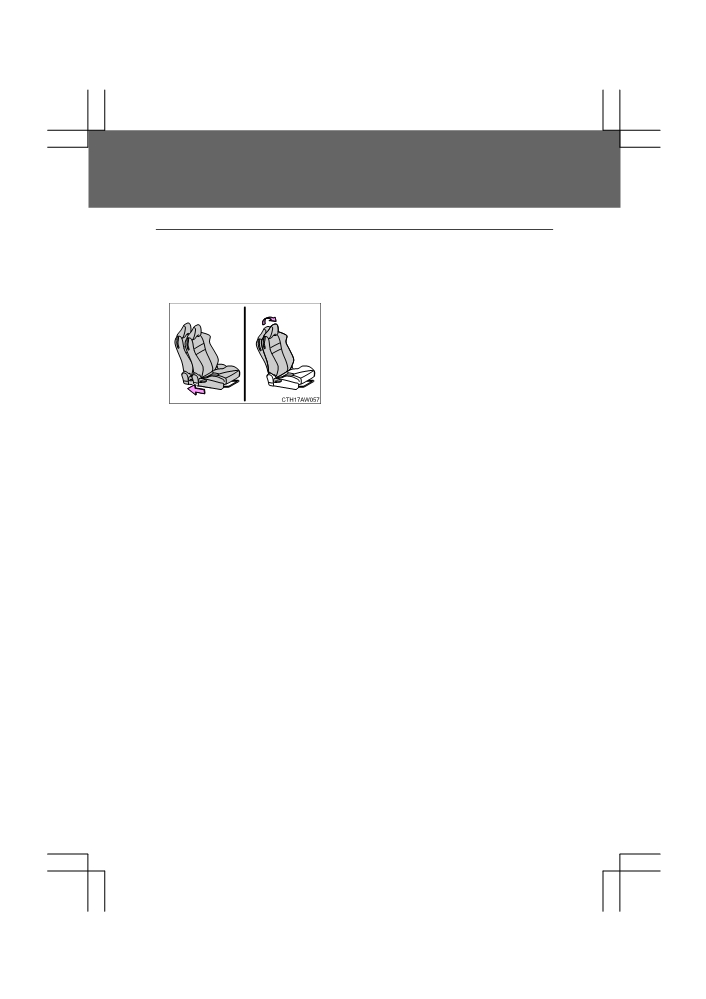

■ When installing the child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
● The seat cushion to the fully rearward
position
● The seatback to the most upright posi-
tion
■ Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
●If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle's seat belt. (→P. 73)
142
86_EE (OM18071E)
1-7. Safety information
WARNING
■ Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
1
event of sudden braking or an accident).
■ Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle's interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
143
86_EE (OM18071E)
1-7. Safety information
WARNING
■ Child restraint precautions
●Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (→P. 155)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
● A forward-facing child restraint system should be allowed to be installed
on the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
●Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or an accident.
144
86_EE (OM18071E)
1-7. Safety information

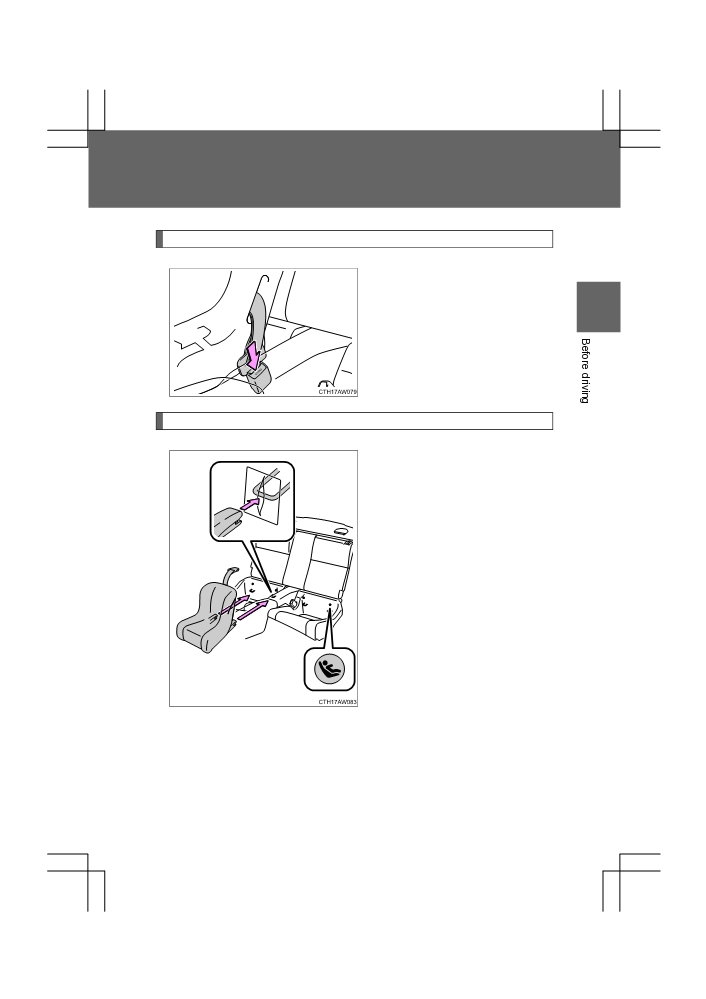

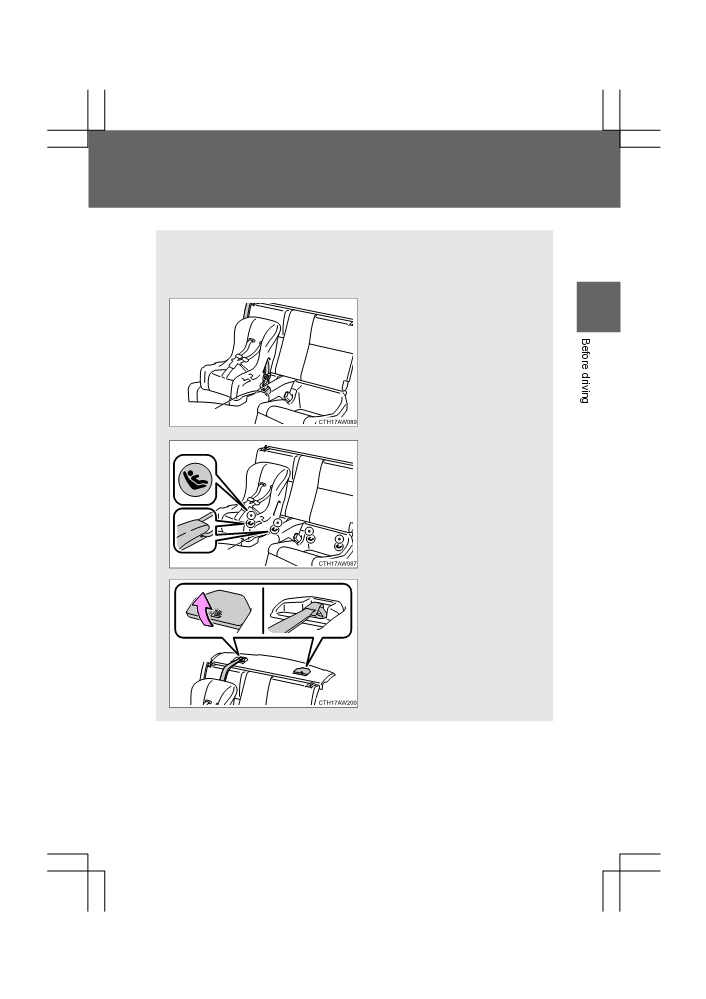

Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure child restraints to the rear seats using a seat belt or a ISOFIX
rigid anchors. Attach the top strap when installing a child restraint.
Installation with a seat belt
1
(→P. 146)
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for
the both rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Anchor bracket (for top strap)
Anchor brackets are provided
for both rear seats.
145
86_EE (OM18071E)
1-7. Safety information

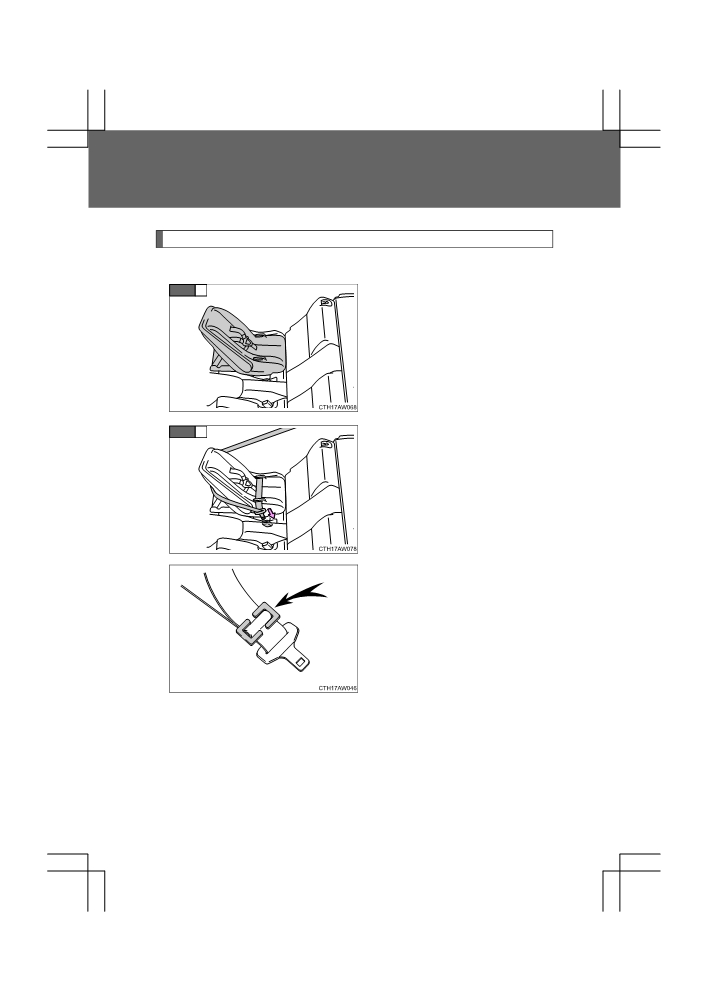

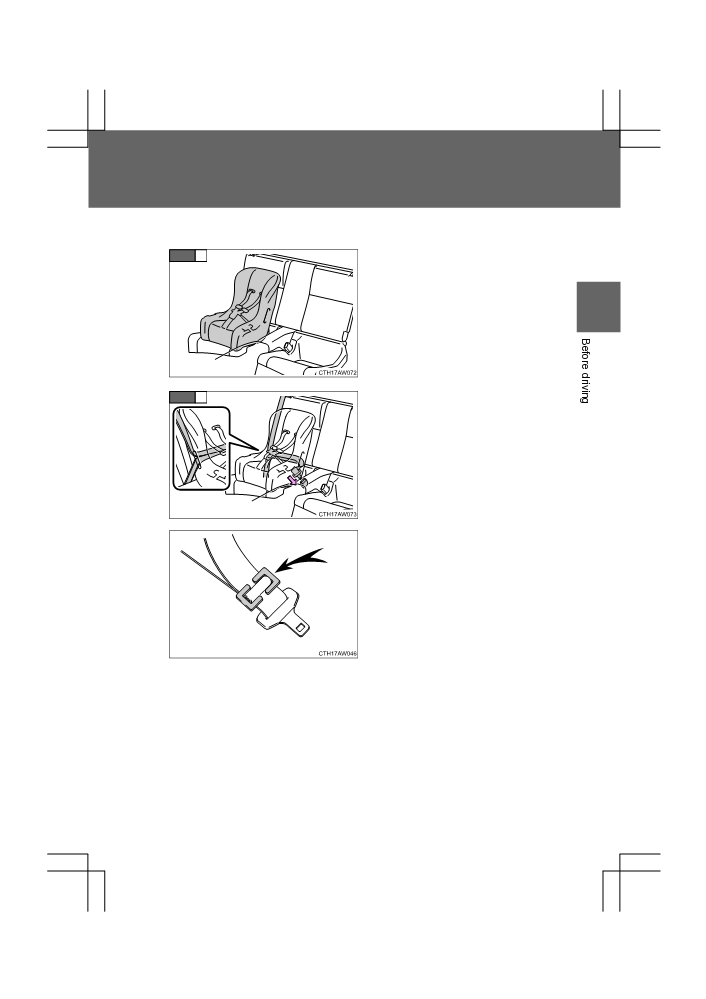

Installing child restraints using a seat belt
■ Rear facing Baby seat/child seat
STEP
1
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
STEP
2
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Follow the directions given in the
child restraint system installation
manual and fix the child restraint
system securely in place.
If your child restraint system is
not equipped with a lock-off (a
seat belt locking feature), secure
the child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
146
86_EE (OM18071E)
1-7. Safety information
■ Forward facing Child seat
STEP
1
Place the child restraint system
on the seat facing the front of the
vehicle.
1
STEP
2
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Follow the directions given in the
child restraint system installation
manual and fix the child restraint
system securely in place.
If your child restraint system is
not equipped with a lock-off (a
seat belt locking feature), secure
the child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
147
86_EE (OM18071E)
1-7. Safety information
■ Junior seat
STEP
1
Place the child restraint system
on the seat facing the front of the
vehicle.
STEP
2
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child's shoulder and that the lap
belt is as low as possible.
(→P. 73)
148
86_EE (OM18071E)
1-7. Safety information
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
1
Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Latch the buckles onto the exclu-
sive fixing bars.
If the child restraint has a top
strap, the top strap should be
latched onto the anchor bracket.
149
86_EE (OM18071E)
