6-1. Specifications
Fuel
Gasoline engine
EU area:
Unleaded gasoline conforming to European
Fuel type
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
95 or higher
number
Fuel tank capacity
42 L (11.1 gal., 9.2 lmp.gal.)
(reference)
Diesel engine
EU area:
Diesel fuel conforming to European
standard EN590
Fuel type
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number
48 or higher
Fuel tank capacity
42 L (11.1 gal., 9.2 lmp.gal.)
(reference)
510
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Lubrication system
Gasoline engine
Oil capacity
(Drain and refill —
reference)
With filter
3.4 L (3.6 qt., 3.0 Imp.qt.)
Without filter
3.2 L (3.4 qt., 2.8 Imp.qt.)
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL
“Energy-Conserving”, SM
“Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
6
511
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications

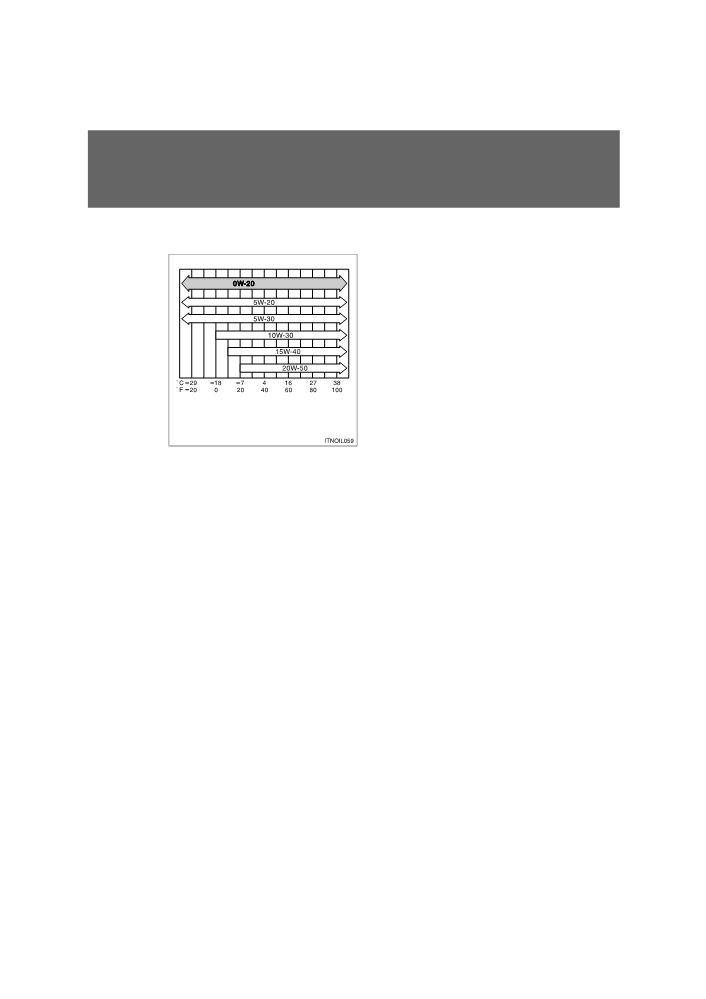

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
Preferred
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
Temperature range anticipated before
change.
next oil change.
If you use SAE
10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
512
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications

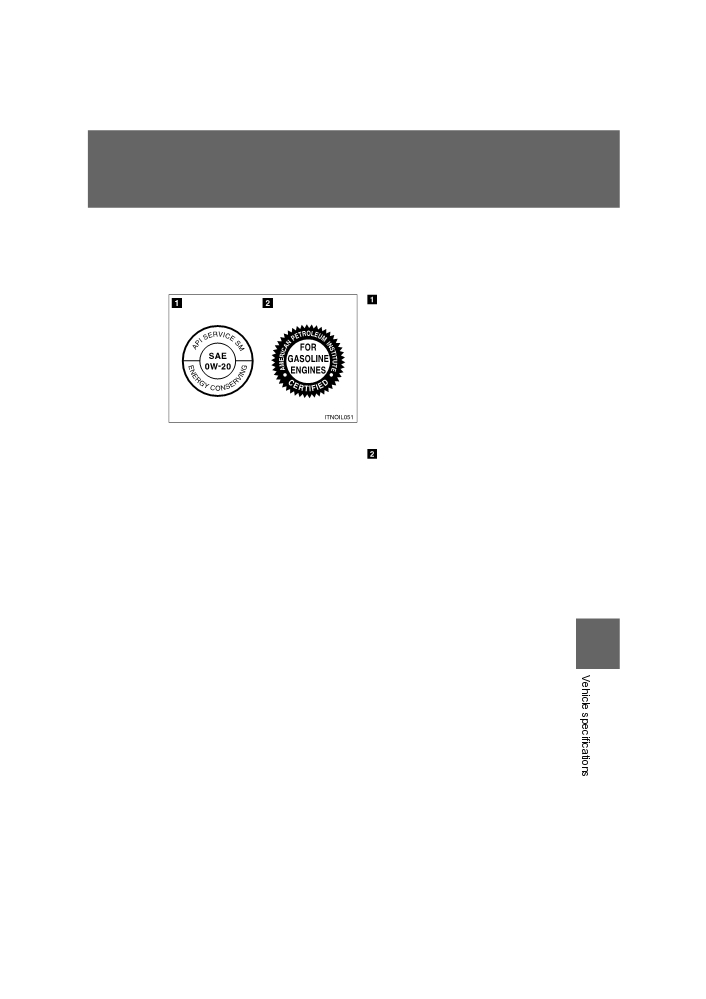

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-Conserv-
ing” means that the oil has fuel-
saving capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant
Standardization
and
Approval Committee) Certification
Mark is displayed on the front of
the container.
6
513
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Diesel engine
Oil capacity
(Drain and refill —
reference)
With filter
3.9 L (4.1 qt., 3.4 Imp.qt.)
Without filter
3.5 L (3.7 qt., 3.1 Imp.qt.)
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade: ACEA C2
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
514
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications

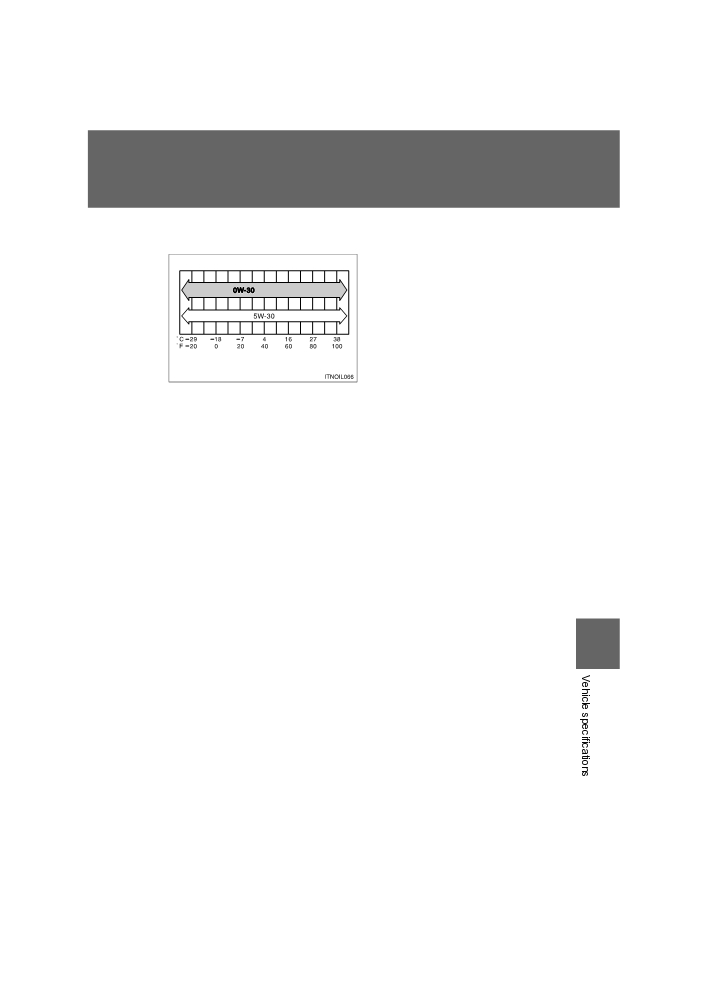

Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
Preferred
and the best choice for good fuel
economy and good starting in
cold weather.
Temperature range anticipated before
next oil change.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
6
515
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Cooling system
4.9 L
With exhaust heat
(5.2 qt., 4.3 lmp.qt.)
Gasoline
engine
4.1 L
Without exhaust heat
(4.3 qt., 3.6 lmp.qt.)
With power heater
2WD models
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Capacity
(reference)
4WD models
5.3 L
(5.6 qt., 4.7 lmp.qt.)
Diesel
engine
Without power heater
2WD models
4.7 L
(5.0 qt., 4.1 lmp.qt.)
4WD models
5.0 L
(5.3 qt., 4.4 lmp.qt.)
Use either of the follow-
ing.
• “Toyota Super Long Life
Coolant”
• Similar high-quality eth-
ylene glycol-based non-
Coolant type
silicate, non-amine,
non-nitrite, and non-
borate coolant with
long-life hybrid organic
acid technology
Do not use plain water
alone.
516
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Ignition system (gasoline engine)
Spark plug
Make
DENSO SC20HR11
Gap
1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.
Electrical system
Battery
Specific gravity reading at
1.250 1.290 Fully charged
20°C (68°F):
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
15 A max.
Slow charge
5 A max.
6
517
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Differential (4WD models)
Oil capacity
0.5 L (0.53 qt., 0.44 lmp.qt.)
Hypoid gear oil API GL-5
Above -18°C (0°F): SAE90
Oil type and viscosity
Below -18°C (0°F): SAE80W or
SAE80W-90
Manual transmission
Gear oil capacity
2.4 L (2.5 qt., 2.1 lmp.qt.)
Use either of the following:
• “TOYOTA Genuine Manual
Transmission Gear Oil LV”
Gear oil type
• Other gear oil that meets API
GL-4 and SAE 75W specifica-
tions
NOTICE
■ Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feelings and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.
518
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Clutch
Pedal free play
5 15 mm (0.2 0.6 in.)
SAE J1703, J1704 or FMVSS No.116
Fluid type
DOT3, DOT4
Brakes
Pedal clearance*1
Left-hand drive vehicles
95 mm (3.74 in.) Min.
Right-hand drive vehicles
78 mm (3.07 in.) Min.
Pedal free play
1 6 mm (0.04 0.24 in.)
Parking brake lever travel*2
5 8 clicks
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3
*1:Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2:Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
6
519
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Steering
Free play
Less than 30 mm (1.18 in.)
Transfer (4WD models)
Oil capacity
0.45 L (0.48 qt., 0.40 lmp.qt.)
Oil type
Hypoid gear oil API GL-5
Above-18°C (0°F): SAE 90
Recommended oil viscosity
Below-18°C (0°F): SAE 80W or
SAE 80W-90
520
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Tires and wheels
Standard
Tire size
195/60R16 89H
Front wheel
Rear wheel
Vehicle
kPa (kgf/cm2
kPa (kgf/cm2
speed
or bar, psi)
or bar, psi)
Tire inflation pressure
More than
(Recommended cold tire
160 km/h
250 (2.5, 36)
250 (2.5, 36)
inflation pressure)
(99 mph)
160 km/h
(99 mph) or
230 (2.3, 33)
230 (2.3, 33)
less
Wheel size
16 × 6J
Wheel nut torque
103 N•m (10.5 kgf•m, 76 ft•lbf)
Spare (if equipped)
Tire size
T135/70D16 100M, T125/70D17 98M
Tire inflation pressure (Recom-
mended cold tire inflation pres-
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
sure)
Wheel size
16 × 4T, 17 × 4T
Wheel nut torque
103 N•m (10.5 kgf•m, 76 ft•lbf)
6
521
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Light bulbs
Light Bulbs
W
Type
Headlights
60/55
A
Front turn signal lights
21
C
Front position lights
5
D
Front fog lights*
55
B
Exterior
Rear turn signal lights
21
C
Back-up lights
16
D
Rear fog lights*
21
D
Stop/tail lights
21/5
D
License plate lights
5
D
Personal light
8
D
Interior
Interior light
8
E
Luggage compartment light
5
E
A: H4 halogen bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
*: If equipped
522
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
Fuel information
EU area:
Your vehicle must use only
unleaded gasoline conforming to
European standard EN228. For
optimum engine performance,
select unleaded gasoline with a
Research Octane Number of 95
Gasoline engine
or higher.
Except EU area:
Your vehicle must use only
unleaded gasoline.
For optimum engine perfor-
mance, select premium unleaded
gasoline with a Research Octane
Number of 95 or higher.
EU area:
Your vehicle must use only diesel
fuel conforming to European
standard EN590.
Diesel engine
Except EU area:
Your vehicle must use only diesel
fuel that contains 50 ppm or less
of sulfur, and a cetane number of
48 or higher
6
523
URBAN CRUISER_OM_OM52F47E_(EE)
6-1. Specifications
■ Fuel tank opening for unleaded gasoline (gasoline engine)
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be
damaged.
●Gasoline engine: Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
●Diesel engine: Do not use a fuel that contains more than 50 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
