5-2. Steps to take in an emergency

If the engine will not start

If the engine still does not start after following the correct starting

procedure (→P. 185, 181), confirm the following points.

■ The engine will not start even though the starter motor

operates normally.

One of the following may be the cause of the problem.

● There may not be sufficient fuel in the vehicle’s tank.

Gasoline engine: Refuel the vehicle.

Diesel engine: (→P. 497)

● The engine may be flooded. (gasoline engine)

Try to restart the engine again following correct starting proce-

dures. (→P. 185, 181)

● There may be a malfunction in the engine immobilizer system.

(→P. 110)

■ The starter motor turns over slowly, the interior lights and

headlights are dim, or the horn does not sound or sounds at

a low volume

One of the following may be the cause of the problem.

● The battery may be discharged. (→P. 487)

● The battery terminal connections may be loose or corroded.

480

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

■ The starter motor does not turn over, the interior lights and

headlights do not turn on, or the horn does not sound

One of the following may be the cause of the problem.

● One or both of the battery terminals may be disconnected.

● The battery may be discharged. (→P. 487)

● There may be a malfunction in the steering lock system. (vehi-

cles with smart entry & start system)

Contact any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional, if the problem cannot be

repaired, or if repair procedures are unknown.

5

481

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

If you cannot operate the back door opener

If the back door opener does not operate, there may be a problem

with the back door opener system. Have the vehicle inspected by

any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional immediately.

The following steps may be used as an emergency measure to

ensure that the back door can be opened from the inside.

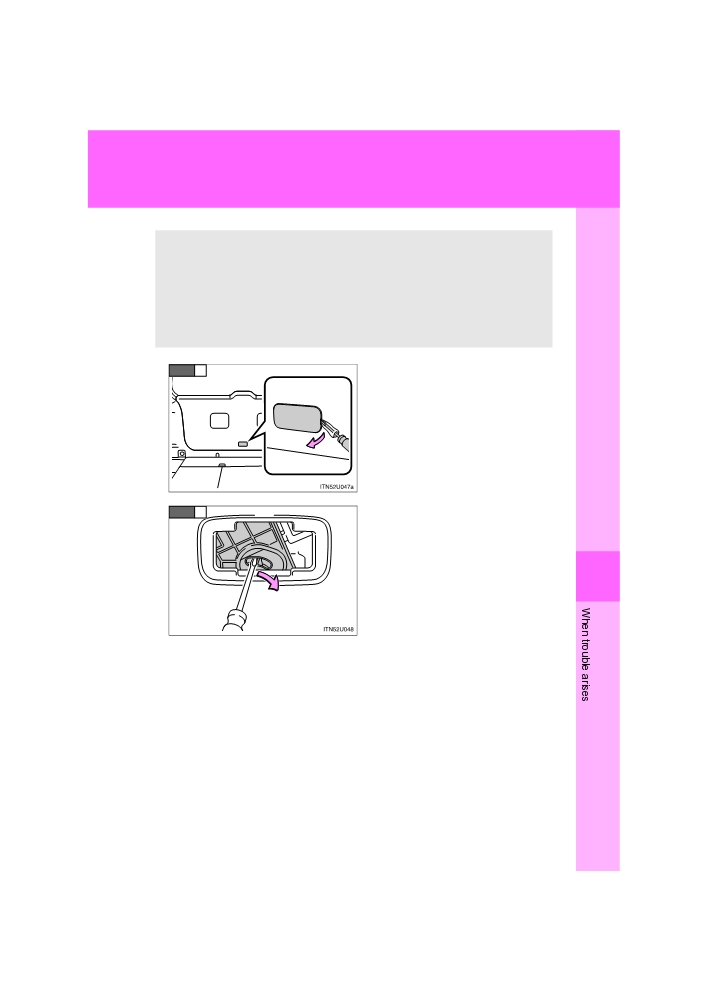

STEP

1

Remove the cover on the back

door trim.

STEP

2

Push the lever with the back

door motor, open the back door.

5

483

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

If the electronic key does not operate properly

For vehicles with smart entry & start system: If communication

between the electronic key and vehicle is interrupted (→P. 40) or the

electronic key cannot be used because the battery is depleted, the

smart entry & start system and wireless remote control cannot be

used. In such cases, the doors can be opened or the engine can be

started by following the procedure below.

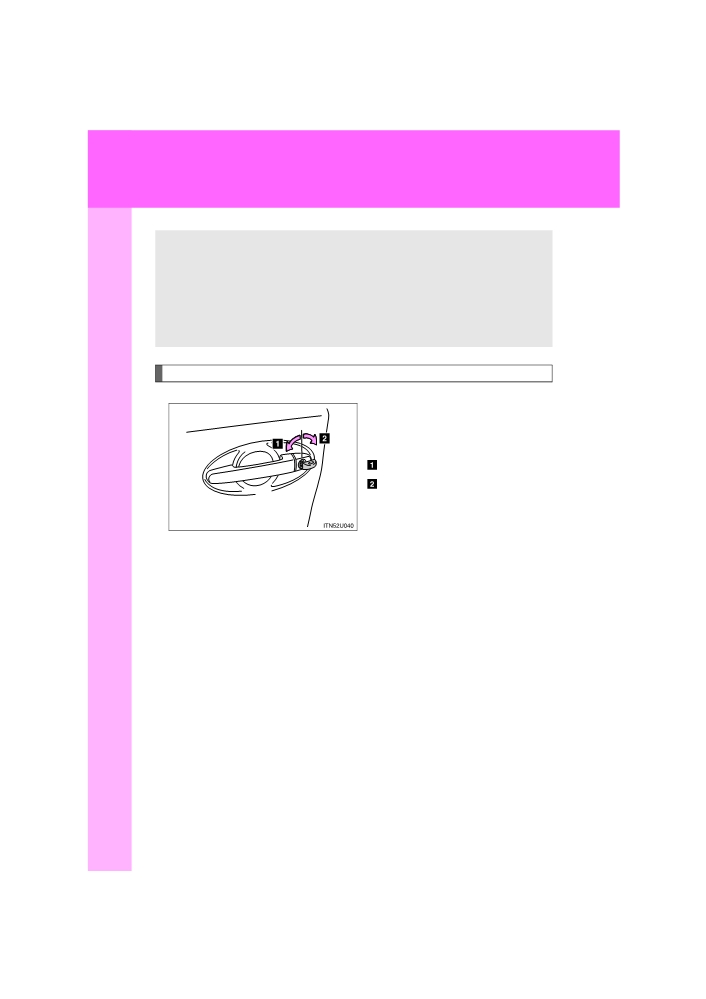

Locking and unlocking the doors and key linked functions

Using the mechanical key (→P. 33)

in order to perform the following

operations.

Locks all doors

Unlocks all doors

An alarm will sound if the alarm is

set. (→P. 120)

484

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

Starting the engine

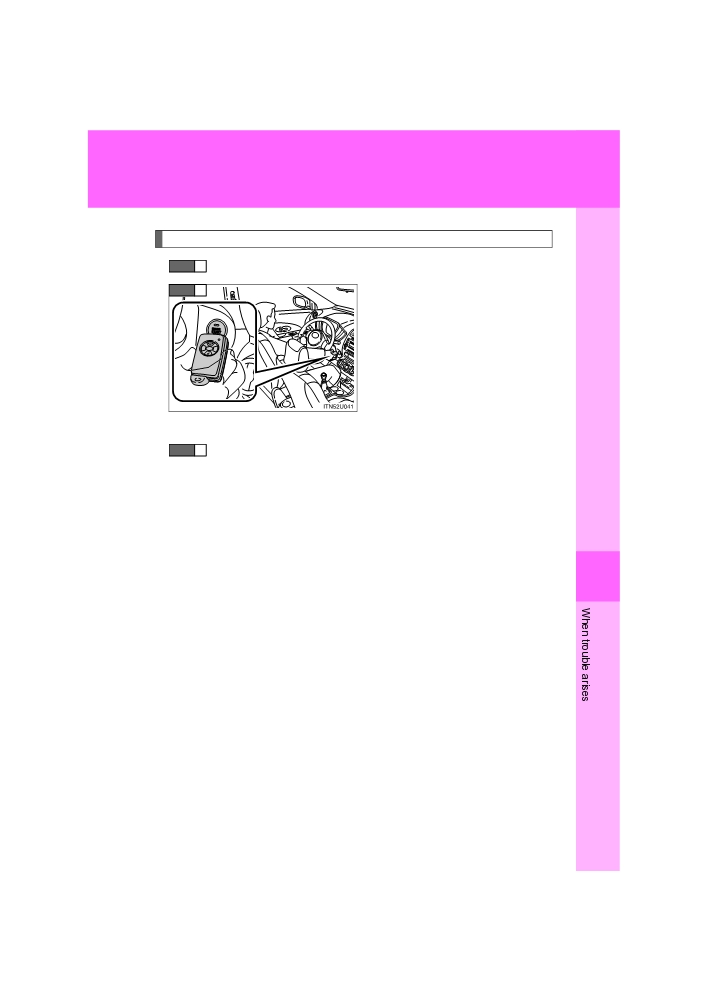

STEP 1

Shift the shift lever to “N” and depress the clutch pedal.

STEP

2

Touch the Toyota emblem side of

the electronic key to the

“ENGINE START STOP” switch.

An alarm will sound to indicate

that the start function cannot

detect the electronic key that is

touched to the “ENGINE START

STOP” switch if any of the doors

is opened while the key is

touched to the switch.

Press the “ENGINE START STOP” switch within 5 seconds

STEP

3

after the buzzer sounds, keeping the clutch pedal depressed.

In the event that the “ENGINE START STOP” switch still cannot be

operated, contact any authorized Toyota dealer or repairer, or another

duly qualified and equipped professional.

5

485

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

If the battery is discharged

The following procedures may be used to start the engine if the vehi-

cle’s battery is discharged.

You can call any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

If you have a set of jumper (or booster) cables and a second vehi-

cle with a 12-volt battery, you can jump start your Toyota following

the steps below.

STEP

1

Push the tab in and lift the cover off.

Left-hand drive vehicles

Right-hand drive vehicles

5

487

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

STEP

2

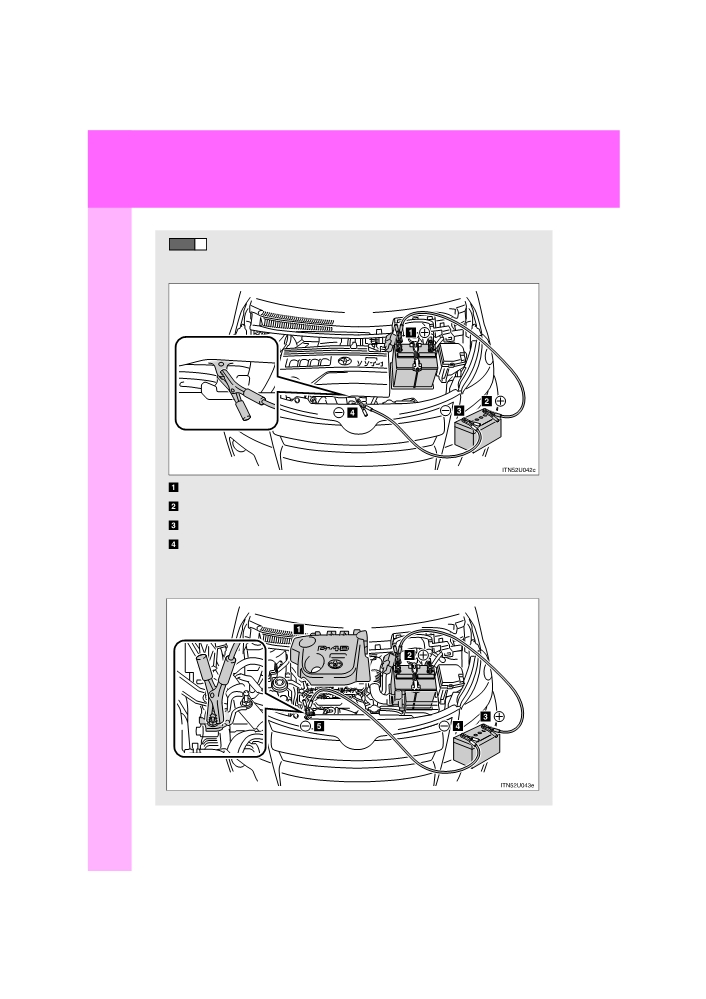

Connect the jumper cables.

Gasoline engine

Positive (+) battery terminal on your vehicle

Positive (+) battery terminal on the second vehicle

Negative (-) battery terminal on the second vehicle

Connect the jumper cable to ground on your vehicle as shown in

the illustration.

Diesel engine

488

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

Remove the engine cover

Positive (+) battery terminal on your vehicle

Positive (+) battery terminal on the second vehicle

Negative (-) battery terminal on the second vehicle

Connect the jumper cable to ground on your vehicle as shown in

the illustration.

Start the engine of the second vehicle. Increase the engine

STEP

3

speed slightly and maintain at that level for approximately 5

minutes to recharge the battery of your vehicle.

STEP

4

Vehicles with smart entry & start system: Open and close

any of the doors with the “ENGINE START STOP” switch

OFF.

Vehicles without smart entry & start system: Maintain the

STEP

5

engine speed of the second vehicle and turn the engine

switch to the “ON” position, then start the vehicle’s engine.

Vehicles with smart entry & start system: Maintain the

engine speed of the second vehicle and turn the “ENGINE

START STOP” switch to the IGNITION ON mode, then start

the vehicle’s engine.

5

STEP

6

Once the vehicle’s engine has started, remove the jumper

cables in the exact reverse order in which they were con-

nected.

489

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

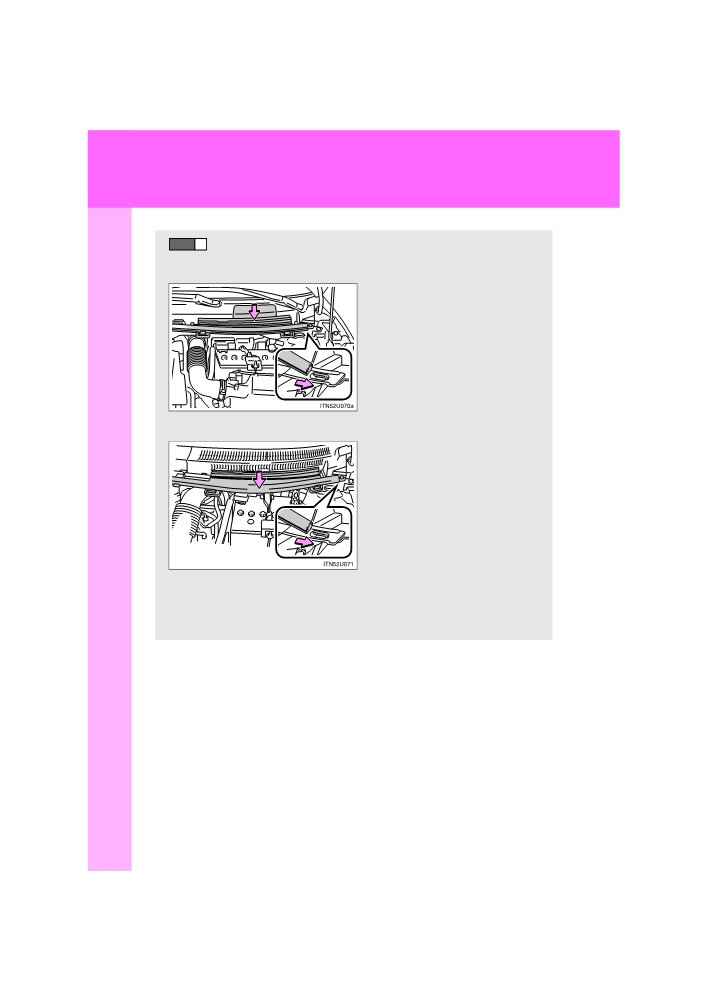

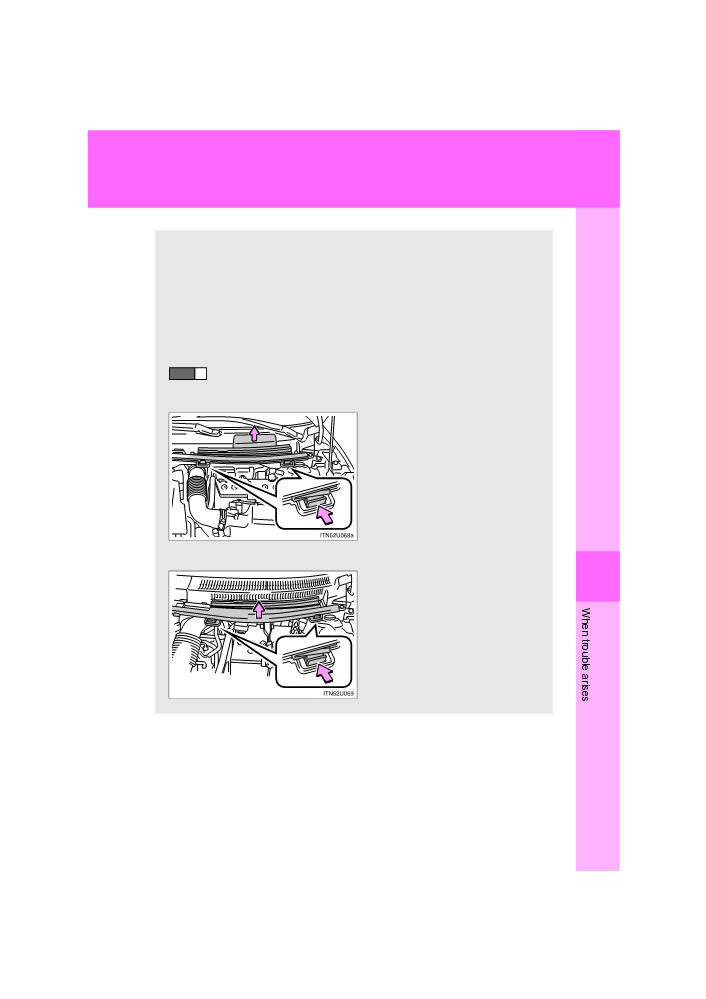

STEP

7

Reinstall the cover.

Left-hand drive vehicles

Right-hand drive vehicles

Once the engine starts, have the vehicle checked at any autho-

rized Toyota dealer or repairer, or another duly qualified and

equipped professional, as soon as possible.

490

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

■ To prevent battery discharge

● Turn off the headlights and the audio system while the engine is turned

off.

● Turn off any unnecessary electrical components when the vehicle is run-

ning at a low speed for an extended period, such as in heavy traffic, etc.

■ Charging the battery

The electricity stored in the battery will discharge gradually even when the

vehicle is not in use, due to natural discharge and the draining effects of cer-

tain electrical appliances. If the vehicle is left for a long time, the battery may

discharge, and the engine may be unable to start. (The battery recharges

automatically during driving.)

■ When the battery is removed or discharged

Make sure that the key is not inside the vehicle when recharging or replacing

the battery. The key may be locked in the vehicle if the alarm is activated.

(→P. 122)

CAUTION

■ Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-

5

mable gas that may be emitted from the battery.

● Make sure the jumper cable is connected to the correct terminal and that it

is not unintentionally in contact with any other than the intended terminal.

●Do not allow the + and - clamps of the jumper cables to come into contact

with each other.

●Do not smoke, use matches, cigarette lighters or allow open flame near

the battery.

491

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

CAUTION

■ Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while

related parts contain lead and lead compounds. Observe the following pre-

cautions when handling the battery.

● When working with the battery, always wear safety glasses and take care

not to allow any battery fluids (acid) to come into contact with skin, clothing

or the vehicle body.

●Do not lean over the battery.

● In the event that battery fluid comes into contact with the skin or eyes,

immediately wash the affected area with water and seek medical attention.

Place a wet sponge or cloth over the affected area until medical attention

can be received.

● Always wash your hands after handling the battery support, terminals, and

other battery-related parts.

●Do not allow children near the battery.

■ To prevent damaging the vehicle

Do not pull- or push-start the vehicle, because the catalytic converter may

overheat and become a fire hazard.

NOTICE

■ When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-

gled in the cooling fans or belt.

■ To prevent damage to the engine cover (diesel engine only)

● When removing the cover, make sure that you pull the cover towards you

after lifting the front edge to remove the fixed pins.

● When installing the cover, do not force the cover or subject it to strong

shocks.

492

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

If your vehicle overheats

If your engine overheats:

STEP

1

Stop the vehicle in a safe place and turn off the air condi-

tioning system.

STEP

2

Check to see if steam is coming out from under the hood.

If you see steam:

Stop the engine. Carefully lift the hood after the steam

subsides and then restart the engine.

If you do not see steam:

Leave the engine running and carefully lift the hood.

STEP

3

Check to see if the cooling fan is operating.

If the fan is operating:

Wait until the high engine coolant temperature warning

light goes off and then stop the engine.

If the fan is not operating:

Stop the engine and call any authorized Toyota dealer or

repairer, or another duly qualified and equipped profes-

sional.

5

493

URBAN CRUISER_OM_OM52F47E_(EE)

5-2. Steps to take in an emergency

STEP

4

After the engine has cooled down sufficiently, check the

engine coolant level and inspect the radiator core (radiator)

for any leaks.

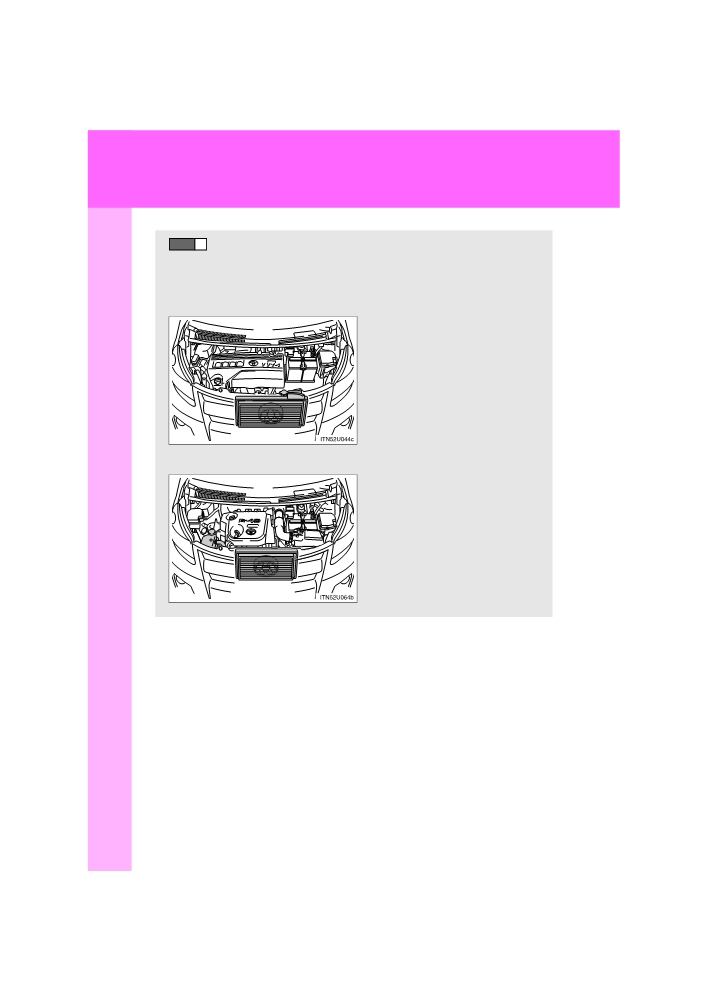

Gasoline engine

Diesel engine

494

URBAN CRUISER_OM_OM52F47E_(EE)
