5-2. Steps to take in an emergency

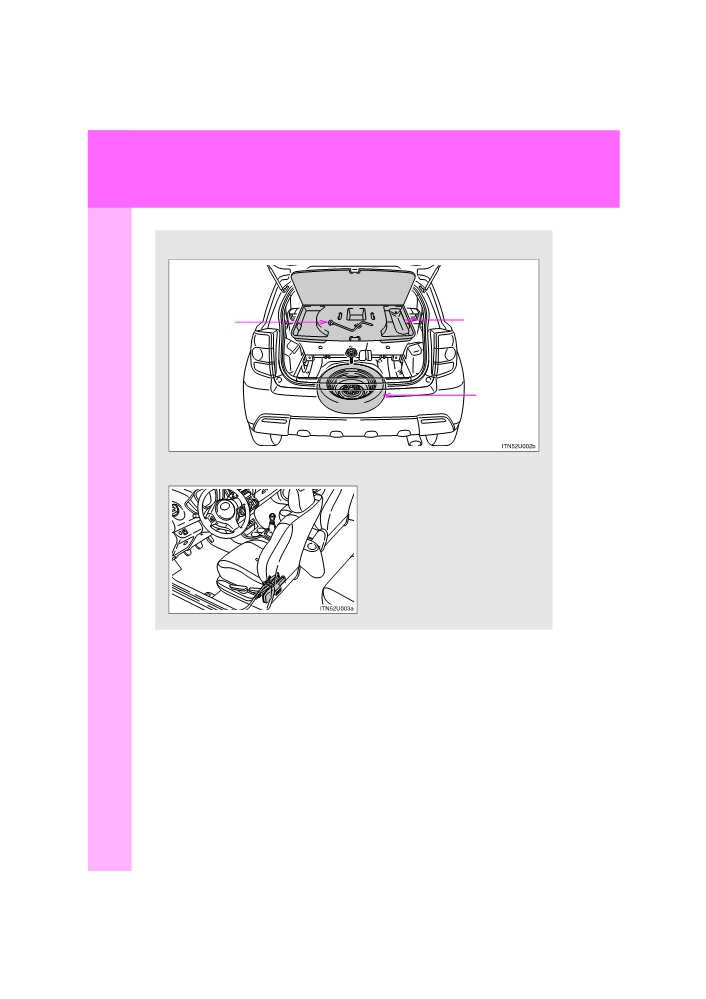

4WD models
Jack handle
Tool bag
(Towing eyelet
and wheel nut
wrench)
Spare tire
■ Location of the jack
The jack is stored under the
left-hand front seat.
450
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

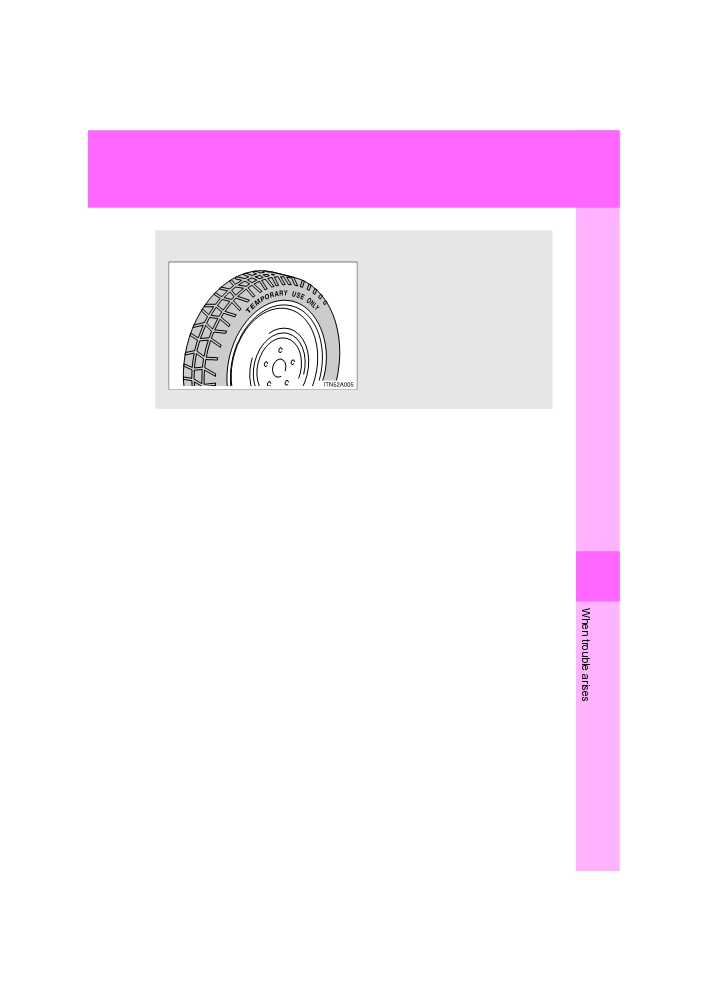

■ Compact spare tire
The compact spare tire is
designed for temporary emer-
gency use only.
The compact spare tire is
identified by the distinctive
wording
“TEMPORARY USE
ONLY” molded into the side-
wall of the tire.
5
451
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

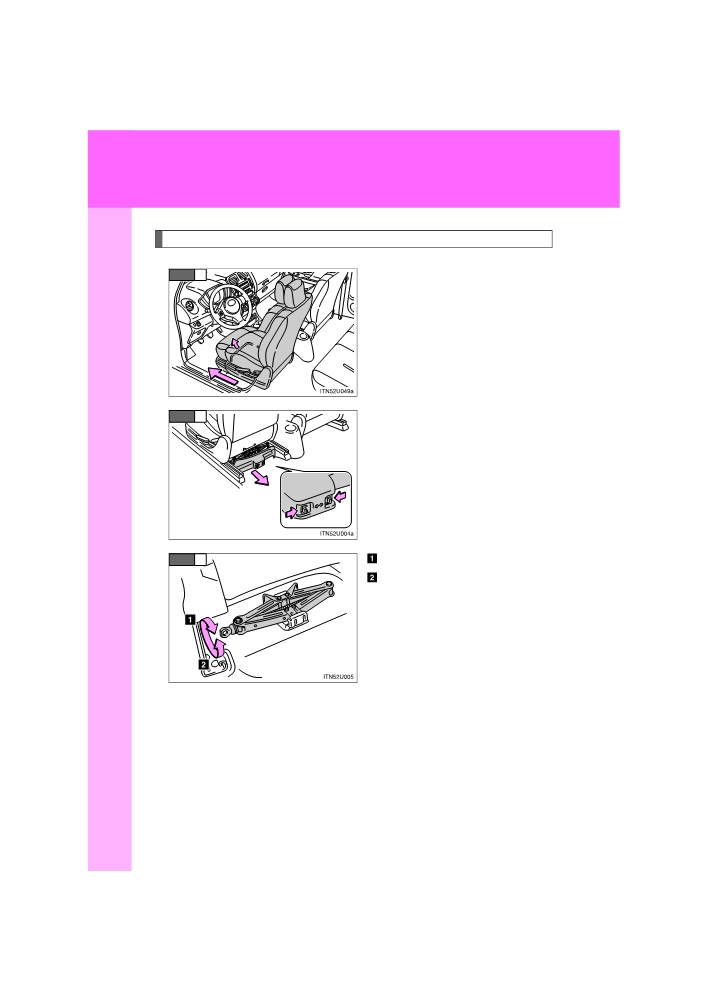

Taking out the jack
STEP
1
Move front left seat to the front-
most position.
STEP
2
Remove the cover.
STEP
3
Tighten
Loosen
452
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

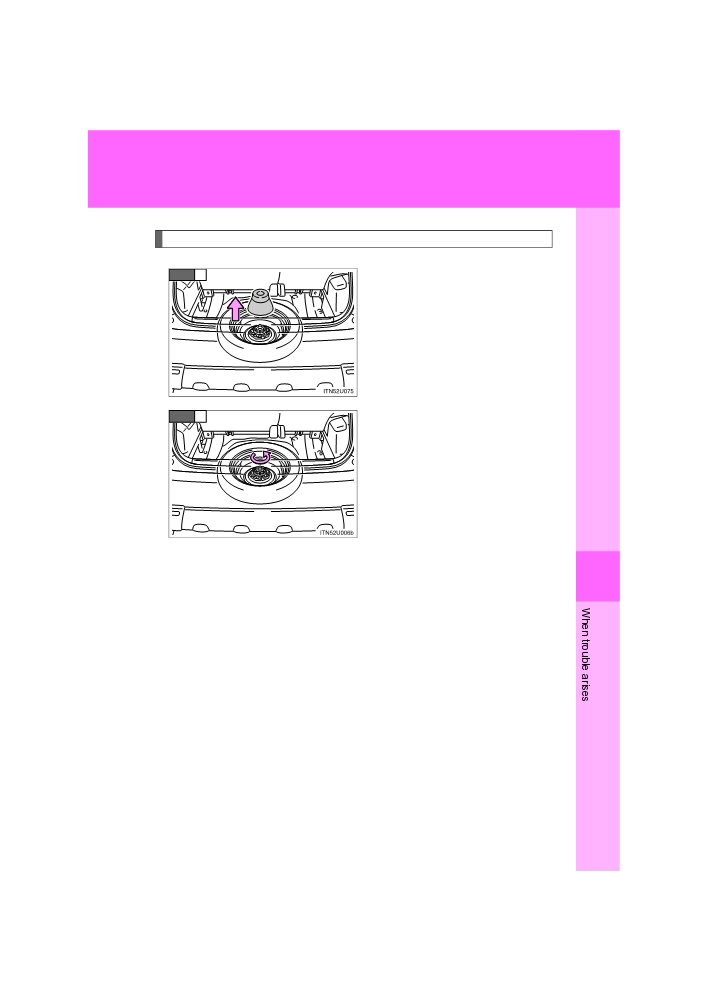

Taking out the spare tire
STEP
1
Remove the spare wheel cush-
ion.
(if equipped)
STEP
2
Loosen the center fastener that
secures the spare tire.
5
453
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

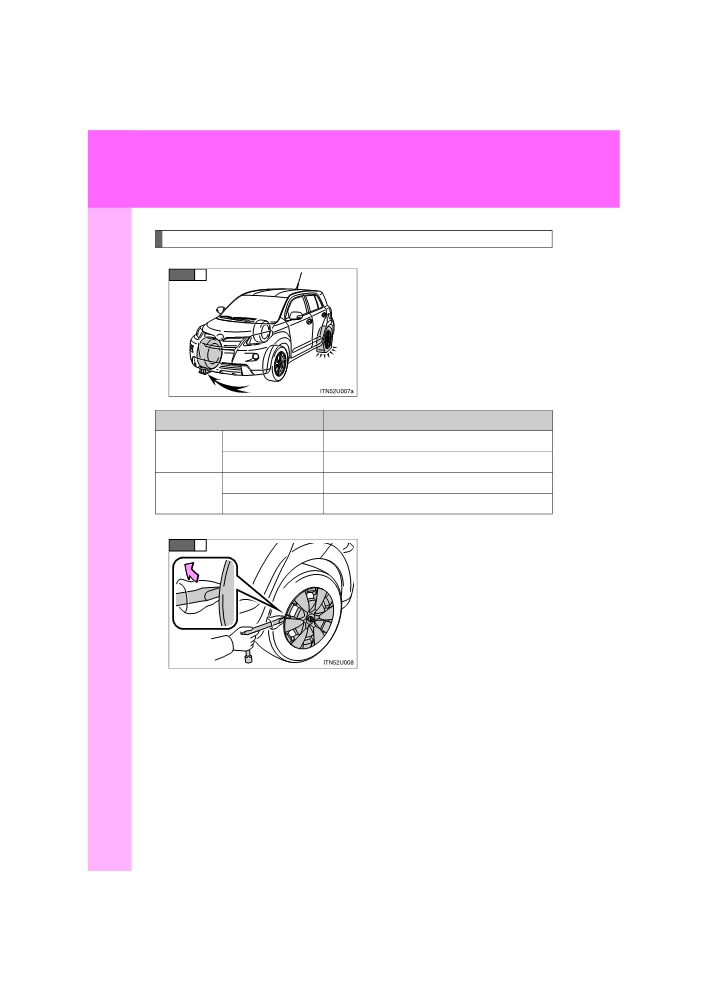

Replacing a flat tire
STEP
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
STEP
2
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament, as
shown in the illustration.
454
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

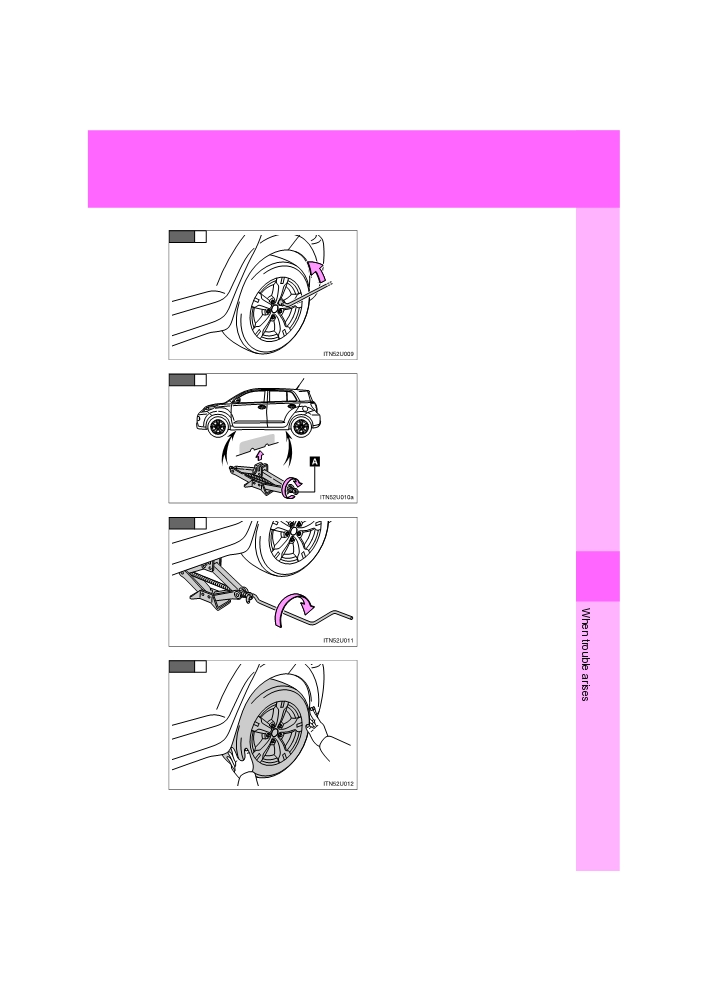

STEP
3
Slightly loosen the wheel nuts
(one turn).
STEP
4
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
STEP
5
Raise the vehicle until the tire is
slightly raised off the ground.
5
STEP
6
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
455
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

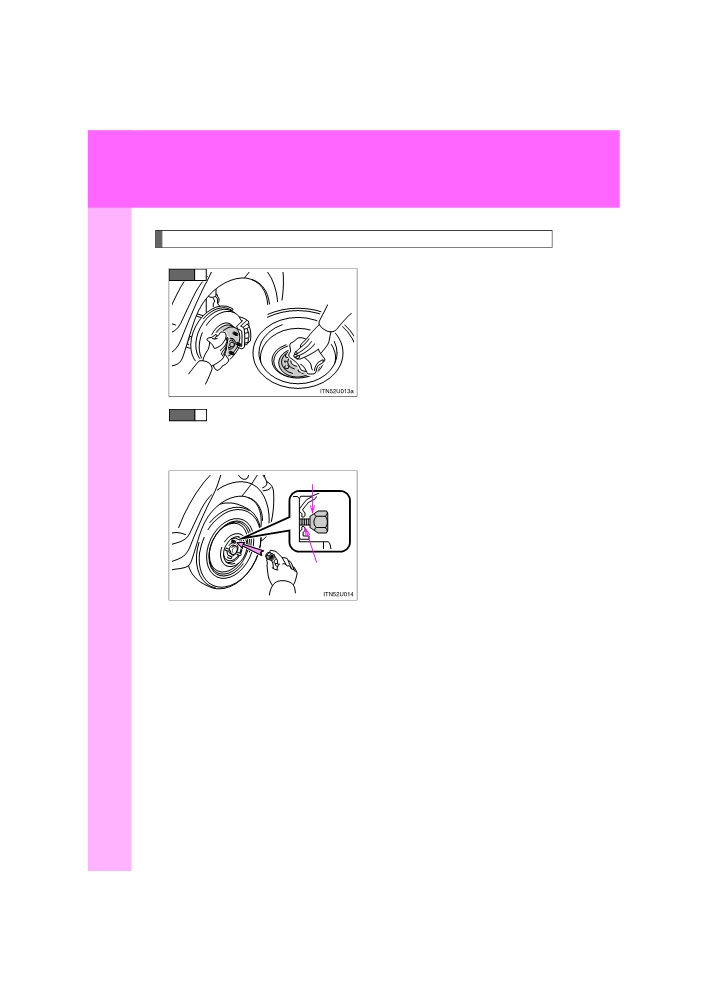

Installing the spare tire
STEP
1
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP
2
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a compact spare tire
Tapered portion
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel seat.
Disc wheel
seat
456
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
Replacing an aluminum wheel with a compact spare tire
Tighten the nuts until the tapered
Tapered portion
portion comes into loose contact
with the disc wheel seat.
Disc wheel
seat

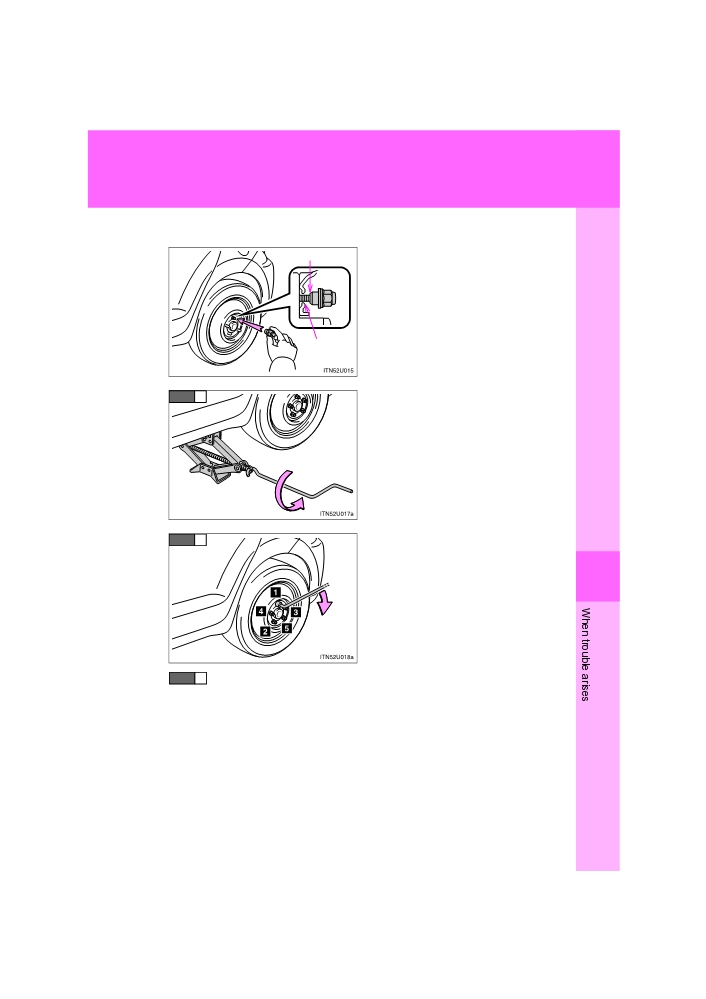

STEP
3
Lower the vehicle.
STEP
4
Firmly tighten each nut two or
three times in the order shown in
the illustration.
5
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
STEP
5
457
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
■ The compact spare tire
●The compact spare tire saves in your luggage compartment.
● Its lighter weight helps to enhance fuel economy.
●It permits easier installation in case of a flat tire.
● Make sure to check the tire inflation pressure of the compact spare tire.
(→P. 521)
■ If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the following
steps and fit tire chains to the front tires.
STEP
1
Replace a rear tire with the compact spare tire.
STEP
2
Replace the flat front tire with the tire removed from the rear of the
vehicle.
Fit tire chains to the front tires.
STEP
3
458
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency

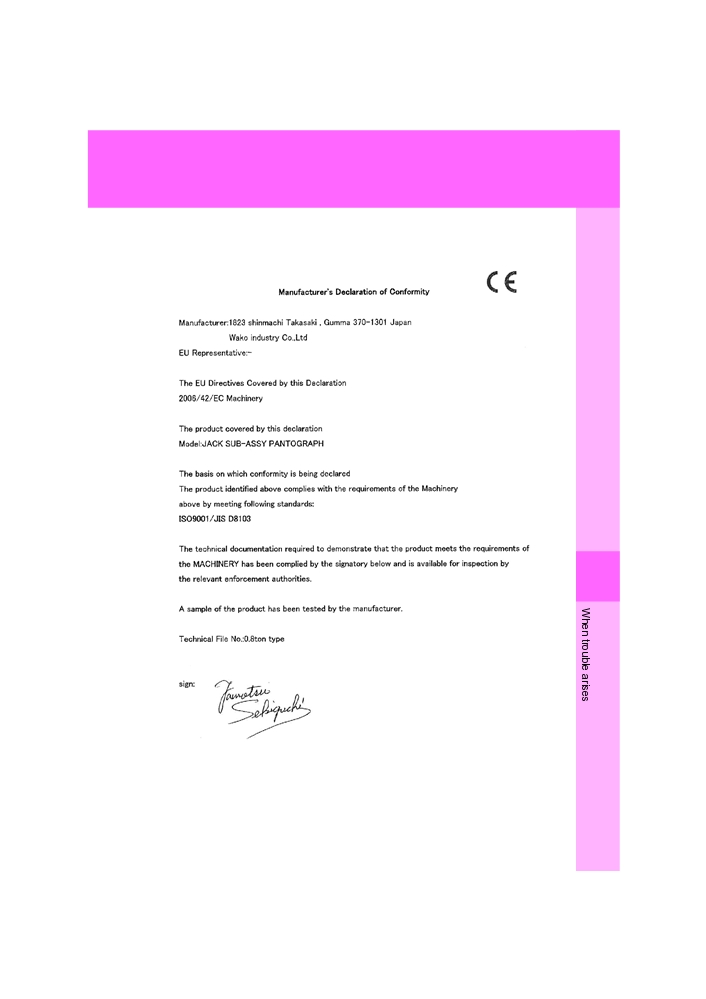

■ Certification for the jack
5
459
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
CAUTION
■ When using the compact spare tire
●Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
■ When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
●ABS & brake assist
●VSC (if equipped)
●TRC (if equipped)
●Navigation system (if equipped)
Also, not only can the following system not be utilized fully, it may actually
negatively effect the drive-train components:
● Active Torque Control 4WD system (4WD models)
■ Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.
460
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
CAUTION
■ Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle will be injured.
5
461
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
CAUTION
■ Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5
kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• Do not try to remove the wheel ornament by hand. Take due care in han-
dling the ornament to avoid unexpected personal injury.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered end facing inward. (→P. 394)
462
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
CAUTION
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
■ Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
5
formance.
463
URBAN CRUISER_OM_OM52F47E_(EE)
5-2. Steps to take in an emergency
If you have a flat tire (vehicles without a spare tire)
Your vehicle is equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily with the emergency tire puncture repair
kit.
■ Before repairing the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the lever to “N”.
● Stop the engine.
● Turn on the emergency flashers. (→P. 428)

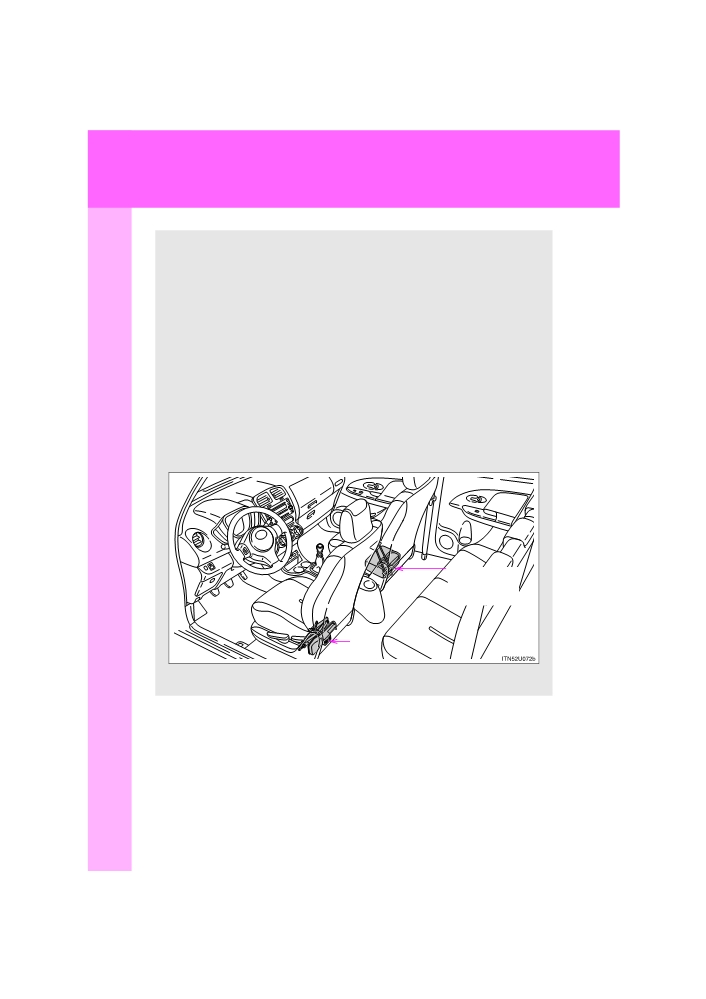

■ Location of the emergency tire puncture repair kit and jack
Emergency tire
puncture repair
kit
Jack*
*: Use of the jack (→P. 452)
