3-3. Using the hands-free system (for cellular phone)
Title
Page
Setting a cellular phone
P. 314
■ Functions and operation procedures
Security and system setup
■ Security setting items and operation
procedure
P. 318
■ System setup items and operation
procedure
Using the phone book
■ Adding a new phone number
■ Setting speed dial
■ Changing a registered name
P. 322
■ Deleting registered name
■Deleting speed dial
■ Listing the registered data
■ Conditions under which the system will not operate
● If using a cellular phone that does not support Bluetooth®.
● If the cellular phone is switched off.
● If you are outside service range.
● If the cellular phone is not connected.
●If the cellular phone’s battery is low.
■ Bluetooth® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
■ Signal status
This display may not correspond exactly with the cellular phone itself.
300
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent the personal data from being
improperly accessed.

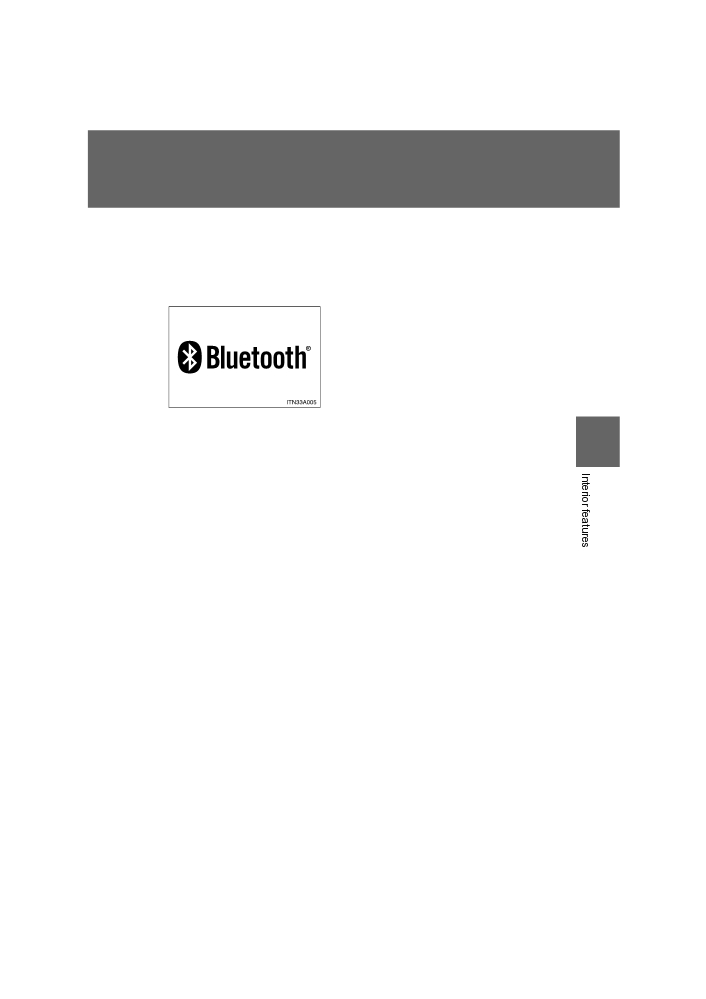

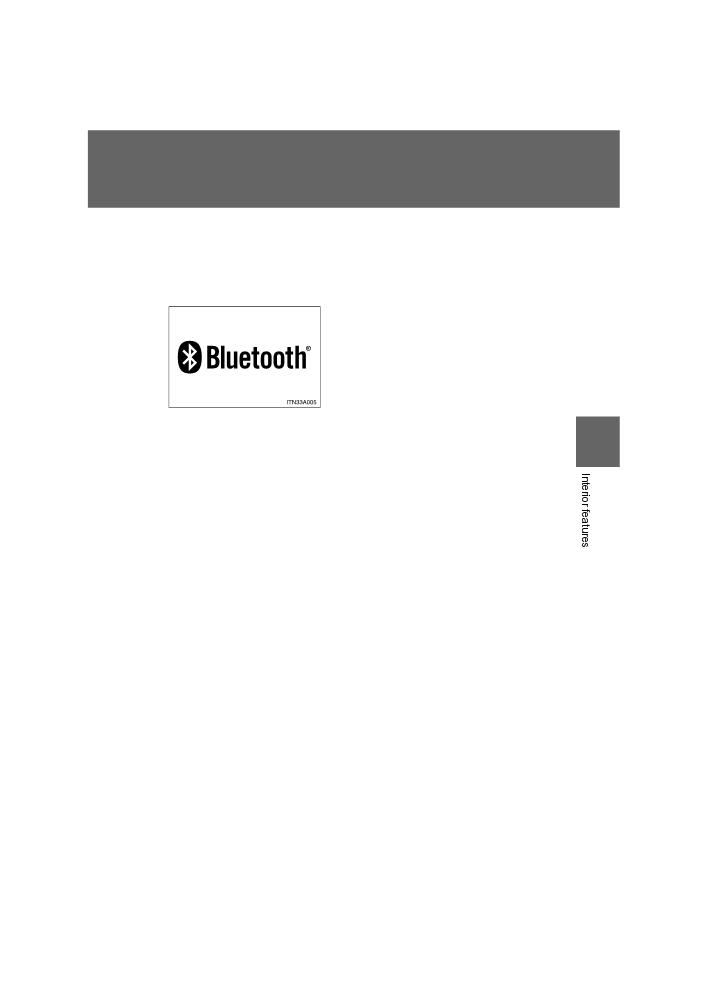

■ About Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
■ Compatible models
3
Compatible with HFP (Hands Free Profile) Ver. 1.0 and OPP (Object Push
Profile) Ver. 1.1.
If your cellular phone does not support HFP, you cannot enter the Bluetooth®
phone, and take OPP service individually.
301
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)

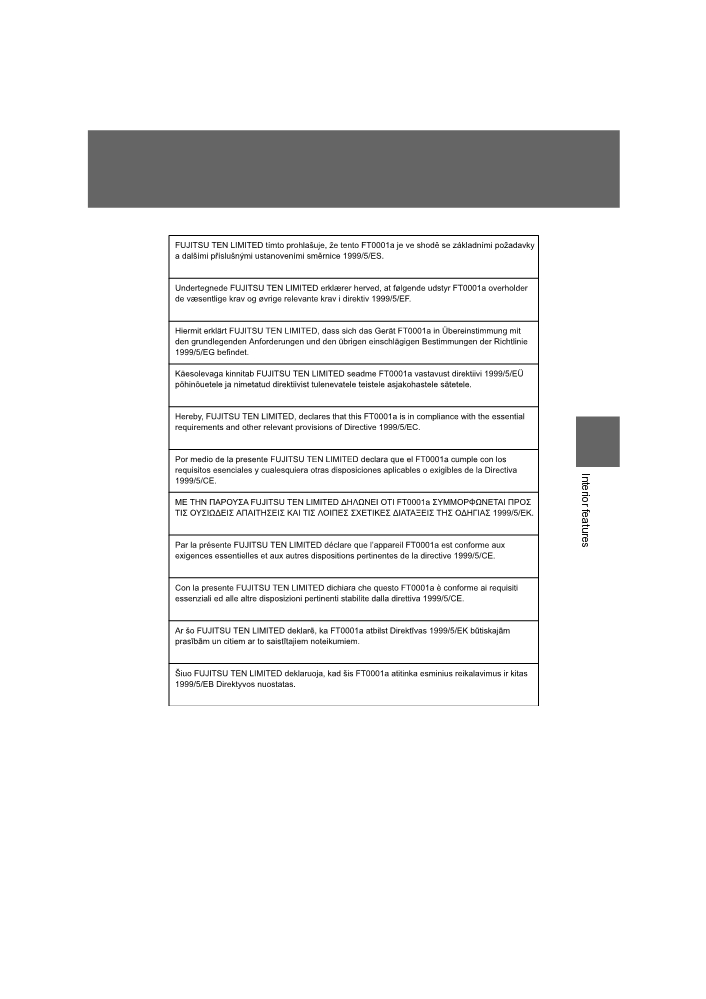

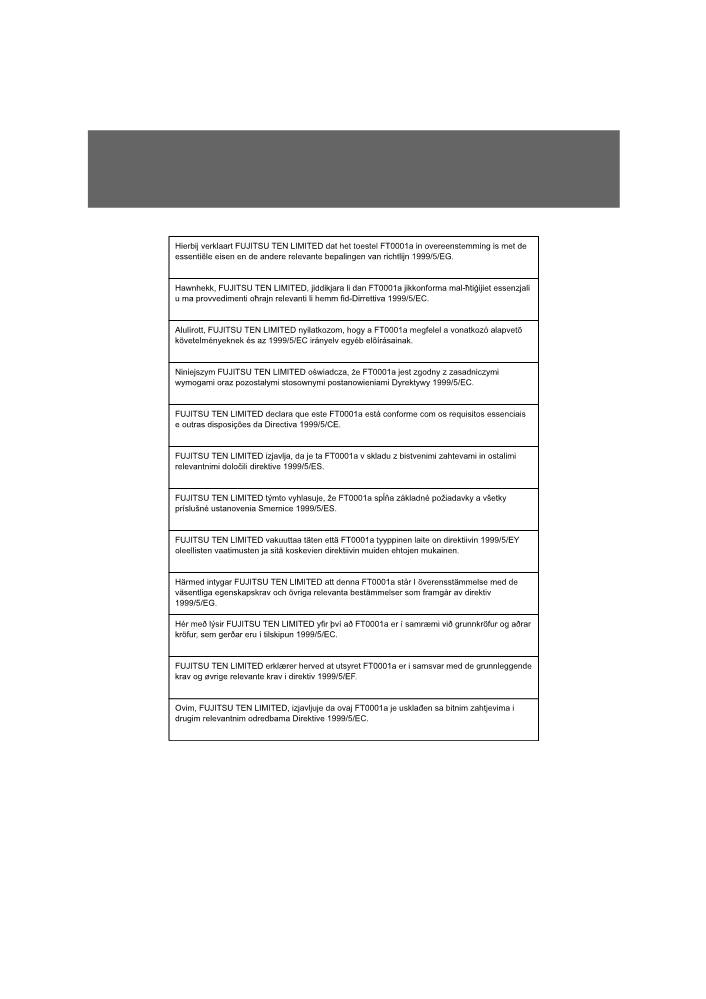

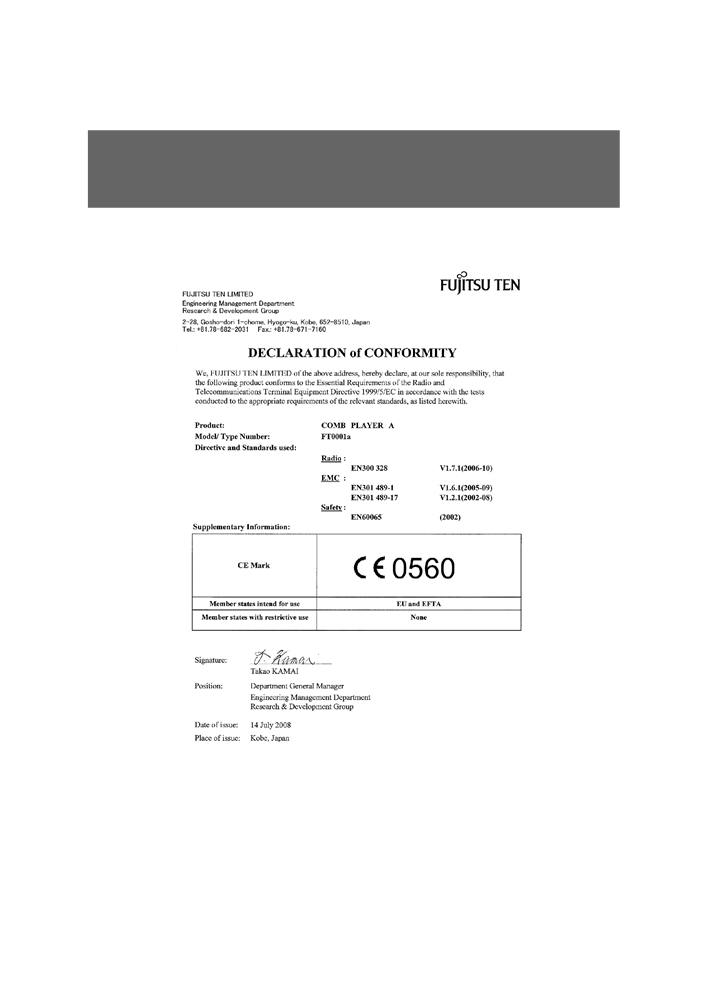

■ Certification for the hands-free system
302
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
3
303
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
304
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
CAUTION
■ While driving
Do not use a cellular phone, or connect the Bluetooth® phone.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth® antennas. The radio waves
may affect the operation of such devices.
●Before using Bluetooth® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
3
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ To prevent damage to a cellular phone
Do not leave a cellular phone in the vehicle. The temperature inside may
become high resulting in damage to the phone.
305
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Using the hands-free system
■ Audio unit
Displays such items as
message, name, and phone
number
Lower-case characters and
special characters, such as
an umlaut, cannot be dis-
played.
Push and hold: Displays
information that is too long
to be displayed at one time
on the display
Selects speed dials
Selects items such as menu
or number
Turn: Selects an item
Press: Inputs the selected
item
Displays Bluetooth® con-
nection condition
If
“BT” is not displayed, the
hands-free system cannot
be used.
Displays the reception level
306
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
■ Steering wheel
Volume
The voice guidance volume
cannot be adjusted
by using
this switch.
Hands-free phone system
off/ends a call/refuses a call
Hands-free phone system
on/starts a call
Press: Voice command sys-
tem on
Press and hold: Voice com-
3
mand system off
■ Microphone
307
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Using the hands-free system for the first time
Before using the hands-free system, it is necessary to register a cel-
lular phone in the system. The phone registration mode will be
entered automatically when starting the system with no cellular
phone registered. Follow the procedure below to register a cellular
phone:
STEP
1
Press
, select “Pair phone” by using
STEP
2
Register a phone name by either of the following methods.
a. Select “Record Name” by using
, and say a
name to be registered.
b. Press
and say a name to be registered.
STEP
3
Select “Confirm” by using
STEP
4
A passkey is displayed, and input the passkey into the cellular
phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
308
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
■ Automatic adjustment of volume
When vehicle speed is 80 km/h (50 mph) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 70 km/h (43 mph) or less.
■ The following cannot be performed while driving
●Operating the system with
●Registering a cellular phone to the system
■ Changing the passkey
→P. 317
3
309
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Making a phone call
■ Making a phone call
● Dialing by inputting a name
“Dial by name”
● Speed dialing
● Dialing a number stored in the outgoing history memory
“Redial”
● Dialing a number stored in the incoming history memory
“Call back”
■ Receiving a phone call
● Answering the phone
● Refusing the call
■ Transferring a call
■ Using a call history memory
● Dialing
● Storing data in the phone book
● Deleting
Dialing by inputting a name
STEP
1
Press
and say a registered name.
The desired name or number is displayed.
STEP
2
Press
310
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Speed dialing
STEP
1
Press
STEP
2
Press the preset button in which the desired number is regis-
tered.
STEP
3
Press
When receiving a phone call
■ Answering the phone
Press
3
■ Refusing the call
Press
Transferring a call
A call can be transferred between the cellular phone and system
while dialing, receiving a call, or during a call. Use one of the follow-
ing methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the oper-
ation of the phone.
b. Press
*.
*: This operation can be performed only when transferring a call
from the cellular phone to the system during a call.
311
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Using a call history memory
Follow the procedure below to use number stored in call history
memory:
STEP
1
Press
, select
“Redial” or
“Call back” by using
STEP
2
Select the desired number by using
The following operations can be performed:
Dialing: Press
or select “Dial” by using
Storing the number in the phone book: Select “Store” by using
Deleting: Select “Delete” by using
312
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
■ Call history
Up to 5 numbers can be stored in each of the outgoing and incoming history
memories.
■ When talking on the phone
●Do not talk simultaneously with the other party.
●Keep the volume of the receiving voice down. Otherwise, voice echo will
increase.
3
313
URBAN CRUISER_OM_OM52F47E_(EE)
3-3. Using the hands-free system (for cellular phone)
Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following function can be used for regis-
tered cellular phones:
■ Functions and operation procedures
To enter menu for each function, follow the steps below by using
● Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
● Selecting a cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Select Phone”
● Changing a registered name
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
● Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
● Deleting a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete”
● Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”
314
