Toyota Matrix (2014 year). Instruction

438

MATRIX_U

6-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

: Except S or XRS grade models

: S or XRS grade models

: Unladen vehicle

: Vehicles without double wishbone rear suspension

: Vehicles with double wishbone rear suspension

: 2.4 L 4-cylinder (2AZ-FE) engine only

Overall length

171.9 in. (4365 mm)

173.0 in. (4395 mm)

Overall width

69.5 in. (1765 mm)

Overall height

61.0 in. (1550 mm)

61.4 in. (1560 mm)

Wheelbase

102.4 in. (2600 mm)

Tread

Front

59.8 in. (1519 mm)

Rear

59.9 in. (1522 mm)

Vehicle capacity weight
(Occupants + luggage)

850 lb. (385 kg)

Trailer weight rating

(Trailer weight + cargo weight)

1500 lb. (680 kg)

439

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

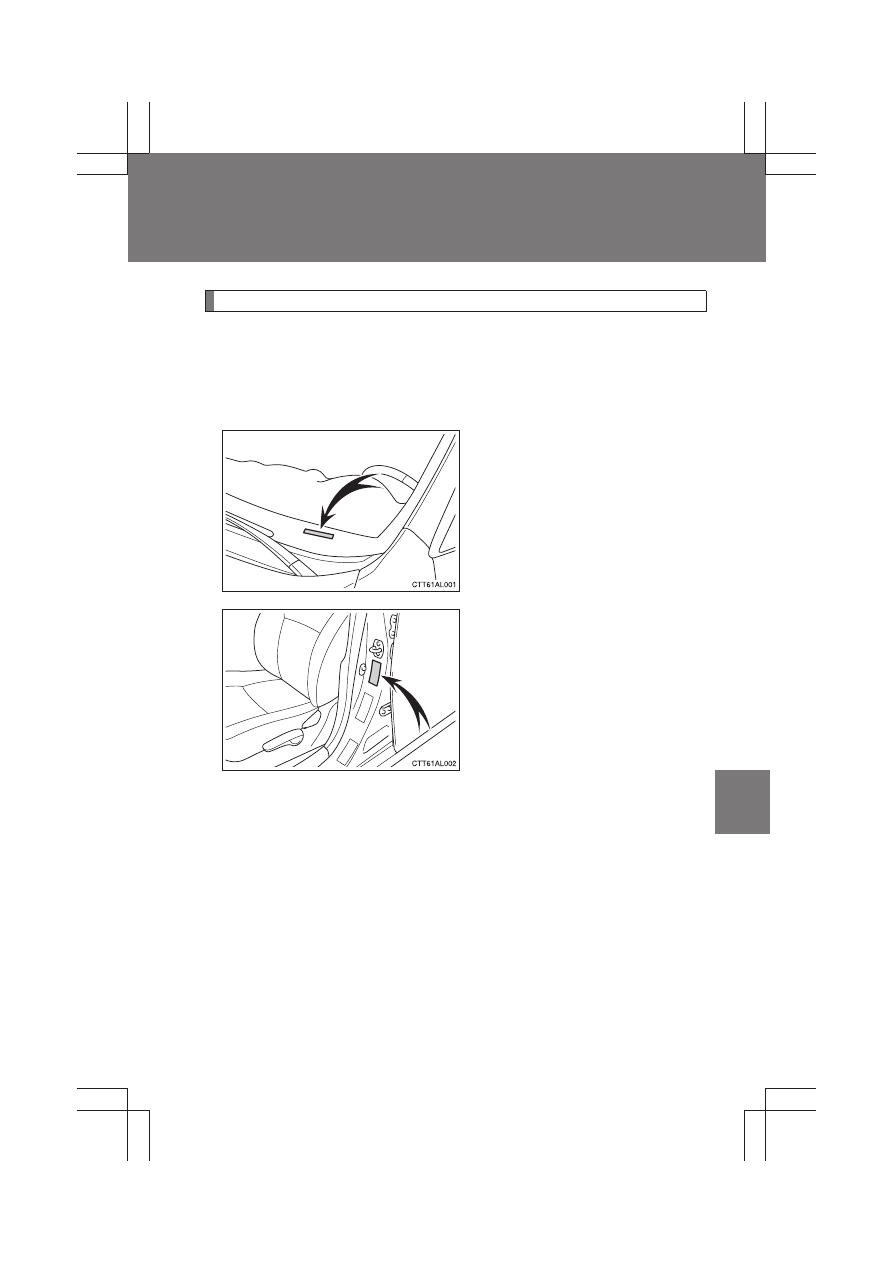

Vehicle identification

■

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.

This number is stamped on the
top left of the instrument panel.

This number is also on the Certi-
fication Label on the driver’s side
center pillar.

441

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

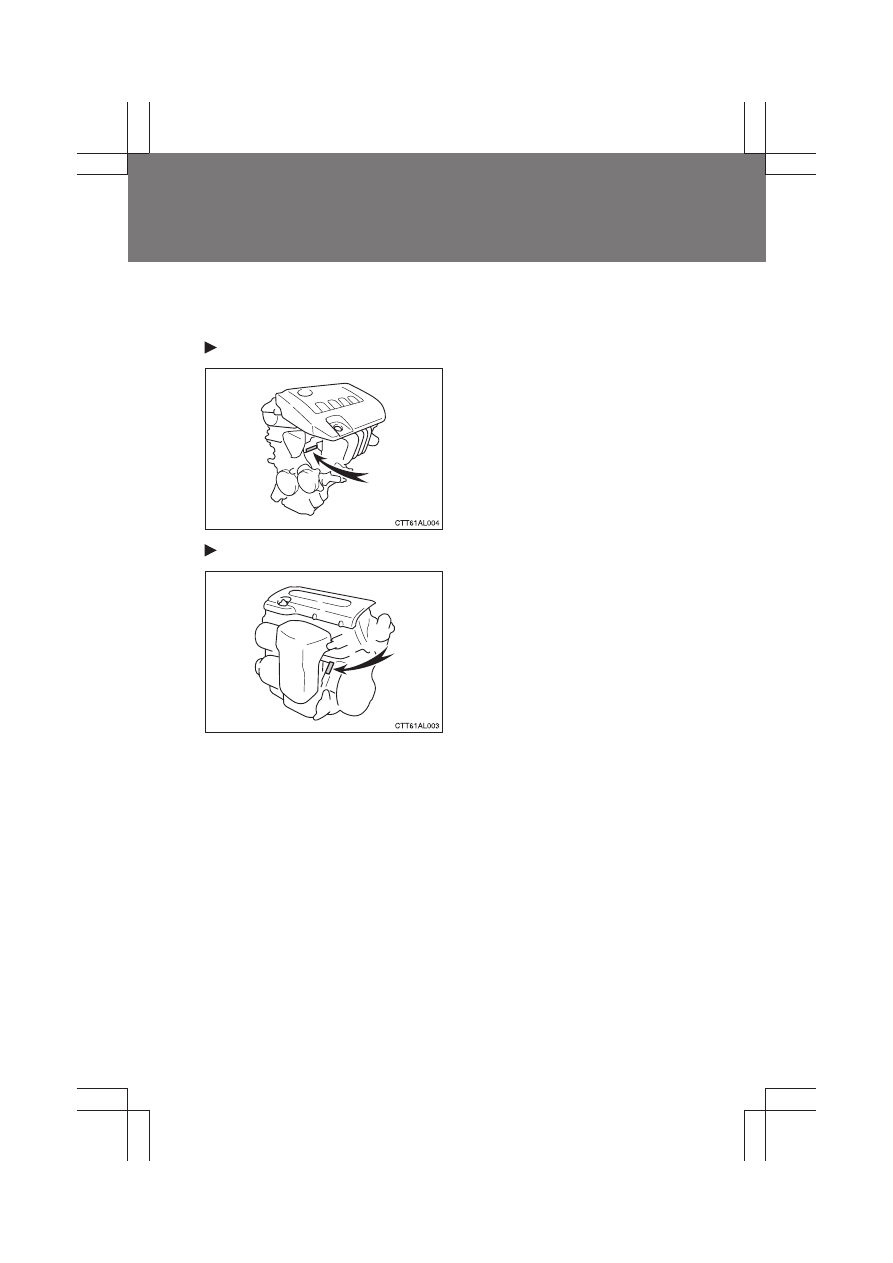

Engine

1.8 L 4-cylinder (2ZR-FE) engine

: Drive belt tension measured with Borroughs drive belt tension gauge No. BT-

33-73F (used belt), lb.

Model

2ZR-FE engine

Type

4 cylinder in line,
4 cycle, gasoline

Bore and stroke

3.17

× 3.48 in.

(80.5

× 88.3 mm)

Displacement

109.7 cu.in. (1798 cm

)

Drive belt tension

143 ± 22 lbf (650 ± 100 N, 65 ± 10 kgf)

Valve clearance (engine cold)
Intake
Exhaust

Automatic adjustment

442

6-1. Specifications

MATRIX_U

2.4 L 4-cylinder (2AZ-FE) engine

Fuel

Model

2AZ-FE engine

Type

4 cylinder in line,
4 cycle, gasoline

Bore and stroke

3.48

× 3.78 in.

(88.5

× 96.0 mm)

Displacement

144.1 cu.in. (2362 cm

)

Drive belt tension

Automatic adjustment

Valve clearance (engine cold)
Intake

Exhaust

0.007

 0.011 in.

(0.19

 0.29 mm)

0.015

 0.019 in.

(0.38

 0.48 mm)

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

13.2 gal. (50 L, 10.9 Imp. gal.)

443

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

Lubrication system

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.

Oil grade: ILSAC multigrade engine oil

Recommended viscosity:

1.8 L 4-cylinder (2ZR-FE) engine

SAE 0W-20

SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.

If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

Oil capacity
(Drain and refill



reference)

With filter

Without filter

1.8 L 4-cylinder (2ZR-FE) engine
4.4 qt. (4.2 L, 3.7 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine
4.0 qt. (3.8 L, 3.3 Imp. qt.)
1.8 L 4-cylinder (2ZR-FE) engine
4.1 qt. (3.9 L, 3.4 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.8 qt. (3.6 L, 3.2 Imp. qt.)

Outside temperature

444

6-1. Specifications

MATRIX_U

Oil viscosity (0W-20 is explained here as an example):

● The 0W in 0W-20 indicates the characteristic of the oil which allows

cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.

● The 20 in 0W-20 indicates the viscosity characteristic of the oil when

the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

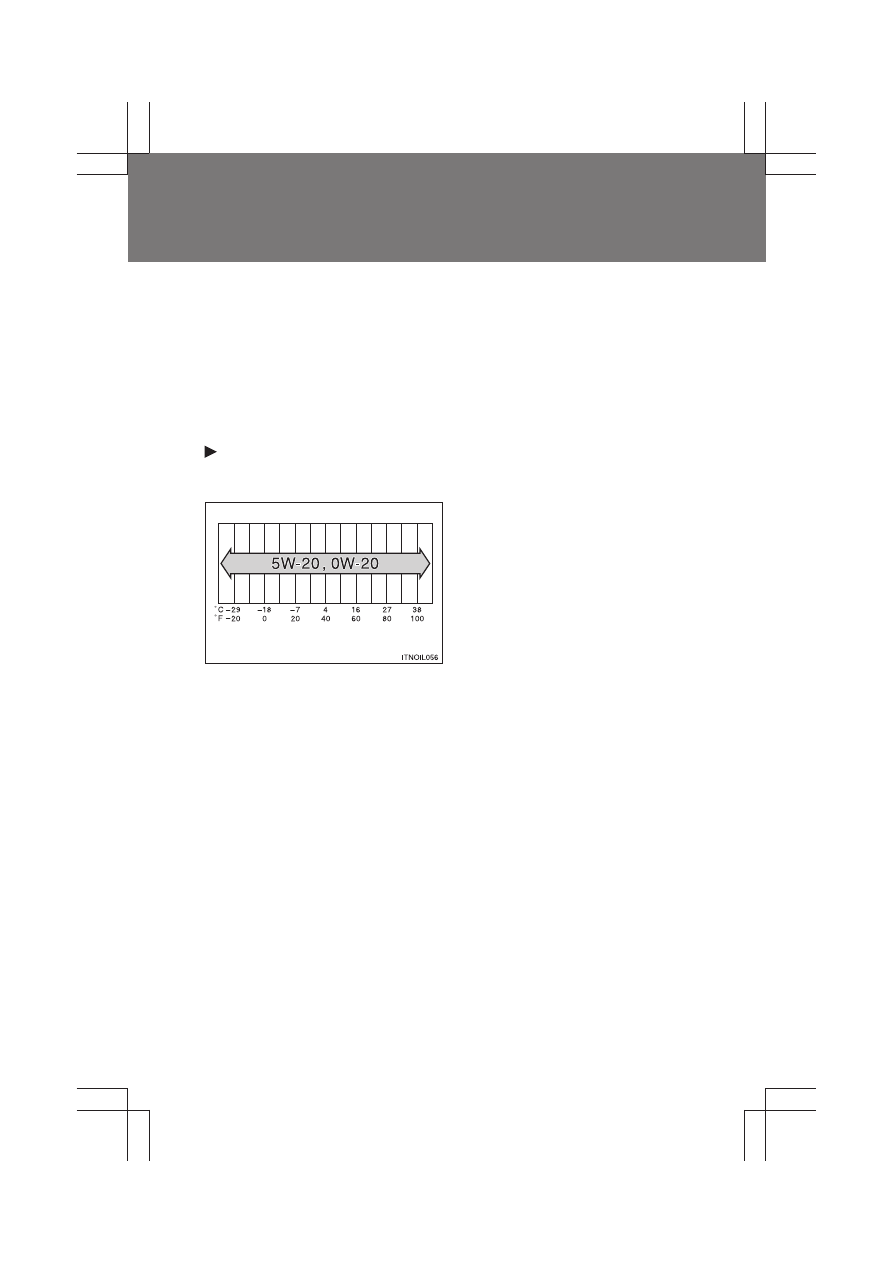

2.4 L 4-cylinder (2AZ-FE) engine

SAE 5W-20 or 0W-20

SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE
0W-20 is the best choice for
good fuel economy and good
starting in cold weather.

Oil viscosity (0W-20 is explained here as an example):

● The 0W in 0W-20 indicates the characteristic of the oil which allows

cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.

● The 20 in 0W-20 indicates the viscosity characteristic of the oil when

the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.

Outside temperature

445

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

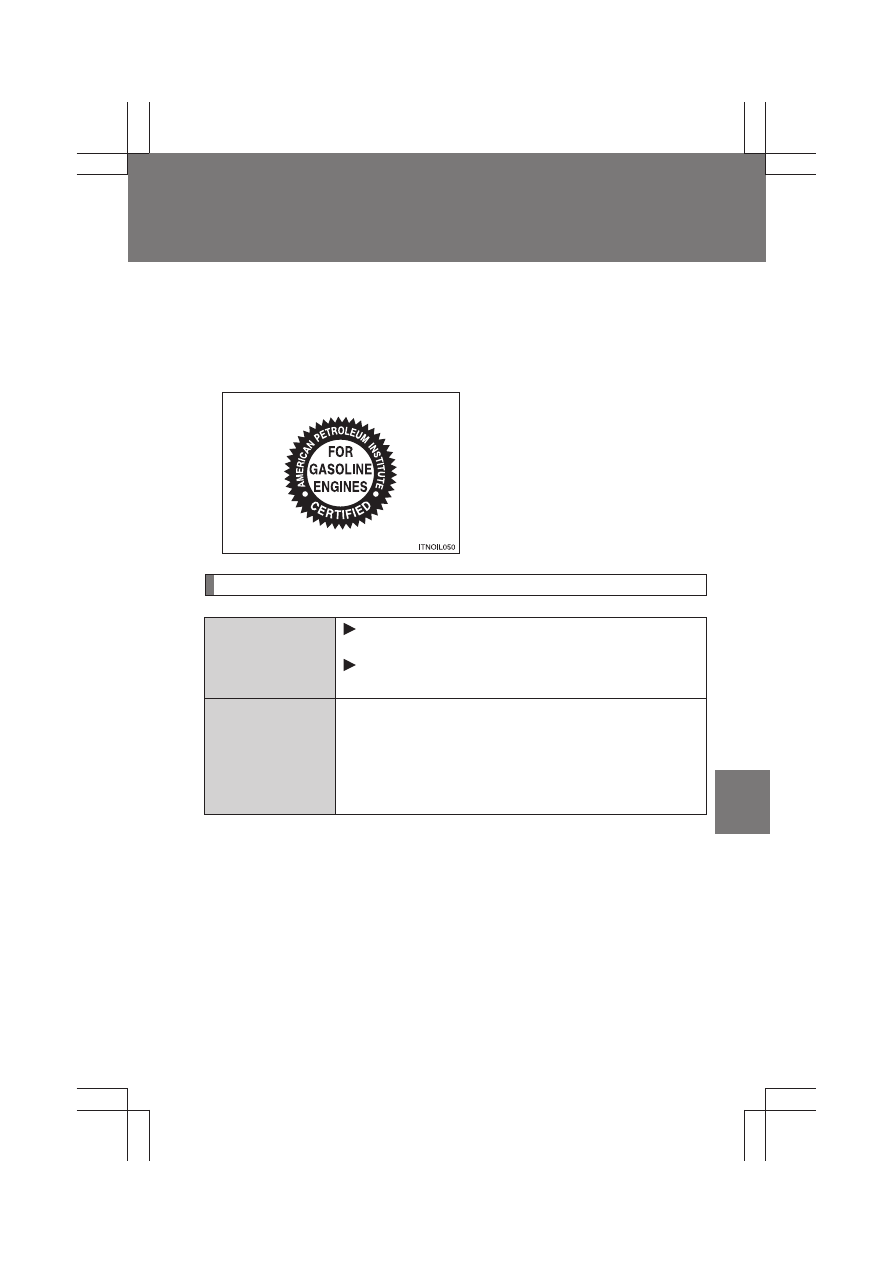

How to read oil container label:

The ILSAC (International Lubricant Standardization and Approval
Committee) Certification Mark is added to some oil containers to help
you select the oil you should use.

Cooling system

Capacity
(Reference)

1.8 L 4-cylinder (2ZR-FE) engine
5.8 qt. (5.5 L, 4.8 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine
6.0 qt. (5.7 L, 5.0 Imp. qt.)

Coolant type

Use either of the following.

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,

non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

446

6-1. Specifications

MATRIX_U

Ignition system

Electrical system

Spark plug

Make

Gap

1.8 L 4-cylinder (2ZR-FE) engine
DENSO SC20HR11
2.4 L 4-cylinder (2AZ-FE) engine
DENSO SK20R11
DENSO SK16R11
NGK IFR6A11
NGK IFR5A11

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

Battery

Open voltage at
68

°F (20°C):

12.6

 12.8 V Fully charged

12.2

 12.4 V Half charged

11.8

 12.0 V Discharged

(Voltage checked 20 minutes after the
engine and all the lights turned off)

Charging rates

5 A max.

447

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

Manual transmission

Gear oil capacity (Reference)

1.8 L 4-cylinder (2ZR-FE) engine
2.0 qt. (1.9 L, 1.7 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine
2.6 qt. (2.5 L, 2.2 Imp. qt.)

Gear oil type

Use either of the following:

• “TOYOTA Genuine Manual Transmission

Gear Oil LV”

• Other gear oil that meets API GL-4 and

SAE 75W specifications

NOTICE

■

Manual transmission gear oil

Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal performance.

448

6-1. Specifications

MATRIX_U

Automatic transmission

Fluid capacity (Reference)

1.8 L 4-cylinder (2ZR-FE) engine
6.9 qt. (6.5 L, 5.7 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine (2WD
models)
8.2 qt. (7.8 L, 6.9 Imp. qt.)
2.4 L 4-cylinder (2AZ-FE) engine (AWD
models)
8.6 qt. (8.1 L, 7.1 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the transmission of your
vehicle.

449

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

Rear differential (AWD models)

Transfer (AWD models)

Clutch

Oil capacity

0.5 qt. (0.5 L, 0.4 Imp. qt.)

Oil type

Hypoid gear oil API GL-5

Recommended oil viscosity

Above 0

°F (-18°C): SAE 90

Below 0

°F (-18°C): SAE 80W or 80W-90

Oil capacity

0.8 qt. (0.8 L, 0.7 Imp. qt.)

Oil type

Hypoid gear oil API GL-5

Recommended oil viscosity

Above 0

°F (-18°C): SAE 90

Below 0

°F (-18°C): SAE 80W or 80W-90

Pedal free play

0.2

 0.6 in. (5  15 mm)

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

450

6-1. Specifications

MATRIX_U

Brakes

: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30

kgf) while the engine is running

: 2.4 L 4-cylinder (2AZ-FE) engine with 18-inch tires or AWD models

: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20

kgf)

Pedal clearance

1.8 L 4-cylinder (2ZR-FE) engine
3.4 in. (87 mm)
2.4 L 4-cylinder (2AZ-FE) engine
• AWD models: 3.4 in. (87 mm)
• 2WD models with P215/45R18 tires:

3.4 in. (87 mm)

• 2WD models with tires other than the

above: 3.3 in. (85 mm)

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit

0.04 in. (1.0 mm)

Parking brake lever travel

 9 clicks

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

451

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

Steering

Tires and wheels

16-inch tires

Free play

Less than 1.2 in. (30 mm)

Tire size

P205/55R16 89H, T135/80R16 101M or
T135/70R17 102M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

2WD models
Front: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm

bar)
AWD models
Front: 35 psi (240 kPa, 2.4 kgf/cm

bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm

bar)

Wheel size

× 6 1/2J, 16 × 4T or 17 × 4T (compact

spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

452

6-1. Specifications

MATRIX_U

17-inch tires

18-inch tires

Tire size

P215/45R17 87W, T135/80R16 101M or
T135/70R17 102M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

2WD models
Front: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm

bar)
AWD models
Front: 35 psi (240 kPa, 2.4 kgf/cm

bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm

bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm

bar)

Wheel size

× 7J, 16 × 4T or 17 × 4T (compact

spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

P215/45R18 89W, T135/70R17 102M

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear: 32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare: 60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size

× 7J, 17 × 4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

453

6-1. Specifications

Ve
hic
le

sp
ec

ific
at

ion
s

MATRIX_U

Light bulbs

A: H11 halogen bulbs

B: HB3 halogen bulbs

C: Wedge base bulbs (clear)

D: Wedge base bulbs (amber)

E: Double end bulbs

F: HB4 halogen bulbs

Light Bulbs

Bulb No.

Type

Exterior

Headlights

Low beam
High beam

9006
9005

51
60

F
B

Front turn signal/park-
ing and front side
marker lights

3457NA

27/7

Front fog lights (if
equipped)



Rear turn signal lights



Stop/tail and rear side
marker lights

7443

21/5

License plate lights



Back-up lights

921

Interior

Personal lights



Interior light



Toyota Matrix (2014 year). Instruction - part 28
