Toyota Supra (1998 year). Instruction - part 9

SUPRA (U)

Precautions for turning off an

engine with turbocharger

(b) Starting the engine

(2JZ−GTE engine)

Before starting the engine, be sure to

After high−speed or extended driving, etc.,

NOTICE

follow the instructions in

”(a) Before

requiring a heavy engine load, the engine

cranking”.

z Do not crank for more than 30 se-

should be allowed to idle, as shown in the

Normal starting procedure

conds at a time. This may overheat

chart, before turning it off.

the starter and wiring systems.

The multiport fuel injection system/sequen-

Driving condition and required idling

tial multiport fuel injection system in your

z Do not race a cold engine.

time

engine automatically controls the proper

z If the engine becomes difficult to

air−fuel mixture for starting. You can start

Normal city driving

start or stalls frequently, have the

a cold or hot engine as follows:

Idling time—Not necessary

engine checked immediately.

1. With your foot off the accelerator ped-

High−speed driving

al, crank the engine by turning the key

About 80 km/h (50 mph)

to

”START”. Release it when the en-

Idling time—About 20 seconds

gine starts.

About 100 km/h (63 mph)

2. After the engine runs for about

10 se-

Idling time—About 1 minute

conds, you are ready to drive.

If the weather is below freezing, let the

Steep mountain slopes or continued driv-

engine warm up for a few minutes before

ing

driving.

above 100 km/h (63 mph)

Idling time—About 2 minutes

If the engine stalls...

Simply restart it, using the correct proce-

NOTICE

dure given in normal starting.

If the engine will not start—

Never turn the engine off immediately

after a heavy load. This may cause

See ”If your vehicle will not start” in Part

severe engine damage.

4.

121

SUPRA (U)

Tips for driving in various

conditions

D Always slow down in gusty crosswinds.

This will allow you much better control.

CAUTION

D Do not drive in excess of the speed

limit. Even if the legal speed limit

D Drive slowly onto curbs and, if pos-

D Before driving off, make sure the

permits it, do not drive over

140

sible, at a right angle. Avoid driving

parking brake is fully released and

km/h (85 mph) unless your vehicle

onto high, sharp−edged objects and

the parking brake reminder light is

has high−speed capability tires.

other road hazards. Failure to do so

off.

Driving over 140 km/h (85 mph) may

can lead to severe tire damage result-

result in tire failure, loss of control

D Do not leave your vehicle unat-

ing in tire bursts.

and possible injury. Be sure to con-

tended while the engine is running.

D When parking on a hill, turn the front

sult a tire dealer to determine

D Do not rest your foot on the brake

wheels until they touch the curb so

whether the tires on your vehicle

pedal while driving. It can cause

that the vehicle will not roll. Apply the

are high−speed capability tires or

dangerous overheating, needless

parking brake, and place the transmis-

not before driving at such speeds.

sion in

”P”

(automatic) or in first or

wear, and poor fuel economy.

D Do not continue normal driving

reverse

(manual). If necessary, block

D To drive down a long or steep hill,

when the brakes are wet. If they are

the wheels.

reduce your speed and downshift.

wet, your vehicle will require a

Remember, if you ride the brakes

D Washing your vehicle or driving through

longer stopping distance, and it

deep water may get the brakes wet. To

excessively, they may overheat and

may pull to one side when the

see whether they are wet, check that

not work properly.

brakes are applied. Also, the park-

there is no traffic near you, and then

D Be careful when accelerating, up-

ing brake will not hold the vehicle

press the pedal lightly. If you do not

shifting, downshifting or braking on

securely.

feel a normal braking force, the brakes

a slippery surface. Sudden accelera-

are probably wet. To dry them, drive

tion or engine braking could cause

the vehicle cautiously while lightly

the vehicle to spin or skid.

pressing the brake pedal with the park-

ing brake pulled. If they still do not

work safely, pull to the side of the road

and call a Toyota dealer for assistance.

122

SUPRA (U)

Winter driving tips

Make sure you have ethylene−glycol an-

Use a washer fluid containing an anti-

Depending on where you are driving,

tifreeze in the radiator.

freeze solution.

we recommend you carry some emer-

gency equipment.

This product is available at your Toyota

NOTICE

dealer and most auto parts stores. Follow

Some of the things you might put in the

Do not use alcohol type antifreeze.

the manufacturer’s directions for how

vehicle are tire chains, window scraper,

much to mix with water.

bag of sand or salt, flares, small shovel,

jumper cables, etc.

Check the condition of the battery and

NOTICE

cables.

Do not use engine antifreeze or any

Cold temperatures reduce the capacity of

other substitute as washer fluid be-

any battery, so it must be in top shape

cause it may damage your vehicle’s

to provide enough power for winter start-

paint.

ing. Chapter 7−3 tells you how to visually

inspect the battery. Your Toyota dealer

and most service stations will be pleased

Do not use your parking brake when

to check the level of charge.

there is a possibility it could freeze.

Make sure the engine oil viscosity is

When parking, put the transmission into

suitable for the cold weather.

”P”

(automatic) or into first or reverse

(manual) and block the front wheels. Do

See Chapter 7−2 for recommended viscos-

not use the parking brake, or snow or

ity. Leaving a heavy summer oil in your

water accumulated in and around the

vehicle during winter months may cause

parking brake mechanism may freeze,

harder starting. If you are not sure about

making it hard to release.

which oil to use, call your Toyota dealer-

he will be pleased to help.

Keep ice and snow from accumulating

under the fenders.

Keep the door locks from freezing.

Ice and snow built up under your fenders

Squirt lock de−icer or glycerine into the

can make steering difficult. During bad

locks to keep them from freezing. To open

winter driving, stop and check under the

a frozen lock, try heating the key before

fenders occasionally.

inserting it.

123

SUPRA (U)

How to save fuel and make

Trailer towing

your vehicle last longer, too

Getting more kilometers/mileage from a

D Avoid continuous speeding up and

liter/gallon of fuel is easy—just take it

slowing down. Stop−and−go driving

easy. It will help make your vehicle last

wastes fuel.

longer, too. Here are some specific tips

D Avoid unnecessary stopping and

on how to save money on both fuel and

braking. Maintain a steady pace. Try

repairs:

to time the traffic signals so you only

D Keep your tires inflated at the cor-

need to stop as little as possible or

rect pressure. Underinflation causes

take advantage of through streets to

tire wear and wastes fuel. See Chapter

avoid traffic lights. Keep a proper dis-

7−2 for instructions.

tance from other vehicles to avoid sud-

den braking. This will also reduce wear

D Do not carry unneeded weight in

on your brakes.

your vehicle. Excess weight puts a

heavier load on the engine, causing

D Avoid heavy traffic or traffic jams

greater fuel consumption.

whenever possible.

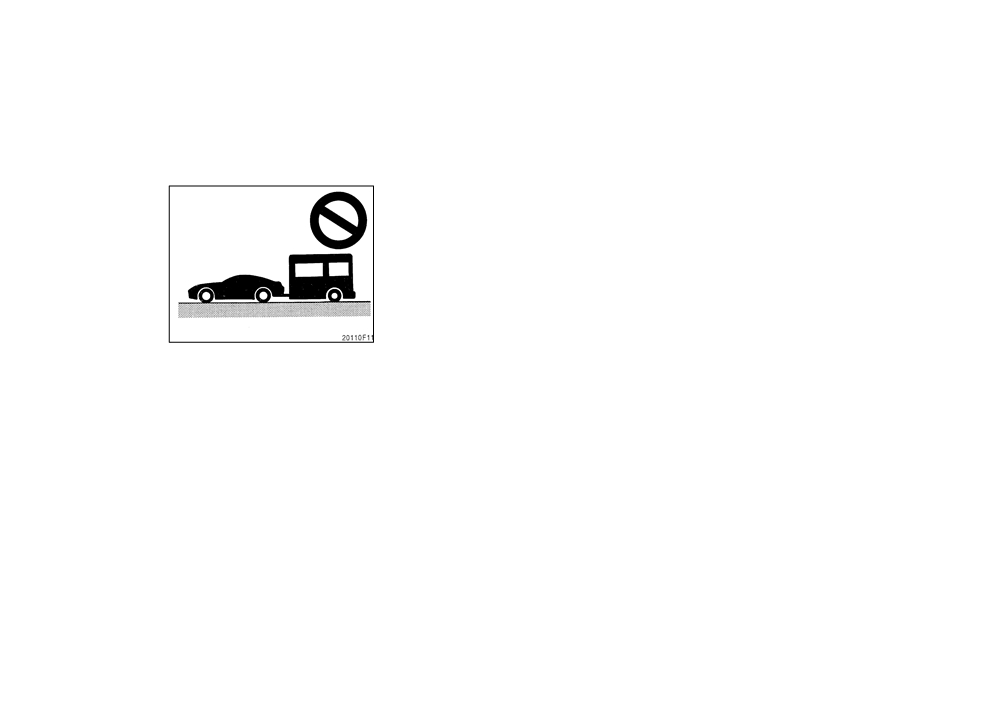

Toyota does not recommend towing a trail-

er with your Supra. It is not designed for

D Avoid lengthy warm−up idling. Once

D Do not rest your foot on the clutch

trailer towing.

the engine is running smoothly, begin

or brake pedal. This causes needless

driving—but gently. Remember, howev-

wear, overheating and poor fuel econo-

er, that on cold winter days this may

my.

take a little longer.

D Maintain a moderate speed on high-

D Accelerate slowly and smoothly.

ways. The faster you drive, the greater

Avoid jackrabbit starts. Get into high

the fuel consumption. By reducing your

gear as quickly as possible.

speed, you will cut down on fuel con-

sumption.

D Avoid long engine idling. If you have

a long wait and you are not in traffic,

D Keep the front wheels in proper

it is better to turn off the engine and

alignment. Avoid hitting the curb and

start again later.

slow down on rough roads. Improper

alignment not only causes faster tire

D Avoid engine lug or overrevving. Use

wear but also puts an extra load on

a gear position suitable for the road on

the engine, which, in turn, wastes fuel.

which you are travelling.

124

SUPRA (U)

D Keep the bottom of your vehicle free

from mud, etc. This not only lessens

weight but also helps prevent corro-

sion.

D Keep your vehicle tuned−up and in

top shape. A dirty air cleaner, improp-

er valve clearance, dirty plugs, dirty oil

and grease, brakes not adjusted, etc.

all lower engine performance and con-

tribute to poor fuel economy. For longer

life of all parts and lower operating

costs, keep all maintenance work on

schedule, and if you often drive under

severe conditions, see that your vehicle

receives more frequent maintenance

(For schedule maintenance information,

please refer to the separate

”Owner’s

Manual

Supplement/Maintenance

Schedule”).

CAUTION

Never turn off the engine to coast

down hills. Your power steering and

brake booster will not function with-

out the engine running. Also, the

emission control system operates

properly only when the engine is run-

ning.

125

SUPRA (U)

If your vehicle will not start—

(a) Simple checks

Part 4

Before making these checks, make sure

If the engine turns over at its normal

IN CASE OF

you have followed the correct starting pro-

speed but will not start—

cedure given in ”How to start the engine”

The engine may be flooded because of

AN EMERGENCY

in Part 3 and that you have sufficient fuel.

repeated cranking. See

”(b) Starting a

If the engine is not turning over or is

flooded engine” for further instructions.

D If your vehicle will not start

turning over too slowly-

D If your engine stalls while driving

1. Check that the battery terminals are

tight and clean.

D If your vehicle overheats

2. If the battery terminals are O.K., switch

D If you have a flat tire

on the interior light.

D If your vehicle needs to be towed

3. If the light is out, dim or goes out

when the starter is cranked, the battery

D If you cannot shift automatic

is discharged. You may try jump start-

transmission selector lever

ing. See ”(c) Jump starting” for further

instructions.

D If you lose your keys

If the light is O.K., but the engine still will

not start, it needs adjustment or repair.

Call a Toyota dealer or qualified repair

shop.

NOTICE

Do not pull− or push− start the ve-

hicle. It may damage the vehicle or

cause a collision when the engine

starts. Also the three−way catalytic

converter may overheat and become a

fire hazard.

126

SUPRA (U)

(b) Starting a flooded engine

(c) Jump starting

If the engine will not start, your engine

To avoid serious personal injury and

may be flooded because of repeated

damage to your vehicle which might re-

D The gas normally produced by a

battery will explode if a flame or

cranking.

sult from battery explosion, acid burns,

spark is brought near. Use only

electrical burns, or damaged electronic

If this happens, turn the key to

”START”

standardized cables designed for

components, these instructions must be

with the accelerator pedal held down.

followed precisely.

jump starting and do not smoke or

Keep the key and accelerator pedal so for

light a match while jump starting.

15 seconds and release them. Then try

If you are unsure about how to follow this

starting the engine with your foot off the

procedure, we strongly recommend that

accelerator pedal.

you seek the help of a competent me-

NOTICE

chanic or towing service.

If the engine does not start after

15 se-

The battery used for boosting must

conds of cranking, release the key, wait

CAUTION

be 12 V. Do not jump start unless you

a few minutes and try again.

are sure that the booster battery is

If the engine still will not start, it needs

D Batteries contain sulfuric acid

correct.

adjustment or repair. Call a Toyota dealer

which is poisonous and corrosive.

or qualified repair shop for assistance.

Wear protective safety glasses when

jump starting, and avoid spilling

NOTICE

acid on your skin, clothing, or ve-

Do not crank for more than

30 se-

hicle.

conds at a time. This may overheat

D If you should accidentally get acid

the starter and wiring systems.

on yourself or in your eyes, remove

any contaminated clothing and flush

the affected area with water im-

mediately. Then get immediate medi-

cal attention. If possible, continue

to apply water with a sponge or

cloth while en route to the medical

office.

127

SUPRA (U)

JUMP STARTING PROCEDURE

1.

If the booster battery is installed in

another vehicle, make sure the vehicles

are not touching. Turn off all unneces-

sary lights and accessories.

2.

If required, remove all the vent plugs

from the booster and discharged batter-

ies. Lay a cloth over the open vents

on the batteries. (This helps reduce the

explosion hazard, personal injuries and

burns.)

3.

If the engine in the vehicle with the

booster battery is not running, start it

and let it run for a few minutes. During

4. Make the cable connections in the or-

c. Connect the clamp of the negative

jump starting, run the engine at about

der a, b, c, d.

(black) jumper cable to the negative

(-)

2000 rpm with the accelerator pedal

terminal on the booster battery.

a. Connect the clamp of the positive (red)

lightly depressed.

jumper cable to the positive

(+) terminal

d. Connect the clamp at the other end of

on the discharged battery.

the negative

(black) jumper cable to a

solid, stationary, unpainted, metallic point

b. Connect the clamp at the other end of

of the vehicle with the discharged battery.

the positive (red) jumper cable to the pos-

itive

(+) terminal on the booster battery.

The recommended connecting points are

shown in the following illustrations:

128

SUPRA (U)

If your engine stalls while

driving

Do not connect the cable to or near any

If your engine stalls while driving...

part that moves when the engine is

1. Reduce your speed gradually, keeping

cranked.

a straight line. Move cautiously off the

road to a safe place.

CAUTION

2. Turn on your emergency flashers.

When making the connections, to

3. Try starting the engine again.

avoid serious injury, do not lean over

If the engine will not start, see

”If your

the battery or accidentally let the

vehicle will not start”.

jumper cables or clamps touch any-

thing except the correct battery termi-

CAUTION

nals or the ground.

If the engine is not running, the pow-

5. Start your engine in the normal way.

er assist for the brakes and steering

After starting, run it at about

2000 rpm

will not work so steering and braking

for several minutes with the accelerator

will be much harder than usual.

pedal lightly depressed.

6. Carefully disconnect the cables in the

exact reverse order: the negative cable

and then the positive cable.

7. Carefully dispose of the battery cover

cloths—they may now contain sulfuric

acid.

8. If removed, replace all the battery vent

plugs.

If the cause of your battery discharging is

not apparent

(for example, lights left on),

you should have it checked.

129

SUPRA (U)

If your vehicle overheats

If

your engine coolant temperature

3. Visually check to see if the engine

gauge indicates overheating, if you ex-

drive belt

(fan belt) is broken or loose.

CAUTION

perience a loss of power, or if you hear

Look for obvious coolant leaks from the

Do not attempt to remove the radiator

a loud knocking or pinging noise, the

radiator, hoses, and under the vehicle.

cap when the engine and radiator are

engine has probably overheated. You

However, note that water draining from

should follow this procedure...

the air conditioning is normal if it has

hot. Serious injury could result from

been used.

scalding hot fluid and steam blown

1. Pull safely off the road, stop the ve-

out under pressure.

hicle and turn on your emergency

flashers. Put the transmission in

”P”

CAUTION

(automatic) or neutral (manual) and ap-

7. After the engine coolant temperature

ply the parking brake. Turn off the air

When the engine is running, keep

has cooled to normal, again check the

conditioning if it is being used.

hands and clothing away from the

coolant level in the reservoir. If neces-

moving fan and engine drive belts.

sary, bring it up to half full again. Seri-

2. If coolant or steam is boiling out of the

ous coolant loss indicates a leak in the

radiator or reservoir, stop the engine.

system. You should have it checked as

Wait until the steam subsides before

4. If the engine drive belt is broken or the

soon as possible at your Toyota dealer.

opening the hood. If there is no coolant

coolant is leaking, stop the engine im-

mediately. Call a Toyota dealer for as-

boiling over or steam, leave the engine

running.

sistance.

5. If the engine drive belt is O.K. and

CAUTION

there are no obvious leaks, you may

help the engine cool down more quickly

To help avoid personal injury, keep

by running it at about

1500 rpm for a

the hood closed until there is no

few minutes with the accelerator pedal

steam. Escaping steam or coolant is

lightly depressed.

a sign of very high pressure.

6. Check the coolant reservoir. If it is dry,

add coolant to the reservoir while the

engine is running. Fill it about half full.

130

SUPRA (U)

If you have a flat tire—

1. Reduce your speed gradually, keeping

D Stop the vehicle on a level firm

NOTICE

a straight line. Move cautiously off the

ground, firmly set the parking brake

road to a safe place well away from

Do not continue driving with a de-

and put the transmission in

“P”

the traffic. Avoid stopping on the center

flated tire. Driving even a short dis-

(automatic) or reverse

(manual).

divider of a highway. Park on a level

tance can damage a tire beyond re-

spot with firm ground.

Block the wheel diagonally opposite

pair.

to the one being changed if neces-

2. Stop the engine and turn on your

sary.

emergency flashers.

D Make sure to set the jack properly

3. Firmly set the parking brake and put

in the jack point. Raising the ve-

the transmission in

”P”

(automatic) or

hicle with jack improperly posi-

reverse

(manual).

tioned will damage the vehicle or

4. Have everyone get out of the vehicle

may allow the vehicle to fall off the

on the side away from traffic.

jack and cause personal injury.

5. Read the following instructions thor-

D Never get under the vehicle when

oughly.

the vehicle is supported by the jack

alone.

CAUTION

D Use the jack only for lifting your

vehicle during wheel changing.

When jacking, be sure to observe the

D Do not raise the vehicle with some-

following to reduce the possibility of

one in the vehicle.

personal injury:

D When raising the vehicle, do not

D Follow jacking instructions.

put an object on or under the jack.

D Do not start or run the engine while

D Raise the vehicle only high enough

your vehicle is supported by the

to remove and change the tire.

jack.

131

SUPRA (U)

The compact spare tire saves space in

NOTICE

your luggage compartment, and its lighter

weight helps to improve fuel economy and

Your ground clearance is reduced

permits easier installation in case of a flat

when the compact spare tire is

tire.

installed so avoid driving over ob-

The compact spare tire can be used many

stacles and drive slowly on rough,

times, if necessary. It has tread life of up

unpaved roads and speed bumps.

to

4800 km

(3000 miles) depending on

Also, do not attempt to go through an

road conditions and your driving habits.

automatic car wash as the vehicle

When tread wear indicators appear on the

may get caught, resulting in damage.

tire, replace the tire.

See also the tire section in Chapter

7−2

for details on the tread wear indicators

and other service information.

Compact spare tire

The compact spare tire is designed for

CAUTION

temporary emergency use only.

The compact spare tire is identified by the

D The compact spare tire was de-

distinctive wheel design and color and

signed especially for your Toyota.

special wording ”TEMPORARY USE ONLY”

Do not use it on any other vehicle.

molded into the side wall of the tire.

D Do not exceed

80 km/h

(50 mph)

The standard tire should be repaired and

when driving with the compact

replaced as soon as possible.

spare tire.

To keep the compact spare tire noticeable,

D Avoid sudden acceleration, sudden

do not hide the wheel by a wheel cover

deceleration and sharp turns with

or such.

the compact spare tire.

132

SUPRA (U)

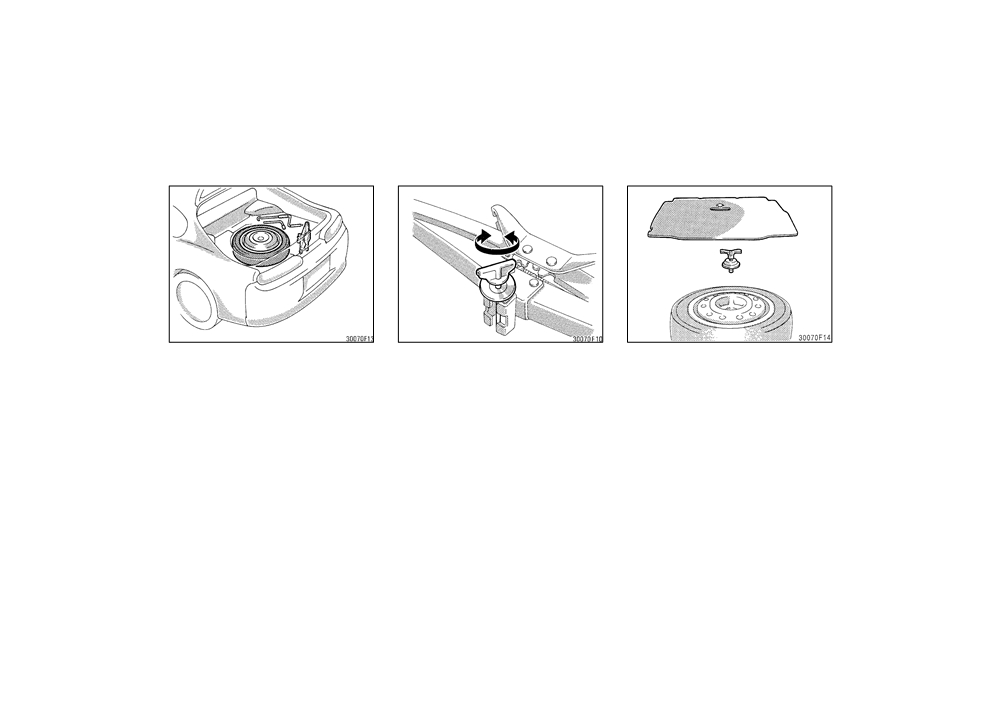

—Required tools and spare tire

1. Get the wheel nut wrench, jack, jack

To remove the jack, loosen the bolt and

To remove the spare tire:

handle and spare tire.

remove it.

1. Remove the spare tire cover.

To prepare yourself for an emergency, you

When storing the jack, secure it by follow-

2. Loosen the bolt and remove it.

should familiarize yourself with the use of

ing removal step in reverse order to pre-

When storing the spare tire, put it in place

the jack, each of the tools and their stor-

vent it from flying forward during a colli-

with the outer side of the wheel facing up.

age locations.

sion or sudden braking.

Then secure the tire by repeating the

above removal steps in reverse order to

prevent it from flying forward during a

collision or sudden braking.

133

SUPRA (U)

—Blocking the wheel

—Removing wheel ornament

—Loosening wheel nuts

2. Block the wheel diagonally opposite

3. Remove the wheel ornament.

4. Loosen all the wheel nuts.

the flat tire to keep the vehicle from

Pry off the wheel ornament, using the

Always loosen the wheel nuts before rais-

rolling when it is jacked up.

beveled end of the wheel nut wrench as

ing the vehicle.

When blocking the wheel, place a wheel

shown.

The nuts turn counterclockwise to loosen.

block from the front for the front wheels

To get maximum leverage, fit the wrench

or from the rear for the rear wheels.

CAUTION

to the nut so that the handle is on the

right side, as shown above. Grab the

Do not try to pull off the ornament by

wrench near the end of the handle and

hand. Take due care in handling the

pull up on the handle. Be careful that the

ornament to avoid unexpected person-

wrench does not slip off the nut.

al injury.

Do not remove the nuts yet-just unscrew

them about one−half turn.

134

Content   ..  7  8  9  10   ..
