Toyota Corolla (2020 year). Owner's manual - part 5





70

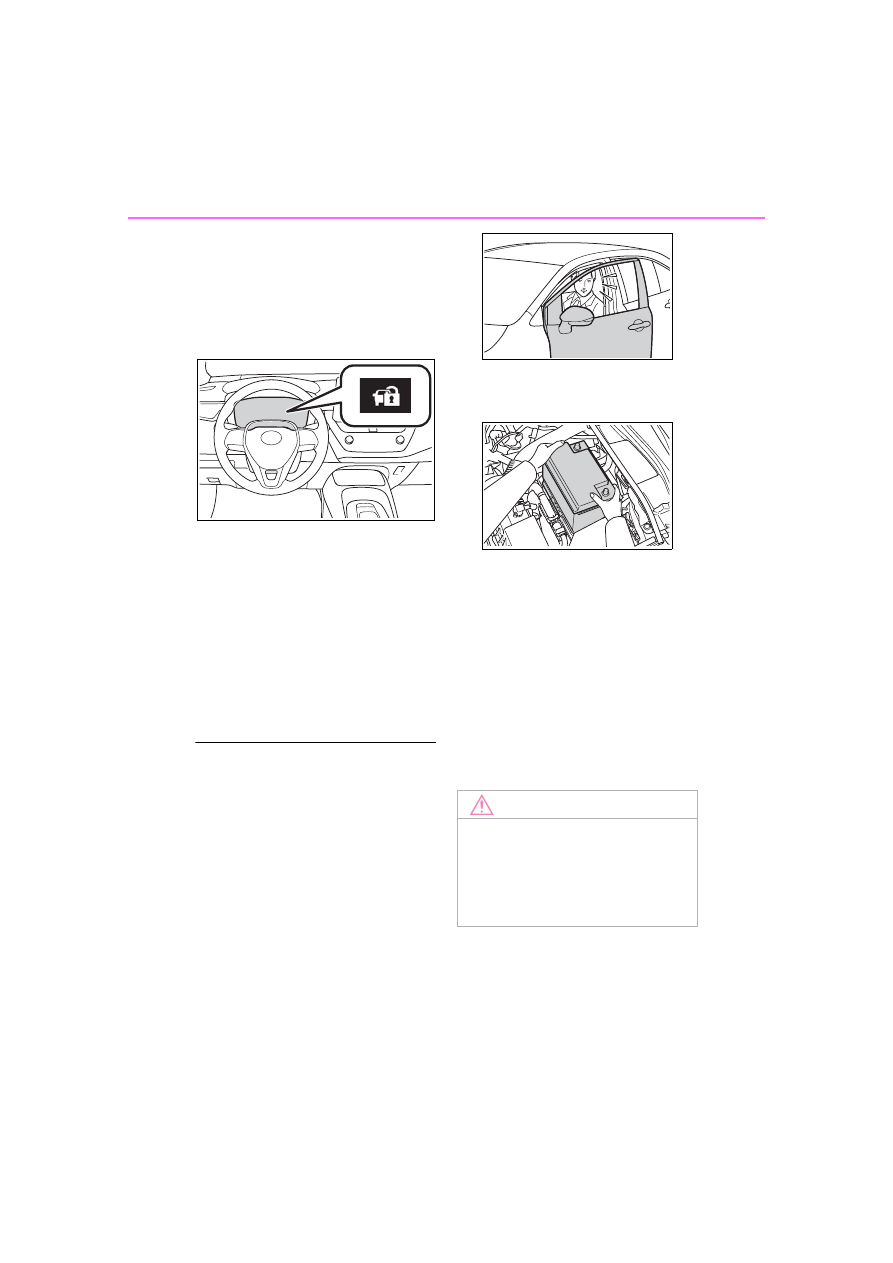

1-4. Theft deterrent system

hood, and lock all the doors.
The system will set automati-
cally after 30 seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarms:

Unlock the doors.

Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle using a door

lock switch or inside lock button.

The battery is recharged or

replaced when the vehicle is

locked. (P.518)

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

When recharging or replacing the

battery

NOTICE

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

71

2

2

Vehicle

 statu

s information an

d in
dicator

s

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

72

Gauges and meters

(4.2-inch display)..........

77

Gauges and meters (7-inch

display).........................

81

Multi-information display

.....................................

86

Fuel consumption informa-

tion ...............................

92

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

2-1. Instrument cluster

2-1.Instrument cluster

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.

4.2-inch display

7-inch display (when analog speedometer is displayed)

Warning lights and indicators

The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instru-
ment cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------

73

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

7-inch display (when digital speedometer is displayed)

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light

*1

 (P.481)

(Red)

(Canada)

Brake system warning
light

*1

 (P.481)

(Yellow)

Brake system warning
light

*1

 (P.481)

High coolant temperature
warning light

*2

 (P.481)

Charging system warning
light

*1

 (P.482)

Low engine oil pressure
warning light

*2

 (P.482)

(U.S.A.)

Malfunction indicator
lamp

*1

 (P.482)

(Canada)

Malfunction indicator
lamp

*1

 (P.482)

SRS warning light

*1



(P.482)

(U.S.A.)

ABS warning light

*1



(P.483)

(Canada)

ABS warning light

*1



(P.483)
Brake Override System
warning light/Drive-Start
Control warning light

*2



(P.483)

(Red)

Electric power steering
system warning light

*1



(P.484)

(Yellow)

Electric power steering
system warning light

*1



(P.484)
Low fuel level warning
light (P.484)
Driver’s and front passen-
ger’s seat belt reminder
light (P.484)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

74

2-1. Instrument cluster

*1

:These lights come on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

*2

:This light illuminates on the

multi-information display.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Rear passengers’
seat belt reminder
lights (P.485)

Tire pressure warning
light

*1

 (if equipped)

(P.485)

(Orange)

LTA indicator (if equipped)
(P.485)
LDA indicator (if equipped)
(P.485)

(Flashes

or illumi-

nates)

PCS warning light

*1



(P.486)

Slip indicator

*1

 (P.486)

(Flashes)

(U.S.A.)

Parking brake indicator
(P.486)

(Flashes)
(Canada)

Parking brake indicator
(P.486)

(Flashes)

Brake hold operated indi-
cator

*1

(if equipped)

(P.487)

(Orange)

iMT indicator

*1

 (if

equipped) (P.487)

WARNING

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

Indicators

Turn signal indicator
(P.162)

(U.S.A.)

Headlight indicator
(P.170)

(Canada)

Tail light indicator
(P.170)

Headlight high beam indi-
cator (P.172)
Automatic High Beam
indicator (P.173)
PCS warning light

*1, 2



(P.189)
Cruise control indicator
(P.213, 223)
Dynamic radar cruise con-
trol indicator (P.213
223)
Cruise control “SET” indi-
cator (P.213, 223)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

75

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

*1

:These lights come on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not come on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

*2

:This light comes on when the

system is turned off.

*3

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

*4

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:

• When the engine switch is

turned to ON, the BSM func-
tion is enabled on

 of the

multi-information display.

• When the BSM function is

enabled on

 of the

multi-information display, the
engine switch is turned to ON.

If the system is functioning cor-
rectly, the BSM outside rear view
mirror indicators will turn off after a
few seconds.

*3

LTA indicator (if equipped)
(P.200)
LDA indicator (if
equipped) (P.209)
BSM outside rear view
mirror indicators

*4, 5

 (if

equipped) (P.236)
BSM indicator (if
equipped) (P.236)

(Flashes)

Slip indicator

*1

 (P.251)

VSC OFF indicator

*1, 2



(P.252)
Smart key system indica-
tor

*6

 (if equipped)

(P.148)

(U.S.A.)

Parking brake indicator
(P.163, 164)

(Canada)

Parking brake indicator
(P.163, 164)

Brake hold standby indi-
cator

*1

 (if equipped)

(P.167)
Brake hold operated indi-
cator

*1

 (if equipped)

(P.167)
Auto EPB OFF indicator

*1,

2

 (if equipped) (P.164)

Eco Driving Indicator
Light

*1

(if equipped)

(P.88)
Low outside temperature
indicator

*7

 (P.77, 81)

Security indicator (P.67,
69)

“AIR BAG ON/OFF”
indicator

*1, 8

 (P.39)

Sport mode indicator (if
equipped) (P.249)

(Green)

iMT indicator (if equipped)
(P.161)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

76

2-1. Instrument cluster

If the BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system.
If this occurs, have the vehicle
inspected by your Toyota dealer.

*5

:This light illuminates on the out-

side rear view mirrors.

*6

:This light illuminates on the

multi-information display.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

*8

:This light illuminates on the cen-

ter panel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

77

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

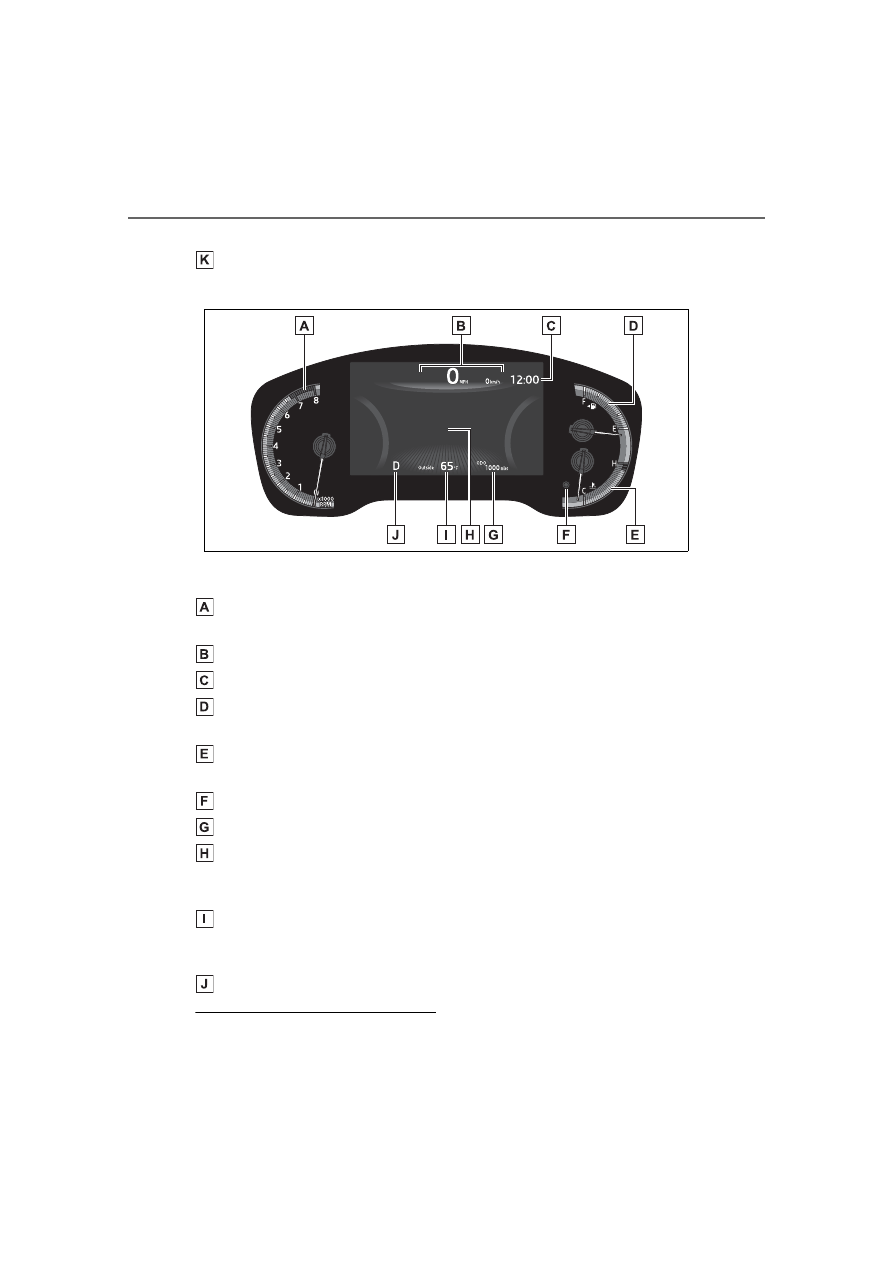

Locations of gauges and meters

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Clock (P.79)
Multi-information display

Presents the driver with a variety of vehicle data (P.86)
Displays warning messages if a malfunction occurs (P.490)

Odometer and trip meter display (P.78)
Shift position indicator (P.153)
Display change button (P.78)
Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Gauges and meters (4.2-inch display)

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

78

2-1. Instrument cluster

Outside temperature display

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Liquid crystal display

P.87

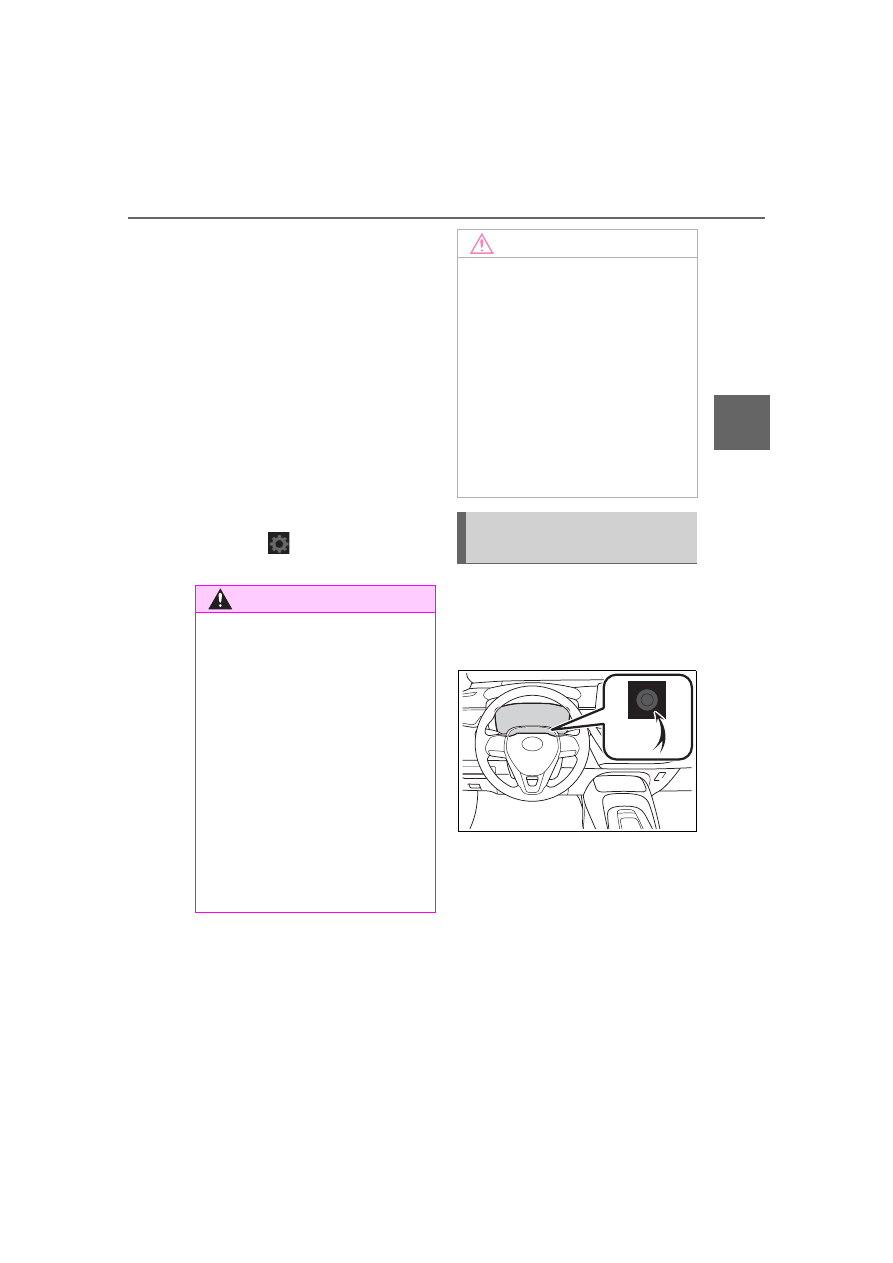

Changing the display

Press the display change button
until the desired item is dis-
played.

Display items

Odometer

Displays the total distance the vehi-
cle has been driven.

Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display

WARNING

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

To prevent damage to the

engine and its components

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(P.519)

Odometer and trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

79

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

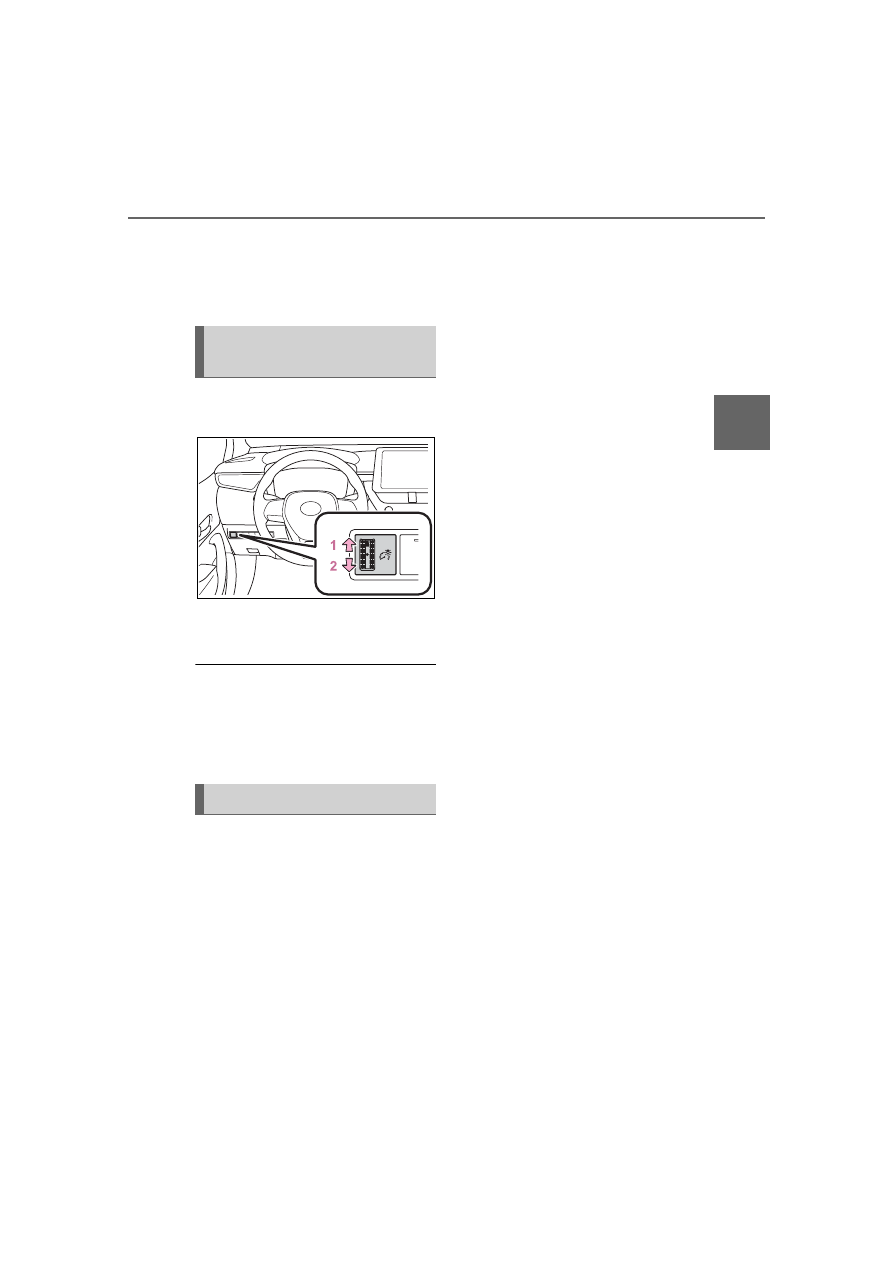

The brightness of the instrument
panel lights can be adjusted.

1

Brighter

2

Darker

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.

Multi-information display

Audio system screen

Setting the clock to be
adjusted automatically by
GPS (Entune Audio [for
U.S.A.]/Entune Audio Plus)

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to on.

Adjusting the clock manu-
ally

Entune Audio (except for
U.S.A.)

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Adjust the displayed time.

Hour: Select “-” or “+” of
“Hours” to adjust the hour.

Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.

“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

80

2-1. Instrument cluster

Entune Audio (for
U.S.A.)/Entune Audio Plus

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to off.

6

Adjust the displayed time.

Hour: Select “-” or “+” of
“Hours” to adjust the hour.

Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.

“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00

Setting the time zone
(Entune Audio [for
U.S.A.]/Entune Audio Plus)

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Time Zone”.

Select the desired time zone.

Setting daylight saving time
(Entune Audio [for
U.S.A.]/Entune Audio Plus)

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Daylight Saving
Time” then on/off.

Changing the clock
between 12-hour/24-hour
format

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

Clock settings screen (Entune

Audio [for U.S.A.]/Entune Audio

Plus)

If “Clock : 00” is displayed when



is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

81

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Locations of gauges and meters

Analog speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Sub speedometer
Clock (P.84)
Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (P.83)
Odometer and trip meter display (P.83)
Multi-information display

Presents the driver with a variety of vehicle data (P.86)
Displays warning messages if a malfunction occurs (P.490)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F

Gauges and meters (7-inch display)

Meter display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

82

2-1. Instrument cluster

(50°C)

Shift position indicator (P.153)

Digital speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Clock (P.84)
Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (P.83)
Odometer and trip meter display (P.83)
Multi-information display

Presents the driver with a variety of vehicle data (P.86)
Displays warning messages if a malfunction occurs (P.490)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Shift position indicator (P.153)

Outside temperature display

In the following situations, the cor-

rect outside temperature may not

-------------------------------------------------------------------------------------------------------------------------------------------------------------

83

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Liquid crystal display

P.87

Customization

The gauges and meters can be cus-
tomized in

 of the multi-informa-

tion display. (P.90)

Changing the display

Press the display change button
until the desired item is dis-
played.

Display items

Odometer

Displays the total distance the vehi-
cle has been driven.

Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display

WARNING

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

To prevent damage to the

engine and its components

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(P.519)

Odometer and trip meter
display

-------------------------------------------------------------------------------------------------------------------------------------------------------------

84

2-1. Instrument cluster

different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

The brightness of the instrument
panel lights can be adjusted.

1

Brighter

2

Darker

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.

Multi-information display

Audio system screen

Setting the clock to be
adjusted automatically by
GPS

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to on.

Adjusting the clock manu-
ally

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Auto Adjust by GPS”
to set to off.

6

Adjust the displayed time.

Hour: Select “-” or “+” of
“Hours” to adjust the hour.

Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.

“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29  1:00
1:30 to 1:59  2:00

Setting the time zone

1

Press the “MENU” button.

Changing the instrument
panel light brightness

Adjusting the clock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

85

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Time Zone”.

Select the desired time zone.

Entune Premium Audio only:
If “Auto” is selected, the time zone
is selected automatically by current
vehicle position.

Setting daylight saving time

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “Daylight Saving
Time” then on/off/auto

*

.

*

: Entune Premium Audio only

Changing the clock
between 12-hour/24-hour
format

1

Press the “MENU” button.

2

Select “Setup” on the “Menu”
screen.

3

Select “General” on the
“Setup” screen.

4

Select “Clock”.

5

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

Clock settings screen

If “Clock : 00” is displayed when



is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
