PS–50
POWER STEERING – POWER STEERING LINK (for 4WD)
PS
5.
INSTALL NO.2 STEERING INTERMEDIATE SHAFT
SUB-ASSEMBLY

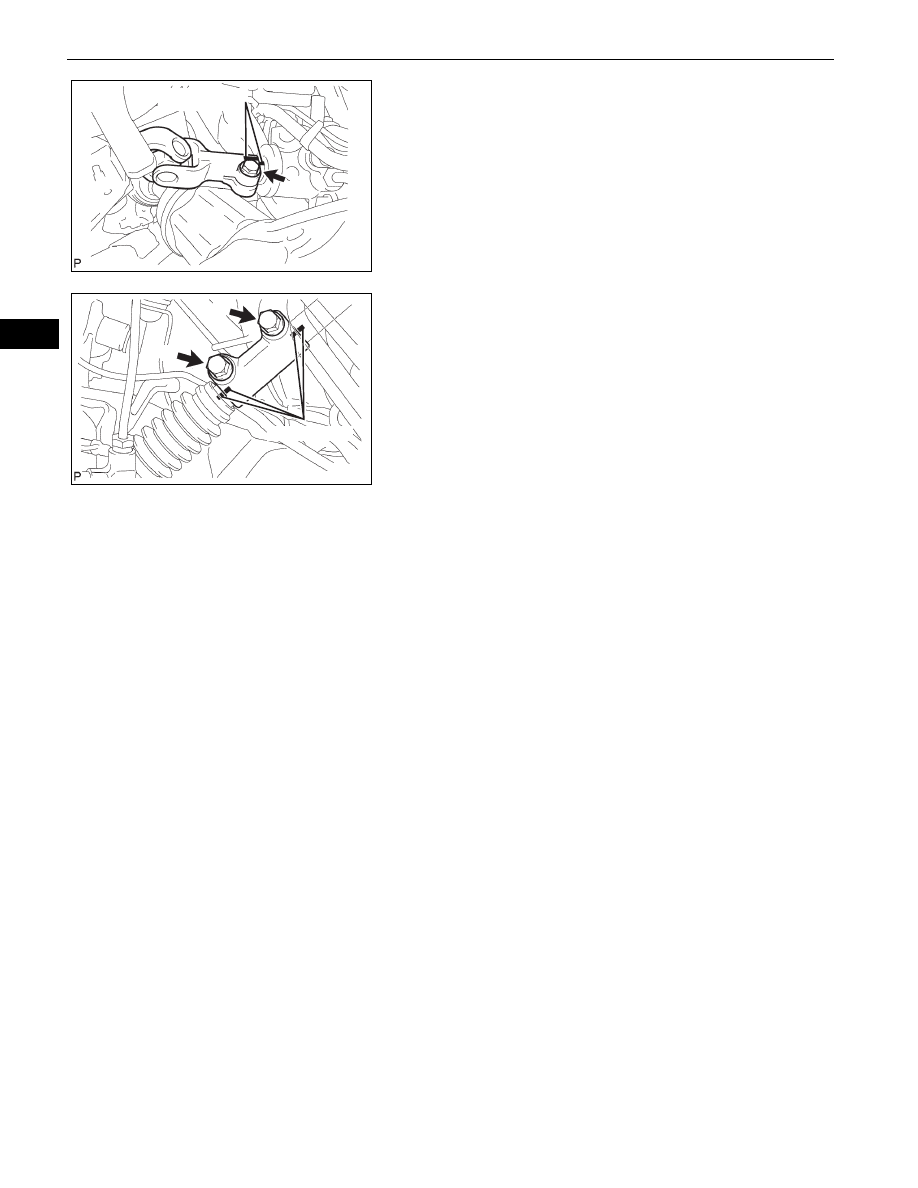

(a) Align the matchmarks on the No. 2 steering
intermediate shaft and power steering link.
(b) Install the No. 2 steering intermediate shaft onto the
power steering link with bolt C.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
(c) Align the matchmarks on the steering intermediate
shaft and steering sliding yoke.
(d) Install the steering sliding yoke onto the steering
intermediate shaft and slide it upward.
(e) Align the matchmarks on the steering sliding yoke
and No. 2 steering intermediate shaft.
(f)
Install the steering sliding yoke with bolts A and B.
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
6.
INSTALL NO. 3 FRAME CROSSMEMBER SUB-
ASSEMBLY (See page
)
7.
INSTALL FRONT SUSPENSION MEMBER BRACKET
LH (See page
)
8.
INSTALL FRONT SUSPENSION MEMBER BRACKET
(See page
9.
INSTALL PROPELLER SHAFT ASSEMBLY (See page
10. INSTALL FRONT PROPELLER SHAFT ASSEMBLY
(See page
)
11. INSTALL PROPELLER SHAFT HEAT INSULATOR
(See page
12. INSTALL FRONT EXHAUST PIPE ASSEMBLY (See
page
)
13. INSTALL NO. 2 EXHAUST FRONT PIPE ASSEMBLY
(See page
14. INSTALL FRONT WHEELS
Torque: 113 N*m (1,152 kgf*cm, 83 ft.*lbf)
15. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
16. INSPECT STEERING WHEEL CENTER POINT
17. CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
18. ADD POWER STEERING FLUID
19. BLEED POWER STEERING FLUID (See page
20. CHECK FOR POWER STEERING FLUID LEAKAGE
21. CHECK FOR EXHAUST GAS LEAKAGE
Matchmarks
C
F051678E02
A
B
Matchmarks
F051677E01
