Toyota FJ Cruiser (GSJ 10, 15 series). Instruction - part 312

LU–10

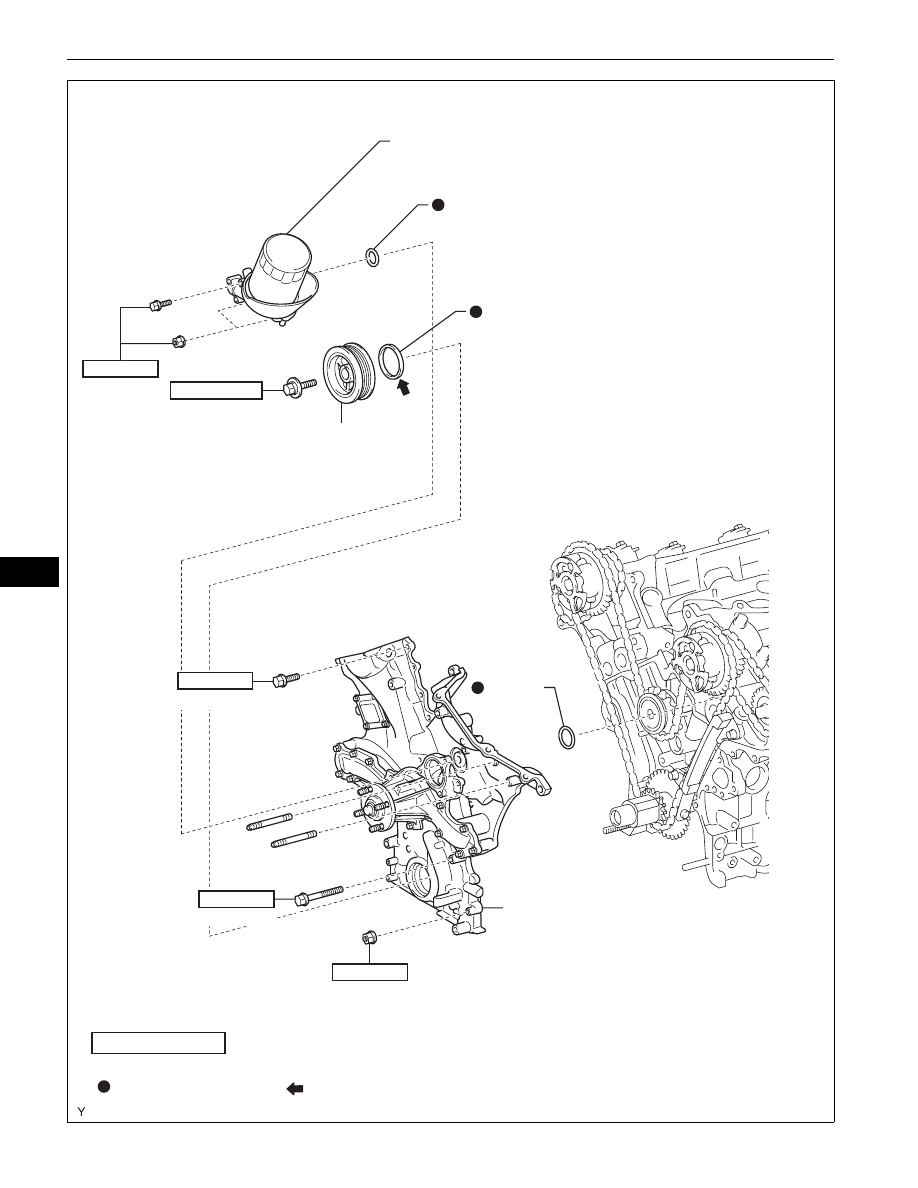

1GR-FE LUBRICATION  –  OIL PUMP

LU

CRANKSHAFT PULLEY

OIL FILTER BRACKET
SUB-ASSEMBLY

TIMING CHAIN OR BELT
COVER SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

23 (235, 17)

O-RING

x2

x15

23 (235, 17)

x9

250 (2,549, 184)

19 (194, 14)

x3

TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL

GASKET

23 (235, 17)

Apply MP grease

A126424E01

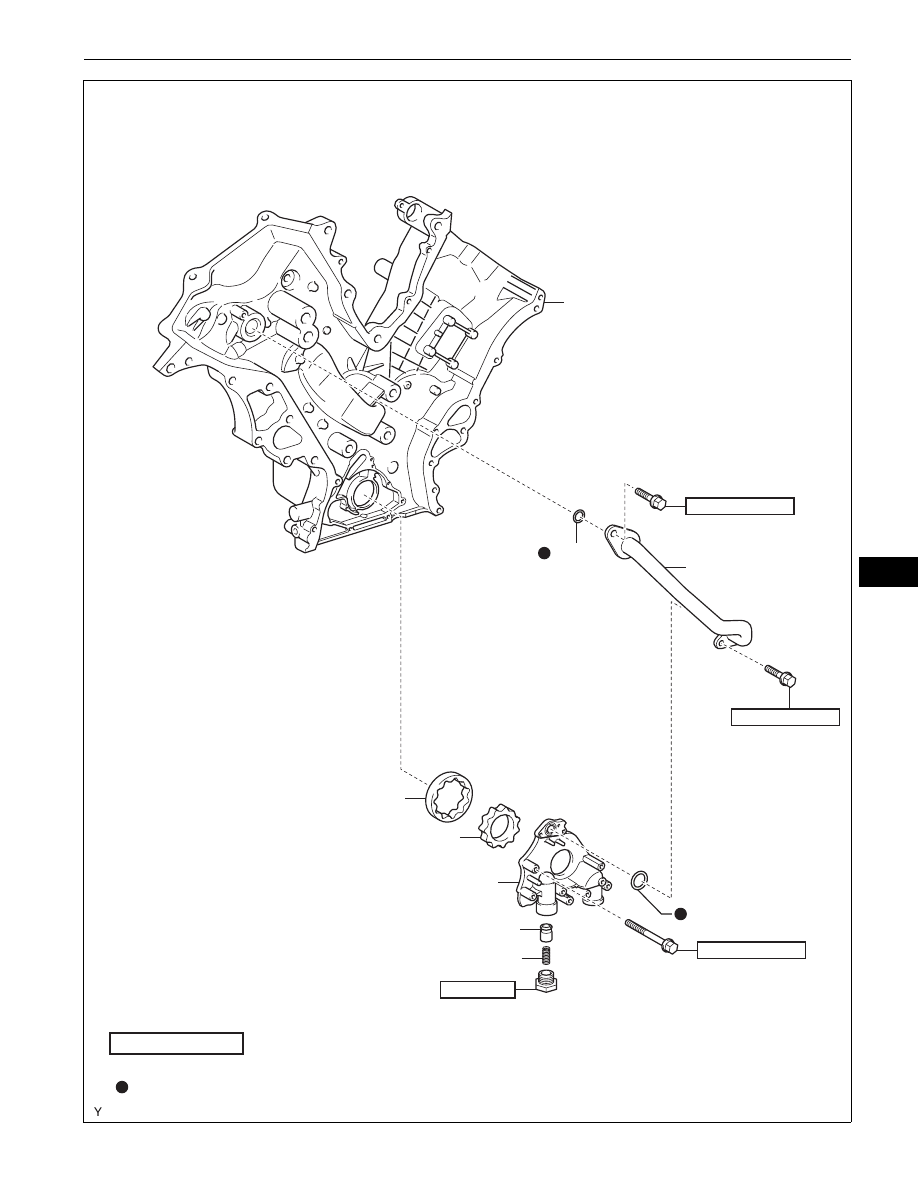

1GR-FE LUBRICATION  –  OIL PUMP

LU–11

LU

TIMING CHAIN OR BELT
COVER SUB-ASSEMBLY

OIL PIPE

RELIEF VALVE PLUG

RELIEF VALVE SPRING

RELIEF VALVE

OIL PUMP COVER

DRIVEN ROTOR

DRIVE ROTOR

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

O-RING

9.0 (92, 80 in.*lbf)

9.0 (92, 80 in.*lbf)

9.0 (92, 80 in.*lbf)

O-RING

x7

49 (500, 36)

x2

A126425E01

LU–12

1GR-FE LUBRICATION  –  OIL PUMP

LU

REMOVAL

1.

REMOVE BATTERY

2.

DRAIN ENGINE COOLANT (See page

CO-3

)

3.

DRAIN ENGINE OIL (See page

LU-4

)

4.

REMOVE POWER STEERING LINK ASSEMBLY (for
2WD)
Refer to the procedures up to "REMOVE POWER
STEERING LINK ASSEMBLY" (See page

PS-18

).

5.

REMOVE POWER STEERING LINK ASSEMBLY (for
4WD)
Refer to the procedures up to "REMOVE POWER
STEERING LINK ASSEMBLY" (See page

PS-37

).

6.

REMOVE FRONT DIFFERENTIAL CARRIER
ASSEMBLY (for 4WD)
Refer to the procedures up to "REMOVE FRONT
DIFFERENTIAL CARRIER ASSEMBLY" (See page

DF-

20

).

7.

REMOVE FAN
Refer to the procedures up to "REMOVE FAN" (See
page

CO-17

).

8.

REMOVE GENERATOR ASSEMBLY
Refer to the procedures up to "REMOVE GENERATOR
ASSEMBLY" (See page

CH-9

)

9.

SEPARATE COOLER COMPRESSOR ASSEMBLY
(See page

ES-420

)

10. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

(See page

EM-22

)

11. REMOVE OIL LEVEL GAUGE GUIDE (See page

EM-

22

)

12. SEPARATE VANE PUMP ASSEMBLY (See page

EM-

22

)

13. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

(See page

EM-23

)

14. REMOVE NO. 1 IDLER PULLEY SUB-ASSEMBLY

(See page

EM-23

)

15. REMOVE CRANKSHAFT PULLEY (See page

EM-23

)

16. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY (See page

EM-23

)

17. REMOVE OIL STRAINER SUB-ASSEMBLY (See page

EM-24

)

18. REMOVE OIL PAN SUB-ASSEMBLY (See page

EM-

24

)

19. REMOVE AIR CLEANER ASSEMBLY (See page

ES-

429

)

1GR-FE LUBRICATION  –  OIL PUMP

LU–13

LU

20. REMOVE THROTTLE BODY BRACKET (See page

FU-11

)

21. REMOVE OIL BAFFLE PLATE (See page

FU-11

)

22. REMOVE NO. 1 SURGE TANK STAY (See page

FU-11

)

23. REMOVE NO. 2 SURGE TANK STAY (See page

FU-12

)

24. REMOVE INTAKE AIR SURGE TANK (See page

FU-

12

)

25. REMOVE IGNITION COIL ASSEMBLY (See page

IG-8

)

26. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE

ASSEMBLY (See page

ES-414

)

27. REMOVE VVT SENSOR (See page

ES-417

)

28. REMOVE WATER INLET (See page

CO-8

)

29. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

(See page

EM-40

)

30. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

LH (See page

EM-40

)

31. REMOVE OIL FILTER BRACKET SUB-ASSEMBLY

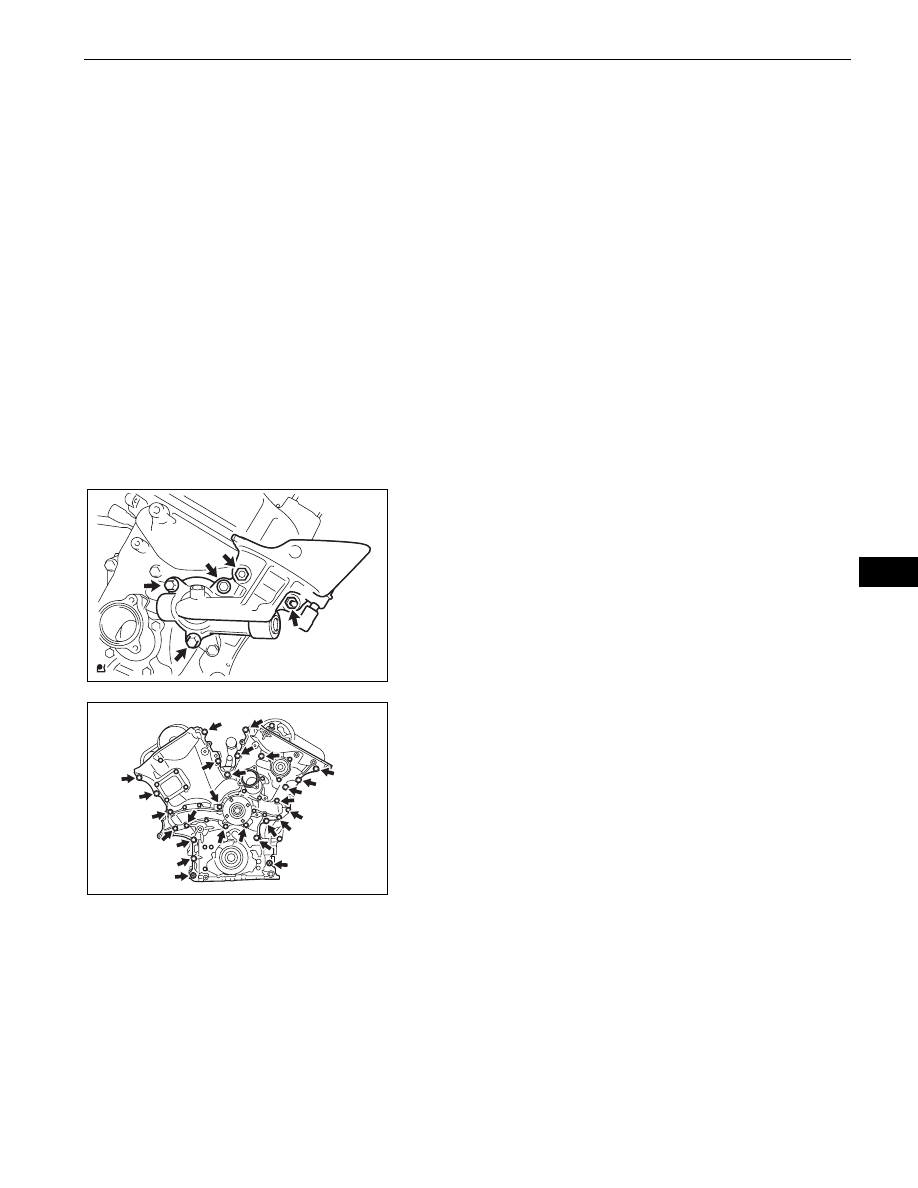

(a) Remove the 3 bolts, 2 nuts, oil filter bracket and

gasket.

32. REMOVE TIMING CHAIN OR BELT COVER SUB-

ASSEMBLY
(a) Remove the 24 bolts and 2 nuts.
