LU–2

1GR-FE LUBRICATION  –  LUBRICATION SYSTEM

LU

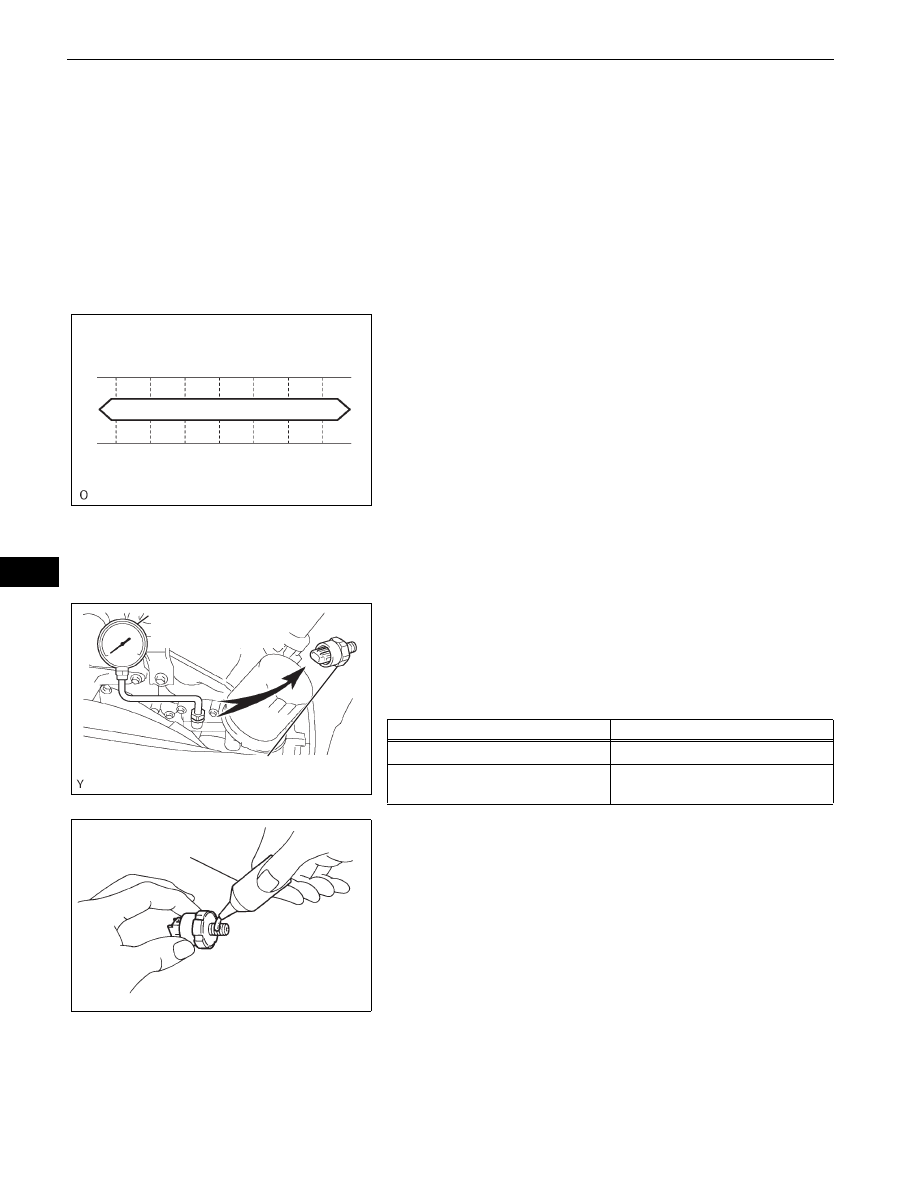

ON-VEHICLE INSPECTION

1.

CHECK ENGINE OIL LEVEL
(a) Warm up the engine, then stop the engine and wait

for 5 minutes.

(b) Check that the engine oil level is between the low

level and full level marks on the level gauge.
If low, check for leakage and top oil up to the full
level mark.
NOTICE:
Do not fill with engine oil to above the full level
mark.

2.

CHECK ENGINE OIL QUALITY
(a) Check the oil for deterioration, water intrusion,

discoloration or thinning.
If the quality is visibly poor, replace the oil.
Oil grade:

Use ILSAC multigrade engine oil.
SAE 5W-30 is the best choice for good fuel
economy and good starting in cold weather.
 If SAE 5W-30 is not available, use SAE 10W-
30.
However, it should be replaced with SAE 5W-
30 at the next oil replacement.

3.

INSPECT OIL PRESSURE
(a) Disconnect the oil pressure switch connector.

(b) Using a 24 mm deep socket wrench, remove the oil

pressure switch.

(c) Install the oil pressure gauge.
(d) Warm up the engine.
(e) Inspect the oil pressure.

Oil pressure

(f)

Apply adhesive to 2 or 3 threads of the oil pressure
switch.
Adhesive:

Toyota Genuine Adhesive 1344, Three Bond
1344 or the equivalent

(g) Using a 24 mm deep socket wrench, install the oil

pressure switch.
Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)
NOTICE:
Do not start the engine within 1 hour of the
installation.

(h) Connect the oil pressure switch connector.
(i)

Check for engine oil leakage.

Recommended Viscosity (SAE)

5W-30

-29

°C

-20

°F

-18

0

-7
20

4

40

16

60

27

80

38

100

A066623E08

Oil Pressure Gauge

Oil Pressure Switch

A075904E02

Engine condition

Specification

When Idling

29 kPa (0.3 kgf*cm

2

, 4.3 psi) or more

At 3,000 rpm

294 to 588 kPa (3.0 to 6.0kgf*cm

2

, 43

to 85 psi)

Adhesive

A085603E01

1GR-FE LUBRICATION  –  OIL FILTER

LU–3

LU

ENGINE

1GR-FE LUBRICATION

OIL FILTER

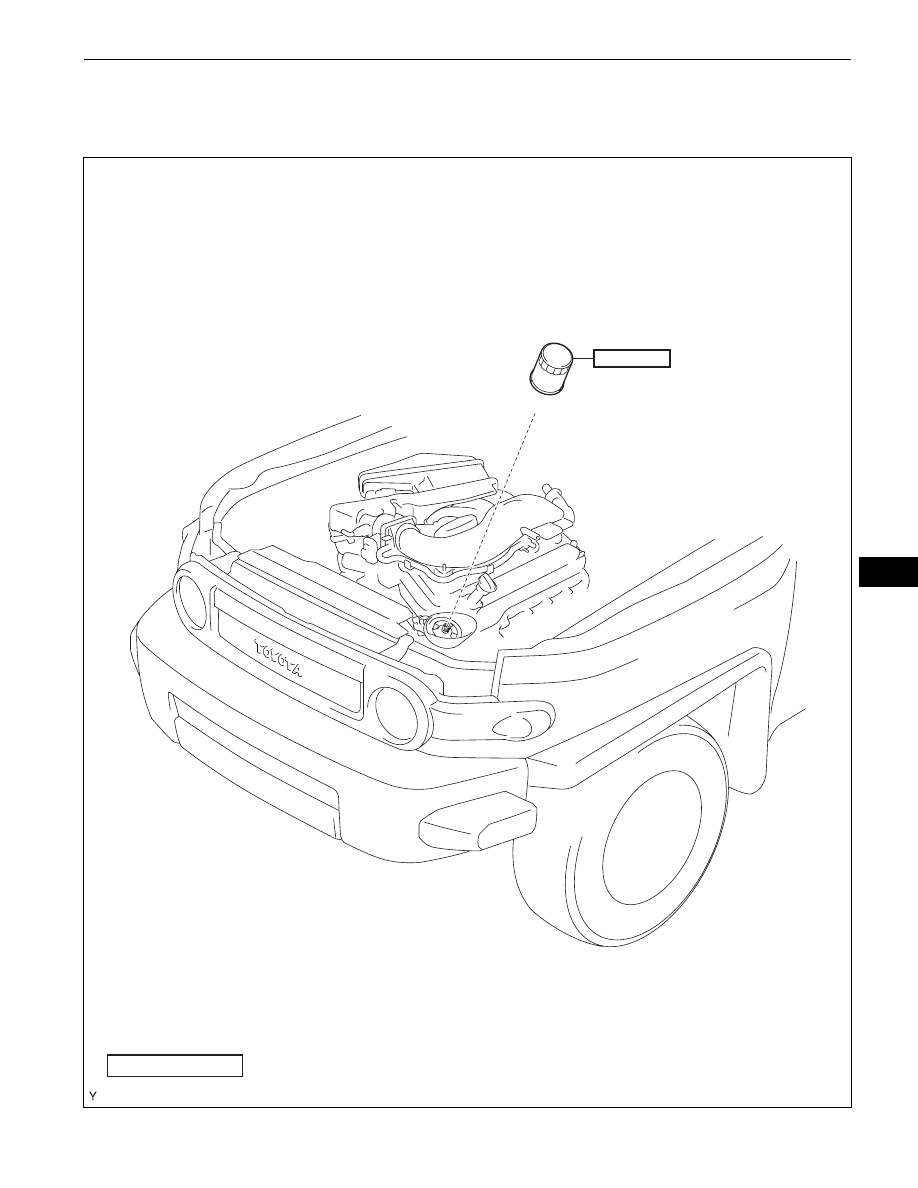

COMPONENTS

OIL FILTER
SUB-ASSEMBLY

N*m (kgf*cm, ft*lbf)  : Specified torque

18 (184, 13)

A126416E01

LU–4

1GR-FE LUBRICATION  –  OIL FILTER

LU

REPLACEMENT

CAUTION:
•

Prolonged and repeated contact with engine oil will
cause the removal of natural oils from the skin,
leading to dryness, irritation and dermatitis. In
addition, used engine oil contains potentially harmful
contaminants which may cause skin cancer.

•

Precautions should be taken when replacing engine
oil to minimize the risk of your skin making contact
with used engine oil.

•

Wash your skin thoroughly with soap and water, or
use waterless hand cleaner to remove any used
engine oil. Do not use gasoline, thinners, or solvents.

•

For environmental protection, used oil and used oil
filters must be disposed of only at designated
disposal sites.

1.

DRAIN ENGINE OIL
(a) Remove engine under cover seal No. 3.
(b) Remove the oil pan drain plug and drain the engine

oil.

(c) Clean the oil pan drain plug and install it with a new

gasket.
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

2.

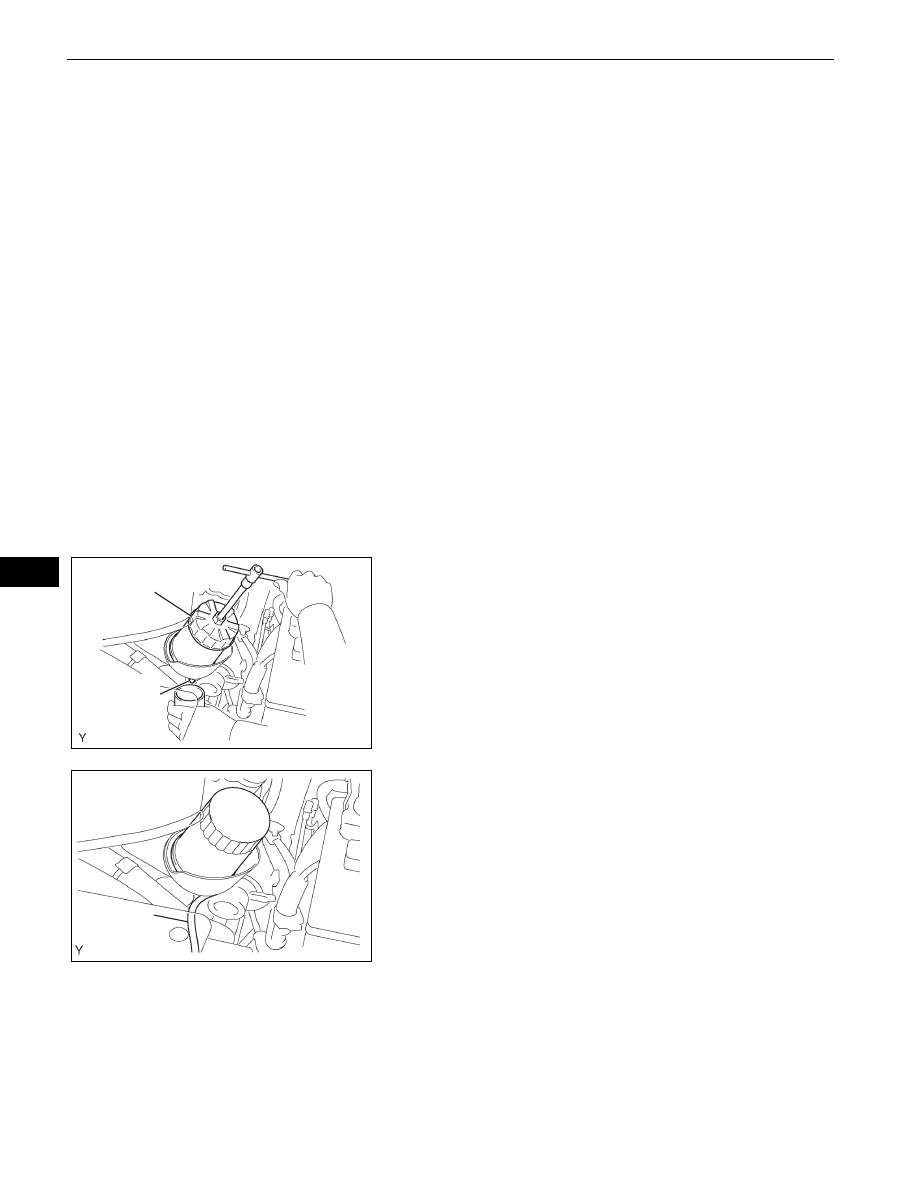

REMOVE OIL FILTER SUB-ASSEMBLY
(a) Remove the drain pipe cap.
(b) While removing the oil filter with SST, catch the oil

from the oil filter with a container.
SST

09228-07501

(c) Install the drain pipe cap.

(d) Clean the oil catch plate.

HINT:
When using a drain hose, perform the following
procedures.

(e) Remove the drain pipe cap.
(f)

Connect a drain hose to the oil filter bracket.
HINT:
•

Drain hose inside diameter: 8 mm (0.31 in.)

•

Drain hose length: 900 mm (35.43 in.)

(g) Feed the drain hose down through the engine under

cover, and put the drain oil container beneath the
drain hose to catch the oil from the oil filter.

SST

Drain Pipe
Cap

A076806E02

Drain Hose

A076322E02

1GR-FE LUBRICATION  –  OIL FILTER

LU–5

LU

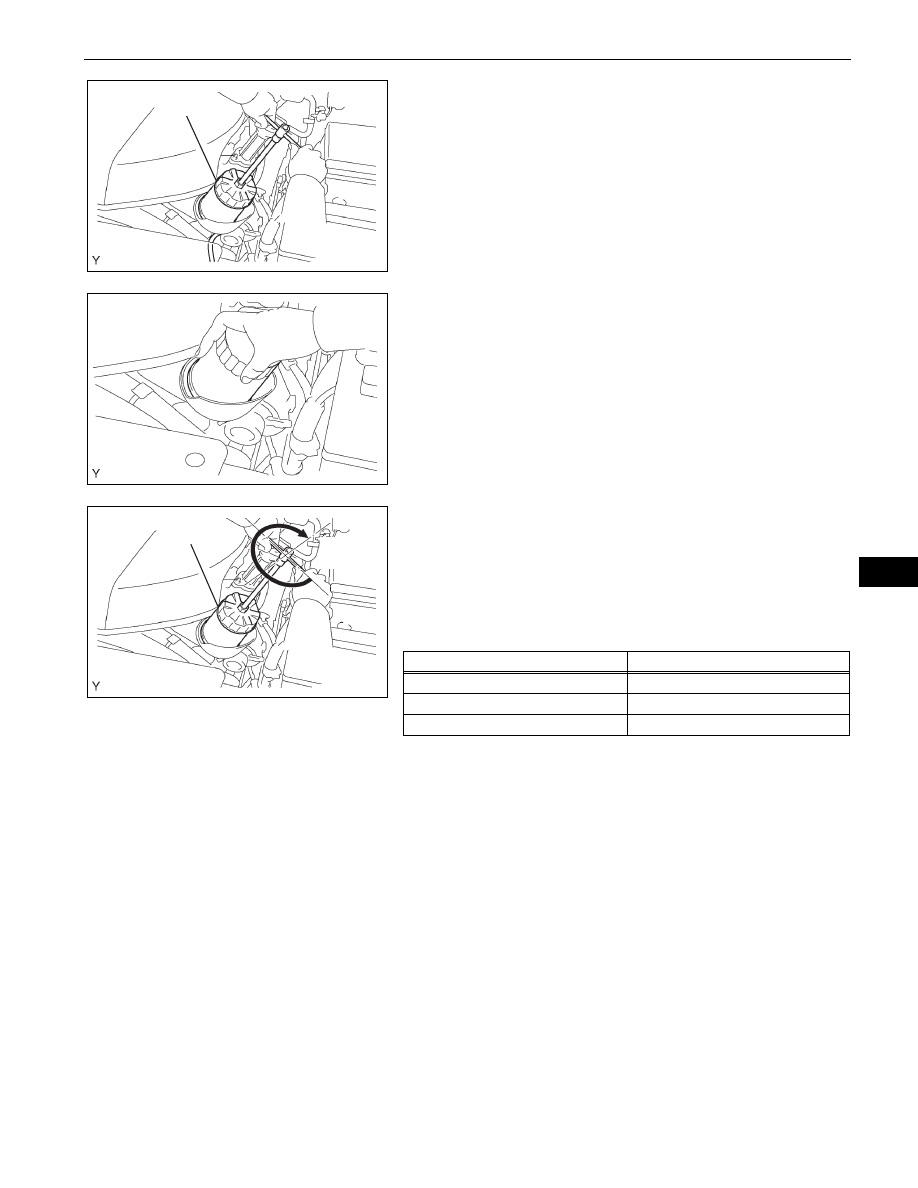

(h) Using SST, remove the oil filter.

SST

09228-07501

(i)

Remove the drain hose and install the drain pipe
cap.

(j)

Clean the oil catch plate.

3.

INSTALL OIL FILTER SUB-ASSEMBLY
(a) Clean the surface of the oil filter bracket which

comes into contact with the oil filter.

(b) Apply clean engine oil to the rubber gasket of a new

oil filter.

(c) Tighten the oil filter by hand until the rubber gasket

comes into contact with the seat of the filter bracket.

(d) Using SST, tighten it an additional 3/4 turn to set the

filter.
SST

09228-07501

Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

4.

ADD ENGINE OIL
(a) Fill with fresh engine oil.

Oil Capacity

(b) Reinstall the oil filler cap.

5.

CHECK FOR ENGINE OIL LEAKAGE

6.

INSPECT ENGINE OIL LEVEL

SST

A076323E02

A076324E01

SST

3/4 Turn

A076325E03

Item

Specification

With oil filter change

5.2 liters (5.5 US qts, 4.6 lmp. qts)

Without oil filter change

4.9 liters (5.2 US qts, 4.3 lmp. qts)

Dry fill

6.0 liters (6.3 US qts, 5.3 lmp. qts)
