1GR-FE ENGINE MECHANICAL  –  CYLINDER HEAD

EM–101

EM

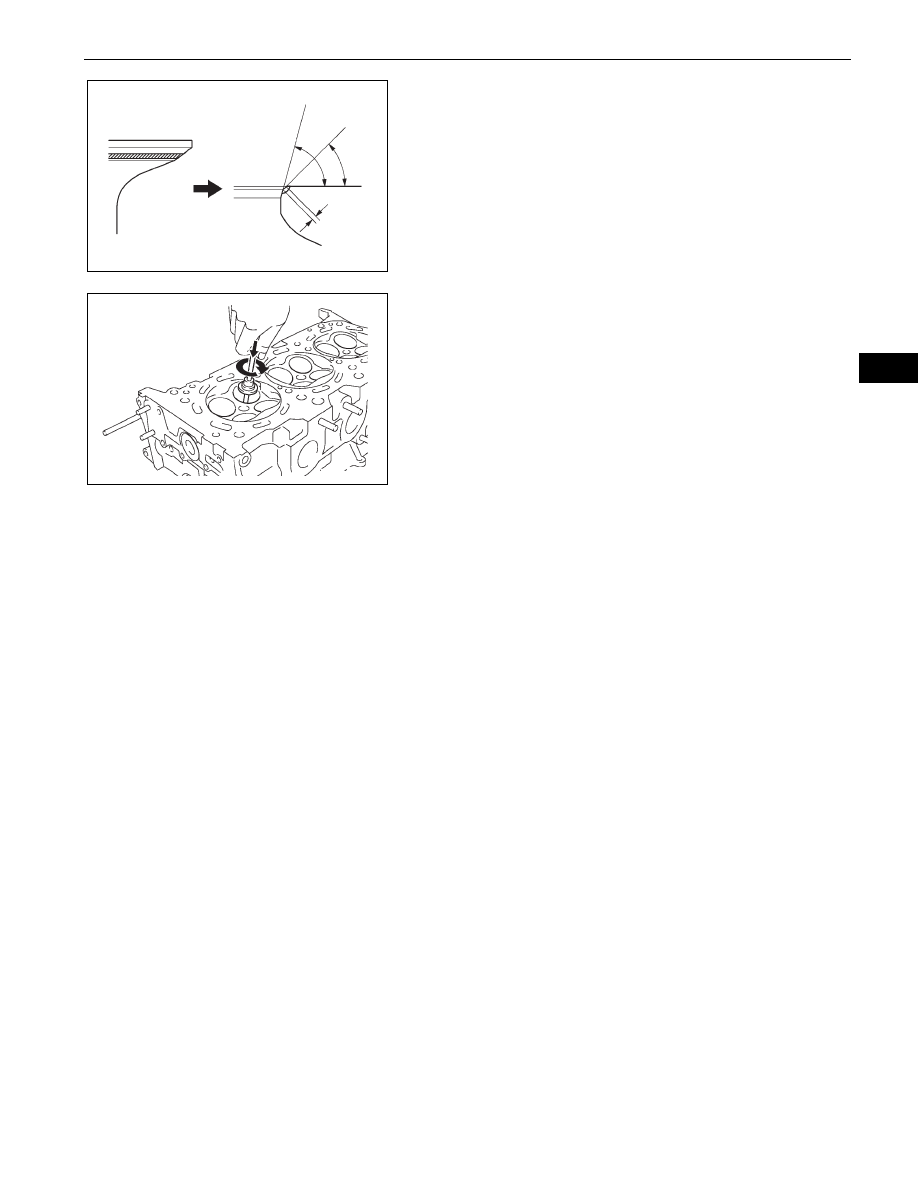

(c) Exhaust side:

If the seating is too low on the valve face, use 75

°

and 45

° cutters to correct the seat.

(d) Lap the valve and valve seat with an abrasive

compound by hand.

(e) After lapping, clean the valve and valve seat.

75 °

45 °

1.0 to 1.4 mm

Exhaust Side:

A062788E03

A075614E01

1GR-FE ENGINE MECHANICAL  –  ENGINE ASSEMBLY

EM–101

EM

ENGINE

1GR-FE ENGINE MECHANICAL

ENGINE ASSEMBLY

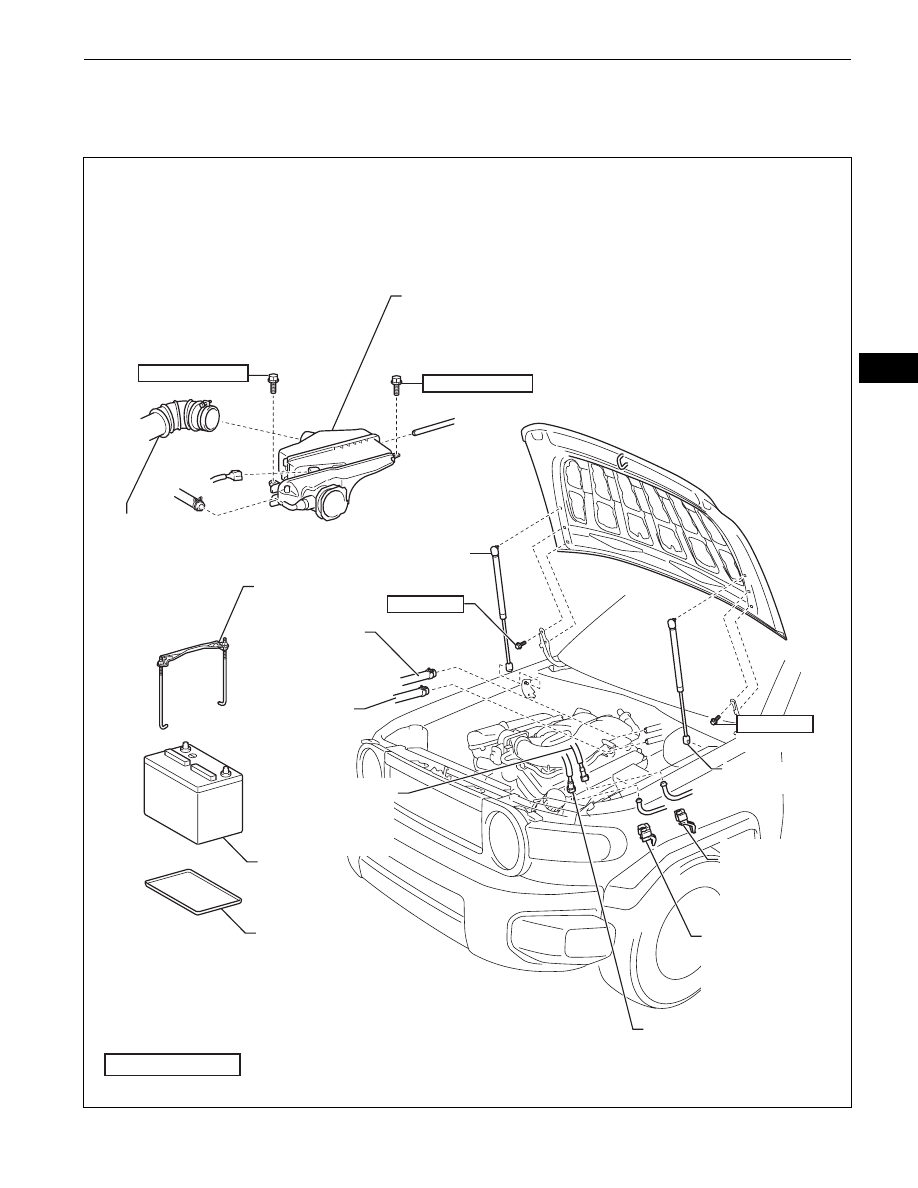

COMPONENTS

;

AIR CLEANER
ASSEMBLY

BATTERY CLAMP

HEATER WATER
OUTLET HOSE

HEATER WATER
INLET HOSE

NO. 1 FUEL PIPE
SUB-ASSEMBLY

BATTERY

BATTERY TRAY

NO. 2 FUEL PIPE
SUB-ASSEMBLY

NO. 2 FUEL PIPE
CLAMP

HOOD SUPPORT

HOOD SUPPORT

N*m (kgf*cm, ft*lbf)  : Specified torque

18 (184, 13)

8.0 (82, 71 in.*lbf)

18 (184, 13)

8.0 (82, 71 in.*lbf)

NO. 2 FUEL PIPE
CLAMP

NO. 2 AIR
CLEANER HOSE

A126453E01

EM–102

1GR-FE ENGINE MECHANICAL  –  ENGINE ASSEMBLY

EM

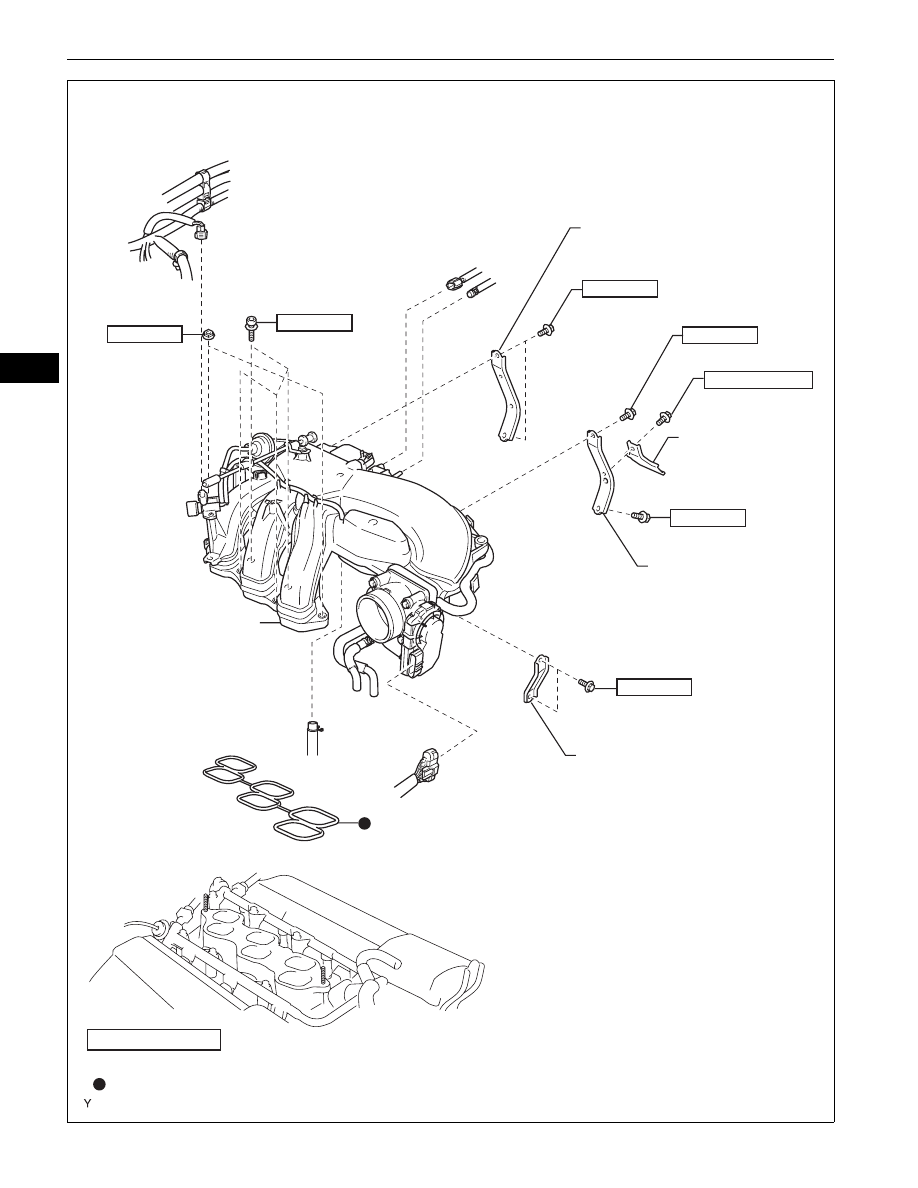

INTAKE AIR SURGE TANK

NO. 1 SURGE TANK
STAY

NO. 2 SURGE TANK
STAY

THROTTLE BODY
BRACKET

N*m (kgf*cm, ft*lbf)  : Specified torque

Non-reusable part

28 (286, 21)

GASKET

9.0 (92, 80 in.*lbf)

28 (286, 21)

21 (214, 15)

OIL BAFFLE PLATE

21 (214, 15)

21 (214, 15)

21 (214, 15)

A126476E01

1GR-FE ENGINE MECHANICAL  –  ENGINE ASSEMBLY

EM–103

EM

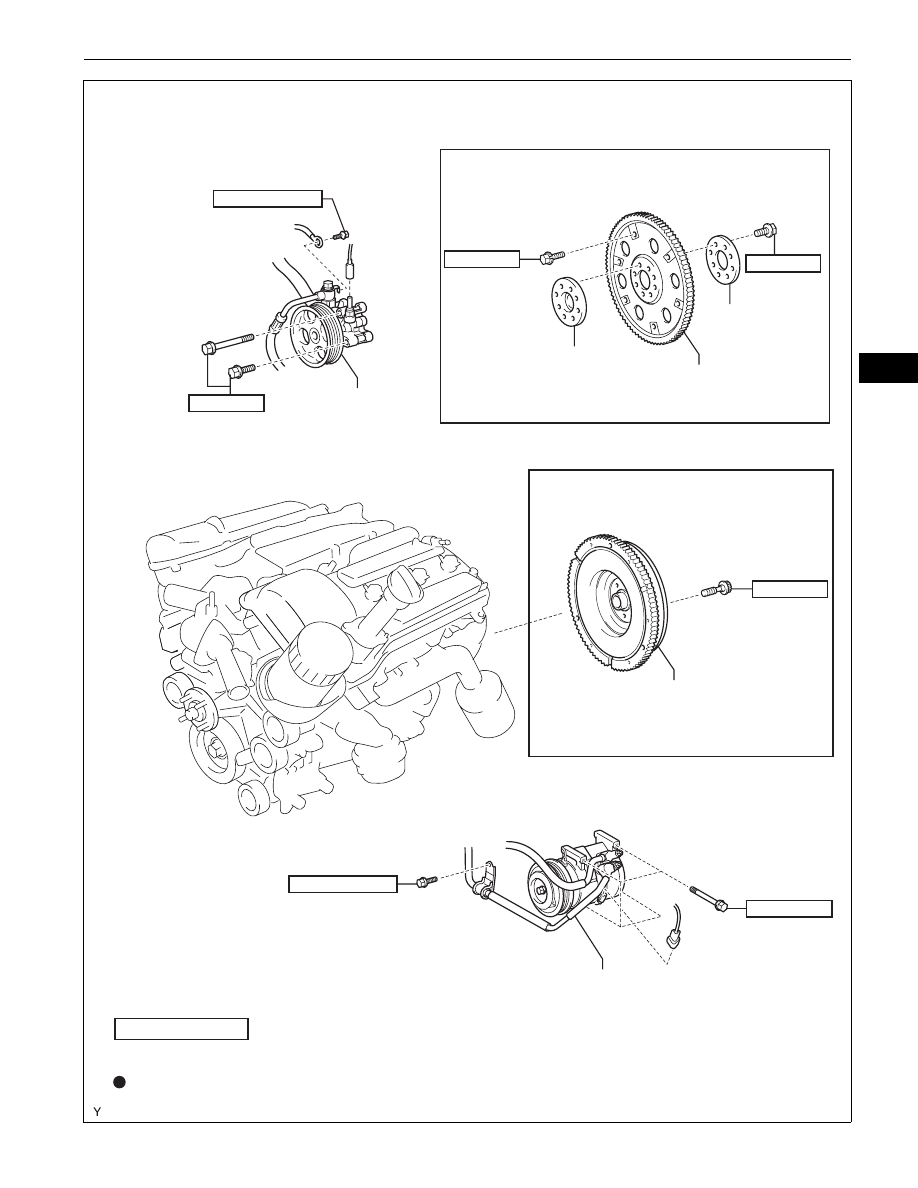

24.5 (250, 18)

COOLER COMPRESSOR
ASSEMBLY

DRIVE PLATE AND RING
GEAR SUB-ASSEMBLY

FLYWHEEL SUB-ASSEMBLY

VANE PUMP ASSEMBLY

Non-reusable part

43 (438, 32)

83 (846, 61)

83 (846, 61)

SPACER

x8

x6

x8

8.0 (82, 71 in.*lbf)

48 (490, 35)

SPACER

7.8 (80, 69  in.*lbf)

for Manual Transmission:

for Automatic Transmission:

N*m (kgf*cm, ft*lbf)  : Specified torque

A126454E01
