32. INSTALL BACK DOOR SERVICE HOLE COVER

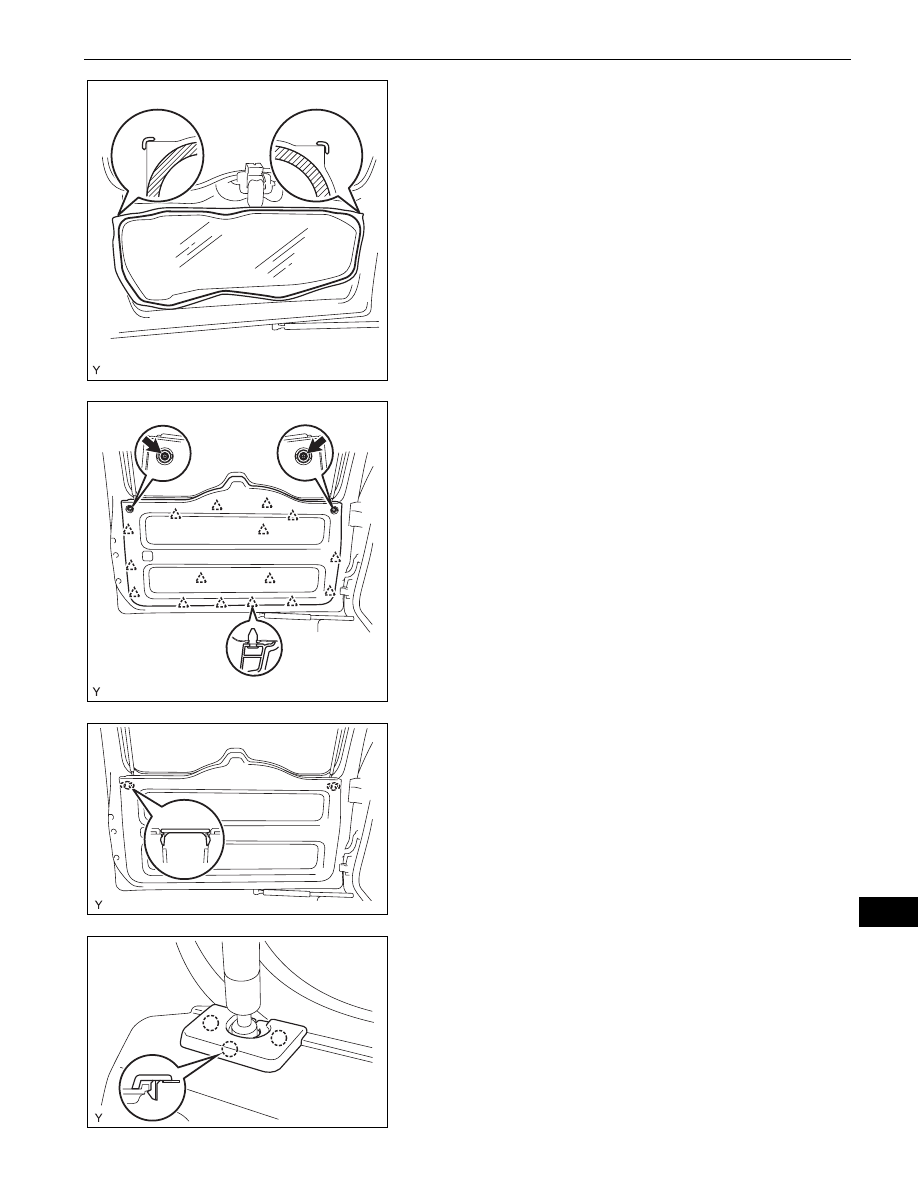

(a) Apply butyl tape to the door panel, then install the

new back door service hole cover as shown in the
illustration.
HINT:
•

When installing the service hole cover, pull the
links and connectors out through the service
hole.

•

There should be no wrinkles or folds after
attaching the service hole cover.

•

After attaching the service hole cover, check the
quality of the seal.

33. INSTALL BACK DOOR TRIM BOARD

(a) Engage the 16 clips and install the back door trim

board.

(b) Install the 2 screws.

34. INSTALL DOOR TRIM RETAINER CAP

(a) Engage the 2 claws and install the door trim retainer

cap.

35. INSTALL BACK DOOR TRIM COVER RH

(a) Engage the 3 claws and back door trim cover.

36. INSTALL BACK DOOR TRIM COVER LH

HINT:
Use the same procedure as described for the RH side.

B135595

B135554

B135553

B139382

ED–58

ENGINE HOOD / DOOR  –  BACK DOOR

ED

37. INSTALL SPARE WHEEL CARRIER BRACKET SUB-

ASSEMBLY

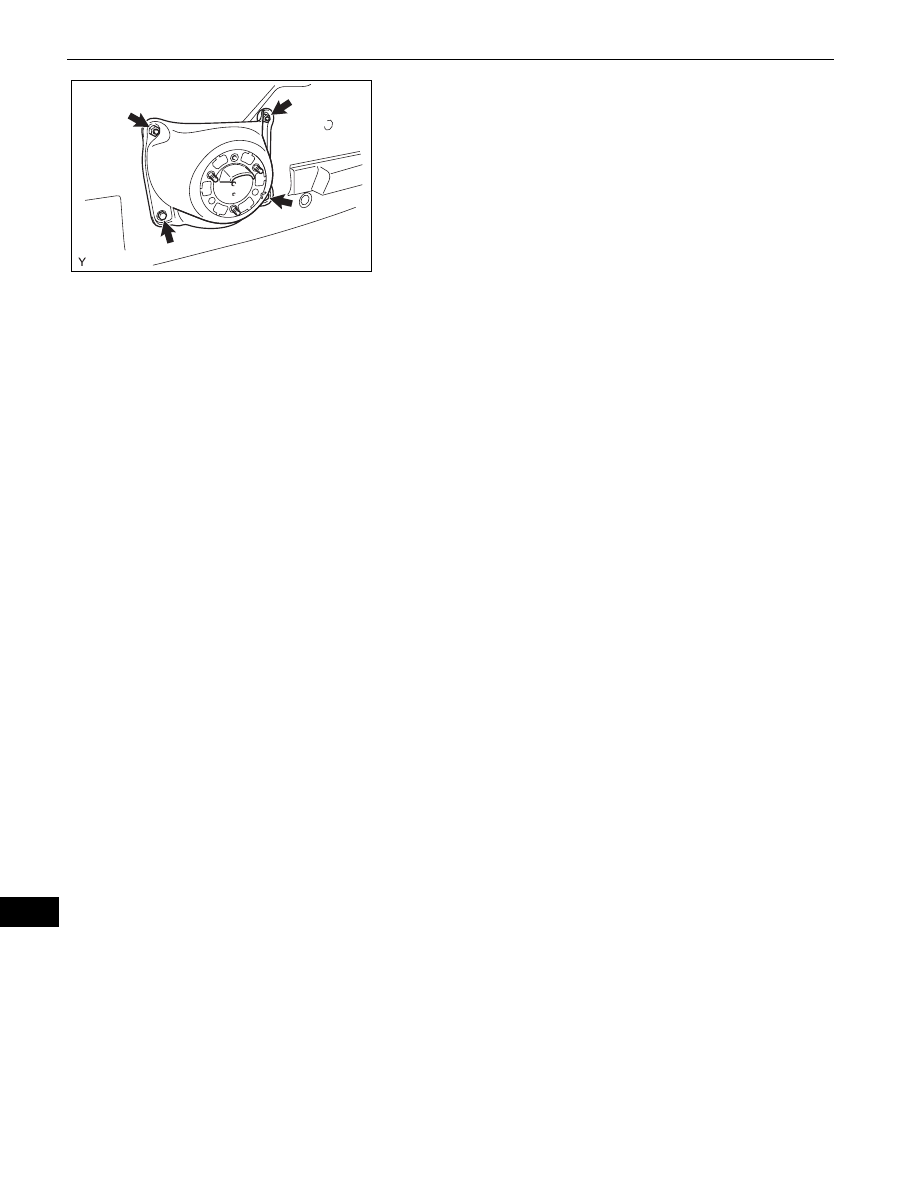

(a) Install the spare wheel carrier bracket with the 2

bolts and 2 nuts.
Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

38. INSTALL BACK DOOR OUTSIDE MOULDING RH (See

page

ET-72

)

39. INSTALL BACK DOOR OUTSIDE MOULDING LH (See

page

ET-73

)

40. INSTALL SPARE DISC WHEEL

Torque: 88 N*m (897 kgf*cm, 65 ft.*lbf)

41. CONNECT CABLE TO NEGATIVE BATTERY

TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

B135543

ED–58

ENGINE HOOD / DOOR  –  BACK DOOR SUPPORT

ED

BODY

ENGINE HOOD / DOOR

BACK DOOR SUPPORT

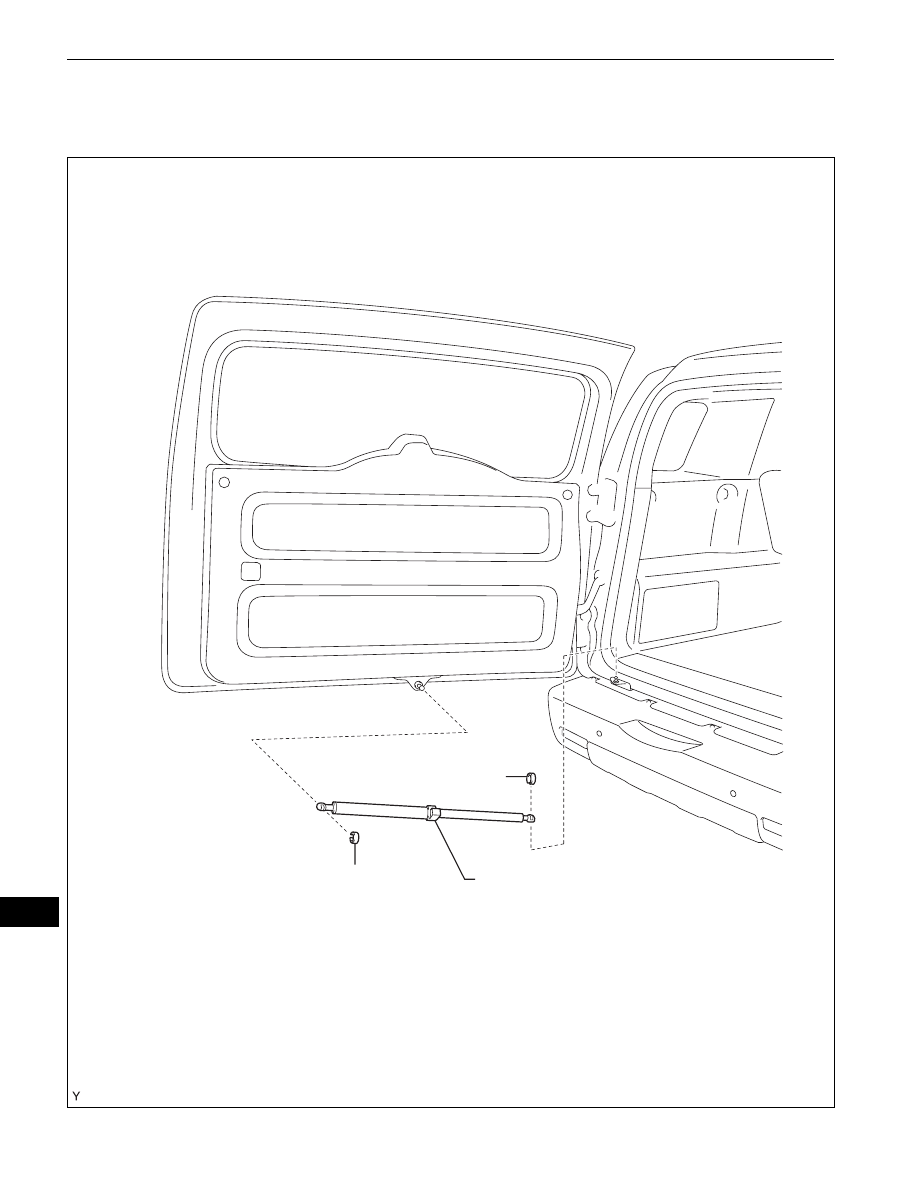

COMPONENTS

BACK DOOR
SUPPORT

CLIP

CLIP

B139383E01

ENGINE HOOD / DOOR  –  BACK DOOR SUPPORT

ED–59

ED

REMOVAL

1.

REMOVE BACK DOOR SUPPORT

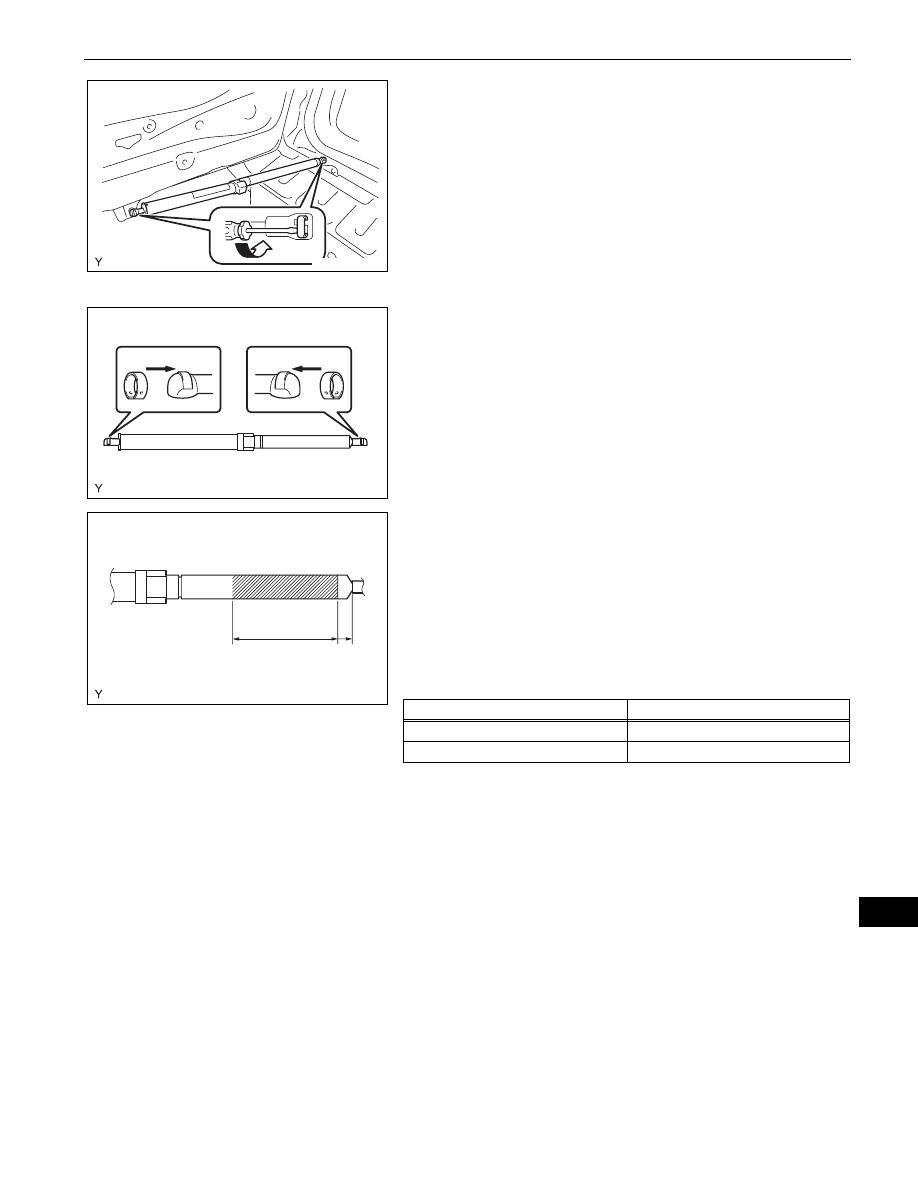

(a) Using a screwdriver with its tip wrapped in

protective tape, remove the 2 stop rings and back
door support.
NOTICE:
•

Do not touch the rod of the back door support
with gloves, to avoid fibers from adhering.

•

When foreign matter adheres to the rod, it
prevents the rod from moving smoothly and
reduces its holding power.

INSTALLATION

1.

INSTALL BACK DOOR SUPPORT
(a) Install the 2 stop rings onto the back door support.
(b) Install the back door support.

DISPOSAL

1.

DISPOSE OF BACK DOOR SUPPORT
(a) Horizontally fix the back door support in a vise with

the piston-rod pulled out.

(b) Wearing protective glasses, using a metal saw

gradually cut the shaded part between A and B,
shown in the illustration, to gradually release the
gas.
Specification

CAUTION:
•

Cover the area that is being cut with a shop
rag or a piece of cloth because there is a
possibility that metal shards may be
dispersed by the gas.

•

The gas is colorless, odorless and harmless.

B135594

B135599

A

B

a

b

B135600E01

Area

Measurement

a

80 mm (3.15 in.)

b

20 mm (0.80 in.)
