Toyota Sequoia (2005). Manual - part 960

AC3I1–03

I21397

Center Cluster
Integration Panel

Heater
Control
Housing

A/C Amplifier

Seat Belt Indicator Circuit

Bulb

Bulb

Bulb

Knob

Knob

Knob

Integration Panel

Knob

AC–102

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

3829

AIR CONDITIONER CONTROL ASSEMBLY (Center Cluster
Integration)

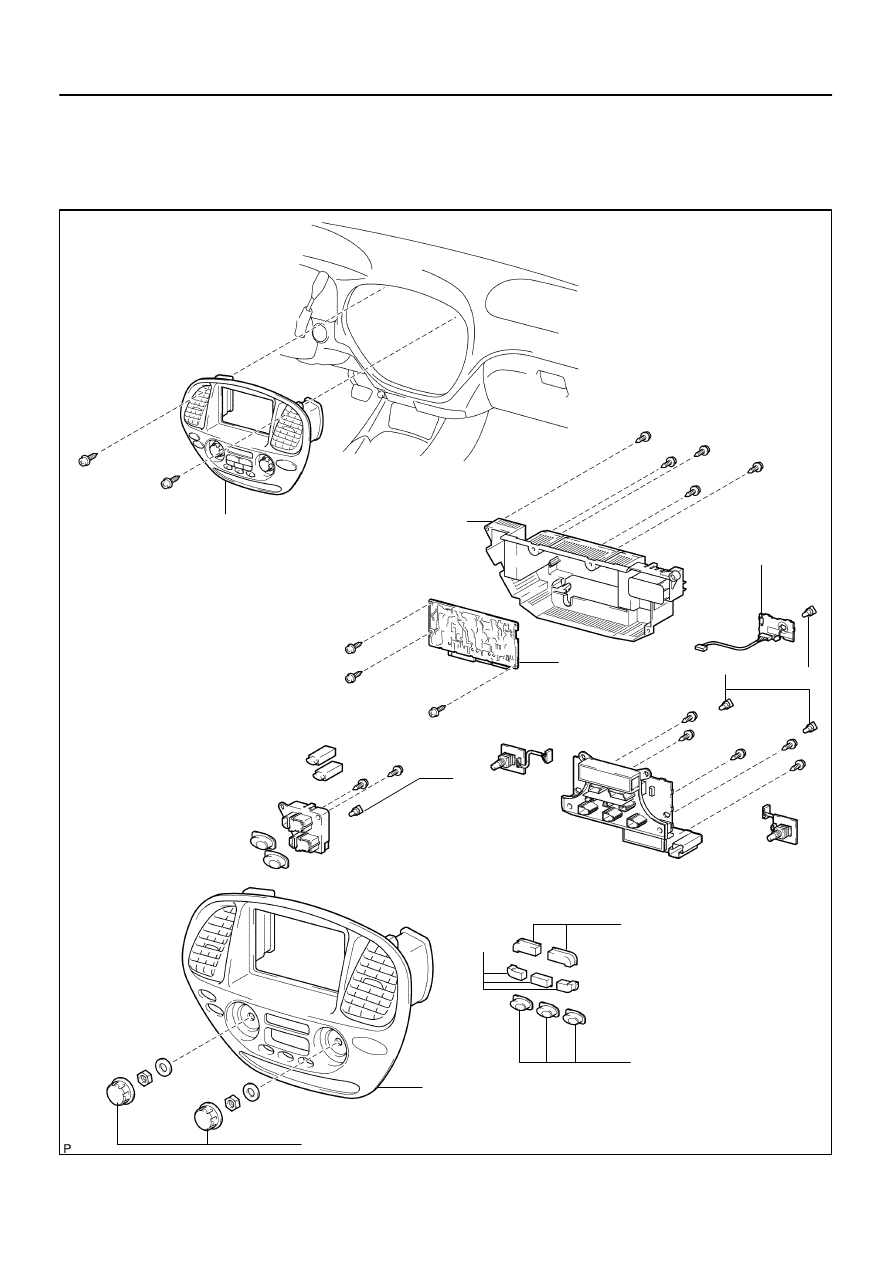

COMPONENTS

I21398

5 Clips

AC3HW–02

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

AC–103

3830

REMOVAL

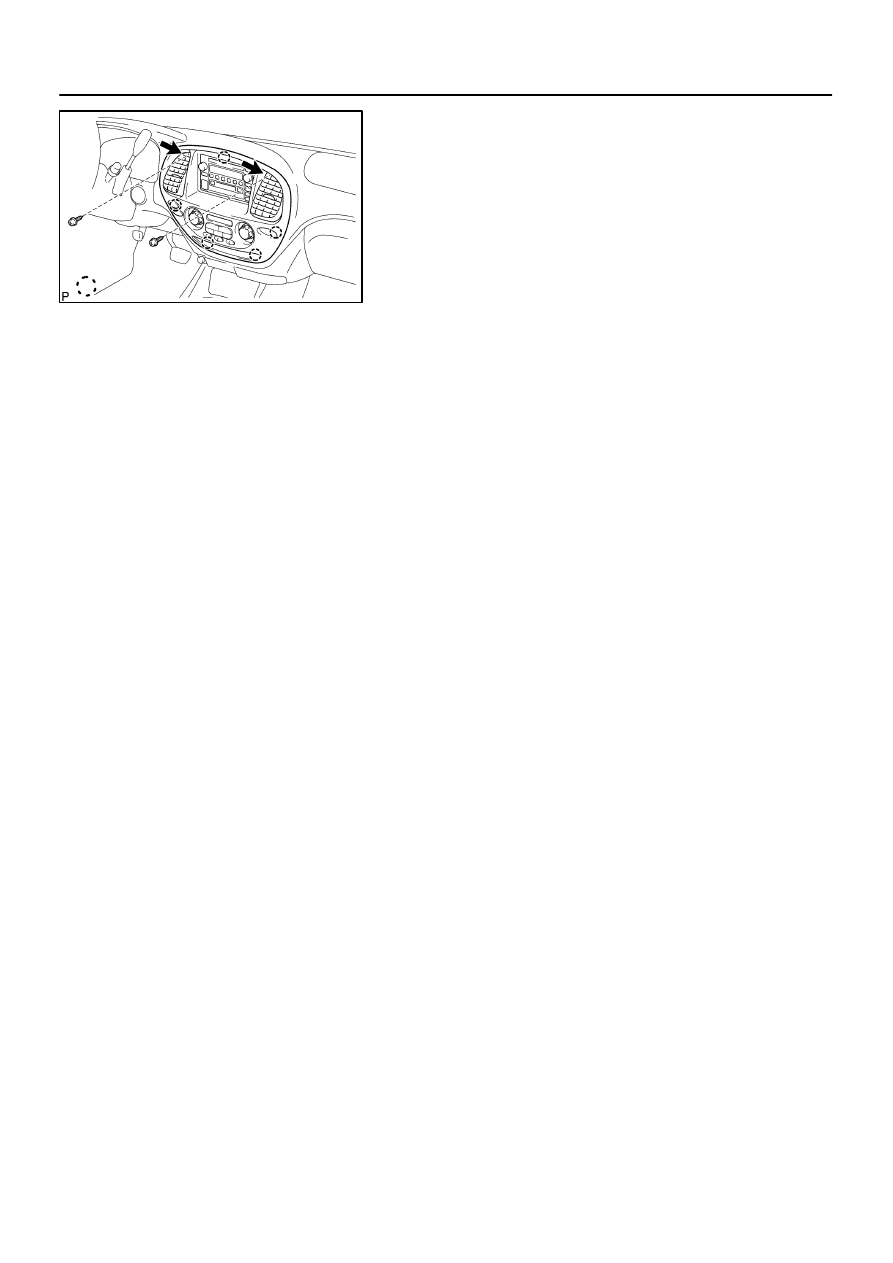

REMOVE CENTER CLUSTER INTEGRATION PANEL
(a)

Remove the 2 screws.

(b)

Remove the integration control panel by pulling the por-
tions indicated by arrows in the illustration.

(c)

Disconnect the connector.

I21399

AC3HX–03

I21400

I21401

I21402

I21417

AC–104

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

3831

DISASSEMBLY

1.

REMOVE BULBS

Remove the 3 bulbs.

2.

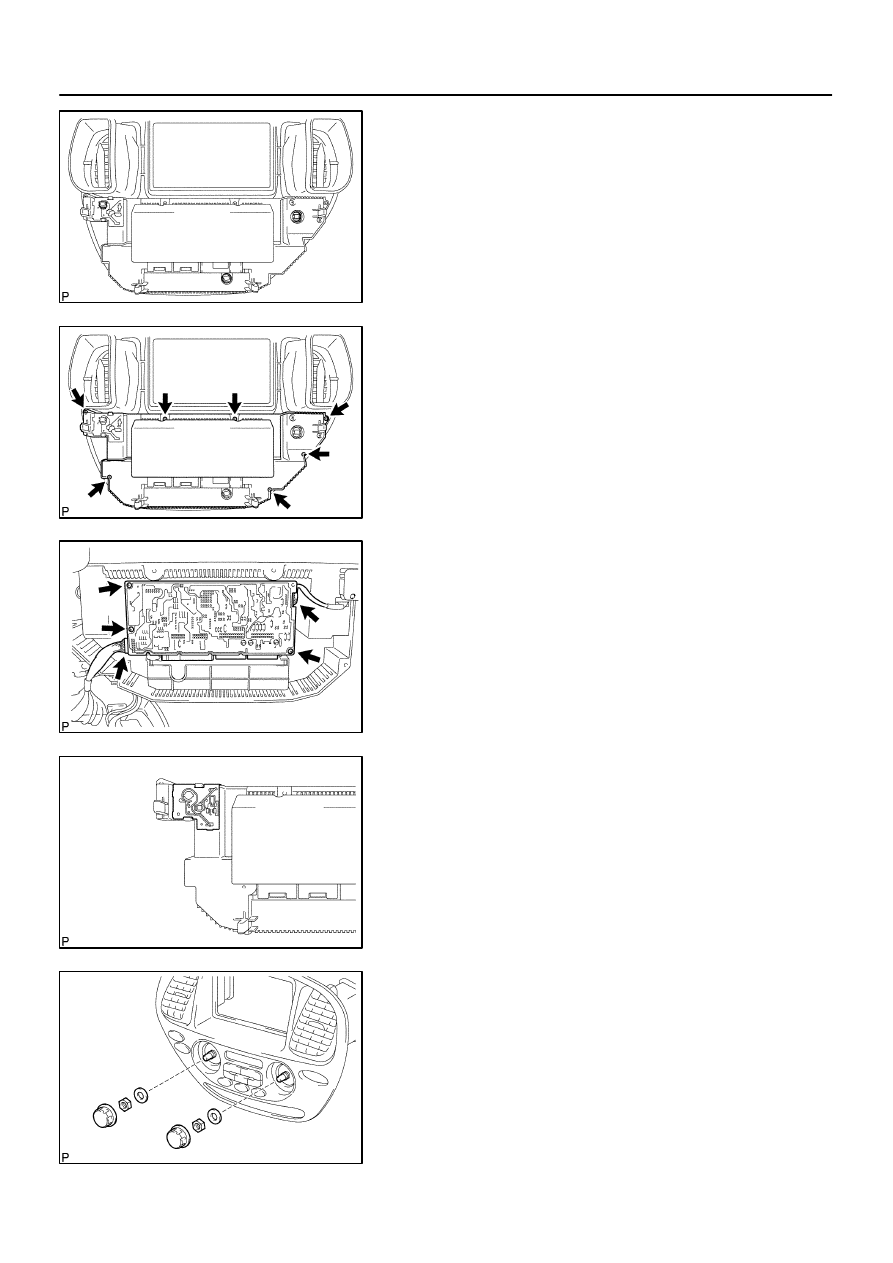

REMOVE A/C AMPLIFIER

(a)

Remove the 7 screws and heater control housing.

(b)

Disconnect the 2 connectors.

(c)

Remove the 3 screws and A/C amplifier.

(d)

Remove the passenger seat belt indicator circuit.

3.

REMOVE INTEGRATION CIRCUIT

(a)

Remove the 2 knobs.

(b)

Remove the 2 nuts and 2 washers.

I21416

I21403

–

AIR CONDITIONING

AIR CONDITIONER CONTROL ASSEMBLY (Center
Cluster Integration)

AC–105

3832

(c)

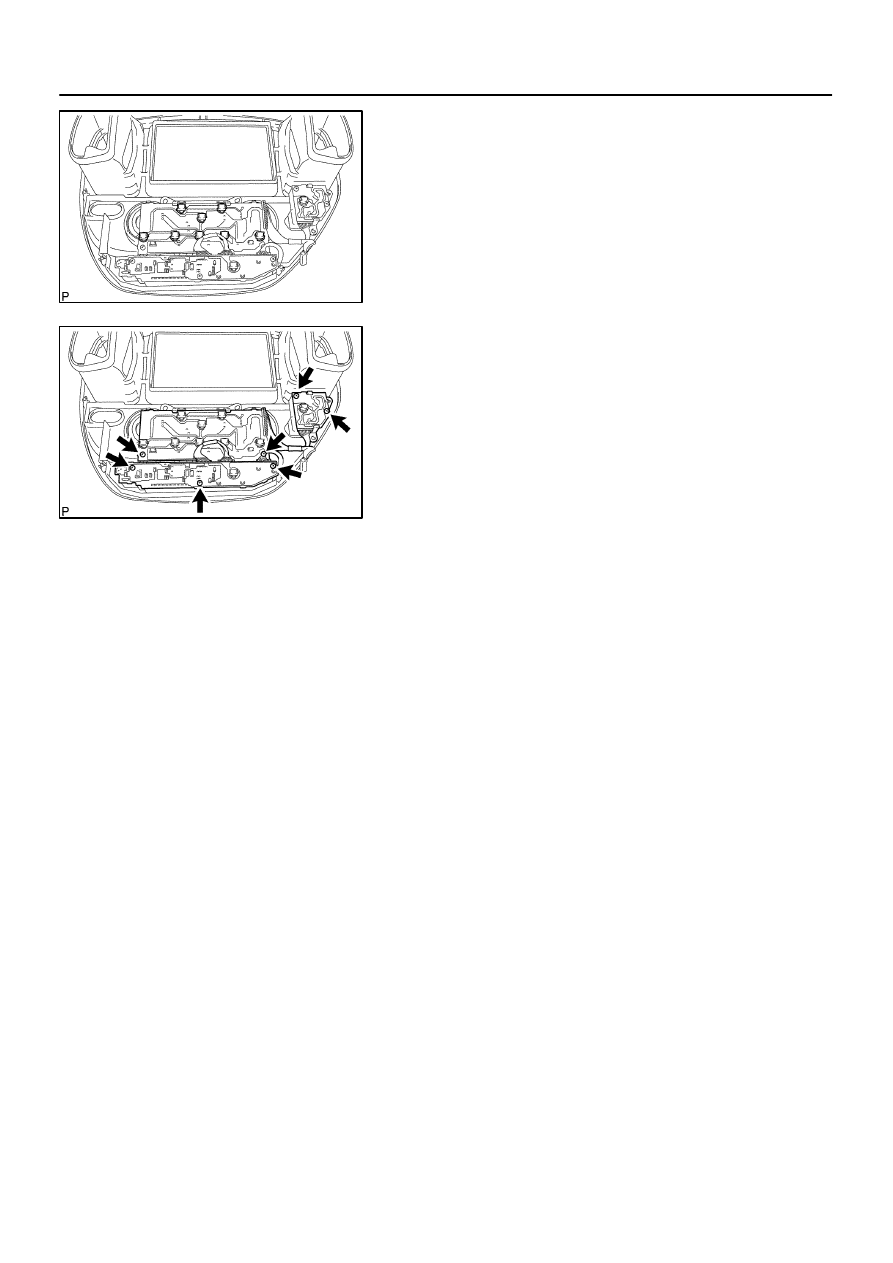

Remove the 8 bulbs.

(d)

Remove the 7 screws and integration circuit.
