I21430

AC1M1–05

AC–98

–

AIR CONDITIONING

CONDENSER FAN

3825

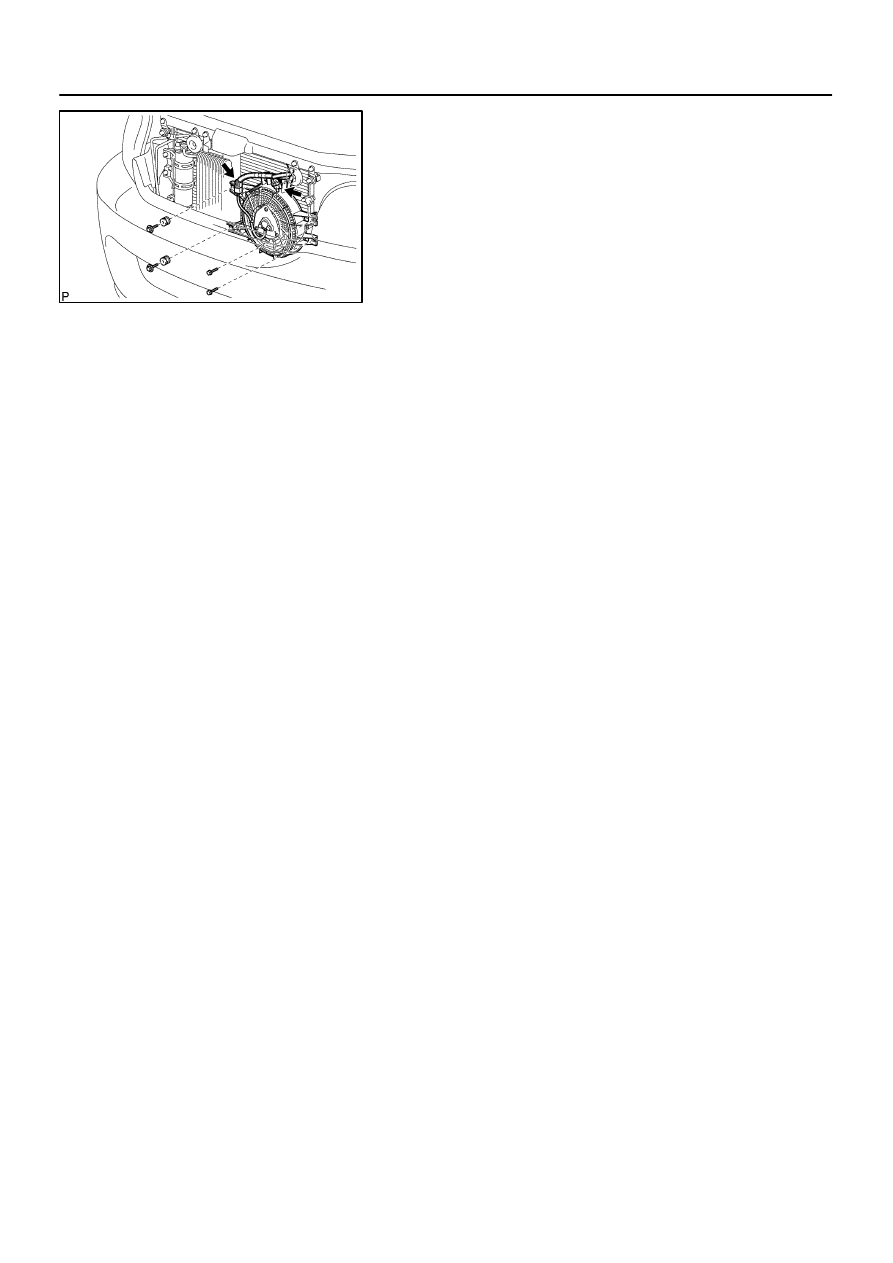

REMOVAL

REMOVE CONDENSER FAN
(a)

Disconnect the 2 connectors.

(b)

Disconnect the wire harness clamp.

(c)

Remove the ambient temperature sensor.

(d)

Remove the 4 bolts and condenser fan with the fan
shroud.

AC3HV–02

I21431

I21432

–

AIR CONDITIONING

CONDENSER FAN

AC–99

3826

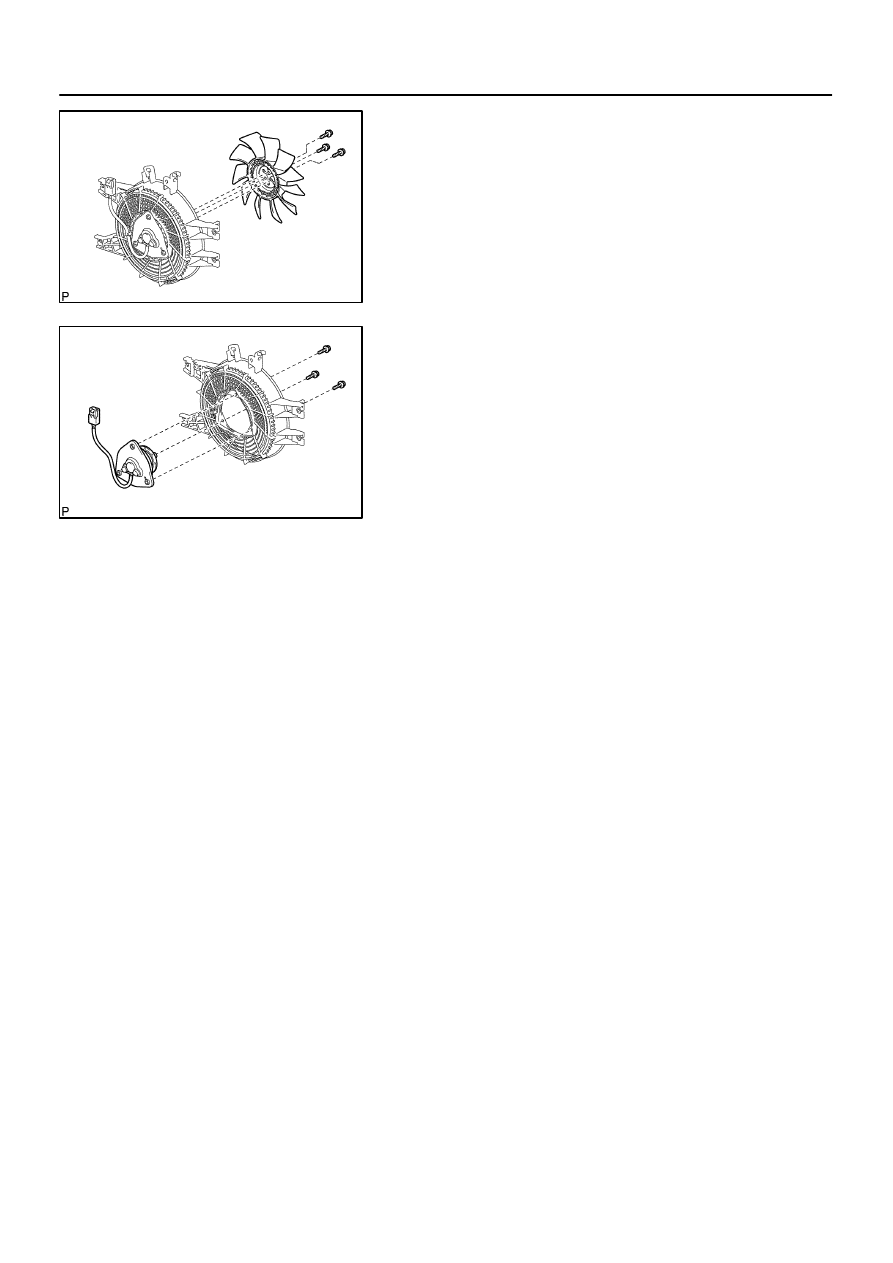

DISASSEMBLY

1.

REMOVE FAN

Remove the 3 bolts and fan.

2.

REMOVE FAN MOTOR FROM FAN SHROUD

Remove the 3 screws and fan motor.

AC1M3–01

AC–100

–

AIR CONDITIONING

CONDENSER FAN

3827

REASSEMBLY

Reassembly is in the reverse order of disassembly (See page

AC–99

).

AC1M4–02

–

AIR CONDITIONING

CONDENSER FAN

AC–101

3828

INSTALLATION

Installation is in the reverse order of removal (See page

AC–98

).
