Ohmmeter

IG–12

–

IGNITION

CRANKSHAFT POSITION SENSOR

2873

INSPECTION

NOTICE:
”Cold” and ”Hot” in these sentences express the tempera-
ture of the coils themselves. ”Cold” is from –10

°

C (14

°

F) to

50

°

C (122

°

F) and ”Hot” is from 50

°

C (122

°

F) to 100

°

C

(212

°

F).

INSPECT CRANKSHAFT POSITION SENSOR

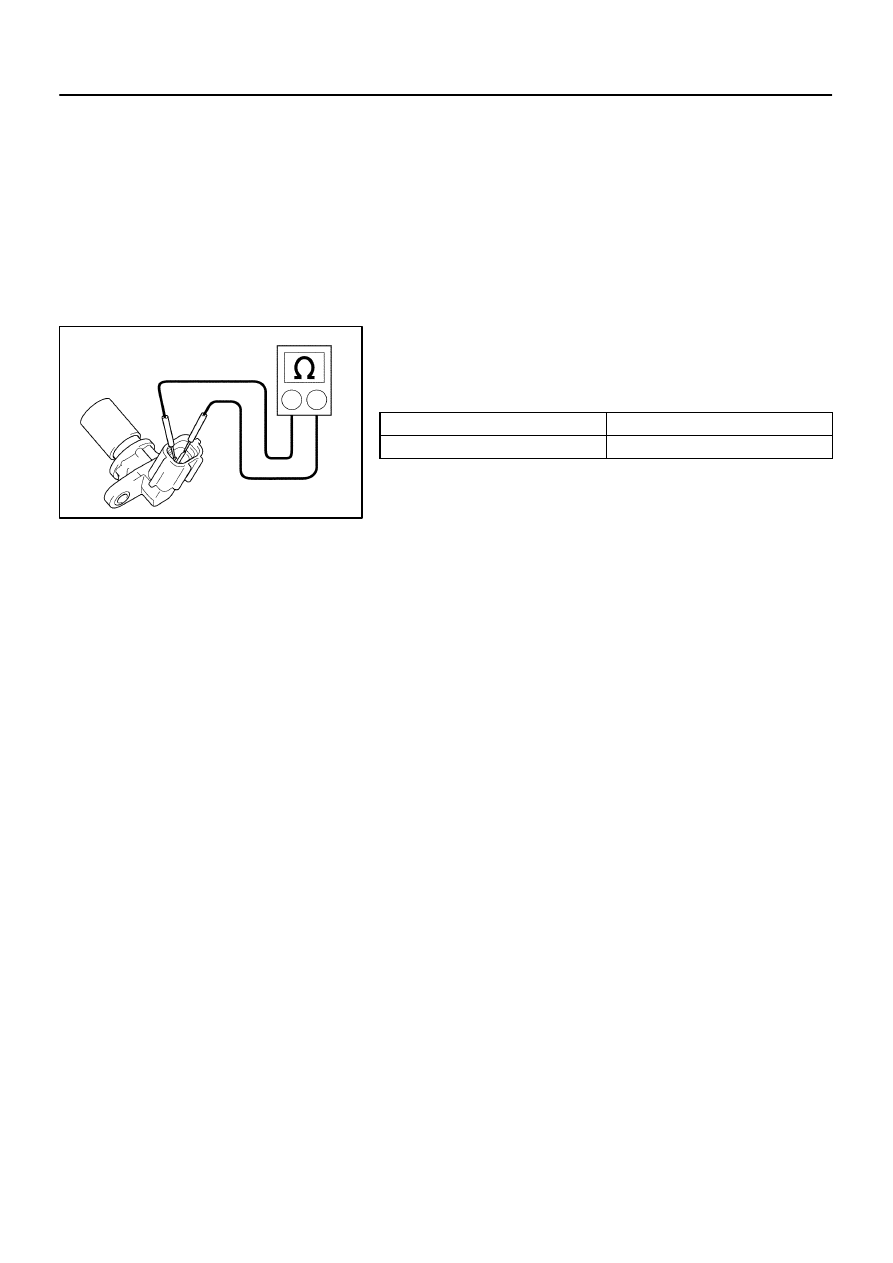

Using an ohmmeter, measure the resistance between the ter-
minals.

Resistance:

Cold

1,630 – 2,740

Ω

Hot

2,065 – 3,225

Ω

If the resistance is not as specified, replace the crankshaft posi-
tion sensor.

IG0EM–04

B07251

–

IGNITION

CRANKSHAFT POSITION SENSOR

IG–13

2874

INSTALLATION

1.

INSTALL CRANKSHAFT POSITION SENSOR

(a)

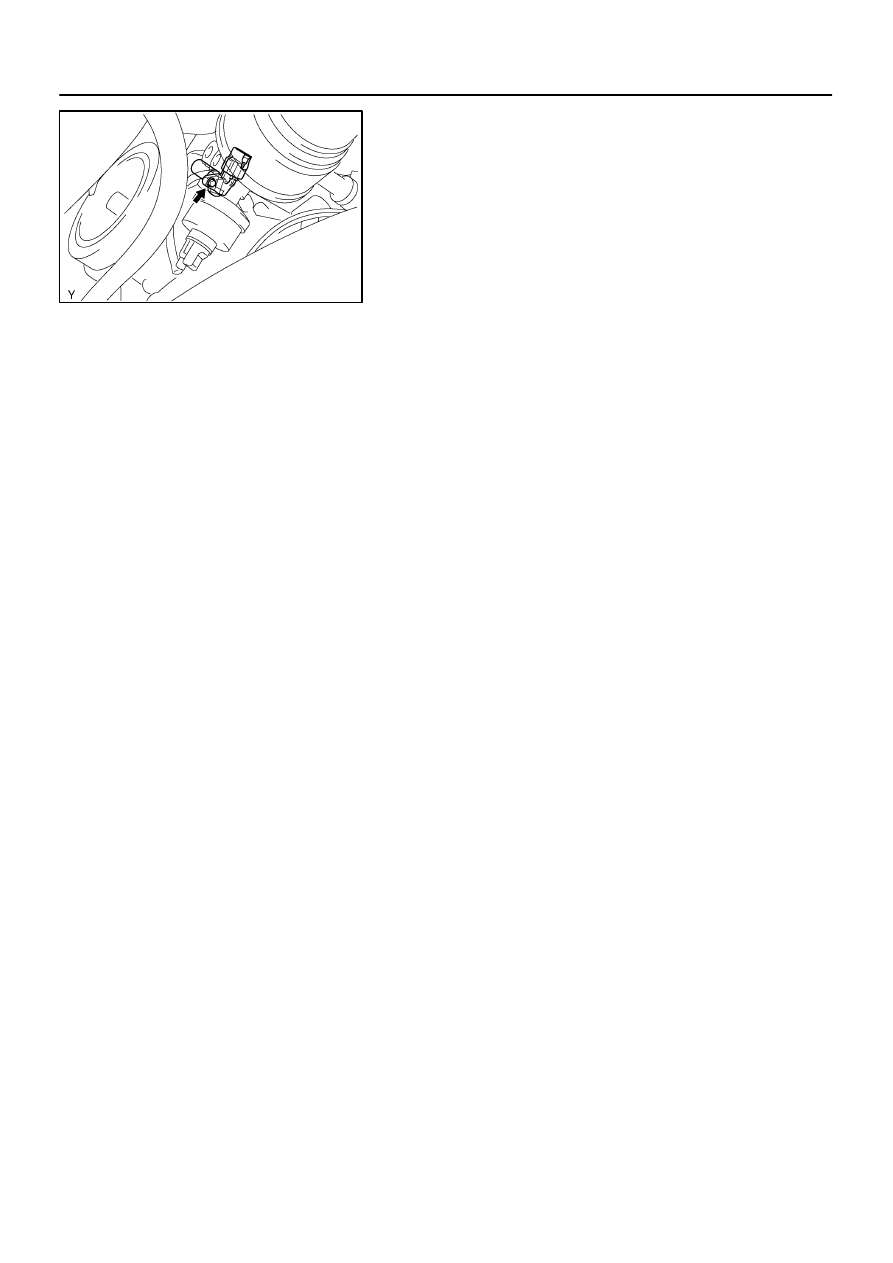

Install the crankshaft position sensor with the bolt.
Torque: 6.5 N·m (65 kgf·cm, 58 in.·lbf)

(b)

Connect the crankshaft position sensor connector.

2.

INSTALL ENGINE UNDER COVER

ST08X–03

–

STARTING

STARTING SYSTEM

ST–1

2875

STARTING SYSTEM

ON–VEHICLE INSPECTION

NOTICE:
Before changing the starter, check these items again:

Connector connection

Accessory installation, e.g.: engine immobilizer system

ST08Y–06

B17459

 Non–reusable part

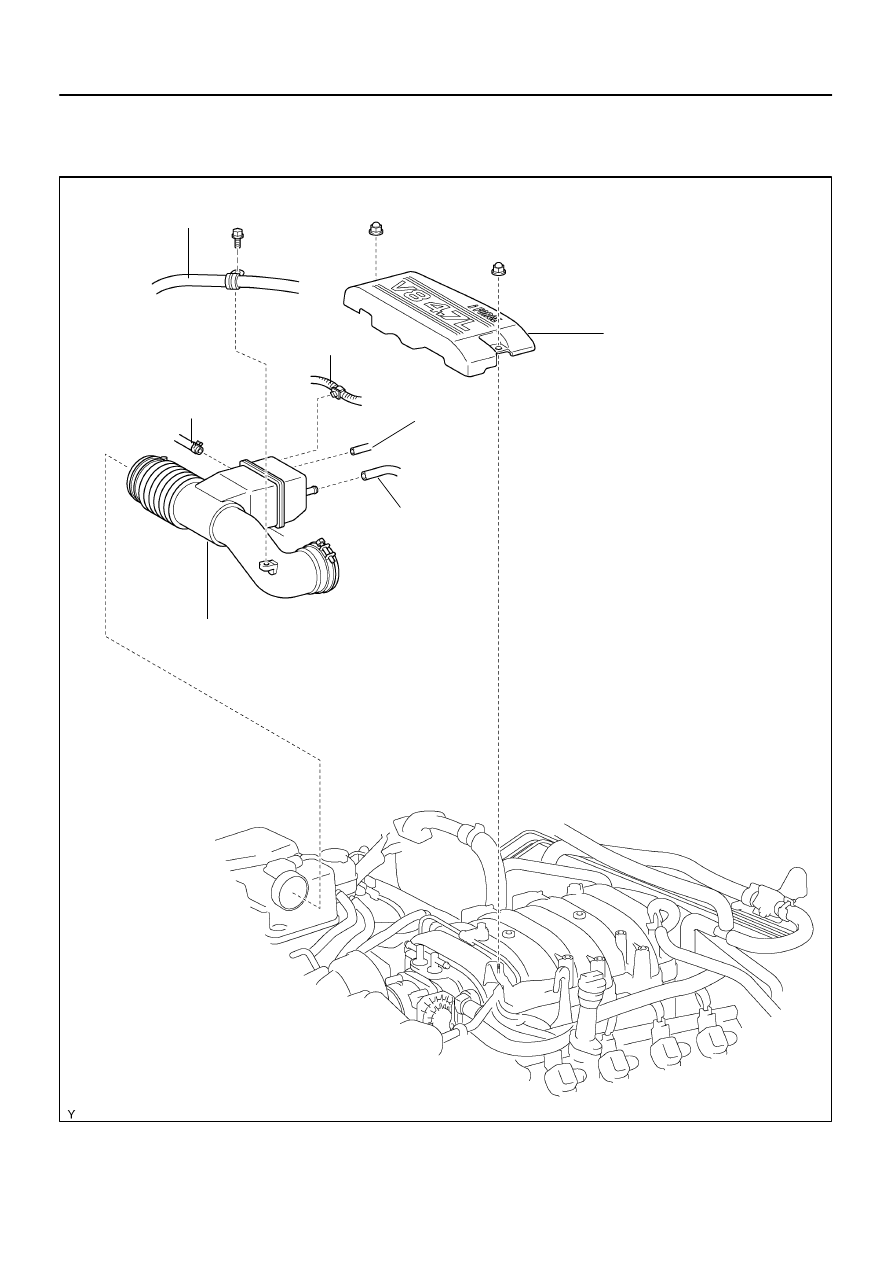

Throttle Body Cover

PS Air Hose

Intake Air Connector

Suction Hose

MAF Meter Wire

PCV Hose

Vacuum Hose

ST–2

–

STARTING

STARTER

2876

STARTER

COMPONENTS
