IG08Q–06

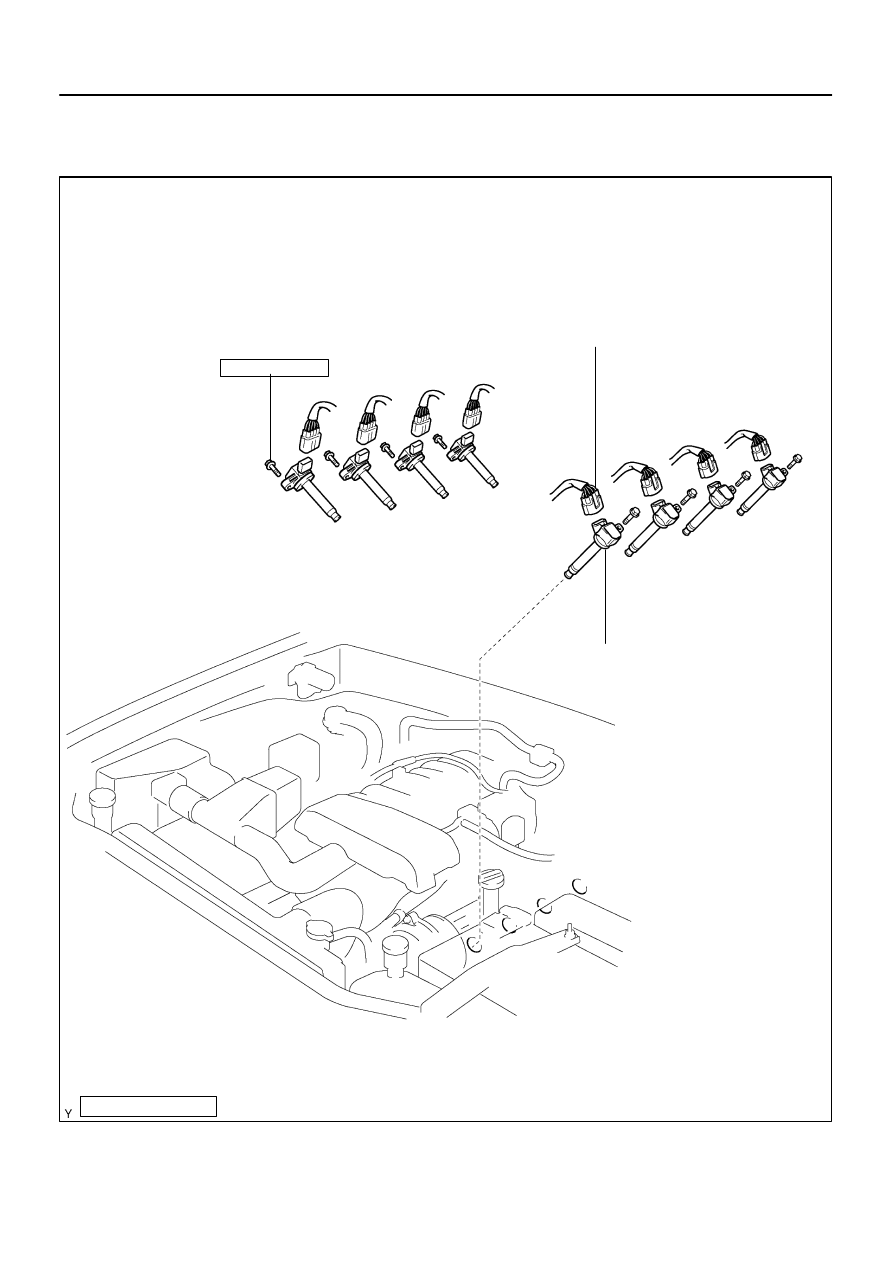

B07248

Ignition Coil (with Igniter) Connector

Ignition Coil (with Igniter)

N·m (kgf·cm, ft·lbf) : Specified torque

7.5 (76, 66 in.·lbf)

IG–4

–

IGNITION

IGNITION COIL

2865

IGNITION COIL

COMPONENTS

IG08R–05

B04085

–

IGNITION

IGNITION COIL

IG–5

2866

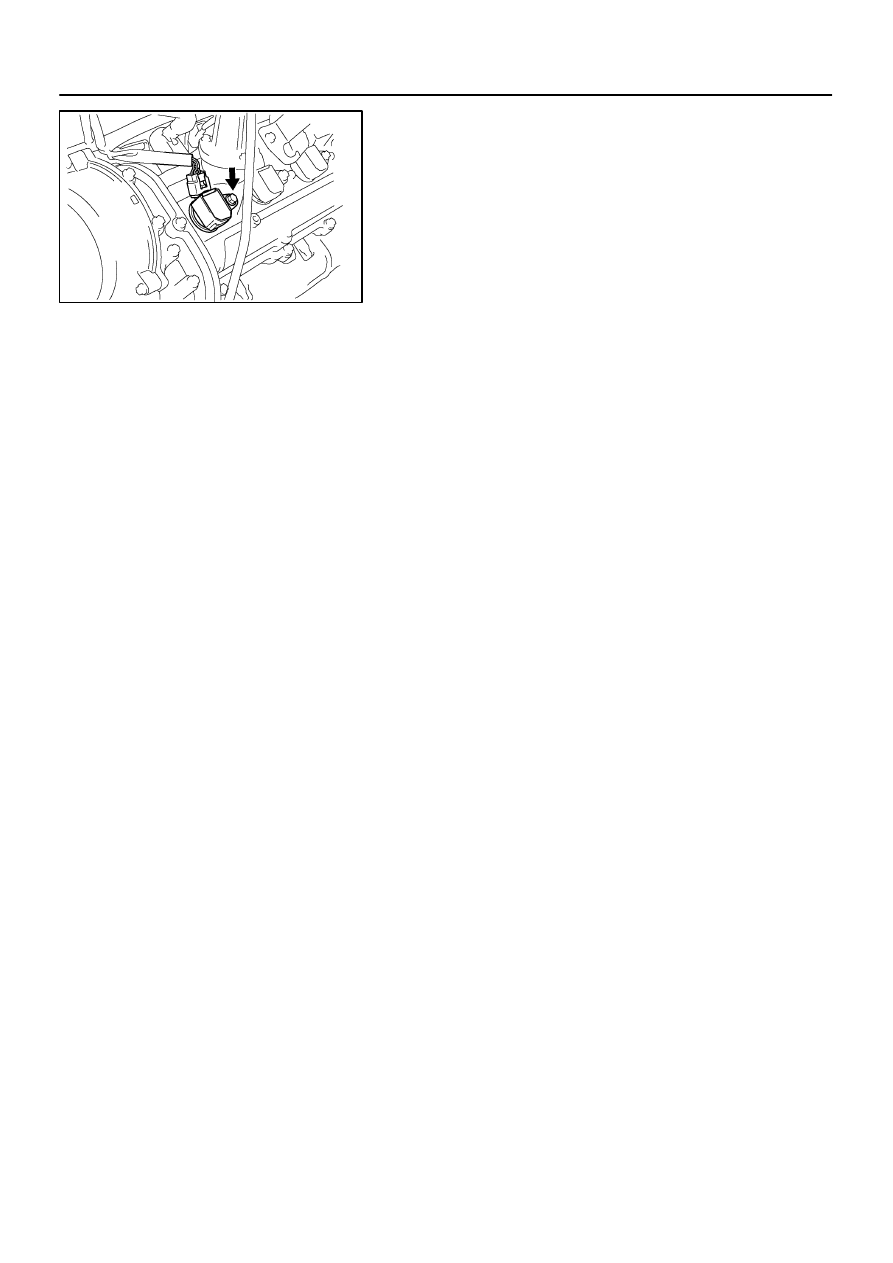

REMOVAL

1.

DISCONNECT IGNITION COIL (WITH IGNITER) CON-
NECTORS

2.

REMOVE IGNITION COILS (WITH IGNITER)

Remove the bolt, and pull out the ignition coil (with igniter). Re-
move the 8 ignition coils (with igniter).

IG0EN–04

B04085

IG–6

–

IGNITION

IGNITION COIL

2867

INSTALLATION

1.

INSTALL IGNITION COILS (WITH IGNITER)

Install the ignition coil (with igniter) with the bolt. Install the 8
ignition coils (with igniter).

Torque: 7.5 N·m (76 kgf·cm, 66 in.·lbf)

2.

CONNECT IGNITION COIL (WITH IGNITER) CONNEC-
TORS

IG08T–08

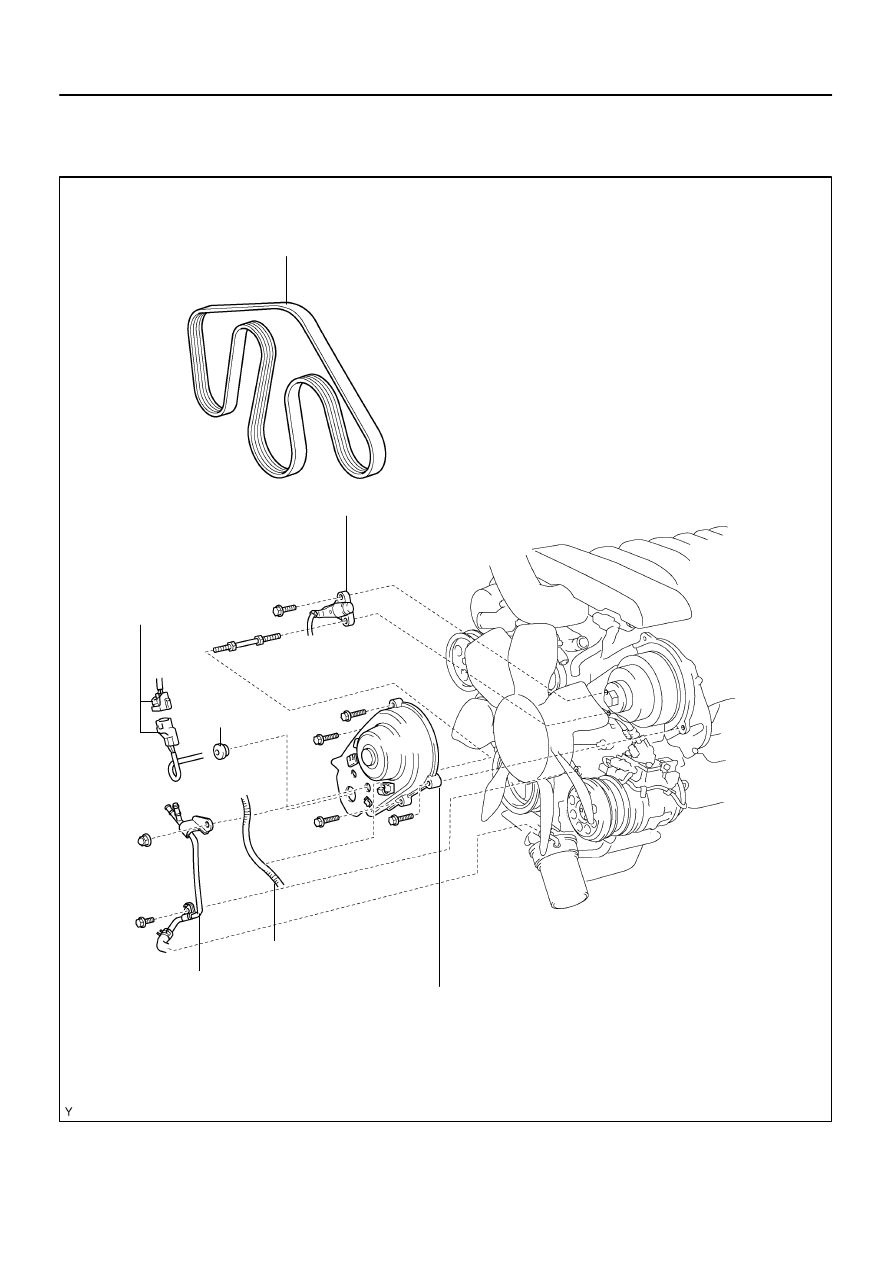

B17486

Drive Belt

Camshaft Position
Sensor Connector

Grommet

Engine Wire

Camshaft Position Sensor

Oil Cooler Pipe

LH No.3 Timing Belt Cover

–

IGNITION

CAMSHAFT POSITION SENSOR

IG–7

2868

CAMSHAFT POSITION SENSOR

COMPONENTS
