Toyota Sequoia (2005). Manual - part 705

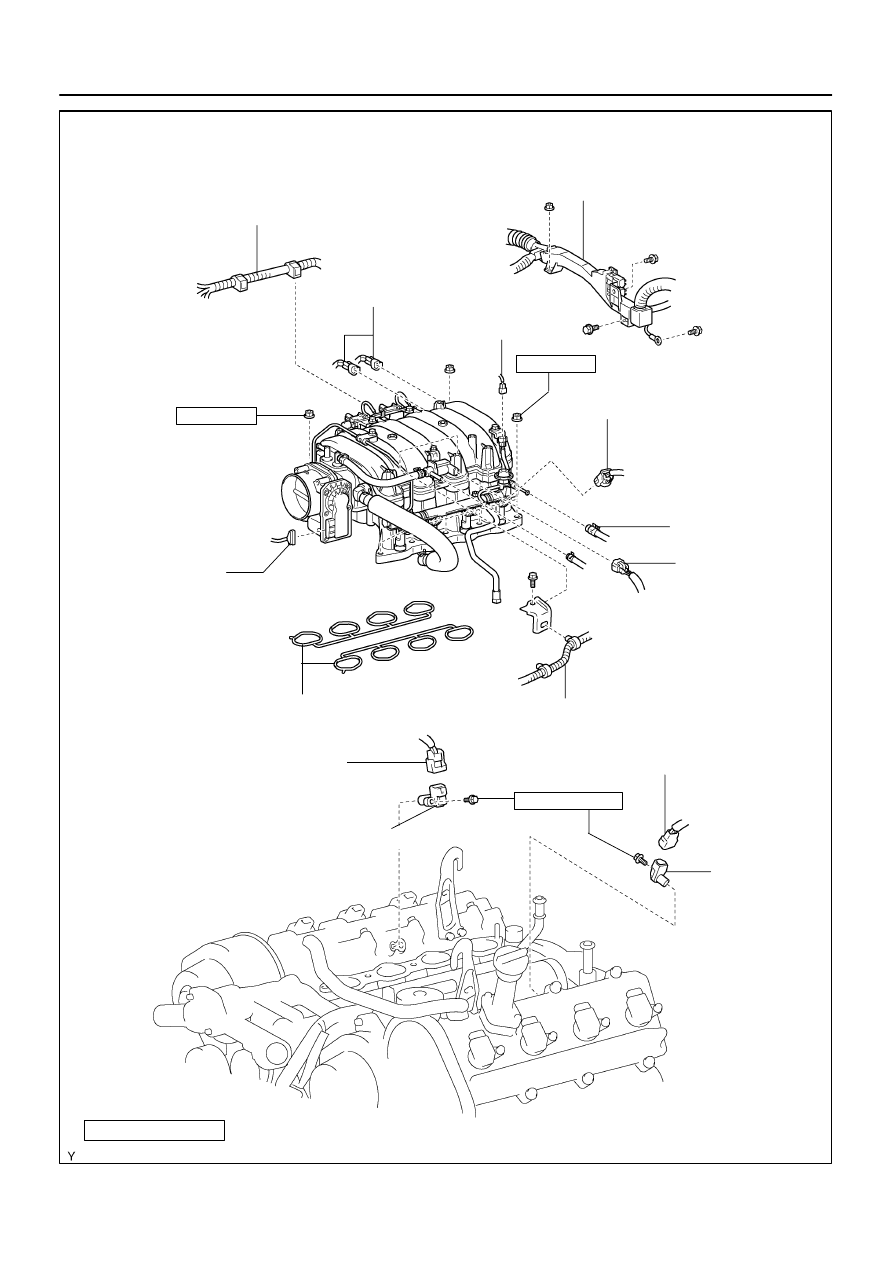

B17493

Engine Wire

VSV Connector
for Air Injection
System

Engine Wire

Throttle Body
Connector

Fuel Return Hose

Engine Wire

Injector Connector

VSV Connector for
EVAP

VVT Sensor 2

N·m (kgf·cm, ft·lbf)

: Specified torque

Non–reusable part

Gasket

VVT Sensor 1

VSV Connector
for ACIS

VVT Sensor Connector

VVT Sensor Connector

18 (185, 13)

18 (185, 13)

7.5 (76, 66 in.·lbf)

–

SFI

VVT SENSOR

SF–75

2809

SF0PW–03

B17494

Ohmmeter

SF–76

–

SFI

VVT SENSOR

2810

INSPECTION

NOTICE:
”Cold” and ”Hot in these sentences express the tempera-
ture of the sensors themselves. ”Cold” is from – 10

°

C

(14

°

F) to 50

°

C (122

°

F) and ”Hot” is from 50

°

C (122

°

F) to

100

°

C (212

°

F).

1.

REMOVE THROTTLE BODY COVER

2.

REMOVE INTAKE MANIFOLD ASSEMBLY
(See page

EM–36

)

3.

INSPECT VVT SENSOR RESISTANCE

(a)

Disconnect the VVT sensor connector.

(b)

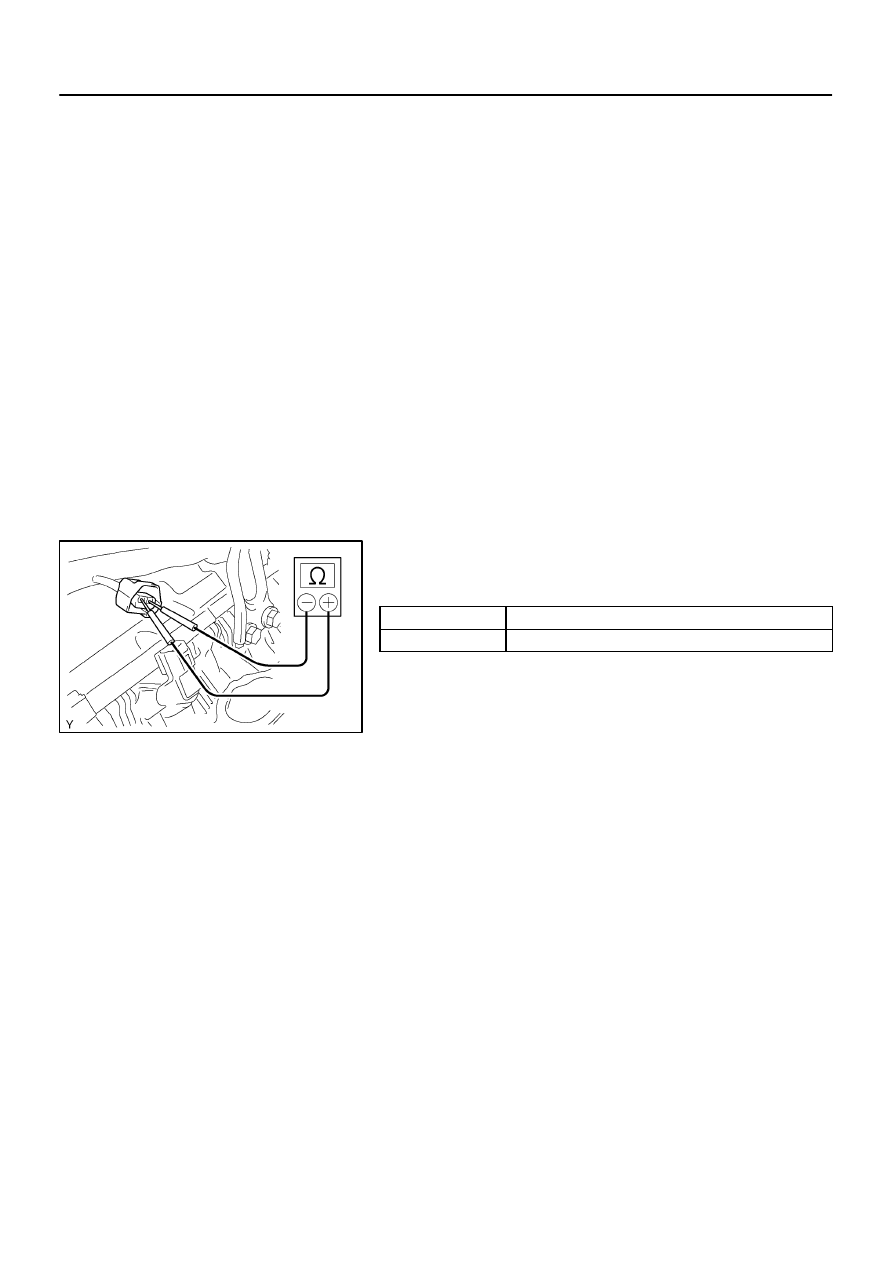

Using an ohmmeter, measure the resistance between the
terminals.
Resistance:

Cold

835 to 1,400

Ω

Hot

1,060 to 1,645

Ω

If the resistance is not as specified, replace the sensor.
(c)

Reconnect the VVT sensor connector.

(d)

Connect the VVT sensor connector.

4.

REINSTALL INTAKE MANIFOLD ASSEMBLY
(See page

EM–60

)

5.

REINSTALL THROTTLE BODY COVER

SF1XY–01

–

SFI

VVT SENSOR

SF–77

2811

REPLACEMENT

1.

REMOVE THROTTLE BODY COVER

2.

REMOVE INTAKE MANIFOLD ASSEMBLY
(See page

EM–36

)

3.

REMOVE VVT SENSOR

(a)

Disconnect the VVT sensor connector.

(b)

Remove the bolt and VVT sensor.

4.

INSTALL VVT SENSOR

(a)

Attach a new VVT sensor to the cylinder head.

(b)

Install the VVT sensor with the bolt.
Torque: 6.5 N·m (65 kgf·cm, 58 in.·lbf)

5.

REINSTALL INTAKE MANIFOLD ASSEMBLY
(See page

EM–60

)

6.

REINSTALL THROTTLE BODY COVER

SF1UM–05

B16380

Accelerator Pedal
Assembly

N·m (kgf·cm, ft·lbf) : Specified torque

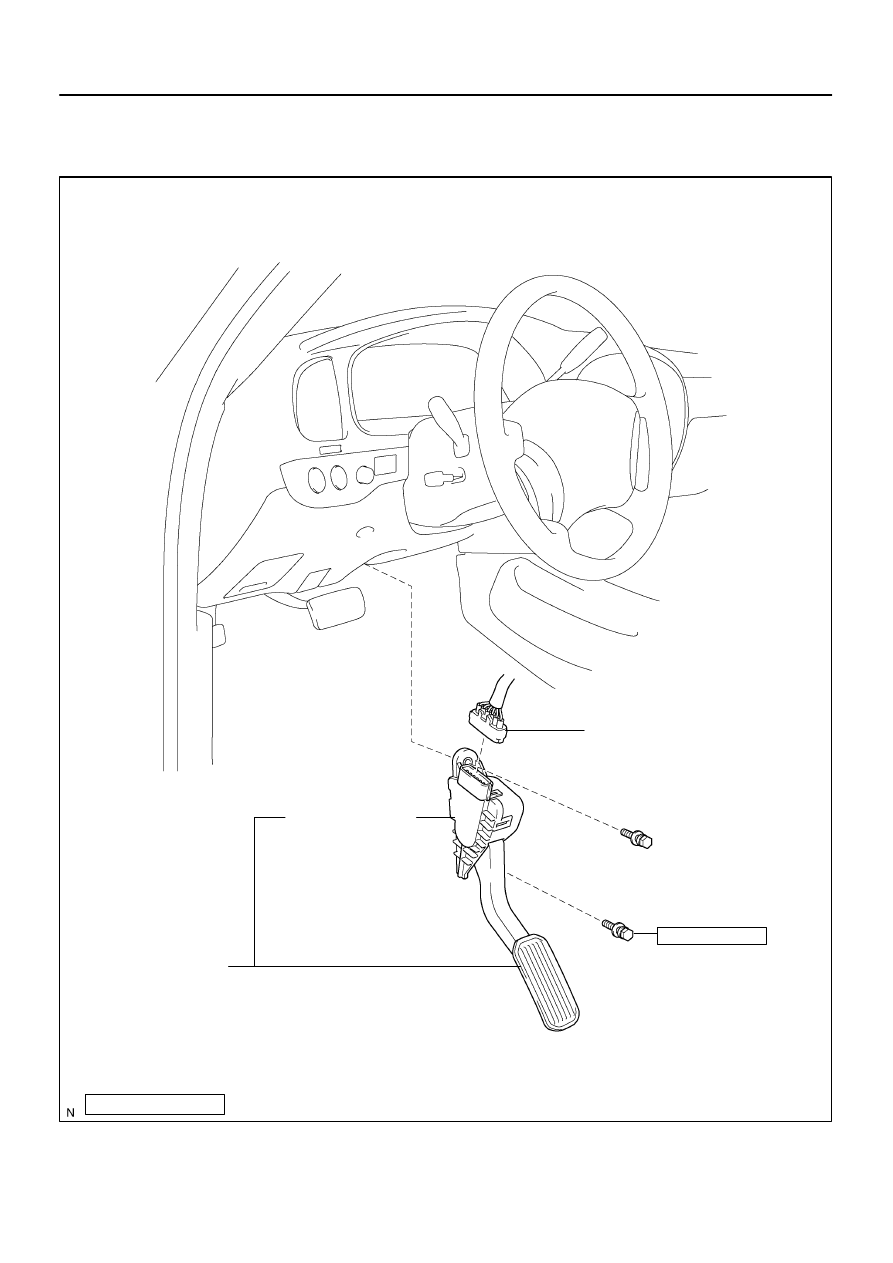

Accelerator Pedal
Position Sensor

Accelerator Pedal Position
Sensor Connector

5.0 (51, 44 in.·lbf)

SF–78

–

SFI

ACCELERATOR PEDAL POSITION SENSOR

2812

ACCELERATOR PEDAL POSITION SENSOR

COMPONENTS
