Toyota Sequoia (2005). Manual - part 704





D13872

Hand–Held Tester

DLC3

CAN VIM

Rich

Lean

Time

14.6

3.3

Keep Engine Speed

(V)

B17513

Air–fuel
Ratio

–

SFI

AIR–FUEL RATIO (A/F) SENSOR

SF–71

2805

(b)

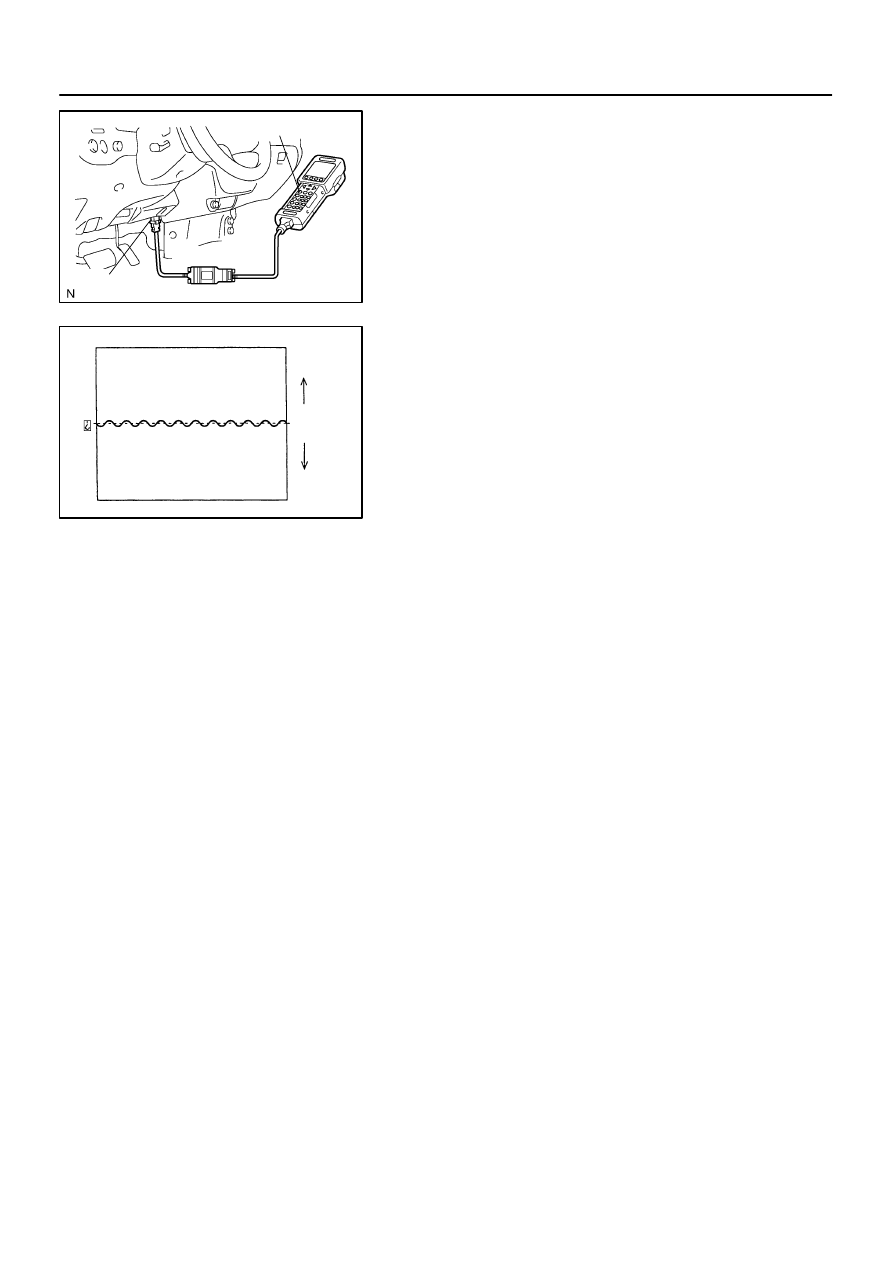

Connect a hand–held tester to the Controller Area Net-
work Vehicle Interface Module (CAN VIM). Then connect
the CAN VIM to the Date Link Connector 3 (DLC3).

(c)

Turn the ignition switch ON.

(d)

Select the following menu items : Data List / A/FS B1 S1
and O2S B1 S2.

(e)

Warm up the A/F sensor by running the engine at 2,500
rpm for approximately 2 minutes.

(f)

Keep the engine speed at 2,500 rpm and confirm that the
display of the ”A/FS B1 S1” is as shown in the illustration.

HINT:



The illustration may slightly differ from the display on the
hand–held tester.



The waveform of the A/F sensor is displayed only on the
hannd–heldtester.

(g)

Confirm that the display of the ”O2S B1 S2” changes be-
tween 0 and 1 V with the engine speed at 2,500 rpm.
OK:
The voltage output oscillates more than 8 times in 10
seconds.

CAUTION:



Perform the check immediately after warming up the
engine.



If the voltage variation could not be verified, warm up
the heated oxygen sensor again. If it could not be veri-
fied even after warming up the sensor again, check
the DTC No. (See page

DI–88

)

SF0Y9–11

B17506

N·m (kgf·cm, ft·lbf)

: Specified torque

Heated Oxygen
Sensor Connector

Heated Oxygen Sensor

Engine Under Cover

Bank 2 Sensor 1

44 (450, 32)

Bank 1 Sensor 1

Heated Oxygen
Sensor Connector

Heated Oxygen Sensor

44 (450, 32)

SF–72

–

SFI

HEATED OXYGEN SENSOR

2806

HEATED OXYGEN SENSOR

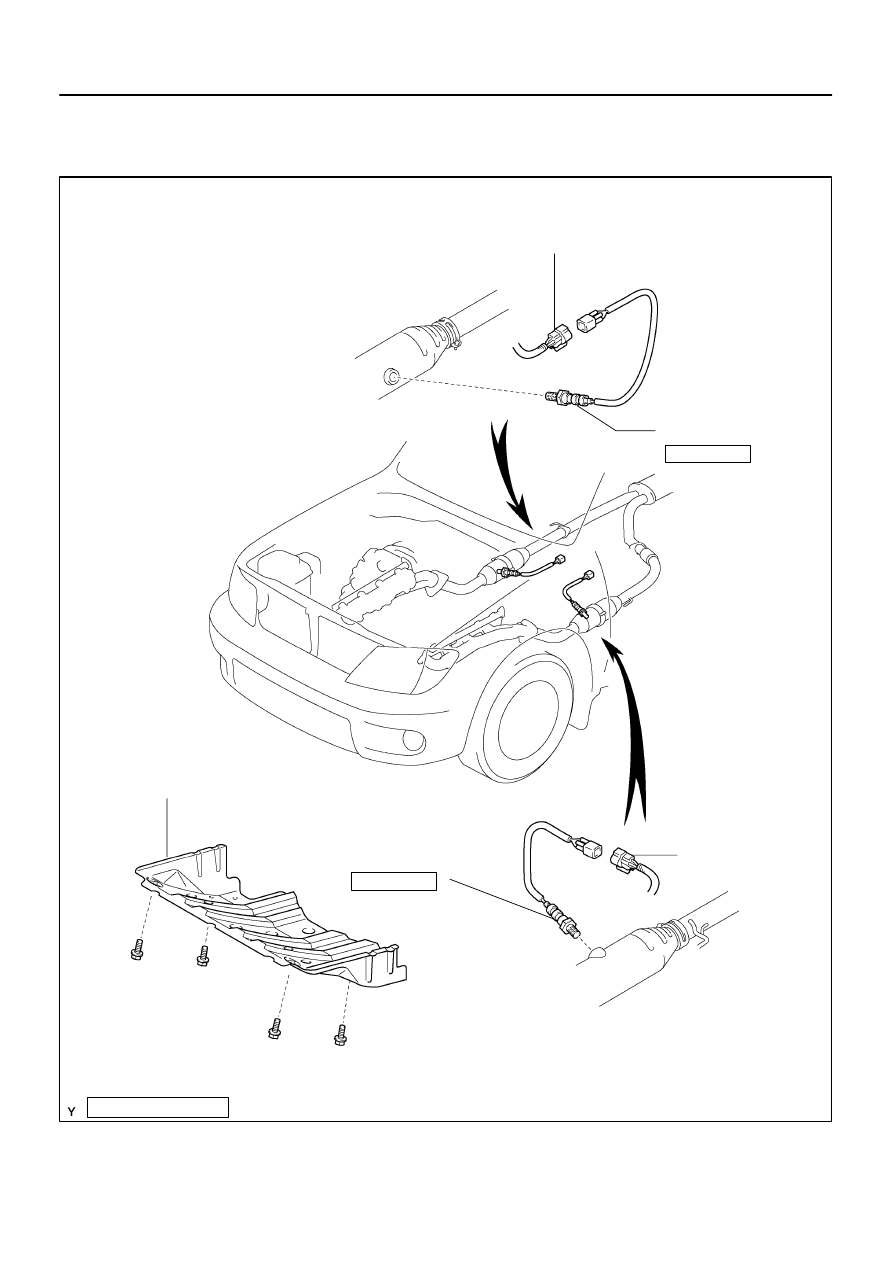

COMPONENTS

SF0YA–14

B17507

+B

HT

–

SFI

HEATED OXYGEN SENSOR

SF–73

2807

INSPECTION

1.

INSPECT HEATER RESISTANCE OF HEATED OXY-
GEN SENSOR

(a)

Disconnect the oxygen sensor connector.

(b)

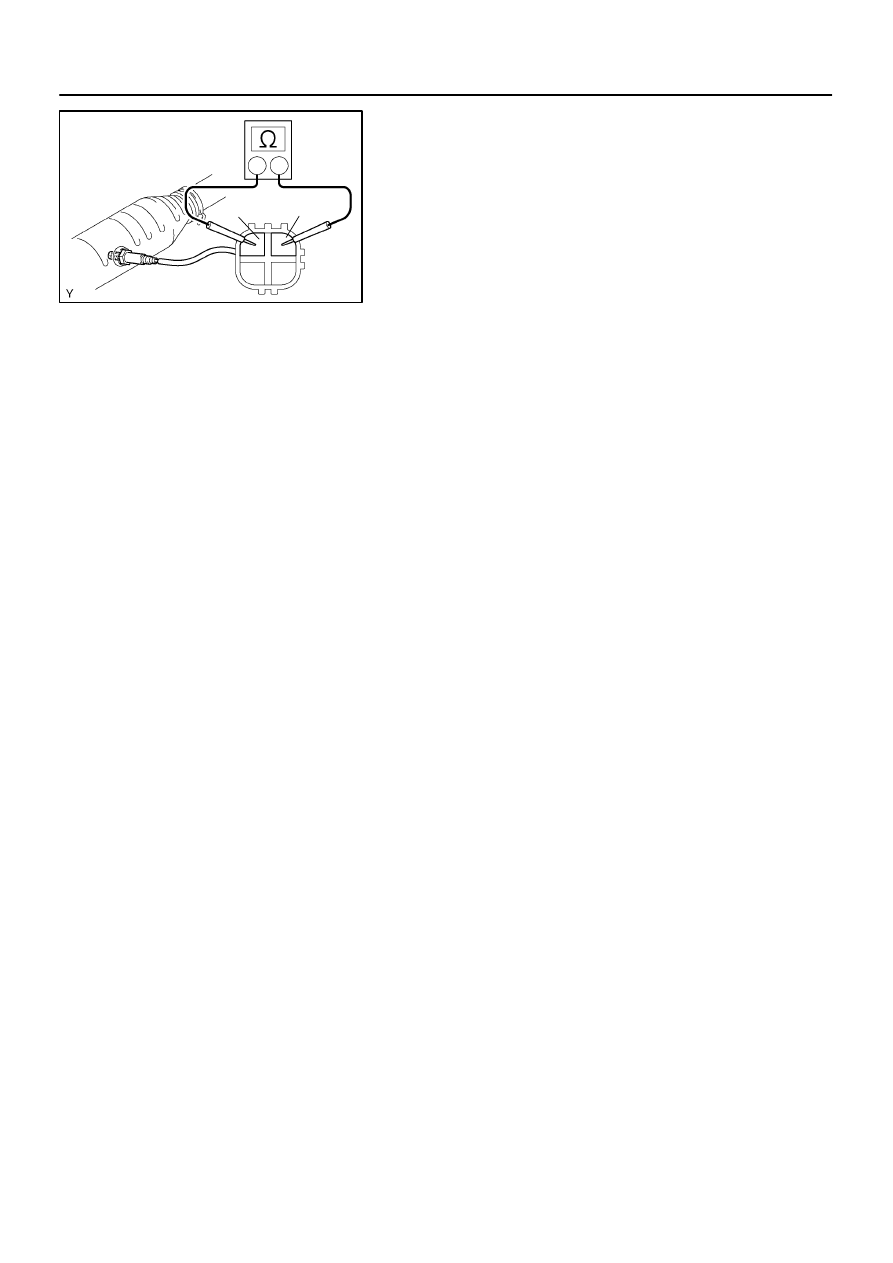

Using an ohmmeter, measure the resistance between ter-
minals +B and HT.
Resistance: 11 to 16

Ω

 at 20

°

C (68

°

F)

If the resistance is not as specified, replace the sensor.

Torque: 44 N·m (450 kgf·cm, 32 ft·lbf)

(c)

Reconnect the oxygen sensor connector.

2.

INSPECT OPERATION OF HEATED OXYGEN SEN-
SOR (See page

DI–93

)

SF1XX–02

B17459

Throttle Body Cover

PS Air Hose

Intake Air Connector

Suction Hose

MAF Meter Wire

PCV Hose

Vacuum Hose

SF–74

–

SFI

VVT SENSOR

2808

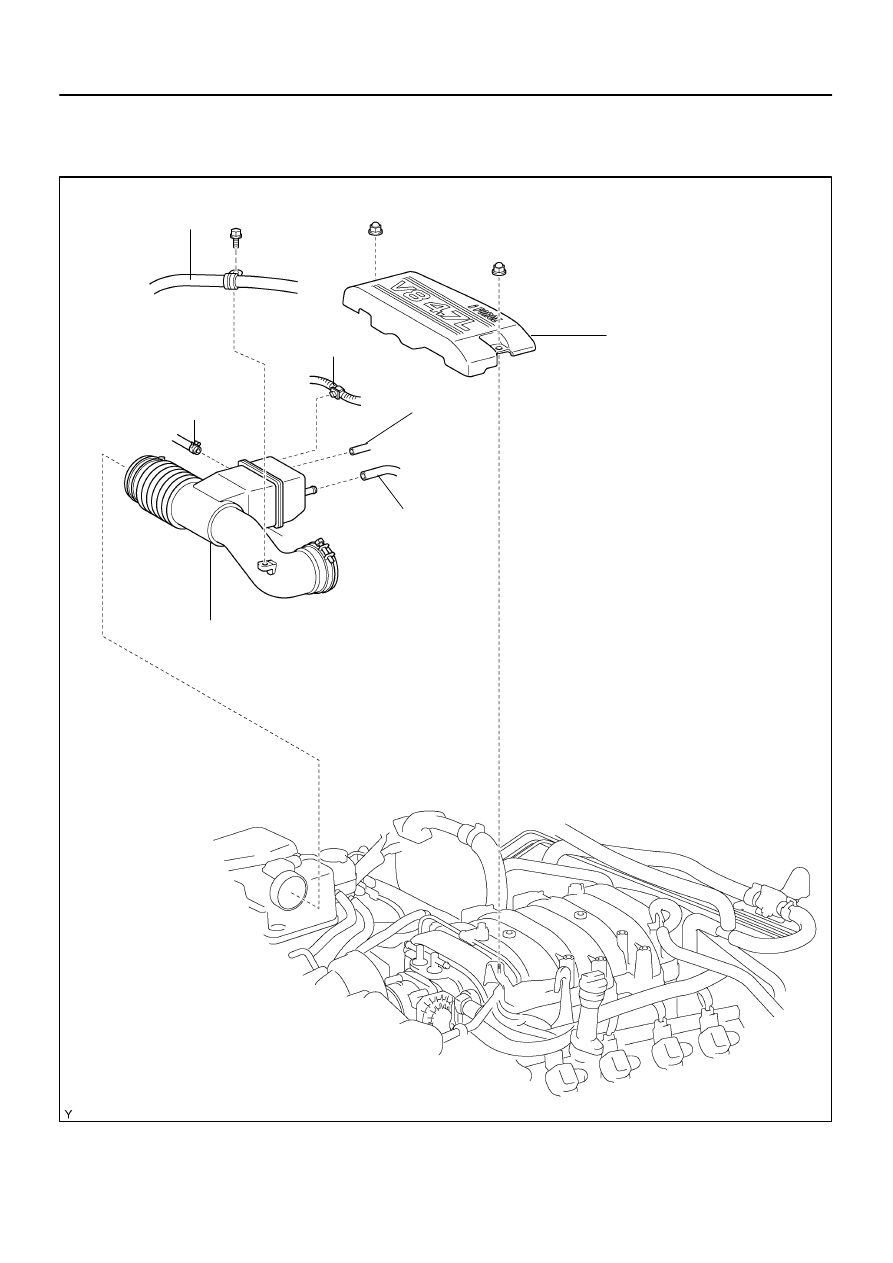

VVT SENSOR

COMPONENTS
