DIAGNOSTICS

NAVIGATION SYSTEM

DI–2195

2389

(4)

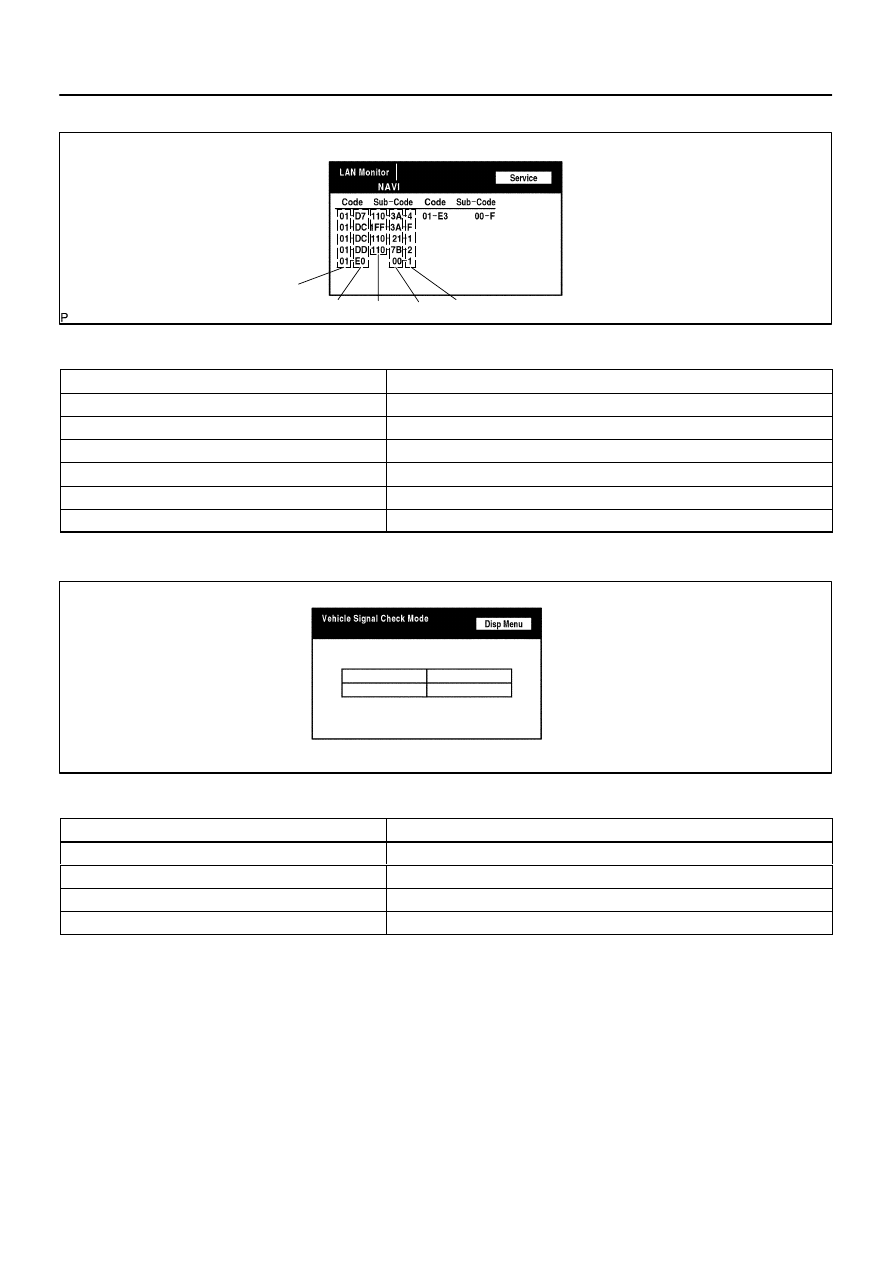

LAN Monitor (Individual) Screen

Screen Description

Display

Contents

Device name/*1

Target device

Segment/*2

Target logical address

DTC/*3

DTC (Diagnostic Trouble Code)

Sub–Code (device address)/*4

Physical address stored with DTC (If there is no address, nothing is displayed.).

Connection check No./*5

Connection check number stored with DTC.

DTC occurrence/*6

Number of times the same DTC has been recorded.

(b)

DISPLAY CHECK
(1)

Vehicle Signal Check Mode Screen

Screen Description

Name

Contents

PKB

Parking brake ON/OFF state is displayed.

REV

Reverse signal ON/OFF state is displayed.

SPEED

Vehicle speed is displayed in km/h.

TAIL

TAIL signal (Head lamp dimmer switch) ON/OFF state is displayed.

HINT:

Only items sending a vehicle signal will be displayed.

This screen is updated once per second when input signals to the vehicle are changed.

I28242

I28243

*2

*3

*2

*5

*4

*1

*1

DI–2196

–

DIAGNOSTICS

NAVIGATION SYSTEM

2390

(c)

NAVIGATION CHECK
(1)

Navigation Check Screen

HINT:
Each item is grayed out or not displayed based on the device settings.

(2)

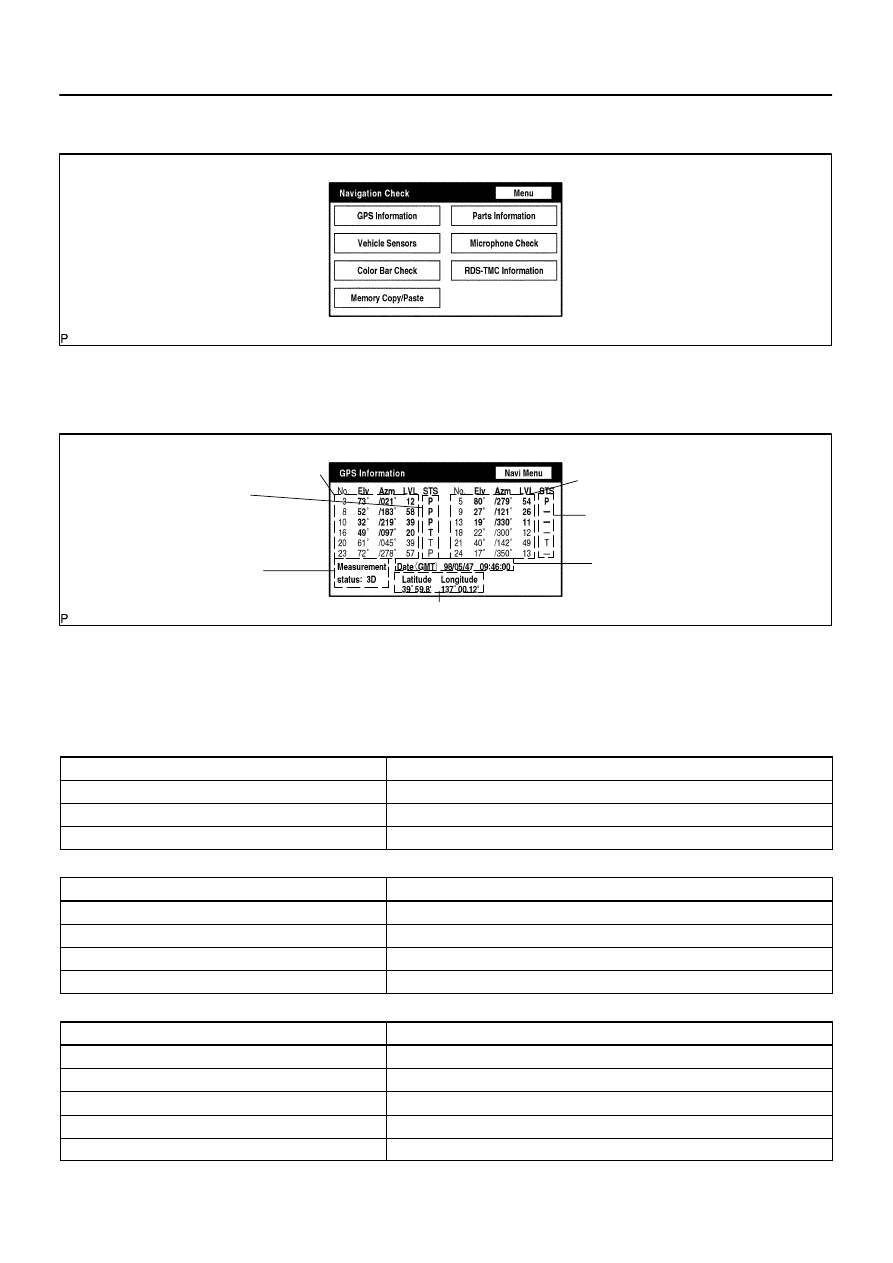

GPS information Screen

Satellite information/*1

(3)

Information from a maximum of 12 satellites is displayed on the screen. This information includes
the target GPS satellite number, elevation angle, direction and signal level.

Receiving condition/*2
(DENSO model)

Display

Contents

T

The system is receiving a GPS signal, but is not using it for location.

P

The system is using the GPS signal for location.

–

The system cannot receive a GPS signal.

(AISIN AW model)

Display

Contents

01H

The system cannot receive a GPS signal.

02H

The system is tracing a satellite.

03H

The system is receiving a GPS signal, but is not using it for location.

04H

The system is using the GPS signal for location.

Measurement information/*3

Display

Contents

2D

2–dimensional location method is being used.

3D

3–dimensional location method is being used.

NG

Location data cannot be used.

Error

Reception error has occurred.

–

Any other state.

I28244

*1

*2

*3

I28245

*1
*2

*3
*4

–

DIAGNOSTICS

NAVIGATION SYSTEM

DI–2197

2391

Position information/*4

Display

Contents

Position

Latitude and longitude information on the current position is displayed.

Display

Contents

The date/time information obtained from GPS signal is displayed in Greenwich

mean time (GMT). The last 4 digits are displayed.

(4)

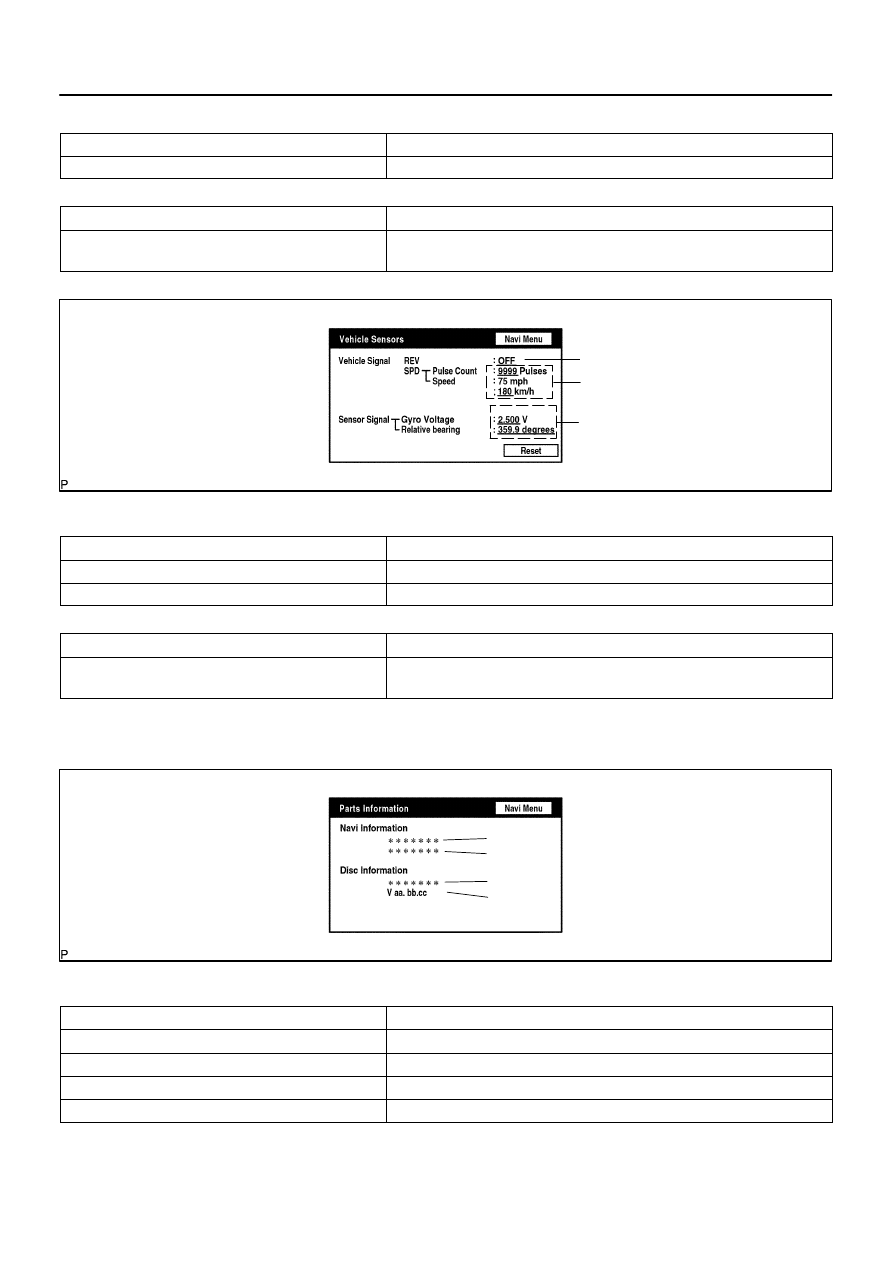

Vehicle Sensors Screen

Vehicle signal

Display

Contents

REV/*1

REV signal ON/OFF state is displayed.

SPD/*2

SPD signal condition is displayed.

Sensor signal

Display

Contents

Gyro sensor/*3

Gyro sensor output condition is displayed (when the vehicle runs straight or is sta-

tionary, the voltage is approximately 2.5 V).

HINT:
Signals are updated once per second only when vehicle sensor signals are changed.

(5)

Parts Information Screen

Screen description

Display

Contents

Navigation Manufacturer/*1

Radio and navigation assy manufacturer is displayed.

Navigation Version No./*2

Radio and navigation assy version is displayed.

Disc Manufacturer/*3

Map disc manufacturer is displayed.

Disc Version No./*4

Map disc version is displayed.

I28246

DI–2198

–

DIAGNOSTICS

NAVIGATION SYSTEM

2392

(6)

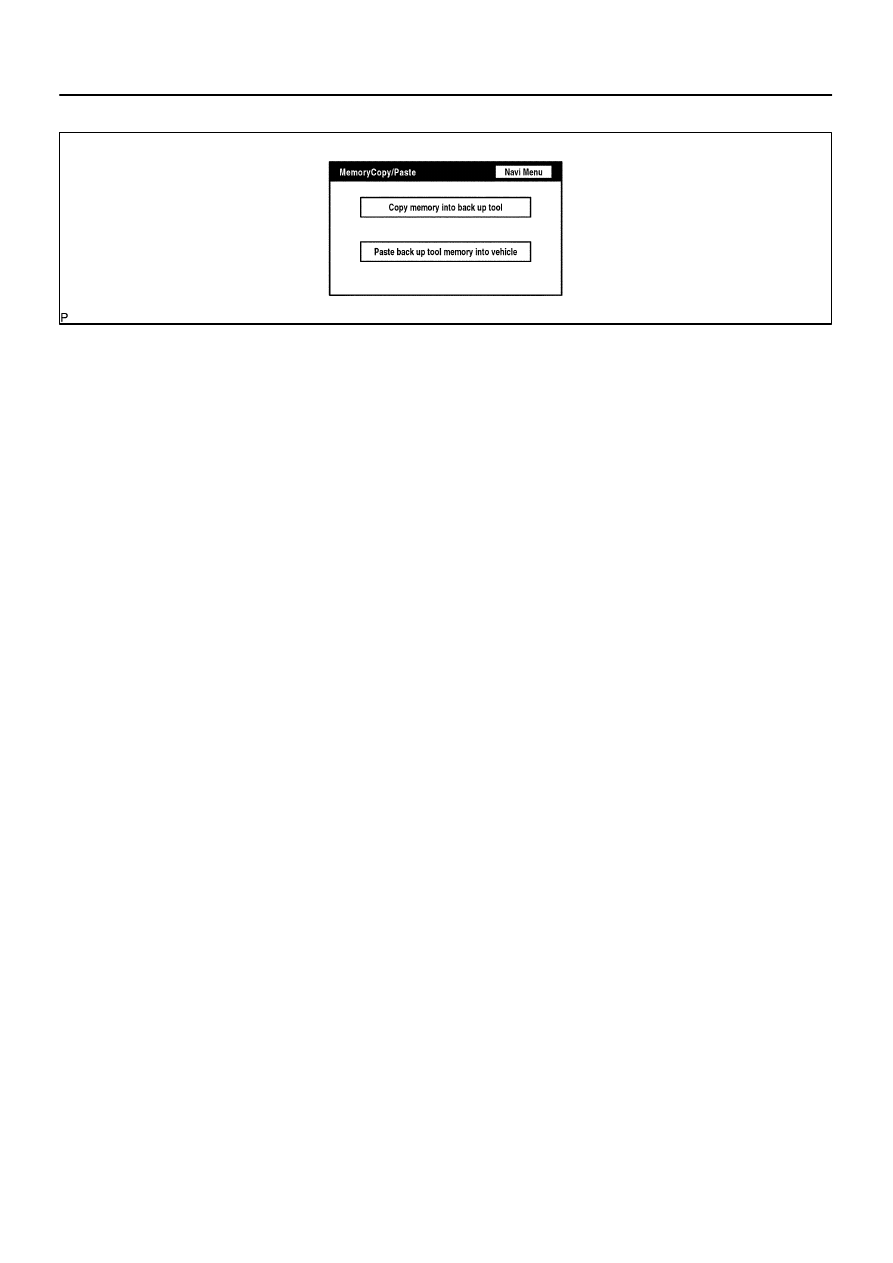

Memory Copy/Paste Screen

HINT:
This function cannot be used.
