Toyota Tundra (2015 year). Manual

Last Modified: 9-16-2014

6.6 K

Doc ID: RM00000270Z013X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AXLE: REAR AXLE SHAFT: COMPONENTS; 2015 MY Tundra [08/2014 - ]

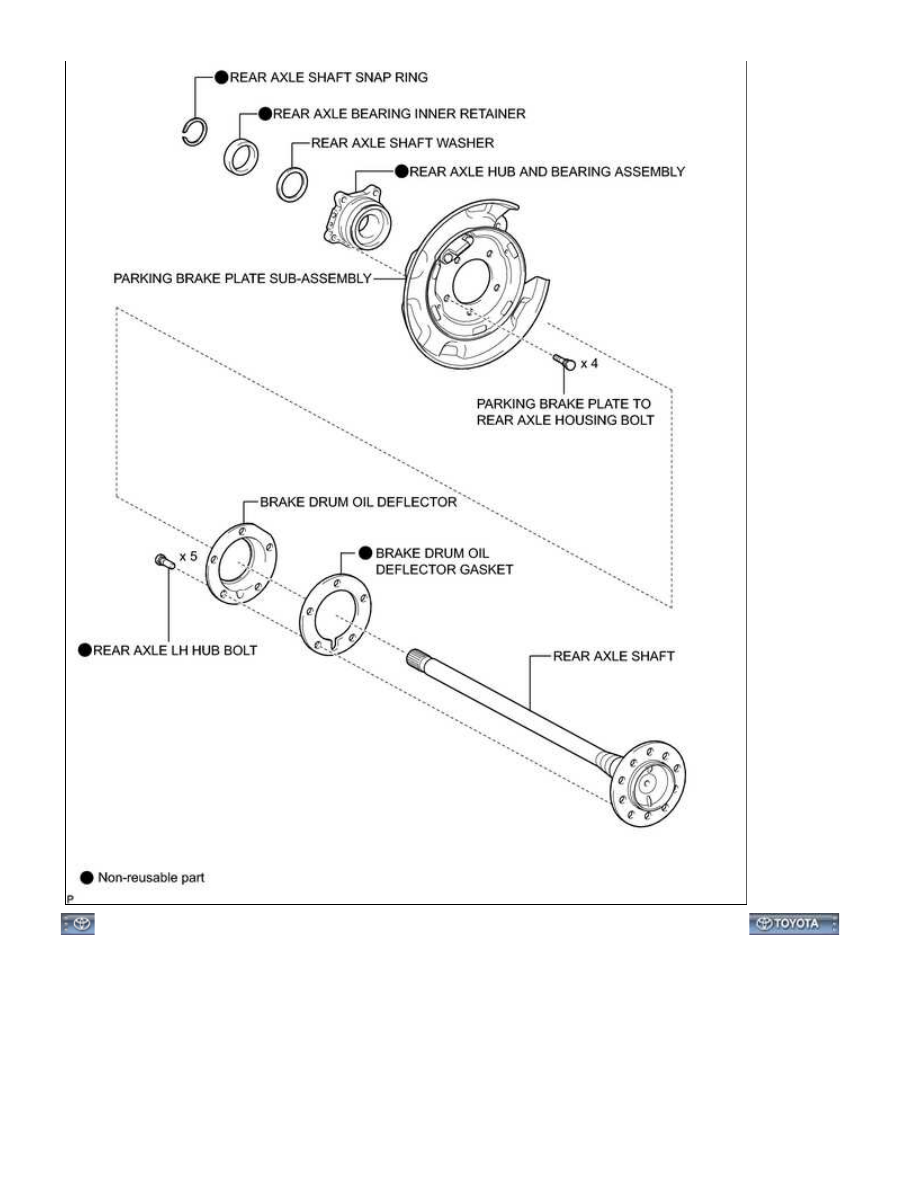

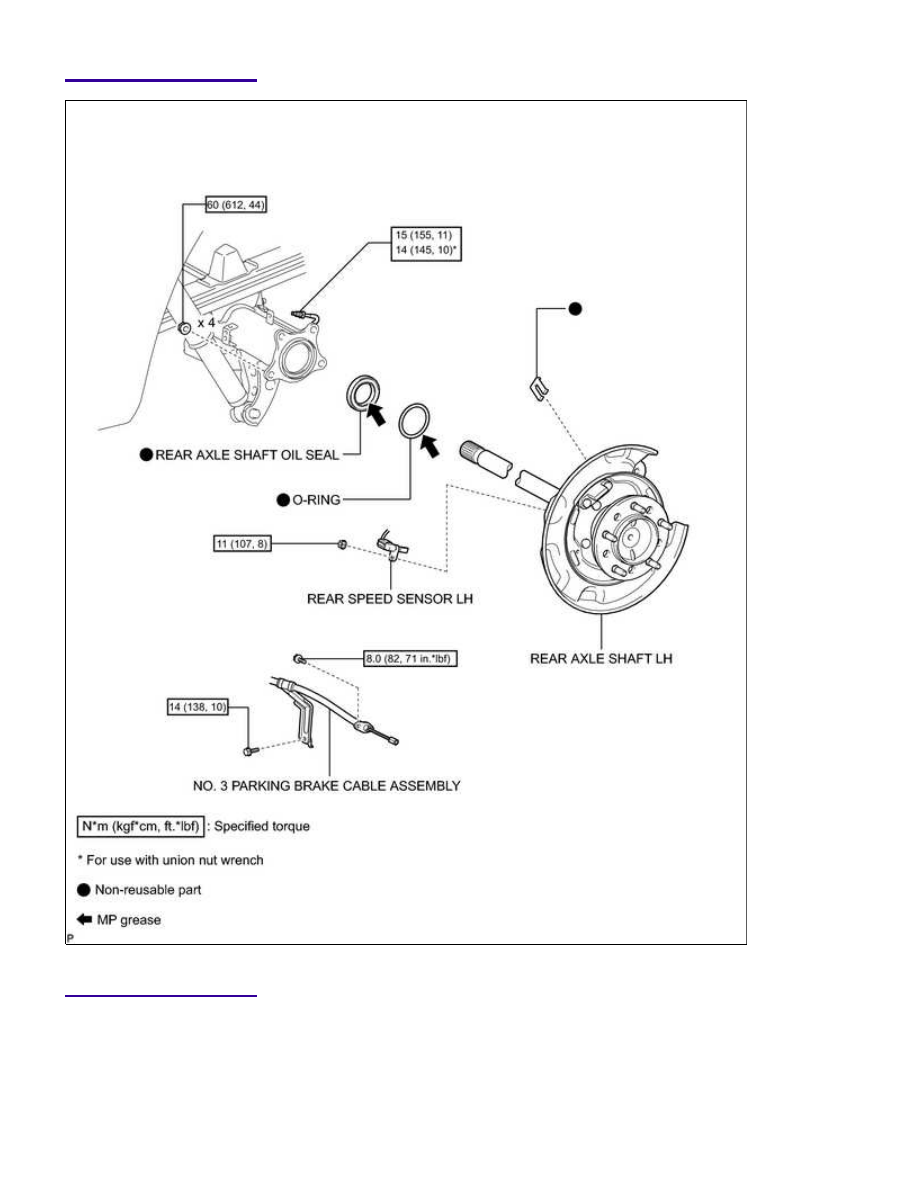

COMPONENTS

ILLUSTRATION

AXLE: REAR AXLE SHAFT: COMPONENTS; 2015 MY Tundra [08/...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM00000270F01CX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AXLE: REAR AXLE SHAFT: REMOVAL; 2015 MY Tundra [08/2014 - ]

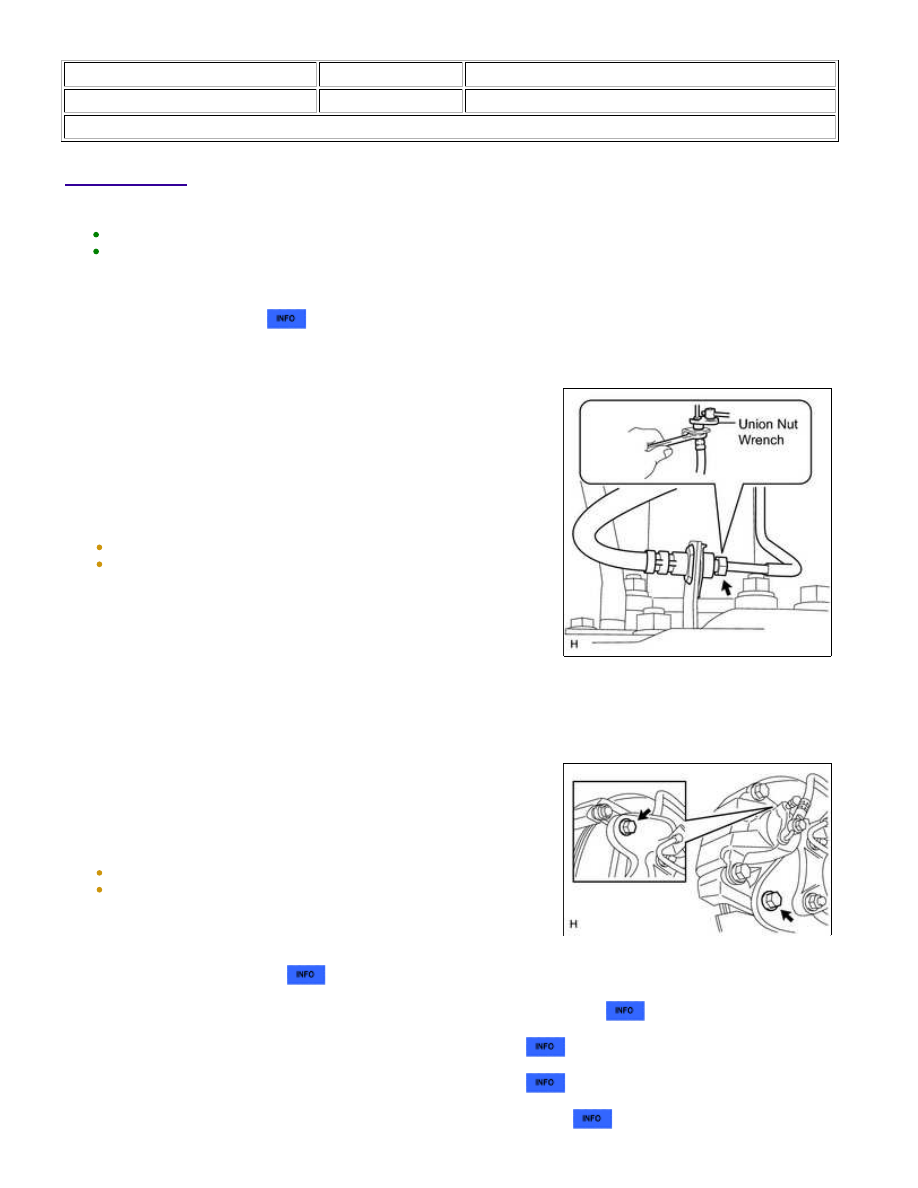

REMOVAL

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL LH

2. DRAIN BRAKE FLUID

3. DISCONNECT REAR BRAKE FLEXIBLE HOSE

(a) Disconnect the brake tube from the flexible hose with union nut

wrench while holding the flexible hose with a wrench.

NOTICE:

Do not bend or damage the brake tube.
Do not allow any foreign matter such as dirt and dust to enter
the brake tube from the connecting point.

(b) Remove the clip.

4. DISCONNECT REAR DISC BRAKE CYLINDER ASSEMBLY LH

(a) Remove the 2 bolts and disconnect rear disc brake cylinder.

NOTICE:

Do not twist or bend the flexible hose.
Do not disconnect the flexible hose from the disc brake cylinder.

5. REMOVE REAR DISC LH

6. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING LH

7. REMOVE NO. 1 PARKING BRAKE SHOE ASSEMBLY LH

8. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY LH

9. REMOVE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY LH

AXLE: REAR AXLE SHAFT: REMOVAL; 2015 MY Tundra [08/2014 - ...
