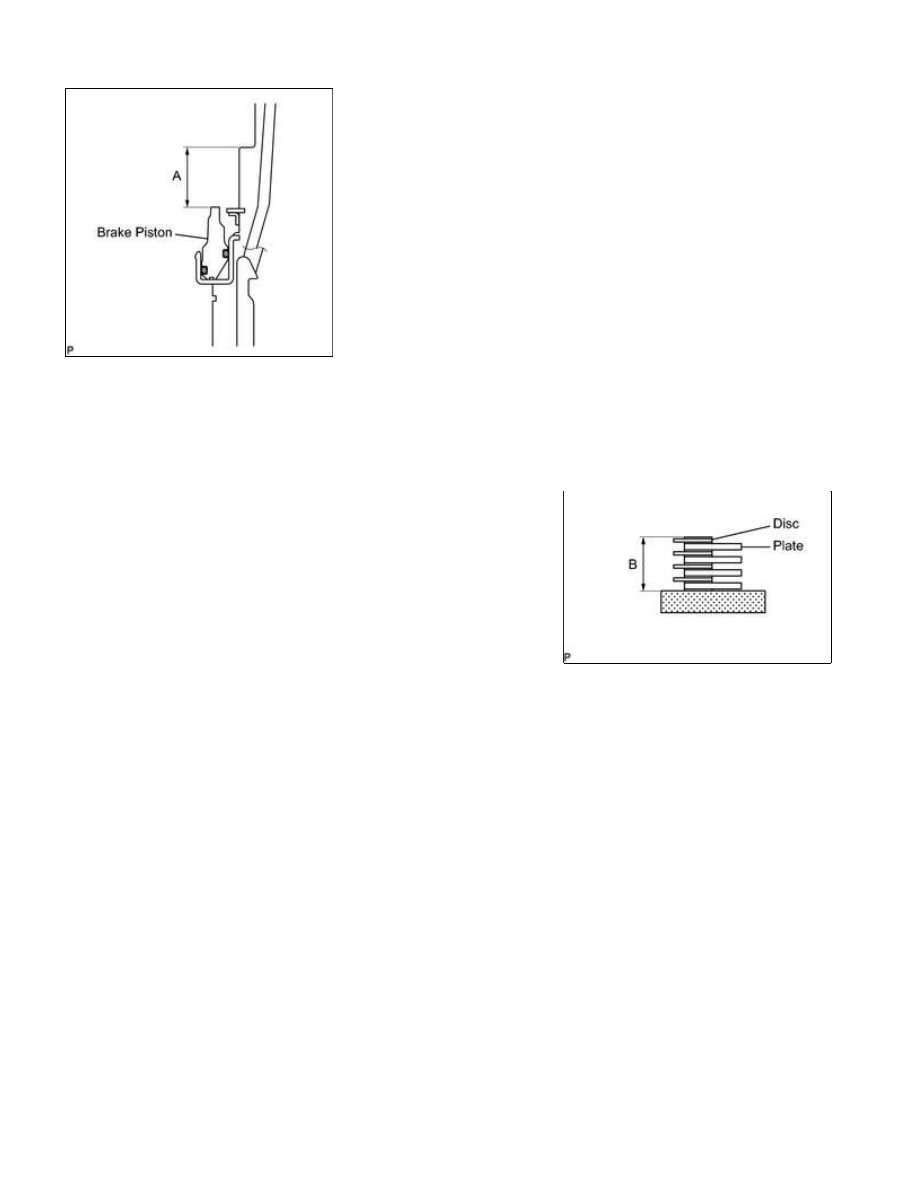

20. SELECT NO. 1 BRAKE FLANGE HINT: Standard distance A: 19.74 to 20.22 mm (0.777 to 0.796 in.) (b) Assemble the 4 plates and 4 discs and measure distance B in the illustration. *2 HINT: Standard distance B: 16.72 to 17.19 mm (0.658 to 0.677 in.) (c) Apply the A and B measurements taken in *1 and *2 to the graph below. Use A for the X axis and B for the Y axis, and then choose the flange indicated by the graph point. AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS... |
