HINT:

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely

on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / Data List.

(g) According to the display on the Techstream, read the Data List.

Engine and ECT:

TESTER

DISPLAY

MEASUREMENT

ITEM/RANGE

NORMAL CONDITION

DIAGNOSTIC NOTE

A/T Oil

Temperature 1

No. 1 ATF

temperature sensor

value/

Min.: -40°C (-40°F)

Max.: 150°C (302°F)

After stall test:

Approximately 80°C

(176°F)

With engine cold: Equal

to ambient

temperature

If value is -40°C (-40°F) or 150°C

(302°F), No. 1 ATF temperature

sensor circuit is open or shorted

HINT:

When DTC P0712 is output and the Techstream output is 150°C (302°F) or more, there is a short circuit.

When DTC P0713 is output and the Techstream output is -40°C (-40°F), there is an open circuit.

Check the temperature displayed on the Techstream in order to check if a malfunction exists.

TEMPERATURE DISPLAYED

MALFUNCTION

-40°C (-40°F)

Open circuit

150°C (302°F) or more

Short circuit

If a circuit related to the ATF temperature sensor becomes open, P0713 is immediately set (in 0.5

seconds). When P0713 is set, P0711 cannot be detected. It is not necessary to inspect the circuit when

P0711 is set.

PROCEDURE

1.

INSPECT NO. 1 TRANSMISSION WIRE (NO. 1 ATF TEMPERATURE SENSOR)

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

OK

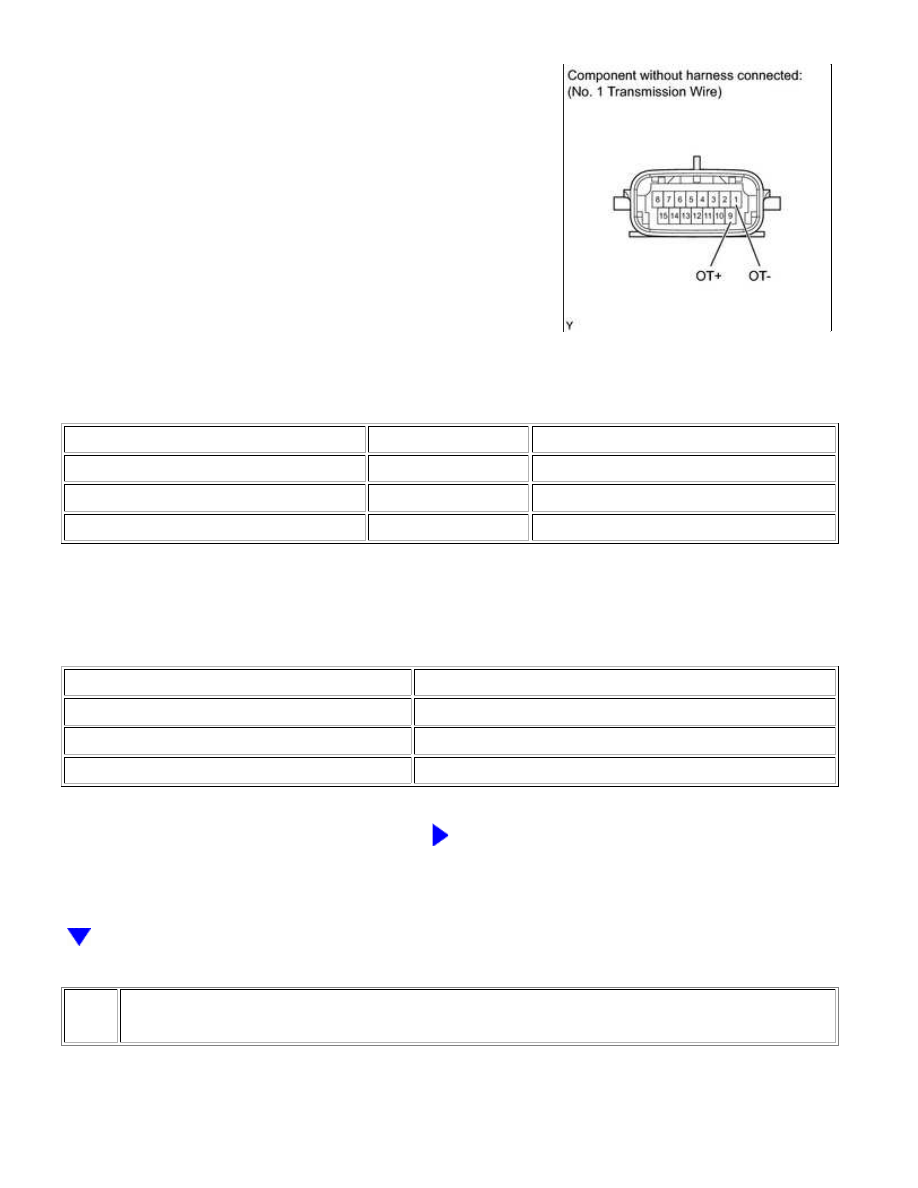

(a) Disconnect the D63 No. 1 transmission wire connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

1 (OT-) - 9 (OT+)

Always

79 Ω to 156 kΩ

1 (OT-) - Body ground

Always

10 kΩ or higher

9 (OT+) - Body ground

Always

10 kΩ or higher

HINT:

Resistance (Reference):

ATF TEMPERATURE

SPECIFIED CONDITION

10°C (50°F)

5 to 8 kΩ

25°C (77°F)

2.5 to 4.5 kΩ

110°C (230°F)

0.22 to 0.28 kΩ

NG

REPAIR OR REPLACE NO. 1 TRANSMISSION WIRE

(NO. 1 ATF TEMPERATURE SENSOR)

2.

CHECK HARNESS AND CONNECTOR (NO. 1 TRANSMISSION WIRE - ECM)

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

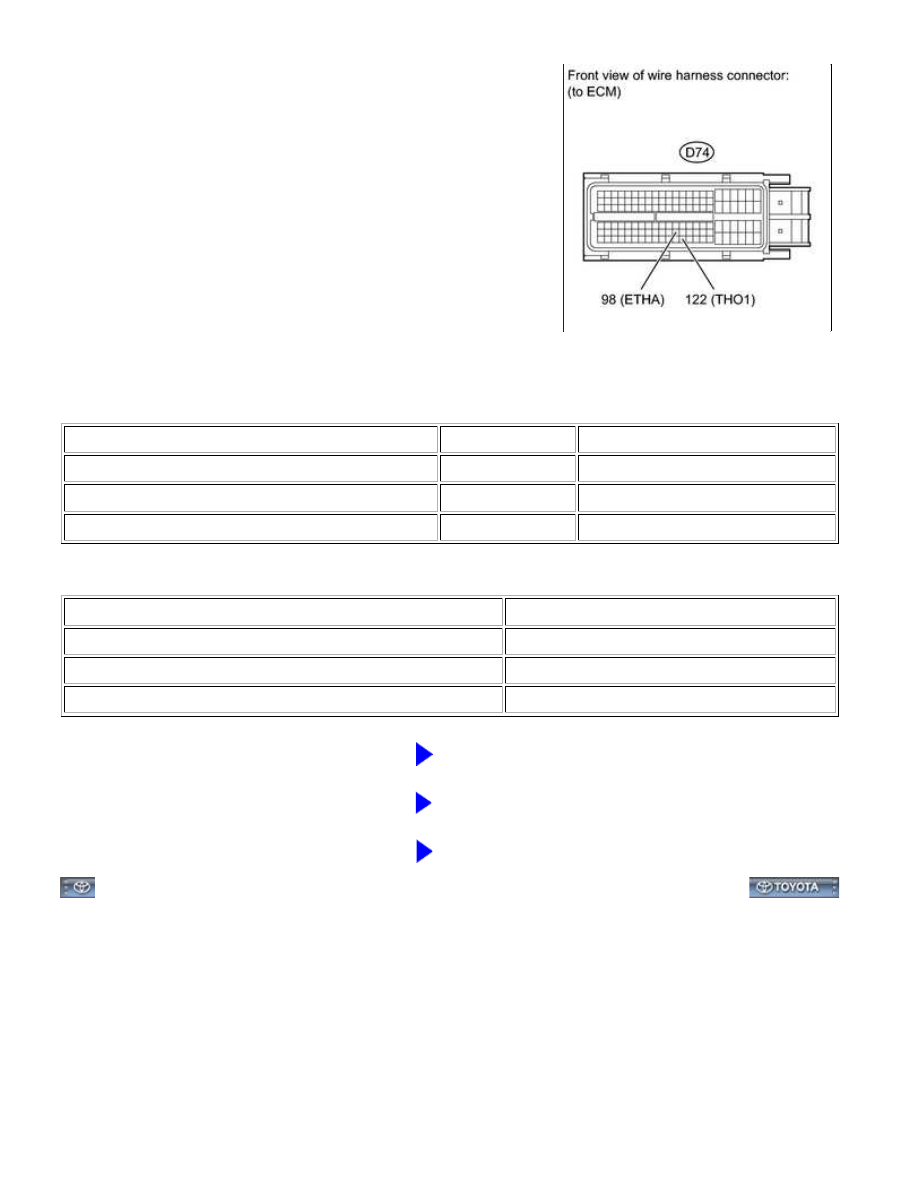

(a) Disconnect the D74 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

D74-122 (THO1) - D74-98 (ETHA)

Always

79 Ω to 156 kΩ

D74-122 (THO1) - Body ground

Always

10 kΩ or higher

D74-98 (ETHA) - Body ground

Always

10 kΩ or higher

Result

RESULT

PROCEED TO

NG

A

OK (for 3UR-FE)

B

OK (for 3UR-FBE)

C

B

REPLACE ECM

C

REPLACE ECM

A

REPAIR OR REPLACE HARNESS OR CONNECTOR

AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS...

Last Modified: 9-16-2014

6.6 C

Doc ID: RM000000W7Y0BQX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: AB60F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0717; Turbine Speed Sensor

Circuit No Signal; 2015 MY Tundra [08/2014 -        ]

DTC

P0717

Turbine Speed Sensor Circuit No Signal

DESCRIPTION

DTC

CODE

DTC DETECTION CONDITION

TROUBLE AREA

P0717

All conditions below are detected for 5 seconds or

more (1-trip detection logic)

(a) Gear change is not performed

(b) Gear position: 4th, 5th or 6th

(c) T/M input shaft rpm: Less than 300 rpm

(d) T/M output shaft rpm: 1000 rpm or more

(e) Park/neutral position switch:

NSW input signal is OFF

R input signal is OFF

(f) Shift solenoid valves and park/neutral position

switch are operating normally

Open or short in speed sensor NT

circuit

Speed sensor NT

ECM

Automatic transmission (clutch,

brake or gear, etc.)

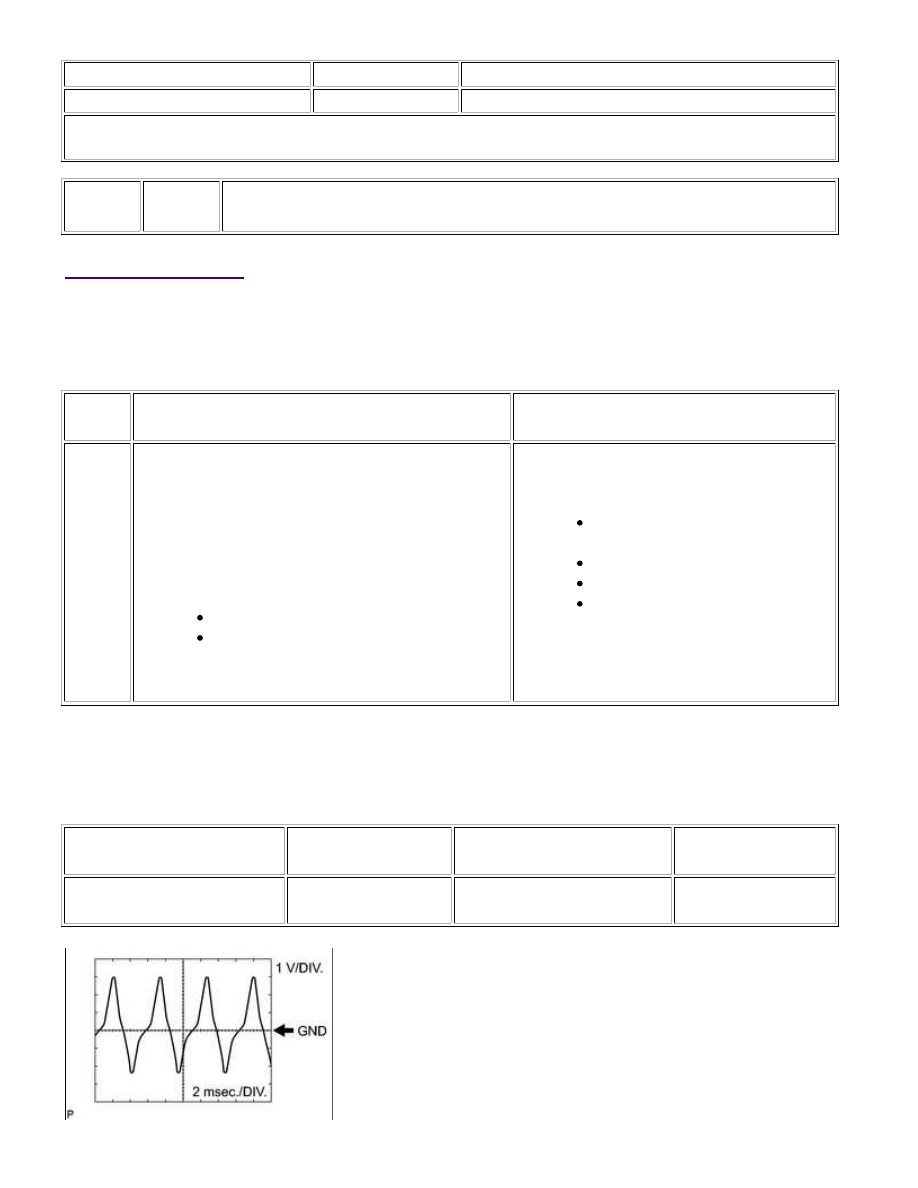

Reference: Inspect using an oscilloscope.

TERMINAL NO. (SYMBOL)

TOOL SETTING

CONDITION

SPECIFIED

CONDITION

D74-124 (NT+) - D74-123

(NT-)

1 V/DIV., 2 msec./

DIV.

Engine is idling (P or N

position)

Refer to the

illustration
