OK TESTER DISPLAY TEST PART CONTROL RANGE DIAGNOSTIC NOTE Activate the Solenoid (SLT)* Operate shift solenoid SLT and raise line pressure ON or OFF HINT: OFF: Line pressure up (when Active Test [Vehicle Condition] Vehicle stopped Engine idling HINT: *: Activate the Solenoid (SLT) in the Active Test is performed to check the line pressure changes by connecting SST to the automatic transmission, which is used in the Hydraulic Test

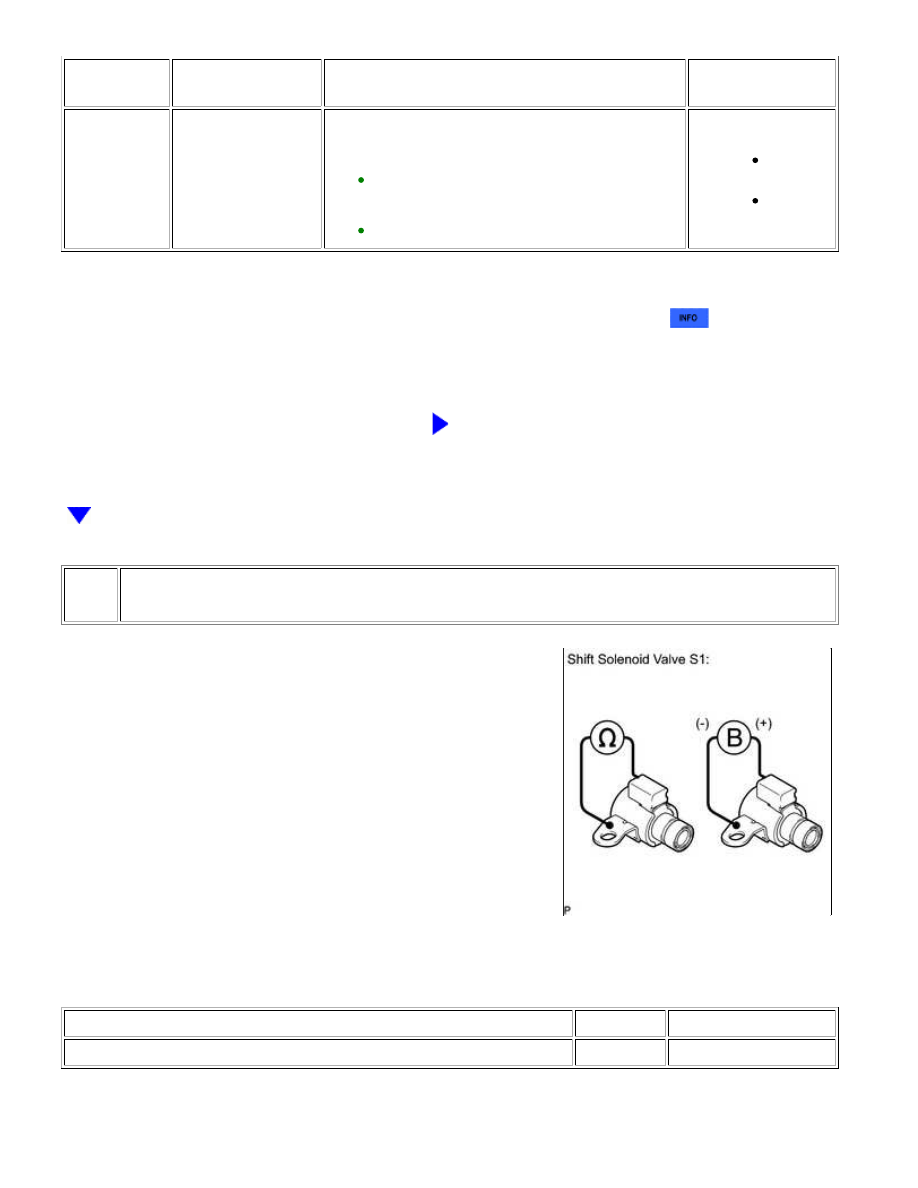

as well. Note that the pressure values in the Active Test and Hydraulic Test are different. OK: The line pressure changes as specified when performing the Active Test. NG REPLACE SHIFT SOLENOID VALVE SLT 3. INSPECT SHIFT SOLENOID VALVE S1 (a) Remove shift solenoid valve S1. (b) Measure the resistance according to the value(s) in the table below. Standard resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION Shift solenoid valve S1 connector terminal - Shift solenoid valve S1 body 20°C (68°F) 11 to 15 Ω AB60E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS... |
