Toyota Tundra (2015 year). Manual - part 444





Related DTCs

P0712: ATF temperature sensor/Range check (Low voltage)

P0713: ATF temperature sensor/Range check (High voltage)

Required sensors/Components

ATF temperature sensor

Duration

0.5 seconds

MIL operation

Immediately

TYPICAL ENABLING CONDITIONS

P0712: Range check (Low voltage)

The monitor will run whenever the following DTCs are not present

None

Battery voltage

8 V or higher

Ignition switch

ON

Starter

OFF

P0713: Range check (High voltage)

Either condition is met: Condition (A) or (B)

Condition (A)

The monitor will run whenever the following

DTCs are not present

P0115, P0117, P0118 (ECT (Engine Coolant

Temperature) sensor circuit)

P00AC, P00AD, P0110, P0112, P0113 (IAT (Intake

Air Temperature) sensor circuit)

Engine coolant temperature or intake air

temperature at engine start

-29.375°C (-20.875°F) or less

Time after engine start

338 seconds or more

Battery voltage

8 V or higher

Ignition switch

ON

Starter

OFF

Condition (B)

The monitor will run whenever the following

DTCs are not present

P0115, P0117, P0118 (ECT (Engine Coolant

Temperature) sensor circuit)

P00AC, P00AD, P0110, P0112, P0113 (IAT (Intake

Air Temperature) sensor circuit)

Engine coolant temperature and intake air

temperature at engine start

Higher than -29.375°C (-20.875°F)

Time after engine start

10 seconds or more

Battery voltage

8 V or higher

Ignition switch

ON

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

Starter

OFF

TYPICAL MALFUNCTION THRESHOLDS

P0712: Range check (Low voltage)

ATF temperature sensor voltage

Below 0.14 V (Higher than 164°C (327.2°F))

P0713: Range check (High voltage)

ATF temperature sensor voltage

Higher than 4.91 V (Below -48°C (-54.4°F))

COMPONENT OPERATING RANGE

ATF temperature sensor voltage

0.14 to 4.91 V

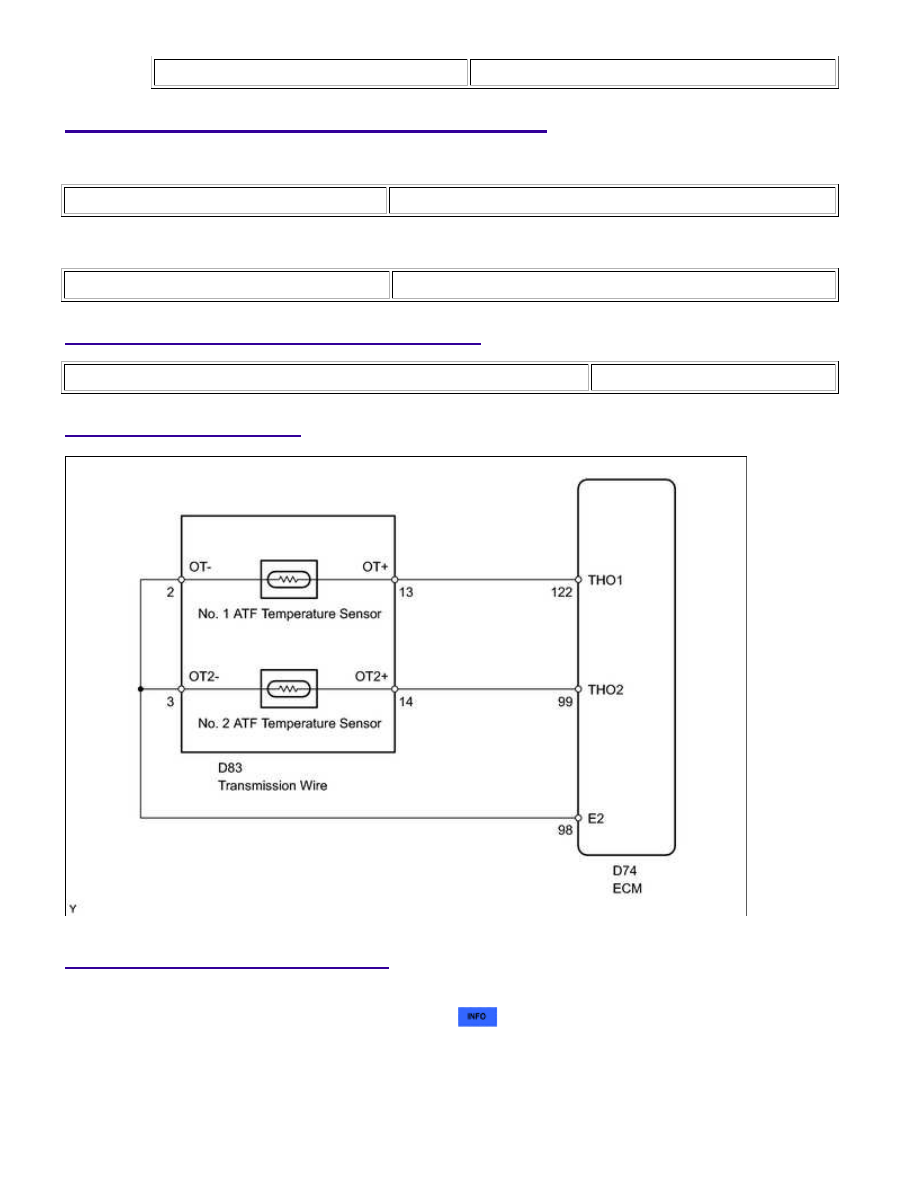

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

Perform the universal trip to clear permanent DTCs



.

1. DATA LIST

HINT:

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading
the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely

on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the ignition switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / Data List.

(g) According to the display on the Techstream, read the Data List.

Engine and ECT

TESTER

DISPLAY

MEASUREMENT

ITEM/RANGE

NORMAL CONDITION

DIAGNOSTIC NOTE

A/T Oil

Temperature 1

No. 1 ATF

temperature sensor

value/

Min.: -40°C (-40°F)

Max.: 150°C

(302°F)

After stall test:

Approximately 80°C

(176°F)

Equal to ambient

temperature when

engine cold

If the value is -40°C (-40°F) or 150°C

(302°F), the No. 1 ATF temperature

sensor circuit is open or shorted.

HINT:

When DTC P0712 is output and the Techstream output is 150°C (302°F) or more, there is a short circuit.

When DTC P0713 is output and the Techstream output is -40°C (-40°F), there is an open circuit.

Check the temperature displayed on the tester in order to check if a malfunction exists.

TEMPERATURE DISPLAYED

MALFUNCTION

-40°C (-40°F)

Open circuit

150°C (302°F) or more

Short circuit

If a circuit related to the ATF temperature sensor becomes open, P0713 is immediately stored (in 0.5

seconds). When P0713 is stored, P0711 cannot be stored.

It is not necessary to inspect the circuit when P0711 is stored.

PROCEDURE

1.

INSPECT TRANSMISSION WIRE (NO. 1 ATF TEMPERATURE SENSOR)

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...

OK

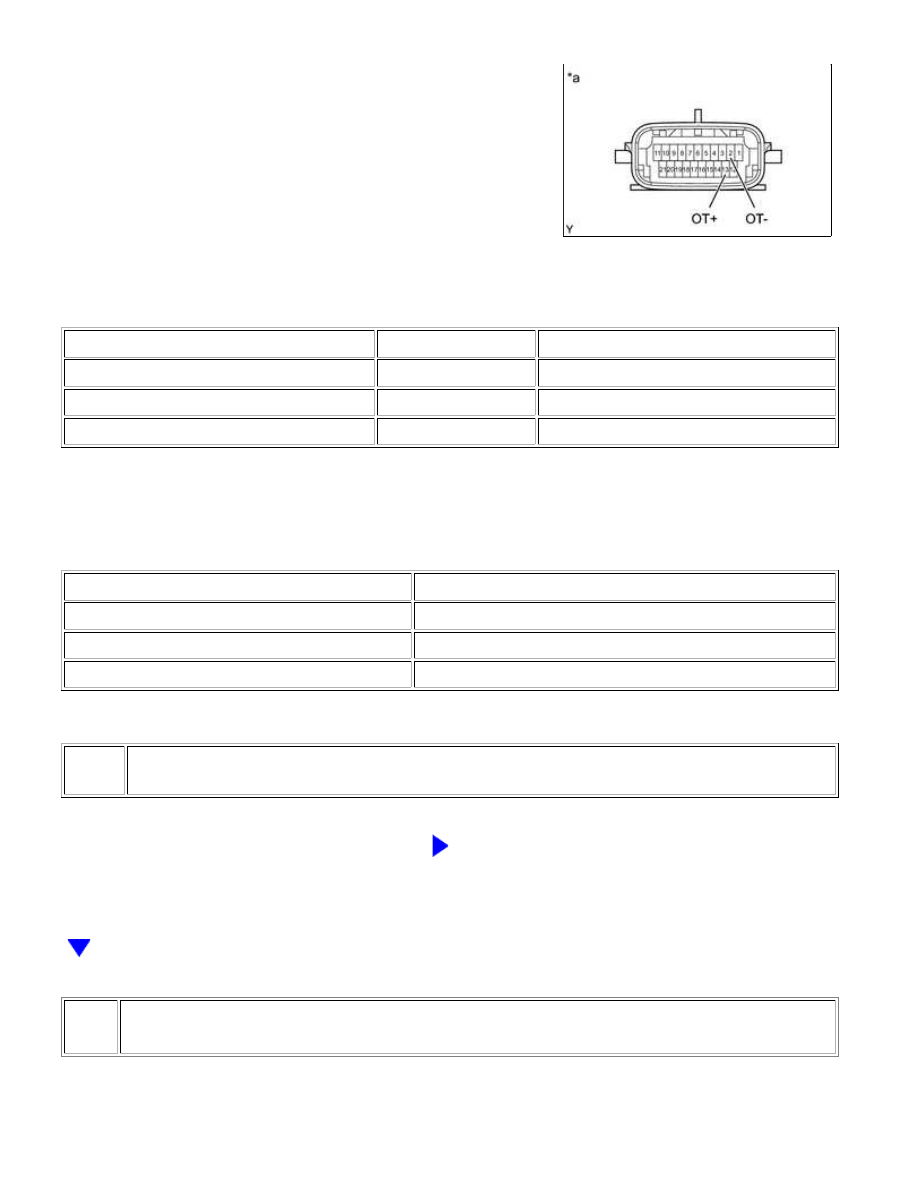

(a) Disconnect the D83 transmission wire connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

2 (OT-) - 13 (OT+)

Always

79 Ω to 156 kΩ

2 (OT-) - Body ground

Always

10 kΩ or higher

13 (OT+) - Body ground

Always

10 kΩ or higher

HINT:

Standard Resistance:

ATF TEMPERATURE

SPECIFIED CONDITION

10°C (50°F)

5 to 8 kΩ

25°C (77°F)

2.5 to 4.5 kΩ

110°C (230°F)

0.22 to 0.28 kΩ

Text in Illustration

*a

Component without harness connected

(Transmission Wire)

NG

REPAIR OR REPLACE TRANSMISSION WIRE (NO. 1

ATF TEMPERATURE SENSOR)

2.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS...
