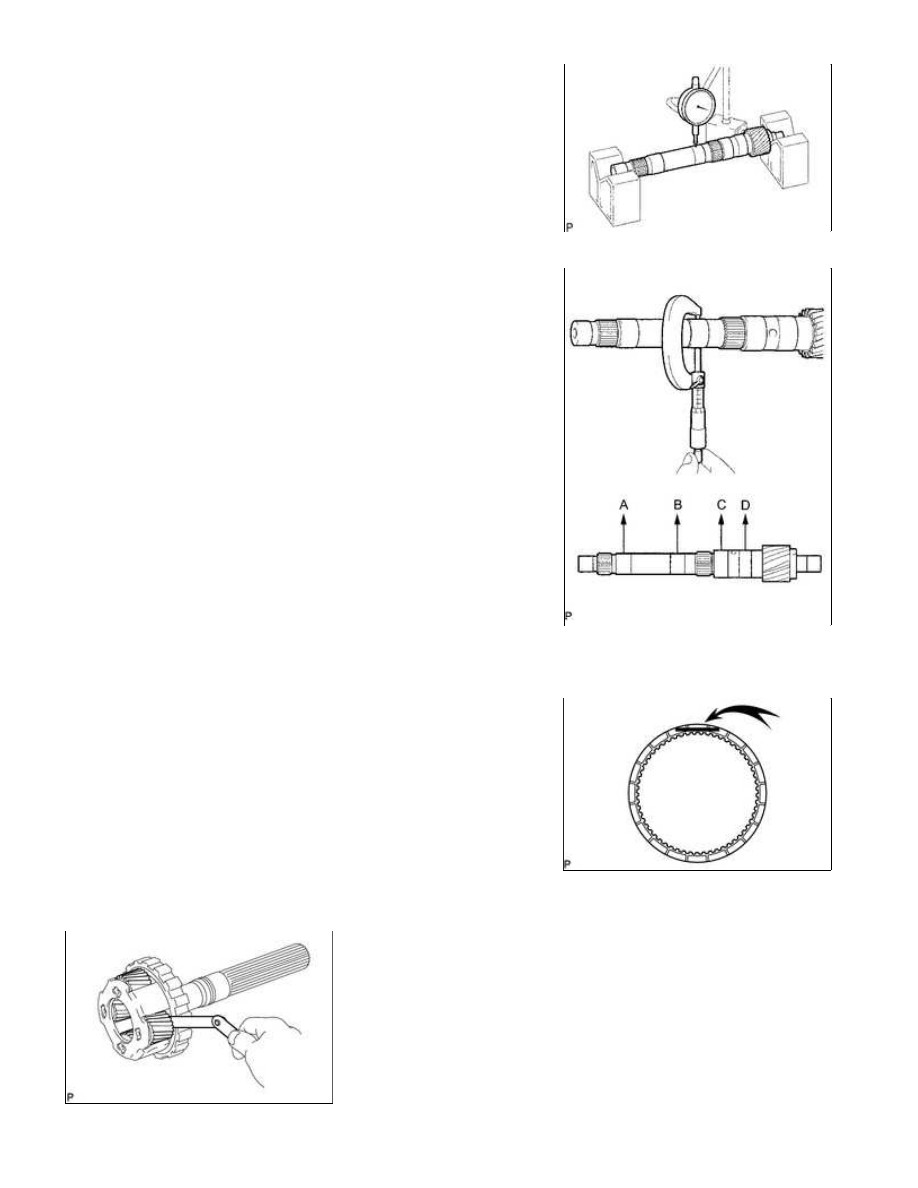

(a) Using a dial indicator, measure the intermediate shaft runout. Maximum runout: 0.08 mm (0.00315 in.) If the runout is more than the maximum, replace the intermediate shaft with a new one. Standard diameter: A, B 25.962 to 25.975 mm (1.022 to 1.023 in.) C, D 32.062 to 32.075 mm (1.262 to 1.263 in.) Minimum diameter: A, B 25.912 mm (1.02 in.) C, D 32.012 mm (1.26 in.) If the outer diameter is less than the minimum, replace the intermediate shaft with a new one. 25. INSPECT NO. 4 BRAKE DISC peeled off or discolored, or 3) the grooves or printed numbers Before assembling new discs, soak them in ATF for at least 15 minutes. 26. INSPECT REAR PLANETARY GEAR ASSEMBLY A760E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS... |
